Columbia 31A-2M1A897 User manual

Safety • Assembly • Operation • Adjustments • Maintenance • Troubleshooting • Parts Lists • Warranty
PRINTED IN U.S.A.
OPERATOR’S MANUAL
IMPORTANT:
READ SAFETY RULES AND INSTRUCTIONS
CAREFULLY BEFORE OPERATING EQUIPMENT.
LES DISTRIBUTIONS RVI LIMITÉE, 2955, JEAN-BAPTISTE DESCHAMPS, LACHINE, QUEBEC H8T 1C5
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019 769-04199A
5/25/09
Single-Stage Snow Thrower

2
Table of Contents
This Operator’s Manual is an important part of your new snow thrower. It will help you assemble,
prepare and maintain the unit for best performance. Please read and understand what it says.
Safety Symbols................................................... 3
Safe Operation Practices................................... 4
Set Up & Adjustment.......................................... 6
Know Your Snow Thrower .................................. 7
Operation............................................................. 8
Adjustments & Maintenance ............................. 9
Off-Season Storage.......................................... 10
Trouble Shooting .............................................. 11
Illustrated Parts Lists....................................... 12
Warranty ............................................................ 16
Finding and Recording Model Number
BEFORE YOU START ASSEMBLING
YOUR NEW EQUIPMENT,
please locate the model plate on the equipment and copy the
model number and the serial number to the sample model
plate provided to the right. You can locate the model plate by
standing at the operating position and looking down at the
frame.
Please do
NOT return the unit to the retailer from which it was purchased,
without first contacting Customer Support.
Customer Support
1. If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this
unit, please call an authorized dealer.
Please have your unit’s model number and serial number ready when you call. See previous section to locate this
information.
2. The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifica-
tions, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual, packed separately with
your unit, for more information.
Model Number
Serial Number

3

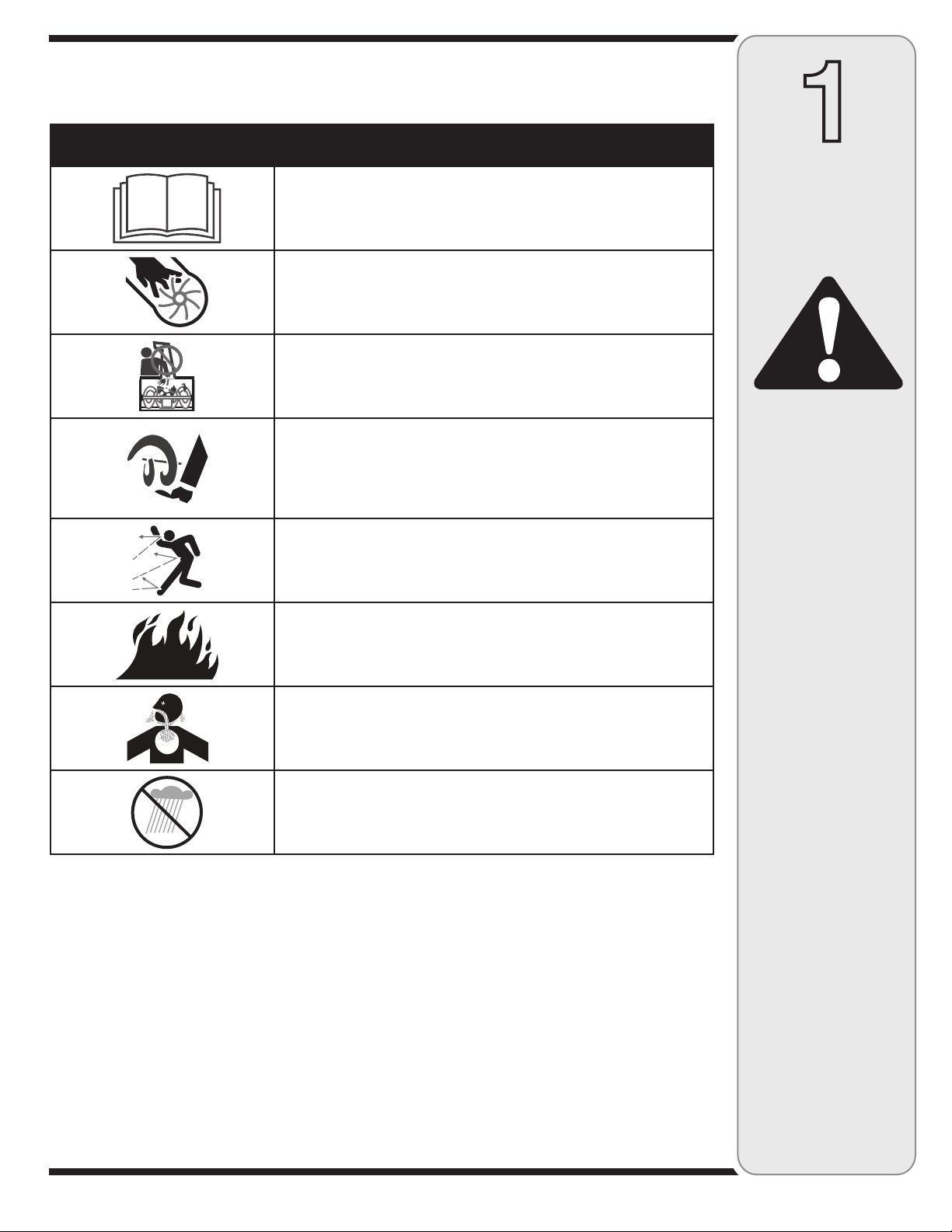

Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before
attempting to assemble and operate.
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running.
There are rotating blades inside.
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running.
There are rotating blades inside.
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing
or chute assembly. Contact with the rotating parts can amputate hands and
feet.
WARNING—THROWN OBJECTS
This machine may pick up and throw objects which can cause serious
personal injury.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust
contains carbon monoxide, an odorless and deadly gas.
WARNING— ELECTRICAL SHOCK
Do not use the engine’s electric starter in the rain.
1
Safety
Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all
instructions on the machine before attempting to assemble and operate.
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.

4
2
Safe
Operation
Practices Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them quickly.
3. Never allow children under 14 years old to operate this
machine. Children 14 years old and over should read and
understand the instructions and safe operation practices
in this manual and on the machine and be trained and
supervised by an adult.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow-throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, helpers, pets and children at least 75 feet
from the machine while it is in operation. Stop machine if
anyone enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
Preparation
Thoroughly inspect the area where the equipment is to be
used. Remove all doormats, newspapers, sleds, boards, wires
and other foreign objects, which could be tripped over or
thrown by the auger/impeller.
1. Always wear safety glasses or eye shields during
operation and while performing an adjustment or repair
to protect your eyes. Thrown objects which ricochet can
cause serious injury to the eyes.
2. Do not operate without wearing adequate winter outer gar-
ments. Do not wear jewelry, long scarves or other loose
clothing, which could become entangled in moving parts.
Wear footwear which will improve footing on slippery
surfaces.
3. Use a grounded three-wire extension cord and receptacle
for all units with electric start engines.
4. Disengage all control levers before starting the engine.
5. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual.
6. Let engine and machine adjust to outdoor temperature
before starting to clear snow.
Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes, which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other sources
of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the engine is hot
or running.
e. Allow engine to cool at least two minutes before refuel-
ing.
f. Never over fill fuel tank. Fill tank to no more than ½ inch
below bottom of filler neck to provide space for fuel
expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and equip-
ment. Move machine to another area. Wait 5 minutes
before starting the engine.
i. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light (e.g. furnace,
water heater, space heater, clothes dryer etc.).
j. Allow machine to cool at least 5 minutes before storing
k. Never fill containers inside a vehicle or on a truck or
trailer bed with a plastic liner. Always place containers on
the ground away from your vehicle before filling.
l. If possible, remove gas-powered equipment from the
truck or trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with a
portable container, rather than from a gasoline dispenser
nozzle.
m. Keep the nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is complete.
Do not use a nozzle lock-open device.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or chute assembly. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller control lever is a safety device. Never
bypass its operation. Doing so makes the machine unsafe
and may cause personal injury.
3. The control levers must operate easily in both directions
and automatically return to the disengaged position when
released.
4. Never operate with a missing or damaged chute assembly.
Keep all safety devices in place and working.
WARNING: Engine Exhaust, some of its constituents, and certain vehicle compo-
nents contain or emit chemicals known to State of California to cause cancer and
birth defects or other reproductive harm.
WARNING
This symbol points
out important safety
instructions which,
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
ITS WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
DANGER: This machine was built to be operated according to the safe operation practices in this
manual. As with any type of power equipment, carelessness or error on the part of the operator can
result in serious injury. This machine is capable of amputating hands and feet and throwing objects.
Failure to observe the following safety instructions could result in serious injury or death.

5
5. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless and
deadly gas.
6. Do not operate machine while under the influence of alcohol
or drugs.
7. Muffler and engine become hot and can cause a burn. Do
not touch.
8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while operat-
ing on slopes.
10. Plan your snow-throwing pattern to avoid discharge towards
windows, walls, cars etc. Thus, avoiding possible property
damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or
allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
13. Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles. Walk, never run.
14. Disengage power to the auger/impeller when transporting or
not in use.
15. Never operate machine at high transport speeds on slippery
surfaces. Look down and behind and use care when
backing up.
16. If the machine should start to vibrate abnormally, stop the
engine, disconnect the spark plug wire and ground it against
the engine. Inspect thoroughly for damage. Repair any
damage before starting and operating.
17. Disengage all control levers and stop engine before you
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the chute assembly, making any adjustments, or
inspections.
18. Never put your hand in the discharge or collector openings.
Do not unclog chute assembly while engine is running. Shut
off engine and remain behind handles until all moving parts
have stopped before unclogging.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. When starting engine, pull cord slowly until resistance is felt,
then pull rapidly. Rapid retraction of starter cord (kickback)
will pull hand and arm toward engine faster than you can let
go. Broken bones, fractures, bruises or sprains could result.
21. If situations occur which are not covered in this manual, use
care and good judgment. Call customer assistance for the
name of your nearest servicing dealer.
Clearing a Clogged
Discharge Chute
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to slean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the impeller blades have
stopped rotating.
3. Always use a clean-out tool, not your hands.
Maintenance & Storage
1. Never tamper with safety devices. Check their proper
operation regularly. Refer to the maintenance and adjust-
ment sections of this manual.
2. Before cleaning, repairing, or inspecting machine disengage
all control levers and stop the engine. Wait until the auger/
impeller come to a complete stop. Disconnect the spark plug
wire and ground against the engine to prevent unintended
starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer’s (OEM) parts only. “Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!”
6. Check controls periodically to verify they engage and
disengage properly and adjust, if necessary. Refer to the
adjustment section in this operator’s manual for instructions.
7. Maintain or replace safety and instruction labels, as neces-
sary.
8. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator’s manual for proper instructions
on off-season storage.
12. Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
13. Do not crank engine with spark plug removed.
14. According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency
(EPA), this product has an Average Useful Life of seven (7)
years, or 60 hours of operation. At the end of the Average
Useful Life, have the machine inspected annually by an
authorized service dealer to ensure that all mechanical and
safety systems are working properly and not worn exces-
sively. Failure to do so can result in accidents, injuries or
death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way.Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and may
include the following emission control systems: Engine Modifica-
tion (EM) Oxidizing Catalyst (OC), Secondary Air Injection (SAI)
and Three Way Catalyst (TWC) if so equipped.
2
Safe
Operation
Practices
WARNING
This symbol points
out important safety
instructions, which
if not followed, could
endanger the per-
sonal safety and/or
property of yourself
and others. Read and
follow all instructions
in this manual before
attempting to operate
this machine. Failure
to comply with these
instructions may
result in personal
injury. When you see
this symbol, HEED
IT’S WARNING!
Your Responsibility
Restrict the use
of this power machine
to persons who read,
understand
and follow the warnings
and instructions
in this manual
and on the machine.
11.04.08

6

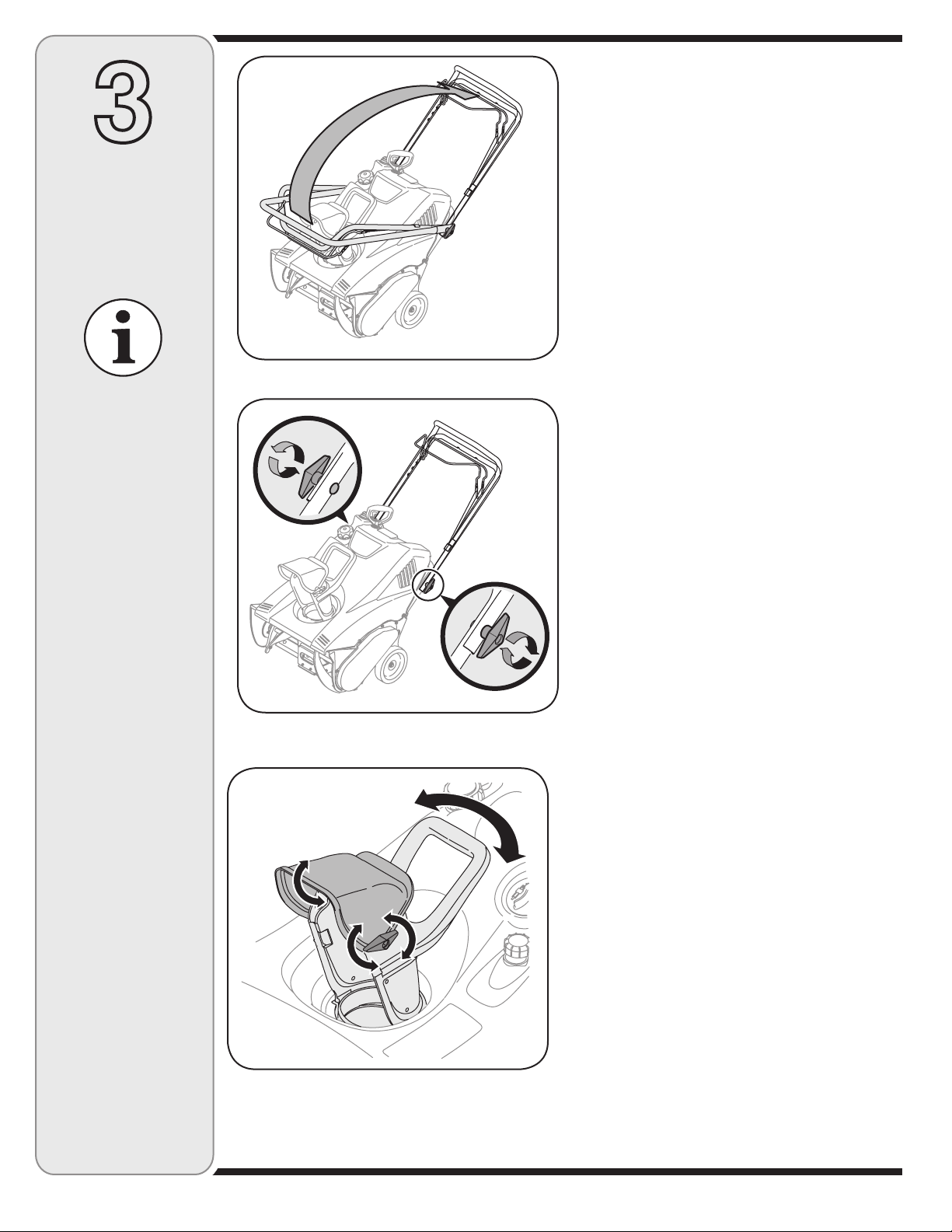

Positioning the Upper Handle
1. Remove packing material, if present.
2. Raise the upper handle in the direction shown in
Figure 3-1 until it clicks into the operating position.
Make sure not to pinch or crimp the cable.
3. Tighten the knobs. See Figure 3-2.
3
Snow
Thrower
Setup
Figure 3-2
NOTE: All references
to left or right side of
the snow thrower is
from the operating
position only.
Figure 3-1
NOTE: This Operator’s
Manual covers several
models.
Not all features refer-
enced in this manual
are applicable to all
snow thrower models.
IMPORTANT:
Do not use the
chute handle to lift
the snow thrower.
Chute Assembly
The direction snow is thrown can be changed by turning
the lower chute with the chute handle. See Figure 3-3.
The distance snow is thrown can be adjusted by raising
the upper chute for greater distance, or lowering for less
distance.
Loosen the wing nut on the side of the discharge chute to
adjust. Pivot the chute to desired position, and retighten
wing nut.
IMPORTANT: Do not use the chute handle to lift the
snow thrower
Figure 3-3

7
4
Know
Your Snow
Thrower
Choke Lever
Activating choke control closes the choke plate on
carburetor and aids in starting engine. Refer to the engine
manual packed with unit for more detailed instructions.
Primer
Depressing primer forces fuel directly into
engine’s carburetor to aid in cold-weather
starting. Refer to engine manual packed with
unit for more detailed instructions.
Ignition Key
The ignition key must be inserted and
snapped in place in order for the engine to
start. Remove the ignition key to prevent
unauthorized use of equipment. Do NOT
attempt to turn the key.
Recoil Starter
The starter handle is used to manually start the engine.
Auger
When engaged, the augers rotation draws snow into the
auger housing and throws it out the discharge chute.
Rubber paddles on the augers also aid in propelling the
unit as they come in contact with the pavement.
Auger Control Handle
Located on the upper handle, the auger control handle
is used to engage and disengage drive to the auger.
Squeeze the control handle against the upper handle to
engage auger; release it to disengage.
Discharge Chute / Chute Handle
Rotate the discharge chute to the left or right using
chute handle. The angle of the discharge chute controls
the distance that the snow is thrown. Tilt the discharge
chute up for greater distance; tilt down for less distance.
Loosen the hand knob on the side of the discharge
chute to adjust. Tilt the chute to the desired position,
and tighten the knob.
Shave Plate
The shave plate maintains contact with pavement as
the snow thrower is propelled, allowing snow close to
pavement’s surface to be discharged.
Figure 4-1
Be familiar with
all the controls on
the snow thrower
and their proper
operation. Know how
to stop the machine
and disengage them
quickly.
WARNING
Chute Assembly
Shave Plate
Auger
Recoil Starter
Handle
Ignition Key
Primer
Gas Cap
Control Handle
Auger Control
Exhaust
Spark Plug
Recoil
Starter
Handle
Oil Fill Cap
w/ Dipstick
Oil Drain
Choke Lever
Now that you have set up your snow thrower for operation, get acquainted with its controls and features. These are
described below and illustrated in Figure 4-1. This knowledge will allow you to use your new equipment to its fullest
potential.
NOTE: For detailed starting instructions and more information on all engine controls, refer to the engine manual
packed with your unit.

8
Before Starting
IMPORTANT: For complete and detailed engine
starting, stopping and storing instructions, it is
recommended that you read the engine manual also
included with this unit.
1. The spark plug wire was disconnected for safety.
Attach spark plug wire to spark plug before starting.
Gas and Oil Fill-Up
1. Check oil and gasoline level and add if necessary.
Follow related instructions in the separate engine
manual packed with your snow thrower.
WARNING: Use extreme care when
handling gasoline. Gasoline is
extremely flammable and the vapors
are explosive. Never fuel the machine
indoors or while the engine is hot or
running. Extinguish cigarettes, cigars,
pipes and other sources of ignition.
To Start Engine
1. Insert ignition key into slot. See Figure 5-1.
NOTE: Do NOT attempt to turn the key.
MPORTANT: Do not pull the starter handle with engine
running.
2. Move choke to the ON position (cold engine start). If
engine is warm, place choke in OFF position.
3. Push primer three to five (5-7) times, making sure
to cover vent hole when pushing. If engine is warm,
push primer only once. Always cover vent hole when
pushing. Cool weather may require priming to be
repeated.
4. Pull gently on the starter handle until it begins to
resist, then let the rope rewind slowly.
5. Pull the starter handle rapidly. Do not release the
handle and allow it to snap back. Return rope
SLOWLY to original position. If required, repeat this
step.
6. As the engine warms, slowly rotate the choke control
to OFF position. If the engine falters, restart engine
and run with choke at half-choke position for a short
period of time, and then slowly rotate the choke into
OFF position.
5
Operation
Stopping the Engine
1. Run engine for a few minutes before stopping to help
dry off any moisture on the engine.
2. Remove the ignition key. Removing the key will reduce
the possibility of unauthorized starting of the engine
while equipment is not in use. Keep the key in a safe
place. The engine cannot start without the ignition
key.
3. Wipe all snow and moisture from the area around the
engine as well as the area in and around the drive
control and auger control. Also, engage and release
both controls several times.
To Engage Augers
1. To engage the augers and start throwing snow,
squeeze the auger control against the handle. Release
to stop the augers.
Engaging the Drive
1. Lifting up on the handle will allow the rubber on the
augers to propel the snow thrower forward. Pushing
downward on the handle will raise the augers off the
ground and stop forward motion.
NOTE: Excessive upward pressure on the handle will
result in premature wear on the rubber auger blades
which would not be covered by warranty.
WARNING
Read, understand,
and follow all instruc-
tions and warnings
on the machine and
in this manual before
operating.
Use extreme care
when handling
gasoline. Gasoline is
extremely flammable
and the vapors are
explosive. Never fuel
the machine indoors
or while the engine
is hot or running.
Extinguish cigarettes,
cigars, pipes and
other sources of
ignition.
Muffler, engine and
surrounding areas
become hot and
can cause a burn.
Do not touch.
Figure 5-1

9

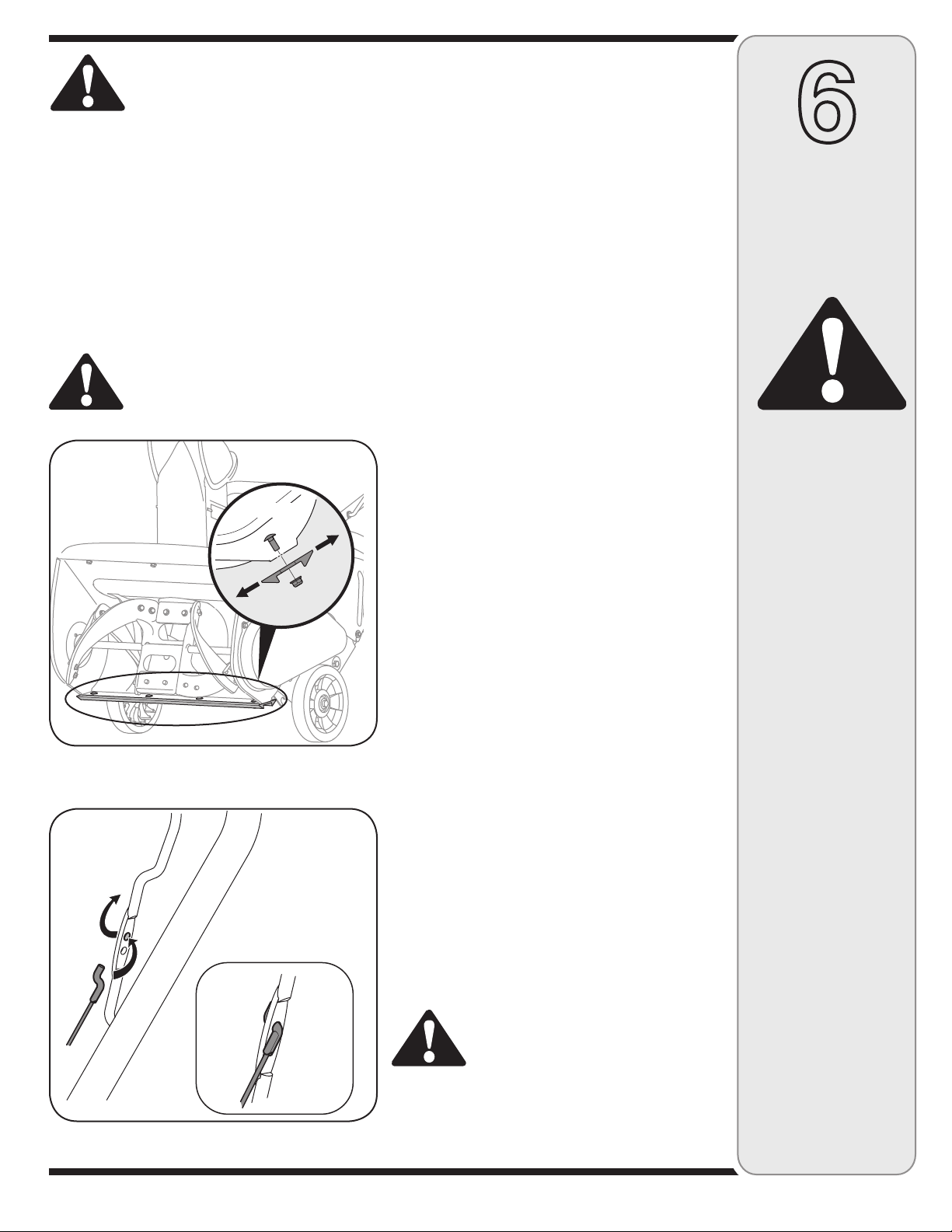

2. To adjust, tip the snow thrower back so that it rests
on the handle.
3. Loosen the four lock nuts and bolts which secure the
shave plate to the housing. See Figure 6-1. Move
the shave plate to desired position and retighten the
nuts and bolts securely.
4. Tip the snow thrower back to the operating position
and pull the starter handle a few times to see if it is
difficult to pull.
5. If the starter is difficult to pull, remove the spark plug
and pull the handle several times to ensure that any
oil trapped in the head is removed.
Caution: Oil may come out of the spark plug hole when
it is removed and the starter handle is pulled.
6. Inspect the spark plug. If it is wet, clean off any oil
before re-installing.
Replacing Shave Plate
The shave plate is attached to the bottom of the auger
housing and is subject to wear. It should be checked
periodically. There are two wearing edges and the
shave plate can be reversed. Refer to Figure 6-1. To
replace or reverse the shave plate proceed as follows:
1. Remove the carriage bolts and hex lock nuts which
attach it to the snow thrower housing.
2. Install new shave plate (or reverse), making sure the
heads of the carriage bolts are on the inside of the
housing.
3. Adjust the shave plate according to instructions
above
4. Tighten securely.
Control Cable
As a result of both the control cable and the drive belt
stretching due to wear, periodic adjustments may be
necessary.
If the auger seems to hesitate when rotating while the
engine maintains a constant speed, an adjustment is
necessary. Proceed as follows:
The upper hole in the control handle provides for an
adjustment in cable tension. To adjust, disconnect the
end of control cable from the bottom hole in the control
handle and reinsert it in the upper hole. Insert the cable
from the outside as shown in Figure 6-2. Test the snow
thrower to see if there is a noticeable difference.
Replacing Belt
WARNING: Before servicing, repairing,
or inspecting, disengage the control
bail and stop engine. Wait until all
moving parts have come to a complete
stop.
6
Adjustments
&
Maintenance
Figure 6-1
NEVER attempt
to make any
adjustments while
the engine is
running, except
where specified in
the operator’s
manual.
Before servicing,
repairing, or
inspecting,
disengage the
control bail and
stop engine.
Removing the key will
reduce the possibility
of unauthorized
starting of the engine
while equipment is
not in use.
3IDE6IEW
WARNING
Figure 6-2
WARNING: NEVER attempt to make
any adjustments while the engine is
running, except where specified in the
operator’s manual.
Shave Plate
1. To check the adjustment of the shave plate, place
the unit on a level surface. The wheels, shave plate
and augers should all contact level surface. Note
that if the shave plate is adjusted too high, snow may
blow under the housing. If the shave plate wears out
excessively, or the unit does not self-propel, the shave
plate may be too low and needs to be adjusted.
NOTE: On new units or units with a new shave plate
installed, the augers may be slightly off the ground.
WARNING: Run the engine com-
pletely dry of gasoline before tipping
snowthrower.

10
Figure 6-3
Before servicing,
repairing, or inspect-
ing, disengage the
control bail and stop
engine. Wait until all
moving parts have
come to a complete
stop.
WARNING
6
Adjustments
&
Maintenance
IMPORTANT: Do NOT
allow the auger’s rubber
paddles to wear to the point
where portions of the metal
auger itself can come in
contact with the pavement.
Doing so can result in
serious damage to your
snow thrower.

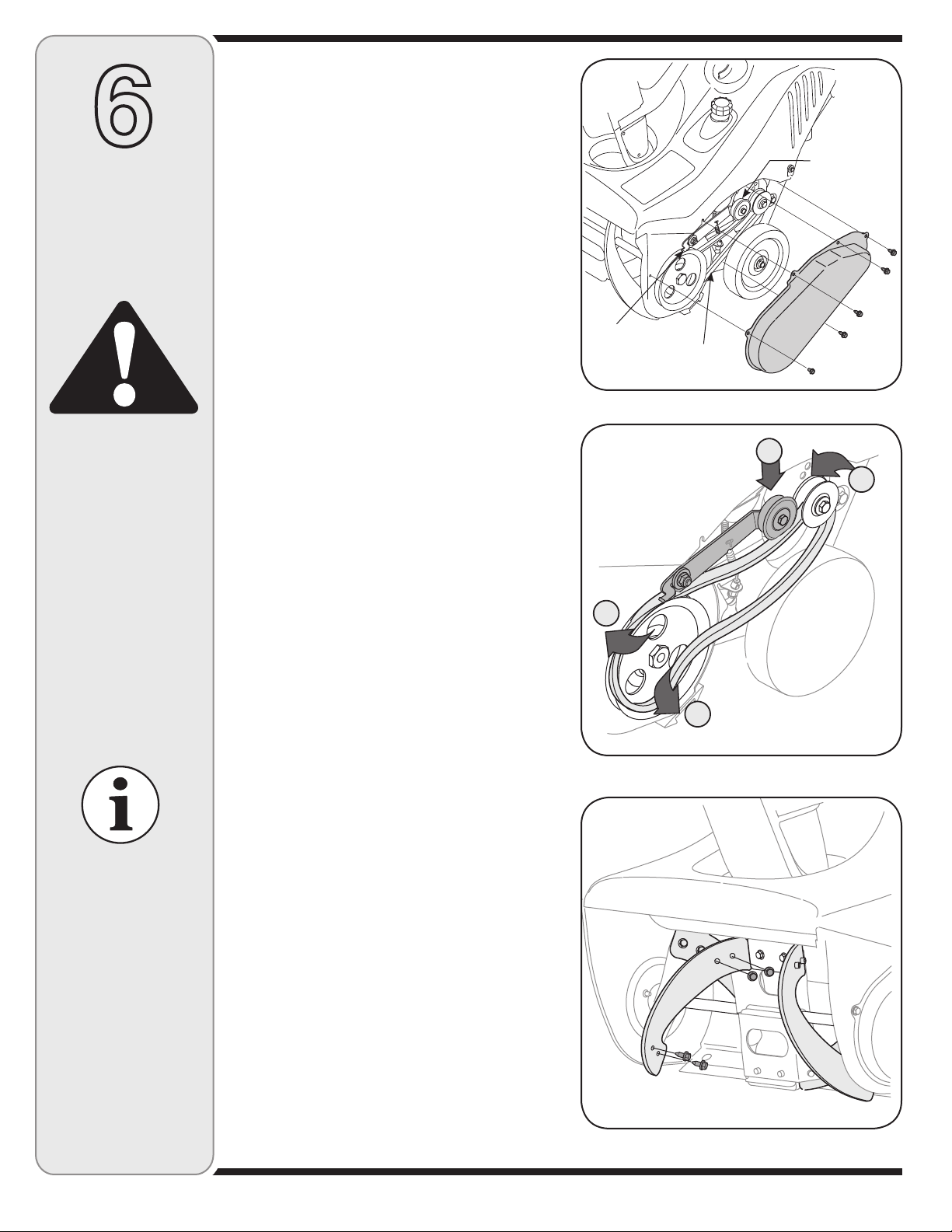

Remove the belt cover by removing five hex screws. See
Figure 6-3. Then simply pull the belt off by grasping it
from the bottom of the auger pulley and pulling off. Once
you remove the belt from the pulleys, you can push down
on the idler pulley to release the belt from under belt
keeper.
To replace the belt follow these instructions and refer to
Figure 6-4:
1. Push down on the Idler pulley.
2. Put belt on top of the auger pulley under belt keeper.
3. Thread belt around engine pulley.
4. Push belt over bottom of auger pulley.
5. Reinstall the belt cover removed earlier.
Engine
1. Refer to the separate engine manual for all engine
maintenance procedures.
2. Check engine and snow thrower frequently for loose
hardware, and tighten as needed.
Lubrication
Lubricate pivot points on the control handle and the
extension spring at the end of the control cable with a
light oil once every season and before storage of the
snow thrower at the end of the season.
Replacing Auger Paddles
The snow thrower auger’s rubber paddles are subject to
wear and should be replaced if any signs of excessive
wear is present.
IMPORTANT: Do NOT allow the auger’s rubber paddles
to wear to the point where portions of the metal auger
itself can come in contact with the pavement. Doing so
can result in serious damage to your snow thrower.
To change the rubber paddles, proceed as follows:
1. Remove the existing rubber paddles by unthreading the
self-tapping screws which secure them to the auger.
See Figure 6-5.
2. Secure the replacement rubber paddles to the auger
using the hardware removed earlier.
Off-Season Storage
If unit is to be stored over 30 days, prepare for storage
as instructed in the separate engine manual packed with
your snow thrower.
Clean snow thrower thoroughly.•
Lubricate as instructed in the Maintenance section of•
this manual.
Refer to engine manual for correct engine storage•
instructions.
Store the snow thrower in a clean, dry area.•
When storing any type of power equipment in a•
poorly ventilated or metal storage shed, care should
be taken to rustproof the equipment, especially
springs, cables and all moving parts.
To remove, pull belt here
Belt Keeper
Idler Pulley
Figure 6-4




Figure 6-5

11
7
NOTE: This section
addresses minor
service issues. For
further details, contact
customer assistance.
Trouble-
Shooting
CauseProblem Remedy
Engine runs erratic 1. Move choke lever to OFF position.
2. Clean fuel line; fill tank with clean,
fresh gasoline.
3. Drain fuel tank. Refill with
fresh fuel.
4. Contact Service Center.
1. Unit running on CHOKE.
2. Blocked fuel line or stale fuel.
3. Water or dirt in fuel system.
4. Carburetor out of adjustment.
Engine overheats 1. Contact Service Center.1. Carburetor not adjusted properly.
Loss of power 1. Connect and tighten spark plug
wire.
2. Remove ice and snow from gas
cap. Be certain vent hole is clear.
3. Contact Service Center.
1. Spark plug wire loose.
2. Gas cap vent hole plugged.
3. Exhaust port plugged.
Unit fails
to propel itself
1. Adjust drive control cable. Refer to
“Adjustments”.
2. Replace drive belt.
1. Drive control cable in need of adjust-
ment.
2. Drive belt loose or damaged.
Excessive
Vibration
1. Loose parts or damaged auger. 1. Stop engine immediately and
disconnect spark plug wire. Tighten
all bolts and nuts. If vibration
continues, have unit serviced by a
Service Center.
Unit fails
to discharge snow
1. Stop engine immediately and
disconnect spark plug wire. Clean
chute assembly and inside of
auger housing with clean-out tool
or a stick.
2. Stop engine immediately and
disconnect spark plug wire.
Remove object from auger.
3. Refer to Maintenance section.
1. Chute assembly clogged.
2. Foreign object lodged in auger.
3. Auger belt loose or damaged.
1. Choke not in ON position.
2. Spark plug wire disconnected.
3. Fuel tank empty or stale fuel.
4. Engine not primed.
5. Faulty spark plug.
6. Blocked fuel line.
7. Safety key not in ignition on engine.
8. Fuel shut-off valve closed. (If
1. Move choke to ON position.
2. Connect wire to spark plug.
3. Fill tank with clean, fresh gasoline.
4. Prime engine as instructed in
“Operating Your Snow Thrower”.
5. Clean, adjust gap, or replace.
6. Clean fuel line.
7. Insert key fully into the switch.
8. Open fuel shut-off valve.
Engine fails to start

12
1
2
3
4
5
6
5
7
12
48
39
8
45
36
37
38
35
43
42
33
44 34
10
9
42 41
21
22
23 25
26
24
16
17
32
31
47 46
11
7
27
28
29 13
14 15
20 20
19
18
20
45
30
NOTE: Snow thrower features/components vary by model. NOT all parts listed above and pictured on the previous page are standard equipment.
REMARQUE: Les caractéristiques/composants des souffleuses varient d’un modèle à un autre. Les pièces énumérées ci-dessus et illustrées sur la
page précédente ne sont pas TOUTES fournies en série.
Model/Modèle 2M1A

13
8
REF PART
NO.NO.
N° DE N° DE
RÉF PIÈCE DESCRIPTION DESCRIPTION
1751-10487 Cap-Fuel Capuchon d’essence
2 751-10023 Fuel Tank 2 Quart Réservoir de carburant de 2 quarts
3 790-00134 Gas Tank Support Bracket Support de réservoir de carburant
4 747-04236 Gas Tank Wire Support Fil de support - réservoir a carburant
5 726-0205 Hose Clamp Collier
6 751-0535 Fuel Line Ligne d’essence
7 712-04064 Hex L-Flanged Nut 1/4-20 Gr. F Nylon Contre-écrou à embase 1/4-20 Qual. F nylon
8 710-0751 Hex Bolt 1/4-20 x .62 Gr. 5 Boulon hexagonale 1/4-20 x 0,62 Qual. 5
9 710-0654A Hex Wash HD Tap Scr 3/8-16 x .88 Vis autotaraudee 3/8-16 x 0,88
10 790-00216 Engine Bracket Support du moteur
11 726-0233 Push Nut Écrou pousée
12 726-0154 Push Mount Tie Tige de poussoir
13 756-0416B Pulley Half .625 ID x 2.25 OD Moitie poulie 0,625 DI x 2,25 DE
14 736-0242 Flat Washer .340 ID x .872 OD x .060 Rondelle plate 0,340 DI x 0,872 DE x 0,060
15 710-0627 Hex L-Bolt 5/16-24 x .75 Gr. 5 Boulon hex 5/16-24 x 0,75 Qual. 5
16 756-04232 Pulley 1/2 x 6,0" OD Poulie 1/2 x 6,0" DE
17 754-0101A V-Belt 1/2 x 35.0" Lg. Courroie trapezoïdale 1/2 x 35,0 po de lg
18 790-00045C Belt Cover Couvercle de courroie
19 710-0653 Hex Wash HD Tapp Scr 1/4-20 x .375 Vis auto-taraudeuse hexagonale 1/4-20 x 0,375
20 710-0896 Hex B-Tap Scr 1/4-28 x .25" Lg Vis taraudée à tête hexagonale 1/4-28 x 0,25
21 710-1005 Hex Tap Scr. 1/4-14 x .5" Lg. Vis taraudée 1/4-14 x 0,50 po de lg.
22 790-00249 Bearing Cup Roulement à cuvette
23 741-04188A Ball Bearing .625 x 37 x 12.63 Roulement à billes 0,625 x 37,0 x 12,63
24 712-04063 Flange Locknut 5/16-18 Gr. F, Nylon Contre-écrou à embase 5/16-18 Qual. F, nylon
25 748-0234 Shoulder Spacer .25 THKEntretoise épaulée
26 790-00238A Idler Bracket Support du tendeur
27 684-04168 Idler Pulley Ass'yPoulie du tendeur
28 750-04571 Shld. Spacer .260 x .785 x .538 Entretoise 0,260 x 0,785 x 0,538
29 710-0106 Hex Screw 1/4-20 x 1.25 Gr. 5 Special Vis à tête hex. 1/4-20 x 1,25 Qual. 5 Spécial
30 726-0299 Push Cap x 1/2" Rod Écrou pour tige de 1/2 po
31 738-0924A Hex Shld.Scr.1/4-28 x .375 Vis à épaulement 1/4-28 x 0,375
32 756-0625 Cable Guide Roller Guide du câble
33 684-04253 Auger AssemblyEnsemble de la tarière
34 750-04757 Auger Spacer LH Entretoise de la tarière - gauche
35 750-04758 Auger Spacer RH Entretoise de la tarière - droite
36 710-0642 Thd Forming Scr. 1/4-20 x .75 Lg. Vis taraudée 1/4-20 x 0,75 lg.
37 736-0329 L-Wash 1/4 ID Rondelle frein 1/4 DI
38 736-0176 Flat Washer .25 ID x .93 OD x .125 Rondelle plate 0,25 DI x 0,93 DE x 0,125
39 732-0357A Extension Spring .33 x 1.12 Ressort d'extension 0,33 x 1,12
40 712-0896 Hex Ins Jam L-Nut 1/4-28 Contre-écrou de blocage 1/4-28
41 684-04227 Auger Assembly HousingLogement de la tarière
42 710-0896 Hex Wash. Hd. TT Scr. 1/4-14 x .625 Vis taraudée 1/4-14 x 0,625)
43 735-04033 Rubber Paddle Pale en caoutchouc
44 735-04032 Rubber Spiral-Crescent Spirale en caoutchouc - croissant
45 734-04070 Wheel, 7.0 x 1.6 Diamond Roue, 7,0 x 1,60 Diamond
46 710-0409 Hex Bolt 5/16-24 x 1.75 Boulon hex. 5/16-24 x 1,75
47 736-0119 L-Wash 5/16 ID Rondelle frein 5/16 DI
48 750-04297B Spacer .875 x .320 x 1.10 Entretoise 0,875 x 0,320 x 1,10
31A-2M11
5.22.09
Illustrated
Parts/
Pièces
détachés
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour ce qui
concerne les pièces
et/ou accessoires.
NOTE: For a proper working machine, use Factory Approved Parts. V-belts are designed to engage and disen-
gage safely. A substitute (non OEM) V-belt can be dangerous by not disengaging completely.
REMARQUE: N’utilisez que des courroies homologuées par l’usine. Les courroies trapézoïdales sont conçues
pour un embrayage et un débrayage sans danger. L’emploi d’une courroie de remplacement (sans l’étiquette
d’équipement d’origine) peut s’avérer dangereux si cette courroie ne se débraye pas complètement.
Model/Modèle 2M1A

14
2
29
14
15
17
25
7
3
16
19
21
22
20
6
23
21
4
5
18
30
4
23
21
8
10
13
12
7
911
1
26
28
27
Model/Modèle 2M1A

15
8
REF PART
NO.NO.
N° DE N° DE
RÉF PIÈCE DESCRIPTION DESCRIPTION
1684-04236A Shroud Capot
2710-04669 Hex Wash B-Tapp Scr #10-16 x .62" Lg. Vis taraudée no. 10-16 x 0,62 po de lg.
3710-1090 Hex Scr. .312-18 x 1.250 Vis hexagonal 0,312-18 x 1,250
4712-04063 Flange Locknut 5/16-18 Gr. F, Nylon Contre-écrou à embase 5/16-18 Qual. F, nylon
5710-1882 Hex Scr. 5/16-18 x 1.50 Gr. 5 Vis hexagonal 5/16-18 x 1,50 Qual. 5
6710-0895 Hex Tapp Scr 1/4 x .75" Lg. Vis taraudée à tête hex de 1/4 x 0,75 po de lg
7720-0284 Handle Knob Assembly Bouton 7
8710-04071 Carriage Screw 5/16-18 x 1.0 Boulon ordinaire 5/16-18 x 1,0
9712-04063 Flange Locknut 5/16-18 Gr. F, Nylon Contre-écrou à embase 5/16-18 Qual. F, nylon
10 710-0451 Carriage Bolt 5/16-18 x .75 Boulon ordinaire 5/16-18 x 0,75
11 731-04426A Upper Chute Goulotte d’éjection supérieur
12 731-04388A Chute Handle Poignée - goulotte d’éjection
13 731-04127 Lower Chute 5" Dia Goulotte d’éjection inférieur dia. 5 po
14 749-04459 Upper Handle Guidon supérieur
15 747-04165 Bail Control Manette de commande de suspension
16 725-0157 Cable Tie Attache-câble
17 746-04237 Control Cable Câble de la commande
18 710-04532 Carriage Bolt 5/16-18 x 2.0 Boulon ordinaire 5/16-18 x 2,0
19 731-1033 Shave Plate Grattoir
20 710-0134 Carriage Bolt 1/4-20 x .62 Boulon ordinaire 1/4-20 x 0,62
21 712-04064 Hex L-Flanged Nut 1/4-20 Gr. F Nylon Contre-écrou à embase 1/4-20 Qual. F nylon
22 710-3008 Hex Bolt 5/16-18 x .75" Lg. Gr. 5 Boulon hex. 5/16-18 x 0,75 po de lg. Qual. 5
23 736-0176 Flat Washer .25 ID x .93 OD x .125 Rondelle plate 0,25 DI x 0,93 DE x 0,125
24 750-04297B Spacer .875 x .320 x 1.027 Entretoise 0,875 x 0,320 x 1,027
25 749-04114 Lower Handle Guidon inférieur
26 731-04353 Ring-Lower Chute Bague - goulotte d’éjection inférieur
27 731-04886 Chute Adapter 5" Dia Adaptateur de la goulotte 5 po de dia.
28 732-04111 Chute Adjustment Spring Ressort d’ajustement - goulotte d’éjection
29 625-04031A Ignition Switch Interrupteur
30 726-0201 Speed Nut Écrou rapide
31A-2M12
5.22.09
Illustrated
Parts/
Pièces
détachés
For parts and/or
accessories refer to
customer support on
page 2.
Adressez-vous au
«Service après-vente»
à la page 2 pour ce qui
concerne les pièces
et/ou accessoires.
Model/Modèle 2M1A

16
THREE YEAR LIMITED WARRANTY
The limited warranty set forth below is given by MTD Products Limited with respect to new merchandise purchased and
used in Canada and/or its territories and possessions (either entity respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workman-
ship for a period of three (3) years commencing on the date of original purchase and will, at its option, repair or replace, free
of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product
has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been
subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water,
or damage because of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory
or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as to any
resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days
from the date of purchase. Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade
adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber,
tires, engine oil, air filters and spark plugs.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local autho-
rized service dealer. To locate the dealer in your area; contact MTD Products Limited, Kitchener, ON N2G 4J1, or call
1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable
manufacturer’s warranty for terms and conditions. The Powermore engine is not excluded under this agreement.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjust-
ments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of Canada, including possessions and territories.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If Products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select
products. Ask your dealer or retailer for details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies
after the applicable period of express written warranty above as to the parts as identified. No other express
warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or
retailer, with respect to any product, shall bind MTD. During the period of the warranty, the exclusive remedy is
repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall
not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for
substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long
an implied warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of
safety features of the product shall void this warranty. You assume the risk and liability for loss, damage, or injury to
you and your property and/or to others and their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was
purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you
may also have other rights that vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone]
1.15.09
9
Failure to comply
with suggested
maintenance
and lubrication
specifications
will void
warranty.
Warranty
For equipment
purchased in
Canada only.

17
9
Warranty
For equipment
purchased in United
States only.
Failure to comply
with suggested
maintenance
and lubrication
specifications will
void warranty.
CONSUMER’S WARRANTY
COLUMBIA OUTDOOR
THREE YEARS- 120 Hrs. LIMITED WARRANTY
For three (3) years-120 hrs. whichever come first, from the date of original purchase of COLUMBIA products,
COLUMBIA will either repair or replace, at its option, free of charge, F.O.B. factory or authorized service firm,
any part found to be defective in material and workmanship. All transportation charges on parts submitted for
replacement under this warranty must be paid by the purchaser unless return is requested by COLUMBIA.
This warranty DOES NOT apply to any part which has become inoperative through misuse, excessive use,
accident, neglect, improper maintenance or alterations by unauthorized persons.
This limited warranty does not extend to the replacement of parts which are not defective, but where regular
usage has exhausted the life of the part.
TRACTOR ATTACHMENT WARRANTY
Mower decks included with, or sold separately, as an attachment for COLUMBIA garden tractors will be warrant-
ed according to the above terms of the COLUMBIA THREE (3) YEARS - 120 hrs. limited consumer warranty.
ALL OTHER ATTACHMENTS will be sold under the same conditions as above except the warranty will be ONE
YEAR FROM DATE OF ORIGINAL PURCHASE.
ENGINES, ELECTRIC START KITS, HYDROGEAR, PEERLESS TRANSMISSIONS AND PEERLESS
TRANSAXLES ARE WARRANTED BY THEIR RESPECTIVE MANUFACTURER. ALL CLAIMS AGAINST
THESE COMPONENTS MUST BE HANDLED THROUGH THE RESPECTIVE MANUFACTURERS SERVICE
DEALERS.
Belts, light bulbs, clutch parts (friction wheels), grass bags, tires, seats, rider deck wheels and cutting blades
are covered by a 60 day limited warranty.
Batteries are warranted against defect for 90 days at 100% of their value and 50% of their value for the period
between the 91st day and the 120th day.
Fuses, shear bolts and blade adapters are considered consumable items and as such are not warranted.
Note: Regular maintenance replacement parts and related inspections and adjustments are excluded from
coverage when made as part of normal maintenance service.
EXTERIOR FINISH
NORMAL DETERIORATION OF THE EXTERIOR FINISH DUE TO USE OR EXPOSURE TO THE ELEMENT,
CORROSIVE PRODUCTS ETC… IS NOT WARRANTED. LABELS ARE COVERED FOR 1 YEAR FROM THE
ORIGINAL DATE OF PURCHASE.
PERSONAL USE
THE FOREGOING PARAGRAPHS CONSTITUTE COLUMBIA’S ENTIRE WARRANTY WITH RESPECT TO
ANY PRODUCT PURCHASED AND USED FOR PERSONAL, FAMILY, HOUSEHOLD/RESIDENTIAL PUR-
POSES, AS DISTINGUISHED FROM COMMERCIAL USAGE.
COMMERCIAL USE
ALL APPLICATIONS OTHER THAN PERSONAL USE AS OUTLINED ABOVE, ARE CONSIDERED COMMER-
CIAL USAGE.
COLUMBIA products purchased by a company or used for commercial purposes are not covered by any
warranty.
WARRANTY SERVICE CAN ONLY BE PERFORMED BY AN AUTHORIZED COLUMBIA SERVICE DEALER.
ANY NON-ORIGINAL EQUIPMENT REPLACEMENT PART USED ON OR IN A PRODUCT UNDER WAR-
RANTY WILL BE EXCLUDED FROM THAT WARRANTY COVERAGE, AS WILL BE ANY RELATED DAMAGED
COMPONENTS RESULTING FROM THE INSTALLATION OF A NON-COLUMBIA REPLACEMENT PART.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
1.15.09

18
notes . . .

19
notes . . .

13
8
Garantie
Le non-respect des
conseils d’entretien
et de lubrification
annule la garantie.
1.15.09
Pour équipements
achetés aux États-Unis
seulement.
GARANTIE POUR LE CONSOMMATEUR
COLUMBIA OUTDOOR
GARANTIE LIMITÉE DE TROIS ANS - 120 HEURES
Nous nous engageons, envers l’acheteur initial, à réparer ou à remplacer gratuitement, à son choix, franco
l’usine ou la station technique agréée, toute pièce s’avérant DÉFECTUEUSE EN RAISON D’UN VICE DE
MATIÈRE ET DE FABRICATION, dans les trois ans - 120 heures, selon la première évantualité, suivant la date
d’achat initiale de les produits Columbia. Tous les frais de transport des pièces soumises à des fins de rem-
placement sont à la charge de l’acheteur, à moins que Columbia n’ait demandé le retour des marchandises.
Cette garantie NE s’applique PAS aux pièces défectueuses du fait d’une utilisation incorrecte, d’un accident,
d’une négligence, d’un entretien inadéquat ou de modifications effectuées par des personnes non autorisées.
Cette garantie limitée ne couvre pas le remplacement des pièces qui, n’étant pas défectueuses, sont usées
par une utilisation normale de la machine.
GARANTIE DES ACCESSOIRES DU TRACTEUR
Les tondeuses fournies avec votre tracteur, ou vendues séparément comme accessoires de votre tracteur de
jardin Columbia, sont également couvertes, en vertu de la garantie limitée de 3 ans -120 heures des produits
de consommation de Columbia.
TOUS LES AUTRES ACCESSOIRES sont vendus dans les mêmes conditions, mais ils ne sont couverts que
par une garantie D’UN AN À COMPTER DE LA DATE D’ACHAT INITIALE.
LES MOTEURS, LES DÉMARREURS ÉLECTRIQUES, HYDROGEAR, LES TRANSMISSIONS PEERLESS
ET LES TRANSESSIEUX PEERLESS SONT GARANTIS PAR LEURS FABRICANTS RESPECTIFS. TOUTES
LES RÉCLAMATIONS CONCERNANT CES PIÈCES DOIVENT ÊTRE ADRESSÉES AUX STATIONS TECH-
NIQUES DES FABRICANTS RESPECTIFS.
Les courroies, ampoules, pièces d’embrayage (roues de frottement), sacs à herbe, pneus, sièges, lames et
roues de plateau de coupe des tracteurs à siège sont couverts par une garantie limitée de 60 jours.
Les batteries sont garanties exemptes de vice de fabrication et seront remplacées gratuitement pendant les
90 premiers jours. Elles seront remplacées à 50% de leur coût entre le 91e et le 120e jours.
Les fusibles, boulons de cisaillement et adaptateurs de lame sont considérés comme des articles de consom-
mation courante et, à ce titre, ne sont pas garantis.
REMARQUE: Les pièces de rechange ainsi que les inspections et réglages faisant partie d’un entretien
régulier ne sont pas couverts par cette garantie dans le cadre d’une opération d’entretien normale.
FINI EXTÉRIEUR
LA DÉTÉRIORATION DU FINI EXTÉRIEUR EST DUE À SON EXPOSITION AUX INTEMPÉRIES, AUX
PRODUITS CORROSIFS, ETC. ELLE EST NORMALE ET N’EST PAS GARANTIE. LES ÉTIQUETTES SONT
GARANTIES PENDANT UN AN À COMPTER DE LA DATE D’ACHAT INITIALE.
UTILISATION PERSONNELLE
LES PARAGRAPHES PRÉCÉDENTS CONSTITUENT LA GARANTIE COMPLÈTE DU FABRICANT
COUVRANT TOUTE MACHINE ACHETÉE ET UTILISÉE À DES FINS PERSONNELLES, FAMILIALES.
DOMESTIQUES/RÉSIDENTIELLES ET NON COMMERCIALES.
UTILISATION COMMERCIALE
TOUTES LES UTILISATIONS AUTRES QUE L’UTILISATION PERSONNELLE TELLE QUE DÉCRITE CI-
DESSUS SONT CONSIDÉRÉES COMMERCIALES.
Les produits Colombia achetés par une compagnie ou utilisés pour des buts commerciaux ne sont couverts
par aucune garantie.
LES RÉPARATIONS SOUS GARANTIE NE PEUVENT ÊTRE EFFECTUÉES QUE PAR UNE STATION
TECHNIQUE AGRÉÉE. TOUTE PIÈCE DE RECHANGE, NE FAISANT PAS PARTIE DE L’ÉQUIPEMENT
D’ORIGINE, UTILISÉE SUR UNE MACHINE SOUS GARANTIE, EST EXCLUE DE CETTE GARANTIE,
AINSI QUE TOUT ÉLÉMENT ENDOMMAGÉ PAR L’INSTALLATION D’UNE PIÈCE DE RECHANGE D’UNE
MARQUE AUTRE QUE COLUMBIA.
