Columbia Single-Stage User manual

Printed In USA
Operator’s Manual
Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty
WARNING
READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL
BEFORE ATTEMPTING TO OPERATE THIS MACHINE.
FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
LES DISTRIBUTIONS RVI LIMITÉE, 2955, JEAN-BAPTISTE DESCHAMPS, LACHINE, QUEBEC H8T 1C5
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
769-06199
06.09.10
Single-Stage Snow Throwers

Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, call an authorized dealer, see below.
Please have your unit’s model number and serial number ready when you call. See previous section to locate this
information.
In the U.S.A.:
MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019. Phone: [phone].
In Canada:
MTD Canada, 97 Kent Avenue, Kitchener, ON N2G 4J1 Phone: [phone] or
LES DISTRIBUTIONS RVI LIMITÉE, 2955, Jean-Baptiste Deschamps, Lachine, Quebec H8T 1C5 Phone: [phone].
To The Owner 1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 7
Controls.................................................................... 8
Operation................................................................. 9
Maintenance & Adjustment..................................10
Service .....................................................................12
Troubleshooting.....................................................13
Replacement Parts.................................................14
Warranty (For equipment purchased in Canada)...........15
Warranty (For equipment purchased in United States)...16
Table of Contents
Thank you for purchasing your new equipment. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for
various models. Characteristics and features discussed and/or
illustrated in this manual may not be applicable to all models.
The manufacturer reserves the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local service dealer or contact us directly. Customer
Support telephone numbers, website address and mailing
address can be found on this page. We want to ensure your
complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s
Owner’s/Operator’s Manual, packed separately with your
machine, for more information.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the frame. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
Mo d e l Nu M b e r
Se r i a l Nu M b e r

Important Safe Operation Practices 2
3
Training
Read, understand, and follow all instructions on the1.
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
Be familiar with all controls and their proper operation.2.
Know how to stop the machine and disengage them
quickly.
Never allow children under 14 years of age to operate this3.
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
Never allow adults to operate this machine without proper4.
instruction.
Thrown objects can cause serious personal injury. Plan5.
your snow-throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
Keep bystanders, pets and children at least 75 feet from the6.
machine while it is in operation. Stop machine if anyone
enters the area.
Exercise caution to avoid slipping or falling, especially7.
when operating in reverse.
Preparation
Thoroughly inspect the area where the equipment is to be used.
Remove all doormats, newspapers, sleds, boards, wires and other
foreign objects, which could be tripped over or thrown by the
auger/impeller.
Always wear safety glasses or eye shields during operation1.
and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
Do not operate without wearing adequate winter outer2.
garments. Do not wear jewelry, long scarves or other loose
clothing, which could become entangled in moving parts.
Wear footwear which will improve footing on slippery
surfaces.
Use a grounded three-wire extension cord and receptacle3.
for all machines with electric start engines.
Disengage all control levers before starting the engine.4.
Never attempt to make any adjustments while engine is5.
running, except where specifically recommended in the
operator’s manual.
Let engine and machine adjust to outdoor temperature6.
before starting to clear snow.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing foreign objects. Failure to observe the following safety
instructions could result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.

4Se c t i o N 2 — iM p o r t a N t Sa f e op e r a t i o N pr a c t i c e S
Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
Use only an approved gasoline container.a.
Extinguish all cigarettes, cigars, pipes and otherb.
sources of ignition.
Never fuel machine indoors.c.
Never remove gas cap or add fuel while the engine isd.
hot or running.
Allow engine to cool at least two minutes beforee.
refueling.
Never over fill fuel tank. Fill tank to no more than ½f.
inch below bottom of filler neck to provide space for
fuel expansion.
Replace gasoline cap and tighten securely.g.
If gasoline is spilled, wipe it off the engine andh.
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
Never store the machine or fuel container insidei.
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
Allow machine to cool at least 5 minutes beforej.
storing.
Never fill containers inside a vehicle or on a truckk.
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
If possible, remove gas-powered equipment froml.
the truck or trailer and refuel it on the ground. If this
is not possible, then refuel such equipment on a
trailer with a portable container, rather than from a
gasoline dispenser nozzle.
Keep the nozzle in contact with the rim of the fuelm.
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Operation
Do not put hands or feet near rotating parts, in the auger/1.
impeller housing or chute assembly. Contact with the
rotating parts can amputate hands and feet.
The auger/impeller control lever is a safety device. Never2.
bypass its operation. Doing so makes the machine unsafe
and may cause personal injury.
The control levers must operate easily in both directions3.
and automatically return to the disengaged position when
released.
Never operate with a missing or damaged chute assembly.4.
Keep all safety devices in place and working.
Never run an engine indoors or in a poorly ventilated area.5.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
Do not operate machine while under the influence of6.
alcohol or drugs.
Muffler and engine become hot and can cause a burn. Do7.
not touch. Keep children away.
Exercise extreme caution when operating on or crossing8.
gravel surfaces. Stay alert for hidden hazards or traffic.
Exercise caution when changing direction and while9.
operating on slopes.
Plan your snow-throwing pattern to avoid discharge10.
towards windows, walls, cars etc. Thus, avoiding possible
property damage or personal injury caused by a ricochet.
Never direct discharge at children, bystanders and pets or11.
allow anyone in front of the machine.
Do not overload machine capacity by attempting to clear12.
snow at too fast of a rate.
Never operate this machine without good visibility or light.13.
Always be sure of your footing and keep a firm hold on the
handles. Walk, never run.
Disengage power to the auger/impeller when transporting14.
or not in use.
Never operate machine at high transport speeds on15.
slippery surfaces. Look down and behind and use care
when backing up.
If the machine should start to vibrate abnormally, stop16.
the engine, disconnect the spark plug wire and ground it
against the engine. Inspect thoroughly for damage. Repair
any damage before starting and operating.
Disengage all control levers and stop engine before you17.
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the chute assembly, making any adjustments,
or inspections.
Never put your hand in the discharge or collector openings.18.
Do not unclog chute assembly while engine is running.
Shut off engine and remain behind handles until all moving
parts have stopped before unclogging.
Use only attachments and accessories approved by the19.
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
When starting engine, pull cord slowly until resistance20.
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
If situations occur which are not covered in this manual, use21.
care and good judgment. Contact Customer Support for
assistance and the name of your nearest servicing dealer.

5Se c t i o N 2 — iM p o r t a N t Sa f e op e r a t i o N pr a c t i c e S
Clearing a Clogged Discharge Chute
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
SHUT THE ENGINE OFF!1.
Wait 10 seconds to be sure the impeller blades have2.
stopped rotating.
Always use a clean-out tool, not your hands.3.
Maintenance & Storage
Never tamper with safety devices. Check their proper1.
operation regularly. Refer to the maintenance and
adjustment sections of this manual.
Before cleaning, repairing, or inspecting machine2.
disengage all control levers and stop the engine. Wait until
the auger/impeller come to a complete stop. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting.
Check bolts and screws for proper tightness at frequent3.
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
Do not change the engine governor setting or over-speed4.
the engine. The governor controls the maximum safe
operating speed of the engine.
Snow thrower shave plates and skid shoes are subject to5.
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer’s (OEM) parts only. “Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!”
Check control levers periodically to verify they engage6.
and disengage properly and adjust, if necessary. Refer
to the adjustment section in this operator’s manual for
instructions.
Maintain or replace safety and instruction labels, as7.
necessary.
Observe proper disposal laws and regulations for gas, oil,8.
etc. to protect the environment.
Prior to storing, run machine a few minutes to clear snow9.
from machine and prevent freeze up of auger/impeller.
Never store the machine or fuel container inside where10.
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
Always refer to the operator’s manual for proper11.
instructions on off-season storage.
Check fuel line, tank, cap, and fittings frequently for cracks12.
or leaks. Replace if necessary.
Do not crank engine with spark plug removed.13.
According to the Consumer Products Safety Commission14.
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 60 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING! This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine’s
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
If a spark arrester is used, it should be maintained in effective
working order by the operator. In the State of California the
above is required by law (Section 4442 of the California Public
Resources Code). Other states may have similar laws. Federal laws
apply on federal lands.
A spark arrester for the muffler is available through your
nearest engine authorized service dealer or contact the service
department, P.O. Box 361131 Cleveland, Ohio 44136-0019.

6Se c t i o N 2 — iM p o r t a N t Sa f e op e r a t i o N pr a c t i c e S
Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing or chute
assembly. Contact with the rotating parts can amputate hands and feet.
WARNING—THROWN OBJECTS
This machine may pick up and throw and objects which can cause serious personal injury.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING— ELECTRICAL SHOCK
Do not use the engine’s electric starter in the rain
WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during operation. Allow engine
and muffler to cool before touching.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

Assembly & Set-Up 3
7

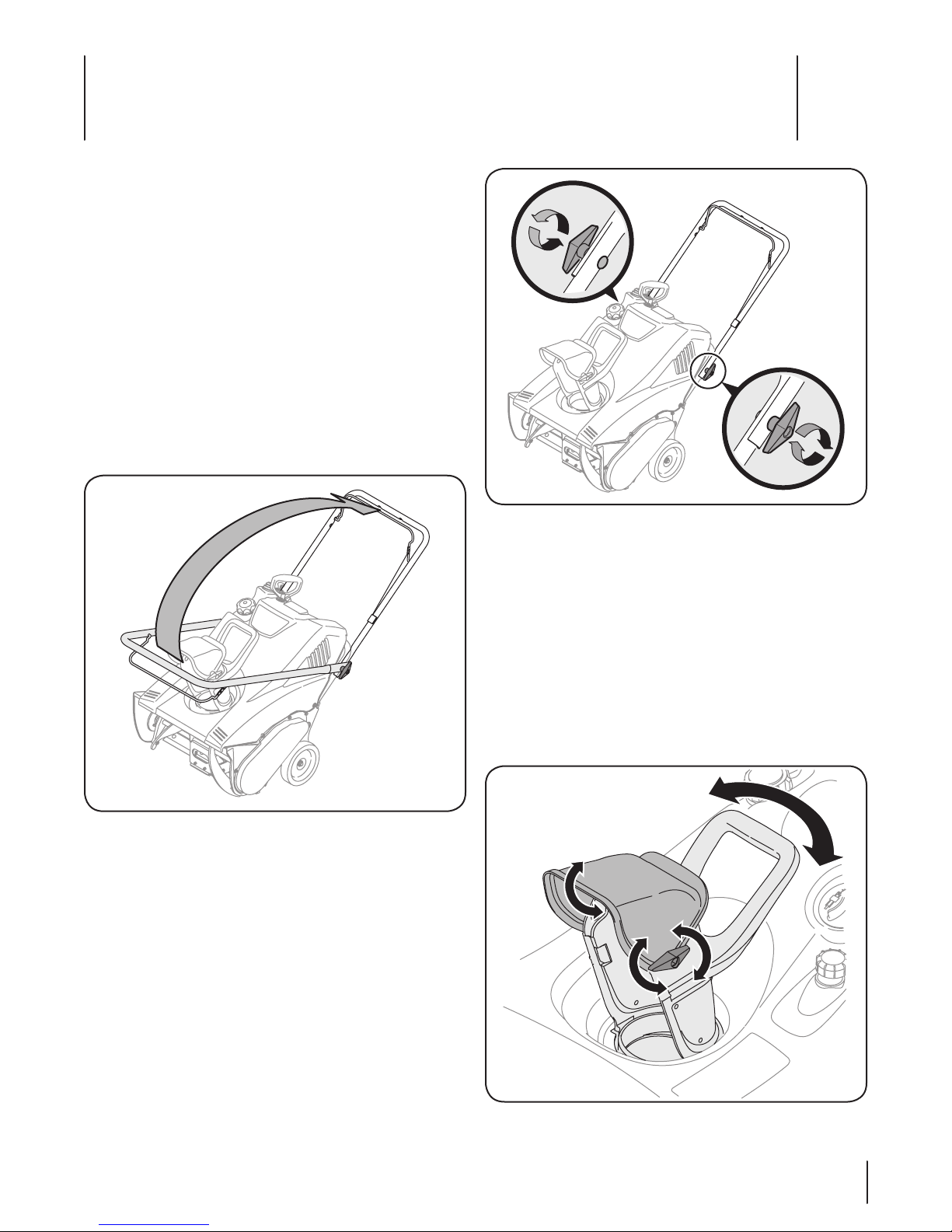

NOTE: This Operator’s Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
NOTE: All references to the left or right side of the snow thrower
are from the operator’s position. Any exceptions will be noted.
NOTE: Do not use the chute handle to lift the snow thrower.
Assembly
Positioning the Upper Handle
Remove packing material, if present.1.
Raise the upper handle in the direction shown in Figure 3-12.
until it clicks into the operating position. Make sure not to
pinch or crimp the cable.
Tighten the wing knobs. See Figure 3-2.3.
Set-Up
Adding Fuel
Refer to the Engine Operator’s Manual packed with your snow
thrower for information on adding fuel.
Adding Oil
Refer to the Engine Operator’s Manual packed with your snow
thrower for information on adding and checking oil.
Adjustments
Chute Assembly
The pitch of the chute assembly controls the angle at which the
snow is thrown.
Loosen the wing knob found on the left side of the chute1.
assembly and pivot the upper chute upward or downward
to the desired pitch. Retighten the wing knob before
operating the snow thrower.
Position the chute assembly opening by using the chute2.
handle to throw the snow in the desired direction. See Fig.
3-3.
Figure 3-1
Figure 3-2
Figure 3-3

Controls & Features 4
8
Figure 4-1
NOTE: This Operator’s Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
Auger
When engaged, the auger rotation draws snow into the auger
housing and throws it out the discharge chute. Rubber paddles
on the auger also aid in propelling the snow thrower as they
come in contact with the pavement.
Auger Control
Located on the upper handle, the auger control is used to
engage and disengage drive to the auger. Squeeze the control
against the upper handle to engage the auger; release it to
disengage.
Chute Assembly
Rotate the discharge chute to the left or right using chute handle.
The angle of the discharge chute controls the distance that the
snow is thrown. Tilt the discharge chute up for greater distance;
tilt down for less distance. Loosen the hand knob on the side
of the discharge chute to adjust. Tilt the chute to the desired
position, and tighten the knob.
Shave Plate
The shave plate maintains contact with the pavement as
the snow thrower is propelled, allowing snow close to the
pavement’s surface to be discharged.
Primer (if equipped)
Depressing primer forces fuel directly into engine’s carburetor to
aid in cold-weather starting.
Auger Control
Shave Plate
Auger
Chute Assembly
Chute Handle
Primer (if equipped)

Operation 5
9
Starting & Stopping the Engine
WARNING! Always keep hands and feet clear of
moving parts. Do not use a pressurized starting
fluid. Vapors are flammable.
Refer to the Engine Operator’s manual packed with your unit for
instructions on starting and stopping the engine.
Engaging the Auger
To engage the auger and start throwing snow, squeeze the1.
auger control against the handle. Release to stop the auger.
Engaging the Drive
Lift up slightly on the handle to allow the rubber paddles on the
auger to contact the pavement and propel the snow thrower
forward. Pushing downward on the handle will raise the auger
off the ground and stop the forward motion.
NOTE: Excessive upward pressure on the handle will result
in premature wear on the rubber auger blades which are
not be covered by the warranty.
Clearing a Clogged Discharge Chute
WARNING! Never use your hands to clear a
clogged chute assembly. Shut off engine and remain
behind handles until all moving parts have stopped
before using the clean-out tool to clear the chute
assembly.
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
SHUT THE ENGINE OFF!1.
Wait 10 seconds to be sure the impeller blades have2.
stopped rotating.
Always use a clean-out tool, not your hands.3.

Maintenance & Adjustments 6
10
Adjustments
WARNING! Before servicing, repairing, or
inspecting, disengage the control bail and stop
engine. Removing the key will reduce the possibility
of unintended starting of the engine while
equipment is not in use.
Shave Plate
To check the adjustment of the shave plate, place the machine
on a level surface. The wheels, shave plate and auger should all
contact the level surface. Note that if the shave plate is adjusted
too high, snow may blow under the housing. If the shave plate
wears out excessively, or the snow thrower does not self-propel,
the shave plate may be too low and needs to be adjusted.
NOTE: On new snow throwers or machines with a new shave
plate installed, the auger may be slightly off the ground.
To adjust the shave plate proceed as follows:
WARNING: Run the engine completely dry of
gasoline before tipping snow thrower.
Pull the starter cord until resistance is felt. Then tip the1.
snow thrower back until it rests on the handles.
Loosen the four lock nuts and bolts which secure the shave2.
plate to the housing. See Fig. 6-1. Move the shave plate to the
desired position and retighten the nuts and bolts securely.
Tip the snow thrower back to the operating position and pull3.
the starter handle a few times to see if it is difficult to pull.
If the starter is difficult to pull, remove the spark plug and4.
pull the handle several times to ensure that any oil trapped
in the head is removed.
CAUTION: Oil may come out of the spark plug hole
when it is removed and the starter handle is pulled.
Inspect the spark plug. If it is wet, clean off any oil before5.
re-installing.
Control Cable
As a result of both the control cable and the auger drive belt
stretching due to wear, periodic adjustments may be necessary. If
the auger seems to hesitate when rotating, proceed as follows:
The upper hole in the control handle provides for an adjustment
in cable tension. To adjust, disconnect the end of control cable
from the bottom hole in the control handle and reinsert it in the
upper hole. Insert the cable from the outside as shown in Fig. 6-2.
Test the snow thrower to see if there is a noticeable difference. If
after the adjustment to the control cable the auger still hesitates
when rotating, see the Service Section for instructions on
replacing the belt.
Chute Assembly
Refer to the Assembly & Set-Up section for instructions on
adjusting the chute assembly.
Maintenance
Lubrication
Lubricate the pivot points on the control handle and the
extension spring at the end of the control cable with a light
oil once every season and before the snow thrower is put into
storage at the end of the season.
Figure 6-1
Side View
Lock Nut
Bolt
Control
Cable
Control
Handle
Figure 6-2

11Se c t i o N 6 — Ma i N t e N a N c e & ad j u S t M e N t S
Off-Season Storage
If the snow thrower will not be used for 30 days or longer, follow
the instructions below.
Store the equipment in a clean, dry area.1.
If storing the snow thrower in an unventilated area,2.
rustproof the machine using a light oil or silicone to coat
the snow thrower.
Clean the exterior of the engine and the snow thrower.3.
Lubricate pivot points on control handle and extension4.
spring at end of control cable with a light oil
Refer to engine manual for correct engine storage5.
instructions.

Service 7
12
Replacing Belt
Remove the belt cover by removing five hex screws. See Fig. 8-1.
Then simply pull the belt off by grasping it from the bottom of
the auger pulley and pulling off. Once you remove the belt from
the pulleys, you can push down on the idler pulley to release the
belt from under belt keeper.
To replace the belt follow these instructions and refer to Fig. 8-2:
Push down on the Idler pulley.1.
Put belt on top of the auger pulley under belt keeper.2.
Thread belt around engine pulley.3.
Push belt over bottom of auger pulley.4.
Reinstall the belt cover removed earlier.5.
Replacing Auger Paddles
The snow thrower auger’s rubber paddles are subject to wear
and should be replaced if any signs of excessive wear are present.
CAUTION: Do NOT allow the auger’s rubber
paddles to wear to the point where portions of the
metal auger itself can come in contact with the
pavement. Doing so can result in serious damage to
your snow thrower.
To change the rubber paddles, proceed as follows:
Remove the existing rubber paddles by unthreading the1.
self-tapping screws which secure them to the auger. See
Fig. 8-3.
Secure the replacement rubber paddles to the auger using2.
the hardware removed earlier.
Replacing Shave Plate
The shave plate is attached to the bottom of the auger housing
and is subject to wear. It should be checked periodically. There
are two wearing edges and the shave plate can be reversed.
Refer to Fig. 8-3. To replace or reverse the shave plate proceed as
follows:
Remove the carriage bolts and hex lock nuts which attach1.
it to the snow thrower housing.
Install new shave plate (or reverse), making sure the heads2.
of the carriage bolts are on the inside of the housing.
Adjust the shave plate according to instructions above3.
Tighten securely.4.
Idler Pulley
Belt Keeper Hex Screws
Figure 8-1 Figure 8-2
Engine Pulley
Auger Pulley
1
4
3
2
Self-Tapping Screws
Figure 8-3

Troubleshooting 8
13
Problem Cause Remedy
Loss of power Spark plug wire loose.1.
Vent in gas cap plugged.2.
Firmly connect spark plug wire.1.
Clear vent.2.
Excessive vibration Loose parts or damaged auger.1. Stop engine immediately and disconnect1.
spark plug wire. Check for possible damage.
Tighten all bolts and nuts. Repair as needed.
If the problem persists, take snow thrower to
an authorized service dealer.
Snow thrower fails to self-
propel
Auger control cable out of adjustment.1.
Auger drive belt loose or damaged.2.
Adjust auger control cable as shown in1.
Maintenance & Adjustments section.
Replace auger drive belt.2.
Augers continue to rotate Auger control cable out of adjustment.1. Adjust auger control cable as shown in1.
Maintenance & Adjustments section.
Unit fails to discharge snow Chute assembly clogged.1.
Foreign object lodged in auger.2.
Auger control cable out of adjustment.3.
Auger belt loose or damaged.4.
Stop engine and disconnect spark plug wire.1.
Clean chute and inside of auger housing with
clean-out tool or stick.
Stop engine immediately and disconnect the2.
spark plug wire. Remove object from auger.
Adjust auger control cable.3.
Replace auger belt.4.

Replacement Parts 9
14
Phone [phone] to order replacement parts or a complete Parts Manual (have your full model number and serial number ready).
Parts Manual downloads are also available free of charge at www.mtdproducts.com.

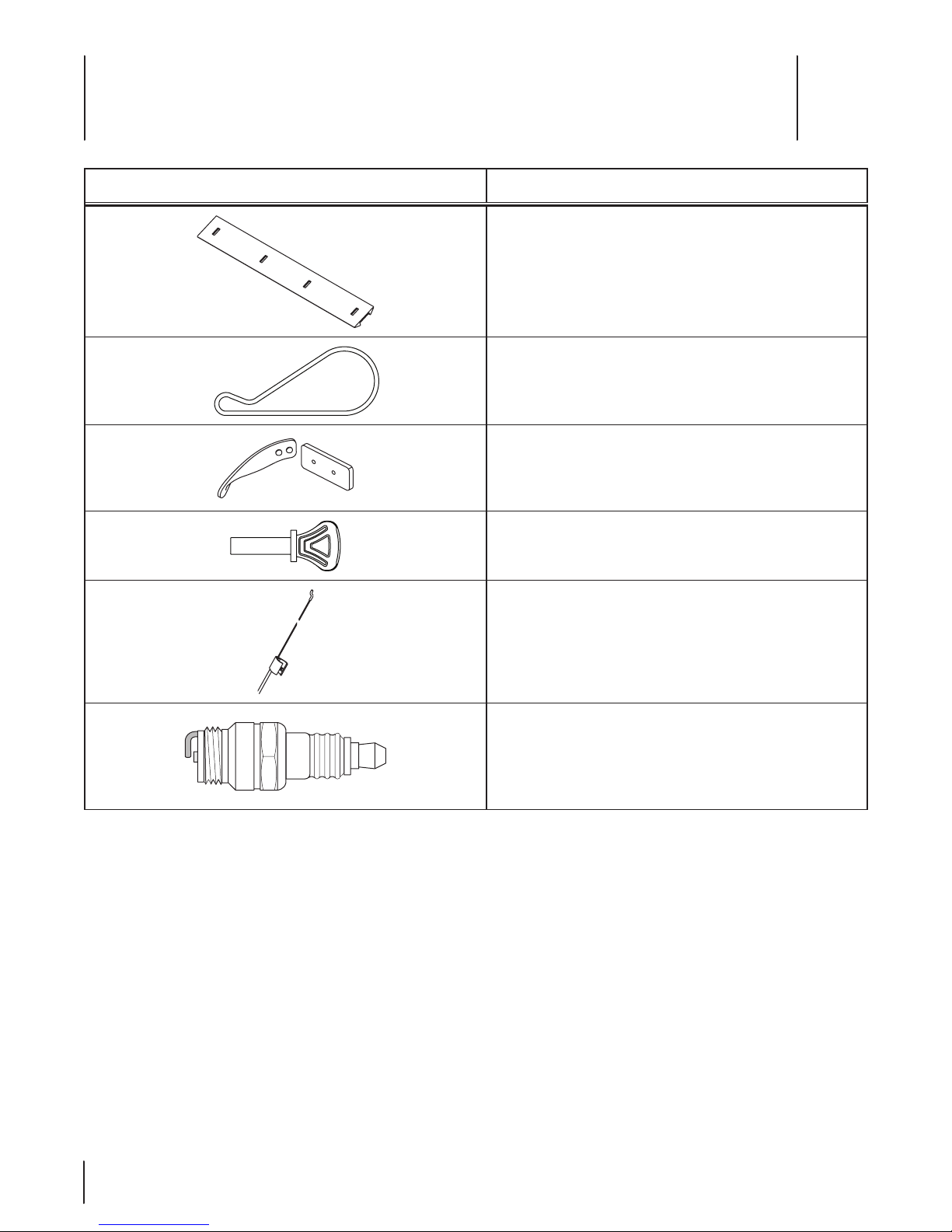

Component Part Number and Description
731-1033 Shave Plate
954-0101A Belt V-Type (2M1 Models)
954-04204 Belt V-Type (2N1 & 2P5 Models)
735-04032 Spiral Crescent
735-04033 Rubber Paddle
753-04472 Replacement Kit (includes 4 crescents,
2 paddles and hardware)
731-05632 Key
746-04237 Clutch Cable
951-10292 Spark Plug

15
08.08.08
For equipment purchased in Canada only.
THREE YEAR LIMITED WARRANTY
The limited warranty set forth below is given by MTD Products Limited with respect to new merchandise purchased and used in Canada and/or
its territories and possessions (either entity respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period
of three (3) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be
defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance
with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper
maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation
or use of any part, accessory or attachment not approved by MTD for use with the product(s) covered by this manual will void your warranty as
to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase.
Normal wear parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats,
snow thrower skid shoes, friction wheels, shave plates, auger spiral rubber, tires, engine oil, air filters and spark plugs.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To
locate the dealer in your area;
In the U.S.A.: Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or
1-330-220-4683 or log on to our Web site at www.mtdproducts.com.
In Canada: Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s
warranty for terms and conditions. The Powermore engine is not excluded under this agreement.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments,
and normal deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of Canada, including possessions and territories.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If Products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select products. Ask your dealer or
retailer for details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable
period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as
mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD. During the
period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for
incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care
services or for rental expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the
product shall void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and
their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other
rights that vary in different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone]

16
For equipment purchased in United States only.
CONSUMER’S WARRANTY
COLUMBIA OUTDOOR
THREE YEARS- 120 Hrs. LIMITED WARRANTY
For three (3) years-120 hrs. whichever come first, from the date of original purchase of COLUMBIA products, COLUMBIA will
either repair or replace, at its option, free of charge, F.O.B. factory or authorized service firm, any part found to be defective in
material and workmanship. All transportation charges on parts submitted for replacement under this warranty must be paid by
the purchaser unless return is requested by COLUMBIA.
This warranty DOES NOT apply to any part which has become inoperative through misuse, excessive use, accident, neglect,
improper maintenance or alterations by unauthorized persons.
This limited warranty does not extend to the replacement of parts which are not defective, but where regular usage has ex-
hausted the life of the part.
TRACTOR ATTACHMENT WARRANTY
Mower decks included with, or sold separately, as an attachment for COLUMBIA garden tractors will be warranted according to
the above terms of the COLUMBIA THREE (3) YEARS - 120 hrs. limited consumer warranty.
ALL OTHER ATTACHMENTS will be sold under the same conditions as above except the warranty will be ONE YEAR FROM
DATE OF ORIGINAL PURCHASE.
ENGINES, ELECTRIC START KITS, HYDRO-GEAR, PEERLESS TRANSMISSIONS AND PEERLESS TRANSAXLES ARE
WARRANTED BY THEIR RESPECTIVE MANUFACTURER. ALL CLAIMS AGAINST THESE COMPONENTS MUST BE
HANDLED THROUGH THE RESPECTIVE MANUFACTURERS SERVICE DEALERS.
Belts, light bulbs, clutch parts (friction wheels), grass bags, tires, seats, rider deck wheels and cutting blades are covered by a 60
day limited warranty.
Batteries are warranted against defect for 90 days at 100% of their value and 50% of their value for the period between the 91st
day and the 120th day.
Fuses, shear bolts and blade adapters are considered consumable items and as such are not warranted.
Note: Regular maintenance replacement parts and related inspections and adjustments are excluded from coverage when made
as part of normal maintenance service.
EXTERIOR FINISH
NORMAL DETERIORATION OF THE EXTERIOR FINISH DUE TO USE OR EXPOSURE TO THE ELEMENTS, CORROSIVE
PRODUCTS ETC… IS NOT WARRANTED. LABELS ARE COVERED FOR 1 YEAR FROM THE ORIGINAL DATE OF PUR-
CHASE.
PERSONAL USE
THE FOREGOING PARAGRAPHS CONSTITUTE COLUMBIA’S ENTIRE WARRANTY WITH RESPECT TO ANY PRODUCT
PURCHASED AND USED FOR PERSONAL, FAMILY, HOUSEHOLD/RESIDENTIAL PURPOSES, AS DISTINGUISHED FROM
COMMERCIAL USAGE.
COMMERCIAL USE
ALL APPLICATIONS OTHER THAN PERSONAL USE AS OUTLINED ABOVE, ARE CONSIDERED COMMERCIAL USAGE.
COLUMBIA products purchased by a company or used for commercial purposes are not covered by any warranty.
WARRANTY SERVICE CAN ONLY BE PERFORMED BY AN AUTHORIZED COLUMBIA SERVICE DEALER. ANY NON-
ORIGINAL EQUIPMENT REPLACEMENT PART USED ON OR IN A PRODUCT UNDER WARRANTY WILL BE EXCLUDED
FROM THAT WARRANTY COVERAGE, AS WILL BE ANY RELATED DAMAGED COMPONENTS RESULTING FROM THE
INSTALLATION OF A NON-COLUMBIA REPLACEMENT PART.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone].10
