Single-Stage Snow Thrower

Customer Support
If you have difficulty assembling this product or have any questions regarding the controls, operation, or maintenance of
this machine, call an authorized dealer, see below.
Please have your unit’s model number and serial number ready when you call. See previous section to locate this
information.
In the U.S.A.:
MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019. Phone: [phone].
In Canada:
MTD PRODUCTS LIMITED, 97 Kent Avenue, Kitchener, ON N2G 4J1 Phone: [phone] or
LES DISTRIBUTIONS RVI, a division of MTD PRODUCTS LIMITED,
10655, boulevard Henri-Bourassa Ouest, St-Laurent, Québec H4S 1A1 Phone: [phone]
To The Owner 1
2
Safe Operation Practices ........................................ 3
Assembly & Set-Up .................................................. 7
Controls.................................................................... 9
Operation................................................................10
Maintenance & Adjustment .................................11
Service .....................................................................13
Troubleshooting.....................................................15
Warranty.................................................................16
Replacement Parts.................................................18
Table of Contents
Thank you for purchasing your new equipment. It was carefully
engineered to provide excellent performance when properly
operated and maintained.
Please read this entire manual prior to operating the equipment.
It instructs you how to safely and easily set up, operate and
maintain your machine. Please be sure that you, and any other
persons who will operate the machine, carefully follow the
recommended safety practices at all times. Failure to do so could
result in personal injury or property damage.
All information in this manual is relative to the most recent
product information available at the time of printing. Review
this manual frequently to familiarize yourself with the machine,
its features and operation. Please be aware that this Operator’s
Manual may cover a range of product specifications for
various models. Characteristics and features discussed and/or
illustrated in this manual may not be applicable to all models.
The manufacturer reserves the right to change product
specifications, designs and equipment without notice and
without incurring obligation.
If you have any problems or questions concerning the machine,
phone your local service dealer or contact us directly. Customer
Support telephone numbers, website address and mailing
address can be found on this page. We want to ensure your
complete satisfaction at all times.
Throughout this manual, all references to right and left side of the
machine are observed from the operating position.
The engine manufacturer is responsible for all engine-related
issues with regards to performance, power-rating, specifications,
warranty and service. Please refer to the engine manufacturer’s
Owner’s/Operator’s Manual, packed separately with your
machine, for more information.
Thank You
Record Product Information
Before setting up and operating your new equipment, please
locate the model plate on the equipment and record the
information in the provided area to the right. You can locate the
model plate by standing at the operator’s position and looking
down at the rear of the frame. This information will be necessary,
should you seek technical support via our web site, Customer
Support Department, or with a local authorized service dealer.
Model NuMber
Serial NuMber

Important Safe Operation Practices 2
3
Training
1. Read, understand, and follow all instructions on the
machine and in the manual(s) before attempting to
assemble and operate. Keep this manual in a safe place for
future and regular reference and for ordering replacement
parts.
2. Be familiar with all controls and their proper operation.
Know how to stop the machine and disengage them
quickly.
3. Never allow children under 14 years of age to operate this
machine. Children 14 and over should read and understand
the instructions and safe operation practices in this manual
and on the machine and be trained and supervised by an
adult.
4. Never allow adults to operate this machine without proper
instruction.
5. Thrown objects can cause serious personal injury. Plan
your snow-throwing pattern to avoid discharge of material
toward roads, bystanders and the like.
6. Keep bystanders, pets and children at least 75 feet from the
machine while it is in operation. Stop machine if anyone
enters the area.
7. Exercise caution to avoid slipping or falling, especially
when operating in reverse.
Preparation
Thoroughly inspect the area where the equipment is to be used.
Remove all doormats, newspapers, sleds, boards, wires and other
foreign objects, which could be tripped over or thrown by the
auger/impeller.
1. Always wear safety glasses or eye shields during operation
and while performing an adjustment or repair to protect
your eyes. Thrown objects which ricochet can cause serious
injury to the eyes.
2. Do not operate without wearing adequate winter outer
garments. Do not wear jewelry, long scarves or other loose
clothing, which could become entangled in moving parts.
Wear footwear which will improve footing on slippery
surfaces.
3. Use a grounded three-wire extension cord and receptacle
for all machines with electric start engines.
4. Disengage all control levers before starting the engine.
5. Never attempt to make any adjustments while engine is
running, except where specifically recommended in the
operator’s manual.
6. Let engine and machine adjust to outdoor temperature
before starting to clear snow.
WARNING! This symbol points out important safety instructions which, if not followed,
could endanger the personal safety and/or property of yourself and others. Read and follow
all instructions in this manual before attempting to operate this machine. Failure to comply
with these instructions may result in personal injury.
When you see this symbol. HEED ITS WARNING!
DANGER: This machine was built to be operated according to the safe operation practices in
this manual. As with any type of power equipment, carelessness or error on the part of the
operator can result in serious injury. This machine is capable of amputating fingers, hands,
toes and feet and throwing foreign objects. Failure to observe the following safety
instructions could result in serious injury or death.
CALIFORNIA PROPOSITION 65
WARNING! Engine Exhaust, some of its constituents, and certain vehicle components
contain or emit chemicals known to State of California to cause cancer and birth defects
or other reproductive harm.

4Section 2 — important Safe operation practiceS
Safe Handling of Gasoline
To avoid personal injury or property damage use extreme care
in handling gasoline. Gasoline is extremely flammable and the
vapors are explosive. Serious personal injury can occur when
gasoline is spilled on yourself or your clothes which can ignite.
Wash your skin and change clothes immediately.
a. Use only an approved gasoline container.
b. Extinguish all cigarettes, cigars, pipes and other
sources of ignition.
c. Never fuel machine indoors.
d. Never remove gas cap or add fuel while the engine is
hot or running.
e. Allow engine to cool at least two minutes before
refueling.
f. Never over fill fuel tank. Fill tank to no more than ½
inch below bottom of filler neck to provide space for
fuel expansion.
g. Replace gasoline cap and tighten securely.
h. If gasoline is spilled, wipe it off the engine and
equipment. Move machine to another area. Wait 5
minutes before starting the engine.
i. Never store the machine or fuel container inside
where there is an open flame, spark or pilot light
(e.g. furnace, water heater, space heater, clothes
dryer etc.).
j. Allow machine to cool at least 5 minutes before
storing.
k. Never fill containers inside a vehicle or on a truck
or trailer bed with a plastic liner. Always place
containers on the ground away from your vehicle
before filling.
l. If possible, remove gas-powered equipment from
the truck or trailer and refuel it on the ground. If this
is not possible, then refuel such equipment on a
trailer with a portable container, rather than from a
gasoline dispenser nozzle.
m. Keep the nozzle in contact with the rim of the fuel
tank or container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
Operation
1. Do not put hands or feet near rotating parts, in the auger/
impeller housing or chute assembly. Contact with the
rotating parts can amputate hands and feet.
2. The auger/impeller control lever is a safety device. Never
bypass its operation. Doing so makes the machine unsafe
and may cause personal injury.
3. The control levers must operate easily in both directions
and automatically return to the disengaged position when
released.
4. Never operate with a missing or damaged chute assembly.
Keep all safety devices in place and working.
5. Never run an engine indoors or in a poorly ventilated area.
Engine exhaust contains carbon monoxide, an odorless
and deadly gas.
6. Do not operate machine while under the influence of
alcohol or drugs.
7. Muffler and engine become hot and can cause a burn. Do
not touch. Keep children away.
8. Exercise extreme caution when operating on or crossing
gravel surfaces. Stay alert for hidden hazards or traffic.
9. Exercise caution when changing direction and while
operating on slopes. Do not operate on steep slopes.
10. Plan your snow-throwing pattern to avoid discharge
towards windows, walls, cars etc. Thus, avoiding possible
property damage or personal injury caused by a ricochet.
11. Never direct discharge at children, bystanders and pets or
allow anyone in front of the machine.
12. Do not overload machine capacity by attempting to clear
snow at too fast of a rate.
13. Never operate this machine without good visibility or light.
Always be sure of your footing and keep a firm hold on the
handles. Walk, never run.
14. Disengage power to the auger/impeller when transporting
or not in use.
15. Never operate machine at high transport speeds on
slippery surfaces. Look down and behind and use care
when backing up.
16. If the machine should start to vibrate abnormally, stop
the engine, disconnect the spark plug wire and ground it
against the engine. Inspect thoroughly for damage. Repair
any damage before starting and operating.
17. Disengage all control levers and stop engine before you
leave the operating position (behind the handles). Wait
until the auger/impeller comes to a complete stop before
unclogging the chute assembly, making any adjustments,
or inspections.
18. Never put your hand in the discharge or collector openings.
Do not unclog chute assembly while engine is running.
Shut off engine and remain behind handles until all moving
parts have stopped before unclogging.
19. Use only attachments and accessories approved by the
manufacturer (e.g. wheel weights, tire chains, cabs etc.).
20. When starting engine, pull cord slowly until resistance
is felt, then pull rapidly. Rapid retraction of starter cord
(kickback) will pull hand and arm toward engine faster than
you can let go. Broken bones, fractures, bruises or sprains
could result.
21. If situations occur which are not covered in this manual, use
care and good judgment. Contact Customer Support for
assistance and the name of your nearest servicing dealer.

5Section 2 — important Safe operation practiceS
Clearing a Clogged Discharge Chute
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the impeller blades have
stopped rotating.
3. Always use a clean-out tool, not your hands.
Maintenance & Storage
1. Never tamper with safety devices. Check their proper
operation regularly. Refer to the maintenance and
adjustment sections of this manual.
2. Before cleaning, repairing, or inspecting machine
disengage all control levers and stop the engine. Wait until
the auger/impeller come to a complete stop. Disconnect
the spark plug wire and ground against the engine to
prevent unintended starting.
3. Check bolts and screws for proper tightness at frequent
intervals to keep the machine in safe working condition.
Also, visually inspect machine for any damage.
4. Do not change the engine governor setting or over-speed
the engine. The governor controls the maximum safe
operating speed of the engine.
5. Snow thrower shave plates and skid shoes are subject to
wear and damage. For your safety protection, frequently
check all components and replace with original equipment
manufacturer’s (OEM) parts only. “Use of parts which do
not meet the original equipment specifications may lead to
improper performance and compromise safety!”
6. Check control levers periodically to verify they engage
and disengage properly and adjust, if necessary. Refer
to the adjustment section in this operator’s manual for
instructions.
7. Maintain or replace safety and instruction labels, as
necessary.
8. Observe proper disposal laws and regulations for gas, oil,
etc. to protect the environment.
9. Prior to storing, run machine a few minutes to clear snow
from machine and prevent freeze up of auger/impeller.
10. Never store the machine or fuel container inside where
there is an open flame, spark or pilot light such as a water
heater, furnace, clothes dryer etc.
11. Always refer to the operator’s manual for proper
instructions on off-season storage.
12. Check fuel line, tank, cap, and fittings frequently for cracks
or leaks. Replace if necessary.
13. Do not crank engine with spark plug removed.
14. According to the Consumer Products Safety Commission
(CPSC) and the U.S. Environmental Protection Agency (EPA),
this product has an Average Useful Life of seven (7) years,
or 60 hours of operation. At the end of the Average Useful
Life have the machine inspected annually by an authorized
service dealer to ensure that all mechanical and safety
systems are working properly and not worn excessively.
Failure to do so can result in accidents, injuries or death.
Do not modify engine
To avoid serious injury or death, do not modify engine in any
way. Tampering with the governor setting can lead to a runaway
engine and cause it to operate at unsafe speeds. Never tamper
with factory setting of engine governor.
Notice Regarding Emissions
Engines which are certified to comply with California and federal
EPA emission regulations for SORE (Small Off Road Equipment)
are certified to operate on regular unleaded gasoline, and
may include the following emission control systems: Engine
Modification (EM), Oxidizing Catalyst (OC), Secondary Air
Injection (SAI) and Three Way Catalyst (TWC) if so equipped.
Spark Arrestor
WARNING! This machine is equipped with an
internal combustion engine and should not be used
on or near any unimproved forest-covered, brush
covered or grass-covered land unless the engine’s
exhaust system is equipped with a spark arrester
meeting applicable local or state laws (if any).
If a spark arrestor is used, it should be maintained in effective
working order by the operator.
A spark arrestor for the muffler is available through your nearest
engine authorized service dealer.

6Section 2 — important Safe operation practiceS

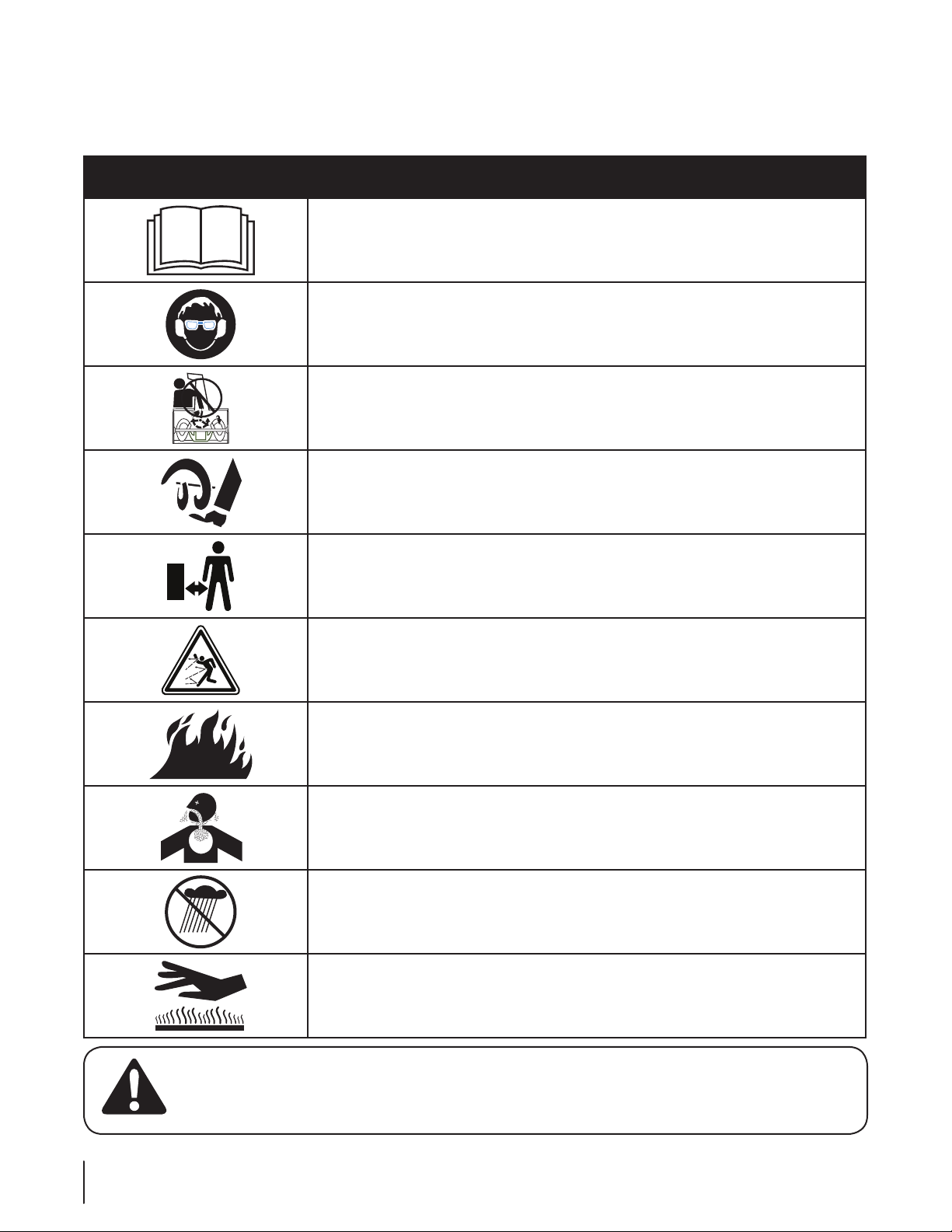

Safety Symbols
This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the
machine before attempting to assemble and operate.
Symbol Description
READ THE OPERATOR’S MANUAL(S)
Read, understand, and follow all instructions in the manual(s) before attempting to
assemble and operate
WARNING— WEAR EYE AND HEARING PROTECTION
Thrown objects and loud noise can cause severe eye injury and hearing loss. Wear ear
protection protection meeting ANSI Z87.1 standards and ear protection when operating this
machine.
WARNING— ROTATING BLADES
Keep hands out of inlet and discharge openings while machine is running. There are rotating
blades inside
WARNING— ROTATING AUGER
Do not put hands or feet near rotating parts, in the auger/impeller housing or chute
assembly. Contact with the rotating parts can amputate hands and feet.
WARNING— KEEP BYSTANDERS AWAY
Keep all bystanders, especially children, away from the operating area.
WARNING—THROWN OBJECTS
This machine may pick up and throw objects which can cause serious personal injury.
WARNING—GASOLINE IS FLAMMABLE
Allow the engine to cool at least two minutes before refueling.
WARNING— CARBON MONOXIDE
Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon
monoxide, an odorless and deadly gas.
WARNING— ELECTRICAL SHOCK
Do not use the engine’s electric starter in the rain
WARNING— HOT SURFACE
Engine parts, especially the muffler, become extremely hot during operation. Allow engine
and muffler to cool before touching.
WARNING! Your Responsibility—Restrict the use of this power machine to persons who read, understand and
follow the warnings and instructions in this manual and on the machine.
SAVE THESE INSTRUCTIONS!

Assembly & Set-Up 3
7
Contents of Carton
• One Snow Thrower • One 20 oz. Bottle 5W-30 Oil • Two Ignition Keys
• One Chute Assembly • One Snow Thrower Operator’s Manual • One Engine Operator’s Manual
NOTE: This Operator’s Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
NOTE: All references to the left or right side of the snow thrower
are from the operator’s position. Any exceptions will be noted.
Assembly
Positioning the Upper Handle
1. Remove the wing knob and carriage bolt from the top of
the lower handle. See Fig. 3-1. It is not necessary to remove
the shoulder screw and flange lock nut below the wing
knob and carriage bolt.
2. Pivot the upper handle into the operating position. Be sure
not to pinch any of the cables in the process. See Fig. 3-2.
3. Tighten the previously removed hardware to secure the
handle in place. See. Fig. 3-2.
Installing the Chute
1. Place the chute handle on the lower chute as shown in Fig.
3-3. Be certain that the handle is aligned in the channel on
the chute and the tabs snap into place.
Wing Knob
Wing Knob
Carriage Bolts
Figure 3-1
Figure 3-2
Channel
Tab
Figure 3-3

8Section 3— ASSembly & Set-Up

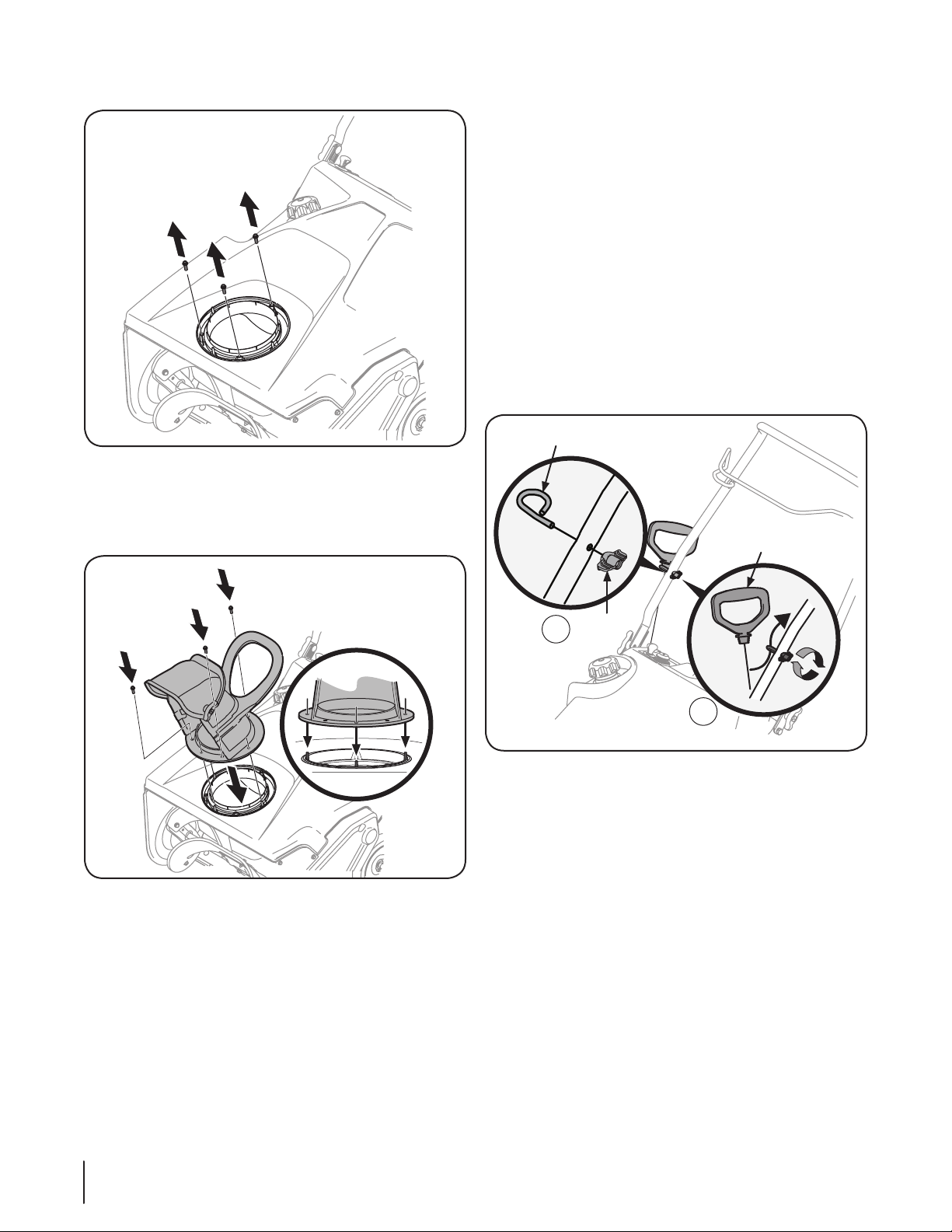

2. Remove the hex washer screws in the chute base. See Fig. 3-4.
3. Align the holes in the chute base with the holes in the
lower chute and secure with the previously removed hex
washer screws. See Fig. 3-5.
Installing the Recoil Starter Handle
On some models it may be necessary to install the recoil starter
handle. If your handle is not pre-installed follow the directions
below to install it.
1. Remove the eye bolt and handle knob from the manual
bag.
2. Place the eye bolt and handle knob on the upper handle as
shown in Fig. 3-6. Do not fully tighten the hardware until
instructed to do so.
NOTE: The opening of the eye bolt should face toward the
back of the snow thrower.
3. Slowly pull the recoil starter handle up towards the eye
bolt.
4. Slip the recoil starter rope into the eye bolt from the back
of the snow thrower. See Fig. 3-6.
5. Securely tighten the eye bolt and handle knob.
Figure 3-5
Figure 3-6
Figure 3-4
B
A
Eye Bolt
Handle
Knob
Recoil Starter
Handle
Set-Up
Adding Fuel & Oil
Refer to the Engine Operator’s Manual packed with your snow
thrower for information on adding fuel and oil.

Controls & Features 4
9
Chute Assembly
Shave Plate
Auger
Control Handle
Auger Control
Recoil Starter Handle

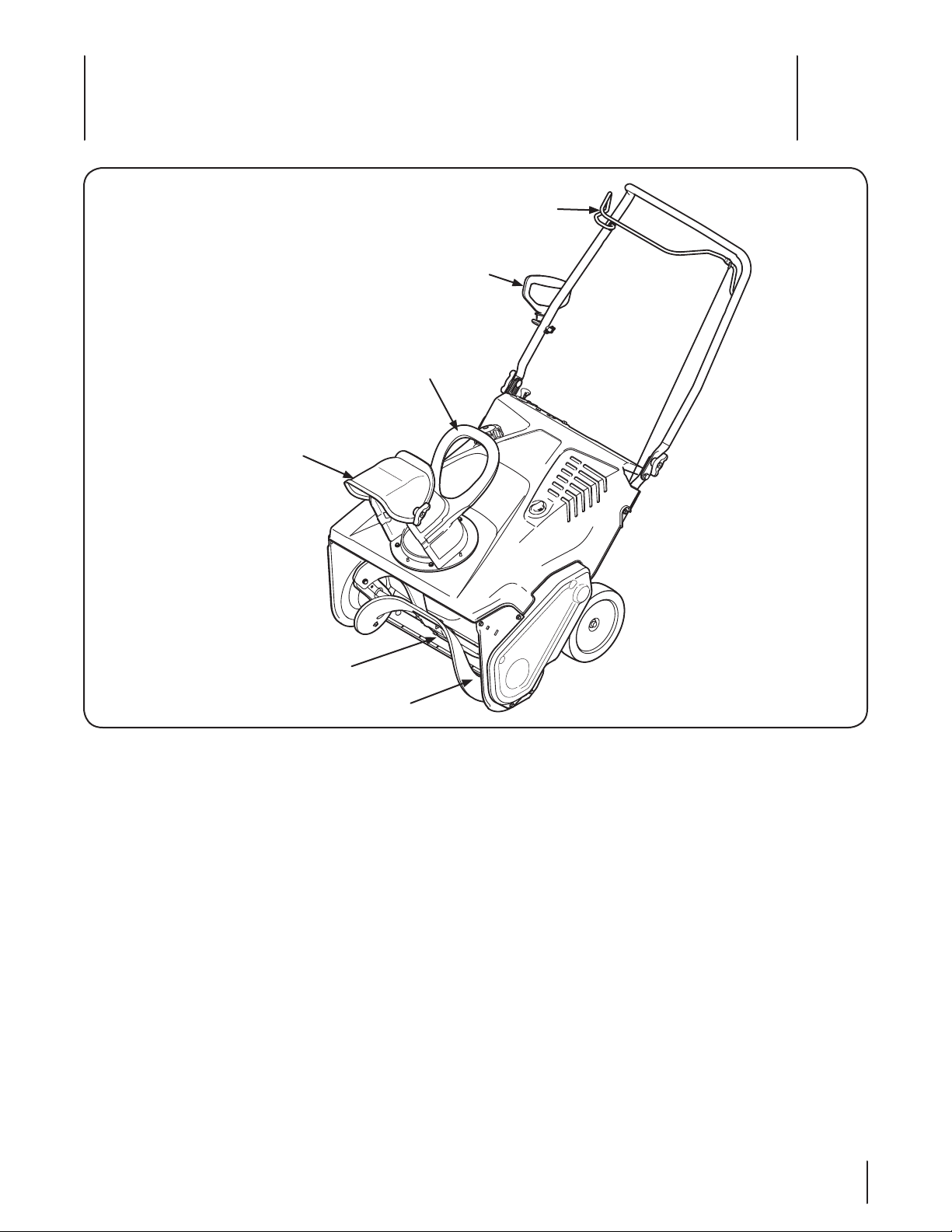

Figure 4-1
NOTE: This Operator’s Manual covers several models. Snow
thrower features may vary by model. Not all features in this
manual are applicable to all snow thrower models and the snow
thrower depicted may differ from yours.
Engine Controls
See the Engine Operator’s Manual for the location and function
of the controls on the engine.
Auger
When engaged, the auger rotation draws snow into the auger
housing and throws it out the discharge chute. Rubber paddles
on the auger also aid in propelling the snow thrower as they
come in contact with the pavement.
Auger Control
Located on the upper handle, the auger control is used to
engage and disengage drive to the auger. Squeeze the control
against the upper handle to engage the auger; release it to
disengage.
Chute Assembly
Rotate the discharge chute to the left or right using the chute
handle. The pitch of the discharge chute controls the angle at
which the snow is thrown. Loosen the wing knob on the side of
the discharge chute before pivoting the discharge chute upward
or downward. Retighten the knob once the desired position has
been achieved.
Shave Plate
The shave plate maintains contact with the pavement as
the snow thrower is propelled, allowing snow close to the
pavement’s surface to be discharged.
Recoil Starter Handle
The recoil starter handle is used to manually start the engine.

Operation 5
10
NOTE: Refer to the Engine Operator’s Manual for instruction on
starting, stopping and operating the engine.
Engaging the Auger
1. To engage the auger and start throwing snow, squeeze the
auger control against the handle. Release to stop the auger.
See Fig. 5-1.
Engaging the Drive
Lift up slightly on the handle to allow the rubber paddles on the
auger to contact the pavement and propel the snow thrower
forward. Pushing downward on the handle will raise the auger
off the ground and stop the forward motion.
NOTE: Excessive upward pressure on the handle will result
in premature wear on the rubber auger blades which will
not be covered by the warranty.
Clearing a Clogged Discharge Chute
WARNING! Never use your hands to clear a
clogged chute assembly. Shut off engine and remain
behind handles until all moving parts have stopped
before using a clean-out tool to clear the chute
assembly.
Hand contact with the rotating impeller inside the discharge
chute is the most common cause of injury associated with snow
throwers. Never use your hand to clean out the discharge chute.
To clear the chute:
1. SHUT THE ENGINE OFF!
2. Wait 10 seconds to be sure the impeller blades have
stopped rotating.
3. Always use a clean-out tool, not your hands.
Chute Assembly
The pitch of the chute assembly controls the angle at which the
snow is thrown.
1. Loosen the wing knob found on the left side of the chute
assembly and pivot the upper chute upward or downward
to the desired pitch. Retighten the wing knob before
operating the snow thrower.
2. Position the chute assembly opening by using the chute
handle to throw the snow in the desired direction. See Fig.
3-3.
Auger
Control
Handle
Figure 5-1
Chute Handle
Chute
Assembly
Wing Nut
Figure 5-2

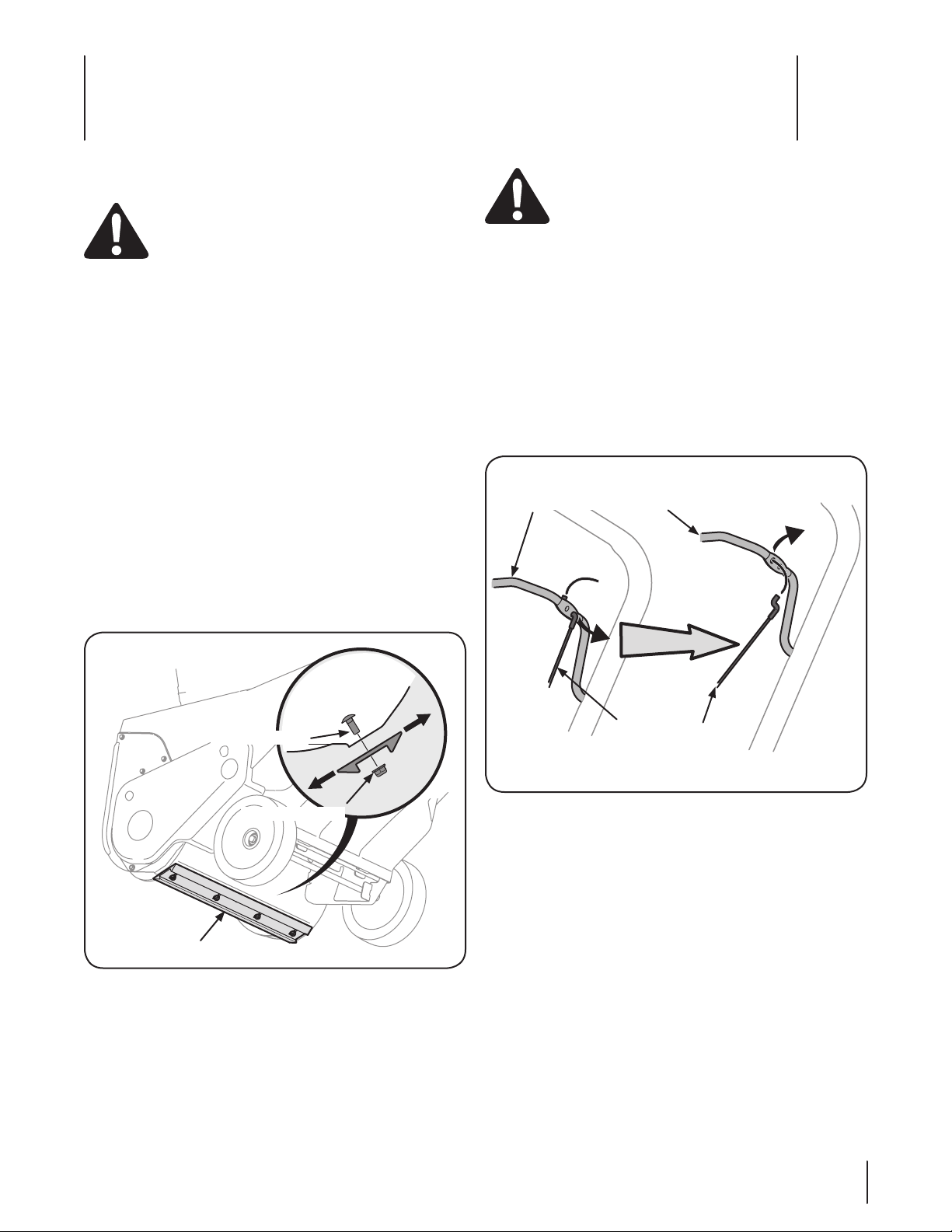

Maintenance & Adjustments 6
11
Adjustments
WARNING! Before servicing, repairing or
inspecting the snow thrower, disengage the auger
control. Stop the engine and remove the key to
prevent unintended starting.
Shave Plate
To check the adjustment of the shave plate, place the machine
on a level surface. The wheels, shave plate and auger should all
contact the level surface. Note that if the shave plate is adjusted
too high, snow may blow under the housing. If the shave plate
wears out excessively, or the snow thrower does not self-propel,
the shave plate may be too low and needs to be adjusted.
NOTE: On new snow throwers or machines with a new shave
plate installed, the auger may be slightly off the ground.
To adjust the shave plate proceed as follows:
1. Drain the gas from the snow thrower by running the
engine until it is empty.
2. Pull the recoil starter handle until resistance is felt. Then tip
the snow thrower back until it rests on the handles.
3. Loosen the four flange lock nuts and carriage bolts which
secure the shave plate to the housing. See Fig. 6-1. Move
the shave plate to the desired position and retighten the
nuts and bolts securely.
4. Tip the snow thrower back to the operating position and pull
the starter handle a few times to see if it is difficult to pull.
5. If the starter is difficult to pull, remove the spark plug and
pull the handle several times to ensure that any oil trapped
in the head is removed.
CAUTION: Oil may come out of the spark plug
hole when it is removed and the starter handle is
pulled.
6. Inspect the spark plug. If it is wet, clean off any oil before
re-installing.
Control Cable
As a result of both the control cable and the auger drive belt
stretching due to wear, periodic adjustments may be necessary.
If the auger seems to hesitate when rotating, proceed as follows:
The upper hole in the control handle provides for an adjustment
in cable tension. To adjust, disconnect the end of control cable
from the bottom hole in the control handle and reinsert it in the
upper hole. Insert the cable from the outside as shown in Fig. 6-2.
Test the snow thrower to see if there is a noticeable difference. If after
the adjustment to the control cable the auger still hesitates when
rotating, see the Service section for instructions on replacing the belt.
Chute Assembly
Refer to the Operation section for instructions on adjusting the
chute assembly.
Figure 6-1
Reversible Shave Plate
Side View
Carriage Screw
Flange Lock Nut
Auger Control Handle
Control Cable
Figure 6-2

12 Section 6 — Maintenance & adjuStMentS
Maintenance
Lubrication
Lubricate the pivot points on the control handle and the
extension spring at the end of the control cable with a light
oil once every season and before the snow thrower is put into
storage at the end of the season.
Engine
Refer to the Engine Operators manual packed separately with
your snow thrower for maintenance and adjustment information
on your engine.
Off-Season Storage
If the snow thrower will not be used for 30 days or longer, follow
the instructions below.
1. Store the equipment in a clean, dry area.
2. If storing the snow thrower in an unventilated area,
rustproof the machine using a light oil or silicone to coat
the snow thrower.
3. Clean the exterior of the engine and the snow thrower.
4. Lubricate pivot points on control handle and extension
spring at end of control cable with a light oil.

Service 7
13
Replacing Belt
1. Run the snow thrower until the fuel tank is empty.
2. Pull the recoil starter handle until resistance is felt. Then tip
the snow thrower back until it rests on the handles.
3. Slide a board up through the auger and through the chute
to secure the auger in place.
4. Remove the belt cover by removing the three hex washer
screws and one hex lock screw that secure it to the frame.
See Fig. 7-1.
5. Remove the flange nut that secures the auger pulley to the
auger shaft. See Fig. 7-2.
6. Remove the auger pulley and the belt.

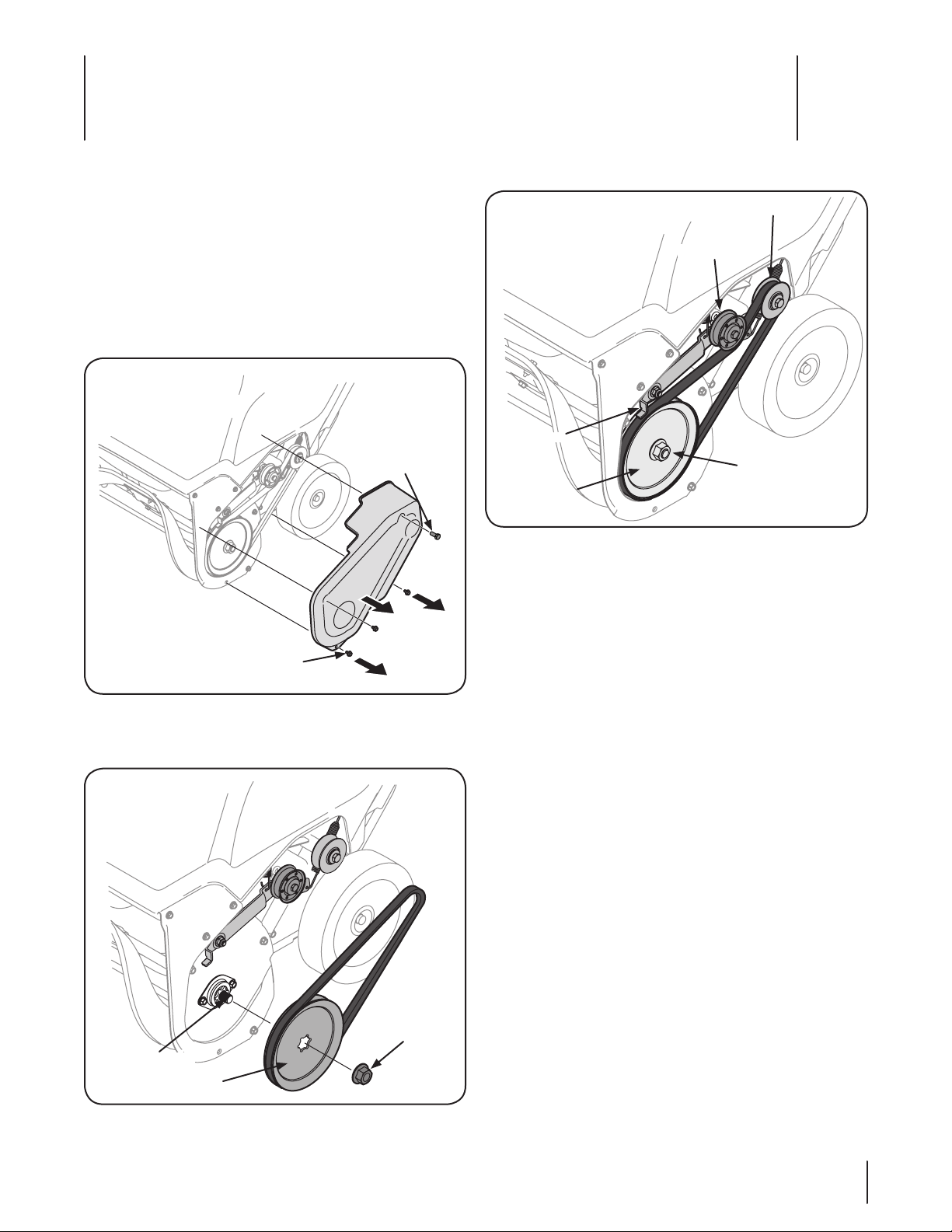

To replace the belt follow these instructions and refer to Fig. 7-3:
NOTE: Installing the belt and belt cover may be easier if the
auger control is squeezed against the upper handle.
1. Route the belt around the drive pulley and under the idler
pulley. See Fig. 7-3.
2. Route the end of the belt around the auger pulley and slide
the pulley back on to the auger shaft. It may be necessary
to push down on the idler pulley to get the auger pulley
under the belt keeper.
3. Replace the flange nut and tighten securely.
4. Reinstall the belt cover removed earlier.
5. Remove the board from the auger and chute.
Hex Washer Screw
Hex Lock Screw
Figure 7-1
Figure 7-2
Flange Nut
Auger Pulley
Auger Shaft
Auger Pulley
Belt Keeper
Idler Pulley
Flange Nut
Drive Pulley
Figure 7-3

14 Section 7— Service
Replacing Auger Paddles
The snow thrower auger’s rubber paddles are subject to wear
and should be replaced if any signs of excessive wear are present.
CAUTION: Do NOT allow the auger’s rubber
paddles to wear to the point where portions of the
metal auger itself can come in contact with the
pavement. Doing so can result in serious damage to
your snow thrower.
To change the rubber paddles, proceed as follows:
1. Run the snow thrower until the fuel tank is empty.
2. Pull the recoil starter handle until resistance is felt. Then tip
the snow thrower back until it rests on the handles.
3. Remove the existing rubber paddles by unthreading the hex
washer screws which secure them to the auger. See Fig. 7-4.
NOTE: The auger paddles should be replaced one-at-a-time
so that the auger still attached can be used as an example for
positioning and re-installing the new auger.
4. Secure the replacement rubber paddles to the auger using
the hardware removed earlier.
Hex Washer Screw
Hex Washer Screw
Auger Paddle
Figure 7-4
Replacing Shave Plate
The shave plate is attached to the bottom of the auger housing
and is subject to wear. It should be checked periodically. There
are two wearing edges and the shave plate can be reversed.
1. Run the snow thrower until the fuel tank is empty.
2. Pull the recoil starter handle until resistance is felt. Then tip
the snow thrower back until it rests on the handles.
3. Remove the four carriage bolts and flange lock nuts which
attach it to the snow thrower housing. See Fig. 7-5.
4. Install the new shave plate, making sure the heads of the
carriage bolts are on the inside of the housing.
5. Tip the snow thrower back to the operating position and pull
the starter handle a few times to see if it is difficult to pull.
6. If the starter is difficult to pull, remove the spark plug and
pull the handle several times to ensure that any oil trapped
in the head is removed.
CAUTION: Oil may come out of the spark plug hole
when it is removed and the starter handle is pulled.
7. Inspect the spark plug. If it is wet, clean off any oil before
re-installing.
8. Adjust the shave plate as instructed in the Maintenance &
Adjustments section.
9. Tighten securely once adjusted.
Engine
Refer to the Engine Operators manual packed separately with
your snow thrower for service information for your engine.
Reversible Shave Plate
Side View
Carriage Screw
Flange Lock Nut
Figure 7-5

Troubleshooting 8
15
Problem Cause Remedy
Loss of power 1. Spark plug wire loose.
2. Vent in gas cap plugged.
1. Firmly connect spark plug wire.
2. Clear vent.
Excessive vibration 1. Loose parts or damaged auger. 1. Stop engine immediately and disconnect
spark plug wire. Check for possible damage.
Tighten all bolts and nuts. Repair as needed.
If the problem persists, take snow thrower to
an authorized service dealer.
Snow thrower fails to self-
propel
1. Auger control cable out of adjustment.
2. Auger drive belt loose or damaged.
1. Adjust auger control cable as shown in
Maintenance & Adjustments section.
2. Replace auger drive belt.
Augers continue to rotate 1. Auger control cable out of adjustment. 1. Adjust auger control cable as shown in
Maintenance & Adjustments section.
Unit fails to discharge snow 1. Chute assembly clogged.
2. Foreign object lodged in auger.
3. Auger control cable out of adjustment.
4. Auger belt loose or damaged.
1. Stop engine and disconnect spark plug wire.
Clean chute and inside of auger housing with
clean-out tool or stick.
2. Stop engine immediately and disconnect the
spark plug wire. Remove object from auger.
3. Adjust auger control cable.
4. Replace auger belt.

16
05.10.11
For equipment purchased in Canada only.
THREE YEAR LIMITED WARRANTY
The limited warranty set forth below is given by MTD Products Limited with respect to new merchandise purchased and used in Canada and/or its territories and
possessions (either entity respectively, “MTD”).
MTD warrants this product (excluding its normal wear parts as described below) against defects in material and workmanship for a period of three (3) years
commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship.
This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and
has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because
of other peril or natural disaster. Damage resulting from the installation or use of any part, accessory or attachment not approved by MTD for use with the
product(s) covered by this manual will void your warranty as to any resulting damage.
Normal wear parts are warranted to be free from defects in material and workmanship for a period of thirty (30) days from the date of purchase. Normal wear
parts include, but are not limited to items such as: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes,
friction wheels, shave plates, auger spiral rubber, tires, engine oil, air filters and spark plugs.
Lifetime Warranty on Polymer Snow Discharge Chute: If your product is a snow thrower equipped with a polymer snow discharge chute (the “Snow Chute”),
and the Snow Chute fails, breaks, or malfunctions, the manufacturer will repair or replace the Snow Chute at no cost as long as it is still owned by the original
purchaser (or the original person for whom this product was purchased as a gift). Control mechanisms attached to the Snow Chute, such as cables and control link-
ages, are covered under the other terms of this limited warranty, but are not covered by this paragraph (or beyond the normal applicable warranty period). Except
as specifically modified by this paragraph, all of the other terms, limitations, and conditions set forth in this document shall continue to apply to the Snow Chute.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in
your area;
In the U.S.A.: Check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or 1-330-220-4683 or log
on to our Web site at www.mtdproducts.com.
In Canada: Contact MTD Products Limited, Kitchener, ON N2G 4J1, or call 1-800-668-1238 or log on to our Web site at www.mtdcanada.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items may carry a separate manufacturer’s warranty. Refer to applicable manufacturer’s warranty for terms
and conditions. The Powermore engine is not excluded under this agreement.
b. Log splitter pumps, valves, and cylinders have a separate one-year warranty.
c. Routine maintenance items such as lubricants, filters, blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal
deterioration of the exterior finish due to use or exposure.
d. Service completed by someone other than an authorized service dealer.
e. MTD does not extend any warranty for products sold or exported outside of Canada, including possessions and territories.
f. Replacement parts that are not genuine MTD parts.
g. Transportation charges and service calls.
h. If products are used commercially. (MTD may separately offer Limited Commercial Warranties on certain select products. Ask your dealer or retailer for
details or contact MTD Service for more information.)
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of
express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given
by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD. During the period of the warranty, the exclusive
remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD shall not be liable for incidental
or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental
expenses to temporarily replace a warranted product.
Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the
above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration of safety features of the product shall
void this warranty. You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the
misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW LOCAL LAWS RELATE TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights that vary in
different jurisdictions.
IMPORTANT: Owner must present Original Proof of Purchase to obtain warranty coverage.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
MTD Products Ltd., P. O. BOX 1386, KITCHENER, ON N2G 4J1; Phone: [phone]

17
For equipment purchased in United States only.
CONSUMER’S WARRANTY
COLUMBIA OUTDOOR
THREE YEARS- 120 Hrs. LIMITED WARRANTY
For three (3) years-120 hrs. whichever come first, from the date of original purchase of COLUMBIA products, COLUMBIA will
either repair or replace, at its option, free of charge, F.O.B. factory or authorized service firm, any part found to be defective in
material and workmanship. All transportation charges on parts submitted for replacement under this warranty must be paid by
the purchaser unless return is requested by COLUMBIA.
This warranty DOES NOT apply to any part which has become inoperative through misuse, excessive use, accident, neglect,
improper maintenance or alterations by unauthorized persons.
This limited warranty does not extend to the replacement of parts which are not defective, but where regular usage has ex-
hausted the life of the part.
TRACTOR ATTACHMENT WARRANTY
Mower decks included with, or sold separately, as an attachment for COLUMBIA garden tractors will be warranted according to
the above terms of the COLUMBIA THREE (3) YEARS - 120 hrs. limited consumer warranty.
ALL OTHER ATTACHMENTS will be sold under the same conditions as above except the warranty will be ONE YEAR FROM
DATE OF ORIGINAL PURCHASE.
ENGINES, ELECTRIC START KITS, HYDRO-GEAR, PEERLESS TRANSMISSIONS AND PEERLESS TRANSAXLES ARE
WARRANTED BY THEIR RESPECTIVE MANUFACTURER. ALL CLAIMS AGAINST THESE COMPONENTS MUST BE
HANDLED THROUGH THE RESPECTIVE MANUFACTURERS SERVICE DEALERS.
Belts, light bulbs, clutch parts (friction wheels), grass bags, tires, seats, rider deck wheels and cutting blades are covered by a 60
day limited warranty.
Batteries are warranted against defect for 90 days at 100% of their value and 50% of their value for the period between the 91st
day and the 120th day.
Fuses, shear bolts and blade adapters are considered consumable items and as such are not warranted.
Note: Regular maintenance replacement parts and related inspections and adjustments are excluded from coverage when made
as part of normal maintenance service.
EXTERIOR FINISH
NORMAL DETERIORATION OF THE EXTERIOR FINISH DUE TO USE OR EXPOSURE TO THE ELEMENTS, CORROSIVE
PRODUCTS ETC… IS NOT WARRANTED. LABELS ARE COVERED FOR 1 YEAR FROM THE ORIGINAL DATE OF PUR-
CHASE.
PERSONAL USE
THE FOREGOING PARAGRAPHS CONSTITUTE COLUMBIA’S ENTIRE WARRANTY WITH RESPECT TO ANY PRODUCT
PURCHASED AND USED FOR PERSONAL, FAMILY, HOUSEHOLD/RESIDENTIAL PURPOSES, AS DISTINGUISHED FROM
COMMERCIAL USAGE.
COMMERCIAL USE
ALL APPLICATIONS OTHER THAN PERSONAL USE AS OUTLINED ABOVE, ARE CONSIDERED COMMERCIAL USAGE.
COLUMBIA products purchased by a company or used for commercial purposes are not covered by any warranty.
WARRANTY SERVICE CAN ONLY BE PERFORMED BY AN AUTHORIZED COLUMBIA SERVICE DEALER. ANY NON-
ORIGINAL EQUIPMENT REPLACEMENT PART USED ON OR IN A PRODUCT UNDER WARRANTY WILL BE EXCLUDED
FROM THAT WARRANTY COVERAGE, AS WILL BE ANY RELATED DAMAGED COMPONENTS RESULTING FROM THE
INSTALLATION OF A NON-COLUMBIA REPLACEMENT PART.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone].10

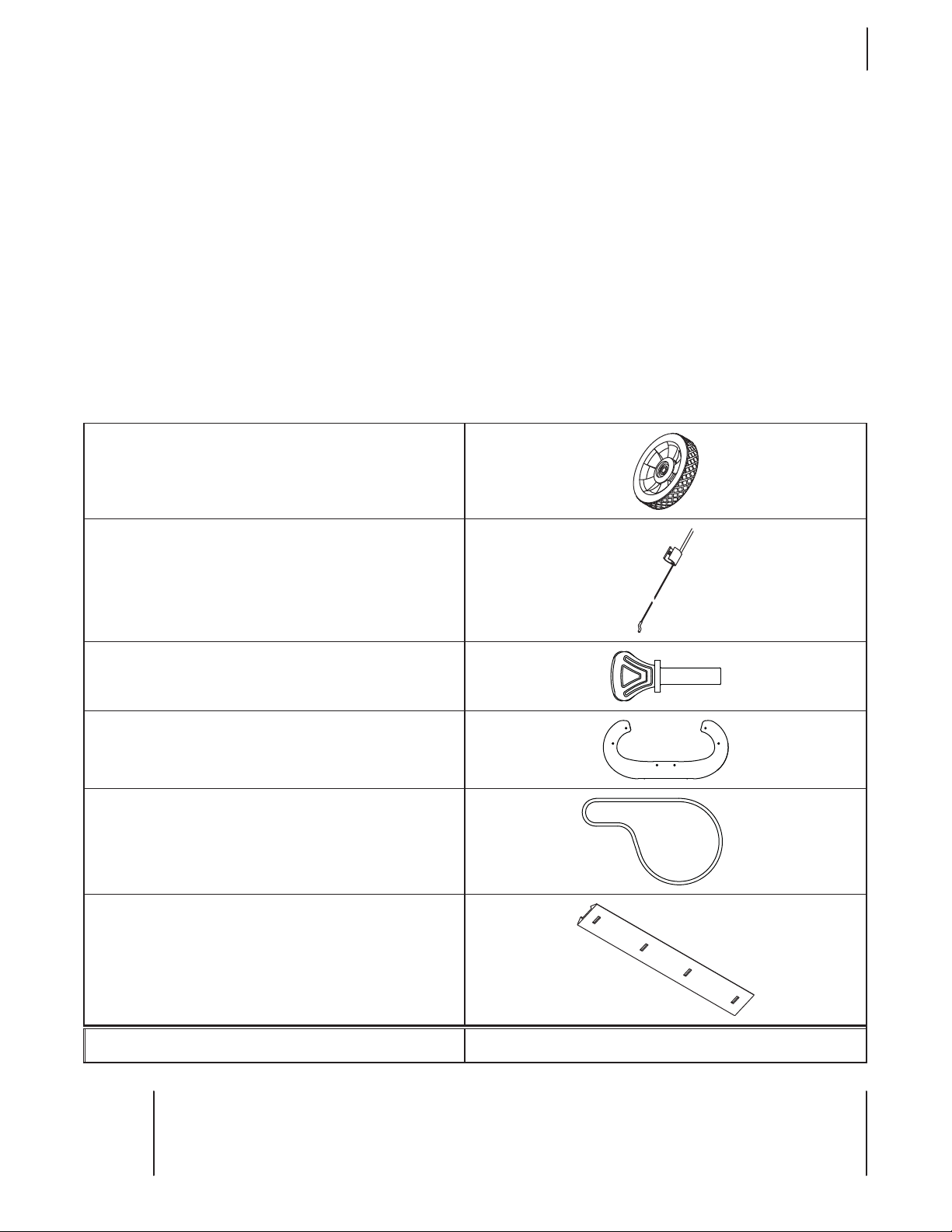

Replacement Parts 9
18
NOTE: Download a complete Parts Manual, refer to customer support on page 2. Be sure to have your model number and serial
number ready. Refer to page 2 for more information regarding locating your model and serial numbers.
Component Part Number and Description
731-08171 Shave Plate
954-04050A Belt V-Type
753-06469 Rubber Auger Paddle Kit (Includes 2
paddles and 12 hex washer screws)
731-05632 Key
946-04782 Clutch Cable
734-04063B Wheel Assembly, 7” (2M1 & 2S1)
734-04585 Wheel Assembly, 8” (2T5)

Pièces de rechange 9
18
REMARQUE: Vous pouvez télécharger un livret contenant la liste complète des pièces détachées adressez-vous au «Service après-
vente» à la page 2. Voir les renseignements qui se trouvent à la page 2 pour localiser les numéros de modèle et de série de votre
machine.
Component No. de pièce et description
731-08171 Plaque de raclage
954-04050A Courroie
753-06469 Trousse - pièces de remplacement
(comprend 2 pales et 12 vis)
731-05632 Clé
946-04782 Câble de l’embrayage
734-04063B Roue, 7 po (2M1 & 2S1)
734-04585 Roue, 8 po (2T5)

17
1.15.09
Pour équipements achetés aux États-Unis seulement.
GARANTIE POUR LE CONSOMMATEUR COLUMBIA OUTDOOR
GARANTIE LIMITÉE DE TROIS ANS - 120 HEURES
Nous nous engageons, envers l’acheteur initial, à réparer ou à remplacer gratuitement, à son choix, franco l’usine ou la station
technique agréée, toute pièce s’avérant DÉFECTUEUSE EN RAISON D’UN VICE DE MATIÈRE ET DE FABRICATION, dans les
trois ans - 120 heures, selon la première évantualité, suivant la date d’achat initiale de les produits Columbia. Tous les frais de
transport des pièces soumises à des fins de remplacement sont à la charge de l’acheteur, à moins que Columbia n’ait demandé
le retour des marchandises.
Cette garantie NE s’applique PAS aux pièces défectueuses du fait d’une utilisation incorrecte, d’un accident, d’une négligence,
d’un entretien inadéquat ou de modifications effectuées par des personnes non autorisées.
Cette garantie limitée ne couvre pas le remplacement des pièces qui, n’étant pas défectueuses, sont usées par une utilisation
normale de la machine.
GARANTIE DES ACCESSOIRES DU TRACTEUR
Les tondeuses fournies avec votre tracteur, ou vendues séparément comme accessoires de votre tracteur de jardin Columbia,
sont également couvertes, en vertu de la garantie limitée de 3 ans -120 heures des produits de consommation de Columbia.
TOUS LES AUTRES ACCESSOIRES sont vendus dans les mêmes conditions, mais ils ne sont couverts que par une garantie
D’UN AN À COMPTER DE LA DATE D’ACHAT INITIALE.
LES MOTEURS, LES DÉMARREURS ÉLECTRIQUES, HYDROGEAR, LES TRANSMISSIONS PEERLESS ET LES
TRANSESSIEUX PEERLESS SONT GARANTIS PAR LEURS FABRICANTS RESPECTIFS. TOUTES LES RÉCLAMATIONS
CONCERNANT CES PIÈCES DOIVENT ÊTRE ADRESSÉES AUX STATIONS TECHNIQUES DES FABRICANTS RESPEC-
TIFS.
Les courroies, ampoules, pièces d’embrayage (roues de frottement), sacs à herbe, pneus, sièges, lames et roues de plateau de
coupe des tracteurs à siège sont couverts par une garantie limitée de 60 jours.
Les batteries sont garanties exemptes de vice de fabrication et seront remplacées gratuitement pendant les 90 premiers jours.
Elles seront remplacées à 50% de leur coût entre le 91e et le 120e jours.
Les fusibles, boulons de cisaillement et adaptateurs de lame sont considérés comme des articles de consommation courante
et, à ce titre, ne sont pas garantis.
REMARQUE: Les pièces de rechange ainsi que les inspections et réglages faisant partie d’un entretien régulier ne sont pas
couverts par cette garantie dans le cadre d’une opération d’entretien normale.
FINI EXTÉRIEUR
LA DÉTÉRIORATION DU FINI EXTÉRIEUR EST DUE À SON EXPOSITION AUX INTEMPÉRIES, AUX PRODUITS COR-
ROSIFS, ETC. ELLE EST NORMALE ET N’EST PAS GARANTIE. LES ÉTIQUETTES SONT GARANTIES PENDANT UN AN À
COMPTER DE LA DATE D’ACHAT INITIALE.
UTILISATION PERSONNELLE
LES PARAGRAPHES PRÉCÉDENTS CONSTITUENT LA GARANTIE COMPLÈTE DU FABRICANT COUVRANT TOUTE
MACHINE ACHETÉE ET UTILISÉE À DES FINS PERSONNELLES, FAMILIALES. DOMESTIQUES/RÉSIDENTIELLES ET
NON COMMERCIALES.
UTILISATION COMMERCIALE
TOUTES LES UTILISATIONS AUTRES QUE L’UTILISATION PERSONNELLE TELLE QUE DÉCRITE CI-DESSUS SONT
CONSIDÉRÉES COMMERCIALES.
Les produits Colombia achetés par une compagnie ou utilisés pour des buts commerciaux ne sont couverts par aucune
garantie.
LES RÉPARATIONS SOUS GARANTIE NE PEUVENT ÊTRE EFFECTUÉES QUE PAR UNE STATION TECHNIQUE AGRÉÉE.
TOUTE PIÈCE DE RECHANGE, NE FAISANT PAS PARTIE DE L’ÉQUIPEMENT D’ORIGINE, UTILISÉE SUR UNE MACHINE
SOUS GARANTIE, EST EXCLUE DE CETTE GARANTIE, AINSI QUE TOUT ÉLÉMENT ENDOMMAGÉ PAR L’INSTALLATION
D’UNE PIÈCE DE RECHANGE D’UNE MARQUE AUTRE QUE COLUMBIA.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: [phone]
