Comcater ACS122 User manual

INSTRUCTION
MANUAL
FOR
DISHWASHING
Mod.
…………………………………………………………………………………………………..…..…………
ACS122
ACS151 –ACS152
ACS181 –ACS182
ACS201 –ACS202
ACS241 –ACS242
………………………..………………………………………………….……………………………..………

instruction for the user
3
INDEX
Introduction......................................................................................................................................... 4
INSTRUCTIONS FOR USE............................................................................................................... 7
Notes before washing......................................................................................................................... 8
Operation and use ............................................................................................................................... 8
Switching on........................................................................................................................................ 8
Washing............................................................................................................................................... 9
Instruction during washing................................................................................................................. 9
Instruction after the washing session..............................................................................................10
Useful advice ....................................................................................................................................10
Maintenance......................................................................................................................................10
Hygienic care....................................................................................................................................11
Removal of lime scale encrustation’s ............................................................................................11
Optimum results ...............................................................................................................................11
Prolonged standstill of the machine ...............................................................................................11
Self cleaning (optional).......................................................................................................................12
Safety device.....................................................................................................................................12
Other risks.........................................................................................................................................13
Risk of trapping the upper limbs .....................................................................................................13
Risks of burning the upper limbs ....................................................................................................13
INSTRUCTION FOR INSTALLATION AND MAINTENANCE..................................................14
location..............................................................................................................................................15
installation and connections ............................................................................................................15
Electrical connection.......................................................................................................................15
Hot water connection (B) ................................................................................................................17
Cold water connection (D) (only for machines steam condenser and/or energy recovery unit) .....................17
Steam connection (E) (only for steam heated machines)..........................................................................17
Water drain (A) .................................................................................................................................17
Steam discharge (F) (only for steam heated machines).............................................................................17
Steam elimination.............................................................................................................................18
Before starting the machine ............................................................................................................18
setting ................................................................................................................................................19
Cooling of HRU (for machines with heat recovery unit only).....................................................................19
Torque limiter...................................................................................................................................19
Loading and unloading of the machine ...........................................................................................19
Machine dismantling ........................................................................................................................19
SOME PROBLEMS which MAY occur during the use of the dishwasher, their reasons and
remedies............................................................................................................................................20

instruction for the user
4

instruction for the user
5
INTRODUCTION
1. Please read carefully the remarks contained in this manual, as they confirm important
information for the correct installation, use and maintenance. Keep this manual for future
reference by the staff.
2. After removal of the packing, check the machine is not damaged and is complete. In case of
any doubt, do not use the machine and contact the service technician. The packing case
(plastic bags, expanded polystyrene, nails etc.) must not be left on site as they are a
potential danger source and must be disposed of carefully.
3. Before connecting the machine to services, check that the details on the data plate
correspond to the services provided on site.
4. The installation has to be completed by qualified staff in accordance with all relevant
regulations and the manufacturers instructions.
5. This machine must only be used for the purpose designed: washing of dishes such as plates,
glasses, cups, cutlery, trays etc. Any other use such as washing of machine parts or objects
with higher dimensions than the working passage of which the machine allows is not
recommended and will cause damage to the machine and danger to the operators.
6. The machine must be used only by trained staff.
7. The staff handling the objects after the washing cycles must comply with hygiene
regulations.
8. Do not keep the machine in places with temperatures below 0°C.
9. The protection degree of the machine is IPX4 and it must therefore not be washed with
direct water jets at high pressure.
10.After isolating the electrical supply, only qualified staff are allowed access to the control
panel.
11.The machine is built according to I.E.C.-standard 89/336 relating to the elimination of
radio interferences and to the electromagnetic compatibility.
12.In conformity with I.E.C.-standard our dishwashers are manufactured according to the
standard of excellent technical level valid in Italy and abroad.
13.Noise of empty machine operation, measured at the working places (fig. 1) at 1.6 m height,
are as follows:
place 1 place 2 place 3
LeqA level equivalent to the
acoustic pressure dB(A)
The peak of the acoustic pressure level is not indicated, as far below 130dB(A):

instruction for the user
6

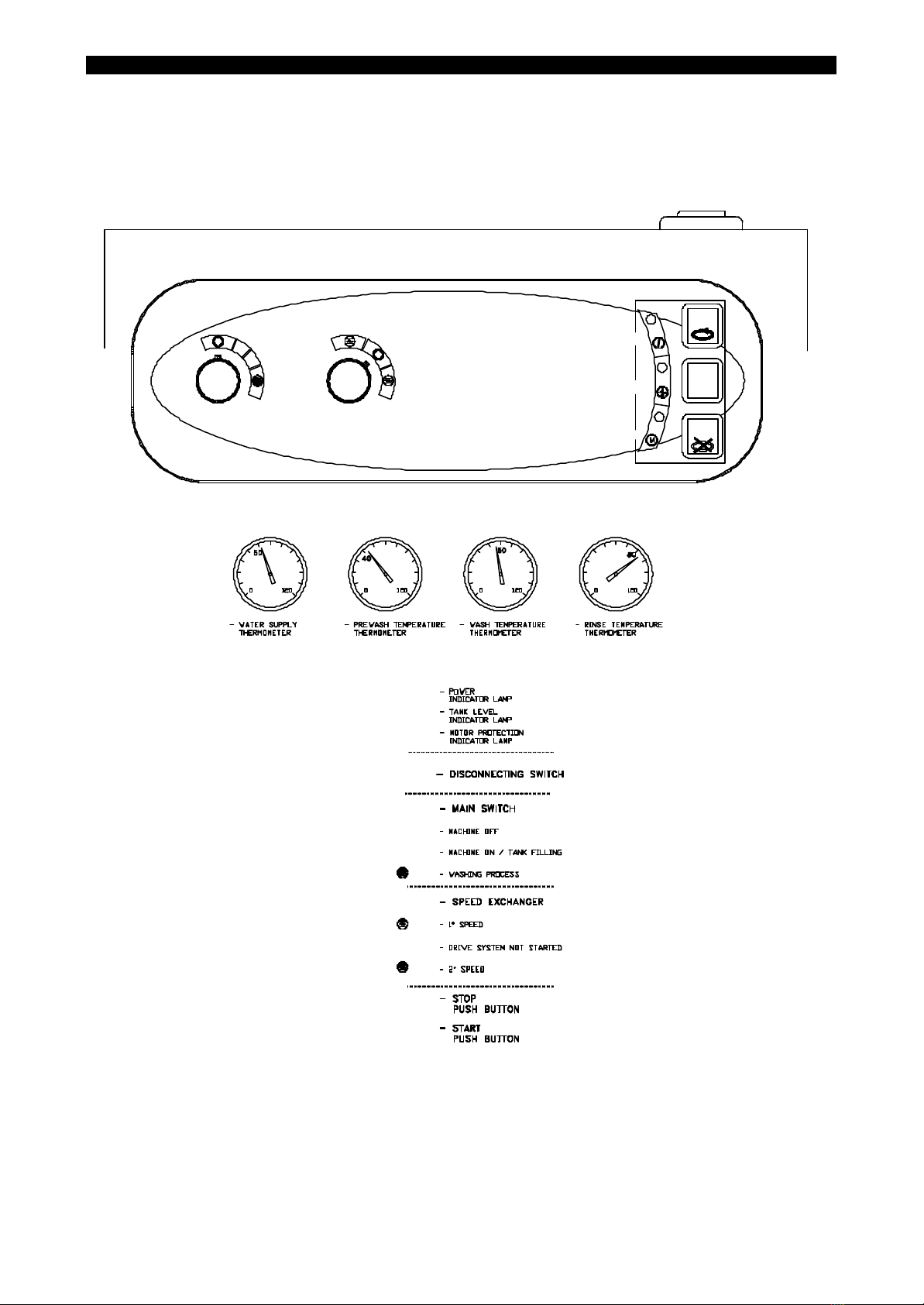

H01
H02
H03
Q2
S1
S2
T3 T10
O
S2
S1
H02
H01
H03
Q2 QV
Q1
1
2
1
2
T2T1
1
2
1
2
O
QV
Q1

instruction for the user
7
INSTRUCTIONS FOR USE

instruction for the user
8
NOTES BEFORE WASHING
1)Make sure that:
??wall isolating switch is connected
??water and steam taps* are open
??there is no lack of water and steam* in the supply net
??tank and pump suction filters are clean and are located correctly and the overflow pipe is in
position and closed
??curtains are correctly placed
??inspection doors are closed
??detergent and rinse aid dispensers are full
??dimensions of the dishware do not exceed those prescribed
OPERATION AND USE
Switching on
In order to turn the machine on simply rotate the main switch "Q2" to the right on to position
"1". Lamp "H01" will illuminate.
Close all machine doors.
Wait for lamp "H02" to turn on indicating tank is full.
Wait until the temperature on thermometer “T3” reaches 55/60°C; at this point the machine is
ready for use. Rotate the main switch "Q2" in position "2".
Select the machine speed using the switch "QV": for heavily soiled dishes we recommend the
first speed (position 1); for lightly soiled items the second speed can be used (position 2).
Select button "S2" to start washing process.
The lamp "H03" indicates that the pump is overheating, technical assistance required
The autotimer function with automatic reset (optional) temporarily stops the operation, if
no racks have been introduced into the machine. Placing a rack into the machine, this restarts
automatically.
On machines with autotimer with manual reset (optional), the working automatically stops,
if no racks have been introduced into the machine. Push switch "S2" to restart operation.
_________________________________________
(*)this applies only to machines with steam heating

instruction for the user
9
WASHING
1) Before starting the wash operations remove from the dishes all possible food leftovers and
grease.
2) Pre-soak cutlery and also any dishes before washing, if they have been left for some time
after being used.
3) Place the items to be washed in the baskets.
4) Make sure that the plates are turned towards the exit of the machine.

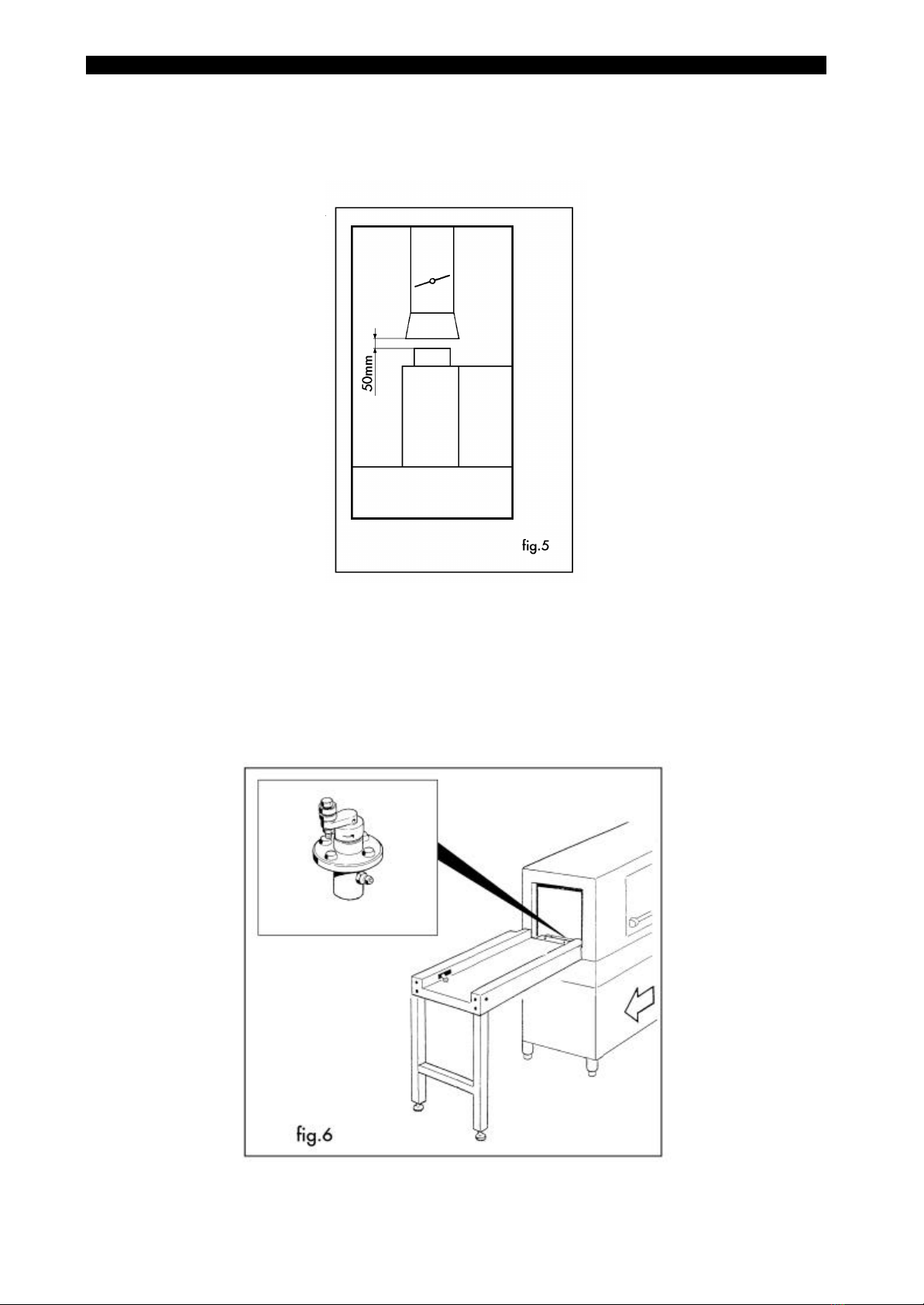

5) If the operator using the machine does not remove the racks from the exit table, a limit
switch ensures the conveyor and rinse cycle is stopped. Removing the rack from the limit
switch re starts the washing sequence.
INSTRUCTION DURING WASHING
1) Do not put your bare hands in the hot and detergent water in the tanks, as this may cause
burns and skin irritations. Should this happen rinse your hands immediately under fresh
water.
2) When the machine is functioning do not open inspection doors quickly.
3) Use only commercial non-foaming detergents for industrial dishwashers, supplied by well-
known and reputable companies.
4) Isolate the electrical supply to the machine in the case of a breakdown or defective
operation. For all repair work, rely exclusively on a Technical Assistance, approved by the
manufacturer and request that original spare parts be used.
5) At periodic intervals stop the machine, remove tank filters and remove the residues which
have accumulated. Do not remove the pump suction filters when the tank is full. For
machines equipped with the “DETREMPE” light prewash (optional) or on models ACS151-
ACS152 remove and clean also the basket filter fit in the hood.
6) If the rack advancing system has stopped due to the safety device (slip clutch) operating,
stop the machine by pressing the mushroom-shaped emergency push-button "S3" and
remove the obstruction which caused the problem.
7) Ensure the detergent and rinse aid levels, in the respective dispensers are kept topped up.
8) Make sure that water temperatures maintain their regulated values: prewash (T2) 40/45°C,
wash (T3) 50/60°C, rinse (T10) 75/85°C.
The non-observance of the above mentioned points may compromise the safety of the machine
and the staff.

instruction for the user
10
INSTRUCTION AFTER THE WASHING SESSION
When the wash operations are complete:
1. Press button "S1" and turn switch "Q2" into position "O" to switch off the machine.
2. Isolate the machine by means of the wall switch and close the water valve and steam supply
(this applies only to steam heating machines).
3. Lift the inspection doors and make sure that they are perfectly hooked onto the support.
4. Take off the overflow pipe in order to empty the tanks.
5. Take out the anti -splash curtains and the filters for cleaning.
6. Check and, if necessary, clean the wash and rinse nozzles. Clean out the wash tanks with a
wash spray hose assembly.
7. For machines with a steam condenser remove the steam suction filter for cleaning (fig. 3):
8. Clean the external surface of the machine with a damp cloth; do not use jets of water, as,
apart from being dangerous, damage to electric components may occur; do not use abrasive
detergents or those containing chlorine.
9. Reassemble all devices into their locations, taking care that:
??the curtains are turned with the short side towards the entry of the items being washed
??the wash nozzles are turned towards the items being washed
10.Keep doors open in order to avoid unpleasant odours, when not in use.
USEFUL ADVICE
Maintenance
IMPORTANT: Before undertaking cleaning and maintenance work, isolate the machine from
the electric supply by switching off the wall switch or the disconnecting switch "Q1".
ATTENTION: do not unplug the disconnecting switch "Q1" when machine is switched
on.
Regular check and cleaning of the nozzles is advisable. The frequency of cleaning depends on
the quantity of leftovers and foodsoiling left on the crockery, insufficient cleaning of nozzles
will give poor wash results. Do not use corrosive products such as hypochloride sodium
(bleaching products), acids in general, steel wool and steel brushes for cleaning the machine
inside and outside.
To ensure the machine is kept in a perfect hygienic condition, it is advisable to carry out the
following periodic operations.
