Comfy CFTYAT30 User manual

Sit or Stand Height
Adjustable Desk
CFTYAT30

IMPORTANT SAFETY
INSTRUCTIONS.
READ ALL INSTRUCTIONS
BEFORE USING.
DO NOT PLACE UNIT IN AN
AREA WHERE IT CAN FALL
INTO WATER OR NEAR
FLAMMABLE MATERIALS.
DO NOT CLEAN UNIT WITH
WATER OR LIQUID.
SAVE THIS MANUAL FOR
FUTURE REFERENCE.

page 3
CONTENTS
PRODUCT REGISTRATION
Remember to record the model number
of this device located on the base of this
unit.
Staple your receipt to your manual. You
will need it to obtain warranty service.
Model number
Date of purchase
PRODUCT SPECIFICATIONS
SAFETY INFORMATION
Important Safety Instructions.............................................................................................................................................4
Operating Instructions............................................................................................................................................................ 5
SET UP & USE
Accessory Package.................................................................................................................................................6
Parts Included ............................................................................................................................................................6
Diagram of Components......................................................................................................................................6
Installation Steps.................................................................................................................................................7-9
CUSTOMER SERVICE
Troubleshooting ......................................................................................................................................................10
Limited Warranty.................................................................................................................................................... 11
Column Stage 2
Max. Load Capacity 99.2lbs (45kg)
Max Speed 25mm or 1in/s
Highest Position 49.2” (1250mm)
Lowest Position 29.5” (750mm)
Height Range 19.65” (500mm)
Drawer 21.8”×11”×2.55”/554mm×279mm×65mm
Tabletop Dimensions 47.6”×23.6”×0.7”/1210mm×600mm×18mm MDF
Duty Cycle 10% (Continuous operation for 2 minutes at most after
pause for 18 minutes)
Temperature 32°F-104°F (0-40°C)

page 4
1. READ ALL INSTRUCTIONS BEFORE USING THE PRODUCT.
2. Power supply: AC 100-17V, frequency 50/60HZ;
3. Service Environment: 32°F-104°F (0-40°C).
4. Unplug the power plug before cleaning, wipe the dust on surface with slight wet
dishcloth when cleaning. Be careful not to let the drops into the internal parts. Do not
loosen the connector.
5. The electric box contains electronic components, metals, plastics, wires etc., dispose of
it in accordance with each state’s environmental legislation; not for general household
waste.
6. Check carefully to ensure correct and complete assembly before using.
7. Be familiar with all functions and program settings of the product before first use.
8. Children are forbidden to play on the product because of unforeseen action when playing.
9. Slight noise caused by the V-ribbed belt or brake system due to structure will not have
any eect on the use of the equipment.
10. Corrosive or abrasive materials are forbidden to clean the equipment. Must ensure that
the cleaner used will not pollute the environment.
11. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
12. Cleaning and user maintenance shall not be made by children without supervision.
13. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or a similarly qualified person in order to avoid a hazard.
14. Please make sure there is no hazardous sources in your operating environment. Always be
careful to treat the packaging materials in order to avoid any possible danger, e.g. plastic
bag may lead to choking hazard.
15. Keep the original package of the equipment. It is necessary in case of future use in
transportation.
SAFETY INFORMATION
IMPORTANT SAFETY INSTRUCTIONS:
DANGER: Indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING: Indicates an imminently hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION: Indicates an imminently hazardous situation which, if not avoided, may
result in minor or moderate injury.
WARNING: When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and personal injury:
NOTICE: Indicates a practice not related to personal injury which, if not avoided,
may result in property damage.
WARNING: This product can expose you to certain chemicals, which are known to the
State of California to cause cancer or birth defects or other reproductive
harm. For more information go to: www.P65Warnings.ca.gov

page 5
OPERATING INSTRUCTIONS
Button introduction: Lifting Function
1. Press the “▲” or “▼” button to adjust the desk upwards or downwards.
2. Press the “▲” button to adjust the desk upwards. Hold the “▲” button for 1.2s to make
the desk continuously rise. The LED light of the “▲” button will flash three times
quickly when the desk reaches the highest position.
3. Press the “▼” button to adjust the desk downwards. Hold the “▼” button for 1.2s to
make the desk continuously fall. The LED light of the “▼” button will flash three times
quickly when the desk reaches the lowest position.
• Reset Function:
1. When the height of the table does not match the actual height, the table needs to
be reset and corrected. Simultaneously press and hold the “▲” and “▼” buttons for
five seconds to enter reset mode.
2. After entering reset mode, the lights of the “▲” and “▼” buttons will flash
alternately. Press and hold the “▼” button at that time, when the desk reaches the
lowest position, it will rebound and rise. The reset is not completed until the light of
the “▼” button flashes three times.
• USB Set Power Supply:
During the lifting process, the power supply of the USB set is suspended. When the
height adjustable desk is not in the reset state, the USB set starts to supply power 1s
after the desk stops running.
• Troubleshooting:
1. If using the desk continuously for more than two minutes, the lights of “▲” and “▼”
buttons flash quickly at the same time, and the desk cannot enter the reset state by
pressing the “▲” or “▼” button, please rest for more than 18 minutes before using it.
2. If the lights of “▲” and “▼” buttons flash quickly at the same time, please touch the
“▲” or “▼” button to enter the reset function.
• DC Input: 29VDC, 3.5A
• Output M1: 29VDC, 1.8A
• Motor Qty: 1PC
• Standby Power Consumption: < 0.5w
• Overload Protection
• Overtime Protection
• Duty Cycle: Work for 2mins, Pause for 18mins
• Two Buttons (the “▲” and “▼” buttons)
(1) Press the “▲” button to adjust the desk upwards.
(2) Press the “▼” button to adjust the desk downwards.
• Certifications: CE-EMC. FCC
• Can be adapted to Loctek’s single motor lifting columns
RECYCLING AND DISPOSAL
This marking indicates that this product should not be disposed with other
household wastes. To prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to promote the sustainable
reuse of material resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was purchased. They
can take this product for environmental safe recycling.

page 6

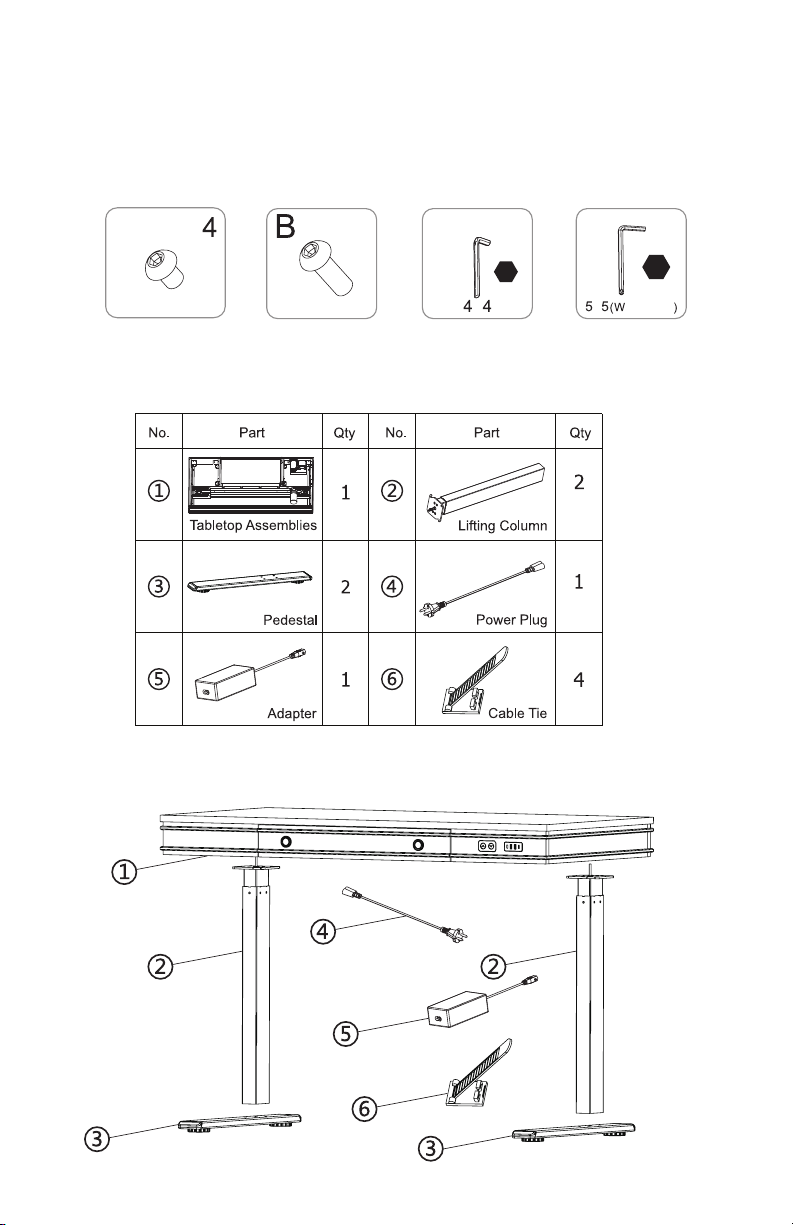

ACCESSORY PACKAGE
PARTS INCLUDED
DIAGRAM OF COMPONENTS
Attention: The drawings below are for guidance only and they may dier slightly
from the product and fittings received. Please contact customer service if there are
any missing tools or installation problems.
SET UP AND USE
Axx8 Cx1 Dx1
Mxit h cross
Mx
M4 M8

page 7
INSTALLATION STEPS
STEP 1: INSTALL LIFTING COLUMNS
Allen

page 8
STEP 2: ATTACH PEDESTALS
Attach the pedestal (3) to the lifting column (2), and tighten the screws (B) with a 5×5
Allen key (D).
M8

page 9
STEP 3: WIRE ALL CABLES TO THE ADAPTER

page 10
TROUBLESHOOTING
Problem Solution
No response while long pressing down
arrow after connected with a power supply.
1. Check if all the cables are connected
properly.
2. Contact your supplier or dealer.
No response while pressing up arrow/down
arrow after connected with a power supply.
1. Check if all the cables are connected
properly.
2. Contact your supplier or dealer.
Rising in a low speed. 1. Check if overloaded, max loading: 45kg.
2. Contact your supplier or dealer.
The motor not moving as instructed. 1. Contact your supplier or dealer.
Lowers but does not raise 1. Reposition
2. Contact your supplier or dealer.
Downward sliding. 1. Check if overloaded, max loading: 45kg.
2. Contact your supplier or dealer.
Frequently Repositions. 1. Check if overloaded, max loading: 45kg.
2. Contact your supplier or dealer.
Overwork
(Duty cycle: Max 2 min on/18 min OFF)
1. Restart after suspend for 18mins while
connecting with power.
2. Contact your supplier or dealer.
Not enough up&down height.
1. Simultaneously hold “▲” and “▼” buttons
for more than 1 second to enter the reset
mode. Then press the “▼” button, the
reset is not completed until the desk
reaches the lowest position and rebounds.
2. Contact your supplier or dealer.
The following tips will help you detect and eliminate the common fault and error.
If the fault you met is not listed below, please contact your supplier. Only the manufacturer
and professionals are capable of investigating and correcting fault and error solutions.
