COMPANION 137.245130 User manual

Owner's Manual
2.5 HP (Max. Developed)
10" Blade
4500 R.P.M.
COMPOUND
MITER SAW
Model No.
137.245130
CAUTION:
Before usingthis miter saw,
read this manual and follow
all its Safety Rules and
Operating Instructions.
•Safety Instructions
• Installation
•Operation
• Maintenance
• Parts List
• Espa_5ol
Customer Help Line
1-800-843-1682
Sears, Roebuck and Co., Hoffman Estates, IL 6017_a_4_.
Part No. 137245130001

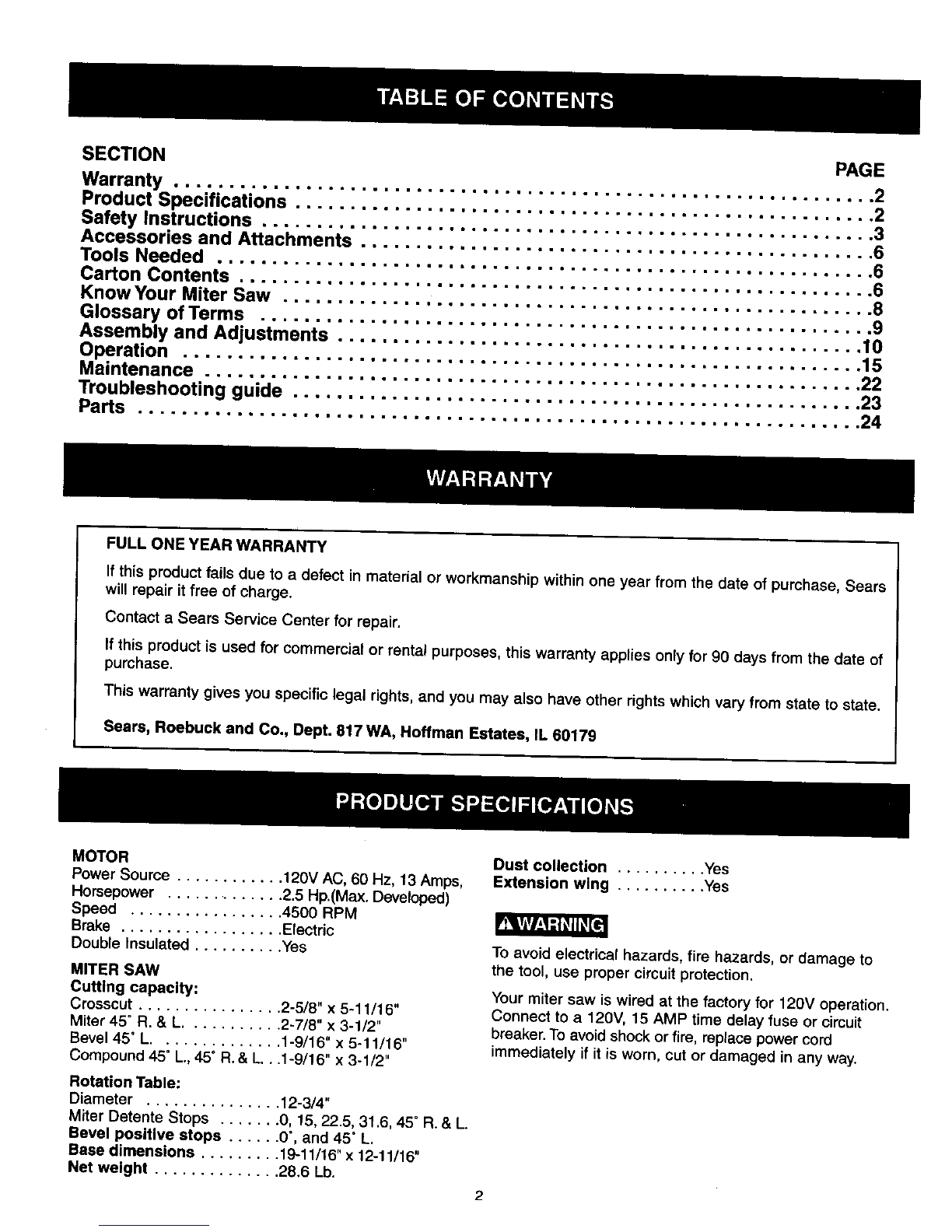

SECTION
Warranty .................
Product Specifications ......
Safety Instructions .........
Accessories and Attachments
Tools Needed .............

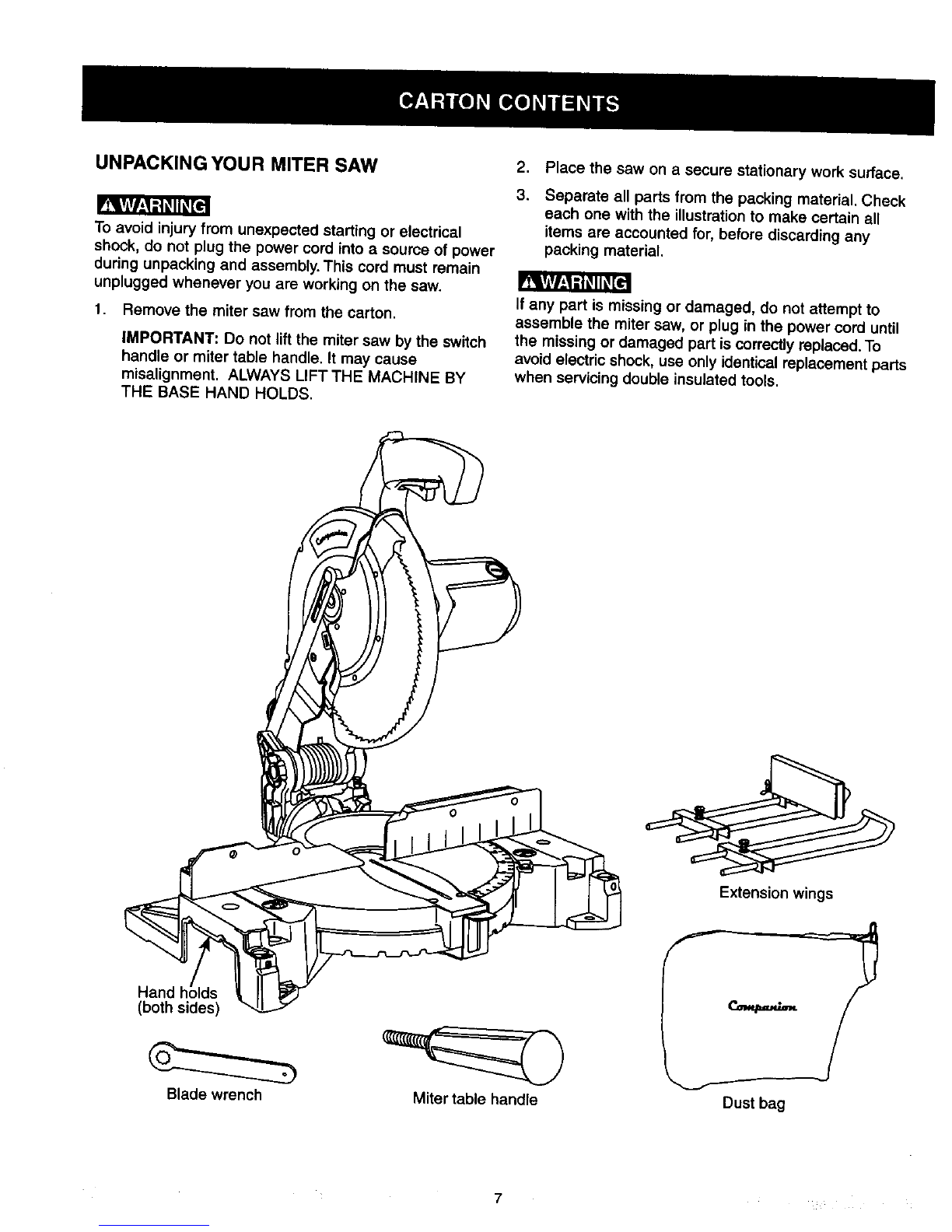

Carton Contents ...........

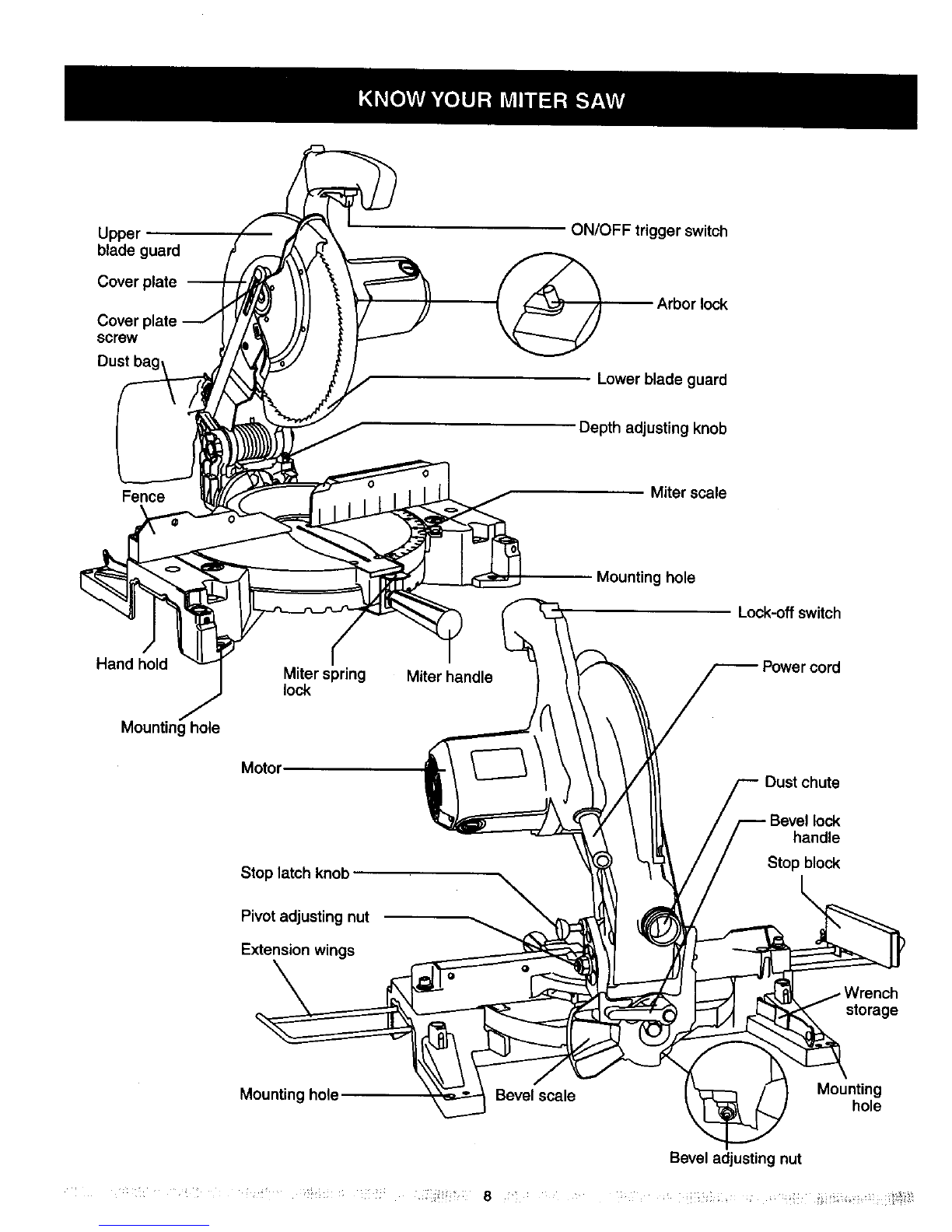

Know Your Miter Saw .......
Glossary of Terms .........

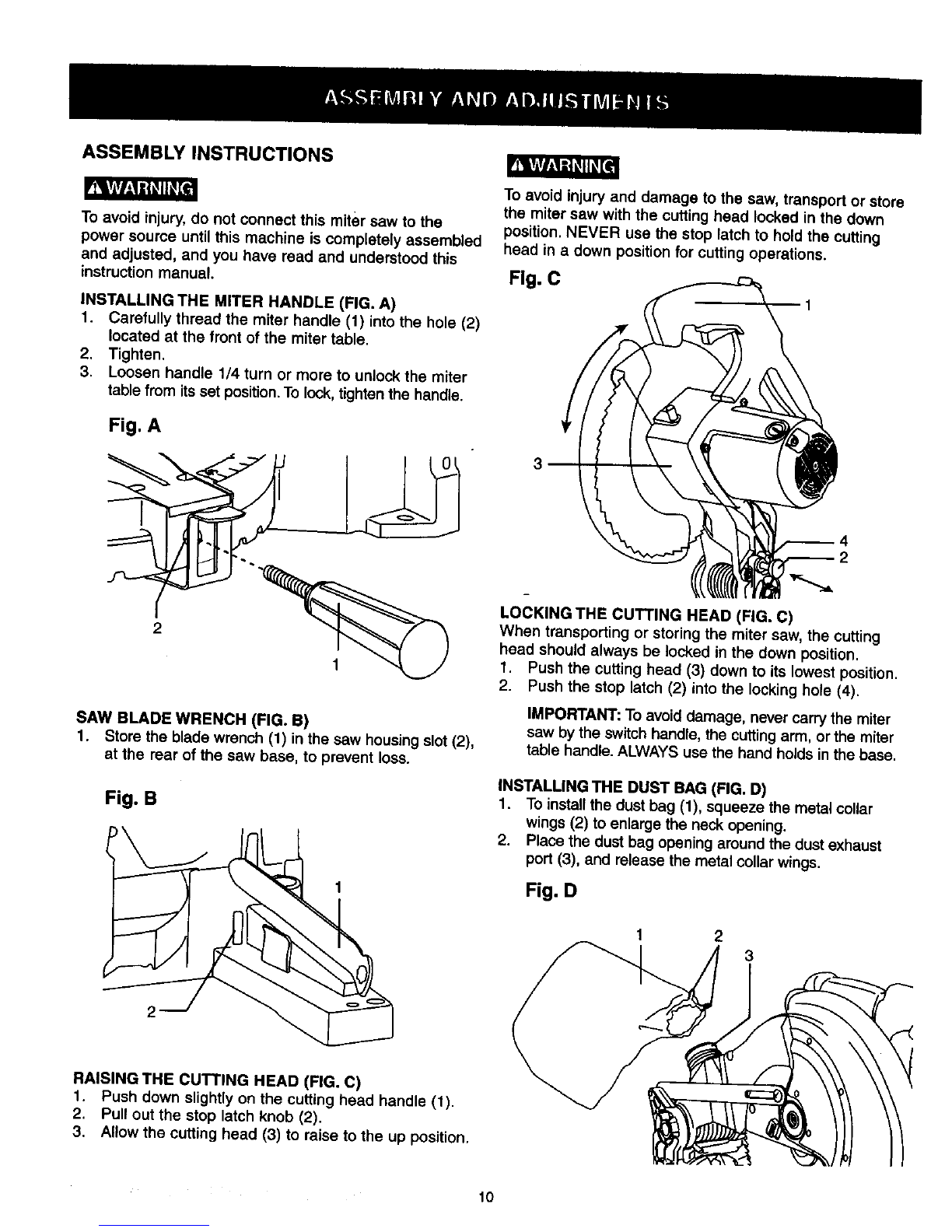

Assembly and Adjustments ..
Operation ................
Maintenance ..............
Troubleshooting guide ......
Parts ....................
=•g= =m= =e=
mo=a =e _a•.
e.e= wm• •Q•
m.la == i.•o
PAGE
°om.eil2
.=.m,el2
.o°.Qie3
.m.l.diS
.=g.ele6
e.i.mm.6
==a..e.8
...... 10
...................... 15
....................... 22
........................ 23
........................ 24
FULL ONE YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date of purchase, Sears
will repair it free of charge.
Contact a Sears Service Center for repair.
If this product is used for commercial or rental purposes, this warranty applies only for 90 days from the date of
purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
MOTOR
Power Source ............ 120V AC, 60 Hz, 13 Amps,
Horsepower .............. 2.5 Hp.(Max. Developed)
Speed ................. 4500 RPM
Brake .................. Electric
Double Insulated .......... Yes
MITER SAW
Cutting capacity:
Crosscut ................ 2-5/8" x 5-11/16"
Miter 45" R, & L........... 2-7/8" x 3-1/2"
Bevel 45 ° L.............. 1-9/16" x 5-11/16"
Compound 45° L.,45°R, & L..1-9/16" x3-1/2"
Rotation Table:
Diameter ............... 12-3/4"
Miter Detente Stops ....... 0, 15, 22.5, 31,6, 45" R. & L.
Bevel positive stops ...... 0", and 45" L.
Base dimensions ......... 19-11/16"x 12-11/16"
Net weight .............. 28.6 Lb.
Dust collection .......... Yes
Extension wing .......... Yes
To avoid electrical hazards, fire hazards, or damage to
the tool, use proper circuit protection.
Your miter saw is wired at the factory for 120V operation.
Connect to a 120V, 15 AMP time delay fuse or circuit
breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.

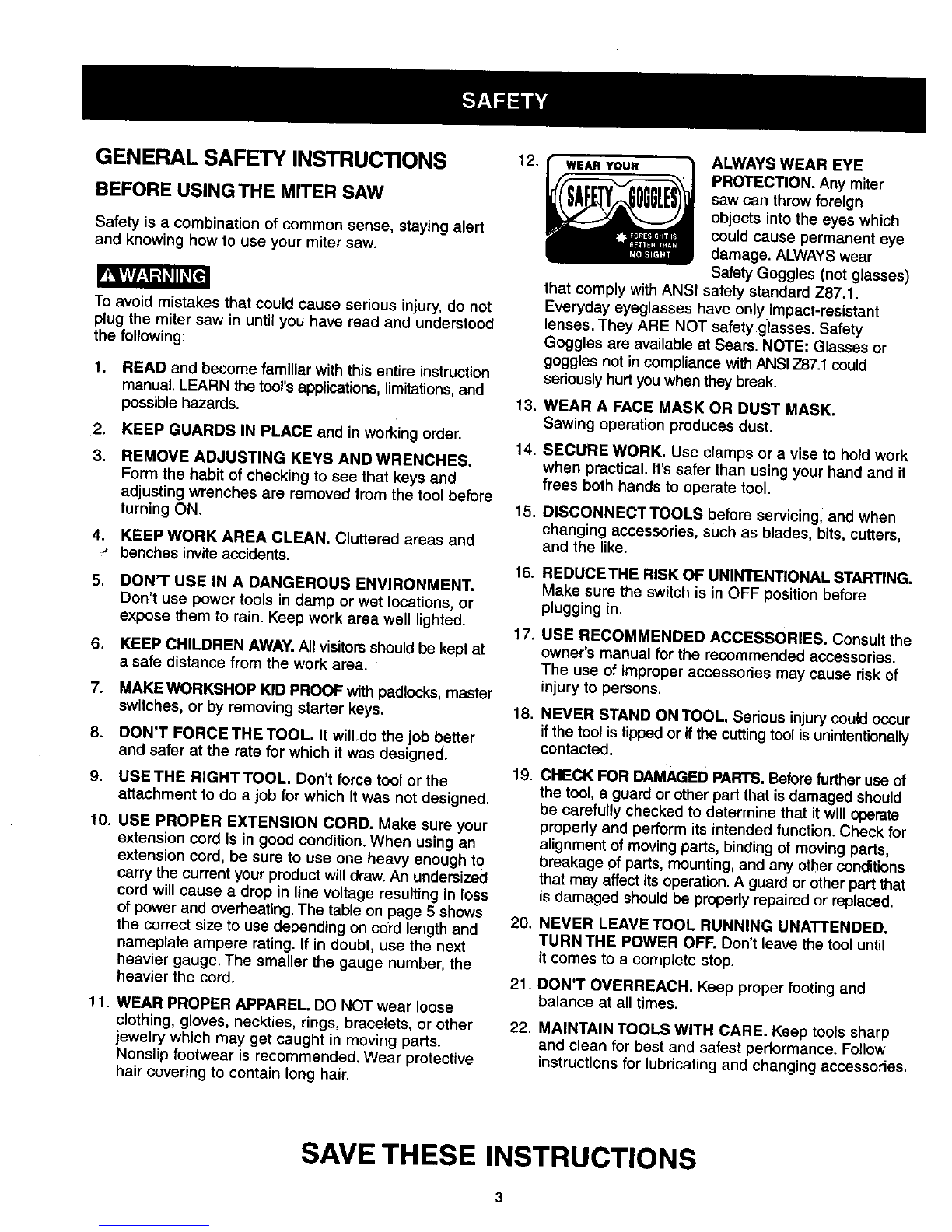

GENERAL SAFETY INSTRUCTIONS
BEFORE USING THE MITER SAW
Safety is a combination of common sense, staying alert
and knowing how to use your miter saw.
To avoid mistakes that could cause serious injury, do not
plug the miter saw in until you have read and understood
the following:
1. READ and become familiar with this entire instruction
manual, LEARN the tool's applications, limitations, and
possible hazards.
,
3.
KEEP GUARDS IN PLACE and in working order.
REMOVE ADJUSTING KEYS AND WRENCHES.
Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool before
turning ON.
4. KEEP WORK AREA CLEAN. Cluttered areas and
benches invite accidents.
5,
.
DON'T USE IN A DANGEROUS ENVIRONMENT.
Don't use power tools in damp or wet locations, or
expose them to rain. Keep work area well lighted.
KEEP CHILDREN AWAY. Allvisitorsshould be kept at
asafe distance from the work area.
7+
8.
9.
MAKE WORKSHOP KID PROOF with padlocks, master
switches, or by removing starter keys.
DON'T FORCE THE TOOL. it will.do the job better
and safer at the rate for which it was designed.
USE THE RIGHT TOOL. Don't force tool or the
attachment to do a job for which it was not designed.
10. USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition. When using an
extension cord, be sure to use one heavy enough to
carry the current your product willdraw.An undersized
cord will cause a drop in line voltage resulting in loss
of power and overheating.The table on page 5 shows
the correctsize to use depending on co'rdlengthand
nameplate ampere rating. If in doubt, use the next
heavier gauge. The smaller the gauge number, the
heavier the cord.
11. WEAR PROPER APPAREL DO NOT wear loose
clothing, gloves, neckties, rings, bracelets, or other
jewelry which may get caught in moving parts.
Nonslip footwear is recommended. Wear protective
hair covering to contain long hair.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
ALWAYS WEAR EYE
PROTECTION. Any miter
saw can throw foreign
objects intothe eyes which
could cause permanent eye
damage. ALWAYS wear
Safety Goggles (not glasses)
that comply with ANSi safety standard Z87.1.
Everyday eyeglasses have only impact-resistant
lenses. They ARE NOT safety glasses. Safety
Goggles are available at Sears, NOTE: Glasses or
goggles not in compliance with ANSIZ87.1could
seriously hurt you when they break.
WEAR A FACE MASK OR DUST MASK.
Sawing operation produces dust.
SECURE WORK. Use clamps or a vise to hold work
when practical. It's safer than using your hand and it
frees both hands to operate tool.
DISCONNECT TOOLS before servicing, and when
changing accessories, such as blades, bits, cutters,
and the like.
REDUCE THE RISK OF UNINTENTIONAL STARTING.
Make sure the switch is in OFF position before
plugging in.
USE RECOMMENDED ACCESSORIES. Consult the
owner's manual for the recommended accessories.
The use of improper accessories may cause risk of
injury to persons.
NEVER STAND ON TOOL. Serious injury could occur
if the tool istipped or ifthe cuttingtool isunintentionally
contacted.
CHECK FOR DAMAGED PARTS. Beforefurther use of
the tool, a guard or other part that is damaged should
be carefully checked to determine that it will operate
properly and perform its intended function. Check for
alignment of moving parts, bindingof moving parts,
breakage of parts, mounting, and any otherconditions
that may affect itsoperation. A guard or other part that
is damaged should be properly repaired or replaced.
NEVER LEAVE TOOL RUNNING UNATTENDED.
TURN THE POWER OFF. Don't leave the tool until
it comes to a complete stop.
DON'T OVERREACH. Keep proper footing and
balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp
and clean for best and safest performance. Follow
instructions for lubricating and changing accessories.
SAVE THESE INSTRUCTIONS
3

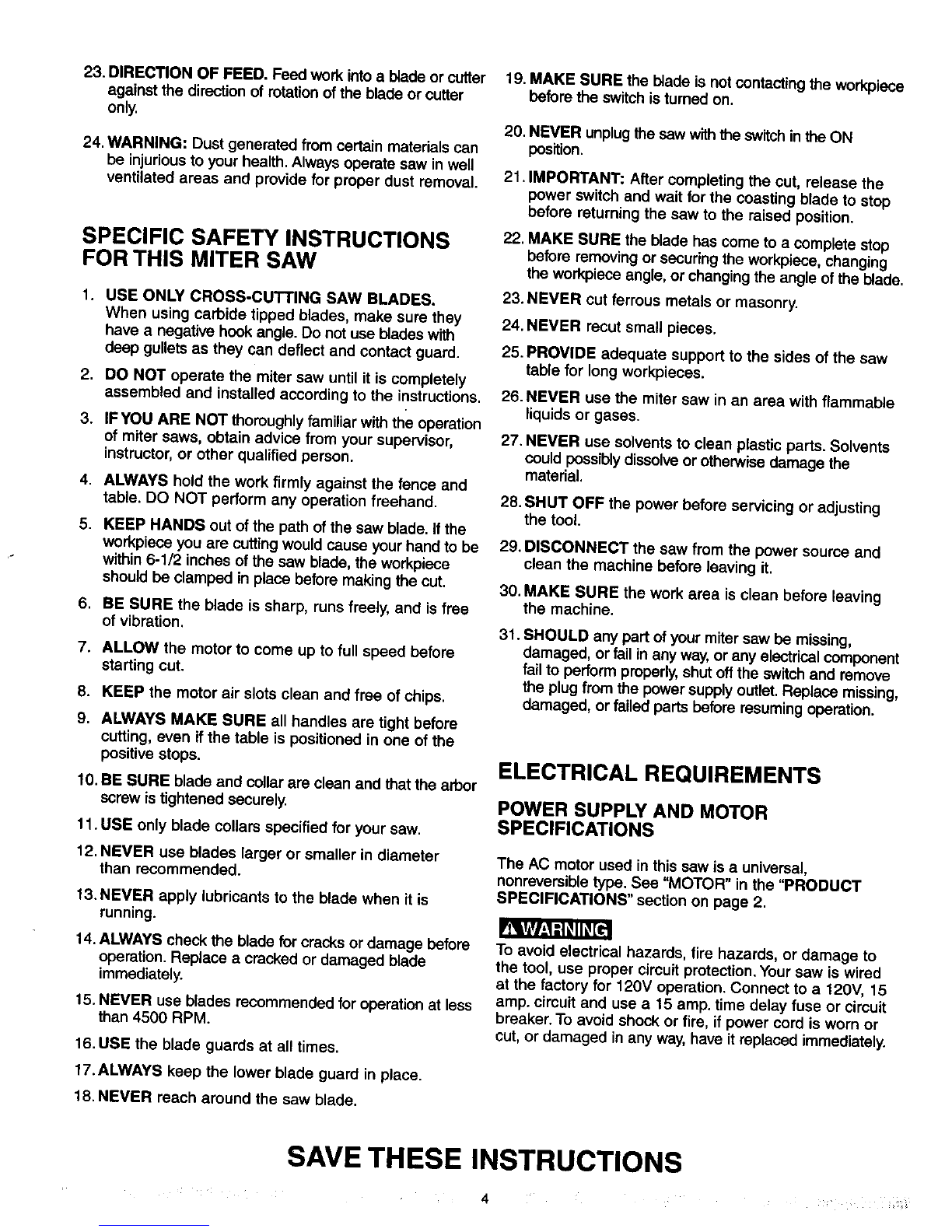

23. DIRECTION OF FEED. Feed work intoa blade or cutter
against the direction of rotationof the blade or cutter
only.
24. WARNING: Dust generated from certain materials can
be injurious to your health. Always operate saw in weU
ventilated areas and provide for proper dust removal.
SPECIFIC SAFETY INSTRUCTIONS
FOR THIS MITER SAW
1. USE ONLY CROSS-CUTTING SAW BLADES.
When using carbide tipped blades, make sure they
have a negaUve hookangle. Do not use blades with
deep gullets as they can deflect and contact guard.
2. DO NOT operate the miter saw until itis completely
assembled and installed according to the instructions.
3. IF YOU ARE NOT thoroughly familiar with the operation
of miter saws, obtain advice from your supervisor,
instructor, or other qualified person.
4. ALWAYS hold the work firmly against the fence and
table. DO NOT perform any operation freehand.
5. KEEP HANDS out of the path ofthe saw blade. If the
workpiece you are cutting would cause your hand to be
within 6-1/2 inches of the saw blade, the workpiece
should be clamped in p_acebefore making the cut,
6. BE SURE the blade is sharp, runs freely, and is free
of vibration.
7. ALLOW the motor to come up to full speed before
starting cut.
8. KEEP the motor air slots clean and free of chips.
9. ALWAYS MAKE SURE all handles are tight before
cutting, even ifthe table is positioned in one of the
positive stops.
10. BE SURE blade and collar are clean and that the arbor
screw istightened securely.
11. USE only blade collars specified for your saw.
12. NEVER use blades larger or smaller in diameter
than recommended.
13. NEVER apply lubricants to the blade when it is
running.
14, ALWAYS check the blade for cracks or damage before
operation. Replace a cracked or damaged blade
immediately.
15. NEVER use blades recommended for operation at less
than 4500 RPM.
16. USE the blade guards at all times.
17.ALWAYS keep the lower blade guard in place.
18. NEVER reach around the saw blade.
19. MAKE SURE the blade isnot contactingthe workpiece
before the switchis turned on.
20. NEVER unplug the saw withthe switchin the ON
position.
21. IMPORTANT: After completing the cut, release the
power switch and wait for the coasting blade to stop
before returning the saw to the raised position.
22. MAKE SURE the blade has come to a complete stop
before removing or securing the workpiece, changing
the workpiece angle, or changing the angle ofthe blade.
23. NEVER cut ferrous metals or masonry.
24. NEVER recut small pieces.
25. PROVIDE adequate support to the sides of the saw
table for long workpieces.
26. NEVER use the miter saw in an area with flammable
liquids or gases.
27. NEVER use solvents to clean plastic parts. Solvents
couldpossiblydissolve or otherwise damage the
material.
28. SHUT OFF the power before servicing or adjusting
the tool.
29. DISCONNECT the saw from the power source and
clean the machine before leaving it.
30. MAKE SURE the work area is clean before leaving
the machine.
31. SHOULD any part of your miter saw be missing,
damaged, or fail in anyway, or any electrical component
fail to perform properly,shut off the switch and remove
the plug from the power supply outlet. Replace missing,
damaged, or failed parts before resuming operation.
ELECTRICAL REQUIREMENTS
POWER SUPPLY AND MOTOR
SPECIFICATIONS
The AC motor used in this saw isa universal,
nonreversibletype. See "MOTOR" in the "PRODUCT
SPECIFICATIONS" section on page 2.
To avoid electrical hazards, fire hazards, or damage to
the tool, use proper circuit protection.Your saw is wired
at the factory for 120V operation. Connect to a 120V, 15
amp. circuit and use a15 amp. time delay fuse or circuit
breaker. To avoid shock or fire, if power cord is worn or
cut, or damaged in any way,have it replaced immediately.
SAVE THESE INSTRUCTIONS

DOUBLE INSULATED []
The miter saw is double insulated to provide a double
thickness of insulation between you and the tool's
electrical system. All exposed metal parts are isolated
from the internal metal motor components with
protecting insulation.
Replacement parts -When servicing use only identical
replacement parts.
Polarized plugs - This saw has a plug that looks like
the one shown below:
To reduce the risk of electrical shock,this caw has a
polarized plug (one blade is wider than the other). This
plug will fit in a polarized outlet only one way.If the plug
does not fit fully in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to install the
proper outlet. Do not change the plug in any way.
Double insulation does not take the place of normal
safety precautions when operating this tool.
To avoid electrocution:
1. Use only identical replacement parts when servicing
a tool with double insulation.
Servicing shouldbe performedby a qualified
technician.
2, Do not use power toolsin wet or damp areas or
expose them to rain.
This tool is intended for indoor use only.
MOTOR SAFETY PROTECTION
IMPORTANT:
To avoid motor damage, the motor should be blown OL_
or vacuumed frequently to keep sawdust from interfering
with the motor ventilation.
1. CONNECT this saw to a 120V, 15 amp. circuit with a
15 amp. time delay fuse or circuitbreaker. Using the
wrong size fuse can damage the motor.
2. IF the motorwon't start, release the triggerswitch
immediately.UNPLUG THE SAW. Check the saw
blade to make sure itturns freely. Ifthe blade is free,
try to startthe saw again, if the motor stilldoes not
start, refer to the "TROUBLESHOOTING CHART".
3. IF the saw suddenly stalls while cuttingwood, release
the tdgger switch, unplugthe tool, and free the blade
from the wood. The saw may now be restarted and
the cutfinished.
4. FUSES may "blow" or circuitbreakers may trip
frequenUy if:
a. MOTOR isoverloaded - overloading can occur if
you feed too rapidlyor make too many start/stops
in a short time.
b. LINEVOLTAGE is more than 10% above or below
the nameplate voltage rating.For heavy loads,
however,the voltage at motorterminals mustequal
the voltage specified on the name plate.
c. IMPROPER or dull saw blades are used.
5. Most motortroublesmay be traced to k_oseor incorrect
connections, overload, low voltage or inadequate
power supply wiring.Always check the connections,
the load and the supply circuitifthe motordoesn't run
well.Check wire sizes and length with the Extension
Cord Chart below.
GUIDELINES FOR EXTENSION CORDS
USE PROPER EXTENSION CORD. Make sure your
extension cord is in good condition.When using an
extension cord, be sure to use one heavy enough to carry
the current your productwilldraw. An undersized cord will
cause a drop in line voltage, resultingin loss of power and
cause overheating,The table below shows the correctsize
to use depending on cord length and nameplate ampere
rating.If in doubt, use the next heavier gauge. The smaller
the gauge number, the heavier the cord.
Be sure your extension cord is properly wired and in
good condition,Always replace a damaged extensioncord
or have it repaired by a qualified person before using it.
Protect yourextension cords from sharp objects,
excessive heat and damp or wet areas.
Use a separate electrical circuit for your tools. This
circuit must not be less than #12 wire and should be
protected with a 15 Amp time delay fuse. Before
connecting the motorto the power line, make sure the
switch is in the OFF position and the electric current is
rated the same as the current stamped on the motor
nameplate. Running at a lower voltage will damage the
motor.
(when using 120 volts only)
Ampere Rating Total length of cord In feet
morethan notmorethan 25' 50' 100' 150'
06 18 16 16 14
6 10 18 16 14 12
10 12 16 16 14 12
12 16 14 12 Not recommended
CAUTION: In a11cases, make certain the receptacle in
question is properly grounded, If you are not sure have
acertified electrician check the receptacle.
This miter saw is for indoor use only. Do not expose to
rain or use in damp locations.
SAVE THESE INSTRUCTIONS
5

PROHIBITED ACCESSORIES
Use only accessories recommended for this miter saw.
Follow instructions that accompany accessories. Use of
improper accessories may cause hazards.
The use of any cutting tool except 10 inch saw blades
which meet the requirements under recommended
accessories isprohibited. Do not use accessories such as
shaper cutters or dado sets. Ferrous metal cutting and the
use of abrasive wheels is prohibited.
Blade wrench(supplied) Adjustablewrench
Phillipsscrewdriver
Slottedscrewdriver Combination square
Do not attempt to modify this tool or create accessories
not recommended for use with thistool, Any such alteration
or modification is misuse and could result in a hazardous
condition leading to possible serious injury.
RECOMMENDED ACCESSORIES
Visit your Sears Hardware Department or see the Power
and Hand Tools Catalog to purchase recommended
accessories for this power tool.
COMBINATION SQUARE MUST BE TRUE
Draw light ,-,
line on board
along this edge. ,. --'
of
board 3/4" thick.
edge must be
perfectly straight.
To avoid the risk of personal injury, do not modify this
power tool or use accessories not recommended by
Sears.
Read warnings and conditionson your CARBIDE TIPPED
SAW BLADE. Do not operate the saw without the proper
saw blade guard in place. Carbide is a very hard but brittle
material. Care shouldbe taken while mounting, using,and
storing carbide blades to prevent accidental damage. Slight
shocks, such as striking the tip while handling, can seriously
damage the blade. Foreign objects in the workpiece, such
as wire or nails, can also cause tips to crack or break off.
Before using, always visually examine the blade and tips
for bent blade, cracks, breakage, missing or loose tips, or
other damage. Do not use if damage is suspected. Failure
to heed safety instructions and warnings can result in
serious bodily injury.
Should be no gap or overlap
when square is flipped over
in dotted position
SAVE THESE INSTRUCTIONS
6

UNPACKING YOUR MITER SAW
PJ_i_YiJ,t3_
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power
during unpacking and assembly. This cord must remain
unplugged whenever you are working on the saw.
1. Remove the miter saw from the carton.
IMPORTANT: Do not lift the miter saw by the switch
handle or miter table handle. It may cause
misalignment, ALWAYS LIFT THE MACHINE BY
THE BASE HAND HOLDS.
,
3.
Place the saw on a secure stationary work surface.
Separate all parts from the packing material. Check
each one with the illustration to make certain all
items are accounted for, before discarding any
packing material.
If any part is missing or damaged, do not attempt to
assemble the miter saw, or plug in the power cord until
the missing or damaged part iscorrectly replaced. To
avoid electric shock, use only identical replacement parts
when servicing double insulated tools.
Hand
(both sides)
Blade wrench Miter table handle
Extension wings
Dust bag

Uppel
bladeguard
Coverplate
Cover
screw
ON/OFF trigger switch
Arbor lock
Lower blade guard
Depth adjusting knob
Fence Miter scale
Mounting hole
Lock-off switch
Hand hold ;ord
Mountin_ hole
Motor
Stop latch knob
lock
handle
Stop block
Pivot adjusting nut
Extension wings
storage
Mounting hole Bevel scale Mounting
hole
i,!!_i :
Bevel adjusting nut
8.... ,

COMPANION COMPOUND MITER SAWTERMS
ARBOR LOCK -Allows the user to keep the blade from
rotating while tightening or loosening the arbor screw
during blade replacement or removal.
BASE - Supports the table, holds accessories and
allows for workbench or leg set mounting.
BEVEL LOCK HANDLE - Locks the miter saw at a
desired bevel angle.
BEVEL SCALE -To measure the bevel angle of the saw
blade 0° to 45" left.
COVER PLATE SCREW - Loosen this screw and rotate
the plate for access to the blade arbor screw.
DUST CHUTE - Exhausts debris away from the user.
EXTENSION WINGS - Extend the widthof the work table
for support while cutting long workpieces.They can be
used with or without a stop block as an additionalside
fence.
FENCE - Helps to keep the workpiece from moving
when sawing. Scaled to assist with accurate cutting.
HAND HOLD - For moving the saw when unplugged.
LOCK-OFF SLIDE SWITCH - must be pushed forward
to activate the trigger switch.
LOWER BLADE GUARD - Helps protect your hands
from the blade in the raised position, it retracts as the
blade is lowered.
MITER HANDLE - Use to lock and unlock the miter
table, and to rotate the saw to a right or left cutting
position.
MITER SCALE - To measure the miter angle 0°to 45"
left, 0" to 45" right.
MITER SPRING LOCK -With the miter handle, locks
the miter saw at a preset positive stop for the desired
miter angle.
MOUNTING HOLES -To mount the miter saw to a stable
surface.
ON/OFF TRIGGER SWITCH - To preventthe trigger from
being accidentally engaged, a lock-off slide switch is
provided. To start the tool, push the lock-oft slide switch
forward and squeeze the trigger. Release the trigger to
stop the miter saw.
STOP LATCH - Locks the miter saw in the lowered
position for compact storage and carrying,
SWITCH HANDLE -The saw handle contains the trigger
switch and a lock-off slide switch.The blade is lowered
into the workpiece by pushing down on the handle,The
saw will return to its upright positionwhen the handle is
released.
WARNING LABEL - Read for your own safety.
WRENCH STORAGE - Convenient storage to prevent
misplacing the blade wrench.
WOODWORKING TERMS
ARBOR -The shaft on which a blade is mounted.
BEVEL CUT -An angle cut made through the face of
the workpiece.
COMPOUND CUT -A simultaneous bevel and miter cut.
CROSS CUT - A cut made across the width of the
workpiece.
FREEHAND - Performing a cut without using afence
(guide), hold down or other proper device to prevent the
workpiece from twisting during the cutting operation.
GUM - A sticky sap from wood products.
HEEL - Misalignment of the blade.
KERF -The amount of material removed by a blade out.
MITER CUT - An angle cut made across the width of the
workpiece.
RESIN -A sticky sap that has hardened.
REVOLUTIONS PER MINUTE (RPM) -The number of
turns completed by a spinning object in one minute.
SAW BLADE PATH -The area of the workpiece or table
top directly in line with the travel of the blade or the part
of the workpiece which will be cut.
SET -The distance between two saw blade tips, bent
outward in opposite directions to each other. The further
apart the tips are, the greater the set.
WORKPIECE -The item being cut. The surfaces of a
workpiece are commonly referred to as faces, ends, and
edges.
9

ASSEMBLY INSTRUCTIONS
To avoid injury, do not connect this miter saw to the
power source until this machine is completely assembled
and adjusted, and you have read and understood this
instruction manual.
INSTALLING THE MITER HANDLE (FIG. A)
1. Carefully thread the miter handle (1) into the hole (2)
located at the front of the miter table.
2. Tighten.
3. Loosen handle 1/4 turn or more to unlock the miter
table from itsset position.To lock, tightenthe handle.
Fig. A
2
SAW BLADE WRENCH (FIG. B)
1. Store the blade wrench (1) in the saw housing slot (2),
at the rear of the saw base, to prevent loss.
Fig. B
2
RAISING THE CUTTING HEAD (FIG. C)
1. Push down slightly on the cutting head handle (1).
2. Pull out the stop latch knob (2).
3. Allow the cutting head (3) to raise to the up position.
To avoid injury and damage to the saw, transport or store
the miter saw with the cutting head locked in the down
position. NEVER use the stop latch to hold the cutting
head in a down position for cutting operations.
Fig. C
LOCKING THE CUTTING HEAD (FIG. C)
When transporting or storing the miter saw, the cutting
head should always be locked in the down position.
1. Push the cutting head (3) down to its lowest position.
2. Push the stop latch (2) into the locking hole (4).
IMPORTANT: To avoid damage, never carry the miter
saw by the switch handle, the cuttingarm, or the miter
table handle. ALWAYS use the hand holds in the base.
INSTALLING THE DUST BAG (FIG. D)
1. To install the dust bag (1), squeeze the metal collar
wings (2) to enlarge the neck opening.
2. Place the dust bag opening around the dust exhaust
port (3), and release the metal collar wings.
Fig. D
I23
10
