COMPASS HEALTH Roscoe Medical ROS-OBT User manual

Deluxe Overbed Table

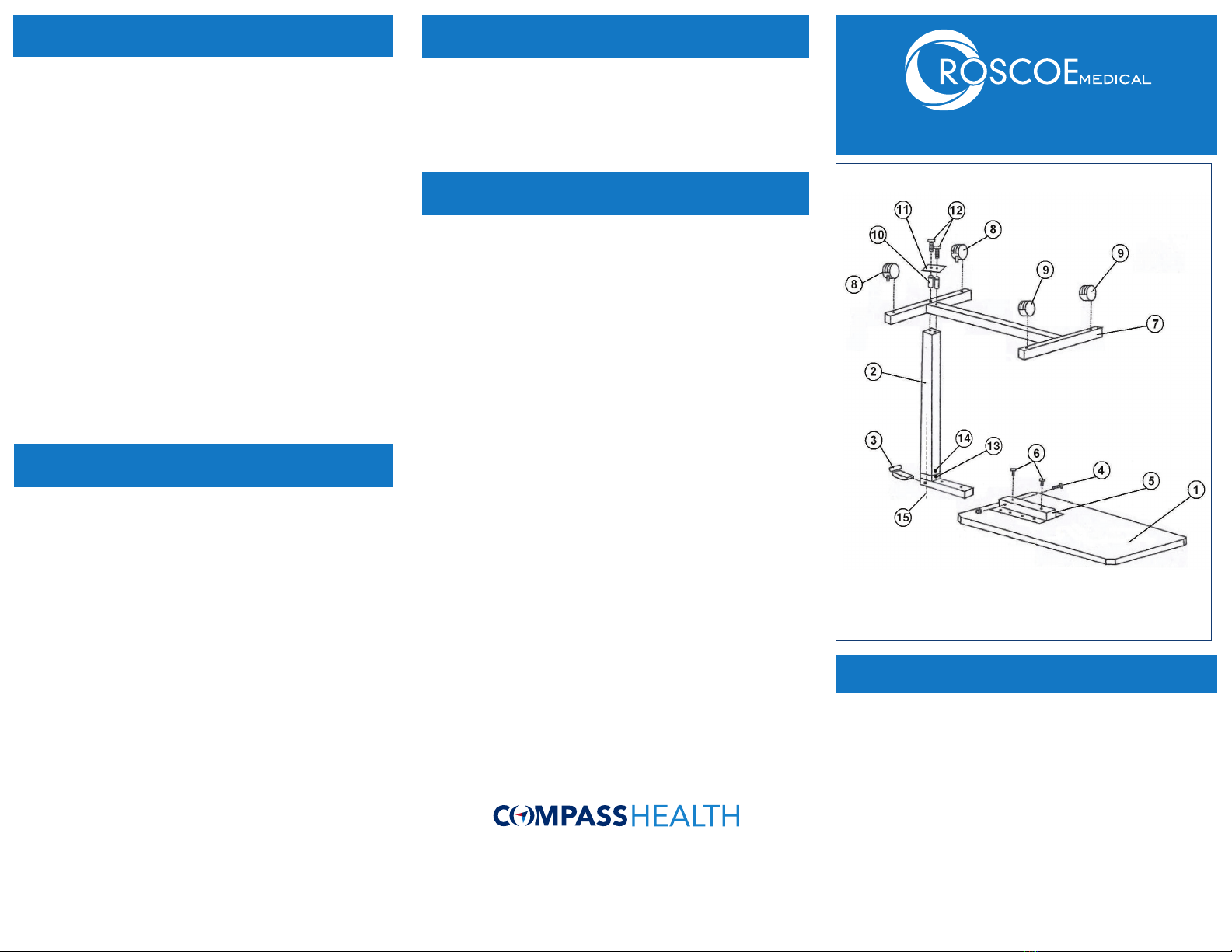

PARTS LIST
1. Table Top
2. Column Assembly
3. Release Handle
4.
1
/4" #20 Bolt
& Nut (1 Each)
5. Mounting Bracket
6.
1
/4” Washer & #12
1
/4”
Bolt (2 Each)
7. H-Base
8. Caster With Lock (2)
9. Caster (2)
10. Bolt Sleeve
11. Bolt Plate
12.
3
/8" #18 UNF Bolt (2)
13.
1
/4" #20 Bolt (Black)
14.
1
/4" #10 Bolt (Chrome)
15. Trip Rod,
1
/4” x 20½”
(Located Inside #2)
Item #: ROS-OBT
FOR SAFETY — DO NOT REMOVE BLACK SCREW (13) ON
COLUMN ASSEMBLY (2) UNTIL THE TABLE IS FULLY ASSEMBLED
AND STANDING IN UPRIGHT POSITION. AFTER REMOVING
BLACK SCREW, REPLACE WITH CHROME SCREW (14) INCLUDED
IN HARDWARE PACKAGE. THE BOTTOM CHROME SCREW WITH
THE “DO NOT REMOVE” LABEL SHOULD NEVER BE REMOVED
AS IT WILL DAMAGE THE UNIT AND VOID YOUR WARRANTY.
ALSO PLEASE TAKE CAUTION AS THE TABLE TOP MAY SPRING
UPWARD UPON REMOVAL OF THE BLACK SCREW.
This Overbed Table utilizes a high-tension spring loaded
mechanism to raise the table. DO NOT remove #13 Black Screw
and replace with #14 Chrome Screw until table is fully assembled.
DO NOT over tighten bolts, screws or use power tools when
assembling this product.
Please follow all instructions and warnings to avoid hazardous
situations that can result in property damage and/or patient/
resident/staff/caregiver injury and/or death.
Inspect the product for damage and loose hardware before
each use. DO NOT use the product if it appears to be damaged
or unstable and DO NOT modify the product in any way.
This product is designed for use as a movable patient/resident
table top surface for reading, eating, or keeping small personal
items such as glasses, telephone or books, within easy reach.
This product is designed for indoor use ONLY and within close
proximity of skilled caregivers. It is not designed to hold
electrical items (such as televisions, computer monitors, coffee
pots, etc.) and should not be used near open ames and
excessive heat.
Maximum weight limitation for this product is 50 lbs. (22 kg.);
weight should be evenly distributed over the table top surface
while at the lowest usable height to help maintain a stable
condition.
DO NOT overload this product, as that could result in breakage,
as well as damage to property and/or serious injury. Use ONLY
as directed for its intended use. This product should NOT be
used as a sleep surface, walker, mobility aid; or to assist a
person in walking, sitting down, standing up; or to prevent or
brace a person’s fall; or to help transport persons or items.
1. To raise top to desired height, squeeze the Release Handle (3)
and apply light pressure upward at any point under table.
2. To lower, squeeze Release Handle (3) and push down on the
column side to the desired height. DO NOT put pressure on
table top end that is opposite the column. Release the Release
Handle (3) and table top will lock into place.
This warranty is solely for the benet of the original consumer
purchaser.
This device was built to exacting standards and carefully inspected
prior to shipment. Your Roscoe brand product is warranted to be
free of defects in materials and workmanship for a period of one
year. If within such warranty period, the product proves defective,
the product will be repaired or replaced, at the option of Roscoe
Medical. This warranty does not cover device failure due to owner
misuse or negligence, or normal wear and tear. If you have a
question about your Roscoe product or this warranty, please
contact an authorized Roscoe Dealer.
WARNINGS & PRECAUTIONS
INTENDED USE
OPERATION INSTRUCTIONS
ONE YEAR WARRANTY
Compass Health Brands
6753 Engle Road
Middleburg Heights, Ohio 44130
www.compasshealthbrands.com
42_ROS-OBT_02 ©2018

FIG. 7
Remove 12
Insert 13
FIG. 8
Remove
(13)
Insert
(14)
FIG. 9 FIG. 10
ASSEMBLY INSTRUCTIONS
1. Remove contents from packaging and lay tabletop (1)
upside down on at surface with Mounting Bracket (5)
facing upward. See Fig. 2.
2. Take the Column Assembly (2) and place Release Handle (3)
on top of Trip Rod (7) which needs to be inside the
Column Assembly before it is secured with Bolt and Nut (4)
See Fig. 3.
3. While holding the Release Handle (3) securely in place on
top of the Trip Rod (15), ip the Column Assembly (2) upside
down and insert it into the table top Mounting Bracket (5)
as shown in Fig. 4
4. Align horizontal hole in tabletop Mounting Bracket (5) with
horizontal hole in Column Assembly (2) and hole through
Release Handle (3). Insert Bolt (4) into horizontal hole & secure
with Nut (4). Tighten with adjustable wrench. See Fig. 5.
5. Install two Domed Phillips Head Bolts and Locking Washers
(6) through the vertical holes in the Mounting Bracket (5)
and into the threaded holes in Column Assembly (2) as
shown in Fig. 6.
6. Install two Casters with Lock (8) into Base (7) which connects
to Column Assembly (2). Install two Non-Locking Casters (9)
into base opposite Column Assembly (2). See Fig. 7.
7. Install two Bolt Sleeves (10) into the upside down
H-Base (7) and then position the two Bolts (12) through
the Bolt Plate (11) and into the Bolt Sleeves (10). Position the
H-Base (7) over the Column Assembly (2) and thread bolts
into the bottom of and tighten using an adjustable wrench.
See Fig. 8
8. Turn the table upright and stand on Casters.
9. CAUTION:
This step must be completed last to prevent damage to
the spring loaded mechanism. Remove the Black Screw (13)
in the Column Assembly (16) labeled “REMOVE AFTER
ASSEMBLY” and replace it with the Chrome Screw (14)
contained in hardware package. Do not remove the Chrome
Screw labeled “DO NOT REMOVE”. See Fig. 9 and Fig. 10.
ROS-OBT Hardware Blister Card & Tools
Tools Required:
- Adjustable wrench
- Philips or at head
screwdriver
Fig. 1
Fig. 2
ASSEMBLY INSTRUCTIONS (con’t) ASSEMBLY INSTRUCTIONS (con’t)
Note: Trip Rod (7) is contained inside the column
and shown here for reference.
Fig. 3
Fig. 4
Fig. 5
Fig. 6
Fig. 7
Fig.8
12
11
10
