Compat DualFlo 199255 User manual

Operating Instructions
199255 COMPAT DualFlo®
Enteral Delivery Pump
199255 Manual 7/16/08 10:05 AM Page 2

1Table of Contents
Section Page
Introduction 2
Controls 4
Preparation of COMPAT DualFlo®
Delivery Set 8
Operating Instructions 9
Quick Reference:
Flow Rate, Dose Limit,
Formula Delivered 12
Hydration with Automatic Flush 13
Formula Strength, Programmable
Flush, Water Delivered 14
Alarms/Indicators 15
Troubleshooting 17
Specifications 18
Symbols on Pump and Accessories 20
Self Test 21
Factory Service 21
Safety and Warnings 21
Limited Warranty 22
Cleaning 22
Pump is not intended for neonatal use.
Caution: Federal law restricts this device to
sale by or on the order of a physician.
For Model Number
199255 COMPAT DualFlo
®
Enteral Delivery Pump
U.S. Patent No. 5,634,907
NOT FOR PARENTERAL USE
INTENDED EXCLUSIVELY FOR
ENTERAL TUBE FEEDING AND
PATIENT HYDRATION.
For More Information
Contact your local Nestlé HealthCare
Nutrition Sales Representative or call
Customer Service from anywhere in the
U.S. and Canada at 1-877-338-4238.
199255 Manual 7/16/08 10:05 AM Page 3

Introduction
Delivery Set Security Doors
Reduces the likelihood of accidental
dislodgment of sets and enables
immediate detection of a free flow
condition.
Automatic priming
Automatic priming of formula and water
through the administration set allows
nurse time to perform other bedside
duties and may help reduce wasted sets
due to improper manual priming.
Versatility
• Formula rate adjustable in 1 mL/hr
increments from 1–295.
• Dose Limit adjustable in 1 mL/hr
increments from 1–2000.
• Formula Strength options include FS
(Full Strength), 3 /4,2/3,1/2,1/3,1/4
strength, or H20(water only).
• Water volume adjustable in 1 mL/hr
increments from 0–500.
• Time Interval adjustable in 1 hour
increments from 2 to 12 hours, with
programmable flush available as
dose is delivered.
• Ability to select basic full strength
formula delivery when water delivery
options are not desired.
Patient hydration with
automatic flush
Patient hydration needs are facilitated by
administering up to 500 mL of water
over a selected time interval (in hours).
Time interval is adjustable in 1 hour
increments from 2 to 12 hours. In addi-
tion, the final 25 mL of water is automati-
cally flushed through the line just before
the conclusion of the time interval.
Formula dilution
Provide formula dilution when necessary
by selecting Formula Strength. Formula
can be delivered at full strength (FS), or
diluted to 3
/4,2/3,1/2,1/3,1/4strength, or H20
(all water delivery, no formula).
Programmable Flush after Dose is
Delivered
Deliver up to 500 mL of water in a
programmable water delivery to hydrate
the patient or flush the line after the for-
mula dose limit is delivered. Water is
delivered at a fixed rate of 375 mL/hr.
The COMPAT DualFlo®Enteral Delivery Pump is an easy to use, versatile device for the
administration of all enteral feeding solutions. Key features of this device include:
2
199255 Manual 7/16/08 10:05 AM Page 6

3
Lifetime memory retention
Infusion Rate, Dose Limit, Formula
Strength, Water Volume Set, Time
Interval, Formula and Water Volume
Delivered, and Accumulated Volume are
automatically recalled when the pump is
turned back on.
Audio and visual alarms when
pump is turned on:
• Feed Error for detecting empty
container or occluded line
•2
1/2minute Hold Alarm if user
forgets to start the pump
• Dose Delivered
• Low Battery
• No Set
Designed for ease of use
• Large LED display window, alternates
displaying delivery rate and volume
delivered when pump is running.
• Dose Limit for Intermittent
Feeding with choice of 3 dose
complete alarm modes.
• Ability to quickly view formula and
water settings without interruption of
feeding.
• Adapter Cap Holder.
• Smooth surface of pump makes
cleaning easy.
• Lightweight and portable, the
pump is 7pounds and can clamp
to any IV pole.
• Adjustable Alarm Volume
Control knob.
• 8-hour battery life.
• Self-diagnostic mode allows for com-
plete circuitry check when pump is
turned on.
Introduction (cont.)
199255 Manual 7/16/08 10:05 AM Page 7

4
Controls
Function Displays
9. RUNNING, STOPPED, indicates
status of the pump when power is on.
10. AC, indicates the unit is plugged into
an electrical outlet.
11. LOW BAT, indicates when
the battery charge is below
performance level.
12. Display panel, indicates selected
parameter.
Keypad Controls
1. ON, turns power on, memory recalls
previous settings.
2. OFF, turns power off, battery
charges when plugged in to
an electrical outlet.
3. SELECT, selects a delivery function
to display and/or change.
4. CLEAR, clears displayed value of
selected function to 0. (If RATE is
selected, pressing and holding
CLEAR for 4 seconds will reset all
parameters to default settings.)
5. increases flow rate, dose limit,
formula strength, water volume set,
or time interval when pressed.
Change is more rapid when pressed
and held.
6. decreases flow rate, dose limit,
formula strength, water volume
set, or time interval when pressed.
Change is more rapid when
pressed and held.
7. PRIME, automatically primes both
formula and water through the
administration set.
8. START/HOLD, starts and/or holds
pump operation. HOLD is used to
temporarily stop feeding, or silence
an alarm condition. Parameters can
only be changed when pump is in
HOLD mode. An audio and visual
alarm is activated if the pump has
been in HOLD mode for 2 1/2 min-
utes. Press START/HOLD to
resume normal operation.
1
2
7
8
3
4
5
6
9
10 11
12
199255 Manual 7/16/08 10:05 AM Page 10

5Controls (cont.)
Front of the pump
13. Flow Sensors and Drip
Chamber Guide
14. Tubing Guide
15. Drip Chamber Brackets
16. Rotary Peristaltic Pump
Mechanism
17. Door Latch
18. Delivery Set Security Door
Back of the Pump
19. Set Adapter Cap Holder
20. Power Cord
21. Alarm Volume Control
22. Pole Clamp
23. Directions
13
14
15
16
17
18
19
20
21
22 23
199255 Manual 7/16/08 10:05 AM Page 11

6
Controls (cont.)
24
25
26
27
28
29
30
31
32
199255 Manual 7/16/08 10:05 AM Page 14

7Controls (cont.)
Water Side Displays
29. VOLUME SET, displays the volume
of water to be delivered over the
selected Time Interval or at the end
of the dose limit. Select from 0–500
mL in 1 mL increments.
30. TIME INTERVAL, displays the time
interval (2 to 12 hours in 1 hour
increments) over which the selected
water volume is delivered. When
doSE is displayed, indicates
Programmable Flush is activated.
When nOnE is displayed, all water
side settings are deactivated.
31. VOL. DELIVERED, displays
amount of selected water volume
that has been delivered. At the con-
clusion of the Time Interval selected,
the Volume Delivered turns to 0 and
a new accumulation begins.
32. ACCUM. VOLUME, displays
water volume delivered over multiple
Time Intervals.
Formula Side Displays
24. RATE, displays the formula infusion
rate. Select from 1–295 mL/hr in 1
mL increments.
25. VOL. DELIVERED, displays full
strength or diluted formula volume
delivered.
26. DOSE LIMIT, displays dose limit.
Select from 1–2000 mL in 1 mL
increments. Dose is completed when
Volume Delivered equals the Dose
Limit set. Refer to Dose Delivered
under Alarms/Indicators. If nOnE is
displayed, this feature is deactivated.
27. ACCUM. VOLUME, displays full
strength or diluted formula volume
delivered over multiple feedings.
28. STRENGTH, (Formula Dilution)
displays formula strength
to be delivered. Select from FS (Full
Strength), 3
/4,2/3,1/2,1/3,1/4strength,
or H20(water only).
199255 Manual 7/16/08 10:05 AM Page 15

8
Preparation of COMPAT DualFlo®Delivery Set
DIAGRAM 1
Open pump doors by pulling door latch,
insert pump set drip chamber into drip
chamber bracket.
DIAGRAM 3
Insert pump adapter into bridge and
place tubing into tubing guide. Close and
latch delivery set security door.
DIAGRAM 2
Assemble silicone tubing around rotor.
DIAGRAM 4
Completely assembled pump set. Check
or change Pump Settings to prepare
enteral delivery.
199255 Manual 7/16/08 10:05 AM Page 18

9Detailed Operating Instructions
Check pump settings
1. Press ON- alarm sounds briefly and
displays . 8
.
8
.
8
.
8. The pump has memory
and displays previous settings, and returns
to flashing Flow Rate on the display panel.
Note: Changes can only be made to parame-
ters at the START of a new feeding protocol
to avoid improper water delivery. To facili-
tate this safety feature, parameters can
only be changed when amount displayed in
Vol. Delivered is 0.
If desired, clear Vol. Delivered or reset all
parameters to default settings by pressing
and holding CLEAR for 4 seconds when Rate
is displayed.
2. Check Formula Volume
Delivered. Press SELECT until Vol.
Delivered is displayed. If desired, reset to
0 by pressing CLEAR. This also resets
Water Volume Delivered to 0.
(Accumulated Volume is not affected.)
3. Check Dose Limit. Press SELECT
until Dose Limit is displayed. To change,
press (increase) or (decrease). For
continuous feeding where no dose limit is
desired, press until nOnE is dis-
played.
4. Check Formula Accumulated
Volume. Press SELECT until Accum.
Volume is displayed. If desired, reset to 0
by pressing CLEAR.
Attach pump to IV pole using built-in pole
clamp. Plug power cord into a 120 VAC,
60 Hz. three wire grounded electrical
outlet if available.
Prepare COMPAT DualFlo®
Delivery Set

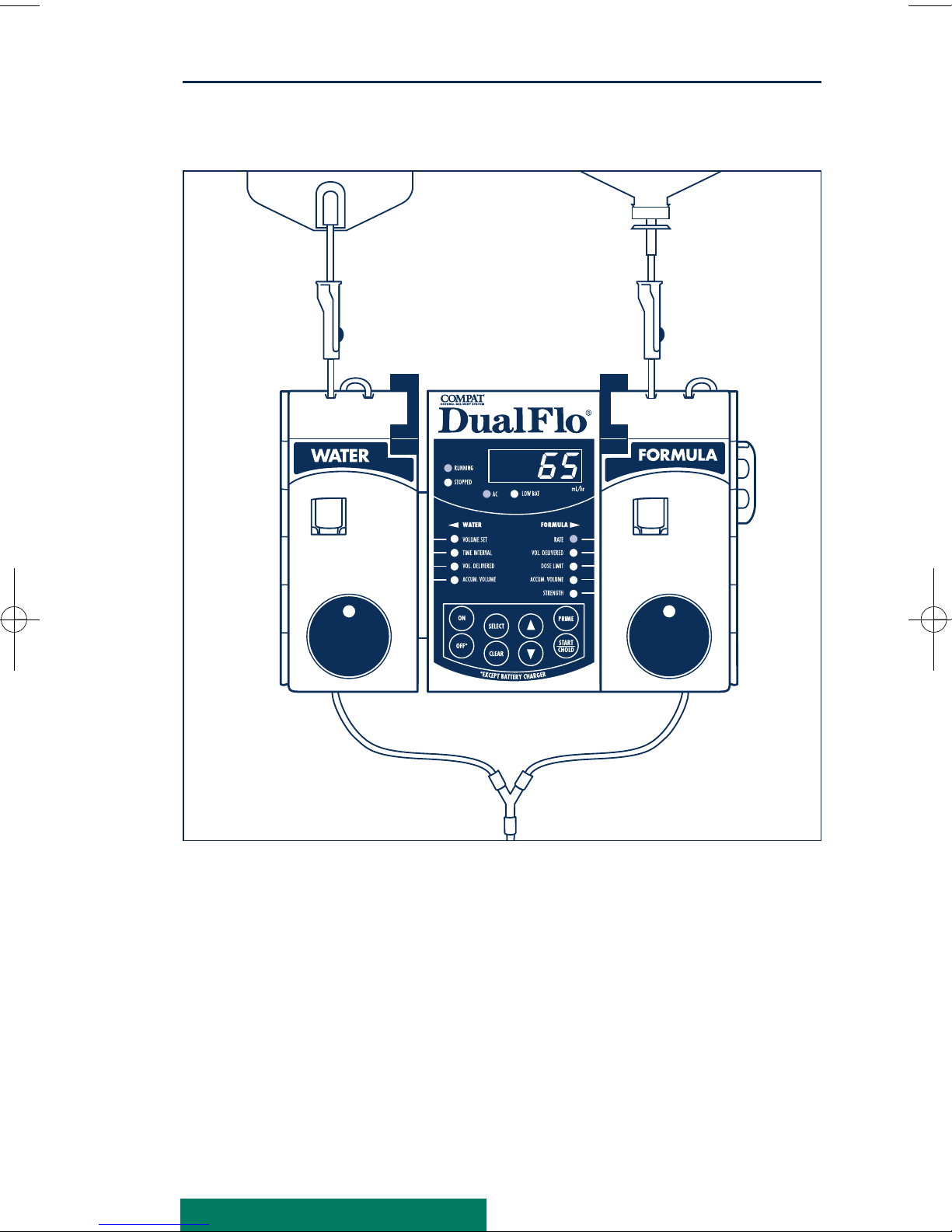

1. Close both roller clamps on delivery set
prior to setup. Prepare and hang DualFlo
delivery set from an IV pole.
2. Open delivery set security doors by pulling
the latch on each door.
3. Insert water drip chamber into water side
drip chamber bracket, and formula drip
chamber into formula side drip chamber
bracket.
4. Carefully stretch water set silicone
tubing around rotor. Insert pump adapter
into bridge. Place tubing into tubing
guide, close and latch delivery set security
door.
5. Repeat step 4 with formula side
delivery set.
199255 Manual 7/16/08 10:05 AM Page 19

10
Detailed Operating Instructions (cont.)
Formula Strength (dilution)
5. To dilute formula,press SELECT
until strength is displayed. Press or
to set desired formula strength. Options
available are FS (Full Strength-no formu-
la dilution), 3
/4,2/3,1/2,1/3,1/4strength,
or H20(water only).
In steps 6–8, you have the option to
select Hydration with Automatic
Flush or Programmable Flush after
dose is delivered.
Hydration with automatic
25 mL flush
Administers water with formula over
a selected time interval during continu-
ous feeding, concluding with an automat-
ic 25 mL water flush.
6. To set water volume, press
SELECT until Volume Set is displayed.
Press or to set the desired volume of
water to be delivered. Adjustable in 1 mL
increments from 0–500 mL.
7. To select time interval, in hours,
press SELECT until Time Interval is
displayed. Change by pressing or .
Adjustable in 1 hour increments from
2 to 12 hours. MAXIMUM WATER DELIV-
ERY IS 75 ML PER HOUR UP TO A MAXI-
MUM OF 500 ML. (See page 13 for maxi-
mum water volume setting at specific
time intervals.) The final 25 mL of
water is automatically flushed
through the line before the con-
clusion of the selected time inter-
val.
Programmable Flush after dose
is delivered
Selected water volume delivered after the
formula dose limit is delivered. (For this
feature, water is delivered at a fixed rate
of 375 mL/hr.)
8. Follow steps 6 and 7. At Volume Set, enter
the desired volume of water to be deliv-
ered. When Time Interval is selected, press
until doSE is displayed. The
amount in Volume Set is
delivered after formula dose
limit is reached.
To deactivate Hydration and
Programmable Flush, at Time Interval,
press until nOne is displayed.
9. Check Water Volume Delivered.
Press SELECT until Vol. Delivered is dis-
played. This will be reset to 0 when
Formula Vol. Delivered is cleared (see step
2).
10. Check Water Accumulated Volume.
Press SELECT until Accum. Volume is
displayed. If desired, reset to 0 by pressing
CLEAR.
11. Check Infusion Rate. Press
SELECT until Rate is displayed. To
change, press or .
199255 Manual 7/16/08 10:05 AM Page 22

11 Detailed Operating Instructions (cont.)
Begin Feeding
1. Connect delivery set adapter to the
patients enteral feeding tube.
CAUTION: Verify enteral tube
placement before beginning feeding.
2. Press START/HOLD to begin enteral
feeding. The Pump primarily displays the
flow rate. It briefly displays the formula
volume delivered every 7 seconds.
3. Press START/HOLD and/or OFF to
stop the pump at any time (Flow Rate,
Dose Limit, Formula and Water Vol.
Delivered, Formula and Water Accum.
Volume, Volume Set, and Time Interval are
retained in pump memory).
Pressing SELECT allows the user to
scroll through and view Formula and
Water side settings at any time.
Auto Priming
Automatic priming results in a small
amount of fluid being discharged
beyond the delivery set adapter.
12. Open both roller clamps on the delivery
set. Remove the luer adapter cap from the
delivery set, and place the cap in the luer
adapter cap holder available on the pump.
13. Press PRIME for automatic priming of
the delivery set. The Pump displays a series
of P’s during the prime cycle and the rotor
begins to turn. Formula is primed first,
then water (if necessary) through the deliv-
ery line. This fluid is not counted in
Vol. Delivered. The prime cycle com-
pletes in approximately 3 minutes. An audi-
ble alarm sounds when priming is com-
plete, the pump goes to Hold mode, and the
Flow Rate flashes.
199255 Manual 7/16/08 10:05 AM Page 23

12
Quick Reference
(How to set Flow Rate, Dose Limit,
or CLEAR Formula Volume Delivered)
To clear Volume Delivered and/or
Accumulated Volume
If Formula Strength is activated to deliver
diluted formula, Formula Vol. Delivered
and Accum. Volume Delivered display the
TOTAL DILUTED FEEDING (formula
AND water) delivered.
1. Press SELECT until Vol. Delivered is
displayed.
2. Press CLEAR.
3. Follow steps 1 and 2, using SELECT
until Accum. Volume is displayed, and
clear if desired.
Any time Formula Vol. Delivered is cleared,
Water Vol. Delivered is automatically cleared.
Likewise, if Water Vol. Delivered is cleared,
Formula Vol. Delivered is automatically
cleared.
Accumulated Volume displays full strength or
diluted formula volume delivered over multiple
dose limit feedings.
To set the Flow Rate
1. Press SELECT until Rate is displayed.
2. Enter a new flow rate by pressing
(increase) or (decrease). Change is
more rapid when the key is pressed and
held.
3. Adjustable in 1 mL/hr increments from
1–295.
To set the Dose Limit
1. Press SELECT until Dose Limit is
displayed.
2. Enter a new dose limit by pressing or
. Change is more rapid when the key is
pressed and held.
3. Adjustable in 1 mL increments from
1–2000.
4. For continuous feeding when no dose
limit is desired, press until nOnE is dis-
played.
Note: Changes can only be made to parameters at the START of a new feed-
ing protocol to avoid improper water delivery. To facilitate this safety feature,
parameters can only be changed when amount displayed in Vol. Delivered is 0.
If desired, clear Volume Delivered or reset all parameters to default settings
by pressing and holding CLEAR for 4 seconds when Rate is displayed.
199255 Manual 7/16/08 10:05 AM Page 24

13 Quick Reference
(How to set Hydration with Automatic Flush)
Select Time Interval (in hours) over
which water volume will be delivered
4. Press SELECT until Time Interval is
displayed.
5. Press or . Time intervals are
adjustable in 1 hour increments from
2 to 12 hours.
Maximum water delivery is 75 mL
per hour
In the last 5 minutes of the selected
time interval, formula delivery stops
and the final 25 mL of water is auto-
matically flushed through the line.
Water Vol. Delivered resets to 0 after
the time interval is completed and
the entire water volume has been
delivered.
Hydration with automatic
25 mL flush
Administers water volume with formula
over a selected time interval during con-
tinuous feeding. The Time Interval con-
cludes with an automatic 25 mL
water flush.
Select Water Volume to be delivered
Hydration with automatic flush is only
recommended when Full Strength for-
mula is being delivered. (If used with
diluted formula, will result in further dilu-
tion of the formula.)
1. Press SELECT until Formula Strength
is displayed, and press , if necessary, to
display FS (Full Strength) formula deliv-
ery.
2. Press SELECT until Volume Set is
displayed.
3. Press or until desired water
volume is displayed. Adjustments can be
made in 1 mL increments from 0–500 mL.
Change is more rapid when the key is
pressed and held.
Maximum Hydration Settings
Maximum
Time Water
Interval (hr) Volume (mL)
2 150
3 225
4 300
5 375
6 450
7 500
8 500
9 500
10 500
11 500
12 500
DOSE 500
199255 Manual 7/16/08 10:05 AM Page 21

14
Quick Reference
(How to set Formula Strength, Programmable
Flush, or CLEAR Water Volume Delivered)
Programmable flush after dose is
delivered
A set volume of water for hydration or
flushing that is automatically adminis-
tered after the dose limit is delivered at a
rate of 375 mL/hr.
1. Press SELECT until Volume Set is
displayed.
2. Press or . The Water Volume is
adjustable in 1 mL increments from
0–500. Change is more rapid when the
key is pressed and held.
3. Press SELECT until Time Interval is
displayed.
4. Press until doSE is displayed.
To deactivate Hydration and
Programmable Flush (water side
settings)
1. At Time Interval, press until nOnE
is displayed.
2. Clear Formula Vol. Delivered and Accum.
Volume. Set Rate and Dose Limit. Verify
formula strength.
Formula Strength (Dilution)
1. Press SELECT until Formula Strength
is displayed.
2. Enter the formula strength required by
pressing or .
3. Options are FS (Full Strength-No
formula dilution), 3 /4,2/3,1/2,1/3,1/4
strength, or H20(no formula delivery,
only water is delivered).
To clear Volume Delivered and/or
Accumulated Volume
Water Volume Delivered is used to moni-
tor water delivered when Hydration with
Automatic Flush, or Programmable Flush
options are activated.
1. Press SELECT until Vol. Delivered is
displayed.
2. Press CLEAR.
3. Follow steps 1 and 2, using the SELECT
key to move to Accum. Volume, and clear
if desired.
Any time water volume delivered is reset
to 0, formula volume delivered is auto-
matically reset to 0. Likewise, when for-
mula volume delivered is reset to 0, water
volume delivered is automatically reset to
0.
Water Accumulated Volume is used to
monitor the total water volume delivered
over multiple time intervals.
199255 Manual 7/16/08 10:05 AM Page 20

15 Alarms/Indicators
no SEt (No set)
An audible alarm sounds, and no SEt is
displayed. Indicates one of the following
conditions:
• A COMPAT DualFlo set is not being used.
• One or both of the delivery set security
doors are not closed and latched securely
after the START/HOLD key has been
pressed. Immediately determine if the
delivery set has become dislodged from
the pump.
Caution: If formula is free flowing, take cor-
rective action immediately. Stop the formu-
la flow using the roller clamps on the deliv-
ery set. Monitor patient for signs and symp-
toms of formula/water over-delivery.
When turned on, the COMPAT DualFlo®Enteral Feeding Pump is designed to provide audible and
visible alarms under several conditions where desired performance cannot be maintained.
Pressing START/HOLD after the alarm condition is identified silences the alarm and returns the
pump to hold mode. Perform the necessary procedures to correct the alarm condition. Press
START/HOLD again to resume normal operation.
LOW BAT illuminated (Low Battery)
The LOW BAT indicator on the display
panel comes on 15 minutes before
the pump ceases operation due to a low
battery condition. After 15 minutes, the
indicator flashes, an audible alarm
sounds, and the pump stops operation.
Whenever LOW BAT is indicated, plug
the pump into an electrical outlet, and
normal feeding may continue. The battery
recharges anytime the pump is connected to
an AC outlet regardless of whether the
pump is turned on or off.
To avoid degrading battery life, it is impor-
tant not to run down the battery.
FEEd Err (Feed error)
The pump stops, an audible alarm sounds, and FEEd Err is displayed.
Possible Condition
1. Water or Formula feeding container
is empty
2. An occlusion has caused delivery to stop
3. Drip chamber is overfilled
4. Drip chamber walls are heavily coated
with formula
5. Drip chamber bracket sensors need
cleaning
6. Drip chamber is improperly placed
Corrective Action
1. Refill container or start new delivery
set. Follow instructions to prime the
delivery set, and resume feeding
2. Identify point of occlusion and correct
3. Insert new administration set (use
automatic priming to avoid “flooding” of
drip chamber)
4. Manipulate chamber to clear drops in
sensor path
5. Clean sensor with cotton swab and
isopropyl alcohol
6. Reposition drip chamber
199255 Manual 7/16/08 10:05 AM Page 17

16
Alarms/Indicators (cont.)
HoLd Err (Hold error)
Pump is left on hold and START/HOLD
is not pressed within 21/2minutes. Press
START/HOLD to silence the alarm,
press again to start feeding if desired.
Running/Stopped illuminated
Indicates the status of the pump.
AC illuminated
Indicates the pump is operating on
electrical power. Plug power cord into an
AC electrical outlet whenever possible.
No audible alarm sounds.
doSE dEL (Dose delivered)
The pump stops, doSE dEL is displayed,
and an audible alarm sounds when the
pump has delivered an amount of formula
equal to the Dose Limit.
Three alarm modes are available when
the dose is complete:
• Mode 1–Audible alarm sounds once, then
stops
• Mode 2–Audible alarm sounds once,
stops, and then alarms at 5
minute intervals
• Mode 3–Audible alarm sounds
continuously
To select the desired mode, turn pump
off. Then:
1. Turn the pump on by pressing ON.
2. .8.8.8.8 is immediately displayed. While dis-
played, press and hold the and keys
simultaneously for 4 seconds.
3. 1, 2, or 3 is displayed, which reflects the
corresponding alarm mode
(Mode 1, Mode 2, or Mode 3).
4. Select the desired alarm mode by
pressing (increase) or
(decrease).
5. Press SELECT to save the new alarm
mode. The pump audibly alarms once, ver-
ifying the new alarm mode is saved. (If
SELECT is not pressed, the new alarm
mode is not saved.)
6. Press OFF to turn the pump off.
7. When the pump is turned back on, it is set
to operate with the new alarm mode.
199255 Manual 7/16/08 10:05 AM Page 16

17 Troubleshooting
COMPAT®Enteral Feeding Pumps are reliable electromechanical devices. As with any
mechanical device, problems may occur. The following tips will help you correct the
minor in-service problems that may arise.
POSSIBLE CAUSE
• Battery charge is below
performance level
• Formula or water container
is empty
• Occlusion is restricting flow
• Drip chamber not properly
placed in pump
• Drip chamber walls coated
with formula drops or
condensation in sensor path
• Flow sensors housing need
cleaning
• Pump is on hold for more
than 2 1/2minutes
• Pump has delivered
preset volume
• Door not closed and latched
• Wrong set is used
• Set is not properly in place
SOLUTION
• Plug cord into AC outlet
• Replace or refill formula or
water container
• Identify point of occlusion
and free up
- Pump Set
• kinked tubing
• blocked tubing
• closed roller clamp
- Feeding tube
- Feeding container
• Assemble properly
• Manipulate chamber to clear
drops or condensation in
sensor path
• Clean with cotton swab damp-
ened with isopropyl alcohol
• Press START/HOLD button
• Clear Volume Delivered and
start a new dose
• Examine tubing for proper
placement, close door
• Load an appropriate set
• Assemble tubing properly
around pump rotor. Close and
latch door.
TROUBLESHOOTING GUIDE
SITUATION
•
Low battery
alarm activated
• ( LOW BAT )
illuminated
• ( FEEd Err )
alarm activated
•
( HoLd Err ) Pump
is left on hold
•(doSE dEL)
Dose Complete
•(
no SEt) alarm
activated
199255 Manual 7/16/08 10:05 AM Page 13

18
Specifications
• 199407 COMPAT DualFlo®Piercing
Spike and 1000 mL Vinyl Water Bag
with preattached
pump set
• 199447 COMPAT DualFlo®
1000 mL Formula Vinyl Bag and
1000 mL Vinyl Water Bag with preat-
tached pump set
• 199607 Compat® SpikeRight™
Spike Connector and 1000 mL Vinyl
Water Bag with Preattached Pump
Set.
Delivery Sets
The DualFlo Enteral Delivery Pump offers a choice of delivery sets, including:
199255 Manual 7/16/08 10:05 AM Page 12

19 Specifications (cont.)
Type of Device . . . . . . . . . . . . . . . . . Volumetric enteral feeding pump
Mechanism . . . . . . . . . . . . . . . . . . . Rotary Peristaltic
Infusion Rate . . . . . . . . . . . . . . . . . 1–295 mL/hr in 1 mL increments
Dose Limit . . . . . . . . . . . . . . . . . . . . 0–2000 mL in 1 mL increments
Formula Strength . . . . . . . . . . . . . . FS (Full Strength), 3/4, 2/3, 1/2, 1/3,
1/4, H20
Water Volume Set . . . . . . . . . . . . . . 0–500 mL in 1 mL increments
Time Interval . . . . . . . . . . . . . . . . . 2 to 12 hours in 1 hour increments,
dose, none
Water Delivery . . . . . . . . . . . . . . . . 375 mL/hr fixed rate when
Programmable Flush after Dose
Delivered is activated
75 mL per hour maximum water
delivery when Hydration with
Automatic Flush is activated
Accuracy . . . . . . . . . . . . . . . . . . . . . +/- 10% of selected flow rate
Occlusion Pressure . . . . . . . . . . . . Does not exceed 20 p.s.i.
Battery . . . . . . . . . . . . . . . . . . . . . . . Sealed lead acid Rechargeable
Automatically recharges when con-
nected to an AC outlet
Recharge time is 12 hours from
complete discharge to full recharge
Operating time is 8 hours at 100
mL/hour (fully charged battery)
(Charge unit fully every 6 months)
Dimension . . . . . . . . . . . . . . . . . . . . 6.4” High x 9.75” Wide x 5.0” Deep
Weight . . . . . . . . . . . . . . . . . . . . . . . 7.0 pounds
Case Material . . . . . . . . . . . . . . . . . Fire and impact resistant plastic
Power Requirement . . . . . . . . . . . 120V , 187 mA, 60 Hz
Operating Temperature . . . . . . . . . 10o–40
oC (50o– 104oF)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 75% R.H. non-condensing
Storage Temperature . . . . . . . . . . . 0o–50
oC (32o– 122oF)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 95% R.H. non-condensing
Type of Protection Against Electrical Shock
. . . . . . . . . . . . . . . . . . . . . . Class 1, Internally-Powered Equipment
Degree of Protection Against Electrical Shock
. . . . . . . . . . . . . . . . . . . . Type BF
Degree of Protection Against Ingress of Fluids
. . . . . . . . . . . . . . . . . . . . Ordinary Equipment – IPX0
199255 Manual 7/16/08 10:05 AM Page 9
