COMPRO BEACON 90 User manual

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
Compro Electronic GmbH
Beim Alten Flugplatz 3
49377 Vechta. Germany
Tel: +49 4441 / 89112-50 | Fax: +49 4441 / 89112-55
www.compro.de | [email protected]
Flash lamp
type BEACON 90
USER MANUAL
Documentation No:ExS-IO-04-1404.0 EN
Edition 01/2014

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
User manual BEACON 90
Page 2 z 6
TABLE OF CONTENTS
1. Compliance with the requirements of the directives 3
2. Description 3
2.1. Technical data: 3
2.2. Parameters of the intrinsic circuit: 3
2.3. Terminal block 4
3. Installation 4
3.1. Assembly 4
3.3. Procedure of installation and connection 4
4. Special conditions of use 5
5. Conditions of use until warranty 5
6. Transport 6
7. Storage 6
8. Maintenance and repairs 6
9. Recycling 6

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
User manual BEACON 90
Page 3 z 6
1. Compliance with the requirements of the directives
Compro Electronic as a manufacturer declares that the Flash lamp type BEACON 90 meets the
requirements of the Directive 94/9/EC and has been designed in accordance with good engineering
practice, especially in the field of explosion safety, and current technical knowledge, under the
following harmonized standards under the Directive 94/9/EC: PN-EN 60079-0: 2013-03 + A11:2014-
03 (EN 60079-0:2012 + A11:2013), PN-EN 60079-11:2012 (EN 60079-11:2012),
PN-EN 60079-26:2007 (EN 60079-26:2007).
Marking
I I 1 G Ex ia I IC T 4 Ga
2. Description
Flash lamp type BEACON 90 is designed for optical signalling of working conditions or to
generate warning signals. Optical signals are generated by LEDs with high life expectancy. Flash
lamp as a device group II, category 1G is designed for use in Zone 0 explosive mixture of
flammable substances in the form of gases, vapours or mists with air.
2.1.Technical data:
Supply voltage
24VDC (reverse polarity protection)
Ambient temperature range Ta
-40°C ÷ +60°C
Degree of protection acc. PN-EN 60529
IP65
Cable entry:
Cable gland –cable diameter 4÷6mm
Cable connected permanently 4÷8mm
Weight
0,4kg
Dimensions (ø x H)
95,5mm x 136mm
Modes
Permanent light
Flash light
2.2.Parameters of the intrinsic circuit:
PARAMETER
VALUE
Terminal block J1
+ ÷-
Maximum input voltage Ui
28 V DC
Maximum input current Ii
660 mA
Maximum input power Pi
1,2W
Maximum internal capacitance Ci
~0
Maximum internal inductance Li
~0

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
User manual BEACON 90
Page 4 z 6

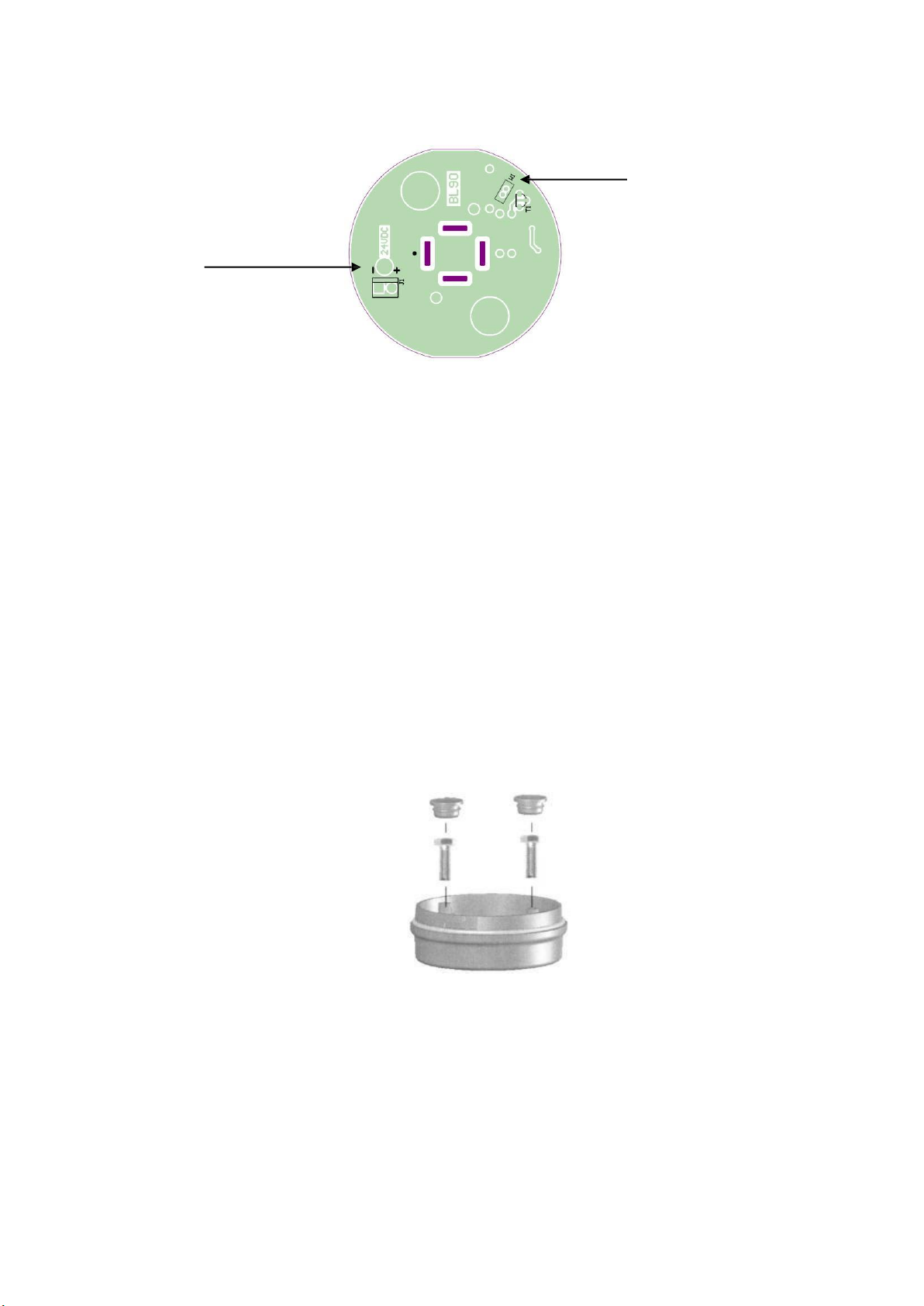

2.3.Terminal block
Mode selection
Terminal block of supply + and -
Note: during connecting external circuits should pay special attention to the parameters of
intrinsically safe circuits specified on the unit.
Device should be supplied with intrinsic safe power supply (power supply, barrier) with proven
explosion-proof properties EC-type examination certificate with concerning to the output power
circuit. The maximum cable length depends on the parameters specified in the certificate of the
power supply or barriers and cannot be exceeded.
3. Installation
Flash lamp type BEACON 90 is placed in a plastic housing. Housing provides a degree of
protection IP65 provide adequate choking the power cable and the use of mounting screws
sealings.
3.1.Assembly
The device can be mounted to any flat surface by means of two fixing screws from the
inside of the base. After attaching the base, the screw holes must be plugged by blanking plugs
supplied with the device.
3.3.Procedure of installation and connection
 To remove the lid, turn the lamp lid clockwise (to the right). Remove the lid, making
sure that the sealing type o-ring remains in place.
 Remove the electronics by removing the two screws that secure it to the base.
 Remove blanking plugs from mounting holes and assembly lamp base to a flat
surface. Then and shut the mounting holes.
 In the version with cable gland enter the power cable through the prepared cable

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
User manual BEACON 90
Page 5 z 6
gland, connect the wires to the terminal block J1 maintaining proper polarity.
 Verify that a sealing type o-ring has not been damaged and is in place. Put the lamp
lid and turn counter-clockwise (to the left).
4. Special conditions of use
The device housing is made of plastic and can cause electrostatic discharges able to ignite
the explosive atmosphere under certain extreme conditions. The user must ensure that the device
will not be installed in a location where it can be under extreme conditions that could cause
electrostatic discharge on the surfaces of plastics.
Clean only with a damp cloth with addition of antistatic detergent.
5. Conditions of use until warranty
Condition of warranty is keep to the following requirements:
• compliance
with
the
recommendations contained
in
the
manual
• preservation
of
the
(serial number identifying
the
product)
• use of the product as intended

© Compro Electronic® - all rights reserved. This document may not be copied, reproduced in whole or in part by any means
without permission of the owner.
User manual BEACON 90
Page 6 z 6
6. Transport
Transportation should be done using covered transport means, protected from rain, strong
shocks and impacts at ambient temperature -40C + 60C.
7. Storage
Flash light BEACON 90 should be storage in closed storage room at ambient temperature -
40C + 60C in atmosphere free of aggressive vapours and gases
8. Maintenance and repairs
Maintenance is reduced to periodic inspection of cleanliness. In case of malfunction, check
the connection of electrical circuits and the presence of voltage. It is not allowed to make any repairs
and changes in the structure of the device.
Any repair performs only the manufacturer's service!
9. Recycling
The device has no components dangerous to health and life.
Please note that this product after the exploitation cannot be treated as household waste. By
ensuring proper storage will help prevent the negative effects of threatening the environment and
humanhealth.
Recycling helps protect the environment. For more detailed information about recycling, please
contact your city office, or the manufacturer of the device.
