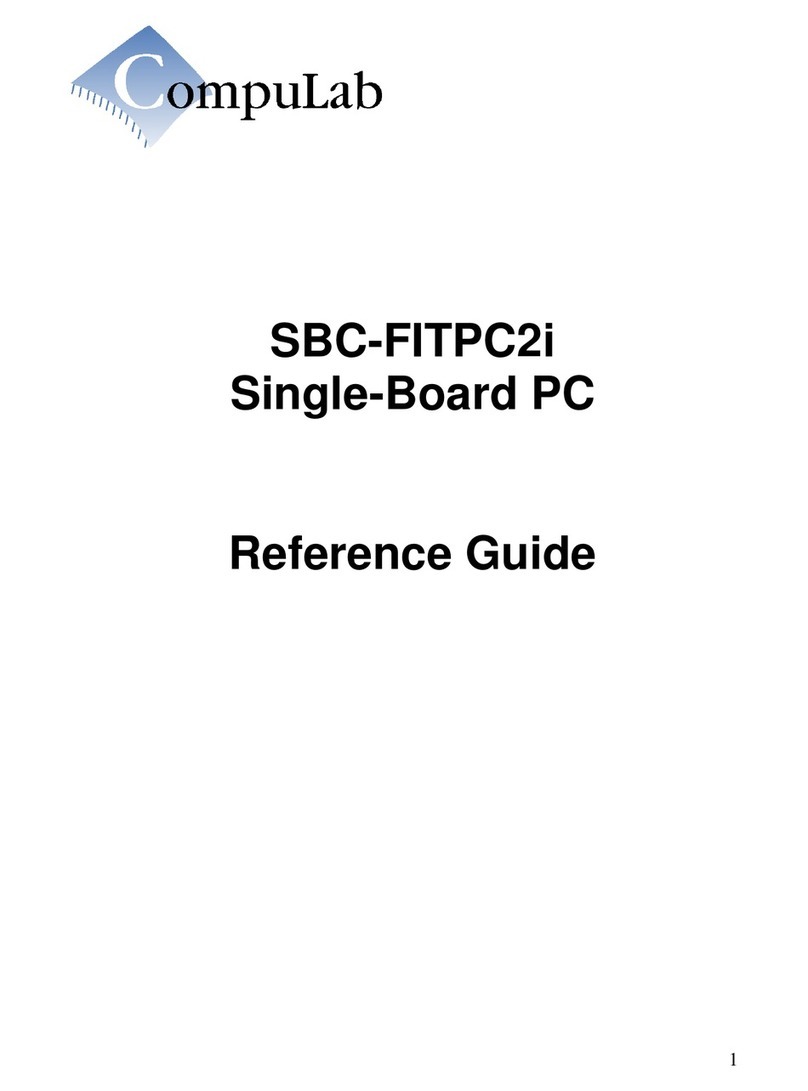

CompuLab SBC-FITPC2 User manual

1
SBC-FITPC2
Single-board PC
Reference Guide

2
Table of Contents
1. Revision Notes.............................................................................................................3
2. Overview......................................................................................................................4
2.1. H IGHLIGHTS ..........................................................................................................4
2.2. F EATURES ..............................................................................................................5
3. System Components....................................................................................................6
3.1. I NTEL A TOM CPU .................................................................................................6
3.2. C HIPSET .................................................................................................................7
3.3. G RAPHICS S YSTEM ................................................................................................7
3.4. A UDIO S YSTEM .....................................................................................................7
3.5. P OWER S YSTEM AND P OWER C ONSUMPTION ........................................................9
4. Peripheral Interfaces & Connectors.......................................................................10
4.1. USB I NTERFACE (P1, P2, U11, U12)..................................................................10
4.2. MMC/SDIO/SD (P7)..........................................................................................10
4.3. HDMI C ONNECTOR (J14)....................................................................................11
4.4. M AIN P OWER C ONNECTOR (J8)...........................................................................11
4.5. A UDIO I NTERFACE (P4, P9, P15).........................................................................12
4.6. P ARALLEL ATA I NTERFACE (P6)........................................................................13
4.7. S ERIAL ATA I NTERFACE (P100).........................................................................14
4.8. MINI PCI- EXPRESS I NTERFACE (P27)...................................................................15
4.9. E THERNET (P26)..................................................................................................16
4.10. LED’ S AND P USH B UTTONS ................................................................................17
4.11. C ONSUMER I NFRARED R ECEIVER ........................................................................17
5. Mechanical Considerations and Connectors’ Location......................................... 17
6. Operating Temperature Ranges.............................................................................. 17

3
1. Revision Notes
01-Jun-2009 First release

4
2. Overview
2.1. Highlights
 Full-featured PC single board
computer, tiny and power saving
 Intel Atom Z530 CPU @ 1.6 GHz
 Intel US15W chipset
 1GB DDR2
 DVI Digital display interface, up to
1920x1080
 Harddisk interface
 HD Audio, line-out 2.0 / mic in / line-
in
 1000 BaseT Ethernet port
 802.11g WiFi
 Six USB 2.0 ports
 miniSD Socket
 IR receiver
 Phoenix BIOS
 Single 12V supply, 6-9.6W, fanless
operation
 Dimensions - 104 x 100.7 x 22.9 mm
 Runs Windows XP, Windows 7 and
Linux
 Also available as fit-PC2 computer
with enclosure and harddisk.
The SBC-FITPC2 is a tiny, single board PC
based on Intel's Atom Z530 processor and
US15W chipset. It runs all standard
operating systems and software packages.
The SBC-FITPC2's unique advantages
include exceptionally small size, quiet,
fanless operation and very low power
consumption.
The rich feature set of the SBC-FITPC2 is
customizable according to the price /
performance targets of the user's
application. It makes an ideal platform for
implementation applications such as home
entertainment and point-of-sale.

5
2.2. Features
"Option" column specifies the configuration code required to control the particular feature.
"+" means that the feature is available always.
Feature
Specifications Option
CPU
Intel Atom Processor: Z530 - 1.6Ghz @533MHz FSB, or
Z510 - 1.1GHz @400MHz FSB. L2-512KB (dynamic
sizing), L1- 32KB IC, 24KB DC. Intel Deep Power Down
(C6) technology support
C
Chipset Poulsbo US15 Intel System Controller Hub (INTEL SCH) +
Memory 1 GB DDR2, 533/400 MHz, 64-bit D
Display interface
SDVO-based DVI interface. Hotplug support. +
Audio
Realtek ALC260, High Definition Audio, Line Out, Line In,
Microphone InS
A
Ethernet Integrated Gigabit PCI-Express controller Realtek RTL8111
E
HDD Interface
Two options:
PATA interface, ATA / ATAPI-6, or -
SATA-II, using Marvell 88SA8052
+
S
WiFi
802.11 b/g capabilities, Ralink chipset. Up to 54 Mbps, 2.4
GHz band.
W
USB
6 external USB ports: 3 UHCI devices (2 port/device), one
EHCI (8 port/device ) support + 1 on the mini PCIE
connector (EHCI only) with max. rate up to 480 Mb/s
+
InfraRed USB based infra red receiver I
BIOS Phoenix SecureCore BIOS +
mini PCI
Express
includes PCIEx1, USB (EHCI), SMB, power supplies.
Available only if "W" option isn't used
+
SDIO slot mini SD connector supporting SDIO1.1 and MMC4.1 +

6
Electrical, Mechanical and Environmental Specifications
Active consumption
All contents, excluding off-board components 6-9.6 W
Sleep consumption 0.7-1.2 W, depending on configuration and mode
Dimensions 104 x 96 mm, not including connectors, 104x100.7 including
connectors and buttons. Height: 22.9mm
Weight 90 g
MTBF > 100,000 hours
Operation
temperature
Commercial: 0oto 70oC
Extended: -20oto 70oC
Industrial: -40oto 85oC
* specified for board only, measured on component case
Storage temperature
-40oto 85oC
Relative humidity 10% to 90% (operation)
05% to 95% (storage)
3. System Components
3.1. Intel Atom CPU
The SBC-FitPC2 utilizes an Intel® Atom Z5xx series CPU.
The Intel® Atom Z5xx series processor is built on 45-nanometer process technology — the
first generation of low-power IA-32 micro-architecture specially designed for the new class
of Mobile Internet Devices (MID).
The following list provides some of the key features on this processor:
• New single-core processor for mobile devices with enhanced performance
• On die, primary 32-kB instructions cache and 24-kB write-back data cache
• 100-MHz and 133-MHz Source-Synchronous front side bus (FSB)
• Supports Hyper-Threading Technology 2-threads
• On die 512-kB, 8-way L2 cache
• Support for IA 32-bit and Intel® 64 architecture
• Intel® Virtualization Technology (Intel® VT)
• Intel® Streaming SIMD Extensions 2 and 3 (Intel® SSE2 and Intel® SSE3) and
Supplemental Streaming SIMD Extensions 3 (SSSE3) support
• Supports new CMOS FSB signaling for reduced power
• Micro-FCBGA8 packaging technologies

7
• Thermal management support via TM1 and TM2
• FSB Lane Reversal for flexible routing
• Supports C0/C1(e)/C2(e)/C4(e)
• New C6 Deep Power Down Technology
• L2 Dynamic Cache Sizing
• New Split-VTT support for lowest processor power state
• Advanced power management features including Enhanced Intel SpeedStep®
Technology
• Execute Disable Bit support for enhanced security
3.2. Chipset
The SBC-FitPC2 uses an Intel® System Controller Hub (Intel® SCH) US15W chipset.
The Intel® SCH chipset component of the Atom low power platform, combines
functionality normally found in separate GMCH (integrated graphics, processor interface,
memory controller) and ICH (on-board and end-user I/O expansion) components into a
single component consuming less than 2.3 W of thermal design power.
3.3. Graphics System
The SBC-FitPC2 graphics system is based on the Intel® SCH integrated graphics
controller, based on Intel® GMA500 architecture. The SBC-FitPC2 board features an
HDMI connector (J14) providing DVI output. DVI output is formed using a Chrontel
CH7307C DVI transmitter in revisions 1.2 and 1.2x.
Graphics Controller Description:
The Intel SCH provides integrated graphics (2D and 3D) and high-definition video decode
capabilities with minimal power consumption.
The highly compact IGD contains advanced shader architecture (model 3.0+) that performs
pixel shading and vertex shading within a single hardware accelerator. The processing of
pixels is deferred until they are determined to be visible, which minimizes access to
memory and improves render performance.
The Intel SCH supports full hardware acceleration of video decode standards such as
H.264, MPEG2, MPEG4, VC1, and WMV9.
3.4. Audio System
The audio system of the SBC-FitPC2 is implemented using Realtek’ALC260 – a 2

8
channel high-definition audio codec chip.
• The headphone stereo output connects to the on-board audio jack (P4). This output is
designed to drive a 8Ω - 32Ω headphone or line output.
• The line-in and microphone inputs are connected to dedicated 3.5mm audio jacks, P9
and P15 respectively.
Audio Specifications:
Parameter Min Typ Max Units
Full Scale Input Voltage
All Inputs (gain=0dB)
All ADC
-
-
1.6
1.1
-
-
Vrms
Vrms
Full Scale Output Voltage
All DAC - 1.1 - Vrms
S/N (A Weighted)
Analog Inputs to Outputs
ADC
DAC
-
-
-
95
90
95
-
-
-
dB FSA
dB FSA
dB FSA
THD+N
Analog Inputs to Outputs
ADC
DAC
-
-
-
-90
-85
-90
-
-
-
dB FS
dB FS
dB FS
Frequency Response
Mixers
ADC, DAC
10
16
-
-
22,000
19,200
Hz
Hz
Amplifier Gain Step - 1 - dB
Crosstalk Between Input Channels - -80 - dB
Input Impedance (gain=0dB) 64
kOhm
Output Impedance
Amplified Output
Non-amplified Output
1
200 47,000
Ohm
Ohm

9
3.5. Power System and Power Consumption
The SBC-FitPC2 is designed to work with a large range of power sources. It provides
stable system functionality with input voltage in the range of 7.5V-15V. An unregulated
power supply may be used as long as peaks of supply voltage don’t exceed the input
voltage range.
Power Modes and Power Consumption
There are three typical working modes: Off, Suspend to RAM (STR) and Full Operating
mode.
During Full Operating mode, power consumption may vary depending on both the
software installed on the system and on the CPU / system load.
Current consumption
Measuring conditions: Vin = 12V, no peripheral devices connected
Mode Min Max
Off 70mA 90mA
Suspend to RAM 70mA 100mA
Full Operating 0.45A 0.8A
Backup Power for RTC and CMOS memory
The SBC-FitPC2 implements backup power for RTC and CMOS settings. There is an on-
board rechargeable Li-AL battery, 18mAh. The battery is constantly charged while the
power supply is connected. The RTC will retain system time and CMOS setting for at
least 100 days when the system is unpowered (as long as the system was connected to a
power supply for at least 24 hours prior to power-down).
It’s possible to reset CMOS data to default shorting J4B2 connector pins for several
seconds once the system is unpowered.
Power Supply for USB Devices
The SBC-FitPC2 has 6 USB ports, each one capable of providing up to 500mA. Total
power consumption from USB ports should not exceed 1.5A.

10
4. Peripheral Interfaces & Connectors
4.1. USB Interface (P1, P2, U11, U12)
The SBC-FitPC2 USB provides a total of 6 USB ports. The USB interface is provided
directly by Intel® SCH USB controller that implements UHCI and EHCI host controller
architecture and complies with USB 1.1 and 2.0 standards.
USB connector P2 is connected to the EHCI USB 2.0 controller only. Therefore it works
only with high-speed devices (480Mbps) such as storage devices, advanced cameras, etc.
Connectors P1, P2 - miniUSB type AB:
Pin Name
1 USB_VCC
2 USB_N
3 USB_P
4 N/C
5 GND
Connectors U11, U12 – USB, type A connectors:
Pin Name Pin Name
1 USB_VCC 5 USB_VCC
2 USB_N 6 USB_N
3 USB_P 7 USB_P
4 GND 8 GND
4.2. MMC/SDIO/SD (P7)
The SBC-FitPC2 MMC/SDIO/SD interface is based on the SDIO controller of the Intel®
SCH chipset.
The controller supports MMC4.0 and SDIO1.1 specifications. MMC 4.0 transfer rates can
be up to 48 MHz with bus widths of 1 or 4 bits. SDIO 1.1 supports transfer rates of up to
24 MHz and bus widths of 1 or 4 bits.
The MMC controller signals are routed to the on-board mini-SD socket (P7).

11
Connector P7, standard mini-SDIO socket:
Pin Name Pin Name
1 SD_DAT3 8 SD_DAT1
2 SD_CCMD 9 SD_DAT2
3 GND 10 N/C
4 VCC_SDIO 11 N/C
5 SD_CLK 12 SD_CD
6 GND 13 GND
7 SD_DAT0
4.3. HDMI Connector (J14)
The SBC-FitPC2 provides a DVI interface using an HDMI connector.
Connector J14, standard HDMI-A connector:
Pin Name
1 TMDS_Data2+
2 GND
3 TMDS_Data2-
4 TMDS_Data1+
5 GND
6 TMDS_Data1-
7 TMDS_Data0+
8 GND
9 TMDS_Data0-
10 TMDS_Clock+
11 GND
12 TMDS_Clock-
13 N/C
14 N/C
15 DDC_SCL
16 DDC_SDA
17 GND
18 +5 V
19 Hot_Plug_Detect
4.4. Main Power Connector (J8)
The main power connector is a round DC jack with a 3.9mm external diameter and a

12
1.5mm internal diameter. Outer contact is connected to GND and inner contact to
VCC_IN.
The connector is compatible with the power supply available from CompuLab.
4.5. Audio Interface (P4, P9, P15)
The SBC-FitPC2 provides 2-channel high-definition audio. The following interfaces are
provided:
• Stereo headphone / line out output (functioning controlled by software).
• Stereo line in
• Mono microphone in
Each interface is connected to a dedicated 3.5mm jack.

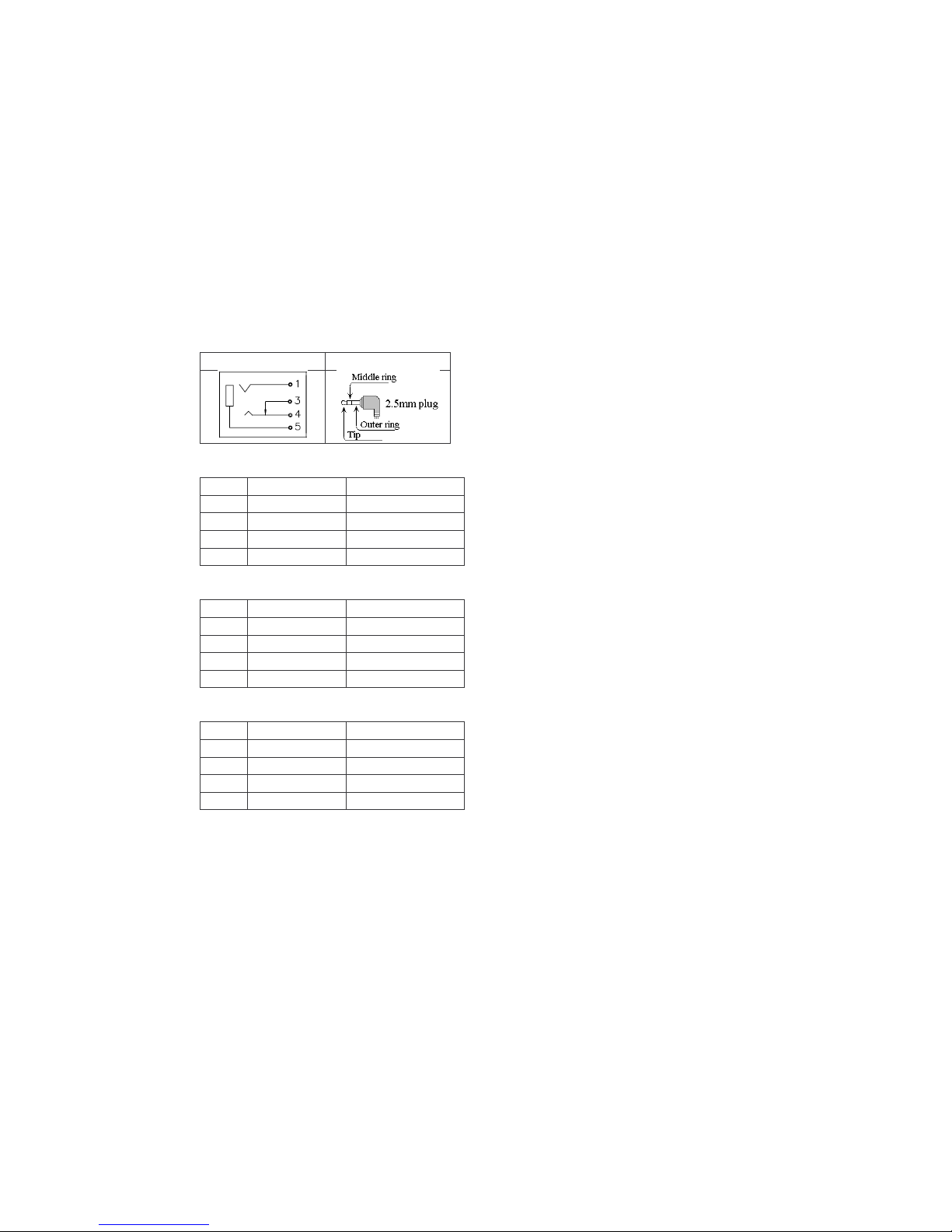

Jack pin-out Mating plug
Headphone / line out (P4):
Pin Name Mating plug pin
1 HP_OUT_L Tip
3 NC -
4 HP_OUT_R Middle ring
5 AGND Outer ring
Line in (P9):
Pin Name Mating plug pin
1 LINE_IN_L Tip
3 NC -
4 LINE_IN_R Middle ring
5 AGND Outer ring
Microphone in (P15):
Pin Name Mating plug pin
1 MIC_VCC Tip
3 NC -
4 MIC_IN Middle ring
5 AGND Outer ring

13
4.6. Parallel ATA Interface (P6)
This interface is available only in modules without the “S” option.
The SBC-FitPC2 parallel ATA (PATA) interface is provided directly by an Intel® SCH
PATA controller. PATA interface supports only the primary channel, with one master and
one slave device.
Three types of data transfers are supported:
• Programmed I/O (PIO): A protocol used to transfer data between the processor as the
ATA device. PIO allows transfer rates of up to 16MB/s.
• Multi-word DMA: DMA protocol that resembles the DMA on the ISA bus. Allows
transfer rates of up to 16MB/s.
• Ultra-DMA: Source synchronous DMA protocol that allows transfer rates of up to
100MB/s.
Supported PATA standards and modes:
PATA Standard Transfer Modes Supported Transfer Rate
(MB/s)
PIO Modes 0, 1, 2 3.3, 5.2, 8.3
Single-word DMA Modes 0, 1, 2 2.1, 4.2, 8.3
ATA-1
(ATA, IDE) Multi-word DMA Mode 0 4.2
PIO Modes 3,4 11.1, 16.6ATA-2, ATA-3
(EIDE, Fast ATA) Multi-word DMA Modes 1,2 13.3, 16.6
ATA/ATAPI-4
(Ultra DMA, Ultra ATA) Ultra DMA Modes 0,1, 2 (a.k.a. Ultra DMA/33) 16.7, 25.0, 33.3
ATA/ATAPI-5
(Ultra DMA, Ultra ATA) Ultra DMA Modes 3, 4 (a.k.a. Ultra DMA/66) 44.4, 66.7
ATA/ATAPI-6
(Ultra DMA, Ultra ATA) Ultra-DMA Mode 5 (a.k.a. Ultra DMA/100) 100 (reads) 89 (writes)
A standard 44-pin, dual row, 2 mm pitch header is used for PATA interface. It can be
connected directly to a 2.5” form-factor hard disk or an SSD.
Parallel ATA connector (P6):
Pin Name Pin Name
1 RESET# 2 GND
3 D7 4 D8
5 D6 6 D9
7 D5 8 D10
9 D4 10 D11
11 D3 12 D12
13 D2 14 D13

14
15 D1 16 D14
17 D0 18 D15
19 GND 20 N/C
21 DMARQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 IOCHRDY 28 GND
29 DMAACK# 30 GND
31 IRQ 32 N/C
33 ADDR1 34 N/C
35 ADDR0 36 ADDR2
37 CS0# 38 CS1#
39 LED# 40 GND
41 VCC5 42 VCC5
43 GND 44 GND
4.7. Serial ATA Interface (P100)
This interface is available only in modules with the “S” option.
The SBC-FitPC2 Serial ATA (SATA) interface is formed from the PATA interface using a
PATA to SATA converter.
Refer to the PATA interface description for supported transfer modes.
The SATA interface provides both SATA data connection and the power required for
direct connection of a single 2.5” HDD or SSD.
SATA interface, data (P100A):
Pin Name
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
SATA interface, power (P100B):

15
Pin Name
1 N/C
2 N/C
3 N/C
4 GND
5 GND
6 GND
7 VCC5
8 VCC5
9 VCC5
10 GND
11 GND
12 GND
13 N/C
14 N/C
15 N/C
4.8. mini PCI-express Interface (P27)
The SBC-FitPC2 provides one mini PCI-express expansion slot. PCI-express port
Mechanical support is provided only for full-length (50.95mm) mini PCI-express card
support.
Mini PCI-express connector pinout:
Pin Name Pin Name
1 WAKE# 2 +3.3V_STBY
3 N/C 4 GND
5 N/C 6 +1.5V
7 CLKREQ# 8 N/C
9 GND 10 N/C
11 CLK- 12 N/C
13 CLK+ 14 N/C
15 GND 16 N/C
KEY
17 N/C 18 GND
19 N/C 20 W_DISABLE#
21 GND 22 RST#
23 PER_N0 24 +3.3V_STBY
25 PER_P0 26 GND

16
27 GND 28 +1.5V
29 GND 30 SMB_CLK
31 PET_N0 32 SMB_DAT
33 PET_P0 34 GND
35 GND 36 USB_D-
37 N/C 38 USB_D+
39 N/C 40 GND
41 N/C 42 N/C
43 N/C 44 LED_WLAN#
45 N/C 46 N/C
47 N/C 48 +1.5V
49 N/C 50 GND
51 N/C 52 +3.3V_STBY
4.9. Ethernet (P26)
The SBC-FitPC2 provides one Gigabit Ethernet port implemented using a Realtek
RTL8111x Gigabit Ethernet controller.
The RTL8111x offers data transmission over a CAT 5 UTP or CAT 3 UTP (10Mbps only)
cable. Functions such as Crossover Detection and Auto-Correction, polarity correction,
adaptive equalization, crosstalk cancellation, echo cancellation, timing recovery and error
correction are implemented to provide robust transmission and reception capability at high
speed. The RTL8111x is compliant with IEEE 802.3u specifications for 10/100Mbps
Ethernet and IEEE 802.3ab specifications for 1000Mbps Ethernet.
The RTL8111x is fully compliant with Microsoft® NDIS5, NDIS6 (IPv4, IPv6, TCP,
UDP) Checksum and Segmentation Task-offload (Large and Giant send) features, and
supports IEEE 802 IP Layer 2 priority encoding and IEEE 802.1Q Virtual bridged Local
Area Network (VLAN).
The Ethernet interface is available through standard RJ-45 connector P26.
Pin Name Description
1 BI_DA+ Bi-directional pair A +
2 BI_DA- Bi-directional pair A -
3 BI_DB+ Bi-directional pair B +
4 BI_DC+ Bi-directional pair C +
5 BI_DC- Bi-directional pair C -
6 BI_DB- Bi-directional pair B -
7 BI_DD+ Bi-directional pair D +
8 BI_DD- Bi-directional pair D -

17
4.10. LED’s and Push Buttons
SBC-FitPC2 push buttons
The SBC-FitPC2 features two user-accessible push buttons:
• SW1 is the main system hardware reset button.
• SW2 is the main system power on / off / suspend button.
SBC-FitPC2 LED’s
The following table describes SBC-FitPC2 LED’s:
LED Designation LED activity
DS1 HDD access ON when HDD is accessed
DS2 WiFi Activity Depends on a mini PCI-express
WLAN module. Refer to the WLAN
module datasheet.
DS3 System power ON when the system is in active
state, OFF in suspend-to-RAM and
off states.
4.11. Consumer Infrared Receiver
The SBC-FitPC2 features a Consumer Infrared receiver, based on a programmed micro
controller with USB interface.
5. Mechanical Considerations and Connectors’ Location
The 3D solidworks model and “dxf” assembly files of the SBC-FitPC2 board may be
downloaded from [Developer] >> [fit-PC2] section of CompuLab’s web-site.
6. Operating Temperature Ranges
The information in this section refers to the SBC-FitPC2 board only. For temperature

18
ranges of off-board components such as the hard disk or WLAN module, please refer to the
component’s datasheet.
The SBC-FitPC2 is available with three options of operating temperature range:
Range Temp. Description
Commercial 0oto 70oC Sample cards from each batch are tested for the lower
and upper temperature limits. Individual cards are not
tested.
Extended -20oto 70oC Every card undergoes a short test for the lower limit
(-20oC) qualification.
Industrial -40oto 85oC Every card is extensively tested for both lower and
upper limits and at several midpoints.
