Concertone DVD STEREO RADIO SYSTEM User manual

OPERATING INSTRUCTIONS
DVD STEREO RADIO SYSTEM
TM
1
TV
TUNER
R
MP3
CD PLAYBACK
VIEWER

Page1
This product contains a low power laser device.
To ensure continued safety, do not remove any
covers or attempt to gain access to the inside of
the product. Refer any servicing to qualified
personnel.
WARNING: TO REDUCE THE
RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE
THISAPPLIANCETORAINOR
MOISTURE.
SAFETY PRECAUTIONS & WARRANTY
WARRANTY
ONE (1)YEAR LIMITEDWARRANTY
CONCERTONE warrants to the original retail purchaser of this radio that it or any part therein,
under normal use and conditions, be proven defective in material or workmanship within 1 year
fromthedateoforiginalpurchase,suchdefect/swillberepairedorreplacedatCONCERTONE’S
option without charge for parts and repair labor.
This warranty does not extend to the elimination of externally generated static or noise, to the
correction of antenna generated noise or to the cost incurred to correct this noise.The warranty
does not cover the removal reinstallation of this radio or damage to any tapes, CD’s speakers,
accessories, or the vehicles electrical system.
This warranty does not cover the cabinet appearance or apply to the radio or any part of the
radio which in the opinion of CONCERTONE, has been damaged through alterations, improper
installation, mishandling, misuse, neglect, or accident. THE EXTENT OF CONCERTONE’S
LIABILITY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT
PROVIDED ABOVE, AND IN NO EVENT, SHALL CONCERTONE’S LIABILITY EXCEED THE
PURCHASE PRICE PAID BY THE ORIGINAL BUYER FOR THE RADIO.
This warranty extends only to the original purchaser of the radio and is not transferable.
Some states do not allow limitations on how long an implied warranty last, and some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations or exclusion may not apply to you.This warranty gives you specific legal rights.
To obtain repair or replacement within the terms of this warranty, the radio is to be delivered with
proof of purchase with a description of the defect/s, freight prepaid, to the original dealer or to
Concertone , 574-389-1801, 725 Industrial Parkway, Elkhart, IN 46516, Technical
Assistance, Warranty, Parts and Service 574-534-3167.
The lightning flash and arrowhead
within the triangle is a warning
sign alerting you of “dangerous
voltage” inside the product.
WARNING: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
WW
WW
WARNINGARNING
ARNINGARNING
ARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
• THISDEVICECOMPLIESWITHPART15OFTHEFCC
RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE UNDESIRED
OPERATION.
• COMPLIES WITH DHHS RULES 21CFR SUB-
CHAPTER J APPLICABLE AT DATE OF
MANUFACTURE.
CAUTION: INVISIBLE LASER RADIATION WHEN
OPEN AND INTERLOCKS DEFEATED. AVOID
EXPOSURE TO BEAM.
ADVARSEL: USYNLIG LASERSTRALING VED
ÁBNING NÁR SIKKERHEDSAFBRYDERE ER UDE
FUNKTION UNDGÁ UDSÆTTELSE FOR STRÁLING.
VARO: AVATTAESSA JA SUOJALUKITUS OHITET-
TAESSA OLET ALTTINANÄKYMÄTTÖMÄLLELASER-
SÄTEILYLEE. ÄLÄ KATSO SÄTEESEEN!
VARNING:OSYNLIGLASERSTRÁLNINGNÄR DENNA
DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD
BETRAKTA EJ STRÄLEN!
TM

Page2
Playing MP3 and Picture File Disc ..... 20-21
Playing a MP3 file disc ................................. 20
Playing a Picture file disc .............................. 21
Playing a MP3/Picture file disc ...................... 21
Radio Operation ....................................... 22
Tuning into a station manually ......................22
FM Stereo ...................................................... 22
Weak FM stations .......................................... 22
To search for a station automatically ............ 22
Presetting stations ......................................... 22
Tuning into a preset station ........................... 22
TV Setup ............................................... 23-24
NTSC CATV or NTSC AIR setting ................ 23
Automatically Preset the TV Stations ............23
AddTV Channel or DeleteTV Channel ..........24
Add allTV ChannelorDelete allTVChannel .... 24
Watching a Television ................................. 24
Customizingthe FunctionSettings ....25-29
Language setting .......................................... 25
VIDEO setting .......................................... 25-27
TV shape .................................................... 25
Videooutput................................................ 26
Brightness...................................................27
Edges..........................................................27
AUDIO setting ................................................28
DigitalOut ................................................... 28
RATING setting ....................................... 28-29
Factory set .................................................28
Password/parental lock .............................. 29
Language Code List for Disc Language .. 30
Maintenance..................................................31
Cleaning Disc ................................................. 31
Cleaning the Unit ........................................... 31
ImportantNotice ............................................. 31
Specifications................................................32
SystemConnections....................................33
Safety Precautions &Warranty .............. 1
Disc Formats .............................................. 3
BeforeYou Start ........................................4
Using the remote control ............................... 4
Control Reference Guide ..................... 5-7
Display Information ................................... 8
Installation ................................................... 9
Turning on the unit .......................................... 9
Automaticturningofftheunit(Sleepfunction).....9
Adjusting the Sound ......................... 10-11
Playing a Disc .................................... 12-14
Playing a Disc .............................................. 12
Pausing playback (still mode) ....................... 12
Stoppingplayback .......................................... 12
To skip to a different track ............................ 12
Fast Foward/Fast Reverse ............................ 13
Slow-motionplay ............................................ 13
Skip (Forward/Reverse) ................................ 13
Zooming into an image ................................. 13
Angleselection ............................................... 14
Audioselection ............................................... 14
Subtitle selection ............................................ 14
SpecialFunctions ..................................15-17

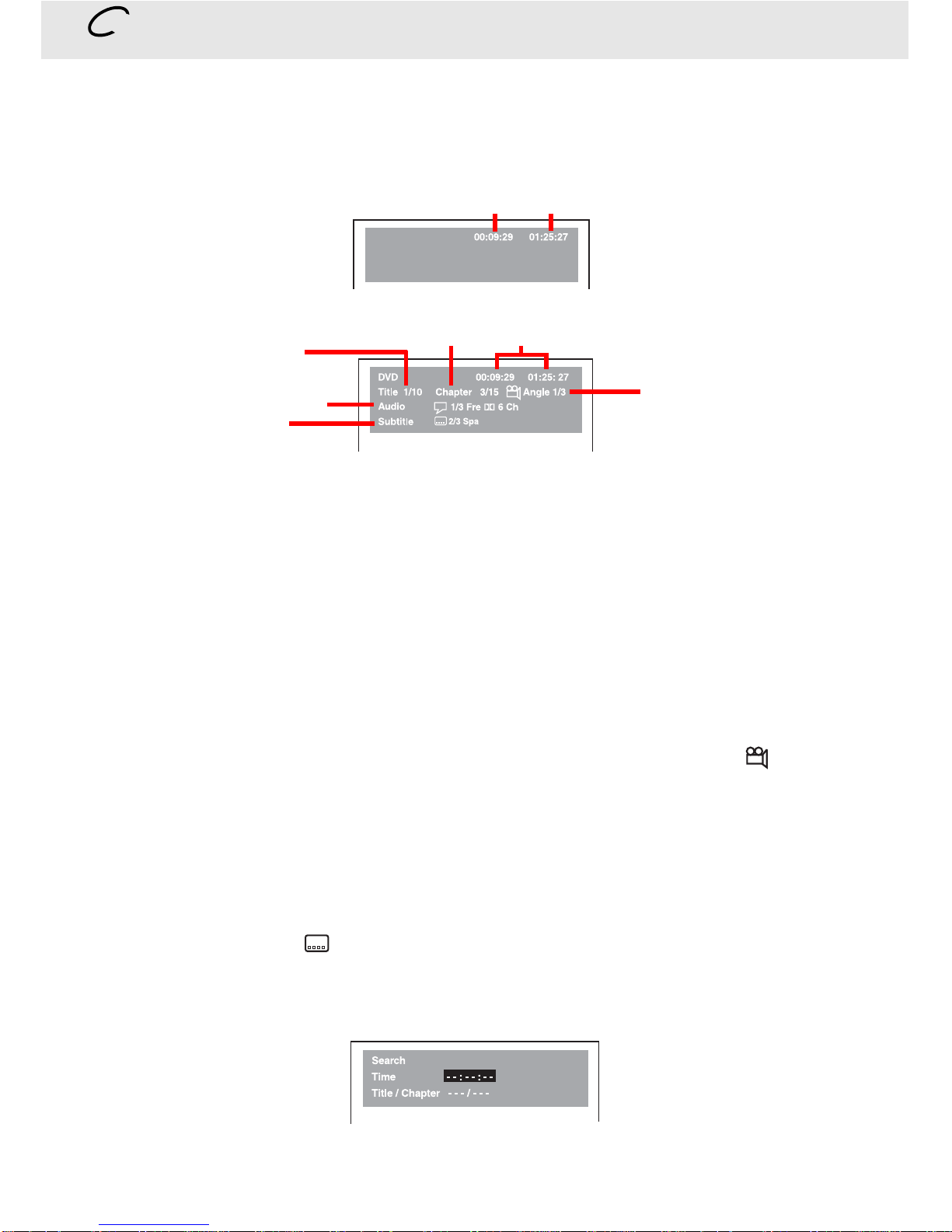

Display function .......................................... 15

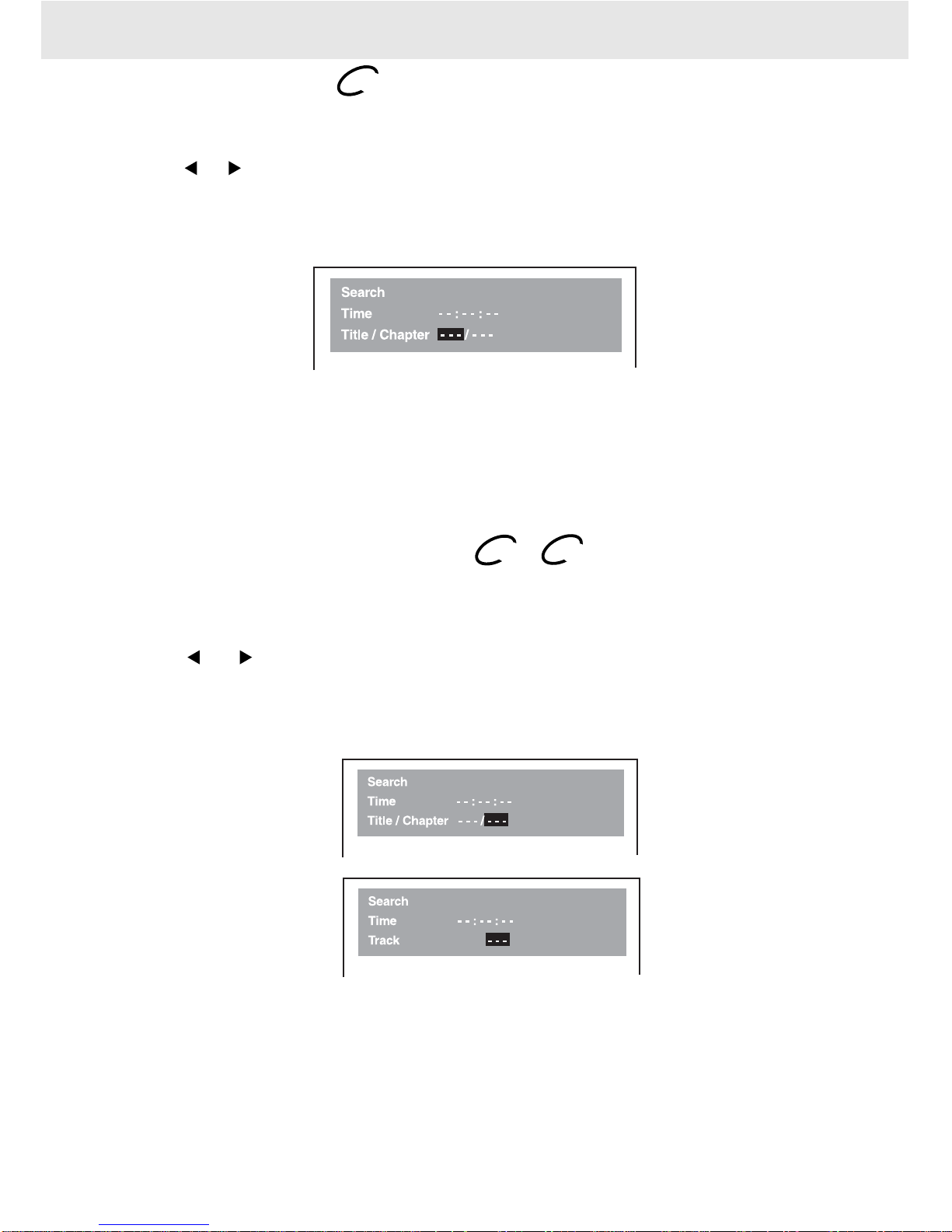

Locating a specific title ................................ 16
Locating a specific title/chapter/track ........... 16
Locating a specific time ................................. 17
Anglesetting ................................................... 17
Audiosetting ................................................... 17
Subtitlesetting ................................................ 17
CD / DVD programmable memory .......... 18
DVD programmable memory .........................18
Title/Chapter programmed playback .......... 18
CD programmable memory ........................... 18
Track programmed playback ..................... 18

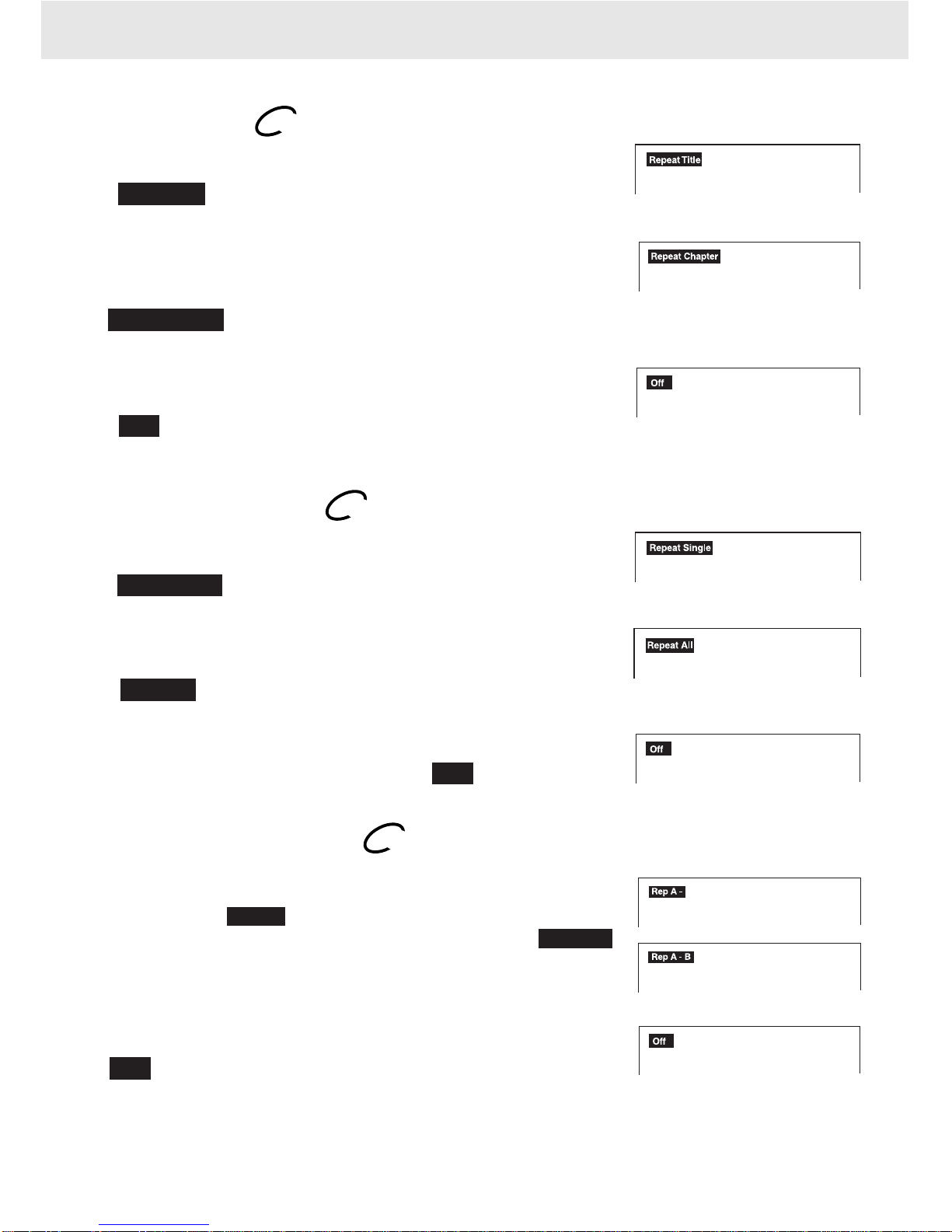

RepeatPlayback........................................... 19
Repeating a title/chapter (DVD) .................... 19
Repeating a single track/whole disc (CD) ..... 19
Repeating a specific section (DVD) .............. 19
TABLE OF CONTENTS

Page3
The unit can playback.
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region
Management Information that is encoded on DVD discs. If the Region number printed on the DVD disc
does not correspond to the Region number of this unit, this unit cannot play that disc.
The region number of this unit is 1.
Disc Function or Operation that is Not Available
When the symbol appears on the screen, it indicates that the function or operation attempted
is not available at that time. This occurs because the DVD disc manufacturer determines the specific
functions. Certain functions may not be available on some discs. Be sure to read the documentation
provided with the DVD.
DVDs
[8cm/12cm disc]
Notes on Unauthorized Discs
You may not be able to play back some DVD discs on this unit if they were purchased from outside
your geographic area or made for business purposes.
Title, Chapter andTracks
• DVDs are divided into “titles” and “chapters”.
If the disc has more than one movie on it, each
movie would be a separate “title”. “Chapters”
are sections of titles.
• Audio CDs are divided into “tracks”. A “track”
is usually one song on an Audio CD.
Note:
• Numbers identify each title, chapter, and track on a disc. Most discs have these numbers recorded on
them, but some do not.
Icons Used on DVDs
Sample lcons
Language selections for audio
Language selections for subtitles
Screen aspect ratio
Multiple camera angles
Region code indicator
Notes:
• This Unit supports 2-channel (L/R) audio and 5.1ch (Multi-channel) MPEG Audio 1/2 (only when the
DIGITAL AUDIO OUT coaxial jack is used for connection). It does not support 7.1 channel MPEG Audio
Version 2.0.
• WhenplayingbackaCD-G(Graphics)orCDEXTRAdisc,theaudioportionwillbe played,butthegraphic
images will not be shown.
Audio CDs
[8cm/12cm disc]
DISC FORMATS
1
2
2
16:9
2
1
1. English
2. French
1. English
2. French
Title 1 Title 2
Chapter 1 Chapter 1Chapter 2 Chapter 2Chapter 3
Track 1 Track 2 Track 3 Track 4 Track 5
VIEWER
MP3
CD PLAYBACK

Page4
USING THE REMOTE CONTROL CORRECTLY
• Point the Remote Control at the REMOTE SENSOR located on the unit.
• When there is a strong ambient light source, the performance of the infrared REMOTE SENSOR may
be degraded, causing unreliable operation.
• The recommended effective distance for remote operation is about 5 meters (16 feet).
1. Open the battery door.
BATTERY REPLACEMENT
When batteries become weak, the operating distance of the Remote Control is greatly reduced and you
will need to replace the batteries.
NOTE:
• Ifthe Remote Control isnotgoingto be used foralongtime, remove thebatteriestoavoid damage caused
by battery leakage corrosion.
• Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable
(NICKEL-CADMIUM) batteries.
• WARNING: Do not dispose of batteries in fire, batteries may explode or leak.
2. Insert two “AA” or UM-3 size batteries and
replace the battery door.
TO INSTALL BATTERIES
BEFORE YOU START

Page5
CONTROL REFERENCE GUIDE

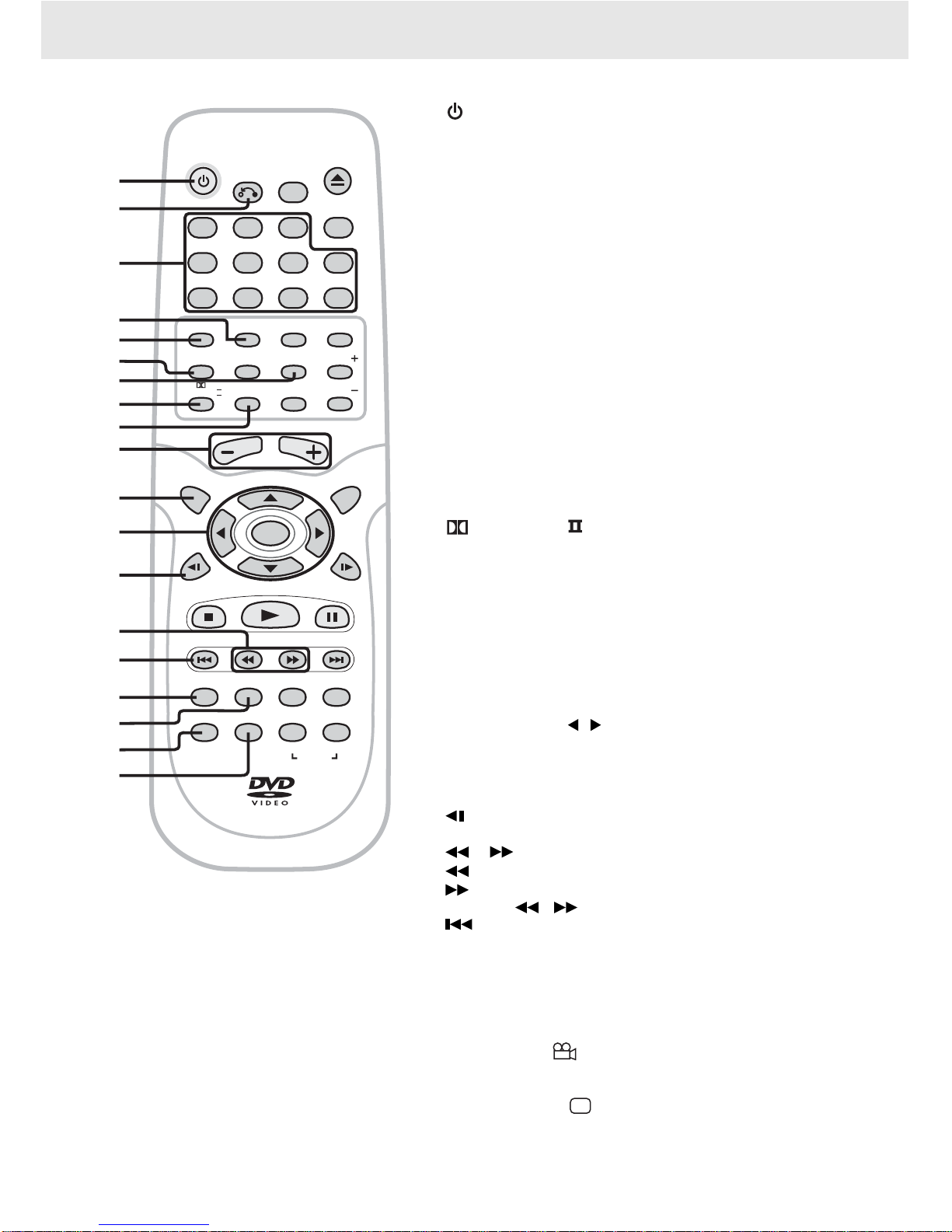

NAMES OF CONTROL - REMOTE CONTROL
1) STANDBYbutton
Turn back to standby mode and turn on the unit.
2) RETURNbutton
Return to the normal operation after using the SETUP menu of
aDVD.
3) Number(0-9)and(+10)buttons
UsewhencreatingTunerstationspresetprogramsandselectthe
presetstation.SelectaCDtrackdirectly.Toselectnumbersover
9,press+10buttonandthenthesecondno.forexample,toenter
18, press +10 and then 8.
4) 5.1/2.1CHANNELSbutton
Switch speaker output to 5.1 channel mode. (All speakers +
subwoofer).
Switch speaker output to 2.1 channel. (Front left/right A
speakers + left/right B speakers + subwoofer).
5) MEMORYbutton
Enter the number of a selected chapter or track.
Enter the number of a selected radio station.
6) DIMMERbutton
Adjust the brightness of the front panel display to the level you
prefer.
7) TVSETUPbutton
Open and close TV Setup menu screen.
8) PRO LOGIC button
InAV_INmode,switchestoDolbyProLogicmodeforVHStapes
encoded with Dolby Pro Logic.
9) MUTEbutton
Press this button to mute the sound completely.
Pressthebuttononceagaintorestoretheprevioussoundlevel,
and cancel the mute.
10) VOLUME(+/-)buttons
Adjust the volume.
11) SETUPbutton
Open and close the SETUP menu screen of a DVD.
12) CURSOR ( ▲, ▼, , ) buttons
Use to highlight selections on a menu screen and make adjust
certain settings.
ENTERbutton
Confirm selections on a menu screen.
13) SLOWbutton
Perform slow reverse playback of DVDs.
14) / buttons
:Fast reverse playback.
:Fast forward playback.
TUNING ( / ) : Scan all available radio stations.
15) PREVbutton
Move reverse through titles, chapters or tracks on a disc.
Tune to the presetted stations.
16) CLEARbutton
Clear input selections and cancel certain playback functions.
17) DISPLAY button
Change disc status information displayed on the screen.
18) ANGLEbutton
Switchthecameraangleofthevideopresentationwhenscenes
with multiple camera angles are recorded on a DVD.
19) SUBTITLEbutton
Select one of the subtitle languages programmed on a DVD.
.....
(Continuedon next page)
TV CHTV SETUP
MUTE TV CH SET
SLEEP
DIMMER
SOUND
MEMORY FM MODE
5.1/2.1
5.1/2.1
CHANNELS
PRO LOGIC II
PRO LOGIC II
STANDBY
RETURN
OPEN/
CLOSE
FUNCTION
GOTO
VOLUME
SETUP MENU
ENTER
ANGLE SUBTITLE BAND
ZOOM/
TV MODE
CLEAR DISPLAY AUDIO
PREV TUNING NEXT
STOP PLAY PAUSE
123
456
7890
+10
SLOW
SLOW
A-B DISC
REPEAT
1
2
3
5
6
7
9
4
8
12
11
10
13
14
15
16
17
18
19

Page6
CONTROL REFERENCE GUIDE
NAMES OF CONTROL - REMOTE CONTROL
20) OPEN / CLOSE button
Use to open or close the disc door.
21) FUNCTIONbutton
Select the source.
22) GOTObutton
Skip directly to a specific location on a DVD disc.
23) FMMODEbutton
SetFMMODEtoFMSTEREOforFMstereosoundortoFMMONO
formonosound.
24) SOUNDbutton
Selects sound tone control for adjustment with the cursor
buttons.
25) SLEEPbutton
Whenthesleeptimerisused,thepowerisautomaticallyturned
off after the specified time passes.
26) TVCH+/CH-buttons
Select the desired channel of TV.
TV Setup menu screen and make adjust certain settings.
27) SETbutton
TV Setup menu screen.
28) MENUbutton
Openandclose DVD's menu.
29) SLOW button
Perform slow forward playback of DVDs.
30) ■STOPbutton
Stop playing a disc.
PLAYbutton
Press to start or resume playback a disc.
PAUSEbutton
Pause playback, frame advance.
31) NEXT button
Move forward through titles, chapters or tracks on a disc.
Tune to the presetted radio stations.
32) ZOOM button
Zoominto an imageof a DVD
TVMODEbutton
Instopmode,selectwhethertooutputthevideosignal.TVshows
"AUTO"whichmeansoutputsignaldependsonDVDdisc(either
NTSCorPAL).TVshows"PAL"or"NTSC"whichmeansoutput
signal fixed to PAL or NTSC.
33) AUDIObutton
Select one of the audio soundtracks programmed on a DVD or
selects the audio output mode on a AUDIO CD.
34) BAND/REPEAT-DISCbutton
Select AM(MW)orFM.
Repeat chapter or title of a DVD.
Repeat single track or whole CD.
35) REPEATA-Bbutton
Perform point-to-point repeat playback on a DVD or CD.
TV CHTV SETUP
MUTE TV CH
SET
SLEEP
DIMMER
SOUND
MEMORY FM MODE
5.1/2.1
CHANNELS
PRO LOGIC II
PRO LOGIC II
STANDBY
RETURN
OPEN/
CLOSE
FUNCTION
GOTO
VOLUME
SETUP MENU
ENTER
ANGLE SUBTITLE BAND
ZOOM/
TV MODE
CLEAR DISPLAY AUDIO
PREV TUNING NEXT
STOP PLAY PAUSE
123
456
7890
+10
SLOW
SLOW
A-B DISC
REPEAT
20
21
22
23
24
25
27
26
28
29
30
31
32
33
34
35

Page7
11. TREBLE control knob
12. CD DOOR OPEN/CLOSE button
13. PRO LOGIC indicator
14. PLAY button
15. NEXT/CH+ button
16. TV SETUP/TUNING UP button
17. PREVIOUS/CH- button
18. TV SET/TUNING DOWN button
19. VOLUME controls
20. DISC door
NAMES OF UNIT
1. Mounting hole
2. BASS control knob
3. POWER indicator
4. DISPLAY window
5. PAUSE button
6. POWER ON/OFF button
7. FUNCTION (TUNER/TV/AUX/DVD) button
8. STOP/BAND button
9. REMOTE SENSOR
10. A/A+B/B SPEAKER selector switch
CONTROL REFERENCE GUIDE
1
2
3
4
56
8
9
718
1617
15
14
13
12
19
20
10
11

Page8
TITLEA - B
REPEAT 1 ALL CHAPTER /TRACK TOTAL
ANGLE MEMORYSTEREO
DOLBY
DIGITAL
DOLBY
DIGITAL
DISPLAY INFORMATION
Region (Local) Number Error Indicator
If the region (local) number of the disc that you attempt to play differs from the region number of the
Unit, "Invalid Region" appears on the screen. (The disc cannot be played).
If no disc is loaded
when the Main Unit
is switched on.
Door open
Door close
Loading
Stopped
Playing
Paused
Fast forward
Fast reverse
Slow
Repeat A - B
Remarks
" " appears when the tray is closed and:
1) There is no disc in the tray.
2) The disc type is not playable in this unit.
3) The disc is not loaded correctly (upside-down, etc.)
The display changes to show
other indicators (total time, etc.)
Freezestheimage on thescreen or pausesaudioplayback.
The display changes to show other indicators
(total time, etc.)
Does not function for Audio CDs.
Repeat a specific section.
The operation is not permitted by the unit or the disc.
Screen Display
No Disc
ANGLE
indicator
Appearswhen
multiple
cameraangles
arerecordedin
the section of
theDVDthatis
currently
playing.
Display Examples
The displays information shown below on the screen and display depending on the operation status.
Display
A-B
x 2
x 2
/ x 1/2
■■
■■
■ Stop
Loading...
TITLE indicator
When a DVD is loaded in
the Unit, this indicator
appearsalongwiththetitle
number.
CHAPTER /TRACK indicator
WhenaDVDisloadedintheUnit,this
indicatorappearsalongwiththechapter
number.
WhenaAudioCDisloadedintheUnit,this
indicator appears along with the track
number.
OPERATION indicator
Indicates the operation status of the disc and Unit.
REPEAT 1 playback
indicator
Displayedduring repeat
playback.
TOTAL indicator
Indicatestheelapsed playback time of
thedisc.Withsomediscs, thisareaalso
shows the total play time of the disc
when playback is stopped.
REPEAT A-B playback
indicator
Displayed during repeat
playback.
MEMORY
indicator
Displayed
during
programmed
playback.
STEREO indicator
Tune into a station. "STEREO"
will appear when an FM
broadcast is in stereo.
DOLBY DIGITAL
indicator
Displayswhile Dolby
Digital sound
processing is being
performedorwhenthe
loaded disc contains
DolbyDigitalsound.
REPEAT ALL indicator
Displayedduringfor
repeat playback.
Play
Pause
REP A- REP A-B

Page9
INSTALLATION
Turning on the Unit andTV
1. Press the POWER ON/OFF button, the POWER indicator will turn off, or
2. Press the STANDBY button on the remote control.
3. Turn on the TV by pressing its POWER button.
4. Select the channel on your TV corresponding to the VIDEO IN jack that the Unit is connected.
5. Press the FUNCTION button to select the desired function.
• If you have connected the Unit successfully and the FUNCTION select to DVD, the DVD logo
(start-up picture) will appear on your TV screen.
Automatic turning off the unit (SLEEP function)
This function allows for selecting the time for automatically turning off the unit. (for a maximum period of
240 minutes).
1. Press the SLEEP button on the remote control until the desired for turning off appears on the display
(SLEEP 240....210....180....150....120....90....60....30....25....20....15....10....5....OFF ).
2. The unit will automatically turn off once the selected turning off time reaches "0".
