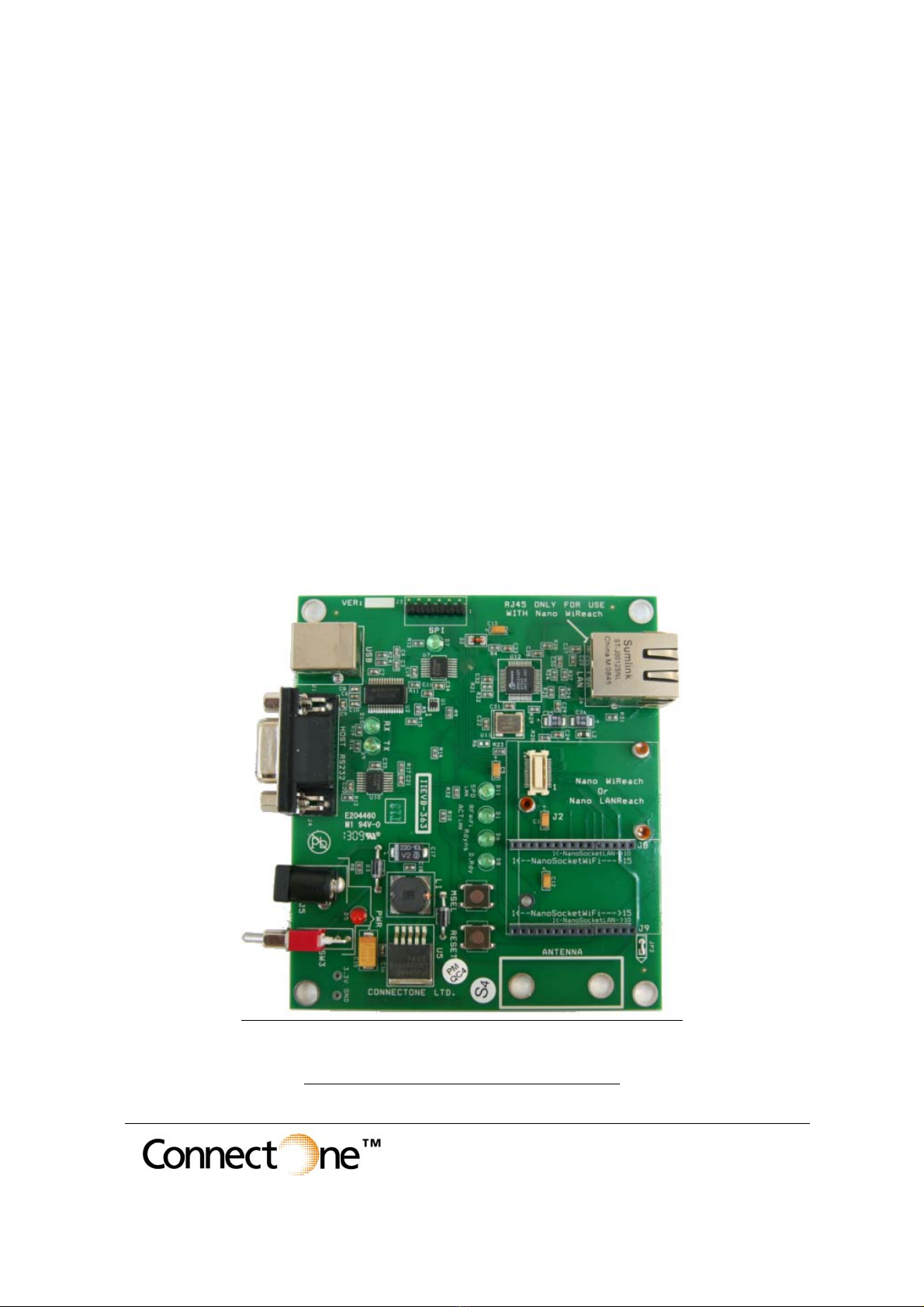

Connect One II-EVB-363MW User manual

Instant Internet
Evaluation Board
II-EVB-363MW/L/D/S/O
for Board rev. 3
User Manual
Version 1.20
Copyright © 2008,2009 Connect One Ltd.
International:
Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Phone: [phone]
Fax: [phone]
Email: [e-mail]
http://www.connectone.com
USA:
Connect One Semiconductors, Inc.
560 S. Winchester Blvd.
Suite 500
San Jose, CA 95128
Tel: [phone]
Fax: [phone]

Connect One
II-EVB-363NW User’s Manual 2
Information provided by Connect One Ltd. is believed to be accurate and reliable.
However, Connect One assumes no responsibility for its use, nor any infringement of
patents or other rights of third parties, which may result from its use. No license is
granted by implication or otherwise under any patent rights of Connect One other than
for circuitry embodied in Connect One’s products. Connect One reserves the right to
change circuitry at any time without notice. This document is subject to change
without notice.
The software described in this document is furnished under a license agreement and
may be used or copied only in accordance with the terms of such a license agreement.
It is forbidden by law to copy the software on any medium except as specifically
allowed in the license agreement. No part of this document may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including but not
limited to photocopying, recording, transmitting via fax and/or modem devices,
scanning, and/or information storage and retrieval systems for any purpose without
the express written consent of Connect One.
iChip, Nano WiReach, Nano LANReach, Nano Socket iWiFi, Nano Socket LAN, IP
Communication Controller, SerialNET, AT+i, and Connect One are trademarks of
Connect One Ltd.
Copyright ©2008,2009 Connect One Ltd. All rights reserved.

Connect One
II-EVB-363NW User’s Manual 3
TABLE OF CONTENTS
1. Introduction............................................................................................................4
2. Unpacking..............................................................................................................4
3. Connections............................................................................................................4
4. Installing the iChipConfig Utility & Evaluation Software ....................................5
5. Testing the WiFi module Wireless Connection.....................................................5
6. Testing the Nano LANReach/Socket LAN Connection........................................6
7. Additional Connections .........................................................................................7
SPI Slave....................................................................................................................7
RJ45 10/100BaseT Ethernet LAN (for Nano WiReach/Socket iWiFi).....................7
Connectors and Switch Positions...............................................................................8
8. II-EVB-363 Bill of Materials.................................................................................9
Appendix 1: II-EVB-363 Schematics :..........................................................................9
Appendix 2: Nano WiReach Mechanical Views.........................................................13
Appendix 3: Nano LANReach Mechanical Views......................................................14

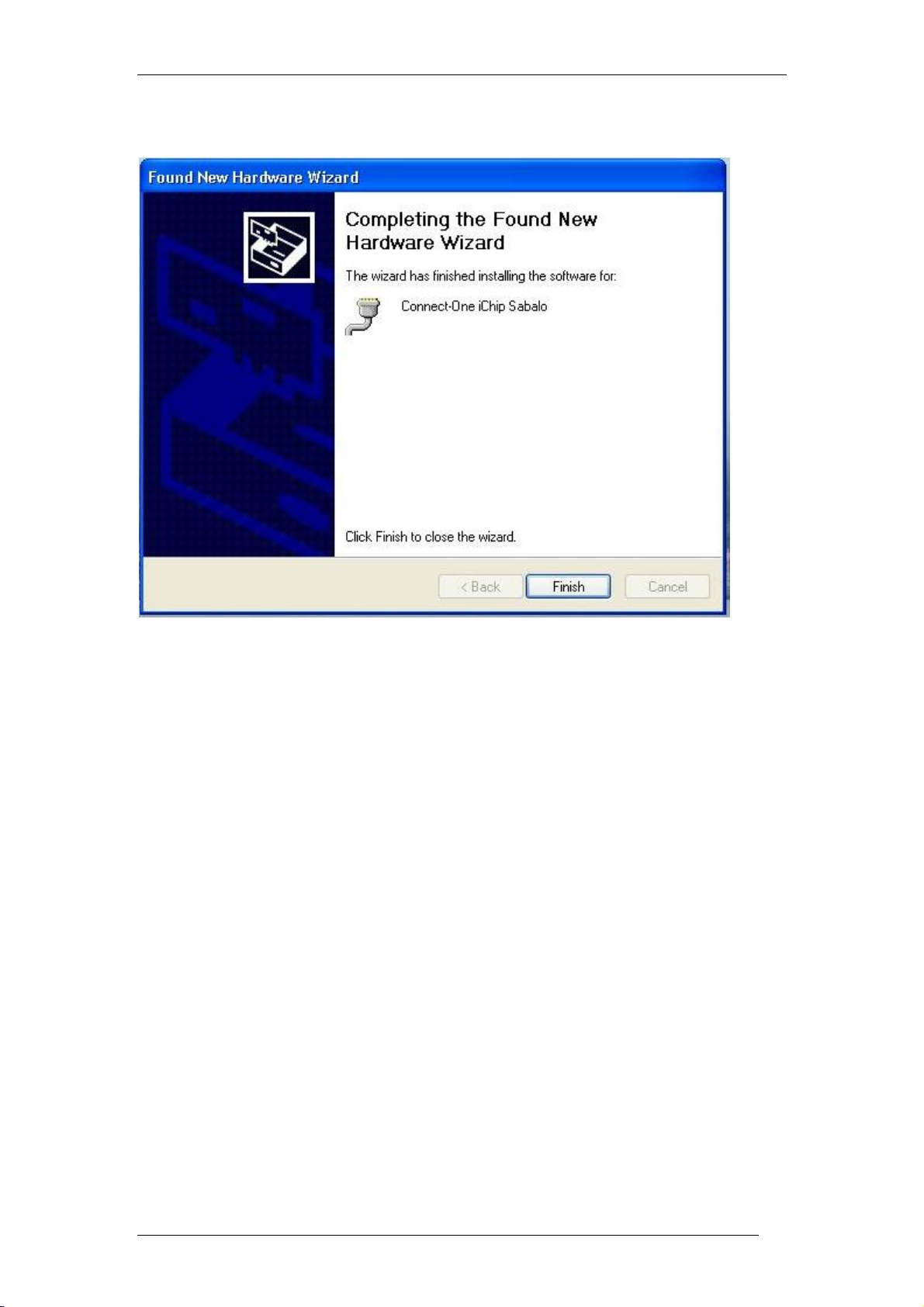

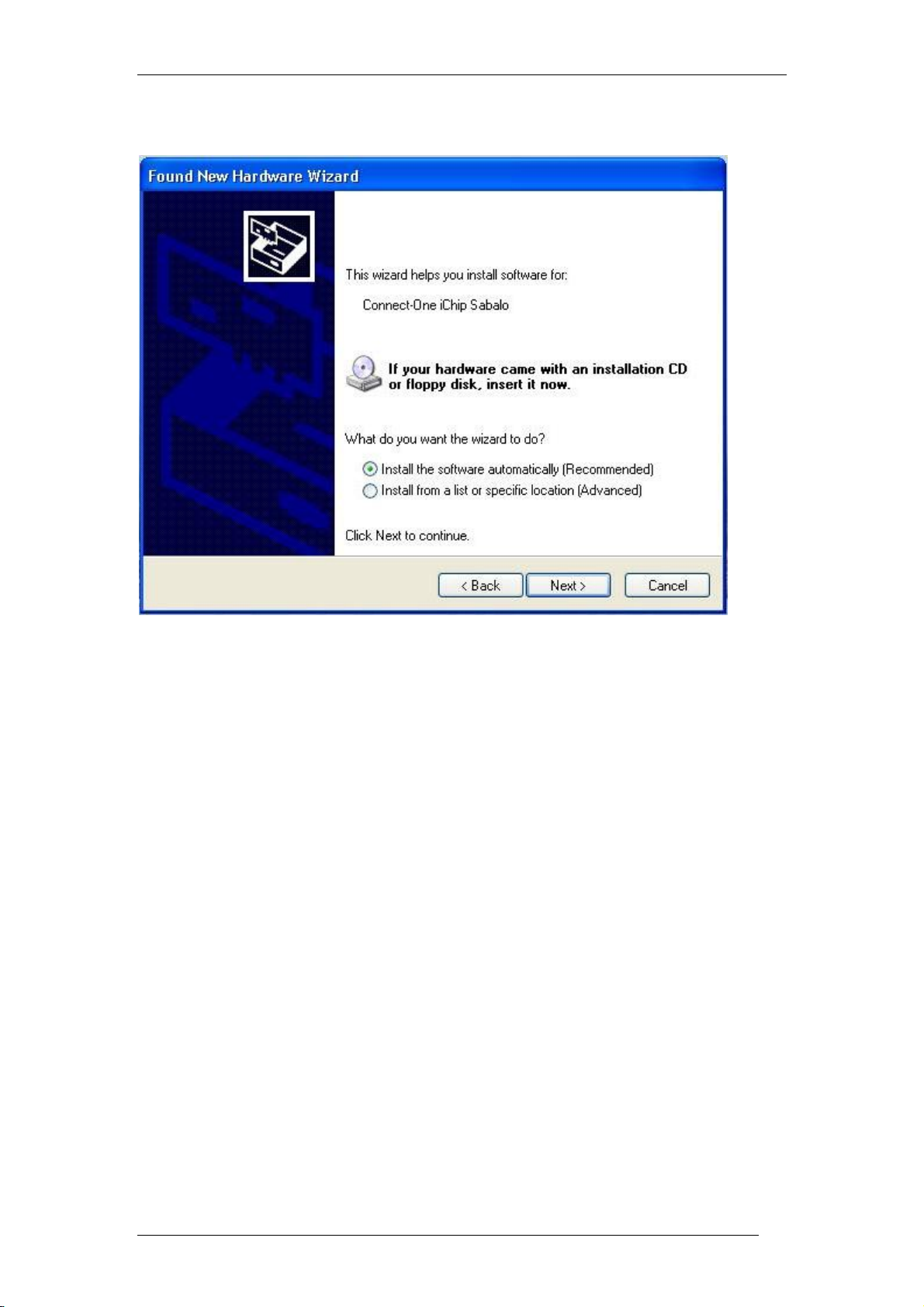

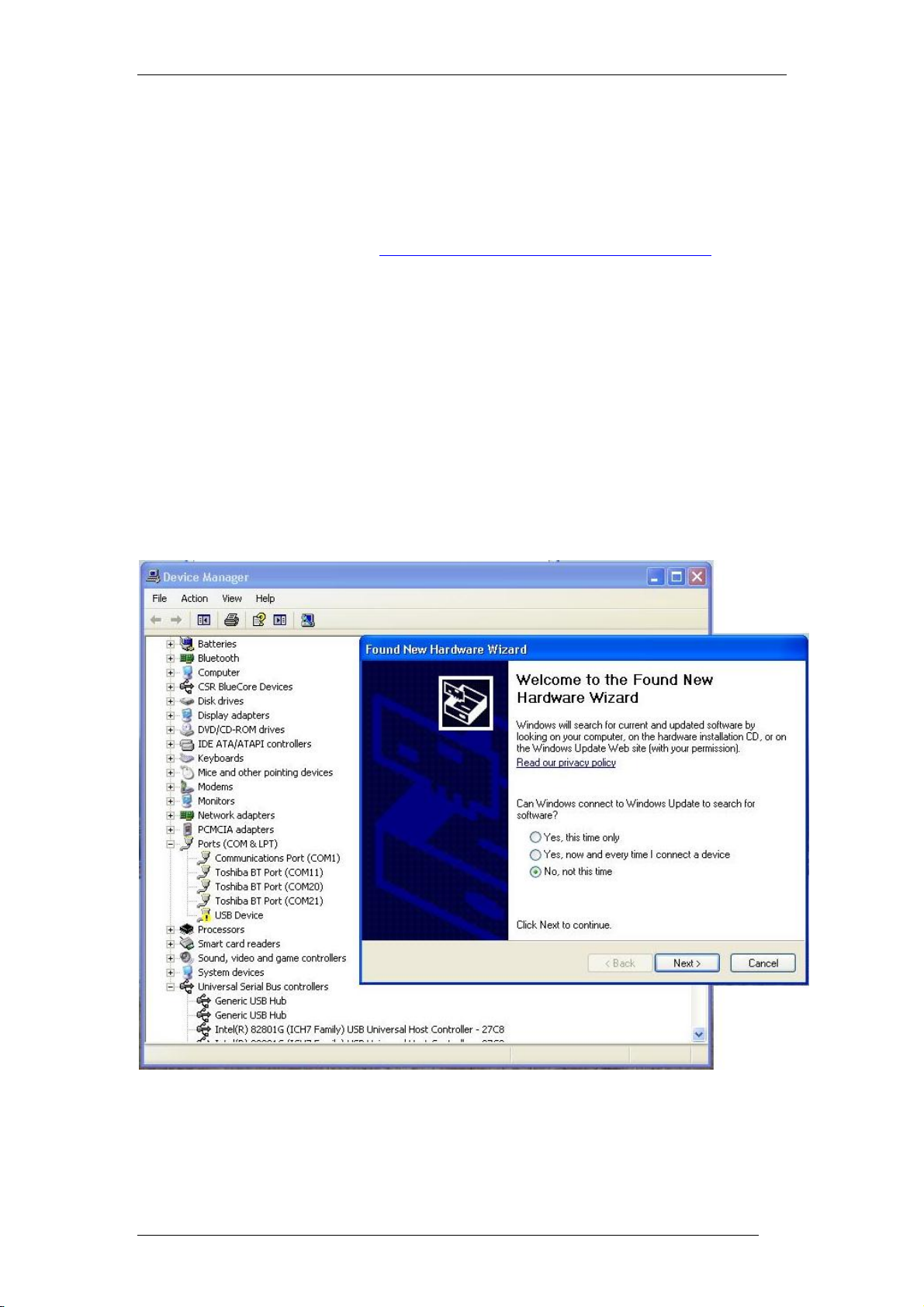

Appendix 4: Installing USB Drivers on a PC..............................................................15
Installing the USB driver:........................................................................................15
Viewing the properties of the new driver: ...............................................................18
FAQs........................................................................................................................20
Appendix 5: WiFi Configuration Notes.......................................................................21
Introduction..............................................................................................................21
iChip Wireless LAN Environment Configuration Parameters ................................22
Wireless LAN Configuration Web Site Page ..........................................................23
Wireless LAN Status Report....................................................................................23
iChip Wireless LAN Test Mode..............................................................................24
Placement and Range Guidelines.............................................................................25
Wireless LAN Data Privacy/Security Considerations.............................................25
Appendix 6: SPI Host Interface...................................................................................26
Introduction..............................................................................................................26
SPI Protocol.............................................................................................................26
Data from module to Host (Slave to Master)...........................................................26
Flow Control - Data from Host to iChip Flow Control ...........................................27
iSPIP — SPI GPIO Pin............................................................................................27
iHIF — Host Interface.............................................................................................27

Connect One
II-EVB-363NW User’s Manual 4
1. Introduction
This manual is intended to familiarize customers with Connect One’s Instant Internet
Evaluation Board II-EVB-363. The II-EVB-363 is an evaluation platform for the
Nano WiReach™ WiFi Module, Nano LANReach™, Nano Socket iWiFi™ and Nano
SocketLAN™. The Connect One Nano and Socket modules are secure serial-to-WiFi
/ serial-to-LAN modules that also act as a bridge to connect serial devices to Ethernet
or 802.11b/g wireless LANs. The modules fit into a compact form factor and utilize
Connect One’s iChip CO2144 IP Communication Controller™and the AT+i™
command set, a powerful set of Internet protocol commands developed by
Connect One to manage Internet connectivity through an Ethernet or wireless LAN
connection.
The modules enable sending and receiving textual and binary data, MIME-encoded
email messages; downloading HTML pages or files from a Web server, or items from
within a page; Web serving, as well as managing TCP or UDP socket
communications (with or without SSL3) over the Internet. They also include an FTP
client and a TELNET client.
Nano WiReach/Socket iWiFi can easily connect existing LAN based solutions to a
WiFi network when used in bridging mode.
Nano WiReach/Socket iWiFi support numerous WiFi security protocols such as
64/128-bit WEP encryption, AES-CCM and TKIP encryption, WPA (including AES)
and WPA2 in both PSK and Enterprise modes. The modules also support the
SSL3/TLS1 security protocols.
2. Unpacking
Take the II-EVB-363 out of its box. Included in the box are:
•The II-EVB-363 motherboard including
o363MW: Nano WiReach module
o363ML: Nano LANReach module
o363MD: Both Nano modules
o363MS: Nano SocketLAN module
o363MO: Nano Socket iWiFi module
•A serial cable with two DB-9 connectors
•A USB cable
•Antenna (in 363MW and 363MD)
•+9VDC Power supply adaptor (110/220 VAC)
•A single 30-pin female receptacle connector for prototyping on your own PCB
3. Connections
1. Communications Cable:
•Serial RS232: Connect one end of the RS232 cable to the D-shell, 9-
pin female, Host RS232 port on the II-EVB-363 (J4) and connect the
other DB-9 connector to the COM1 or COM2 serial port on your PC,
or to the serial port of your embedded device.

Connect One
II-EVB-363NW User’s Manual 5
•USB: Connect one the device end of the USB cable to the EVB-363
USB connector (J1) and connect the other end to a Host USB port on
your PC or embedded device.
2. Connect the II-EVB-363 to the power supply.
3. Connect the WiFi antenna to the screw-on Antenna bracket.
4. Installing the iChipConfig Utility & Evaluation Software
II-EVB-363 enables you to evaluate the modules without changing anything in your
current development environment. Using a simple terminal program on a PC, you can
issue AT+i commands to the module and get responses.
AT+i commands are used to configure parameter values into iChip’s flash memory
and activate Internet tasks such as Email send/Recieve, sockets, FTP sessions, Web,
and more.
A full description of the AT+i protocol can be found in the AT+i Programmer’s
Manual on the Connect One website at:
http://www.connectone.com/support.asp?did=42
To assist in configuring and evaluating the iChip and the modules, Connect One
supplies the iChipConfig Utility. This is a Windows-based GUI program that contains
intuitive dialog boxes to fully configure iChip. It doesn’t require any knowledge of
AT+i commands. In addition, it contains a local firmware upgrade function.
The iChipConfig Utility also allows you to perform specific Internet communication
tasks such as sending and receiving Emails, activating iChip’s websites, entering
SerialNET mode, and more.
For more information on the iChipConfig Utility and its usage, see the iChip Config
Utility User’s Manual.
. The latest iChipConfig Utility version and user manual can be found on the
Connect One website in the Support section at:
http://www.connectone.com/support.asp?did=30
Most frequently iChipConfig connects to the II-EVB-363 though the PC’s standard
RS232 Serial port. The modules also include a USB Device port, which allows using
a USB connection as an alternative. To enable use of the PC USB port, a virtual COM
USB driver needs to be loaded on the PC. The iChipConfig can then be configured to
use the virtual port. Instructions for configuring the USB drivers on the PC are given
below in Appendix 3.
5. Testing the WiFi module Wireless Connection
To test the wireless LAN connection, you need to configure the Nano
WiReach/Socket iWiFi to connect to an Access Point:
1. Make sure an Access Point is connected and configured properly.
2. Start the iChipConfig Utility on your PC.
3. In the main window of the utility, click the Dumb Terminal icon.

Connect One
II-EVB-363NW User’s Manual 6
4. In the Dumb Terminal window, enter the AT+i command to verify that the
iChip is communicating with your PC. You should receive an I/OK in
response. If this has failed, click the “Setup Port” button and select the correct
COM port. When using a USB connection, select the USB virtual COM being
used.
5. Enter the AT+iRP11 command to obtain a report of all the Access Points
available in your area.
6. Enter AT+iWLSI=<ssid>. ssid is the ID of the Access Point you connect to.
Note that ssid is a case-sensitive string.
7. If you want to enable WEP encryption, configure the following parameters:
•AT+iWLWM=<n> where n=0 means no security, n=1 means 64-bit
key, and n=2 means 128-bit key
•AT+iWLKI=<n> where nis the WEP key index (n=1..4)
•AT+iWLK<n>=<keyString> where nis an index between 1 and 4, and
keyString is the WEP key string in the nth position.
8. If you want to enable WPA encryption, configure the following parameter:
AT+iWLPP=<passphrase> where passphrase is the pass-phrase to
be used in generating the WPA1-PSK encryption key. It is normal for the
iChip to take a few moments before returning I/OK in this case.
9. Enter AT+iDOWN in order to reset the module and connect to the WiFi
network.
At this stage a connection to the Access Point should be established. Verify that
the module has received an IP address from the DHCP server by issuing the
AT+iIPA? command. The module should reply with I/<IP address>.
To test the connection, use the iChipConfig utility to perform any activity that
requires network connection such as retrieving a web page, sending an email, or
opening a socket. You may also try to PING the iChip from another station on the
network.
6. Testing the Nano LANReach/Socket LAN Connection
To test the wireless LAN connection, you need to configure the Nano
LANReach/Socket LAN for your LAN:
1. Connect the module to the LAN network.
2. Start the iChipConfig Utility on your PC.
3. In the main window of the utility, click the Dumb Terminal icon.
4. In the Dumb Terminal window, enter the AT+i command to verify that the
iChip is communicating with your PC. You should receive an I/OK in
response. If this has failed, click the “Setup Port” button and select the correct
COM port. When using a USB connection, select the USB virtual COM being
used.
5. Configure the module IP address in the +iDIP parameter. Set
AT+iDIP=0.0.0.0 if you want the module to receive IP settings for the
network’s DHCP server.
6. Set +iDIP to an IP address to skip the DHCP process and use a fixed IP. In this
case you should also define the +iSNET (subnet) parameter. For example,
AT+iSNET=255.255.255.0
7. Enter AT+iDOWN in order to reset the module and connect to the LAN
network.

Connect One
II-EVB-363NW User’s Manual
To test the connection, use the iChipConfig utility to perform any activity that
requires network connection such as retrieving a web page, sending an email, or
opening a socket. You may also try to PING the iChip from another station on the
network.
7. Additional Connections
The modules support two additional connections:
SPI Slave
The modules support an alternative Host interface to the RS232 Serial port and the
USB connection. A host equipped with an SPI Master connection may connect to the
module’s SPI Slave port and interact with the module with AT+i commands.
An SPI cable (not supplied) connects to the II-EVB-363 J3 SIP connector:
nSPI
_
INTnSPI MISO
nSPI MOSI
nSPI_CLK
GND
nSPI
_
CS
J3
A full description of interfacing the modules with SPI is included below in Appendix
5.
RJ45 10/100BaseT Ethernet LAN (for Nano WiReach/Socket iWiFi)
The II-EVB-363 contains a standard 10/100BaseT RJ45 connector that allows a direct
connection to a wired LAN. The use for this connection is to implement a WiFi to
LAN bridge with the Nano WiReach/Socket iWiFi module. The bridge feature is
supported in Nano WiReach/Socket iWiFi firmware version 8.04 or later.
7

Connect One
II-EVB-363NW User’s Manual
Connectors and Switch Positions
RJ45 LAN (For use exclusively
with Nano WiReach)
N
ano WiReach o
r
N
ano LANReach Antenna
(exclusively for
N
ano WiReach
Power Switch
+9VDC
Power Jack
RS232 Serial
Connection
USB
Connection
SPI
Connection Module Reset
Mode Select
N
ano SocketLAN
8

Connect One
II-EVB-363NW User’s Manual 9
8. II-EVB-363 Bill of Materials
Item Quant. Reference Part Manufacturer
1 4 C1,C5,C12,C13 10UF/6.3V Any
2 2 C3,C4 15PF Any
3 16
C6,C11,C16,C18,C22,C23,C24,
C27,C28,C29,C30,C31,C32,C33,
C34,C35 100NF Any
4 7 C7,C8,C9,C10,C19,C20,C21 470NF Any
5 1 C15 10UF/25V Any
6 1 C17 220UF/10V Any
7 2 C25,C26 100UF/6.3V Any
8 2 D1,D11 G.LED Any
9 1 D2 LLN4148 Any
10 1 D3 1N4001 Any
11 1 D4 MUR115 Any
12 1 D5 R.LED Any
13 5 D6,D7,D8,D9,D10 GREEN LED Any
14 4 1,2,3.3V,GND TP Any
15 1 JP2 JUMPER Any
16 1 J1 USB-B Any
17 1 J2 52991-0308 Molex
18 1 J3 CON6 Any
19 1 J4 DB9 FEM Any
20 1 J5 DC-JACK-MALE Any
21 1 J6 203199 ERNI
22 2 J8,J9 CON15 Any
23 1 L1 68UH/1A Any
24 1 L2 BK2125HM601 Taiyo Yuden
25 2 R1,R2 27 Any
26 7 R4,R9,R11,R13,R15,R17,R32 100K Any
27 3 R5,R21,R22 10K Any
28 8 R8,R10,R12,R14,R16,R19,R30,R31 470 Any
29 2 R20,R23 3K Any
30 4 R24,R25,R26,R27 49.9 1% Any
31 1 R28 0 Any
32 1 R29 6.8K1% Any
33 2 SW1,SW2 TACK_SW Any
34 1 SW3 SWITCH Any
35 1 U1 NC7WZ04P6X Fairchild
36 1 U2 SN65C3238E TI
37 1 U5 LM2591HVS-3.3 National
38 2 U7,U10 74VHC123AMTCX Fairchild
39 1 U11 F4100-50MHZ Fox Online
40 1 U12 DM9161A Davicom
Appendix 1: II-EVB-363 Schematics :

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
nSPI1_MOSI nSPI1_MISO
READYNESS
DDPDDM
RXD0
nCTS0
DATA_RDY
nSPI1_CS
TXD0
MSEL
nSPI1_CLK
nRESET
nRTS0
RTS232
TXD232
CTS232
RXD232
TXD232
RTS232
CTS232
RXD232
RXD0
nCTS0
nRTS0
DTR232
DTR232
READYNESS -CDH232
-CDH232
nSPI1_INT
DATA_RDY
nSPI1_MOSI
nSPI1_CLK
nSPI1_MISO
nSPI1_CS
nSPI1_INT
nRESET
DDP
DDM
RF_ACT_LED
TXD0
nSPI1_MOSI
READYNESS
nSPI1_CLK
nSPI1_MISO
nSPI1_INT
nSPI1_CS
DDM
DDP
SPEED
nRESET
RF_ACT_LED
TXD0
MSEL
nRTS0
RXD0
nCTS0
DATA_RDY
GND
VDD
GND
GND VDD1
VDD1GND
GND
GND
VDD
GND
GND
GND
GND
GND
GNDGND
GND
VDD1
GND GND
VDD
GND
VDD1
GND
VDD1
VDD RXD0
nSPI1_CS
ETXEN
EREFCK
ERX0
EMDIO
ERX1
EMDC
ETX0
ETX1
CRSDVERXER
TXD0
nRESET
DATA_RDY
READYNESS
ETXEN
EMDIO
ETX0
ETX1
CRSDV
EREFCK
ERX0
ERX1
EMDC
ERXER
Title
Size Document Number Rev
Date: Sheet of
3.0
CONNECTORS+BUFFERS
B
1 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
CONNECTORS+BUFFERS
B
1 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
CONNECTORS+BUFFERS
B
1 3Thursday, March 05, 2009
IIEVB_363
RS232 TO HOST
FOR ANTENNA HOLDING
SW1TACK_SW SW1TACK_SW
C10
470NF
C10
470NF
R1 27 R1 27
C9
470NF
C9
470NF
+
C12
10UF/6.3V
+
C12
10UF/6.3V
2
TP
2
TP
1
+
C5
10UF/6.3V
+
C5
10UF/6.3V
SW2
TACK_SW
SW2
TACK_SW
R2
27
R2
27
+
C1
10UF/6.3V
+
C1
10UF/6.3V
J8
CON15
J8
CON15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
J9
CON15
J9
CON15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
C8
470NF
C8
470NF
U2
SN65C3238E
U2
SN65C3238E
RIN1 8
RIN2 9
RIN3 11
TOUT1 5
TOUT2 6
TOUT3 7
TOUT4 10
TOUT5 12
ROUT1
21
ROUT2
20
ROUT3
18
TIN1
24
TIN2
23
TIN3
22
TIN4
19
TIN5
17
FORCEOFF
14
FORCEON
13
VCC 26
GND
2
C1+
28
C1-
25
C2+
1
C2-
3
V+ 27
V- 4
INVALID 15
ROUTB1
16
C4
15PF
C4
15PF
D11G.LED D11G.LED
2 1
R4
100K
R4
100K
+
C13
10UF/6.3V
+
C13
10UF/6.3V
J3
CON6
J3
CON6
1
2
3
4
5
6
J1
USB-B
J1
USB-B
1
2
3
4
R32
100K
R32
100K
1
TP
1
TP
1
R5
10K
R5
10K
J4
DB9 FEM
J4
DB9 FEM
5
9
4
8
3
7
2
6
1
10 11
C3
15PF
C3
15PF
C7
470NF
C7
470NF
D1G.LED D1G.LED
2 1
J2
52991-0308
J2
52991-0308
2
4
6
8
10
12
14
18
1
3
5
7
9
11
13
15
17
23
16
20
22
24
26
28
30
19
21
29
25
27
C6
100NF
C6
100NF
LLN4148
D2
LLN4148
D2
R6
4.7K
R6
4.7K

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GND
GND
VDD
AVDD1
AVDD1
VDD
AGND1
VDD
VDD
GND
AVDD1
AGND1
VDD
AGND1
GND
VDD
GND
AGND1 AGND1GND
AGND1
VDD
AGND1
nRESET
ERX0
ERX1
EREFCK
EMDIO
ETX1
EMDC
ETX0
ETXEN
CRSDV
ERXER
Title
Size Document Number Rev
Date: Sheet of
3.0
PHY + MAGNETIC
B
2 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
PHY + MAGNETIC
B
2 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
PHY + MAGNETIC
B
2 3Thursday, March 05, 2009
IIEVB_363
C29
100NF
C29
100NF
C23
100NF
C23
100NF
R29
6.8K1%
R29
6.8K1%
R25
49.9 1%
R25
49.9 1%
+
C26
100UF/6.3V
+
C26
100UF/6.3V
C28100NF C28100NF
R24
49.9 1%
R24
49.9 1%
J6
ERNI 203199
J6
ERNI 203199
RDP
3
RDN
6RCT
5TCT
4
TDP
1
TDN
2
NC
7
GND
8
SHILD
9
SHILD
10
D1
11
D2
12
D3
13
D4
14
+
C25
100UF/6.3V
+
C25
100UF/6.3V
R22
10K
R22
10K
C32100NF C32100NF
C30
100NF
C30
100NFR280 R280
C22
100NF
C22
100NF
R31470 R31470
R21
10K
R21
10K
R27
49.9 1%
R27
49.9 1%
C27
100NF
C27
100NFR26
49.9 1%
R26
49.9 1%
C31100NF C31100NF
U11
F4100-50MHZ
U11
F4100-50MHZ
VDD 4
GND
2
OUT 3 E/D
1
U12
DM9161A
U12
DM9161A
XT1 43 REF_CLK/XT2
42
TX3
17
TX2
18
TX1
19
TX0
20
TX_EN
21
TX_CLK/ISOLATE
22
RXD0/PHYAD0
29 RXD1/PHYAD1
28 RXD2/PHYAD2
27 RXD3/PHYAD3
26
RX_CLK/10BTSER
34
RX_DV/TESTMODE
37
TX_ER/TXD4
16
RX_ER/RXD4/RPTR
38
COL/RMII
36
CRS/PHYAD4
35
MDC
24
MDIO
25
MDINTR
32
DISMDIX
39
VDD
41
VDD
30
VDD
23
GND
15
GND
33
GND
44
PWRDWN
10
RESET
40
TX+ 7
TX- 8
RX+ 3
RX- 4
AVDDR 1
AVDDR 2
AVDDT 9
AGND 5
AGND 6
AGND 46
BGRESG 47
BGRES 48
LEDMODE 31
LED0/OP0 11
LED1/OP1 12
LED2/OP2 13
CABLESTS/LINKSTS 14
NC 45
R23 3KR23 3K
C33100NF C33100NF
R30470 R30470
L2
BK2125HM601
L2
BK2125HM601
C24100NF C24100NF
R20 3KR20 3K

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
TXD0
RXD0
DATA_RDY
GND
VIN
GND
VDD
VDD1
GND
GND
VDD
VDD
GND GND
VDD
GND
VDD
GND
GND
VDD
VDD
GND
GND
VDD
GND
VDD
VDD
VDD
VDD
VDD
VDD
RXD0
TXD0
READYNESS
DATA_RDY
nSPI1_CS
Title
Size Document Number Rev
Date: Sheet of
3.0
POWER+LEDs
B
3 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
POWER+LEDs
B
3 3Thursday, March 05, 2009
IIEVB_363
Title
Size Document Number Rev
Date: Sheet of
3.0
POWER+LEDs
B
3 3Thursday, March 05, 2009
IIEVB_363
R16
470
R16
470
L1
68UH/1A
L1
68UH/1A
1 2
R13
100K
R13
100K
D8
GREEN LED
D8
GREEN LED
21
SW3
SWITCH
SW3
SWITCH
1 2
R10
470
R10
470
D5
R.LED
D5
R.LED
21
R12
470
R12
470
J5
DC-JACK-MALE
J5
DC-JACK-MALE
D10
GREEN LED
D10
GREEN LED
2 1
U7B
74VHC123AMTCX
U7B
74VHC123AMTCX
CEXT
6
REXT/CEXT
7
A
9
B
10
CLR
11
Q5
Q12
D6
GREEN LED
D6
GREEN LED
2 1
R8
470
R8
470
R9
100K
R9
100K
U7A
74VHC123AMTCX
U7A
74VHC123AMTCX
CEXT
14
REXT/CEXT
15
A
1
B
2
CLR
3
Q13
Q4
3.3V
TP
3.3V
TP
1
U10A
74VHC123AMTCX
U10A
74VHC123AMTCX
CEXT
14
REXT/CEXT
15
A
1
B
2
CLR
3
Q13
Q4
R19
470
R19
470
+
C1510UF/25V
+
C1510UF/25V
JP2
JUMPER
JP2
JUMPER
1 2
D3
1N4001
D3
1N4001
2 1
D7
GREEN LED
D7
GREEN LED
2 1
+
C17
220UF/10V
+
C17
220UF/10V
C21
470NF
C21
470NF
C18
100NF
C18
100NF
C19
470NF
C19
470NF
U10B
74VHC123AMTCX
U10B
74VHC123AMTCX
CEXT
6
REXT/CEXT
7
A
9
B
10
CLR
11
Q5
Q12
U5
LM2591HVS-3.3
U5
LM2591HVS-3.3
VIN
1FEEDBACK 4
ON/OFF
5
OTPUT 2
SGND
6
PGND
3
C11
100NF
C11
100NF
D9
GREEN LED
D9
GREEN LED
2 1
U1B
NC7WZ04P6X
U1B
NC7WZ04P6X
3 4
52
C35
100NF
C35
100NF
R17
100K
R17
100K
U1A
NC7WZ04P6X
U1A
NC7WZ04P6X
1 6
52
D4
MUR115
D4
MUR115
2 1
R14
470
R14
470
C34
100NF
C34
100NF
C20
470NF
C20
470NF
R11
100K
R11
100K
GND
TP
GND
TP
1
R15
100K
R15
100K
C16
100NF
C16
100NF

Connect One
II-EVB-363NW User’s Manual
Appendix 2: Nano WiReach Mechanical Views
13

Connect One
II-EVB-363NW User’s Manual
Appendix 3: Nano LANReach Mechanical Views
14

Connect One
II-EVB-363NW User’s Manual
Appendix 4: Installing USB Drivers on a PC
Installing the USB driver:
The USB driver is supplied in three separate files: sabalo.inf, iChip.inf and usbser.sys.
These files may be obtained on the Connect One Web site under:
Support >> Drivers & Utilities at: http://www.connectone.com/support.asp?did=30.
1. Copy “sabalo.inf” and “iChip.inf” to the directory C:\WINDOWS\inf. To view the \inf
directory, you must allow viewing of hidden folders in Folder Options.
2. Copy usbser4.sys to C:\WINDOWS\system32\drivers.
3. Connect one end of a USB cable to your PC. Connect the other end to the USB
“device” connector of the II-EVB-363 board on which the module is mounted.
4. Turn on the power to the EVB board.
5. The “Found New Hardware Wizard” of Windows XP pops up and prompts you to
install a new device driver. When prompted with the message “Can Windows connect
to Windows Update to search for software?” Select No, not this time. See Figure 1.
Figure 1
15

Connect One
II-EVB-363NW User’s Manual 16
6. When prompted with the message “What do you want the wizard to do?” Select
Install the software automatically (Recommended). See Figure 2.
Figure 2

Connect One
II-EVB-363NW User’s Manual
7. Windows will install the driver. See Figure 3.
Figure 3
Figure 4
8. When a pop-up window reports that the software for the new hardware — Connect
One Sabalo USB Device — has not passed Windows Logo testing, select Continue
Anyway. See Figure 4.
17

Connect One
II-EVB-363NW User’s Manual
18
iewing the properties of the new driver:
. From the Windows task, click Start > Settings > Control Panel.
. Double-click the System icon.
. In the dialog box displayed, select the Hardware tab.
. Click the Device Manager button.
. If the Flash memory is empty: Open the Modems list to find the Connect One
. If the Flash memory is already programmed: Open the Ports list to find the
9. The USB driver is now installed and ready for use. See Figure 5.
Figure 5
V
1
2
3
4
5
Sabalo USB Device. The virtual COM port number will be written in the properties
information of this device.
6
Connect One iChip Sabalo port number. See Figure 6.

Connect One
II-EVB-363NW User’s Manual
Figure 6
19

Connect One
II-EVB-363NW User’s Manual 20
FAQs
Q: What should I do if Windows does not automatically locate the driver for the new
hardware?
A: Please use the “Back” button to browse to the previous step and manually browse
to the directory of the iChip Configuration Utility, usually located in “C:\Program
Files\iChipConfig”.
Q: What should I do if Windows identifies new hardware but the wizard does not pop
up automatically?
A: You can invoke the wizard manually from the Control Panel.
Q: What should I do if Windows notifies me that “USB Device Not Recognized”?
A: Please make sure that the cable is connected properly to the board side. Then
disconnect the USB cable from the computer side and try to connect it to another USB
port. Prefer a port which is located on the computer rather than use a USB hub.
Q: Should I repeat this installation procedure every time I connect the board over
USB connection to the same computer?
A: No. The installation is required only on the first time the board is connected to
each computer. Afterwards the board will be automatically recognized and ready to
communicate over USB.
