Connect One II-EVB-630W User manual

Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Tel: [phone]
Fax: [phone]
E-mail: [email protected]
http://www.connectone.com
Pub. No. 23-3750-11 April 2012
Instant Internet
Evaluation Board
II-EVB-630W
User Manual
Version 1.2

II-EVB-630W User Manual Program License Agreement
Program License Agreement ii
Program License Agreement
The information in this document is subject to change without notice and shall not be
construed as a commitment on the part of Connect One.
Connect One assumes no liability for any errors that may appear in this document.
The software described in this document is furnished under a license agreement and
may be used or copied only in accordance with the terms of such a license
agreement. It is forbidden by law to copy the software on any medium except as
specifically allowed in the license agreement. No part of this document may be
reproduced or transmitted in any form or by any means, electronic or mechanical,
including but not limited to photocopying, recording, transmitting via fax and/or
modem devices, scanning, and/or information storage and retrieval systems for any
purpose without the express written consent of Connect One.
iChip, AT+i and Connect One are trademarks of Connect One Ltd.
Copyright ©2000–2012 Connect One Ltd. All rights reserved.

II-EVB-630W User Manual About This Guide
About This Guide iii
About This Guide
The purpose of this User Manual is to familiarize prospective customers with the
functionality of Connect One’s II-EVB-630W using the iChipConfig Utility and AT+i™
commands.
This manual contains the following sections:
Product Overview: Explains the iChip™ CO2128SEC as the heart of the
II-EVB-630W. It describes the product uses and features and provides guidance for
using this manual.
Getting Started: Describes the II-EVB-630W package contents, unpacking and
installation instructions, and diagrams.
Firmware and Parameters Update: This section explains how to perform firmware
and parameters update.

II-EVB-630W User Manual Warranty Statement
Warranty Statement iv
Warranty Statement
Connect One warrants to the Customer that the Products to be delivered hereunder
will function in accordance with the specifications published with regard thereto by
Connect One, under conditions of normal use and service and when used in
accordance with Connect One's instructions, for a period of 12 (twelve) months from
shipment by Connect One or its distributor to the customer. Connect One will, at its
option, repair or replace Products that fail to perform as aforesaid. The Customer
shall ship defective Products to be repaired or replaced to Connect One under
warranty at Connect One's expense, and Connect One shall, at its expense, ship the
repaired Products or its replacement to the Customer.
In no event will Connect One's liability under the foregoing warranty exceed the
purchase price of the defective Products.
The warranty set forth above shall not apply (i) with respect to defects or damage
caused by the use of unauthorized parts, the making of unauthorized repairs or
improper use or maintenance, (ii) if service or repairs of the allegedly defective
Products have been performed by persons other than qualified persons who have
been properly trained to perform the same, (iii) if the allegedly defective Products
have been affected by alterations, modifications or other tampering or misuse, (iv) if
the allegedly defective Products have been removed from their original packaging
prior to sale to the end-user or (v) if the allegedly defective Products have been used
otherwise than in accordance with Connect One's instructions.
The provisions of the above sections set forth the Customer’s sole and exclusive
remedies with regard to Product failure. CONNECT ONE MAKES NO OTHER
WARRANTIES, EXPRESSED OR IMPLIED, WITH RESPECT TO THE PRODUCTS,
INCLUDING BUT NOT LIMITED TO ANY WARRANTY OF MERCHANTABILITY, FITNESS
FOR A PARTICULAR PURPOSE, OR NON-INFRINGEMENT OF PATENT OR OTHER
INTELLECTUAL PROPERTY RIGHTS. THERE ARE NO OTHER WARRANTIES WITH
RESPECT TO THE PRODUCTS ARISING FROM ANY COURSE OF DEALING, USAGE OR
TRADE OR OTHERWISE. IN NO EVENT SHALL CONNECT ONE BE LIABLE FOR
INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES WHETHER UNDER THIS
AGREEMENT, IN TORT OR OTHERWISE, OR FOR AN AMOUNT IN EXCESS OF THE
ACTUAL AMOUNT PAID BY THE CUSTOMER TO CONNECT ONE FOR THE FAILED
PRODUCTS.

II-EVB-630W User Manual Revision History
Revision History v
Revision History
23-3750-11
Version Date Description
1.0 December 2007 Initial preliminary version
1.1 May 2009
1.2 April 2012 Updated product pictures, screen captures
and components lists.

II-EVB-630W User Manual Table of Contents
Table of Contents vi
TABLE OF CONTENTS
PROGRAM LICENSE AGREEMENT.........................................................................................................II
ABOUT THIS GUIDE....................................................................................................................................III
WARRANTY STATEMENT.........................................................................................................................IV
1PRODUCT OVERVIEW.......................................................................................................................... 7
1.1 ICHIP CO2128SEC —THE II-EVB-630W INTERNET ENGINE.............................................................. 7
1.2 HOW TO USE THIS MANUAL .................................................................................................................. 7
2GETTING STARTED............................................................................................................................... 9
2.1 WHAT’S IN THE PACKAGE? ................................................................................................................... 9
2.2 ADDITIONAL DOCUMENTATION ............................................................................................................ 9
2.3 UNPACKING AND INSTALLING ............................................................................................................. 10
2.4 CONNECTORS AND SWITCH POSITIONS................................................................................................ 12
2.4.1 Connectors................................................................................................................................... 12
2.4.2 Switches....................................................................................................................................... 12
2.5 LED POSITIONS................................................................................................................................... 12
2.6 JUMPER SETTINGS ............................................................................................................................... 13
2.7 BILL OF MATERIALS............................................................................................................................ 14
2.7.1 II-EVB-2128-PLC Motherboard.................................................................................................. 14
2.7.2 II-DB-W2SW1 Daughterboard.................................................................................................... 16
2.8 SCHEMATICS ....................................................................................................................................... 17
2.9 RUNNING THE ICHIPCONFIG UTILITY.................................................................................................. 18
2.10 CONFIGURING FOR CONNECTION ..................................................................................................... 19
2.10.1 Dynamic IP Allocation............................................................................................................. 20
2.10.2 Fixed IP Configuration............................................................................................................ 21
2.11 TESTING THE CONNECTION.............................................................................................................. 21
3FIRMWARE AND PARAMETERS UPDATE .................................................................................... 23
3.1 LOCAL FIRMWARE UPDATE................................................................................................................. 23
3.1.1 First-Time Firmware Installation Using Monitor Mode............................................................. 23
3.1.2 Updating Existing Firmware Using the iChip Uploader............................................................. 27
3.2 MANAGING PARAMETER FILES ........................................................................................................... 30
3.2.1 Saving the II-EVB-630W Configuration to an RPF File............................................................. 30
3.2.2 Loading an RPF File................................................................................................................... 31

II-EVB-630W User Manual Product Overview
Product Overview 7
1 Product Overview
Connect One’s II-EVB-630W offloads IP connectivity tasks from a host processor or
device. II-EVB-630W supports effortless integration of many upper-layer Internet
protocols using either AT+i™ commands or the iChipConfig Utility, both of which are
described in this document.
II-EVB-630W features include the ability to stream data over TCP or UDP sockets (up
to 10 simultaneous active sockets are available) and manage two listening sockets. A
secure socket (SSL3/TLS1) is fully supported. Additional features include the ability
to send and receive emails with or without attachments, a built-in web server with
two internal websites, one for remote control and management of the II-EVB-630W
and the other for the device; HTTP, FTP, and Telnet clients; and the SerialNET™
(Device Server) mode, a plug-and-play operating mode that enables the connection
of any device with an RS232 interface to the Internet without changing anything on
the device’s hardware or software.
1.1 iChip CO2128SEC — The II-EVB-630W Internet
Engine
The host processor communicates with the II-EVB-630W via Connect One’s high-
level AT+i command set. AT+i commands are simple ASCII characters that are sent
across the RS232 interface. The AT+i Application Programming Interface (API)
requires writing just a few lines of code on the host processor to implement Internet
connectivity.
AT+i commands make it very easy to configure, test, and implement high-level
Internet protocols with virtually no understanding of TCP/IP or other Internet
protocols. Using AT+i commands, the device only needs to tell the II-EVB-630W
what task to perform, but not how to perform it. For example, if the device has to
send textual email, after a one-time short configuration of subject, recipient, mail
account, etc., the device sends AT+iEMA:<lines of text>.
The iChip CO2128SEC inside the II-EVB-630W establishes a connection or uses the
existing one, builds the email (headers and content), connects to the SMTP server
and sends the email. A status report is sent to the device upon completion. All these
actions are completely hidden from the device and only require sending a few
characters in addition to the email content. This mode of operation is applicable for
all features of the II-EVB-630W.
1.2 How to Use this Manual
iChipConfig Utility is a front-end Windows-based user interface for the AT+i
commands. The iChipConfig Utility, combined with the II-EVB-630W, enables quick
and full product configuration, serial-based and Web-based updating of firmware,
and packaging of a website and parameters file. This functionality is achieved from
any device, machine, or system.

II-EVB-630W User Manual Product Overview
Product Overview 8
Note: From this point onward, this manual assumes that you have the iChipConfig
Utility installed. The configuration, running, and testing of the II-EVB-630W is
demonstrated via the iChipConfig Utility, although they can also be carried out using
AT+i commands. For a complete description of the AT+i interface and commands,
refer to the AT+i Programmer's Manual on Connect One’s website:
http://www.connectone.com.
To set up the iChipConfig Utility, refer to the iChipConfig Utility User Manual.
The latest version of the iChipConfig Utility can also be found on Connect One’s
website: http://www.connectone.com.
A reference design for using iChip CO2128SEC with a built-in MAC and external PHY
(Davicom DM9161A) and WiFi using Marvell 88W8686 802.11b/g chipset can be
found at http://www.connectone.com.

II-EVB-630W User Manual Getting Started
Getting Started 9
2 Getting Started
This section describes the contents of the II-EVB-630W package, provides additional
relevant documentation to enhance and fine-tune the II-EVB-630W functionality, and
includes unpacking and first-time configuration instructions. The final section of this
chapter offers several ways to test the II-EVB-630W LAN connection.
2.1 What’s in the Package?
The II-EVB-630W is a turnkey boxed solution and, as such, is supplied with all
necessary accessories. The package includes the following items:
•II-EVB-600W motherboard
•WiFi 802.11b/g daughterboard (BRD-IIDB-W2SW1)
•RS232 male/female cable
•RJ45 Cat 5 100BaseT cable
•RJ11 Phone Cable
•USB A to B Cable
•110V or 220V power supply
•Two extra iChips CO2128SEC
2.2 Additional Documentation
The II-EVB-630W is built around the iChip CO2128SEC. Great flexibility in
configuration and operation of this product can be achieved via proper use of the
AT+i commands.
The release package includes documentation about the AT+i Protocol, including the
AT+i Programmer's Manual.
For the sake of simplicity, the II-EVB-630W configuration and operation is described
in this document mainly through the iChipConfig Utility.
The release package contains the iChipConfig Utility and the iChipConfig Utility User
Manual.
Note: Because documentation, utilities and firmware files change from time to time,
be sure to check for the latest version on Connect One’s website:
http://www.connectone.com.

II-EVB-630W User Manual Getting Started
2.3 Unpacking and Installing
The II-EVB-630W installation is simple and all the required accessories are supplied
with the device.
The II-EVB-630W is provided pre-configured to work with either LAN or WiFi using
COM0 on the II-EVB-630W as host interface. For additional configuration options
check section 2.5 Jumper Settings.
 To install the II-EVB-630W and connect it to a LAN network:

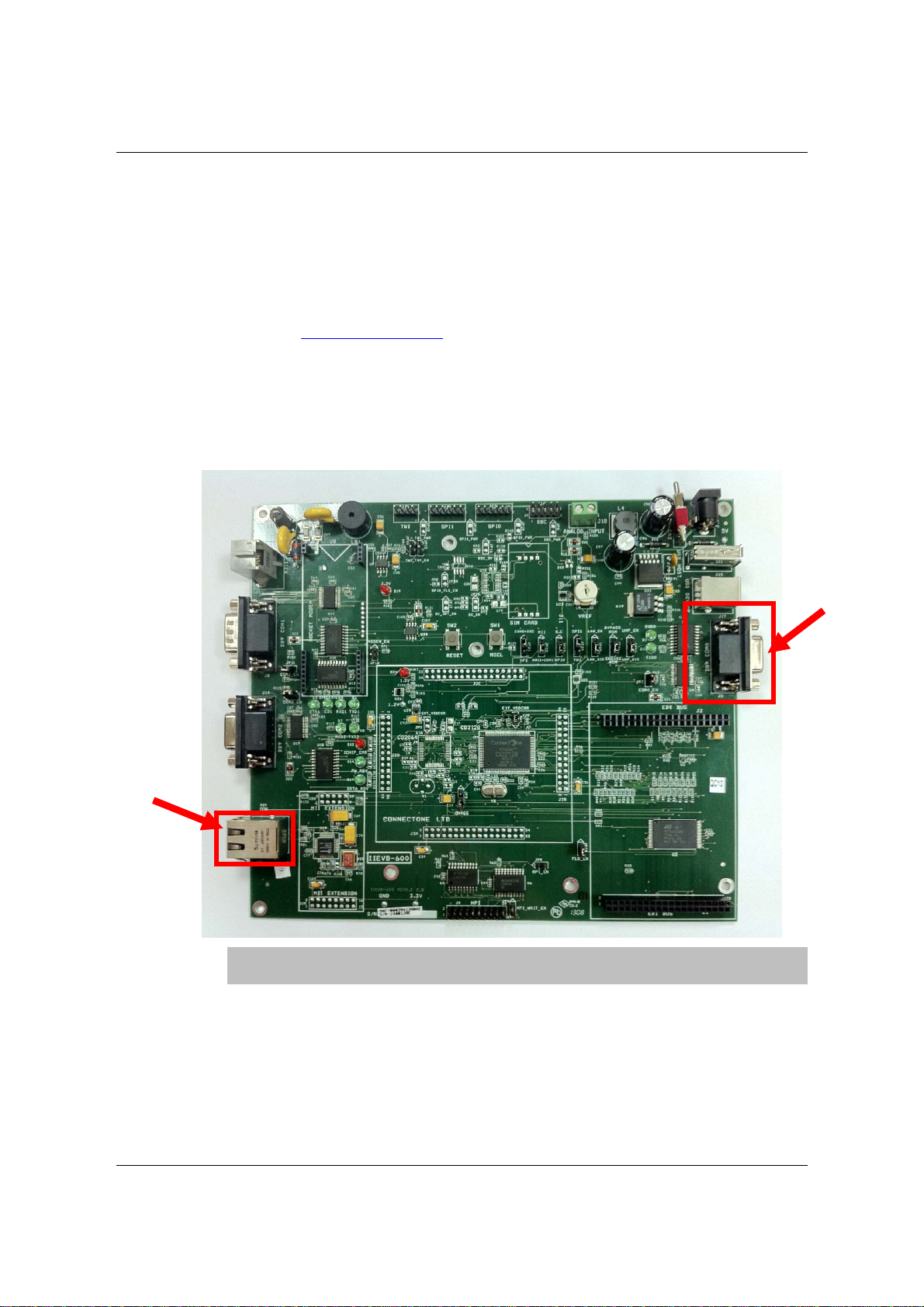

1Connect the RJ45 cable to the II-EVB-630W RJ45 port as shown in the figure
below. Connect the other end of the cable to a 10/100BaseT or 100BaseT
Ethernet switch or hub.
RS232
RJ45
Note: To connect the II-EVB-630W directly to a PC Ethernet controller, a cross
or regular cable maybe required (not supplied) depending on your NIC card.
2Connect the RS232 male side of the cable to the II-EVB-630W RS232 port and
the female side to your device or PC’s COM port.
3Connect the power supply to the DC jack on the II-EVB-630W and apply power.
The Link LED (yellow) on the RJ45 should now be on and the Activity LED
(green) should blink occasionally, indicating network traffic.
Getting Started 10

II-EVB-630W User Manual Getting Started
 To install the II-EVB-630W and connect it to a WiFi Network:
1. Make sure a WiFi 802.11b/g Access Point is properly configured and powered.
2. Connect the RS232 male side of the cable to the II-EVB-630W RS232 port and
the female side to your device or PC’s COM port.

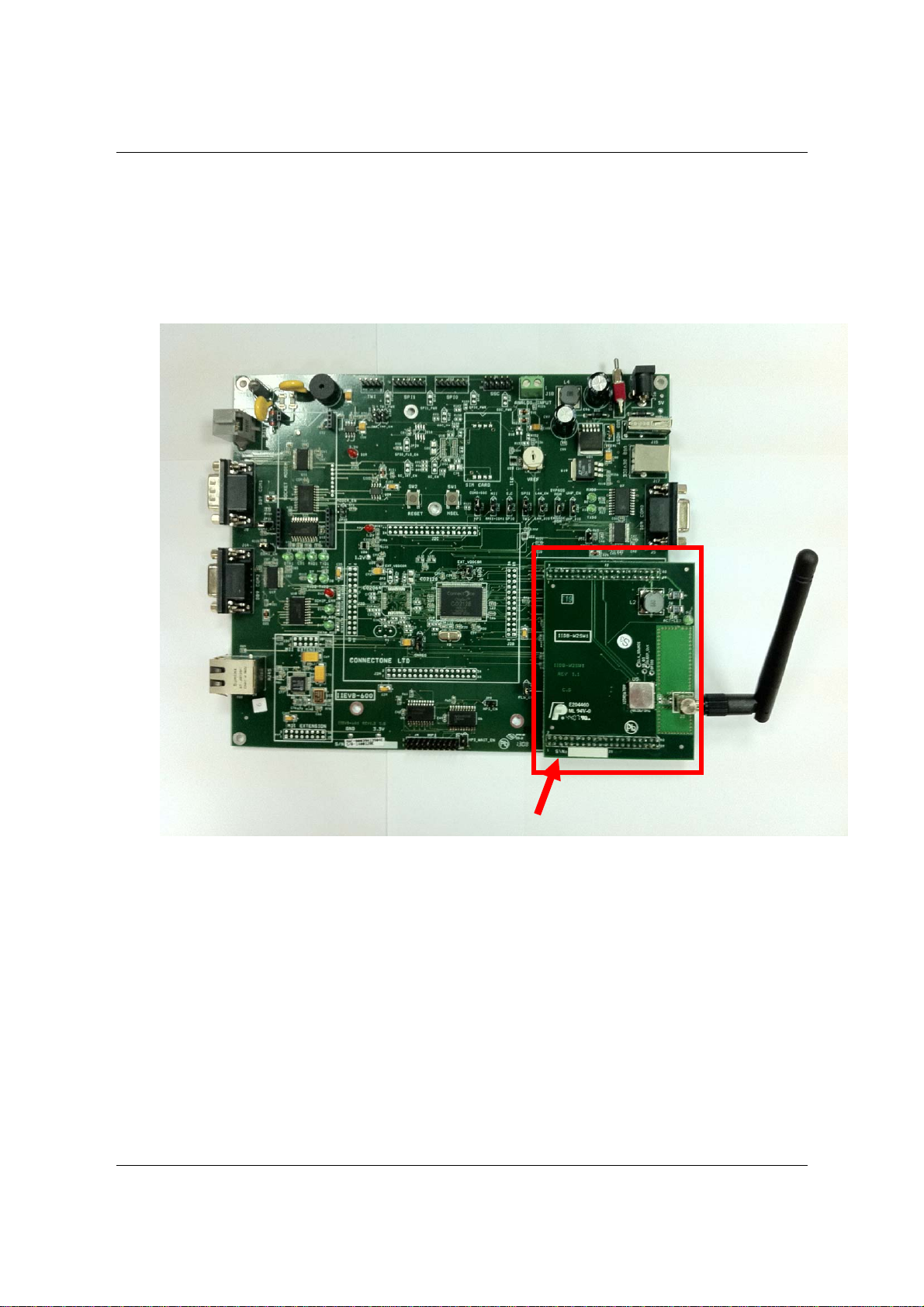

WiFi
daughter
board
3. Connect the power supply to the DC jack on the II-EVB-630W and apply power.
Getting Started 11

II-EVB-630W User Manual Getting Started
Getting Started 12
2.4 Connectors and Switch Positions
2.4.1 Connectors
Name Type Function
1 J1 HEADER 20X2 EBI BUS
2 J2 HEADER 20X2 EBI BUS
3 J4 HEADER 10X2 HPI*
4 J5 DB9 – FEMALE COM0
5 J6 HEADER 5X2 SSC*
6 J7 RJ11 Telephone Line (from UART1)
7 J8 DB9 –MALE COM1
8 J9 RJ45 10/100BaseT
9 J10 HEADER 4X1 TWI
10 J12 HEADER 6X1 SPI1
11 J13 HEADER 6X1 SPI0
12 J14 DB9 – FEMALE COM2
13 J15 USB-A USB Host
14 J16 DC-JACK POWER Supply
15 J17 USB-B USB Device
16 J18 BLOCK 2 Pin Analog Input
17 Socket
Modem 4 connectors 2mm pitch Analog modem
2.4.2 Switches
Name Type Function
1 SW1 PUSH BOTTOM MSEL
2 SW2 PUSH BOTTOM RESET
3 SW3 TOGGLE SWITCH POWER On/Off
2.5 LED Positions
Name Type Function
1 D1 G.LED RXD0

II-EVB-630W User Manual Getting Started
Getting Started 13
2 D2 G.LED TXD0
3 D3 G.LED DTR1
4 D4 G.LED CD1
5 D5 G.LED RXD1
6 D6 G.LED TXD1
7 D7 G.LED RXD2
8 D8 G.LED TXD2
9 D13 R.LED iChip Error
10 D14 G.LED FW_RDY
11 D17 G.LED DATA READY
12 D19 R.LED 3.3V VDDIO
13 D20 R.LED 1.2V External
2.6 Jumper Settings
Name Setting
1 JP2 1-2 ONREG Pin=0 working with external VDD core ; 2-3
ONREG Pin=1 working with internal VDD core
3 JP5 ON –External VDDCore
4 JP6 ON- Enable 1K Pull-up Resistor On HPI_nWAIT signal *
5 JP7 ON- Enable COM0 (only when HPI is disabled)
7 JP9 ON- Enable HPI *
8 JP10 ON- Enable Socket Modem (on UART1)
9 JP11 ON- Enable COM1
11 JP13 ON- Enable 1K Pull-up Resistor On TWI_TWD signal.
12 JP14 ON- Enable 1K Pull-up Resistor On TWI_TWCK signal.
19 JP21 1-2 = COM0+SSC ; 2-3 = HPI
20 JP22 1-2 = MII ; 2-3 = RMII+COM1
21 JP23 1-2 = S.C ; 2-3 = SPI0
22 JP24 1-2 = SPI1 ; 2-3 = TWI
23 JP25 1-2 = LAN_EN ; 2-3 = LAN_DIS;
24 JP26 1-2 = BYPASS ROM ;2-3 = ENGAGE ROM
25 JP27 1-2 = UHP_EN ; 2-3 = UHP_DIS
26 JP28 ON – COM2 Enable COM2_EN
27 JP29 ON – Enable Parallel Flash

II-EVB-630W User Manual Getting Started
Getting Started 14
2.7 Bill of Materials
2.7.1 II-EVB-2128-PLC Motherboard
Quantity Reference Part
46
C18,C22,C23,C24,C25,C26,C27,
C28,C29,C30,C31,C32,C37,C41,
C43,C44,C49,C50,C51,C52,C55,
C57,C59,C60,C65,C66,C67,C68,
C71,C72,C73,C74,C75,C76,C77,
C82,C86 ,C91,C98,C99, C102,
C103,C105,C106,C111, C112 100NF
2 C33,C34 22PF
8
C20,C42,C56,C58,C88,C92,
C108,C113 10UF/16V
5 C35,C36,C39,C107,C109 1UF/16V
13
C45,C46,C47,C48,C61,C62,C63,
C64,C83,C84,C85,C87,C93 470NF
2 C53,C54 1NF/3KV
2 C69,C70 100UF/16V
3 C94,C95,C104 47PF
2 C96,C97 1000UF/25V
2 C100,C101 15PF
10
D1,D2,D3,D4,D5,D6,D7,D8,D14,
D17 G.LED
1 D10 1N4001
1 D11 MUR115
6 D12,D15,D16,D21,D22,D23 LL4148
3 D13,D19,D20 R.LED
1 F1 RXE020
8
JP2,JP21,JP22,JP23,JP24,JP25,
JP26,JP27 JMP3
10
JP5,JP6,JP7, JP9,JP10, JP11,
JP13,JP14, JP28,JP29 JUMPER
2 J1,J2 HEADER 20X2 FEM
1 J4 HEADER 10x2
2 J5,J14 DB9 FEM
1 J6 HEADER 5X2 MALE
1 J7 RJ11
1 J8 DB9 MALE
1 J9 ERNI
1 J10 CON4
2 J12,J13 CON6
1 J15 USB-A
1 J16 DC-JACK

II-EVB-630W User Manual Getting Started
Getting Started 15
1 J17 USB-B
1 J18 CON2
1 LS1 HPE1206
1 L1 2961666681
5 L2,L9,L10,L11,L12 BK2125HM601
1 L4 68UH/1A
1 P1 POT
10
R62,R65,R78,R79,R80,R90,R91,
R145,R146,R151 10K
1 RV1 DSS-301L
9
R50,R85,R87,R136,R149,JP30,
JP31,JP32,JP33 0
42
R7,R8,R9,R10,R11,R12,R13,R14,
R15,R16,R17,R18,R19,R20,R21,
R22,R23,R24,R25,R26,R27,R28,
R29,R30,R31,R32,R33,R34,R35,
R36,R37,R38,R39,R40,R41,R42,
R43,R44,R45,R46,R47,R48 33
16
R51,R53,R54,R55,R56,R57,R58,
R59,R60,R61,R63,R71,R72,R73,
R115,R150 100K
15
R66,R67,R74,R75,R76,R77,R88,
R89,R113,R114,R128,R130,
R134,R143,R147 470
2 R68,R69 2Ω
1 R70 10
4 R81,R82,R83,R84 49.9 1%
1 R86 6.8K1%
9
R106,R107,R108,R109,R110,
R111,R112,R117,R135 3K
1 R116 100
1 R118 300
4 R119,R121,R123,R124 27
3 R120,R122,R126 15K
1 R131 4.7K
2 SW1,SW2 TACK_SW
1 SW3 SWITCH ON/OFF
1 U1B CO2128
1 U2 29LV160BT-70EC
1 U3 NC7S04
3 U4,U11,U17 SP3243ECA
1 U5 74HCT245
2 U6,U10 74LV244
3 U7,U12,U18 74LVX240M
1 U8 Socket For Modem
1 U9 LM386
1 U13 F4100-50MHZ
1 U14 DM9161A

II-EVB-630W User Manual Getting Started
Getting Started 16
1 U19 LT1086CM
1 U20 TPS76912
1 U21 LM2591HVS-3.3
1 U22 TS5A3159
2 U23,U26 AD8030
1 U24 SP708RCN
1 U27 LM75A
1 Y2 12MHZ
2.7.2 II-DB-W2SW1 Daughterboard
Quantity Reference Part
2 C6,C8 100UF/6.3V
5 C9,C11,C14,C15,C16 100NF
2 C10,C13 1NF
1 D1 G.LED
2 J1,J2 HEADER 20X2 MALE
1 J3 SMA
1 L2 68UH/1A
1 R1 0
1 R3 330
4 R6,R7,R9,R10 100K
1 R11 N.C
1 U5 W2SW0001

II-EVB-630W User Manual Getting Started
Getting Started 17
2.8 Schematics

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
nRD
D14
A16
D15
BHE
A17
nWAIT
nCS0
EBI_D0
EBI_D1
EBI_D2
EBI_D3
EBI_D4
EBI_D5
EBI_D6
EBI_D7
EBI_D8
EBI_D9
EBI_D10
EBI_D11
EBI_D12
EBI_D13
EBI_D14
EBI_D15
A19
CS1_A20
D0
D1
A18
D2
D3
D4
D5
D6
EBI_nWR1_nUB
EBI_nWAIT
EBI_CS1/A20
EBI_nCS0
EBI_nRD_nOE
EBI_nWR0
D7
EBI_A1
EBI_A2
EBI_A3
EBI_A4
EBI_A6
EBI_A5
EBI_A7
EBI_A8
EBI_A9
EBI_A10
EBI_A12
EBI_A11
EBI_A14
EBI_A13
EBI_A15
EBI_A16
EBI_A17
EBI_A18
EBI_A19
EBI_A0
D8
D9
A14
A15
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
A12
A13
nWR
D10
HDP
HDM
DDM
DDP
D11
D12
D13
D0
D2
D4
D6
D1
D3
D5
D7
D8 D9
D10 D11
D12 D13
D15D14
A3
A5
A7
A9
A11
A1
A2
A4
A6
A8
A10
A0
CS1_A20
nCS0
A13
A15
A17
A19
nWAIT
BHE
A12
A14
A16
A18
nWRnRD
AVDD
AGND
GND
GND
GND
GND
GND
VDDCOREB
AGND GND
AVDD
VDD
EXT_VDDCORE
AGND
VDD
GND
VDD
GND
GND
GND
GND
GND
AGND AVDD
VDD
VDDCOREB
GND
VDD
GND
VDDCOREBVDDPLLB
GND
VDDPLLB
GND
VDD
GND
ECOL_RTS1
HPIOBE_TXD0
ERXCK_RXD1
ECRS_CTS1
SPI0CS_SCRST
SPI0MISO_SCCLK
SPI0MOSI_SCC8
SPI0CLK_SCC4
CRSDV
DATA_READY_FIQ
HPIWR_CTS0
ETXEN
EBI_A[0..19]
EBI_D[0..15]
IRQ1
HPIRD_DSR0
HPID7_RTS0
EREFCK
IRQ0
HPICS_RXD0
ETX0
ETX1
EMDIO
EMDC
EBI_nRD_nOE
ETXER_TXD1
EBI_nWR0
ERX1
ERX0
EBI_nWR1_nUB
ERX3_RI1
ERX2_DSR1
ERXER
ETX2_DTR1
ETX3_DCD1
SPI1CS_I2CTWCK
SPI1MISO_SCIO
SPI1MOSI_SCINTB
SPI1CLK_I2CTWD
EBI_nCS0
DDM
HDM
HDP
DDP
EBI_nWAIT
HPIIBF_DTR0
EBI_CS1/A20
HPID5_ADC
HPInWAITERR_SSCRD
HPID0_SSCTD
HPID1_SSCTK
HPID2_SSCRK
HPID3_SSCTF
HPID4_SSCRF
HPID6_SCLK0
-RESET
RXD2
TXD2
MSEL
FW_RDY
ICHIP_ERR
TXD2 RXD2
IRQ0
ETXER_TXD1
ECOL_RTS1
ERXCK_RXD1
ECRS_CTS1
ETXENEREFCK
EMDC
ERX0
ERX3_RI1ERX2_DSR1
ERXER
ETX3_DCD1
CRSDV
IRQ1
FW_RDY
ERX1
MSEL
ETX0
ETX2_DTR1
ICHIP_ERR
EMDIO
ETX1
DATA_READY_FIQ
HPID3_SSCTF
HPID1_SSCTK
ADVREF
HPInWAITERR_SSCRD
HPID2_SSCRK
HPIOBE_TXD0
HPID4_SSCRF
HPID7_RTS0
HPID0_SSCTD
HDM HDP
DDM DDP
HPID5_ADC
HPIRD_DSR0
-RESET
HPIWR_CTS0 HPICS_RXD0
HPID6_SCLK0
HPIIBF_DTR0
SPI0CS_SCRST
SPI0MOSI_SCC8
SPI1CS_I2CTWCK
SPI1MOSI_SCINTB
SPI0CLK_SCC4
SPI1MISO_SCIO
SPI0MISO_SCCLK
SPI1CLK_I2CTWD
ADVREF
ONREG
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
CPU 2128 + EXTENSION
B
2 9Thursday, November 15, 2007
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
CPU 2128 + EXTENSION
B
2 9Thursday, November 15, 2007
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
CPU 2128 + EXTENSION
B
2 9Thursday, November 15, 2007
U1.6
U1.5
U1.67
U1.68
U1.41
U1.46 U1.121
U1.120U1.91
U1.92
U1.31
U1.32
U1.102
U1.103
U1.12
U1.11 U1.50
U1.51
U1.82
U1.83
U1.111
U1.112
C25
100NF
C25
100NF
R49
TBD
R49
TBD
R46 33R46 33
R43 33R43 33
+
C39
1UF/16V
+
C39
1UF/16V
R15 33R15 33
R32 33R32 33
R27 33R27 33
Y2
12MHz
Y2
12MHz
R40 33R40 33
J2C
HEADER 17X2
J2C
HEADER 17X2
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
R38 33R38 33
R50
0
R50
0
C18
100NF
C18
100NF
R12 33R12 33
R22 33R22 33
C28
100NF
C28
100NF
R16 33R16 33
R44 33R44 33
R33 33R33 33
R48 33R48 33
R42 33R42 33
R41 33R41 33
R28 33R28 33
R47 33R47 33
R23 33R23 33
R14 33R14 33
C37
100NF
C37
100NF
L12
BK2125HM601
L12
BK2125HM601
R45 33R45 33
R39 33R39 33
R8 33R8 33
C29
100NF
C29
100NF
R10 33R10 33
R24 33R24 33
R18 33R18 33
+
C36
1UF/16V
+
C36
1UF/16V
C24
100NF
C24
100NF
R34 33R34 33
L10
BK2125HM601
L10
BK2125HM601
R29 33R29 33
C26
100NF
C26
100NF
C34
22PF
C34
22PF
JP5JP5
1 2
R17 33R17 33
C38
TBD
C38
TBD
L11
BK2125HM601
L11
BK2125HM601
+
C113
10UF/16V
+
C113
10UF/16V
R7 33R7 33
R11 33R11 33
C33
22PF
C33
22PF
R35 33R35 33
J2A
HEADER 17X2
J2A
HEADER 17X2
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
R30 33R30 33
C22
100NF
C22
100NF
R20 33R20 33
C30
100NF
C30
100NF
R25 33R25 33
R13 33R13 33
C32
100NF
C32
100NF
R19 33R19 33
U1B
CO2128
U1B
CO2128
XIN
4
XOUT
3
AGND
5AVDD 6
GNDCORE
12 VDDCORE 11
LFT
2
VDDPLL 7
ONREG 8
NC 13
NC 14
NC 15
NC 16
ADVREF 9
VDDIO 31
GNDIO
32
DDM
29
DDP
30
HDM
33
HDP
34
TST
36
RES
37
VDDIO 41
VDDCORE 50
GNDCORE
51
GNDIO
46 GNDIO 68 GNDIO 92 GNDIO
103 GNDIO 121
VDDIO 67 VDDIO 91 VDDIO 120
VDDCORE 82 VDDCORE 111
GNDCORE
83 GNDCORE
112
HPI_WAIT/ERR/SSC_RD/PIOC0 17
HPI_D0/SSC_TD/PIOC1 18
HPI_D1/SSC_TK/PIOC2 19
HPI_D2/SSC_RK/PIOC3 20
HPI_D3/SSC_TF/PIOC4 21
HPI_D4/SSC_RF/PIOC5 22
HPI_D5/ADC/PIOC6 10
HPI_D6/SCLK0/PIOC7 35
HPI_D7/RTS0/PIOC8 23
HPI_RD/DSR0/PIOC9 24
HPI_WR/CTS0/PIOC10 25
HPI_CS/RXD0/PIOC11 26
HPI_IBF/DTR0/PIOC12 27
HPI_OBE/TXD0/PIOC13 28
SPI0_MISO/SC_CLK/PIOC14 122
SPI0_MOSI/SC_C8/PIOC15 123
SPI0_SPCLK/SC_C4/PIOC16 124
SPI0_CS/SC_RST/PIOC17 125
SPI1_MISO/SC_IO/PIOC18 126
SPI1_MOSI/SC_INTB/PIOC19 127
SPI1_CLK/I2C_TWD/PIOC20 128
SPI1_CS/I2C_TWCK/PIOC21 1
F/W_RDY/TCLK0/PIOC22 59
MSEL/TIOA0/PIOC23 60
iChip_ERROR/TIOB0/PIOC24 61
DATA_RDY/FIQ/PIOC25 62
IRQ0/PIOC26 38
TXD2/PIOC27 39
RXD2/PIOC28 40
EBI_D0/PIOA0
42
EBI_D1/PIOA1
43
EBI_D3/PIOA2
44
EBI_D3/PIOA3
45
EBI_D4/PIOA4
47
EBI_D5/PIOA5
48
EBI_D6/PIOA6
49
EBI_D7/PIOA7
52
EBI_D8/PIOA8
53
EBI_D9/PIOA9
54
EBI_D10/PIOA10
55
EBI_D11/PIOA11
56
EBI_D12/PIOA12
57
EBI_D13/PIOA13
58
EBI_D14/PIOA14
75
EBI_D15/PIOA15
76
EBI_A0/NLB/PIOA16
77
EBI_A1/PIOA17
78
EBI_A2/PIOA18
79
EBI_A3/PIOA19
80
EBI_A4/PIOA20
81
EBI_A5/PIOA21
84
EBI_A6/PIOA22
85
EBI_A7/PIOA23
86
EBI_A8/PIOA24
87
EBI_A9/PIOA25
88
EBI_A10/PIOA26
89
EBI_A11/PIOA27
90
VDDIO 102
EBI_A12/PIOA28
104
EBI_A13/PIOA29
105
EBI_A14/PIOA30
106
EBI_A15/PIOB0
107
EBI_A16/PIOB1
108
EBI_A17/PIOB2
109
EBI_A18/PIOB3
110
EBI_A19/PIOB4
113
EBI_RD/EBI_OE/PIOB5
114
EBI_RW0/EBI_WE/PIOB6
115
EBI_RW1/EBI_UB/PIOB7
116
EBI_CS0/PIOB8
117
EBI_WAIT/PIOB9
118
EBI_CS1/EBI_A20/PIOB10
119
MII_ERXCK/RXD1/PIOB12 63
MII_ETX2/DTR1/PIOB13 64
MII_ETX3/DCD1/PIOB14 65
MII_ETXER/TXD1/PIOB15 66
MII_ERX2/DSR1/PIOB16 69
MII_ERX3/RI1/PIOB17 70
MII_ECRS/CTS1/PIOB18 71
MII_ECOL/RTS1/PIOB19 72
MII_ETXCK/RMII_REFCLK/PIOB20 73
MII_ETXEN/PIOB21 74
MII_ETX0/PIOB22 93
MII_ETX1/PIOB23 94
MII_ERXDV/RMII_CRSDV/PIOB24 95
MII_ERX0/PIOB25 96
MII_ERX1/PIOB26 97
MII_ERXER/PIOB27 98
MII_EMDC/PIOB28 99
MII_EMDIO/PIOB29 100
IRQ1/RMII_EF100/PIOB30 101
R36 33R36 33
C27
100NF
C27
100NF
R37 33R37 33
J2B
HEADER 13X2
J2B
HEADER 13X2
2
4
6
8
10
12
14
16
18
20
22
24
26
1
3
5
7
9
11
13
15
17
19
21
23
25
R31 33R31 33
C31
100NF
C31
100NF
R21 33R21 33
R26 33R26 33
R9 33R9 33
+
C35
1UF/16V
+
C35
1UF/16V
C23
100NF
C23
100NF
J2D
HEADER 13X2
J2D
HEADER 13X2
2
4
6
8
10
12
14
16
18
20
22
24
26
1
3
5
7
9
11
13
15
17
19
21
23
25
L9
BK2125HM601
L9
BK2125HM601
C40
TBD
C40
TBD

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
EBI_D0
EBI_D1
EBI_D2
EBI_D3
EBI_D4
EBI_D5
EBI_D6
EBI_D7
EBI_D8
EBI_D9
EBI_D10
EBI_D11
EBI_D12
EBI_D13
EBI_D14
EBI_D15
EBI_A1
EBI_A2
EBI_A3
EBI_A4
EBI_A6
EBI_A5
EBI_A7
EBI_A8
EBI_A9
EBI_A10
EBI_A12
EBI_A11
EBI_A14
EBI_A13
EBI_A15
EBI_A16
EBI_nWR0
EBI_nRD_nOE
EBI_A17
EBI_A18
EBI_A19
EBI_nWR0
EBI_nWR1_nUB
EBI_nRD_nOE
EBI_nCS1
EBI_nCS0
EBI_D0EBI_D1
EBI_D2EBI_D3
EBI_D4EBI_D5
EBI_D6EBI_D7
EBI_D9
EBI_D11
EBI_D13
EBI_D15
EBI_D8
EBI_D10
EBI_D12
EBI_D14
EBI_A1
EBI_A2 EBI_A3
EBI_A4 EBI_A5
EBI_A6 EBI_A7
EBI_A8 EBI_A9
EBI_A10 EBI_A11
EBI_A12 EBI_A13
EBI_A14 EBI_A15
EBI_A16 EBI_A17
EBI_A18
EBI_A0
SPI_MOSI
SPI_CS SPI_CLK
EBI_CS1/A20
EBI_A19
EBI_nCS0
SPI_CS
SPI_CLK
SPI_MOSI
SPI_MISO
SPI_MISO
GND
VDD
VDD
GND
GND
GND
VDD
VDD
VDD
GND
GND
EBI_D[0..15]
EBI_A[0..19]
EBI_nCS0
EBI_nWR0
EBI_nRD_nOE
EBI_CS1/A20
IRQ0
RESET
-RESET
EBI_nWAIT
HPIOBE_TXD0
HPID7_RTS0
HPIIBF_DTR0
HPICS_RXD0
HPIWR_CTS0
HPIRD_DSR0
ERXCK_RXD1
ECRS_CTS1
ERX2_DSR1
ETXER_TXD1
ECOL_RTS1
ETX2_DTR1
DATA_READY_FIQ
HPID6_SCLK0
FW_RDY
ICHIP_ERR
MSEL
IRQ1
ERX3_RI1
EBI_nWR1_nUB
SPI0CLK_SCC4
SPI0MISO_SCCLK
SPI0MOSI_SCC8
SPI0CS_SCRST
SPI1CLK_I2CTWD
SPI1MISO_SCIO
SPI1MOSI_SCINTB
SPI1CS_I2CTWCK
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600

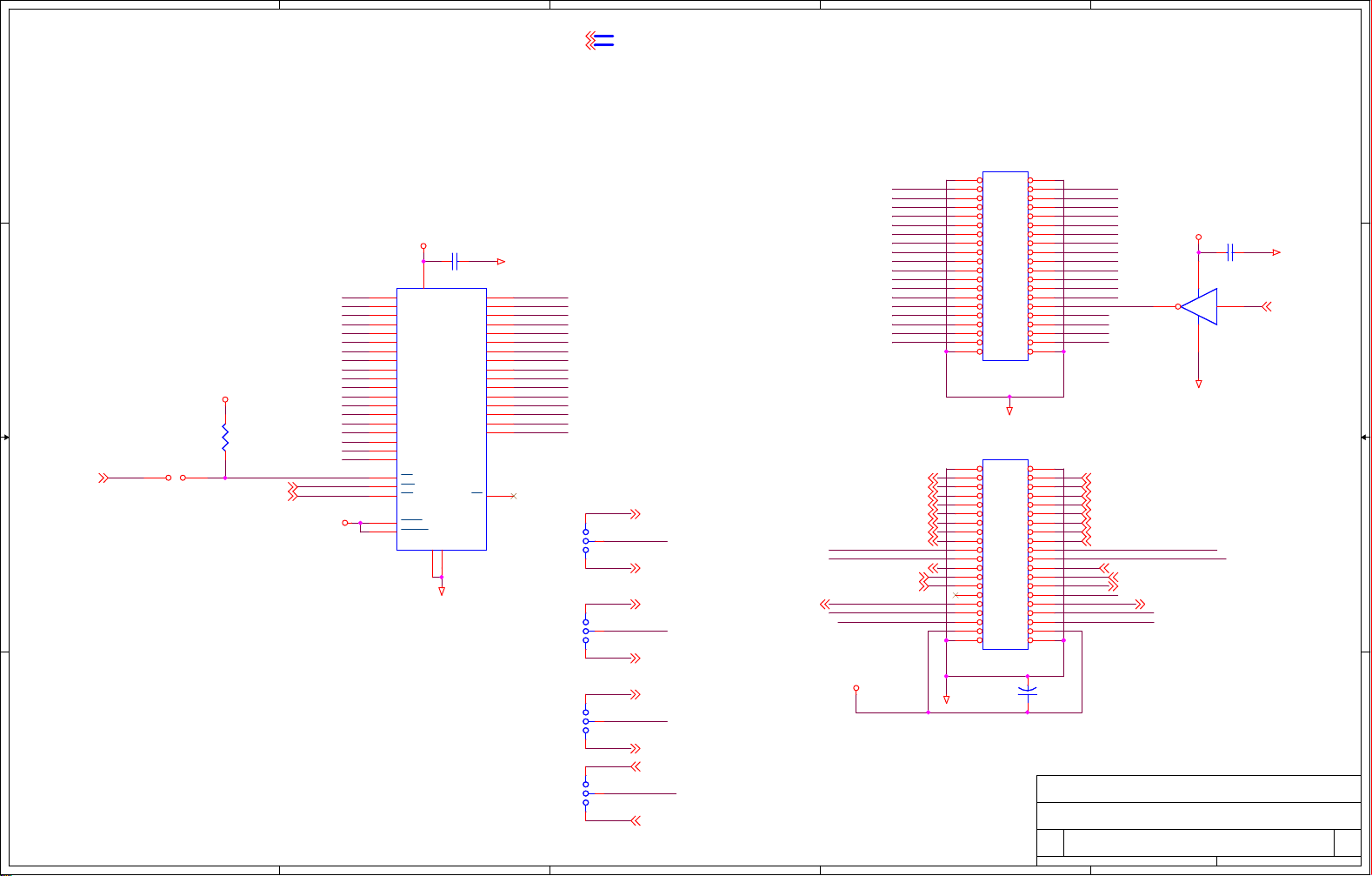

EBI BUS + PARALLEL FLASH (OMLY FOR CO2128)
B
3 9Thursday, November 15, 2007
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
EBI BUS + PARALLEL FLASH (OMLY FOR CO2128)
B
3 9Thursday, November 15, 2007
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
EBI BUS + PARALLEL FLASH (OMLY FOR CO2128)
B
3 9Thursday, November 15, 2007
JP29
JUMPER
JP29
JUMPER
1 2
JP33JP33
1
2
3
C41
100NF
C41
100NF
JP32JP32
1
2
3
+
C42
10UF/16V
+
C42
10UF/16V
J2
HEADER 20X2 FEM
J2
HEADER 20X2 FEM
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
JP31JP31
1
2
3
J1
HEADER 20X2 FEM
J1
HEADER 20X2 FEM
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15 16
17 18
19 20
21 22
23 24
25 26
27 28
29 30
31 32
33 34
35 36
37 38
39 40
C112
100NF
C112
100NF
JP30JP30
1
2
3
U2
29LV800BT-70EC
TSOP48
U2
29LV800BT-70EC
TSOP48
A1
24
A2
23
A3
22
A4
21
A5
20
A6
19
A7
18
A8
8
A9
7
A10
6
A11
5
A12
4
A13
3
A14
2
A15
1
A16
48
A17
17
CE
26
WE
11
OE
28
BYTE
47
DQ0 29
DQ8 30
DQ1 31
DQ9 32
DQ2 33
DQ10 34
DQ3 35
DQ11 36
DQ4 38
DQ12 39
DQ5 40
DQ13 41
DQ6 42
DQ14 43
DQ7 44
DQ15/A1 45
RESET
12
RY/BY 15
VCC 37
GND
46
GND
27
A0
25
A18
16
R51
100K
R51
100K
U3
NC7S04
U3
NC7S04
24
53

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HOST_D6
HOST_D7
HOST_D0
HOST_RD
HOST_D1
HOST_D2
HOST_D3
HOST_D4
HOST_D5
HPICS_RXD0
HOST_RD
HPICS_RXD0HOST_CS
HOST_IBF
HOST_WR
HOST_OBE
HOST_RD
HOST_D0
HOST_WR
HOST_D1
HOST_WAIT
HOST_D2 HOST_D3
HOST_D4 HOST_D5
HOST_D6 HOST_D7
HOST_IBF HOST_OBE
HOST_CS
nENABLE_RS0233
nENABLE_RS0233
-RTS0232
TXD0232
-CTS0232
RXD0232
TXD0232
-RTS0232
-CTS0232
RXD0232
RXD0
-CTS0
-RTS0
TXD0
-DTR0232 -DTR0232-DTR0
-DSR0 -DSR0232
-DSR0232
RXD0
TXD0
ENABLE_RS0232
HOST_WAITHOST_WAIT
ENABLE_RS0232
VDD
GND
GND
VDD
GND
VDD
GND
VDD
GND
GND
VDD
GND
GND
GNDGND
VDD
GND
GND
GND
VDD
GND
GND
GND
GND
GND
VDD
GND
HPID2_SSCRK
HPID3_SSCTF
HPID4_SSCRF
HPID0_SSCTD
HPID1_SSCTK
HPID5
HPID7_RTS0
HPID6_SCLK0
HPIOBE_TXD0
HPIRD_DSR0
HPID7_RTS0
nHPI_CONTROL
HPICS_RXD0
HPInWAITERR_SSCRD
HPIRD_DSR0
HPIIBF_DTR0
HPIWR_CTS0
HPIOBE_TXD0
HPIWR_CTS0
HPICS_RXD0
HPIIBF_DTR0
nHPI_CONTROL
HPID2_SSCRK
HPID3_SSCTF HPID4_SSCRF
HPInWAITERR_SSCRD HPID0_SSCTD
HPID1_SSCTK
-RESET
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600

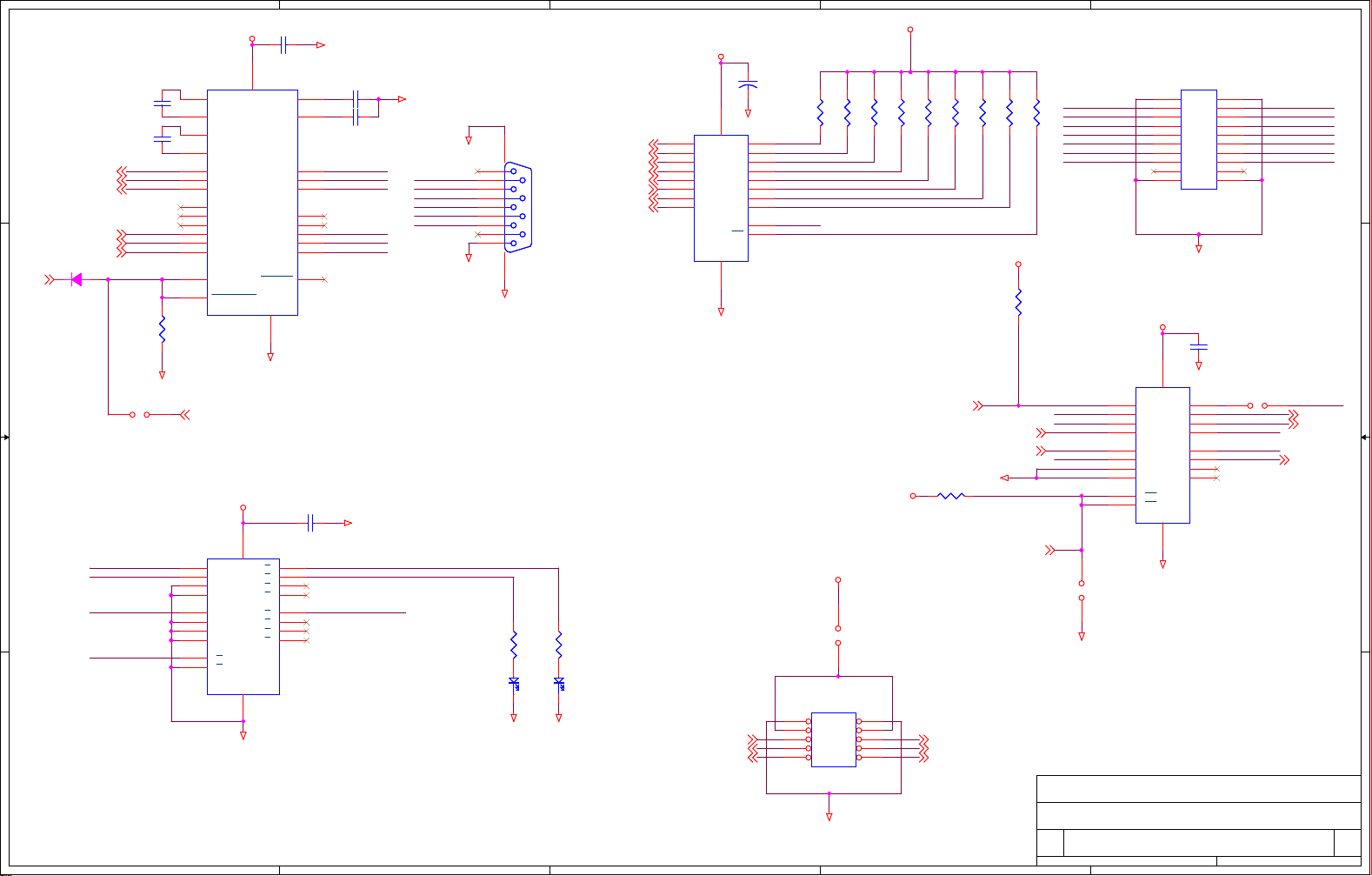

HPI + SSC + UART0 (OMLY FOR CO2128)
B
4 9Sunday, March 16, 2008
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
HPI + SSC + UART0 (OMLY FOR CO2128)
B
4 9Sunday, March 16, 2008
Title
Size Document Number Rev
Date: Sheet of
1.3
IIEVB-600
HPI + SSC + UART0 (OMLY FOR CO2128)
B
4 9Sunday, March 16, 2008
RS232 TO COM0
HPI INTERFACE
SSC INTERFACE
J5
DB9 FEM
J5
DB9 FEM
5
9
4
8
3
7
2
6
1
10 11
JP7
JUMPER
JP7
JUMPER
1 2
C44
100NF
C44
100NF
R67
470
R67
470
D211N4148 D211N4148
JP9JUMPER JP9JUMPER
12
R60
100K
R60
100K
JP6
JUMPER
JP6
JUMPER
1 2
C43
100NF
C43
100NF
R56
100K
R56
100K
U4
MAX3245
U4
MAX3245
RIN1 4
RIN2 5
RIN3 6
TOUT1 9
TOUT2 10
TOUT3 11
ROUT1
19
ROUT2
18
ROUT3
17
TIN1
14
TIN2
13
TIN3
12
INVALID 21
FORCEOFF
22
VCC 26
GND
25
C1+
28
C1-
24
C2+
1
C2-
2
V+ 27
V- 3
FORCEON
23
ROUT2B
20
RIN4 7
RIN5 8
ROUT4
16
ROUT5
15
74LV244
U6
74LV244
U6
2Y4 3
2Y3 5
2Y2 7
2Y1 9
1Y4 12
1Y3 14
1Y2 16
1Y1 18
2A4
17 2A3
15 2A2
13 2A1
11
1A4
81A3
61A2
41A1
2VCC
20
2OE
19
GND
10
1OE
1
U7
74LVX240M
U7
74LVX240M
1G
1
GND
10
2G
19
VCC
20
1A1
2
1A2
4
1A3
6
1A4
8
2A1
11
2A2
13
2A3
15
2A4
17
1Y1 18
1Y2 16
1Y3 14
1Y4 12
2Y1 9
2Y2 7
2Y3 5
2Y4 3
C47
470NF
C47
470NF
R57
100K
R57
100K
R63
100K
R63
100K
R53
100K
R53
100K
J6
HEADER 5X2 MALE
J6
HEADER 5X2 MALE
1 2
3 4
5 6
7 8
9 10
C45
470NF
C45
470NF
R61
100K
R61
100K
R6510K R6510K
C49
100NF
C49
100NF
R62
10K
R62
10K
C46
470NF
C46
470NF
R58
100K
R58
100K
D1
G.LED
D1
G.LED
21
C50
100NF
C50
100NF
R54
100K
R54
100K
U5
74HCT245
U5
74HCT245
VCC
20
A1 2
A2 3
A3 4
A4 5
A5 6
A6 7
A7 8
A8 9
B1
18
B2
17
B3
16
B4
15
B5
14
B6
13
B7
12
B8
11
GND
10
DIR 1
OE 19
R66
470
R66
470
JP8JUMPER JP8JUMPER
1 2
J4
HEADER 10x2
J4
HEADER 10x2
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20
C48
470NF
C48
470NF
D2
G.LED
D2
G.LED
21
R59
100K
R59
100K
R55
100K
R55
100K
