The USB-RS232 adaptor cables are a family of communication devices from Connective Peripherals
Pte Ltd. This model, ES-U-1001, provides a simple method of adapting legacy serial devices with
RS232 interfaces to modern USB ports by incorporating the FTDI FT232R bridge chip.
This cable is available in two lengths 10cm (ES-U-1001-R10) and 100cm (ES-U-1001-
R100). Indicator LEDs provide status of Transmit (TXD) and Receive (RXD)
ES-U-1001-R10 (R100)
Premier Gold USB-RS232 Adapter cable
Data Sheet
Document Reference No.: CP_000057
Version 1.1
Issue Date: 2019-03-28

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 2
Table of Contents
1Introduction.................................................................... 4
1.1 Functional Description .............................................................. 4
1.2 Typical Applications .................................................................. 4
1.3 Driver Support .......................................................................... 5
1.4 Block Diagram........................................................................... 5
1.4.1 Block description ....................................................................................... 5
1.5 Cable Features .......................................................................... 6
1.6 Performance Figures................................................................. 7
1.7 Ordering Information................................................................ 7
2FT232R Key features ....................................................... 8
2.1 Integrated EEPROM .................................................................. 8
2.2 Pre-programmed EEPROM......................................................... 8
2.3 Lower Operating and Suspend Current ..................................... 8
2.4 Low USB Bandwidth Consumption ............................................ 8
2.5 UART Pin Signal Inversion ........................................................ 8
2.6 FTDIChip-ID™ ........................................................................... 8
2.7 Improved EMI Performance ...................................................... 8
2.8 Programmable Receive Buffer Timeout ..................................... 9
2.9 Baud Rates................................................................................ 9
3Installation ................................................................... 10
3.1 RS232 Connection Pin Out ...................................................... 10
3.2 Device Driver Installation ....................................................... 10
3.2.1 Microsoft Windows....................................................................................10
3.2.2 Mac OS X, Linux, Windows CE ....................................................................14
4Connections .................................................................. 15
4.1 External Connectors................................................................ 15
4.1.1 USB ........................................................................................................15
4.1.2 RS232.....................................................................................................15
5Electrical details............................................................ 16
5.1 USB ......................................................................................... 16

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 3
5.2 RS232 ..................................................................................... 16
6Mechanical Details ........................................................ 17
6.1 Module Mechanical Dimensions............................................... 17
7Physical Environment Details ........................................ 22
7.1 Operating Temperature........................................................... 22
8Environmental Approvals & Declarations ...................... 23
8.1 EMI Compatibility.................................................................... 23
8.2 Safety ..................................................................................... 23
8.3 Environmental......................................................................... 23
8.4 Reliability................................................................................ 23
9Troubleshooting ............................................................ 24
9.1 Hardware ................................................................................ 24
9.2 Device Driver .......................................................................... 24
9.3 Technical Support ................................................................... 25
10 Contact Information...................................................... 26
Appendix A - List of Figures and Tables ............................. 27
List of Figures ................................................................................. 27
List of Tables ................................................................................... 27
Appendix B - Revision History............................................ 28

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 4
1Introduction
1.1 Functional Description
The USB-RS232 adaptor cables are a family of communication devices. This model, ES-U-1001, provides
a simple method of adapting legacy serial devices with RS232 interfaces to modern USB ports.
Each ES-U-1001-R10 adapter contains a small internal electronic circuit board which utilises the FTDI
FT232R, mounted inside a rugged plastic enclosure capable of withstanding industrial temperature
ranges. The integrated electronics also include RS232 level shifters and TXD/RXD LEDs to provide a
visual indication of data traffic through the adapter.
Flexible mounting allows the ES-U-1001-R10 to be used in a variety of applications, from a portable
adapter to accompany a laptop to permanent installations in industrial, commercial and retail locations.
The Cable incorporates a standard USB-A device connector for connection to an upstream host or hub
port. RS232-level signals, including modem handshake signals, are available on an industry-standard
DE-9P connector. The maximum RS232-level data rate is 1MBaud.
The ES-U-1001-R10 adapter cable requires USB device drivers, available free from the Connective
Peripherals website, which are used to make the ES-U-1001-R10 appear as a Virtual COM Port (VCP).
This allows existing serial communications software, such as HyperTerminal, to exchange data through
the ES-U-1001-R10 to a legacy RS232 peripheral device.
1.2 Typical Applications
USB to RS232 Converter
Upgrading Legacy Peripherals to USB
USB Audio and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Smart Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader / Writers
Set Top Box PC - USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
USB Software / Hardware Encryption Dongles

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 5
1.3 Driver Support
Windows Vista x64
Windows XP x64
Windows Server 2003 x64
Windows Vista
Windows XP
Windows Server 2003
Windows 2000
Windows ME
Windows 98
Linux 2.4 or greater
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2, 5.0 and 6.0)
The drivers listed above are all available to download for free from the Connective Peripherals website.
Various 3rd Party Drivers are also available for various other operating systems - see the Connective
Peripherals website for details.
1.4 Block Diagram
FTDI FT232R
USB Serial Bridge RS232 Level Shifter
USB A
Connector RS232
DE-9P
Connector
Cable 10cm
or 100 cm
Figure 1-1 Block diagram
1.4.1 Block description
USB A Connector
This connector provides the interface for connection to a USB Host or Hub port
Cable
The ES-U-1001-R10 cable is available in two lengths 10cm –Part number ES-U-1001-R10 and 100cm -
Part number ES-U-1001-R100.
FTDI FT232R
The FTDI FT232R provides the USB-to-Serial conversion. Operating system device drivers are required in
order to work with the FT232R to provide the Virtual COM Port serial functionality.

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 6
RS232 Level Shifter
The RS232 level shifter converts the signals provided by the FT232R into RS232 level signals.
DE-9P Connector (Male)
The DE-9P connector is configured in an industry standard (TIA/EIA-574) pin-out to provide connection
to RS232 peripherals through standard cables. See section 4.1.2
1.5 Cable Features
Adds one RS-232 serial port by connecting to USB
Special high gloss white finish enclosure design
Side-lit blue RXD and TXD traffic indicators
Enhanced RS232 transceiver gives serial port speed of up to 1MBaud.
Gold plated USB and DB9 connectors for enhanced connection reliability
Integral 10cm (ES-U-1001-R10) or 100cm (ES-U-1001-R100) USB cable with moulded strain
relief
Quality 4-layer PCB design
Easy plug & play installation and RS-232 device connection
Works with USB 1.1 & 2.0 Host and Hub ports
Industry Standard FTDI chip set & device drivers for maximum compatibility
Microsoft Windows®WHQL-certified, Mac OS X, Linux and Windows CE device drivers
Installs as a standard Windows COM port
COM port number can be changed to any available COM port number, including COM1 to COM4,
to support HyperTerminal, or any other serial communications software application running in
Windows
FIFO: 128 byte receive buffer, 256 byte transmit buffer
RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
Powered by USB port. No external power adapter required.
Serial Communication Parameters
oParity: None, Even, Odd
oData bits: 7, 8
oFlow control: RTS/CTS , DSR/DTR, X-ON/X-OFF, None
oStop bits 1,2
Operating temperature of -20°C to +80°C

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 7
1.6 Performance Figures
Parameter
Performance
USB Interface
12Mbps USB 2.0 Full-Speed
RS232 Interface
Standard Windows baud rates (300bps to 921.6Kbps)
Custom baud rates (300bps to 1Mbps) through baud rate aliasing. See
Application Note: Configuring FT232R, FT2232 and FT232BM Baud
Rates
Table 1.1 Performance Figures
1.7 Ordering Information
Part Number
Description
ES-U-1001-R10
Premier Gold USB-RS232 Adapter Cable –10cm cable
ES-U-1001-R100
Premier Gold USB-RS232 Adapter Cable –100cm cable
Table 1.2 Ordering Information

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 8
2FT232R Key features
This section summarises the key features and enhancements of the FT232R IC device which is used
on the ES-U-1001-R10 USB to RS232 converter cable. For further details, consult the FT232R
datasheet, which is available from the FTDI website.
2.1 Integrated EEPROM
Previous generations of FTDI’s USB UART devices required an external EEPROM if the device were to
use USB Vendor ID (VID), Product ID (PID), serial number and product description strings other
than the default values in the device itself. This external EEPROM has now been integrated onto the
FT232R chip meaning that all designs have the option to change the product description strings. A
user area of the internal EEPROM is available for storing additional data. The internal EEPROM is
programmable in circuit, over USB without any additional voltage requirement.
2.2 Pre-programmed EEPROM
The FT232R is supplied with its internal EEPROM pre-programmed with a serial number
which is unique to each individual device. This, in most cases, will remove the need to program the
device EEPROM.
2.3 Lower Operating and Suspend Current
The device operating supply current has been further reduced to 15mA, and the suspend current
has been reduced to around 70μA. This allows greater margin for peripheral designs to meet the
USB suspend current limit of 500μA.
2.4 Low USB Bandwidth Consumption
The operation of the USB interface to the FT232R has been designed to use as little as possible of
the total USB bandwidth available from the USB host controller.
2.5 UART Pin Signal Inversion
The sense of each of the eight UART signals can be individually inverted by setting options in the
internal EEPROM. Thus, CTS# (active low) can be changed to CTS (active high), or TXD can be
changed to TXD#.
2.6 FTDIChip-ID™
Each FT232R is assigned a unique number which is burnt into the device at manufacture. This ID
number cannot be reprogrammed by product manufacturers or end-users. This allows the possibility
of using FT232R based dongles for software licensing. Further to this, a renewable license scheme
can be implemented based on the FTDIChip-ID™ number when encrypted with other information.
This encrypted number can be stored in the user area of the FT232R internal EEPROM, and can be
decrypted, then compared with the protected FTDIChip-ID™ to verify that a license is valid. Web
based applications can be used to maintain product licensing this way. An application note
describing this feature is available separately from the FTDI website.
2.7 Improved EMI Performance
The reduced operating current and improved on-chip VCC decoupling significantly improves the ease
of PCB design requirements in order to meet FCC, CE and other EMI related specifications.

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 9
2.8 Programmable Receive Buffer Timeout
The receive buffer timeout is used to flush remaining data from the receive buffer. This time
defaults to 16ms, but is programmable over USB in 1ms increments from 1ms to 255ms, thus
allowing the device to be optimised for protocols that require fast response times from short data
packets.
2.9 Baud Rates
The FT232R supports all standard baud rates and non-standard baud rates from 300 Baud up to 3
Mbaud. Achievable non-standard baud rates are calculated as follows -
Baud Rate = 3000000 / (n + x)
Where n can be any integer between 2 and 16,384 (= 214) and x can be a sub-integer of the value
0, 0.125, 0.25, 0.375, 0.5, 0.625, 0.75, or 0.875. When n = 1, x = 0, i.e. baud rate divisors with
values between 1 and 2 are not possible.
This gives achievable baud rates in the range 183.1 baud to 3,000,000 baud. When a non-standard
baud rate is required simply pass the required baud rate value to the driver as normal, and the FTDI
driver will calculate the required divisor, and set the baud rate. See application note AN232B-05 for
more details.
The ES-U-1001-R10 cable is limited to a maximum of 1 Mbaud because of the line driver within the
circuit.

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 10
3Installation
3.1 RS232 Connection Pin Out
Figure 3-1 RS232 DB9 Pin Out
DB9 Pin No.
Name
Type
Description
1
DCD
Input
Data Carrier Detect control input
2
RXDATA
Input
Receive Asynchronous Data input.
3
TXDATA
Output
Transmit Asynchronous Data output.
4
DTR
Output
Data Terminal Ready control output / Handshake signal
5
GND
Gnd
Device ground supply pin.
6
DSR
Input
Data Set Ready control input / Handshake signal
7
RTS
Output
Request To Send Control Output / Handshake signal
8
CTS
Input
Clear to Send Control input / Handshake signal.
9
RI
Input
Ring Indicator control input.
3.2 Device Driver Installation
The ES-U-1001-R10 adaptor drivers are available for download from:
https://www.connectiveperipherals.com
3.2.1 Microsoft Windows
With the device drivers being Windows Hardware Quality Labs (WHQL) certified, they are also available
through download directly from the Microsoft®Windows®Update service. This is the best choice when
connecting the ES-U-1001-R10 to a computer running Windows Vista. Additional installation options are
noted below:
Installation Executable on Windows XP
1) Login to your system as Administrator, or a user with Administrator rights.
2) Prior to connecting the ES-U-1001-R10 to the USB Host or Hub port, download the latest device
driver version from the Connective Peripherals web site.
3) Run this executable to install the device drivers.
4) Connect the ES-U-1001-R10 to your computer. A notification will appear near the task bar
indicating that new hardware has been installed and is ready for use. It is normal if this notice
appears twice.
Figure 3-2 Hardware Ready

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 11
Windows Update shown on Windows XP
You must have an active Internet connection and the Windows Update Service enabled.
1) Connect the ES-U-1001-R10 to your USB Host or Hub.
2) The “Found New Hardware” Wizard will appear. The first dialog should ask whether it is
acceptable to use the Windows Update Service to find the device driver.

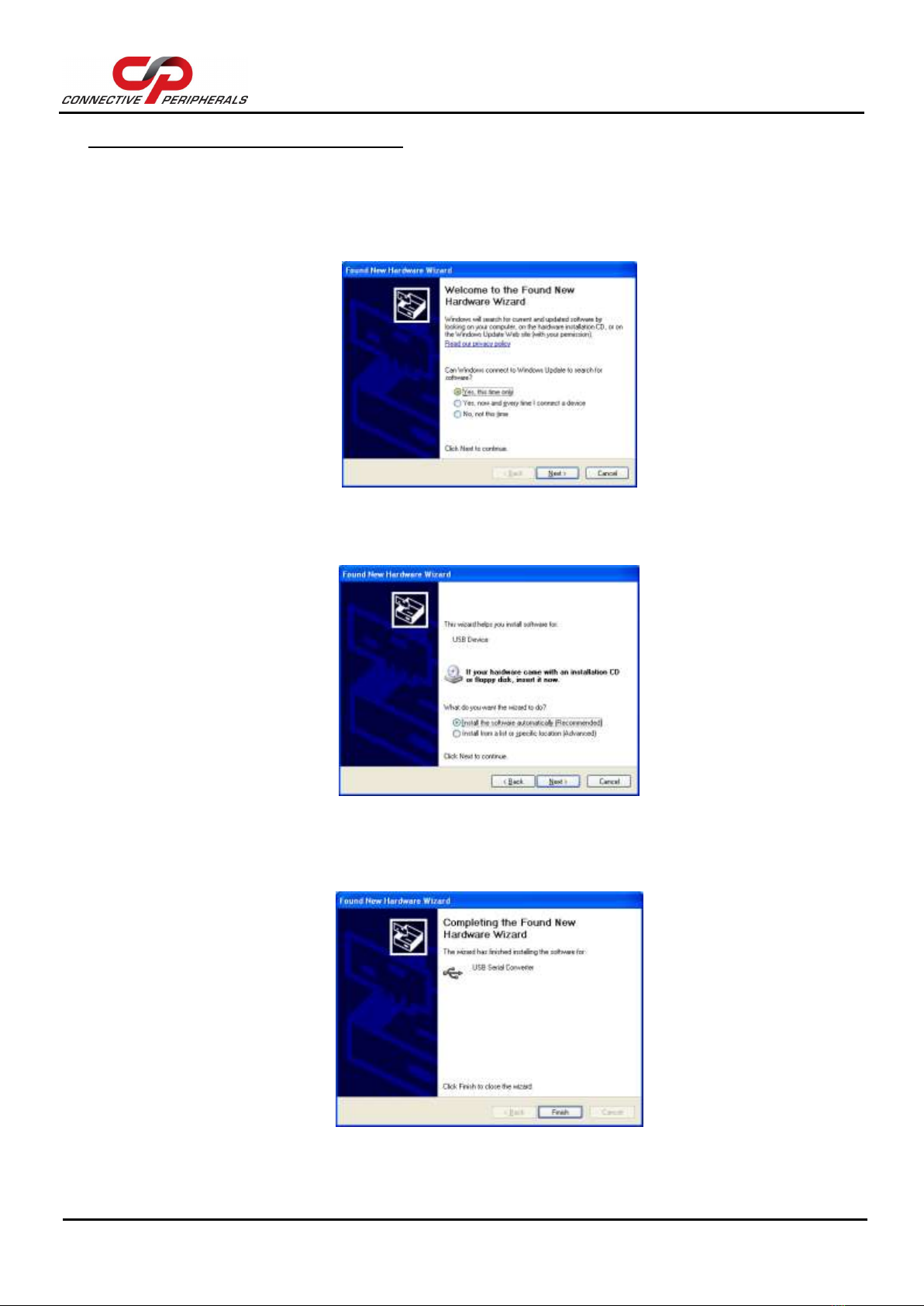

Figure 3-3 Found New Hardware Wizard
3) Select one of the “Yes” choices and click “Next”.
4) The following screen appears:
Figure 3-4 Automatic Install
5) Wait while the driver is found, downloaded, and installed. This step may take a couple minutes
depending on the Internet speed.
6) After the files are found and installed, click “Finish” to complete the installation.
Figure 3-5 Complete Hardware Installation

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 12
7) Steps 2 through 6 will repeat. The first time installs the basic USB Serial Converter in the USB
device tree. The second time installs the Virtual COM Port layer in the Ports tree and assigns the
COM port number.
8) When both portions of the device driver have been installed successfully, the following message
will appear, indicating that the device is ready.

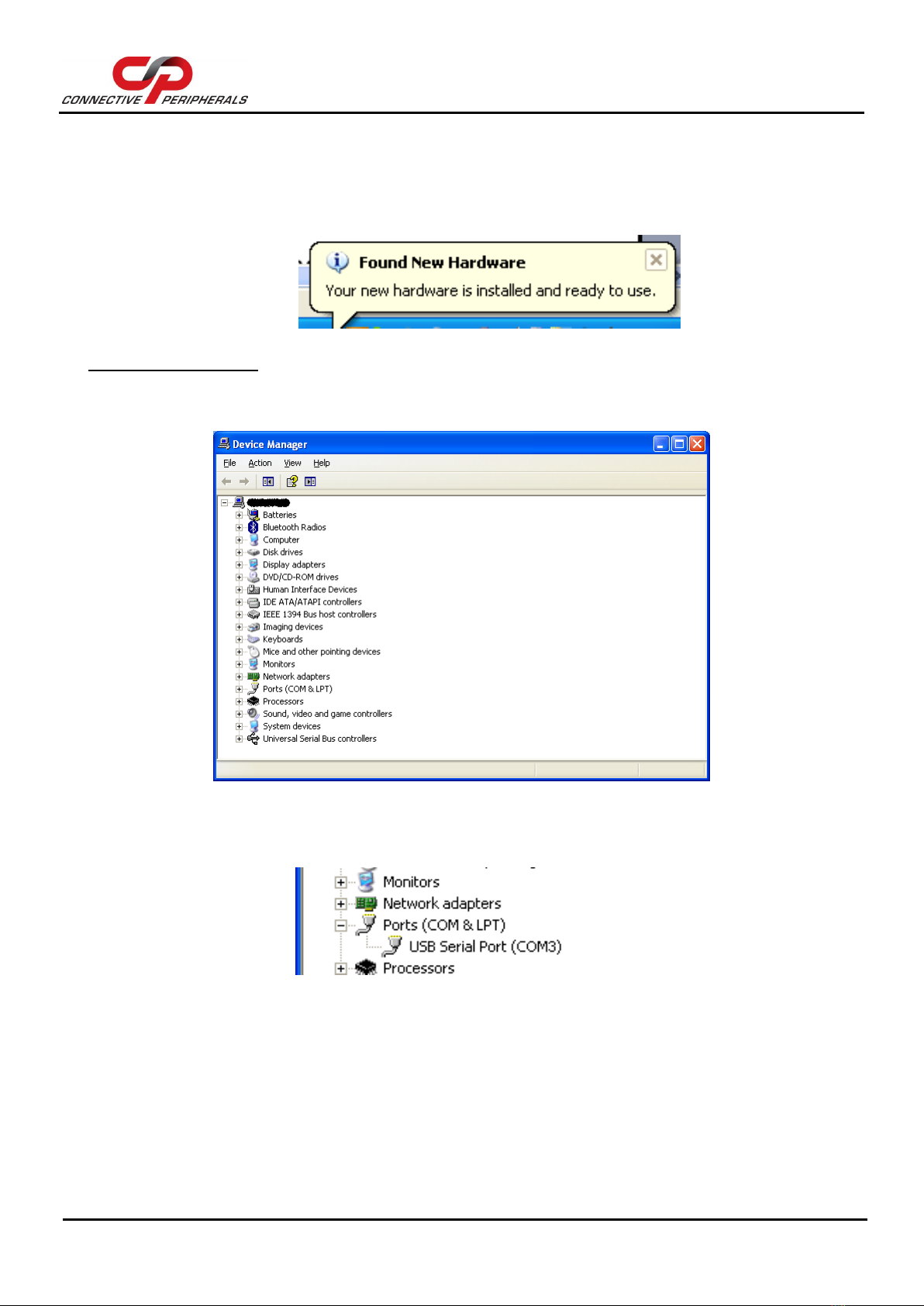

Figure 3-6 Hardware Ready
COM Port Assignment
Next, to determine which COM port has been assigned, open the Windows Device Manager from the
System Control Panel.
Figure 3-7 Device Manager
Click on the Plus “+” sign next to the Ports tree to list the available COM port. You will see “Connective
Peripherals USB COM Port”, followed by a COMn assignment. In the figure below, the ES-U-1001-R10 is
assigned to COM3.
Figure 3-8 COM Port Assignment
Use this COM port number with your application software in order to access the ES-U-1001.
If an application requires use of a different COM port number, the assignment may be changed through
the Advanced Driver Options settings.
From the Device Manager listing above, right-click on the Connective Peripherals USB COM Port and
select Properties.

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 13
Figure 3-9 Access COM Port Properties
Next, click on the “Port Settings” tab.
Figure 3-10 Settings Tab
Then click on the “Advanced…” button.
Figure 3-11 Advanced Options

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 14
This will display the various advanced settings. Note the COM port assignment in the upper left. Clicking
on the drop-down list will display the available port numbers. Select one that is not in use and click OK
on each dialog box to activate the selection. Windows will remember this COM port number.
3.2.2 Mac OS X, Linux, Windows CE
Device drivers and installation guides for Mac OS X, Linux and Windows CE are available for download on
the Connective Peripherals web site. Follow the respective installation guides for the chosen operating
system.

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 15
4Connections
4.1 External Connectors
4.1.1 USB
The USB-U-1001 is a downstream USB 2.0 Device. A standard USB Series “A” connector is mounted
inside the USB-U-1001 to facilitate connection to an upstream USB Host or Hub.
Pin Number
Pin Type
Description
1
Power
VBUS –USB Power provided from upstream USB Host or Hub
2
Bidirectional
D–= USB data signal, negative polarity
3
Bidirectional
D+ = USB data signal, positive polarity
4
Ground
GND = USB signal ground
Shield
Case Ground
Drain = typically connected to the host PC case
Table 3.1 USB "A" Receptacle Pin-Out
4.1.2 RS232
The RS232 port is configured as Data Terminal Equipment (DTE), with a 9-contact D-Sub Pin connector.
Pin assignments are according to TIA/EIA-574 which formally defines the assignments for a COM port
found on many personal computers.
Pin Number
Pin Type
Description
1
Input
DCD = Data Carrier Detect
2
Input
RXD = Receive Data
3
Output
TXD = Transmit Data
4
Output
DTR = Data Terminal Ready
5
Ground
GND = RS232 signal ground
6
Input
DSR = Data Set Ready
7
Output
RTS = Request To Send
8
Input
CTS = Clear To Send
9
Input /
Power
RI = Ring Indicator
Shield
Case Ground
Drain = typically connected to the host PC case
Table 3.2 DE-9P RS232 Pin-Out

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 16
5Electrical details
5.1 USB
Parameter
Description
Minimum
Typical
Maximum
Units
Conditions
USB_VCC
Input Power
Voltage*
4.25
5.0*
5.25
V
*Present when USB
cable is attached
and USB Host or
Hub powered.
Icc
USB current
30
50
mA
Table 5.1 USB Electrical Details
5.2 RS232
Parameter
Description
Minimum
Typical
Maximum
Units
Conditions
Vtrans
Transmitter output
voltage swing
± 5
V
RL = 3KΩ
Vrec
Receiver input
voltage range
±2.4
±25
V
Input resistance =
3KΩ
to 7KΩ
ESD HBM
±15
KV
RS-232 Inputs and
Outputs
Table 5.2 RS232 Electrical Details

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 17
6Mechanical Details
6.1 Module Mechanical Dimensions
Figure 6-1 Cable Dimensions

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 18

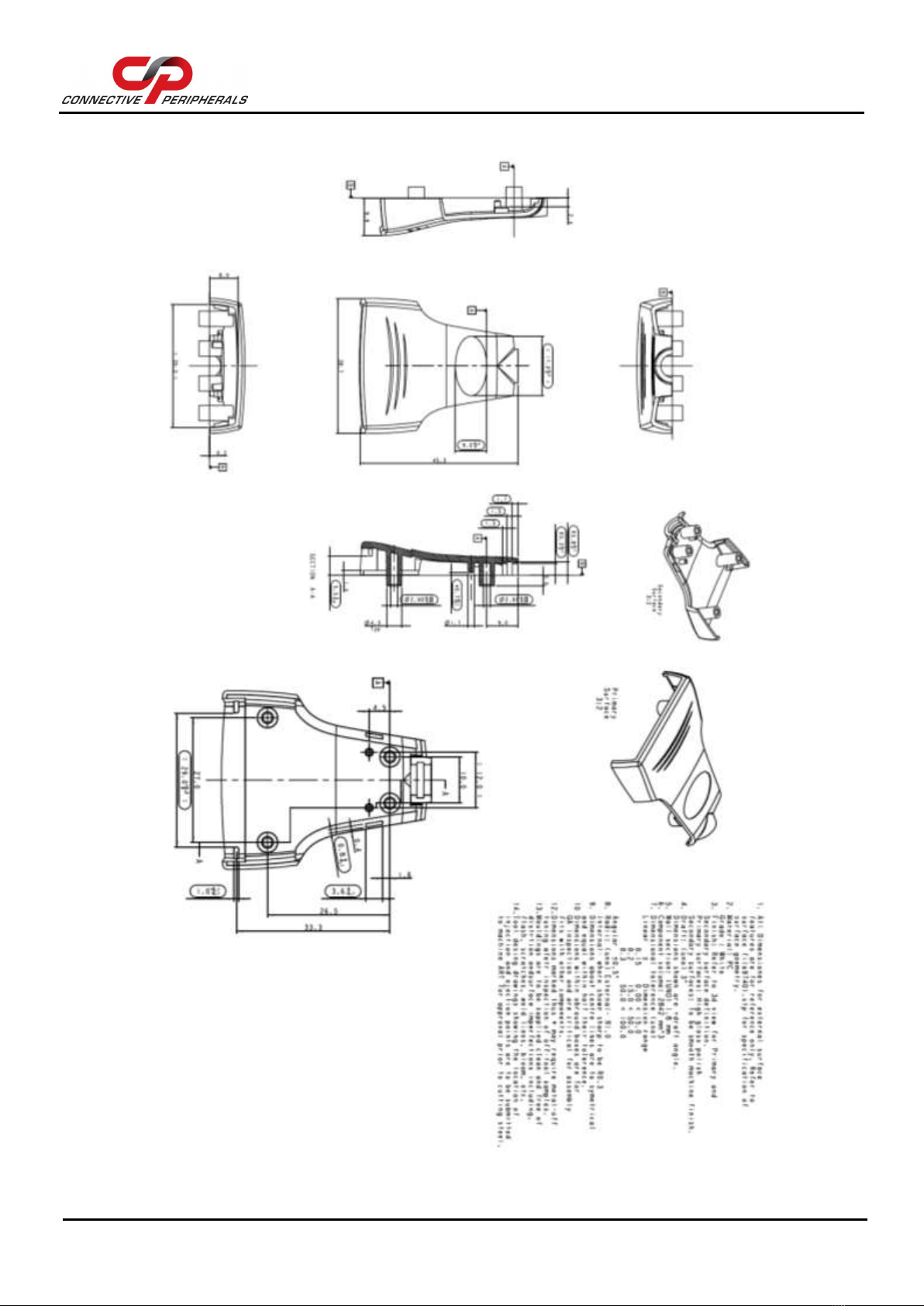

Figure 6-2 Case top Dimensions

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 19
Figure 6-3 Case Base Dimensions

ES-U-1001-R10(R100) Premier Gold USB-RS232 Adapter cable Data Sheet
Version 1.1
Document Reference No.: CP_000057 Clearance No.: CP#047
Copyright © Connective Peripherals Pte Ltd 20
Figure 6-4 Cap Dimensions
