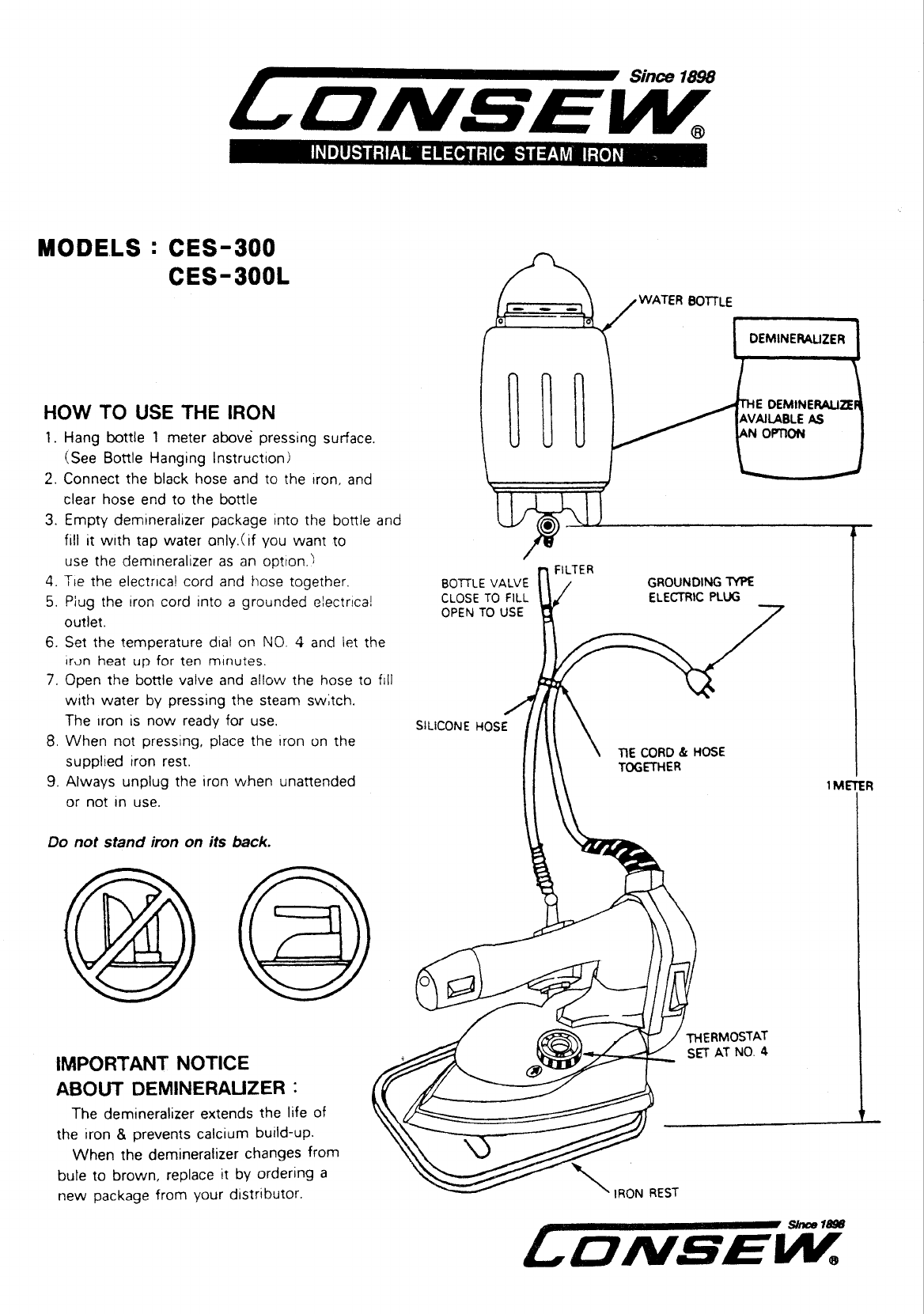

Consew CES-300 User manual

INDUSTRIAL "ELECTRIC STEAM IRON °
MODELS · CES-300
CES-300L
HOW TO USE THE IRON
1. Hang bottle 1 meter above pressing surface.
(See Bottle Hanging Instruction)
2. Connect the black hose and to the
1ron. and
clear hose end to the bottle
3. Empty demineralizer package into the bottle and
fill it with tap water only. (if you want to
use the demmeralizer as an opt1on. i
4. T1e the electnca! cord and hose together.
5. Piug the 1ron cord into a grounded electncal
outlet.
6. Set the temperature
d1al on NO. 4 and let the
irdn heat up for ten minutes.
7. Open the bottle valve and allow the hose to fill
with water by pressing the steam sw;tch.
The
1ron is now ready for use.
8< When not pressing, place the 1ron on the
supplied iron rest.
9. Always unplug the iron when unattended
or not in use.
Do not stand iron on its back.
IMPORTANT NOTICE
ABOUT DEMINERAUZER :
The demineralizer extends the life of
the iron & prevents calcium build-up.
When the demineralizer changes from
bule
to brown, replace it by ordering a
new package from your distributor.
BOTTLE VALVE
CLOSE TO FILL
OPEN TO USE
WATER BOTILE
DEMINERAUZER
GROUNDING "TYPE
ELECTRIC PlUG
TIE CORD & HOSE
TOGETHER
1MrnR
CDNSEIN?
From the library of: Superior Sewing Machine & Supply LLC

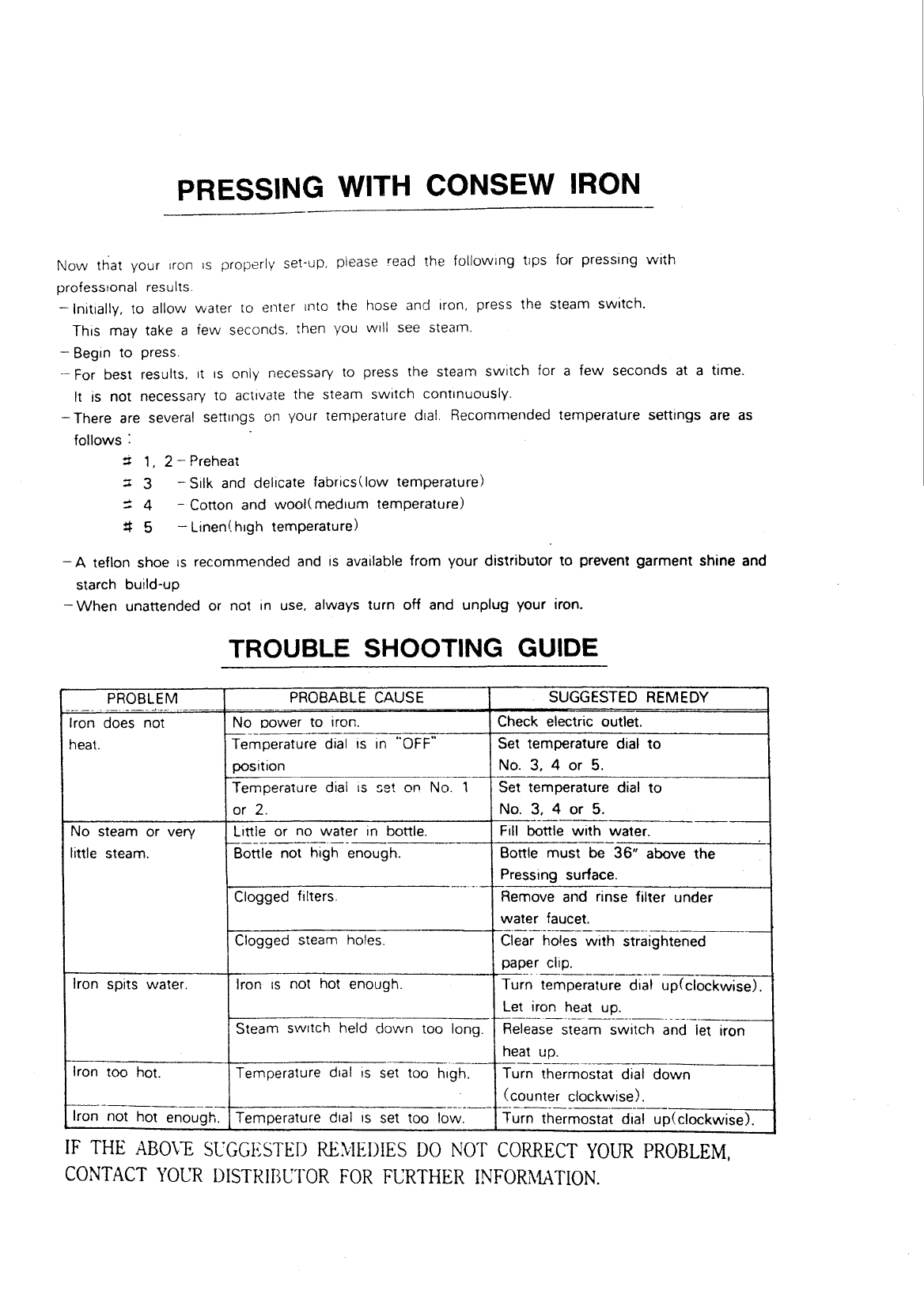

PRESSING WITH CONSEW IRON
Now that your 1 ron 1
s properly set-up, please read the followmg
t1ps for pressing with
professtonal results.
-Initially, to allow water to enter 1nto the hose and tron, press the steam switch.
This may take a few seconds. then you will
see steam.
-Begtn to press.
-For best results, 1t 1s only necessary to press the steam switch for a few seconds at a time.
It
is not necessary to activate the steam switch continuously.
-There are several setttngs on your temperature d1aL Recommended temperature settings are as
follows:
::i:
1'
2- Preheat
::I 3
-Silk and delicate fabrics
(low temperature)
~
4
-Cotton and wool(medtum
temperature)
-
# 5
-Linen( htgh temperature)
-A teflon shoe 1s recommended and IS available from your distributor to prevent garment shine and
starch build-up
-When unattended or not 1n use, always turn off and unplug your iron.
TROUBLE SHOOTING GUIDE
PROBLEM PROBABLE CAUSE SUGGESTED REMEDY
---
. .. ... -
..... ____ ---
Iron does not No power
to iron. Check electric outlet.
-------·
heat. Temperature dial IS
in
"OFF" Set temperature dial
to
position No. 3, 4
or 5.
Temperature dial IS set on No. 1 Set temperature dial
to
or 2. No. 3, 4 or 5.
-
--
No steam or very Little or no water in bottle. Fill bottle
with water.
little steam.
r-------- .. --
Bottle not high enough. Bottle
must be 36" above the
Pressing surface.
----
Clogged filters. Remove and rinse filter under
water faucet.
Clogged steam holes.
·-----------:-------· --------
Clear holes w1th straightened
paper clip.
-------------
Iron spits water. Iron
IS
not hot enough. Turn temperature dial up(
clockwise).
Let iron heat up.
1---- _____ .. -·---·--·· --·-·
Steam sw1tch held down
too long. Release steam
switch and let
1ron
·----
heat up.
Iron too hot. dtal
1---------
Temperature IS set too high. Turn thermostat dial
down
r--·
(counter clockwise).
----
----- --------
Iron not hot enough. Temperature dtal
1s set too low. Turn thermostat dial
up( clockwise).
IF THE ABOVE SCGGESTED RE~vlEDIES DO NOT CORRECT YOUR PROBLEM
'
CONTACT YOUR DISTRIBUTOR FOR FURTHER INFORI\1ATION.
From the library of: Superior Sewing Machine & Supply LLC

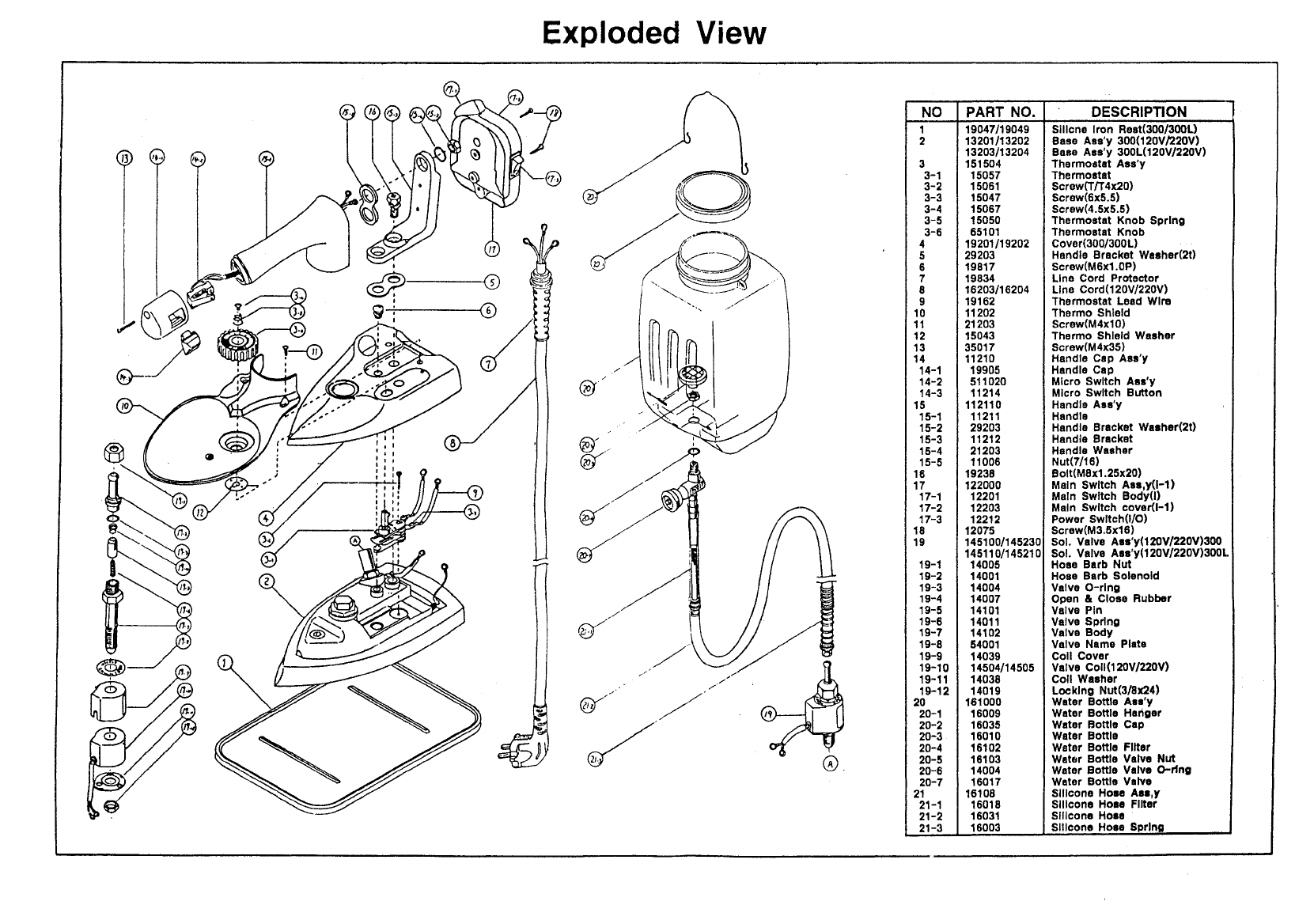

Exploded View
NO PART NO. DESCRIPTION
1 19047/19049 Sillcne Iron Rest(300/300L)
2 13201/13202 Base Ass'y 300(120V/220V)
13203/13204 Base Ass'y 300L(120V/220V)
3 151504 Thermostat
Ass'y
3-1 15057 Thermostat
3-2
15061
Screw(T/T4x20)
3-3
15047 Screw(6x5.5)
3-4 15067 Screw(4.5x5.5)
3-5
15050 Thermostat Knob Spring
3-6 65101 Thermostat Knob
4 19201/19202 Cover(300/300L)
5 29203 Handle Bracket Washer(2t)
6 19817 Screw(M6x1.0P)
7 19834 Line Cord Protector
8 16203/16204 Line Cord(120V/220V)
9 19162 Thermostat Lead Wire
10 11202 Thermo Shield
11
21203
Screw(M4x10)
12 15043 Thermo Shield Washer
13
35017 Screw(M4x35)
14 11210 Handle Cap Ass'y
14-1 19905 Handle Cap
14-2 511020 Micro Switch Ass'y
14-3 11214 Micro Switch Button
15
112110 Handle Asa'y
15-1
11211
HandIa
15-2 29203 Handle Bracket Washer(2t)
15-3 11212 Handle Bracket
15-4 21203 Handla Waahar
15-5 11006 Nut(7/16)
16
19238 Bolt(M8x1.25x20)
17 122000 Main Switch Aas,y(l-1)
17-1 12201
Main Switch Body(l)
17-2 12203 Main Switch cover(l-1)
17-3 12212 Power SWitch(l/0)
18 12075 Screw(M3.5x16)
19 145100/145230 Sol. Valve Ass'y(120V/220V)300
145110/145210 Sol. Valve Aaa'y(120V/220V)300L
19-1 14005 Hose Barb Nut
19-2
14001
Hose Barb Solenoid
19-3 14004 Valve 0-rlng
19-4 14007 Open & Close Rubber
19-5
14101
Valve Pin
19-6
14011
Valve Spring
19-7 14102 Valve Body
19-8
54001
Valve Name Plate
19-9 14039 Coli Cover
19-10 14504/14505 Valve Coii(120V/220V)
19-11 14038 Coli Washer
19-12 14019 Locking Nut(3/8x24)
20
161000 Water Bottle Ass'y
20-1 16009 Water Bottle Hangar
20-2 16035 Water Bottle Cap
20-3 16010 Water Bottle
20-4 16102 Water Bottle Filter
20-5 15103 Watlir Bottle Valve Nut
20-6 14004 Water Bottle Valve
Q-rlng
20-7 15017 Water Bottle Valva
21
16108 Silicone Hose Ass,y
21-1 16018 Silicone Hose Filter
21-2
16031
Silicone Hose
21-3 16003 Silicone Hose SprinG
From the library of: Superior Sewing Machine & Supply LLC

CEILING HOOK INSTALLATION INSTRUCTIONS
IMPORTANT : CAUTION- DO NOT SLIDE ELECTRICAL WIRE OR WATER HOSE
OVER HOOK. SLIDE CHAIN LINK ONLY OVER HOOK.
CAUTION -Injury to persons or damage to the ceiling may result if the bottle or mounting
hardware
is pulled from the ceiling. To avoid such injury, mount only to ceiling members
that
are structurally sound.
FOR HOLLOW CEILINGS :
1) Drill 5/8'' diameter hole in the ceiling at desired hook ioca-
tion.
2 1 Assemble toggle bolt by screw1ng bolt
(A! into toggle '· 8!.
3 I Insert flaps and bolt assembly( A/8) hinge up into ceding hole
with the
bolt(A) protruding through ceiling. Lock assembly by
turning hook
(Cl clockwise until firmly seated.
FOR WOOD BEAM CEILINGS
Screw hook clockwise into ceiling until! firmly seated.
FOR EITHER METHOD
Hang the bottle assembly by a chain from the hook so that the bot-
tom of the bottle is 1 METER( 1 Yardstick) from the water inlet on
the iron.
LIDNSE&N?'
