OEM Integration Manual for FAN (FCC ID: LHJ-FAN, IC: 2807E-FAN)
2. Regulatory Compliance Note
FCC:
This device complies with Part 2, Part 22(H), Part 24(E) and Part 27 of the FCC Rules. The FCC
ID for this device is LHJ-FAN. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
Industry of Canada:
This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the
following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired
operation of the device.”
« Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement. »
This radio transmitter (2807E-FAN) has been approved by Industry Canada to operate with the
antenna types listed below with the maximum permissible gain indicated. Antenna types not
included in this list, having a gain greater than the maximum gain indicated for that type, are
strictly prohibited for use with this device.
« Le présent émetteur radio (2807E-FAN) a été approuvé par Industrie Canada pour fonctionner
avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types
d'antenne non inclus dans cette liste, et dont le gain est supérieur au gain maximal indiqué, sont
strictement interdits pour l'exploitation de l'émetteur.»
3. Device Installation and User Manual
The FAN module is a proprietary product designed and manufactured by Continental
Automotive Systems, Inc. for integration into telematics control units manufactured by
Continental Automotive Systems, Inc. for automotive OEMs.
i. The module is limited to installation ONLY in an integrated device manufactured by
Continental Automotive Systems, Inc.
ii. During manufacturing process of the integrated device, the module is soldered onto the pcb of
the integrated device.

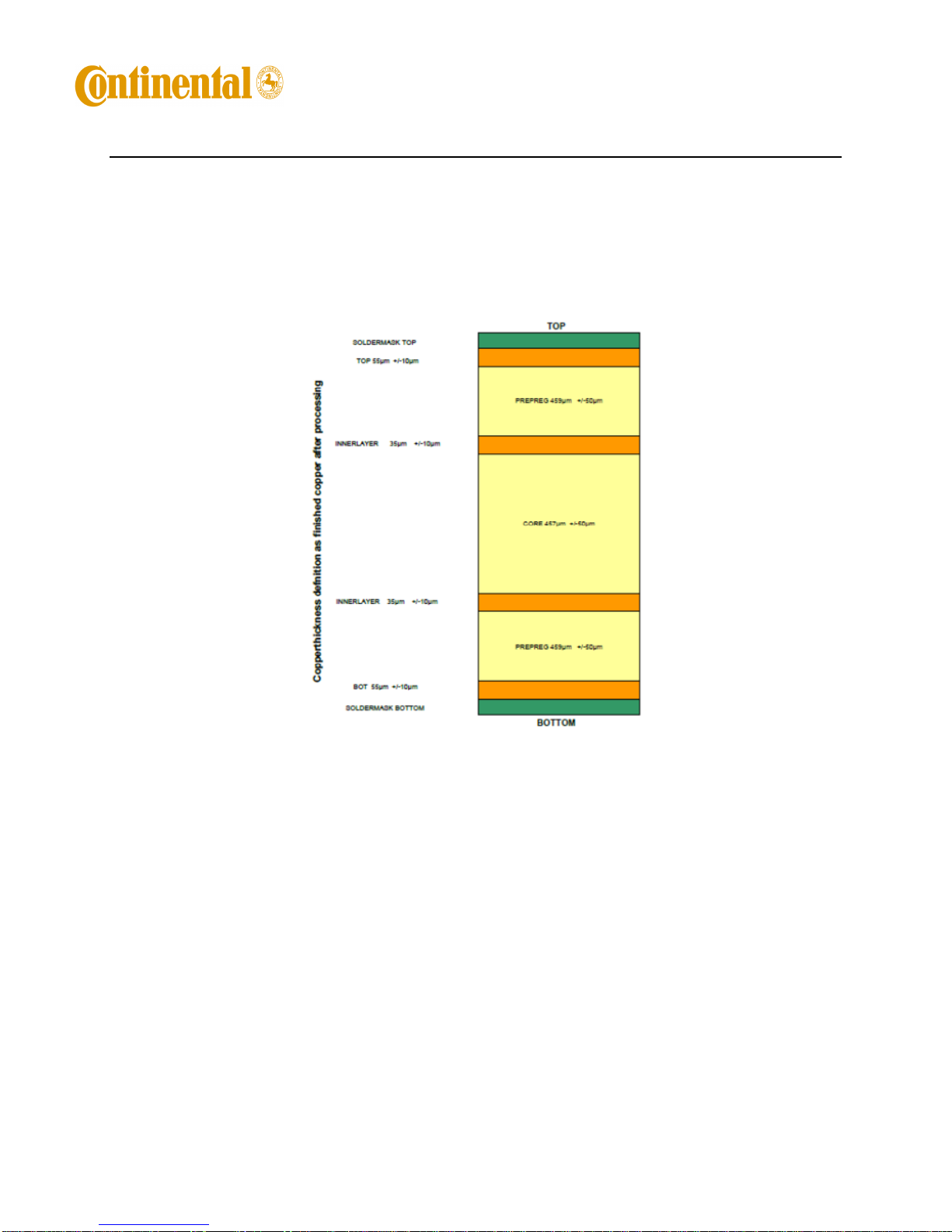

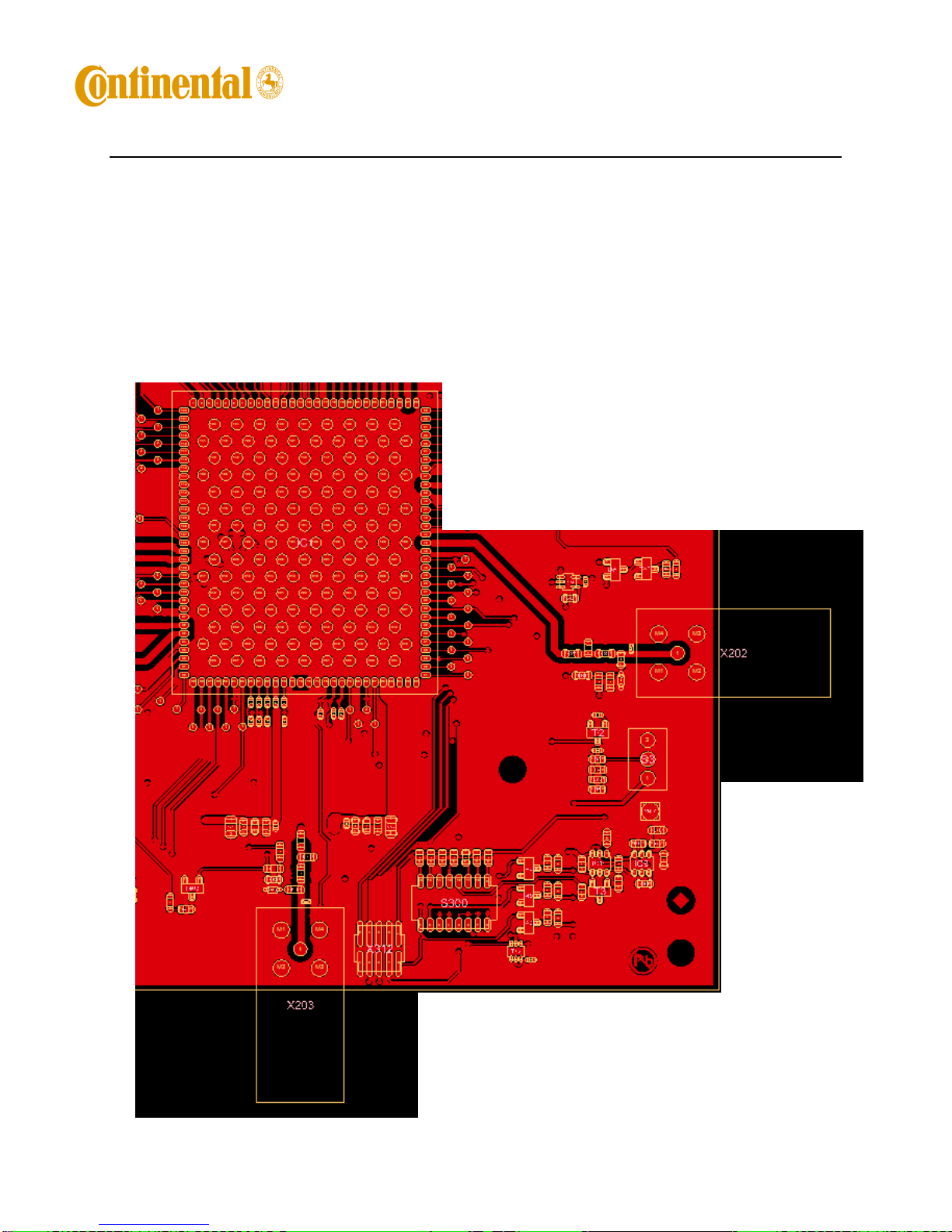

iii. The integrated device must provide RF connectors to external antennas. The typical reference
design for the trace layout, including pcb stack-up and trace length is shown below:
