Coodmans GPS218MP3 User manual

Goodmans Product Information Helpline 0870 873 0080
For improvement purposes, specification and design are subject to change without notice.
STEREO CD/RADIO/CASSETTE RECORDER
GPS218MP3
Instruction Manual

PRE FITTED MAINS PLUGS
For your convenience a mains plug has been fitted to this appliance. For your safety please
observe the following information.
1. Should the fuse in the plug fail remove the plug from the wall socket and replace the fuse
with a 3 Amp ASTA fuse approved to BS 1362.
2. Never use the plug without the fuse cover fitted. Replacement fuse covers are available
from your dealer or most electrical retail outlets.
3. If the cable of the mains plug is cut off the cable, rewire the replacement plug in accordance
with instruction given in this manual.
4. CAUTION: Under no circumstances should the discarded plug be inserted mains socket.
To prevent a shock hazard carefully dispose of the discarded plug. Do not leave the plug
lying around where children might see it.
IMPORTANT SAFEGUARDS
WARNING: To prevent fire or shock hazard do not expose this unit to rain or moisture.
The wires in this mains lead are coloured in
accordance with the following wiring codes:
Blue.................................................Neutral
Bown....................................................Live
The wires in this mains lead must be
connected to the terminals in the plugs as
follows:
Blue Wire....................................N or Black
Brown Wire...................................L or Red
Only a 3 Amp fuse should be fitted in the
plug or a 5 Amp fuse at the distribution board.
CAUTION: DANGEROUS VOLTAGES EXIST INSIDE THIS UNIT, DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE INSIDE, REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL. DISCONNECT FROM MAINS SUPPLY
WHEN NOT IN USE.
PLUG WIRING DETAILS
WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE
CONNECTED TO THE EARTH TERMINAL IN A 3-PIN MAINS PLUG.
This symbol means that this unit is double insulated.
An earth connection is not required.
CAUTION
CLASS 1 LASER PRODUCT
Use of Controls or adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
LASER SAFETY
This unit employs a laser, only qualified service personnel should attempt repair.
DANGER: INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCK FAILED OR DEFEATED. AVOID DIRECT
EXPOSURE TO BEAM.
CAUTION:HAZARDOUS LASER RADIATION WHEN OPEN AND
INTERLOCK DEFEATED.
CAUTION
CLEANING: Always disconnect unit from mains supply before attempting to clean it. Use soft
cloth moistened with soapy water, wipe gently. Do not use solvents or abrasive
materials.
1

1. IMPORTANT NOTES
2
Your hearing is very important to you and to us so please take care when operating this
equipment. The following guidelines are provided for your information.
ESTABLISH A SAFE SOUND LEVEL
•Over time your hearing will adapt to continuous loud sounds and will give the impression
that the volume has in fact been reduced. What seems normal to you may in fact be
harmful. To guard against this BEFORE YOUR HEARING ADAPTS set the volume at
a low level
•Slowly increase the level until you can hear comfortably and clearly and without distortion.
• Damage to your hearing is accumulative and is irreversible.
• Any ringing or discomfort in the ears indicates that the volume is too loud.
• Remember listening for prolonged period of time at high volume levels will harm you
hearing.
Once you have established a comfortable listening level, DO NOT INCREASE THE
SOUND LEVEL FURTHER.
The following list of typical sound levels may assist you in recognising just how loud you
have set the volume level.
DECIBEL
Level dB Example
30 dB Quiet library, soft whisper.
40 Living room, fridge freezer bedroom away from traffic.
50 Normal conversation, quiet office, light traffic.
60 Electric sewing machine,
70 Vacuum cleaner, hair dryer, noisy restaurant
THE FOLLOWING NOISE CAN BE HARMFUL UNDER CONSTANT EXPOSURE
80dB Average city traffic, alarm clock buzzer at 1 Metre, food mixer.
90 Motorcycle, heavy goods vehicle, petrol lawn mower.
100 Pneumatic drill, chain saw, garbage truck, discotec/night-club.
120 Rock band concert, thunderclap, fast train passing by.
140 THRESHOLD OF PAIN Gunshot, jet plane taking off.
180 Rocket Launching pad.

POWER SOURCES..........................................4
PLAYER MAINTENANCE..............................4
DISC CLEANING.............................................5
PLAYER OPERATION
LOCATION OF CONTROLS.......................6
OPERATING INSTRUCTIONS................7-9

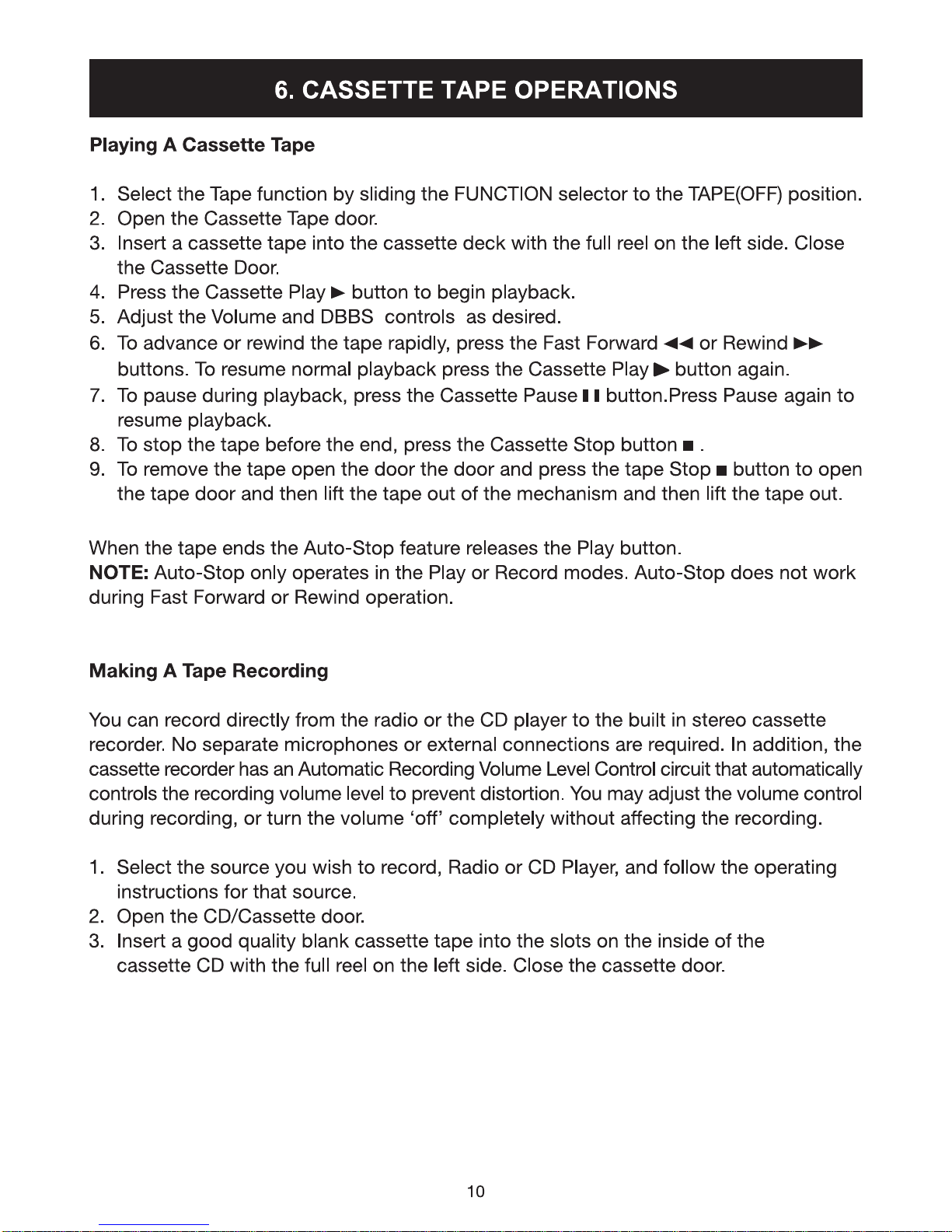

CASSETTE TAPE OPERATIONS.........10-12
TROUBLESHOOTING GUIDE...................14
TECHNICAL SPECIFICATION...................15
TABLE OF CONTENTS
1. As the laser beam used in this compact
disc player is harmful to the eyes, do not
attempt to disassemble the casing.
2. Stop operation immediately if any liquid or
solid object should fall into the cabinet.
Unplug the unit and have it checked by
qualified personnel.
3. Do not touch the lens or poke at it. If you
do, you may damage the lens and the player
may not operate properly.
4. Do not put anything in the safety slot. If you
do, the LASER diode will be ON when the
lid is still opened.
5. This unit employs a LASER. The use of
controls or adjustments or performance of
procedure other than those specified herein
may result in exposure to hazardous
radiation.
WARNING
SAFETY PRECAUTIONS
SOME DO'S AND DONT'S ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet European safety standards
but like any electrical equipment, care must be taken if you are to obtain the best results and
safety is to be assured.
Do read the operating instructions before you attempt to use the equipment.
Do ensure that all electrical connections (Including the mains plug, extension leads and
interconnections between pieces of equipment) are properly made in accordance with the
manufacturer's instructions. Switch off and withdraw the mains plug when making or changing
connections.
Do consult your dealer if you are ever in doubt of the installation, operating, or safety of your
equipment.
Don't continue to operate the equipment if you are in any doubt about it working normally, or
if it is damaged in any way-switch off, withdraw the mains plug and consult your dealer.
Don't remove any fixed covers as this may expose dangerous voltages.
Don't leave equipment switched on when it is unattended unless it is specifically stated that it
is designed for unatttended operation or has a standby mode. Switch off using the switch on
the equipment and make sure that your family knows how to do this. Special arrangements
may need to be made for infirm or handicapped people.
To prevent fire or shock hazard, do not expose
the unit to rain or moisture.
When cleaning the unit please make sure that
it is unpluged from the mains socket.
Toavoidelectricalshock,donotopenthecabinet.
Refer servicing to qualified personnel only.
3

AC MAINS
Insert the plug of AC power cord into wall
outlet and the connector into AC Socket. Slide
the function selector to the required source.
Battery power will be disconnected
automatically.
2. POWER SOURCES
3. PLAYER MAINTENANCE
CLEANING THE TAPE HEADS
Clean the heads frequently to remove dust
and tape residue. Dirt on the heads will impair
the sound quality of both recording and
playback.
Don't listen to headphones at high volume, as such use can permanently damage your hearing.
Don't obstruct the ventilation of the equipment, for example with curtains or soft furnishings.
Overheating will cause damage and shorten the life of the equipment.
Don't allow electrical equipment to be exposed to rain or moisture.
Above all
-Never let anyone, especially children, push anything into holes, slots or any other opening
as this could result in a fatal electric shock.
- Never take chances with electrical equipment of any kind.
- It is better to be safe than sorry!
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE
THIS APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES
ARE PRESENT INSIDE THE ENCLOSURE, DO NOT OPEN THE CABINET,
REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
The simple method is to use a head-cleaning
cassette, which is available at most audio
stores. Follow the instructions supplied with
the cleaning cassette.
BATTERY OPERATION
Remove the Battery Compartment Cover and
insert 8 pcs UM-2 (Size C) batteries, replace
the cover.
NOTE: ENSURE BATTERIES ARE
CORRECTLY INSTALLED
OBSERVING THE POLARITY AS
SHOWN.
NOTE: Old batteries may swell and leak. To
avoid damage to your portable
stereo, remove the batteries when
the unit is to be stored for long periods
of time, of if the batteries become
exhausted (CD/Radio display will fade
when the batteries are exhausted).
And if radio sound is low or distorted,
your batteries may need replacing.
4

Cleaning the Disc
1. To handle a compact disc use only one of
the two manners illustrated.
Note Do not touch the rainbow - coloured
Side.
2. To wipe a disc, use only a soft cloth. Do
not use benzene or thinner which will
damage the disc. The disc should always
be wiped in a straight line from the centre
to the edge. It should never be wiped in a
circular motion.
3. Never place the disc on other equipment
or near any heat source. Avoid positions
where the disc would be subjected to direct
sunlight for long periods.
Maintenance and care
1. Electronic products should never be
subjected to extreme temperatures nor high
humidity to ensure good performance and
a long life-time. The portable stereo should
not be placed in bathing areas, or around
stoves and radiators, etc. Always leave
sufficient space around the unit for
ventilation.
2. If necessary, only clean the cabinet of the
unit with a soft dampened piece of cloth
(make sure the AC power cord is unplugged
from the mains socket) Never use a polish
or a strong detergent for cleaning since this
can damage the finish of the cabinet.
4. DISC CLEANING
5

5. LOCATION OF CONTROLS
LOCATION OF CONTROLS
6
1. Power On LED Indicator.
2. CD Repeat Playback Button.
3. FM Stereo LED Indicator.
4. CD Program Button.
5. CD Track Display.
6. Cassette Controls.
7. CD Skip REV Button.
8. CD Skip FWD Button.
9. CD Play/Pause Button .
10. CD Stop Button.
11. Cassette Compartment Door.
12. Telescoping FM Aerial.
13. CD Compartment Door.
14. DBBS - Bass Boost On/Off.
15. Volume Control.
16. Function Selector.
(CD/MP3/TAPE(OFF)/RADIO)
17. Band Selector (MW/FM/FM ST)
18. Tuning Control.
19. Beat Cut A B Selector
20. Stereo Headphone Jack.
(on back of unit)
21. Battery Compartment Cover.
(on bottom of unit)
22. AC Cord Socket.
(on back of unit)
6
11
10
9
8
71
2
3
4
5
12
13
14
15
16
17
18
19
20
21
22

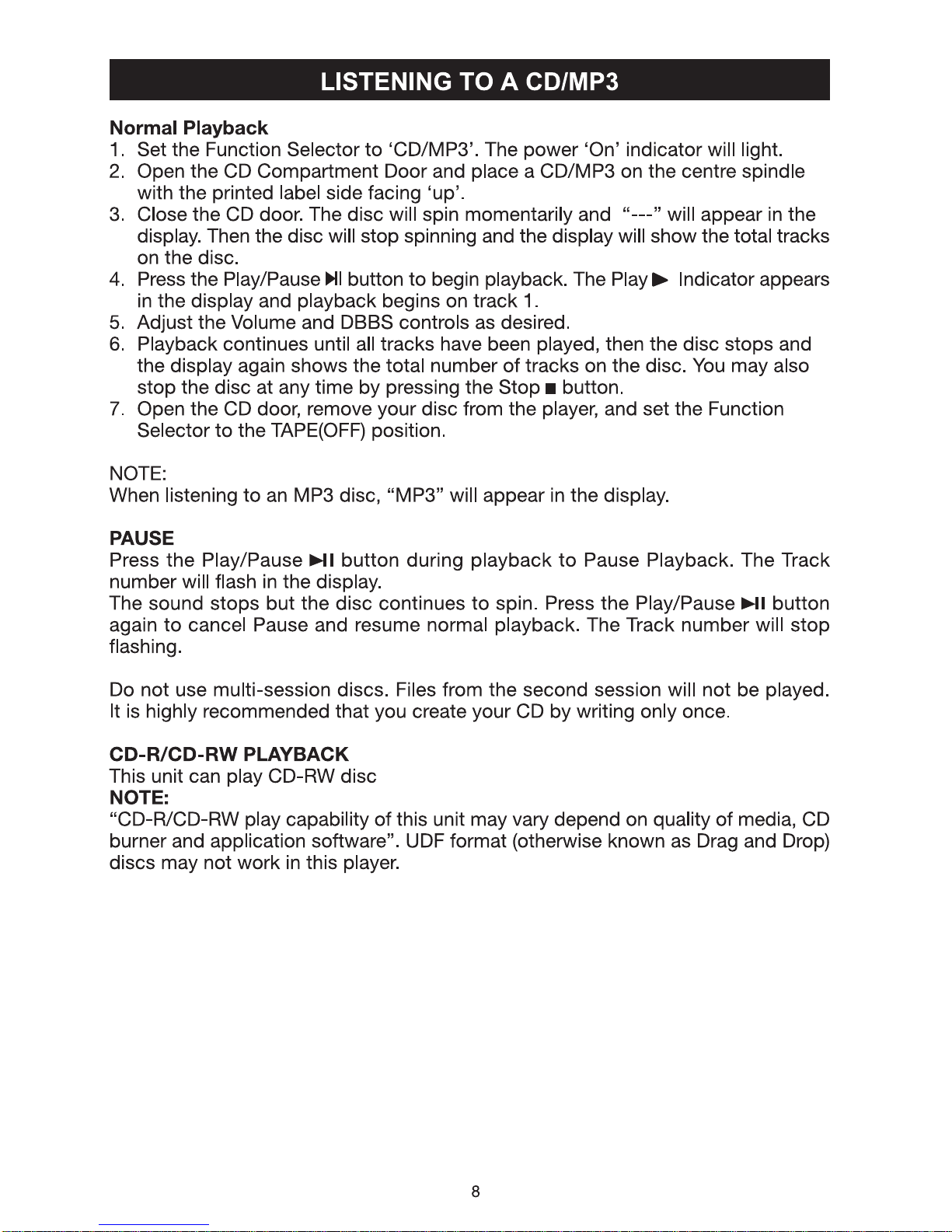

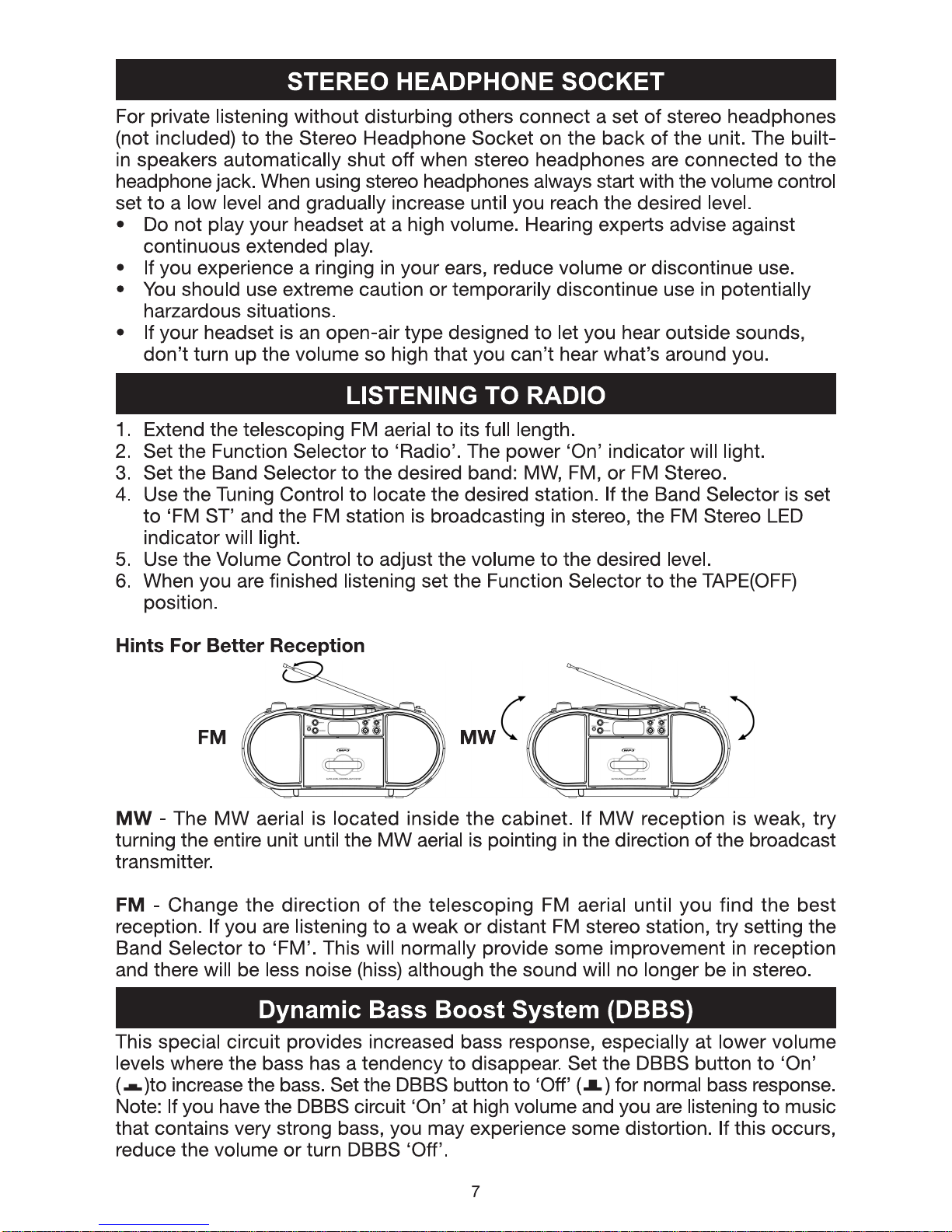

Should this unit exhibit a problem, check the following before seeking service.
Symptom
Radio
Noise or sound distorted
on MW or FM
broadcasts.
FM STEREO indicator
does not light.
MW or FM, no sound.
Cassette Player
CD Player will not play.
CD skips while playing.
Possible Cause
Station not tuned properly for
MW or FM.
FM: Aerial is not
extended.
MW: The bar aerial is not
positioned correctly.
FM station is mono or station
signal is weak.
Function is not set to Tuner.
Volume at minimum.
Function is not set to CD.
CD is not installed or installed
incorrectly.
Disc is dirty or scratched.
Solution
Retune the MW or FM station.
Extend FM aerial.
Rotate the unit unite the best
reception is obtained.
Extend FM aerial. Try other
strong stations.
Use FUNCTION to select
tuner.
Increase Volume.
Press CD button to select CD
function.
Insert CD with label side up.
Wipe disc with cloth or use
another disc.
Increase Volume.
Clean the head.
Replace the tape.
Clean roller and capstan.
Volume at minimum.
Dirty head.
Tape old or worn.
Dirty roller and capstan.
No sound.
Sound distorted.
Speed varies.
CD Player
Will not record.
Distorted sound on
playback.
Erase prevention tab removed.
Defective tape or dirty tape
head.
Cover hole with tape.
Replace tape or clean
tape head.
7. TROUBLESHOOTING GUIDE
13

8. TECHNICAL SPECIFICATION
14
Model: GPS218MP3
Specification
Main Unit
FM section
Tuning range: 87.5 MHz - 108 MHz
Usable sens.: 26db
Aerial: telescopic
MW section
Tuning range: 522 kHz - 1620kHz
Usable sens.: 63dB/M
Aerial: Ferrite bar
Amplifier
Power output (at 10% THD): 1.2W
Max. output power 1.5W
Headphone: 32 ohms
Cassette deck section
Track format 4 tracks, 2 channels stereo
Frequency response Normal tape : 100 Hz to 10 KHz
Signal - to - noise ratio 40 dB
Recording system AC bias
Heads Recording/playback head x 1 erase
head x 1
CD section
Laser: Semiconductor laser (760-800nm)
S/N ratio: 50dB(1 kHz, 0 dB)
Harmonic distortion: 0.5%(1 kHz, 0 dB)
Wow and flutter: Immeasurable
MP3
MPEG Rate 32-384Kbps
Sampling Frequency 8/11.025/12KHz for MPEG2.5
16/22.05/24KHz for MPEG2
32/44.1/48KHz for MPEG1
General
Power requirement: AC230V, 50Hz
Max. Power consumption: 15W
Dimension of main unit: 315 (L) x 240 (W) x 140(H) mm
Weight of main unit: 2.5 kgs
Specifications and extemal appearance are subject to change without notice.
