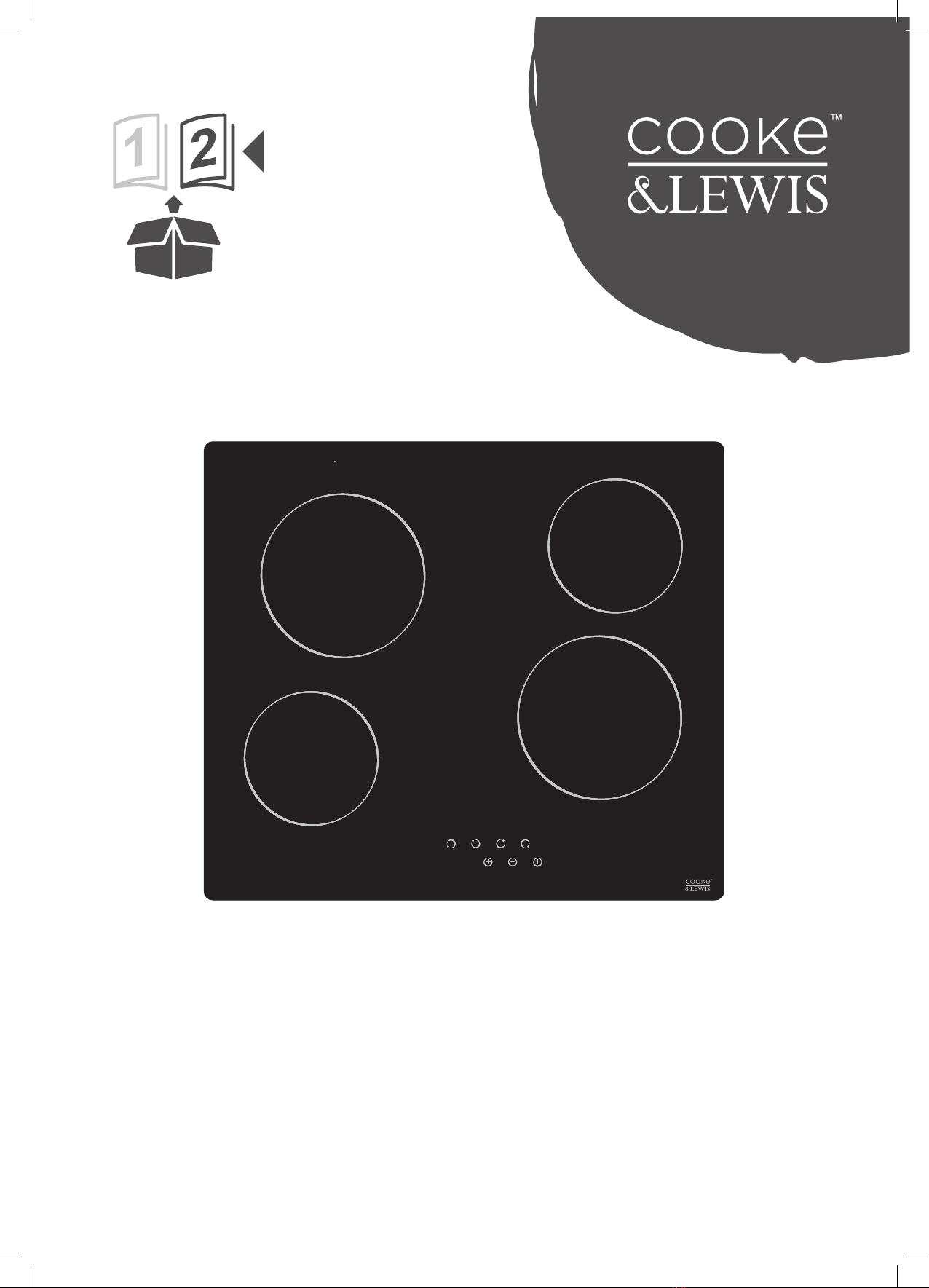

Cooke & Lewis CLCER60 User manual

V10517
CLCER60 3663602842255
GLOA10299_200000013 v7b 3mm TRANSLATION R.indd 1 08/05/2017 17:43

BenutzungUtilisationUse
Utilizare Uso Kullanım
32
Before you start
When the power is switched on at the switched fused spur, the buzzer will sound once, three zeroes
will be displayed briey on the control panel and go off. The appliance is ready for use.
CAUTION: When the ON/OFF key (D) is pressed for three seconds, the ceramic hob
returns to off mode if no other operation is carried out within 20 seconds.
Function & Settings
Protection from over-heating
When the built-in sensor detects an excessive temperature, the hob will be switched off automatically.
Residual heat indicator
WARNING: The display will show the letter “H” to indicate that the appliance is too hot to touch.
Auto shutdown
If you forget to switch off a cooking zone, the appliance will automatically shutdown after a
certain time.
The default shutdown times are shown in the table below:
Power level The heating zone shuts down
automatically after
1-2 6 hours
3-4 5 hours
54 hours
6-9 90 minutes
Protectionagainstunintendedoperation.
If a button is held down for ten seconds the appliance will sound a beep and display the error code
ER03. This will continue until the button is released.
GLOA10299_200000013 v7b 3mm TRANSLATION R.indd 32 08/05/2017 17:43

33
Reference Description
AZone position
BReduce power output
CIncrease power output
DON / OFF
01 Heating zone operation
When the ON/OFF key “ ” is pressed, all the indicators show “0.”
1. Select the cooking zone you wish to use by pressing the “ ” key (A). The “0” symbol selected
will stay fully lit. All other zone indicators will dim.
2. Select the power level by pressing the “+” key (C) “ ” or “–” key (B) “ ”
3. The power level will start at “0”. Pressing the “+” will count up the power levels from 0 to 9 (max
power) in numerical order. Pressing the “–” key will take the power straight from 0 to 9. Pressing
the “–” key again will decrease the power level.
4. The zone button “A” and “H” will ash alternately for 20 seconds when the power is reduced
to zero.
5. The display will have a residual heat warning of “H” until the cooking zone has cooled to a
safe level.
6. To reuse the same cooking zone again, please follow the above steps.
Heating Zone Max.Power(230V~)
1800 W
1200 W
1800 W
1200 W
02 Safetymode(Childlock)
To ensure the safety of children, the ceramic hob is tted with an interlock device.
1. If one or more cooking zones are in use the child lock cannot be activated.
2. Please ensure that all of the cooking zones are in standby mode. Simultaneously press the
“–” key and the furthest left zone selection key. The hob emits a beep and all keys should be
released. At this point pressing the furthest left zone selection key once more will activate the
child lock and L. will be shown in all 4 display windows.
3. In child lock mode, all keys are locked except the on/off key. No cooking zones can be activated.
The appliance can only be switched on and off.
GLOA10299_200000013 v7b 3mm TRANSLATION R.indd 33 08/05/2017 17:43

34
4. The child lock can be deactivated temporarily. Press the on/off key to enter the off mode. Then
press on/off key again to enter standby mode. Simultaneously press the “–” key and the furthest
left zone activation key. The child lock will be switched off temporarily. It will not be shown during
this operation but it will reactivate the next time the hob is switched on.
5. The child lock can be permanently deactivated. Press on/off key to enter the off mode. Then
press on/off key again to enter standby mode. Simultaneously press the “–” key and furthest
left zone selection key. The hob will emit a beep and all keys should be released. At this point
pressing the “–” key again will deactivate the child lock function.
GLOA10299_200000013 v7b 3mm TRANSLATION R.indd 34 08/05/2017 17:43

Cuidados y Mantenimiento
Bakım ve Onarım
Entretien et maintenance
ș ținere
35
WARNING: Always switch off the electricity supply before performing maintenance work.
In the event of a fault, contact customer services.
Damaged power cables should be replaced by a competent person or qualied electrician.
For domestic use only.
Never place an empty pan on the hob as this will cause the overheat sensor to switch off
the appliance automatically.
When a cooking zone has been on for a long time, the surface remains hot and shows “H”
in the display.
If the surface of the hob becomes cracked, do not use, switch off the appliance at the fused
spur and contact customer services.
Do not place rough or uneven vessels on the hob, as they could damage the glass surface.
Avoid banging pots and pans down on the hob. The ceramic surface is tough but
not unbreakable.
Do not put detergents or ammable materials beneath the hob.
• The appliance should be cleaned after use, allow to cool rst!
• The surface of the ceramic hob should be cleaned as follows:
Type of dirt Cleaning method Cleaning materials
Limescale Apply white vinegar to the surface,
then wipe it dry with soft cloth
Special ceramic cleaner
Burnt-on stains Clean with damp cloth and dry it
with a soft cloth
Special ceramic cleaner
Light stains Clean with damp cloth and dry it
with a soft cloth
Cleaning sponge
Melted plastics Use a scraper suitable for ceramic
glass to remove residue
Special ceramic cleaner
GLOA10299_200000013 v7b 3mm TRANSLATION R.indd 35 08/05/2017 17:43

36
CAUTION: Avoid rubbing with any abrasive or with the base of the pans, etc, as this will
wear the markings on the top of the ceramic hob over time.
• Clean the ceramic hob on a regular basis to prevent the build up of food residue.
Never use:
• Undiluted washing-up liquid
• Detergent intended for dishwashers
• Scouring agents
• Harsh cleaning agents such as oven spray or stain remover
• Abrasive sponges
• High-pressure cleaners or steam jet cleaners
Customer helpline (toll free):
UK 0800 324 7818 [email protected]
Eire 1800 932 230 [email protected]
