Lacanche CLUNY User manual

Page 1 of 42–US –
-Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
-WHAT TO DO IF YOU SMELL GAS.
Do not try to light any appliance.
Do not touch any electrical switch.
Do not use any phone in your building.
Immediately call your gas supplier from a neighbour’s phone.
Follow the gas supplier’s instructions.
If you cannot reach your gas supplier, call the fire
department.
-Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING:
THIS RANGE CAN TIP
INJURY TO PERSONS COULD RESULT
INSTALL ANTI-TIP DEVICE PACKED
WITH RANGE
SEE INSTALLATION INSTRUCTIONS
Fourneau
«Cluny»
WARNING: If the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
Lacanche ranges ordered after May 1st, 2015, have the option to be manufactured with a new
minimum chassis height of 36 5/8’’ (930mm) – as well as the default range height of 35 3/8’’
(900mm). Please make note, as this change may impact necessary clearance allowances to
combustible surfaces above the cooktop surface in certain installations requiring permit/occupancy
inspections.

Page 2 of 42–US –

TECHNICAL DATA
CLUNY
Page 3 of 42–US –
1405 mm - 55 5/16 ’’
838 mm*
33’’
399mm*
15 11/16’’
930 mm*
36 5/8’’
958 mm-37 11/16
’’
22 mm-1’’
325 mm
12 13/16’’
505 mm
19 7/8’’
1405 mm - 55 5/16 ’’
838 mm*
33’’
399mm*
15 11/16’’
930 mm*
36 5/8’’
958 mm-37 11/16
’’
22 mm-1’’
325 mm
12 13/16’’
505 mm
19 7/8’’
930 mm*
36 5/8’’
399mm*
15 11/16’’
838 mm*
33’’
1000 mm - 39 3/8 ’’
958 mm-37 11/16
’’
20 mm- 11/16 ’’
Adjustable feet
Fig. 1
Fig. 1a
Fig. 1b

TECHNICAL DATA
CLUNY
Page 4 of 42–US –
460 mm
181/8 ’’
625mm
245/8’’
CLUNY 1400
right
60 mm
23/8 ’’
225mm
813/10’’
1805 mm - 71 1/16 ’’
838 mm*
33’’
mm*
30 1/4
399mm*
15 11/16’’
930 mm*
36 5/8’’
958 mm-37 11/16
’’
22 mm-1’’
22 mm-1’’
325 mm
12 13/16’’
505 mm
19 7/8’’
Fig. 1c
Fig. 2a
Fig. 2b

TECHNICAL DATA
CLUNY
Page 5 of 42–US –

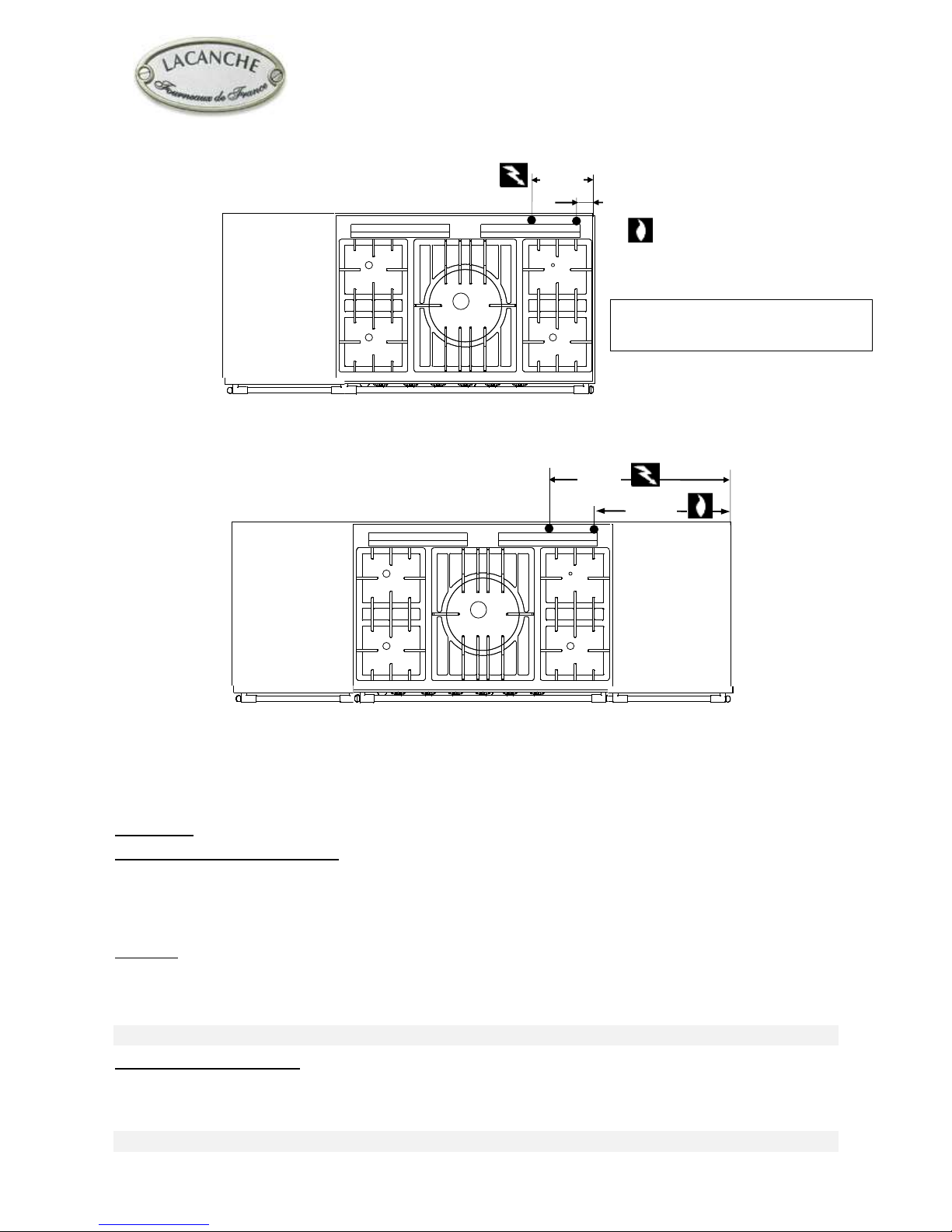

Layout:
5-burner cook’s stove, 2 ovens (Figure 2). The work surfaces adjacent (CLUNY 1400 & 1800, figures 2a, 2b, 2c & 2d) to
the cooking surfaces are designed to accommodate one of the optional units in the LACANCHE range or to be used as a
worktop (Figures 1, 1a,1b, 1c, 1d & 2, 2a, 2b, 2c, 2d).
Description:
Cooking surface and body panels:
Enamelled steel or stainless body panels AISI 430.
Pressing cooking surface (stainless steel AISI 304) (Figures 2a, 2b, 2c & 2d). 5 burner of different size and power individually
controlled by a safety valve. Electrical ignition. TRADITION” model equipped with a 385 x 510 mm (15 5/32’’ x 20 5/64’’)
heating plate.
Gas oven:
Enamelled sheet metal. Dimensions L x D x H: 400 mm (1547/64’’) x 465 mm (1819/64’’) x 300 mm (1151/64’’). 3 shelf
level with 70 mm spacing, 51 liters / 1.80 ft3. Heating provided by thermostatically controlled burner, thermocouple
safety cut-outs. Electrical ignition.
Power supply: 13500 BTU / 120 VAC 60Hz.
Static electric oven (option):
Enamelled sheet metal. Dimensions L x D x H: 400 mm (1547/64’’) x 465 mm (1819/64’’) x 265 mm (1027/64’’). 3 shelf
level with 70 mm spacing, 56 liters / 1.98 ft3.Thermostatically controlled roof and base heating elements, safety cut-out
by safety thermostat. Electric grill 2100 W.
Rating: 2200 W–Power supply: 240 VAC 60Hz.
460 mm
181/8 ’’
625mm
245/8’’
CLUNY 1800
60 mm
23/8 ’’
225mm
813/10’’
CLUNY 1400
left
* The range Height is adjustable: 930
mm-36 5/8’’ to 946 mm-37 1/4’’
Fig. 2c
Fig. 2d

TECHNICAL DATA
CLUNY
Page 6 of 42–US –
Ventilated electric oven (Option):
Heating provided by circular heating element surrounding a reaction fan. Dimensions L x D x H: 400 mm (1547/64’’) x
420 mm (1617/32’’) x 280 mm (111/32’’). 3 shelf level with 70 mm spacing, 45 liters / 1.59 ft3Electric grill 2100 W.
Thermostatically controlled heating elements, safety cut-out by safety thermostat.
Rating: 2650 W –Power supply: 240 VAC 60Hz.
Accessories:
One shelf, a roasting pan per oven.
Shipment / Packaging:
Unpack and check the appliance is in good condition. In case damage, note any reservations on the delivery note and
confirm them within 48 hours by registered letter with confirmation of delivery to the carrier.
Appliance
Width
Depth
Height mm / ’’
Weight Gross/Net - Kg / lb
LG 1052 G
1130 mm / 44.5’’
760 mm / 29.9’’
1050 mm / 41.3’’
120 kg /108 kg –267 / 240 lb
LG 1452 G
1450 mm / 57.1’’
840 mm / 33.1’’
1070 mm / 42.1’’
200 kg /180 kg –445 / 400 lb
LG 1852 G
1850 mm / 72.8’’
840 mm / 33.1’’
1070 mm / 42.1’’
275 kg /245 kg –605 / 540 lb
Gas connection:
1/2” ID NPT (Sch 40) inlet, on male coupling (Figures 1, 1a, 1b, 1c, 1d, 2a, 2b, 2c & 2d). Sealant on all pipe joints must
be resistive to LP gas.
If used, a flex gas line for the gas supply must be metal of at least 1/2” ID NPT approved by an approved certifying
agency (A.G.A., C.G.A,. etc.) in compliance with ANSI Z21.41 and Z21.69. Never use a hose made of rubber or other
synthetic material.
Gas supplying:
Appliance gas supplying can be switched, please refer to rating plate and marking at the rear of the appliance.
Electrical connection:
On terminal block at the rear of the appliance. Use flexible cord in accordance with standard N.E.C., AINSI/NEMA 70-
1996 or latest edition (not cord provided) worktop (Figures 1, 1a,1b, 1c, 1d & 2, 2a, 2b, 2c, 2d).
Pressures and hourly consumption:
Appliance gas supplying can be switched (table 1).
Table 1
PRESSURE
6’’ WC
10’’ WC
GAS
Natural gas
L.P. Propane
Burner
Btu / hr
Btu / hr
Oven
13500
11000
Ultra fast (UF) Tradition (T)
18000
17000
Intensive (I)
15000
13000
Fast (F)
11000
10000
Semi fast (SF)
5000
5000
UF / T
SF
F
F
I

Page 7 of 42–US –Date de mise à jour: 12/03/10 - Indice: 14
Fourneau
«Cluny»
INSTALLER'S MANUAL
Appliances must be installed in a workmanlike manner in
accordance with the instructions in this manual and locally
applicable regulations.
This manual will be handed over to the user after
installation.

Page 8 of 42–US –Date de mise à jour: 12/03/10 - Indice: 14

INSTALLER’S MANUAL
CLUNY
Page 9 of 42–US –
Cabinet preparation (CLUNY):
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
mm
914
330
457
930
150
230
175
395
20
60
765
865
1005
51
660
’’
36
13
18
36 5/8
5 15/16
9 1/16
6 7/8
15 9/16
13/16
2 3/8
30 1/8
34 1/16
39 9/16
2
26
Cabinet preparation (CLUNY 1400 –Left):
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
mm
914
330
457
930
150
230
175
395
20
60
765
865
1410
51
660
’’
36
13
18
36 5/8
5 15/16
9 1/16
6 7/8
15 9/16
13/16
2 3/8
30 1/8
34 1/16
55 1/2
2
26
Fig. 3 b
Fig. 3 a
B
D
K
G
I
C
J
E
F
H
L
M
N
N
O
A
Gas connection
on range
Electrical connection
on range
Place electrical and gas
stub out in this area
B
D
K
G
I
C
J
E
F
H
L
M
N
N
O
A
Gas connection
on range
Electrical connection
on range
Place electrical and gas
stub out in this area

INSTALLER’S MANUAL
CLUNY
Page 10 of 42–US –

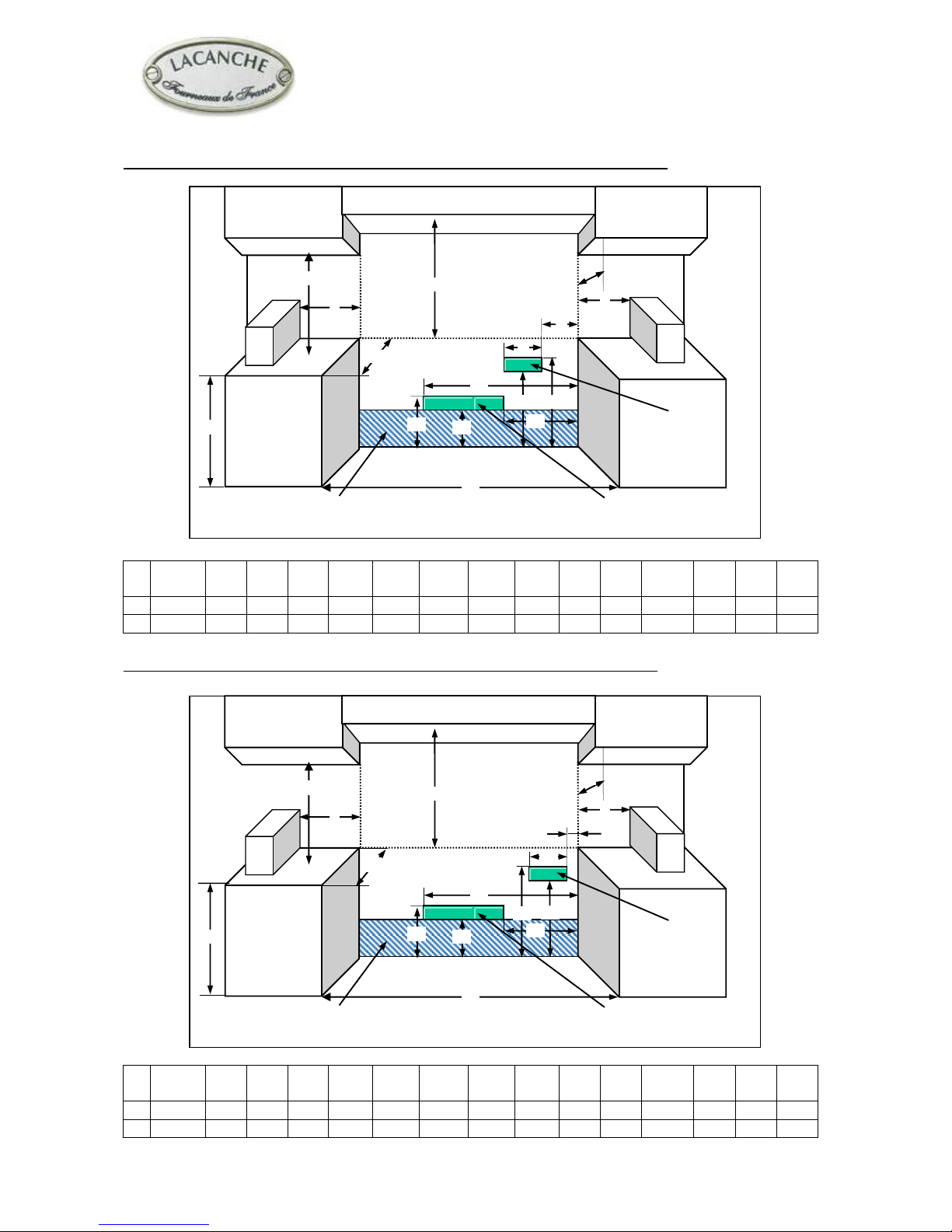

Cabinet preparation (CLUNY 1400 –Right- without right gas cooktop option):
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
mm
914
330
457
930
550
660
175
395
420
60
765
865
1410
51
660
’’
36
13
18
36 5/8
2111/16
26
6 7/8
15 9/16
165/16
2 3/8
30 1/8
34 1/16
55 1/2
2
26
Cabinet preparation (CLUNY 1400 –Right –with right gas cooktop option):
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
mm
914
330
457
930
550
660
175
395
20
60
765
865
1410
51
660
’’
36
13
18
36 5/8
2111/16
26
6 7/8
15 9/16
13/16
2 3/8
30 1/8
34 1/16
55 1/2
2
26
B
D
K
G
I
C
J
E
F
H
L
M
N
N
O
A
Gas connection
on range
Electrical connection
on range
Place electrical and gas
stub out in this area
B
D
K
G
I
C
J
E
F
H
L
M
N
N
O
A
Electrical connection
on range
Place electrical and gas
stub out in this area
Gas connection
on range
Fig. 3 c

INSTALLER’S MANUAL
CLUNY
Page 11 of 42–US –
The range is a free standing unit. If the unit is to be placed next to cabinets, the clearances shown in Figure 3,
3a, 3b, 3c & 3d are required.
The range cooktop surface must be no lower than the adjacent base cabinet countertop surface.
Min clearances to combustibles:
0’’ (0 mm) from rear (with spacer installed).
0’’ (0 mm) from sides below countertop surface height.
2’’ (51 mm) from sides above countertop surface height.
Cabinets 13’’ (330 mm) deep may be installed above the range at least 30’’ above the plane of the
cooking surface.
Use range only with factory supplied legs.

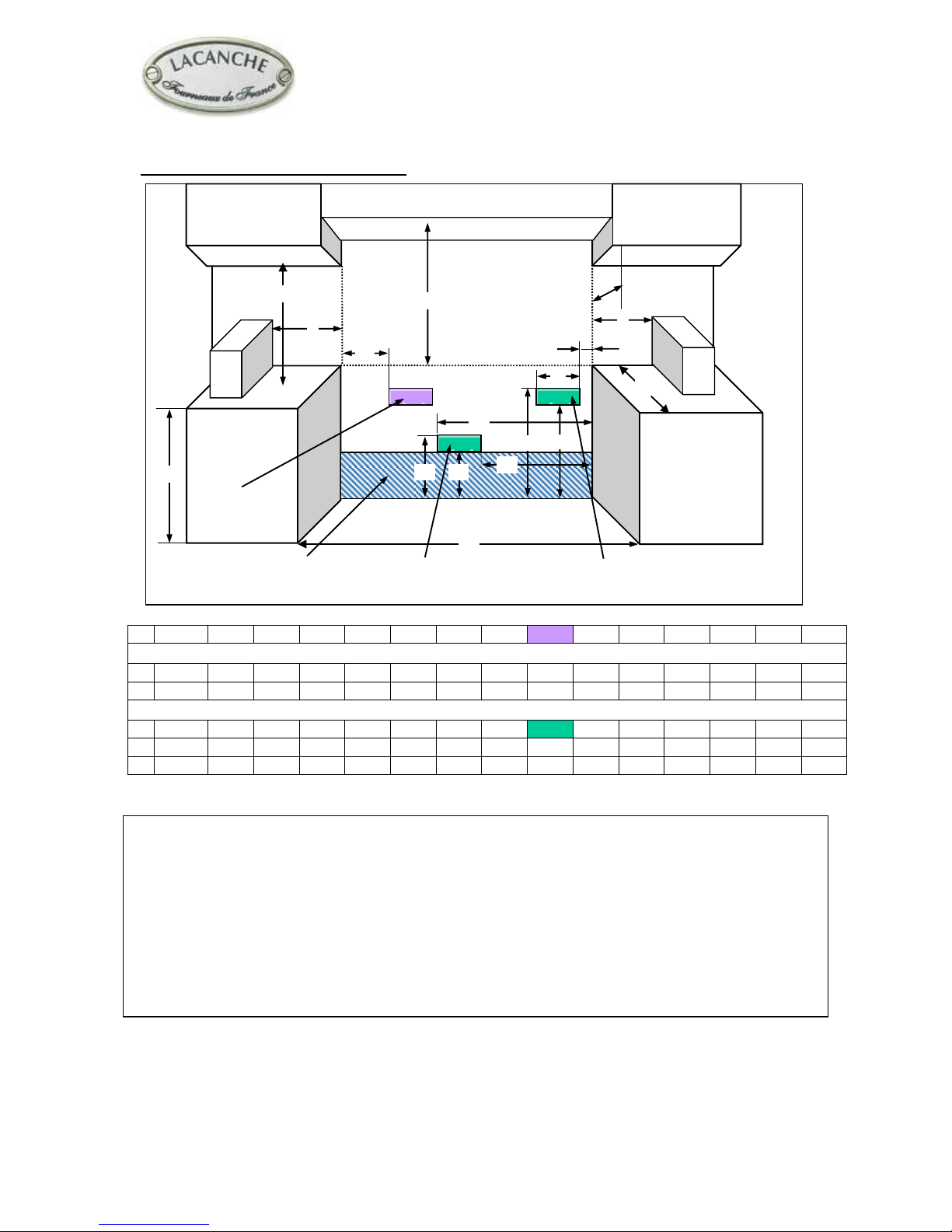

Cabinet preparation (CLUNY 1800):
A
B
C
D
E
F
G
H
I (a)
J
K
L
M
N
O
Without right gas cooktop option
mm
914
330
457
930
550
660
175
395
420
60
765
865
1810
51
660
’’
36
13
18
36 5/8
2111/16
26
6 7/8
15 9/16
165/16
2 3/8
30 1/8
34 1/16
71 1/4
2
26
With right gas cooktop option
A
B
C
D
E
F
G
H
I (b)
J
K
L
M
N
O
mm
914
330
457
930
550
660
175
395
20
60
765
865
1810
51
660
’’
36
13
18
36 5/8
2111/16
26
6 7/8
15 9/16
13/16
2 3/8
30 1/8
34 1/16
71 1/4
2
26
Fig. 3 d
B
A
K
G
I b
C
J
E
F
H
L
M
N
N
I a
O
D
Gas connection
on range
Electrical connection
on range
Place electrical and gas
stub out in this area
Gas connection
on range

INSTALLER’S MANUAL
CLUNY
Page 12 of 42–US –

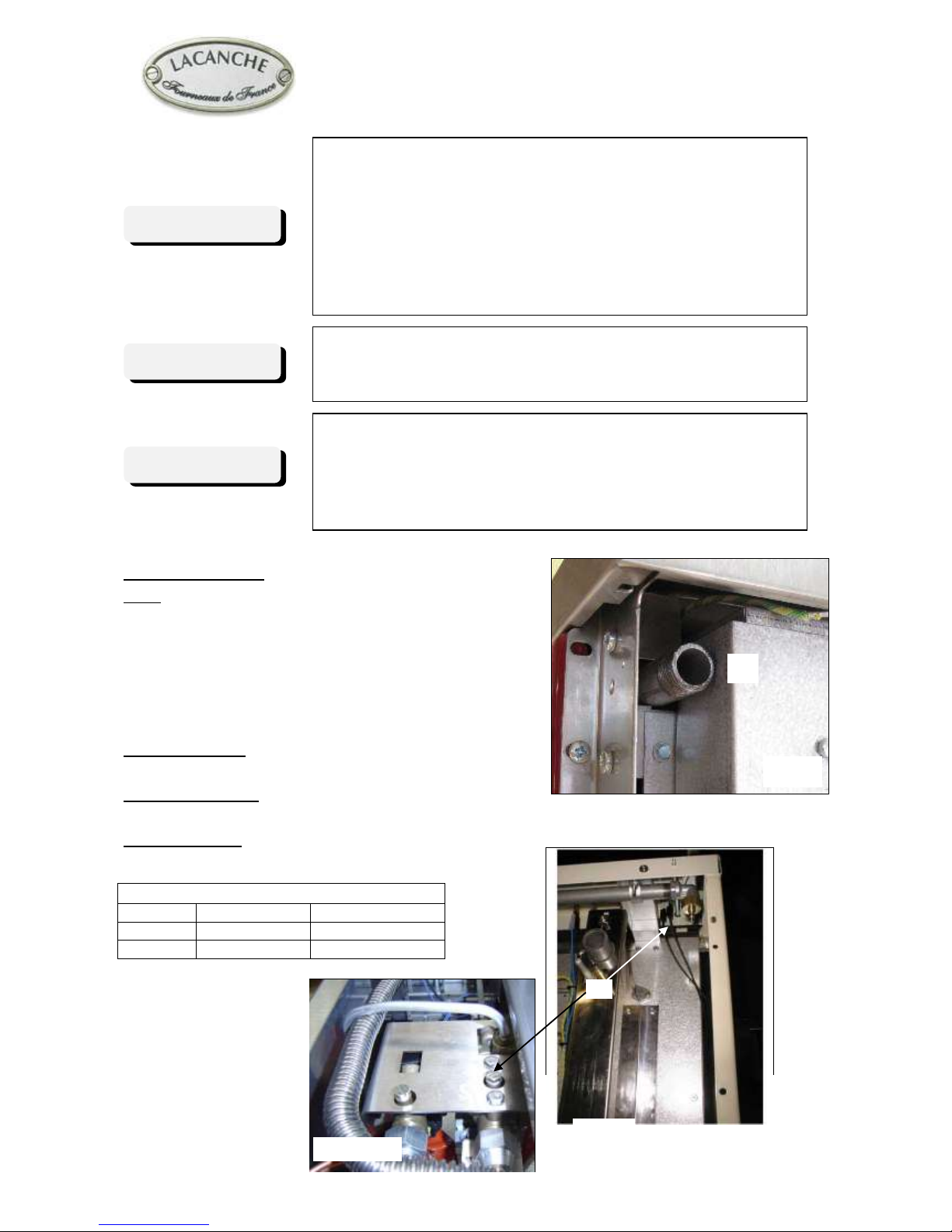

Before connection:
Check:
- Pipework is perfectly clean in order to prevent the injectors
becoming blocked and malfunctioning of the magnetic heads.
- The gas for which the appliance was set up: Check rating plate and
markings.
- Cross-sectional area of gas supply pipework is compatible with the
appliance’s thermal output.
- Provide adequate air supplyduring use of the appliance.

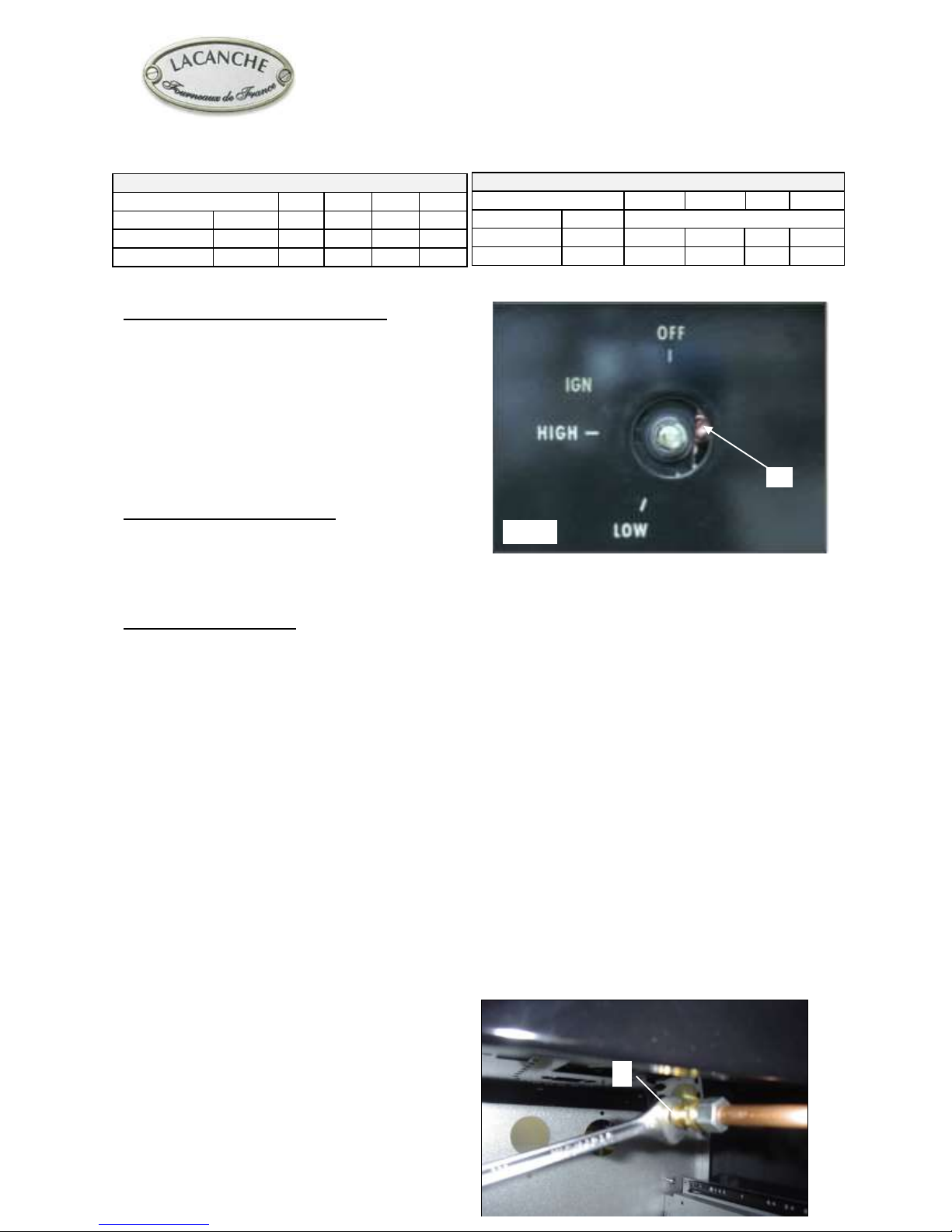

Gas connection:
Female coupling Ø 15/21, 1/2” ID NPT on A (Figure 4).
After connection:
Check the manifold pressure on pressure connection Ø 15/21, 1/8” NPT on B (Figure 5).
Change of gas:
The appliance is designed to operate with the gases in Table 2.
Table 2
Country
GAS
Pressure (Pn)
U.S.
Natural gas
6’’ WC
U.S.
L.P. propane
10’’ WC
Fig. 12
B
With gas oven
IMPORTANT
Manual shut-off valve should be installed in an accessible
location in the gas piping external to the appliance for the
purpose of turning on or shutting off gas to the appliance.
A location at the back of an adjacent cabinet is
recommended.
THE APPLIANCE MUST BE INSTALLED IN
ACCORDANCE WITH THE LOCAL CODES OR
National Fuel Gas Code, ANSI Z223.1 or latest edition.
IMPORTANT
Recommended to be installed under an exhaust hood.
In the commonwealth of Massachusetts, the appliance must
be installed by a licensed plumber or gas fitter.
Do not install this unit near combustible walls, partitions,
pieces of furniture or decorative material unless these are
covered by adequate material of the non-combustible type.
Making sure the resulting installation meets fire
regulations.
IMPORTANT
Fig. 4
A

INSTALLER’S MANUAL
CLUNY
Page 13 of 42–US –
Unscrew the screws Cnear the burner openings (Figures 6 and 7). Pull and raise the top after having loosened the 2
screws D(Fig. 8, CHAGNY and 9, CHAGNY 1400-1800), wedge the cooking surface.
A pressure regulator (fig. 10) is located in the right rear corner under the hob, to gain access to the pressure regulator,
remove the top.
Convertible regulator
The reversible cap is labeled either « LP » or « Nat » and is easily recognized by the raised center screw slot (for
natural) or the center depth (for LP).
To change LP to Natural or vice versa, the seal screw in the regulator lid is unscrewed, reversed and reinstalled to
convert from one setting to another (Figure 12).
Fig. 10
Fig. 11
LP Setting
Fig. 12
Figure 7
C
C
Fig. 8
Fig. 9
D
Nat Setting

INSTALLER’S MANUAL
CLUNY
Page 14 of 42–US –
In case of use with a gas other than that for which the appliance was initially set up, it is crucial to replace the orifices
and modify the adjustments as defined below.
TOP BURNERS
Orifice
Lift the air ring E. Replace the injectors Fin accordance with
Table 3 and Figure 13 (Ø in 1/100 mm).
The side burner bodies are kept in place by a transversal bar
(H, fig. 15). In order to take them out, unscrew screws I(fig.
16) then G(fig. 14).
Note: When one or more nozzles are changed, the sealing
ring should be changed as well (see gas circuit diagram).
Adjustment of primary air
Put body & cap back on their respective burners, set air ring Eby
sliding it from bottom to top (fig. 13, Table 4).
Note: Normal flames are bluish green except for natural gas flames
which are violet.
Clé de 12
Wrench 12 (15/32)
Fig. 13
F
E
Clé de 3
Wrench 3 (1/8)
Fig. 14
G
I
Fig. 16
Clé de 7
Wrench 12 (15/32)
H
Fig. 15

INSTALLER’S MANUAL
CLUNY
Page 15 of 42–US –
L
Table 3
Top burners
5000
11000
15000
18000
GAS
Pressure
Natural gas
6" WC
0.90
1.30
1.45
1.70
L.P. propane
10" WC
0.65
0.90
1.05
1.20

Low Flame Adjustment (Figure 17):
After connection or change of gas, it is crucial to modify
this adjustment.
- Remove the control knob. Light the burner, adjust to
minimum setting, then use a small screwdriver to set the
adjusting screw J.
Note: Flame is reduced to ¼ of its size in the minimum
setting, the burner must remain lit when changing from
maximum setting to minimum setting.
Refitting the cooking surface:
When refitting the cooking surface, it is vital to tighten
fastening screws (figures 6 and 7). Failure to do so can
cause distortion of the cooking surface.
OVEN BURNERS:
Dismounting oven burner
Remove the oven base (Fig.18).
CAUTION: when refitting, place the base underneath the groove on the fascia (fig.19).
Unscrew the screw K holding the burner (Fig.20).
Remove the tray.
Unscrew the screw L (Fig.21).
Push the burner to the bottom of the oven and lift to remove it.






















Table 4
Top burners
5000
11000
15000
18000
GAS
Pressure
Opening / inches
Natural gas
6" WC
2,5 / 1/8
2,5 / 1/8
max
7 / 1/4
L.P. propane
10" WC
3,5 / 1/8
max
max
max
Fig. 17
J

INSTALLER’S MANUAL
CLUNY
Page 16 of 42–US –
Fig. 21


Oven orifice:
Remove the base, CAUTION: when refitting place the base underneath the groove on the fascia (Figures 18 and 19).
Remove the oven burner.
Disconnect the connection piece, unscrew screw Mon the orifice
holder (Figure 22). Replace the orifice (Table 5).

Pilot burner orifice:
Change the pilot burner orifice
Gas pilot LP: 65103032
Gas pilot NG: 65103031


Adjustment of oven primary airflow:
Remove the base, unscrew the screw Kholding the burner (Fig.20).
Adjust the air ring (Table 6, Figure 23).
Table 6
Opening in mm / inches
GAS
Pressure
Oven
Natural Gas
6" WC
4 / 3/16
L.P. propane
10" WC
6 / 1/4


Adjusting pilot burner air supply
Turn ring Pto fully open for Butane/Propane, to half open for natural gas (Figures 24)
Table 5
Ø
GAS
Pressure
Gas oven
Pilot burner
Natural gas
6" WC
1.40
0.45
L.P. propane
10" WC
0.95
0.25
Fig. 19
Fig. 18

Fig. 20
K
Fig. 23
Air Adjustment
Fig. 24
P
Fig. 22
L

INSTALLER’S MANUAL
CLUNY
Page 17 of 42–US –

ELECTRICITY
It is hazardous to put the appliance into service without connecting it to suitable ground.
No liability can be accepted for accidents resulting from non-compliance with this requirement or incorrect grounding.
Connect the equipotential bonding terminal (N, Figure 24).
Before connection, check that the:
Mains voltage is compatible with the appliance’s rated voltage and thermal output.

Connection:
-Use a 4-wire rated for 30 A 125 / 250 VAC, type SRD, SRDT, S,
SO or ST.
-Where local Codes do not permit grounding through neutral, use a
4-wire power supply cord or “pigtail” kit. Cord must be agency
approved for use with household ranges.
-Remove access door O(Figure.25, gas oven range) or P(Figure 26,
gas and electric range).
-Connect to terminal block in accordance with figure 28.
-Secure the cable by means of cable clamp, item Q (Figure 27).
-Refit access door
THE APPLIANCE WHEN INSTALLED, MUST BE
ELECTRICALLY GROUNDED IN ACCORDANCE
WITH THE LOCAL CODES OR The National Electrical
Code, ANSI/NFPA 70-1996 or latest edition.
ALL WORK ON OR REPAIR OF AN APPLIANCE
MUST BE CARRIED OUT BY A QUALIFIED
INSTALLER.
IMPORTANT
Fig. 27
Q
Fig. 26
P
O
Fig. 25

INSTALLER’S MANUAL
CLUNY
Page 18 of 42–US –
BACK SPACER VENT FITTING:
It is mandatory to mount the back spacer vent Rto the wall supplied with the appliance.
Screw the 2 brackets Sto the wall according to figures 29, 30 and 31 (screws not supplied), then fit the back spacer
vent onto these brackets by using the washers and nuts supplied with the range.
STABILITY DEVICE INSTALLATION INSTRUCTIONS:
Screw the anti-tip bracket Tto the wall according to figures 30, 31 and 32 (screws not supplied).
Remove the left-hand drawer, push the range against the wall until the anti-tip bracket screw goes through the back
of the range. Through the drawer gap, screw the nut and its washer on the anti-tip bracket screw.
Fig. 28
Figure 30
S
R

INSTALLER’S MANUAL
CLUNY
Page 19 of 42–US –
SERVICE INSTRUCTIONS:
- Lubricating gas valve.
If the gas taps tends to stick slightly, you may follow this procedure:
1 - Shut off the valve and / or the main electrical supply of the unit.
2 - Take out the knob corresponding to the gas valve to be greased.
3 - Unscrew the head from the body of the burner valve.
4 - Grease the tap shaft (High temperature lubricant, for example: SILICAL GEL ™ BARBAHL).
Caution! Any excess grease should be removed.
Reverse operation 3 to 1 (in that order) to put
valve and knob back on.
- Limiting thermostat:
To access internal components. Lift and secure
top.
Press pushbutton item U(Figure 34) in order to
reset the limiting thermostat.
Note: ALWAYS IDENTIFY the reason why
the thermostat tripped.
Fig. 32
U

INSTALLER’S MANUAL
CLUNY
Page 20 of 42–US –
GAS CIRCUIT DIAGRAMME
Designation
Part number
Burner cap 1,5 kW
65.330004
Burner cap 3,0 W
65.330005
Burner cap 4,0 kW
65.330006
Burner cap 5,0 kW
65.330007
Burner bowl 1,5 kW
65.640008
Burner bowl 3,0 kW
65.640004
Burner bowl 4,0 kW
65.640005
Burner bowl 5,0 kW
65.640006
Air Shuttler
65.080005
Mixing tube (1,5-3,0-4,0 & 5,0 kW)
65.064007
Injector holder
65.033018
Sealing ring
65.430007
Injector Dia. 65
65.14964
Injector Dia. 90
65.14969
Injector Dia. 95
65.14970
Injector Dia. 105
65.52863
Injector Dia. 120
65.14973
Injector Dia. 130
65.14974
Injector Dia. 140
65.14975
Injector Dia. 145
65.27781
Injector Dia. 170
65.30546
Brass knob (Gas model)
65.044013
Chrome knob (Gas model)
65.044014
Brass knob (Elec. model)
65.044015
Chrome knob (Elec. model)
65.044016
Regulator
65.103023
All oven burner
73.062010
Injector holder
65.51764
Oven burner
65.080012
Screw
65.51085
Reducing fitting
65.129099
Thermocouple
65.103024
Pilot burner LP
65.103032
Pilot burner NG
65.103031
Oven electrode
65.103004
Switch
65.28979
Spiggott rod
59.907379
Oven thermostat
65.53670
Top burner valve
65.103029
Oven burner valve
65.103033
Whole extension shaft for valve "PEL" range Westahl
90000543
Valve shaft extension for "PEL"
59907379
Cardan coupling valve
90000853
