Cookology CMDW5WH User manual

Model : CMDW5WH
Please read this manual carefully
before using the dishwasher and
Keep this manual for future reference.
Please register the warranty for this product on www.Cookology.com

QUICK USER GUIDE
4
1Discard scraps
Scrape large food particles off and
remove any foreign objects.
2Load dishes carefully
For better washing result, place the
dishes properly avoiding any contact
or overlapping between them.
3Check spray arm
Ensure there are no items blocking
the spray arm from rotating.
Add detergent
65 Set up program and function
Chose the proper program and
function.
Start washing
Inside Outside

CONTENTS
SAFETY INFORMATION
4
INSTALLATION INSTRUCTION
28
28
29
29
30
31
Product Dimensions
Electrical Requirements
Install the suckers
Inlet Pipe Connected
Drain Pipe Connected
About Power Connection
PRODUCT DESCRIPTION
9
Part Names
Control Panel
9
USING YOUR DISHWASHER
Loading The Salt Into The Softener
Adjusting Salt Consumption
Preparing And Loading Dishes
Basket Use Tips
Adding Detergent
16
14
OPERATING THE APPLIANCE
Wash Cycle Table
Starting A Cycle Wash
Changing The Program Once Started
Adding Items While A Wash Is In Progress
21
21
22
22
23
MAINTENANCE AND CLEANING
External Care
Internal Care
Caring For The Dishwasher
24
24
24
27
TROUBLESHOOTING TIPS
33
Error Codes
11
13
13
36
17
19
32

SAFETY INSTRUCTIONS
WARNING
READ ALL INSTRUCTIONS BEFORE USE
This appliance is intended to be used in household
and similar applications such as:
- staff kitchen areas in shops, offices and other
working environments;
- farm houses;
4
It is your responsibility to use caution when installing
maintaining, and operating your dishwasher.
We will not be liable for any damage resulting from
improper use.
This is the safety alert symbol. This symbol alerts you to
potential hazards that can result in property damage or
serious bodily harm, even death.
The safety alert symbol will be followed by either the
word “WARNING” or “CAUTION” then an important
safety message. These words mean:
,
Indicates the possibility of serious
bodily harm or death.
Indicates the possibility of injury or
damage to property.
WARNING
CAUTION
Basic Safety Precautions

5
- by clients in hotels, motels and other residential type
environments;
- bed and breakfast type environments.
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge providing they have been given supervision
or instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children should not play with the appliance. Cleaning
and user maintenance should not be done by children
without supervision.(For EN60335-1)
This appliance is not intended for use by persons
(including children ) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction regarding the use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the
appliance. (For IEC60335-1 )
Packaging material could be dangerous for children!
This appliance is for indoor household use only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Unplug before cleaning and performing maintenance
on the appliance.

6
Do not put downward force on either opened
drawer prior to the dishwasher being fully installed.
It will be unstable and may tip forward.
Do not use the dishwasher before it is fully installed
as per the Installation Instructions. It will be
unstable and be likely to tip forward.
Do not operate the dishwasher without all the
enclosures fixed in place.
The sharp edges of knives and utensils with sharp
points should not face upwards.
Some dishwasher detergents are strongly alkaline.
They can be extremely dangerous if swallowed.
Avoid contact with the skin and eyes and keep
children away from the dishwasher when the door
is open.
Check that the detergent receptacle which in the
inner door is empty after completion of the wash
cycle.
The door should not be left open position since this
could present a tripping hazard.
When emptying the dishwasher, check that all the
detergent has been dissolved.
The inlet water hose supplied must be used. Do not
reuse a used or old hose.
The power cable must be safely routed. If it is ever
damaged, it must be replaced with a similar item by
a registered electrician.

An earthed 3 pin socket must be used. Consult a
registered electrician if there is doubt regarding the
earth connection.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with
national wiring regulations.
Knives and other utensils with sharp points must be
loaded in the basket with their points down or
placed in a horizontal position.
How to fixed the appliance to its support please
refer to detail information of installation
7

8
Product Disposal
The packaging can be recycled.
If the product is to be disposed, do this
responsibly at your local Council Waste
Depot.
DISPOSAL: Do not dispose this product
as unsorted municipal waste. Collection of such
waste separately for special treatment is
necessary.

PRODUCT DESCRIPTION
To get the best performance from your dishwasher, read all operating instructions
before using it for the first time.
IMPORTANT:
Part Names
9
Front
Back
Lower spray arms
Filter
Detergent
adding receptacle
Upper spray arm
Top of inner tank
Middle spray arm
Drain pipe
interface
Inlet pipe interface
Power cable
Water overflow hole not air outlet hole.,

List of accessories
Screws ( X2 )
Drain-pipe ( X1 ) Inlet pipe ( X1 )
Suckers ( X2 )
10
Upper basket Lower basket
Be sure to install the suckers before use
to avoid potential dangerous!
WANING

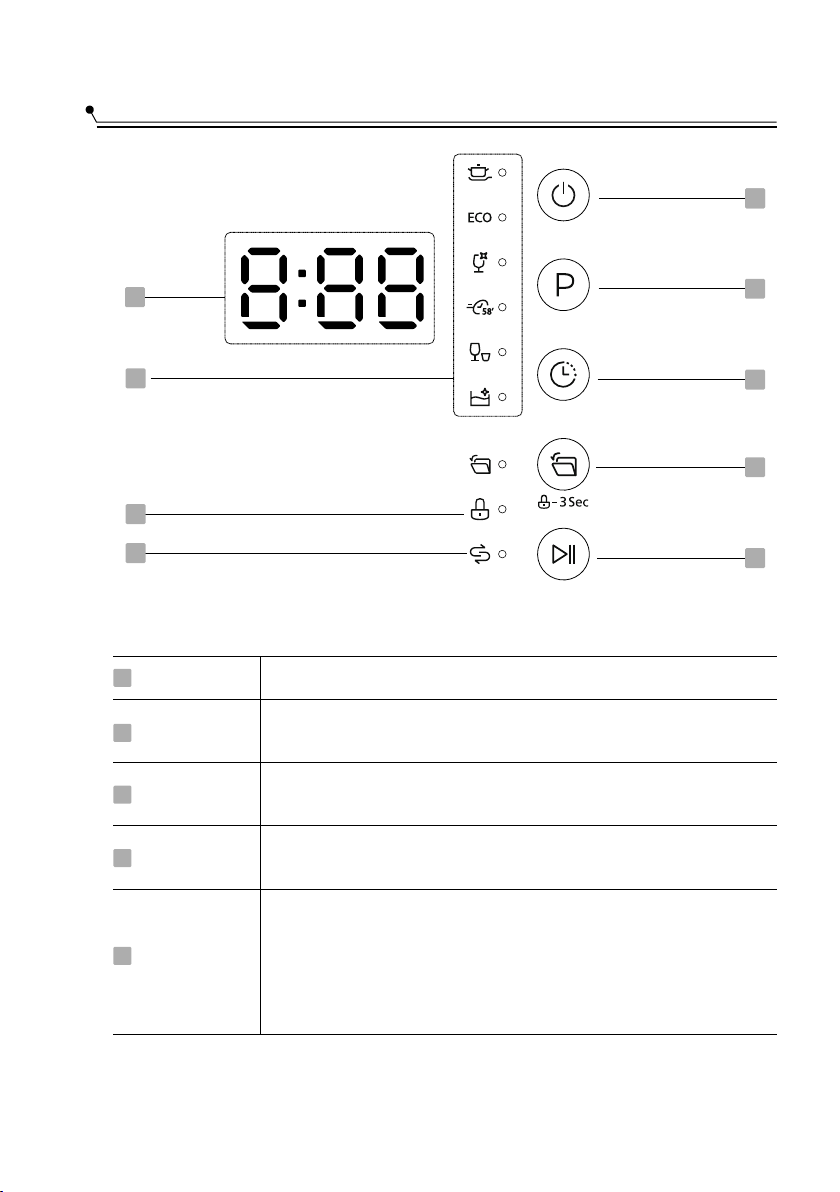

Control Panel
11
Power
1Press this button to turn on your dishwasher.
Press these buttons to select the appropriate washing program,
the selected program icon will light up.
2Program
Delay start
3Press the button to increase the delay start time. Delay a cycle
for up to 24 hours in one-hour increments.
To start the selected washing program or pause it when the
dishwasher is operating.
When the dishwasher is running, if you want to open the door,
please press the “Start/Pause” button first and wait a few
seconds, then open the door slowly.
5Start/Pause
Auto open
4The dishwasher door opens automatically at the end of the
program, which improves the drying performance.
Operation (Button)
1
2
3
4
1
5
8
7
6
9

12
Child lock
7
This option allows you to lock the buttons on the control panel,
so children cannot accidently start the dishwasher by pressing
the buttons on the panel. Only the Power button remains active.
To lock or unlock the buttons on the control panel, press and
hold the auto open button for 3 seconds, corresponding
indicator will be lit.
8
9Screen Displays the remaining time and delay time, error codes etc.
Program
indicator
Intensive
For the heaviest soiled crockery, and normally soiled pots,
pans, dishes etc. With dried-on food.
58min Wash
Self-cleaning
Eco
This is standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program in
terms of its combined energy and water consumption for
that type of tableware.
Glass
For lightly soiled crockery and glass.
For normally soiled loads that need quick wash.
Rapid
A shorter wash for lightly soiled loads that do not need
drying.
A shorter wash for lightly soiled loads that do not need
drying.
Salt
Display
Warning
indicator
6If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.

13
If your model have no water softener, you may skip this section.
Always use salt intended for use with dishwasher. The salt container is located
beneath the basket and should be filled as follows:
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of
damages caused by the use of unsuitable salt the manufacturer does
not give any warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have
been spilled, remaining on the bottom of the machine for any period
of time, which may cause corrosion.

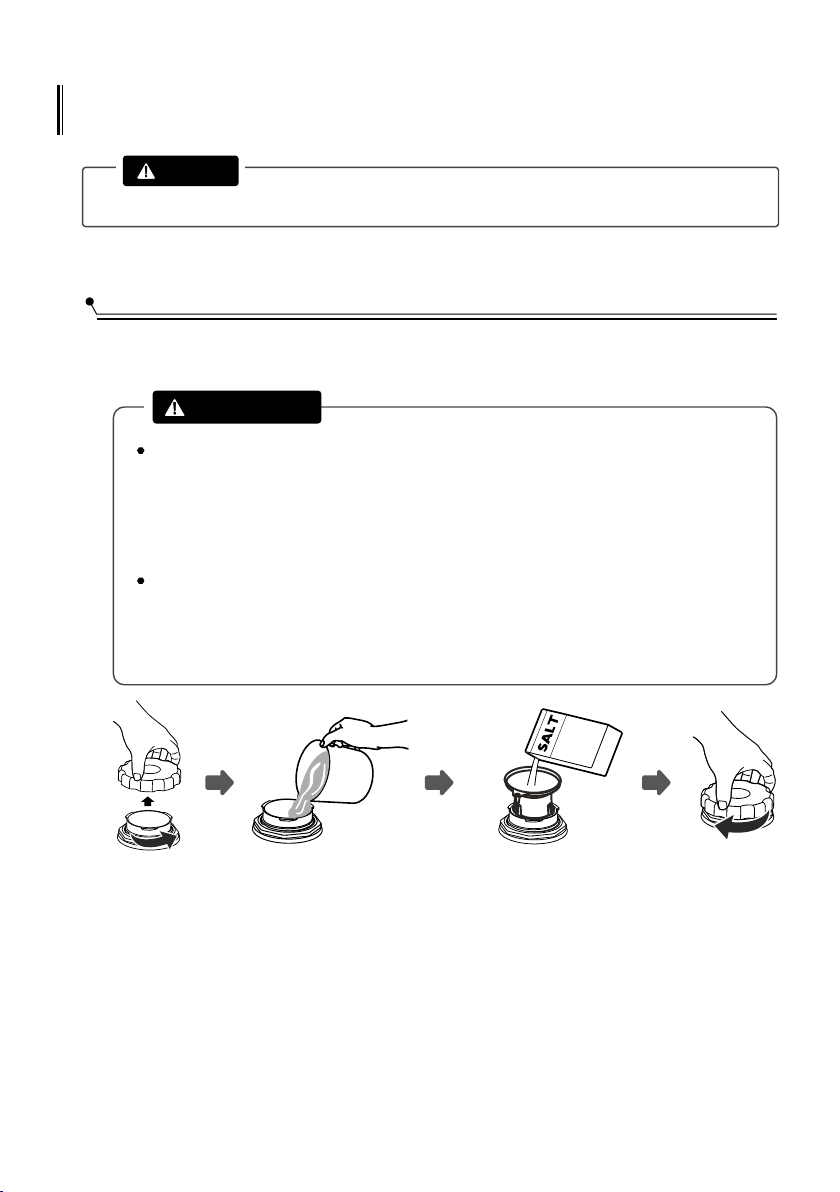

A. Remove the basket and then unscrew and remove the cap from the salt container.
B. Before first wash, add full water in the salt container of your machine.
C. Place the end of the funnel (supplied) into the hole and introduce full salt in the
container. It is normal for a small amount of water to come out of the salt container.
D. After filling the container, screw the cap tightly back clockwise.
USING YOUR DISHWASHER
Loading The Salt Into The Softener
NOTE
WANING

Step 2: select a certain level of salt consumption
Press the Program button to select the proper set according to your local
environment, the sets will change in the following sequence:
H4->H5->H6->H1->H2->H3->H4.
Step 3: Exit the status of salt adjustment
Without any operation in five seconds, the machine will exit from set
mode, the machine is into standby status. Turn off the machine also can
exist from the mode.
Step 1: Enter the status of salt adjustment
Close the door, within 60 seconds after power on, press Program button
and hold for 5 seconds, the machine will enter setting mode.
The salt container must only be refilled when the salt warning light in the
control panel comes on. Depending on how fully the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If there is no salt warning light in the control panel (For some Models), you
can judge when to load the salt into the softener by the cycles that the
dishwasher had run.
If there are spills of the salt, a soak or a rapid program should be run to
remove the excess salt.
Please follow the steps below for adjustment in salt consumption.
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days
after the salt container has been filled with salt.
F. Immediately after filling the salt into the salt container, a washing programme
should be started (Suggest choose rapid program). Otherwise filter system, pump
or other important parts of the machine may be damaged by salty water. It is out
of warranty.
Adjusting Salt Consumption
14
NOTE

There are 6 levels of salt consumption in all. It is recommended to select the level
according to below table:
1) German degree of measurement for the water hardness
2) Millimol, international unit for water hardness
3) Factory setting
4) Regeneration of water softener. The water softener must be regeneration
regularly so as to maintain the softening function. During the every
regeneration, an additional 0.2 litres of water is required, energy
consumption is increased by 0.01kWh and the programme is extended by
4 minutes.
Contact your local water board for information on the hardness of your
water supply.
H1
H2
H3
H4
H5
H6
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
WATER HARDNESS
dH Mmol/l
Regeneration occurs
every X programme
sequence 4)
NO
10
5
3
2
1
15
3)
1) 2)
Setting on
the water
softener
0
4
8
13
20
40
Salt consumption(gram/cycle)

Preparing And Loading Dishes
Consider buying utensils which are identified as dishwasher-proof.
For particular items, select a program with the lowest possible temperature.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
For washing the following cutlery/dishes
Are not suitable
Some types of glasses can become dull after a large number of washes
Silver and aluminum parts have a tendency to discolor during washing
Glazed patterns may fade if machine washed frequently
Are of limited suitability
Recommendations for loading the dishwasher
Scrape off any large amounts of leftover food. Soften remnants of burnt food in
pans. It is not necessary to rinse the dishes under running water.
For best performance of the dishwasher, follow these loading guidelines.
Place objects in the dishwasher in following way:
Items such as cups, glasses, pots/pans, etc. are faced downwards.
Curved items, or ones with recesses, should be loaded on a slant so that water can
run off.
All utensils are stacked securely and can not tip over.
Be sure that no wash items protrude through the basket base where they will likely
foul the spray arm.
Load hollow items such as cups, glasses, pans etc. With the opening facing
downwards so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
16

To avoid damage, glasses should not touch one another.
Please do not overload your dishwasher. This is important for good results and for
reasonable consumption of energy.
NOTE:
Very small items should not be washed in the dishwasher as they could easily fall
through the basket.
Items will be hot! To prevent damage, do not take glass and
cutlery out of the dishwasher for around 15 minutes after the
program has ended.
CAUTION
Basket Use Tips

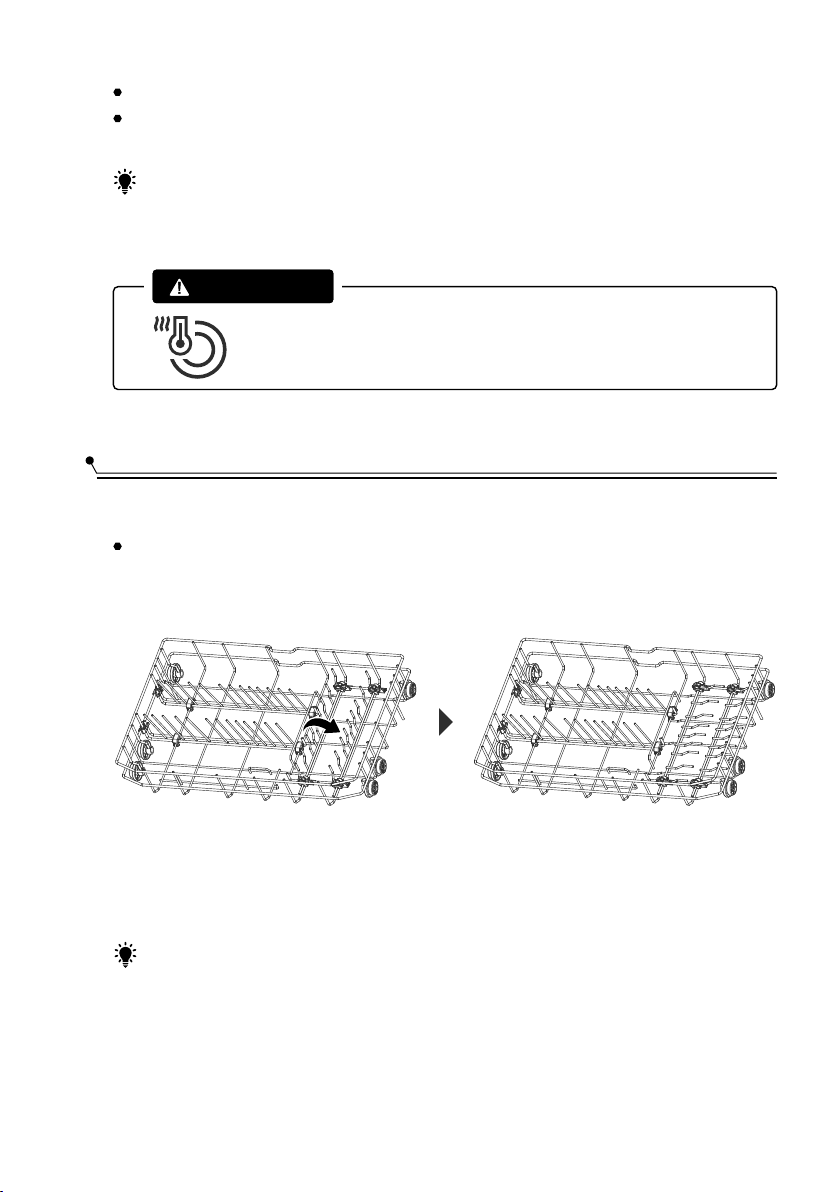

Folding down the pins
The spacing between the pins can be increased by folding them down.
This will help the loading of large bowls and deep pot and pans.
Loading the dishwasher

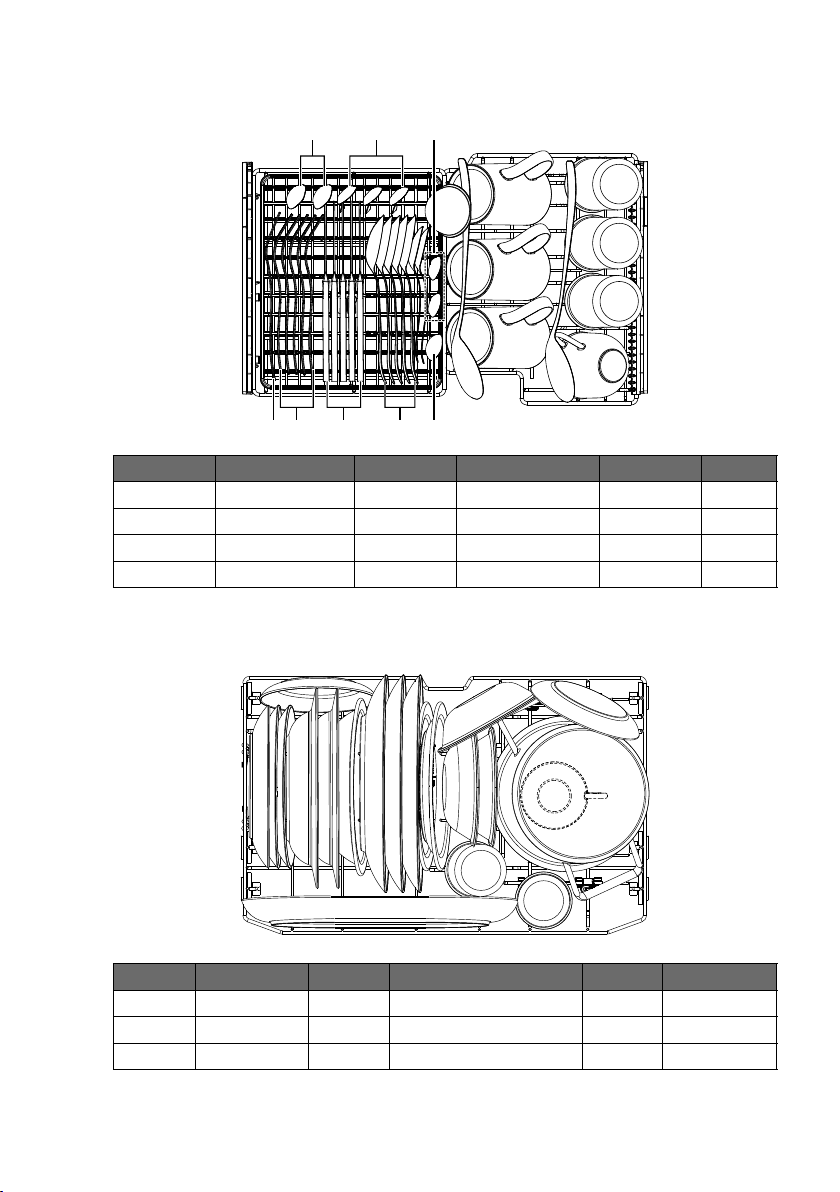

The loading pattern in the illustration is recommended for the design of basket.
It is the pattern used for the Standards Wash Test.
NOTE:
Cups and glasses face downwards.
Plates face the back of each other, as do side plates, soup plates and saucers.
17

18
Lower basket
Upper basket
Dessert spoon
Tea spoon
Gravy ladle
Serving fork
Number Item
1
2
3
4
Number Item
Fork
Knife
Soup spoon
Serving spoon
5
6
7
8
Number Item
9
10
11
Mug
Glass
Cup
Small pot
Saucer
Dessert bowl
ItemNumber
12
13
14
Item
Melamine dessert plate
Dinner plate
Melamine bowl
Number
15
16
17
Number
18
19
20
Item
Soup plate
Dessert plate
Oval platter
9
8
10
11
3
1 2
1
6 7
11
54
2
11
1313
14 1313
1919 1818 1717 1616 1515 1414
20
10
10
12

Only use detergent specifically for
dishwashers.
Never use any other detergents. This will
damage the appliance.
Adding Detergent
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of
the reach of children.
WANING
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
Detergent tablets of different brands dissolve at different speeds. For this reason
some detergent tablets cannot dissolve and develop their full cleaning power during
short programs. Therefore please use long programs when using detergent tablets,
to ensure the complete removal of detergent residuals.
Concentrated Detergent
Detergent Tablets
The detergent must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent
then conventional dishwasher. Generally, only one tablespoon of detergent is
needed for a normal wash load. More heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher, otherwise it could
get damp and will not dissolve properly.
Detergent
19

Adding detergent
20
The palce to add the detergent
