Cookology MCDW2WH User manual

MCDW2WH

or
QUICK USER GUIDE
Please read the corresponding content on the instruction manual for detailed
operating method.

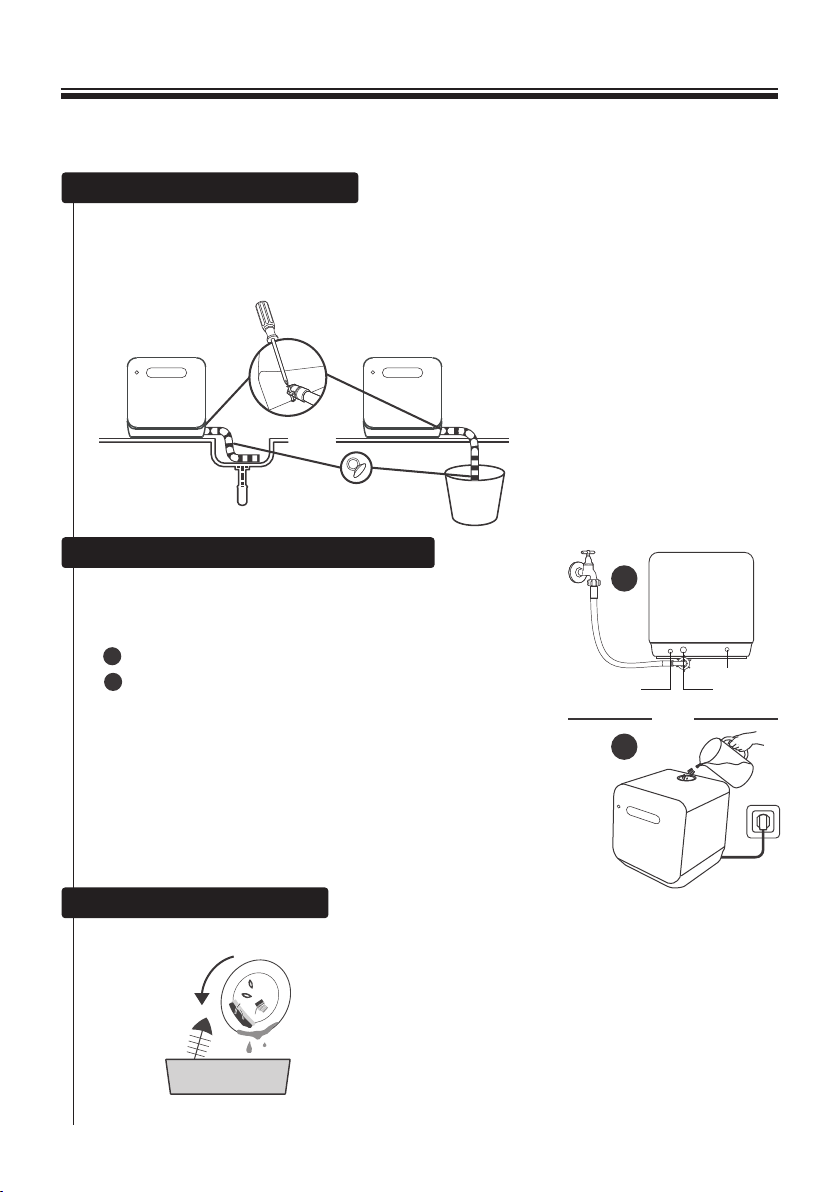

Connected to power supplies
Fix the drain pipe with the back pipe of the machine.The interface
is fitted with clamps and tightened with a screwdriver.
Fix the drain pipe with
suction cups
The connection of the drain pipe: Put end of the drain into a sink or bucket.
Add water into the dishwasher’s tank
Remove the larger residue
Please remove the large residue before placing.
The power supply is 220-240VAC 50 Hz
the specification of the socket is 10 A 250 VAC
There are two ways to add water into the tank:
or
2
1
2
Connect inlet hose to the tap;
Open the cap and add water into the dishwasher’s
tank manually
Note: Before adding water , you need to press power
button to turn on the dishwasher
Prompting of the tank that full of water:
When the tank is full of water, the machine will
beep fleetly for 3 seconds.
2
1
Water Inlet
Drain Pipe
Power cord

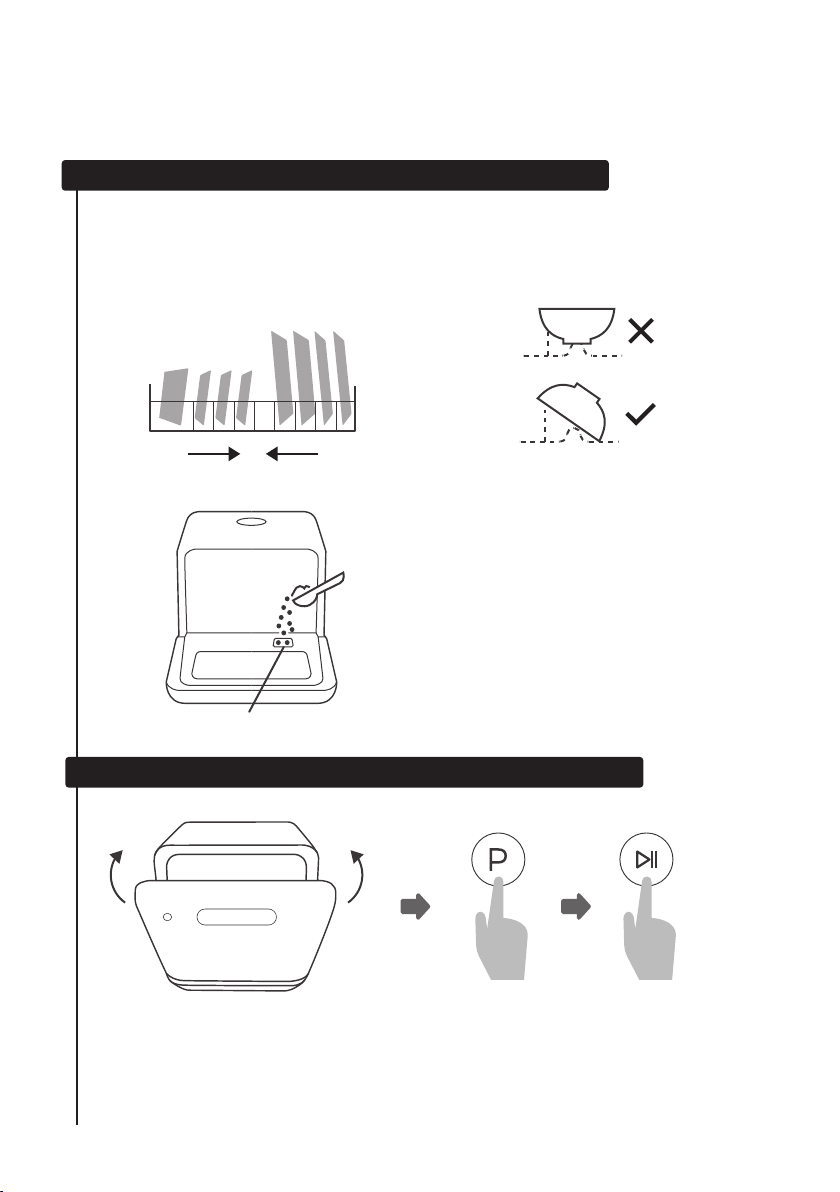

Close the door, select the program and start the dishwasher
Open the door, placing the dishes and adding detergent
Placing order by size and from the two sides to the middle. All cutlery
are suggested to be tilted to improve cleaning performance.
The arm will be blocked with the improper placement of the cutlery
and cleaning effect may not be ideal.
Left Right Should not place the cutlery in the right direction
or may affect the cleaning performance.
Try to leave the dirty face towards the spray arm.
The palce to add the detergent
3

CONTENTS
Please carefully read this manual before using the dishwasher, it will help you
use and maintain the dishwasher properly .
IMPORTANT SAFETY INSTRUCTIONS
5
INSTALLATION INSTRUCTION
28
Installation preparation
Positioning the Appliance
About Power Connection
Water Connection
Connection of drain hoses
29
30
30
28
31
34
TROUBLESHOOTING TIPS
Before calling for service
Error signals
Technical information
35
GETTING TO KNOW YOUR APPLIANCE
Dishwasher features
Control panel
10
10
11
USING YOUR DISHWASHER
Loading the salt into the softener
Adjusting Salt Consumption
Loading the dishwasher baskets
Filling the dispenser
13
12
12
14
18
20
21
21
PROGRAMMING THE DISHWASHER
Wash cycle table
Turning on the appliance
Change the program
Forget to add a dish?
At the end of the wash cycle
Forced drainage operation
23
22
MAINTENANCE AND CLEANING
Filter system
Caring for the dishwasher
24
24
25
20
31
23
4
28

IMPORTANT SAFETY INSTRUCTIONS
WANING
When using your dishwasher , follow the
precautions listed below:
This appliance is intended to be used in household and
similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
-farm houses;
-by clients in hotels, motels and other residential type
environments;
-bed and breakfast type environments.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall
not be made by children without supervision. (For
EN60335-1)
This appliance is not intended for use by persons
(including children )with reduced physical, sensory or
mental capabilities, or lack of
5

Earthing instructions
experienceand knowledge,unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
(For IEC60335-1)
This appliance is for indoor use only, for household use
only.
To protect against the risk of electrical shock, do not
immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintaining the
appliance .
Use a soft cloth moisten with mild soap, and then use a
dry cloth to wipe it again.
This appliance must be earthed. In the event of a
malfunction or breakdown, earthing will reduce the risk
of an electric shock by providing a path of least
resistance of electric current. This appliance is equipped
with a cord having an equipment-earthing conductor
and a earthing plug.
The plug must be plugged into an appropriate outlet
that is installed and earth ed in accordance with all local
codes and ordinances.
6

General use
Do not modify the plug provided with the appliance; If
it does not fit the outlet. Have a proper outlet installed
by a qualified electrician.
Improper connection of the equipment-earthing
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the appliance
is properly earthed.
Do not abuse, sit on, or stand on the door or dish rack of
the dishwasher.
Do not operate your dishwasher unless all enclosure panels
are properly in place.
Open the door very carefully if the dishwasher is operating,
there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door
when it is open. The appliance could tip forward.
When loading items to be washed:
1) Locate sharp items so that they are not likely to
damage the door seal;
2) Warning: Knives and other utensils with sharp
points must be loaded in the basket with their
points down or placed in a horizontal position.
Check that the detergent powder is empty after completion
of the wash cycle. 7

Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
without mark, check the manufacturer's
recommendations.
Use only detergent additives designed for an automatic
dishwasher.
Never use soap, laundry detergent, or hand washing
detergent in your dishwasher.
Children should be supervised to ensure that they do
not play with the appliance.
The door should not be left open, since this could
increase the risk of tripping.
If the supply cord is damaged, it must be replaced by
the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
During installation, the power supply must not be
excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains
using new hose sets and that old hose-sets should not
be reused.
The maximum permissible inlet water pressure is 1MPa.
The minimum permissible inlet water pressure is
0.04MPa.
8

Disposal
For disposing of package and the
appliance please go to a recycling center.
Therefore cut off the power supply cable
and make the door closing device
unusable.
Cardboard packaging is manufactured from recycled
paper and should be disposed in the waste paper
collection for recycling.
By ensuring this product is disposed of correctly, you
will help prevent potential negative consequences for
the environment and human health, which could
otherwise be caused by inappropriate waste handling
of this product.
For more detailed information about recycling of this
product, please contact your local city office and your
household waste disposal service.
DISPOSAL: Do not dispose this product as unsorted
municipal waste. Collection of such waste separately
for special treatment is necessary.
9

GETTING TO KNOW YOUR APPLIANCE
IMPORTANT:
Before using this dishwasher for the first time and to get the best performance,
read these instructions.
Dishwasher features
Fruit basket Water bottle
10
Lower spray arm
Tableware rack
Filter
Upper spray arm
Flashlight
The place to
Add detergent
Basket
Cap of water tank
Salt container

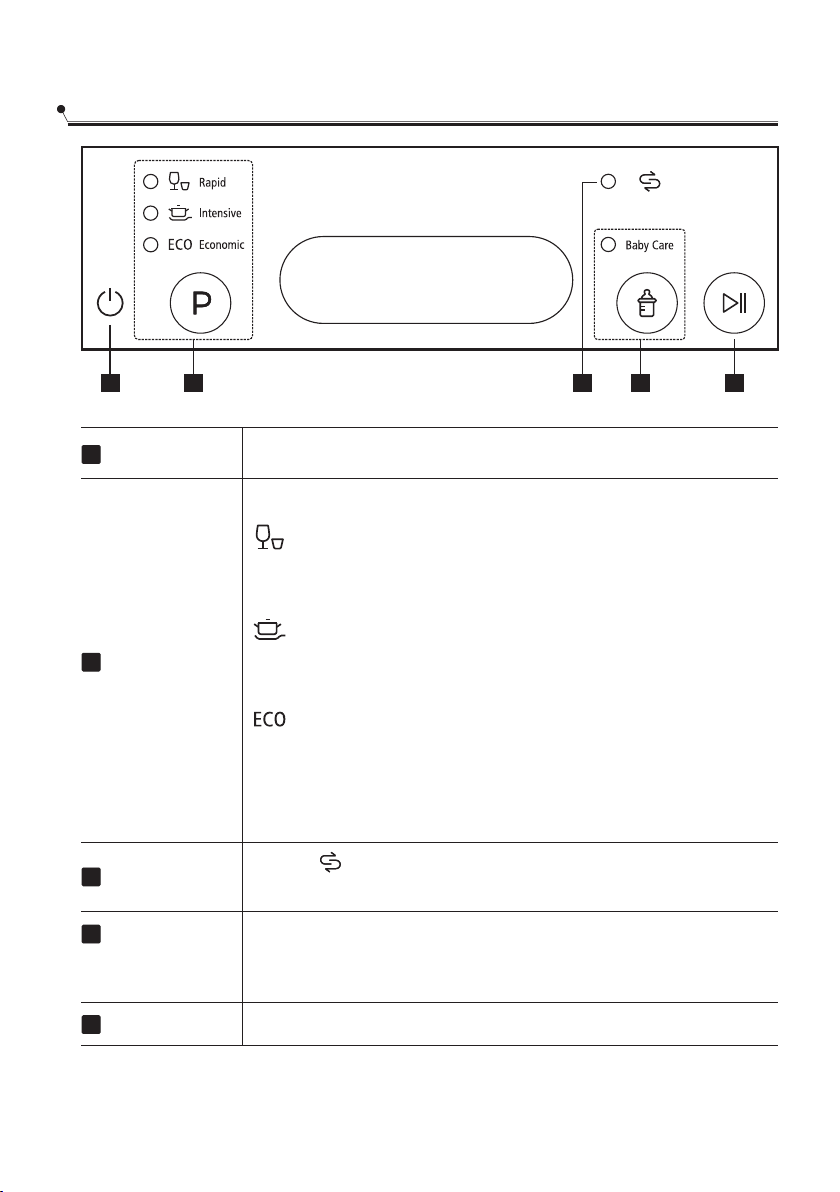

Control panel
Power
1 To turn on and off.
Program Button: Press the button to select wash cycles.
2
12 4 5
Program
Start/Pause
5Press this button to start or pause the dishwasher.
11
3
Baby care
4Function release high temperature steam at the time first 5
minutes to soft dry stains on the dishes and make it easy to
wash away suitable for washing baby bottles.
Salt indicator
3If the “ ” indicator is lit, it means the dishwasher is low
on dishwasher salt and needs to be refilled.
Rapid
A shorter wash for lightly soiled loads that do not
need drying.
Intensive
For extremely dirty cooking tools and cutlery using, it will
be drying after washing.
ECO
This is standard program, it is suitable to clean normally
soiled tableware and it is the most efficient program in
terms of its combined energy and water consumption
for that type of tableware.

USING YOUR DISHWASHER
If your model have no water softener, you may skip this section.
NOTE
Loading the salt into the softener
Always use salt intended for use with dishwasher.The salt container is located
beneath the basket and should be filled as follows:
Only use salt specifically designed for dishwashers use!
Every other type of salt not specifically designed for dishwasher use,
especially table salt, will damage the water softener. In case of damages
caused by the use of unsuitable salt the manufacturer does not give any
warranty nor is liable for any damages caused.
Only fill with salt before running a cycle.
This will prevent any grains of salt or salty water, which may have been
spilled, remaining on the bottom of the machine for any period of time,
which may cause corrosion.
WANING
A. Remove the basket and then unscrew and remove the cap from the salt container.
B. Before first wash, add 1L of water in the salt container of your machine.
C. Place the end of the funnel (supplied) into the hole and introduce about , 0.13kg
of salt. It is normal for a small amount of water to come out of the salt container.
D. After filling the container, screw the cap tightly back clockwise.
12

Step 2: select a certain level of salt consumption
Press the Start/Pause button to select the proper set according to your local
environment, the sets will change in the following sequence:
H1->H2->H3->H4->H5->H6.
Step 3: Exit the status of salt adjustment
Without any operation in five seconds, the machine will exit from set
mode, the machine is into standby status.
Step 1: Enter the status of salt adjustment
Close the door, within 60 seconds after power on, press Start/Pause button
and hold for 5 seconds, the machine will enter setting mode.
NOTE
The salt container must only be refilled when the salt warning light in the
control panel comes on. Depending on how fully the salt dissolves, the salt
warning light may still be on even though the salt container is filled.
If there is no salt warning light in the control panel (For some Models), you
can judge when to load the salt into the softener by the cycles that the
dishwasher had run.
If there are spills of the salt, a soak or a rapid program should be run to
remove the excess salt.
Please follow the steps below for adjustment in salt consumption.
Adjusting Salt Consumption
E. Usually, the salt warning light will be cease to be illuminated within 2-6 days
after the salt container has been filled with salt.
F. Immediately after filling the salt into the salt container, a washing program
should be started (Suggest choose rapid program). Otherwise filter system, pump
or other important parts of the machine may be damaged by salty water. It is out
of warranty.
13

There are 6 levels of salt consumption in all. It is recommended to select the level
according to below table:
1) German degree of measurement for the water hardness
2) millimol, internationel unit for water hardness
3) factory setting
Contact your local water board for information on the hardness of your
water supply.
Loading the dishwasher baskets
Recommendation
Consider buying utensils which are identified as dishwasher-proof.
Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from detergent manufacturers.
For particular items, select a program with as low temperature as possible.
To prevent damage, do not take glass and cutlery out of the dishwasher
immediately after the program has ended.
14
H1
H2
H3
H4
H5
H6
3)
0 - 5
6 - 11
12 - 17
18 - 22
23 - 34
35 - 55
0 - 0.94
1.0 - 2.0
2.1 - 3.0
3.1 - 4.0
4.1 - 6.0
6.1 - 9.8
WATER HARDNESS
1) 2)
Setting on
the water
softener
Indicator Display
OFF ON
Intensive ECO BabyCare
dH Mmol/l

Not suitable for use:
Cutlery with wooden, horn, china or mother-of-pearl
handles
Plastic items that are not heat resistant
Older cutlery with glued parts that are not
temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items subject to rusting
Wooden items
Items made from synthetic fibres
(For the best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlery baskets may vary from your model.)
Scrape off any large food paritcles. Soften remnants of burnt food in pans. It is not
necessary to rinse the dishes under running water. Place objects in the dishwasher in
following way:
Items such as cups, glasses, pots/pans, etc. are face downwards.
Curved items, or those with recesses, should be loaded at aslant so that water can run
off.
All utensils are stacked securely and can not tip over.
All utensils are placed in the way that the spray arms can rotated freely during washing.
Attention before or after loading the dishwasher baskets
Limited suitability:
Some glasses can become dull
after a large number of washes.
Silver and aluminium have a
tendency to discolour during
washing.
Glazed patterns may fade if
washed frequently.
Suitability of use in the dishwasher
Very small items should not be washed in the dishwasher as they could
easily fall out of the basket.
NOTE
Load hollow items such as cups, glasses, pans etc. with the opening facing downwards
so that water cannot collect in the container or a deep base.
Dishes and items of cutlery must not lie inside one another, or cover each other.
To avoid damage to glasses, they must not be touched.
Long bladed knives stored in an upright position are a potential hazard!
15

Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the basket.
Please do not overload your dishwasher. This is important for good results and for
reasonable energy consumption.
Loading basket
Position the dishes and cookware so that they will not get moved by the spray of water.
16
Dinner Plate
Soup Plate
Dessert Dish
Glass
Cup
Saucer
Oval Plate
Small Serving Bowl
Medium Serving Bowl
1
2
3
4
5
6
7
8
9
Item
Number
2211
338899
77
66
55
44
66
55
44

Loading the cutlery basket
For personal safety and a top quality clean, make sure place the silverware in
the basket as follows:
They do not nest together.
Place silverware with handles-down.
But place knives and other potentially dangerous utensils handles-up.
17
Knife
Soup spoon
Fork
Dessert spoon
Teaspoon
Serving spoon
Serving fork
Gravy ladle
1
2
3
4
5
6
7
8
Item
Number
Folding back the rack shelives
The spikes are used for holding plates and a platter. They can be lowered to
make more room for large items.
raise upwards fold backwards
66
88
11
33
77
55
55
44
44
22
22

Only use detergent
specifically for dishwashers.
Never use any other rinse aid and detergents.
This will damage the appliance.
The rinse aid is released during the final rinse to prevent water from forming
droplets on your dishes and utensils, which can leave spots and streaks.
Filling the dispenser
Dishwasher detergent is corrosive!
Keep dishwasher detergent out of
the reach of children.
WANING
Based on their chemical composition, detergents can be split in two basic types:
Conventional, alkaline detergents with caustic components.
Low alkaline concentrated detergents with natural enzymes.
The use of Normal washing program in combination with concentrated detergent
reduces pollution and is good for your dishes.
Detergent tablets of different brands dissolve at different speeds. For this reason
some detergent tablets cannot dissolve and develop their full cleaning power during
short Programs. Therefore please use long programs when using detergent tablets,
to ensure the complete removal of detergent residuals.
Concentrated Detergent
Detergent Tablets
The detergent must be refilled before the start of each wash cycle following the
instructions provided in the Wash Cycle Table. Your dishwasher uses less detergent
then conventional dishwasher. Generally, only one tablespoon of detergent is
needed for a normal wash load. More heavily soiled items need more detergent.
Always add the detergent just before starting the dishwasher, otherwise it could
get damp and will not dissolve properly.
Detergent
18

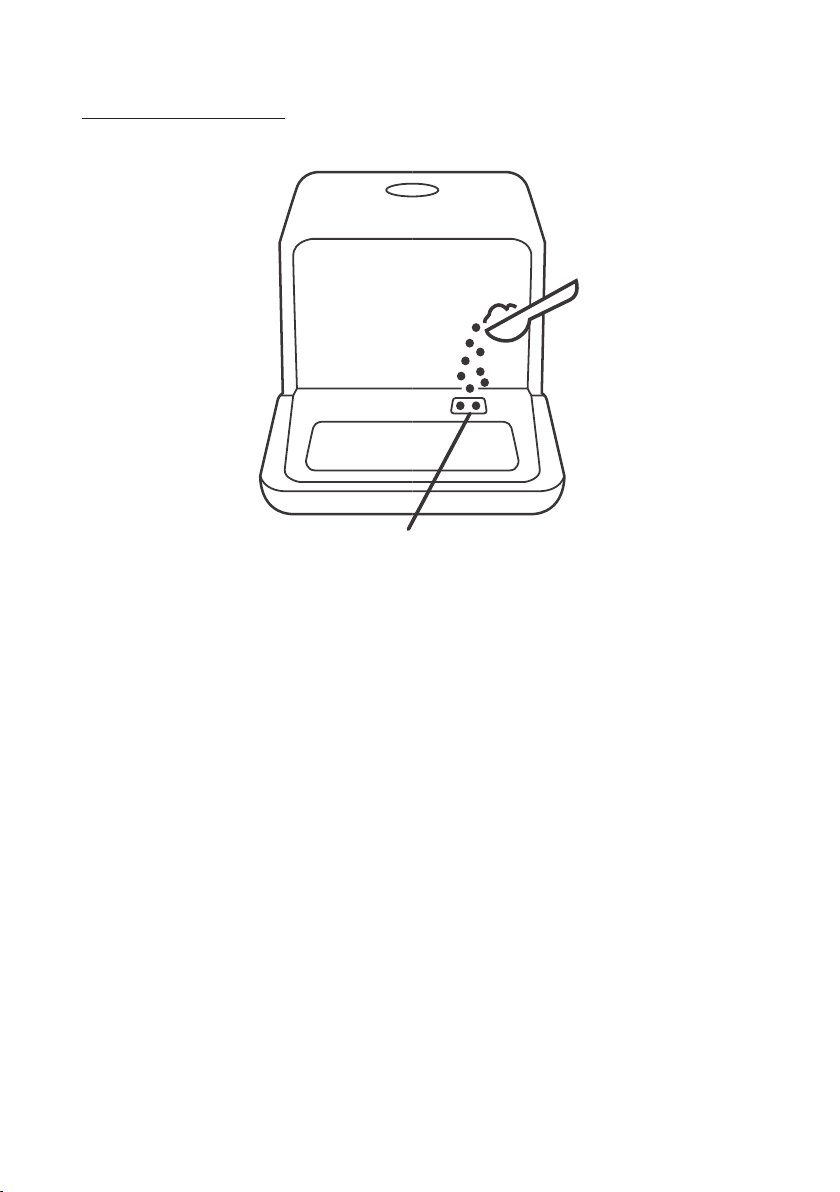

Adding detergent
The palce to add the detergent
19

PROGRAMMING THE DISHWASHER
Wash cycle table
The table below shows which programs are best for the levels of food residue
on them and how much detergent is needed. It also show various information
about the programs.
155
29
0.43
0.35
5
Wash (55℃)
Rinse
Rinse (72℃)
Drying
Wash (50 )
Rinse
Rinse (60℃)
℃
6 g
6 g 5
(*EN 50242)
Program Description
Of Cycle Detergent Time
(min)
Energy
(Kwh)
Water
(L)
Rapid
20
Wash(62℃)
Rinse
Rinse(70℃)
Drying
160 0.5 5
6 g
Intensive
NOTE
EN 50242:
test in accordance with EN 50242, are as follows:
This program is the test cycle. The information for comparability
The power consumption of off-mode is 0.49W,
left-on mode is 0.49W
