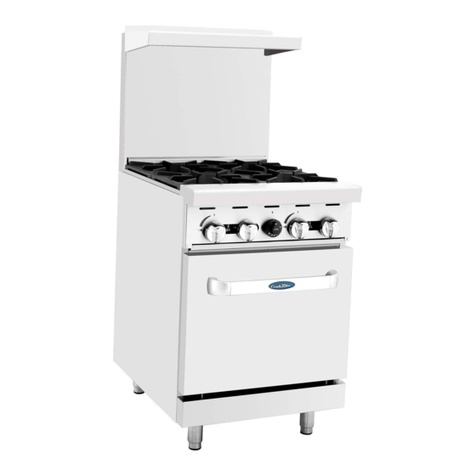

CookRite AT80G4B-O User manual

Gas Restaurant Ranges
Operating Instructions
Before you begin, please read these instructions carefully to
use this product correctly, to make the product perform ideally, and
to avoid hazards.
Models: AT80G4B-O/ AT80G6B-O / AT80G8B-O/ AT80G2B-F/
AT80G2B-C/ AT80G4B-F/ AT80G4B-C/ AT80G6B-F/
AT80G6B-C/ AT80G8B-F/ AT80G8B-C

- 1 -
Dear customers and users：
Thank you for purchasing our products. In order to be able to better use
this product, please read these instructions carefully before any operation,
and follow the guide, to avoid any unnecessary trouble during using.
Please keep this instruction manual in a safe place for convenient
reference and operation.
This instruction manual is subject to any change without further notice,
and the manufacturer reserves the right of final interpretation.
The appliance is designed for commercial purposes, not for household
use.
DANGER
If you smell gas:
⚫Shut off gas to the appliance.
⚫Extinguish any open flame.
⚫If odor continues, keep away from the appliance and immediately call
your gas supplier or your fire department.

- 2 -
Gas Restaurant Ranges
The Installation, Operation and Maintenance Guide
Contents
1. Safety Protection ……………………………………………………3
2. Brief Introduction……………………………………………………3
3. Manufacturer's Authority and Responsibility……………………3
4. Parameter Specifications……………………………………………4
5. Transport and Storage………………………………………………12
6. Installation and Debugging ………………………………………12
7. Safety Notices and Precautions……………………………………15
8. Operating Instructions…………………………………………… 16
9. Cleaning and Maintenance …………………………………………21
10.Troubleshooting ……………………………………………………23
11.Schematic Diagram for Installation of Chimney………………24
12.Installation diagram of supporting
bracket…………………25Error! Bookmark not defined.

- 3 -
1、Safety Protection
Please make sure that the operator is an authorized and licensed
technician before you allow him/her to install and operate the products. Be
sure to strictly follow this instruction guide during installation and using.
The manufacturer is not responsible for any dangers or accidents caused by
improper operation or maintenance.
Do not store flammable or explosive objects around the product. Keep all
flammable and explosive objects at a safe distance away from the product for
normal use.
Place the product in a reasonable position. Regarding related matters
of gas, customer should execute the requirements of local gas supply sector;
If you smell a gas leak, turn off the gas valves immediately and call
the gas company;
The product should not be operated by those under 18 years of age, or
those with physical or mental disorders, or disabilities that lack the
necessary knowledge or experience unless with appropriate instructions and
sufficient safety.
2、Brief Instruction
Such product is the gas restaurant ranges connected with oven and hot plate
manufactured by us. The product is in novel design, reasonable structure,
durable and easy to operate and maintain. The hot plate include a cast-iron
burner, and the oven include high efficiency stainless steel tubular burners.
The hot plate and the oven are equipped with a flame-out protection device,
to ensure the user’s safety in use. The oven allows for constant temperature
control and the user can adjust the required temperature as required. It is
an ideal cooking appliance in the industry of hotel, supermarket, western
restaurant, fast food restaurant and food.
3、Manufacture’s Authority and Responsibility
Banning of all or partial transformation to the products without the
manufacturer's explicit authorization.
Manufacturers refused to undertake responsibility to third parties as
the following reasons:

- 4 -
Not follow this instruction guidance and warning in in using and testing;
Not in accordance with the requirements of technical parameters using
this product;
Incorrectly or irrationally using the product by untrained personnel;
Not obey the local law using this product;
Be repaired or changed by unauthorized technicians;
Use the spare parts or accessories provided by non-manufacturers;
Accidents caused by force majeure;
Not strictly comply with related guide of this instruction by any reason.
4、Parameter Specifications
4.1、Outline Dimensions(mm)
AT80G4B-O

- 5 -
AT80G6B-O
AT80G8B-O

- 6 -
AT80G2B-F
AT80G2B-C

- 7 -
AT80G4B-F
AT80G4B-C

- 8 -
AT80G6B-F
AT80G6B-C

- 9 -
AT80G8B-F
AT80G8B-C

- 10 -
4.2：Size and package parameter information
<Table 1>
Model
Overall
dimensions
L x W x H
Packing size
L x W x H
Oven
dimensions
L x W x H
Number
of oven
AT80G4B-O
600*800*1115
685*995*1025
508*610*330
1
AT80G6B-O
900*800*1115
985*995*1025
673*610*330
1
AT80G8B-O
1200*800*1115
1285*995*1025
508*610*330
2
AT80G2B-F
300*800*1115
395*875*640
AT80G2B-C
300*800*562
395*875*515
AT80G4B-F
600*800*1115
695*875*640
AT80G4B-C
600*800*562
695*875*515
AT80G6B-F
900*800*1115
995*875*640
AT80G6B-C
900*800*562
995*875*515
AT80G8B-F
1200*800*1115
1295*875*640
AT80G8B-C
1200*800*562
1295*875*515
4.3：Information of Gas Supply and Burner
The minimum supplied gas pressure regulator is factory set at 1.13kPa for
Natural Gas and 2.75kPa for L.P. Gas. The thread of product’s intake-tube is
3/4" BSP Female.
<Table 2>
Model
Gas Species
and Intake
manifold
pressure（kPa）
Nozzle No.
（mm）
Per rate
(MJ/h)
Number of
burners
Total
rate
(MJ/h)
Hot
plates
Oven
Hot
plates
Oven
Hot
plates
Oven
AT80G4B-O
Natural
Gas
1.0
2.40
2.55
28
26
4
1
138
Propane
2.5
1.40
1.45
ULPG
2.5
AT80G6B-O
Natural
Gas
1.0
2.40
2.85
28
29
6
1
197
Propane
2.5
1.40
1.60
ULPG
2.5

- 11 -
Model
Gas Species
and Intake
manifold
pressure（kPa）
Nozzle No.
（mm）
Per rate
(MJ/h)
Number of
burners
Total
rate
(MJ/h)
Hot
plates
Oven
Hot
plates
Oven
Hot
plates
Oven
AT80G8B-O
Natural
Gas
1.0
2.40
2.55
28
26
8
2
276
Propane
2.5
1.40
1.45
ULPG
2.5
AT80G2B-F
AT80G2B-C
Natural
Gas
1.0
2.40
28
2
56
Propane
2.5
1.40
ULPG
2.5
AT80G4B-F
AT80G4B-C
Natural
Gas
1.0
2.40
28
4
112
Propane
2.5
1.40
ULPG
2.5
AT80G6B-F
AT80G6B-C
Natural
Gas
1.0
2.40
28
6
168
Propane
2.5
1.40
ULPG
2.5
AT80G8B-F
AT80G8B-C
Natural
Gas
1.0
2.40
28
8
224
Propane
2.5
1.40
ULPG
2.5
Gas Connection:
NOTE: ALL GAS FITTING MUST ONLY BE CARRIED OUT BY AN AUTHORISED
PERSON.
The product do not require an electrical connection, as they function
totally on the gas supply only.
It is essential that the gas supply is correct for the appliance to be
installed and that adequate supply pressure and volume are available. The
following checks should therefore be made before installation:
Gas Type required for the appliance is shown in the rating label. Check

- 12 -
that this is correct for the gas supply the appliance is being installed for.
The gas conversion procedure is detailed in this manual.
Supply Pressure required for this appliance is shown in the ‘Gas supply
requirements’ section of this manual. Check the gas supply to ensure
adequate supply pressure exists.
Input Rate of this appliance is stated on the Rating label .The input
rate should be checked against the available gas supply line capacity.
Particular note should be taken if the appliance is being added to an existing
installation.
NOTE: It is important that adequately sized piping runs directly to the
connection joint on the appliance with as few tees and elbows as possible to
give maximum supply volume.
NOTE: Ensure the regulator is converted to the correct gas type that the
appliance will operate on. The regulator outlet pressure is fixed
ex-factory for the gas type .
1. Correctly locate the appliance into its final operating position and using
a spirit level, adjust the legs so that the unit is level and at the correct
height.
2. Connect the gas supply to the appliance through the regulator. A suitable
jointing compound which resists the breakdown action of propane must be used
on every gas line connection, unless compression fittings are used.
3. Check all gas connections for leakages.
4. Check that the gas operating pressure.
5. Turn off the mains gas supply and bleed the gas out of the appliance gas lines.
6. Turn on the gas supply and the appliance.
Verify the operating pressure remains correct
5. Transport and Storage
In the process of transportation, handle carefully and keep upright to
prevent damage of the product packing. Wrapped equipment should not be in
open air for a long time, and shall be placed in a well-ventilated and
non-corrosive gases warehouse. When equipment needs temporary storage,
rainproof measures should be taken.
6. Installation and Debugging
Any erroneous installation, adjustment, refit, overhaul or maintenance
may cause property damage or personal injury. The work shall be performed
by authorized and licensed technicians, otherwise the manufacturer has the
right not to provide warranty service;

- 13 -
Only be installed in accordance with AS/NZS 5601, the local gas,
electricity and other relevant codes.
6.1、Unpacking and Installation
Please dispose of all packaging materials and residues after unpacking;
Check the equipment. If it is damaged, please keep wrappers and receipts
which must be signed by the carrier representative (Driver), and contact the
carriers to pursue a claim within 15 days after receiving;
Be sure to install supporting legs before using, and do not tear up any
label or logo before normal using;
Please read these instructions carefully before installation and
operation. Please contact your local agent if you have any questions;
Such stove shall be installed on the horizontal, solid, anti-skidding
and incombustible floor, and at the water-proof working area with sufficient
light and far away from the children and customers;
The installation position is a well-ventilated place in accordance with
the local regulations;
The charbroiled must be installed under the matched cooking fume exhauster
according to the local regulations;
Important: Installation and ventilation laws, and codes are very
different, you should state and comply with all codes of the local competent
departments when it comes to requirements for installation of equipment;
Adjustable legs and castors or floor frame in the tapping hole with four
corners of the charbroiled bottom, ensure sufficient space for ventilation;
Adjustable stainless steel legs to make the equipment level, and get the
same level with other series of the same stove; Please lift the equipment
rather than drag if you need to move it;
Please refer to P24“11. Schematic Diagram for Installation of Chimney”
for the installation methods of Chimney.
Supplied gas pressure regulator is factory set at 1.0kPa for Natural Gas
and 2.5kPa for L.P. Gas;
The equipment can only be placed on the noncombustible floor，and keep
a distance of at least 6 inches(152mm) to equipment’s both sides 、back,
and keep a distance of at least 39.4 inches(1000mm) to the top;
Do not put anything around the equipment, and on the counter top and bottom,
in order to avoid influencing combustion and air circulation;
Leave enough distance in front of the equipment to take apart the control
panel. All major parts, in addition to the burner remove from the front
intake-tube;

- 14 -
It may be necessary to adjust the balance of air input by authorized and
licensed technicians;
Thread glue must be resistant to the action of liquefied petroleum gases.
Warning! Use soap water or testing instrument to test whether piping joint
leaks or not before using, and forbid using an open flame to test!
After installing completely, you should check gas supply pressure. Use
a pressure gauge which is equipped with liquid (such as U-type pressure gauge,
the minimum value is 0.1mbar) or a digital pressure gauge to test. Steps are
as following:
●Remove top panel, and needle type pressure joint
screw arbor (Fig.1), then slip rubber tube of
pressure gauge over needle type pressure joint;
●Start the equipment in accordance with the
instructions, measuring gas supply pressure
(dynamic pressure) in the work state;
●Access to the equipment if measured data within
the limits of Table 2, otherwise, you will need
to adjust gas pressure regulating valve or
contact gas supplier to bargain;
●Unplug pressure gauge after you accomplish
pressure testing, then install needle type
pressure joint screw arbor. Important: must screw joint screw arbor,
to prevent gas escape!
Ensure the pressure and no leaks of the appliance, Check the appliance
shall operate normally without flame lift or light back.
6.2 Debugging
It’s very important to debug the new stove. Through the comprehensive
system test of equipment, we can ensure function and safety performance of
products. Discovering any potential problems before use (such as
equipment’s placement, ventilation, operation, etc), can avoid costly
losses.
It is necessary to check the machine daily.
Check the machine regularly can avoid serious accident happens.
Stop using if user feels that there are some problems in the circuit or
machine.
Check the situation of the machine before or after using every day.
Figure 1
Needle type pressure joint
Needle type pressure joint
screw arbor

- 15 -
Before using: Whether the machine is tilted?
Whether the control panel is damaged?
During using: Whether there is strange odor or vibration noise?
Whether the burner flame is normal? Any light back or flameout?
Whether the power is normal?
If any of this case occurs, stop using and turn off gas supply, contact
the supplier or service department.
7. Safety Notices and Precautions
Warning! For your safety, do not place petrol and other flammables nearby.
Please keep clean and free of flammables surroundings.
Warning! Any erroneous installation, adjustment and refit may cause
property damage or personal injury and maintenance failure. Read the
instructions carefully before installation and using.
Warning! Operation instruction must be placed in a conspicuous location.
When customers smell gas in the process of using, should take safety
precautions immediately. Immediately turn off the main gas valve, extinguish
all heat and flames, and call 911. Safety information can be obtained from
your local gas suppliers.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
When using this equipment, safety precautions should always
be followed, including the following:
The grates of the Hot plates, stove frame and external surface will still
be scalding after being used. You must take care when touching these
positions;
Do not directly touch the grates and stove frame when the gas restaurant
ranges is operating;
Turn off the equipment as repairing, maintaining and cleaning;
If the equipment has any problems of equipment damage, gas piping leaks,
igniter or valves damage, or lose product accessories, do not operate, and
call for the service immediately;
The use of attachments not recommended or sold by the manufacturer may

- 16 -
cause fire, personal injury or even death;
Do not use out of doors;
Such appliance is used to cook and bake the food and shall not be used
for other purposes;
The equipment does not contain any user-serviceable parts. Dealers or
technicians will repair it. Do not take apart any spare parts without
authorization;
Never change any other parts without authorization to this equipment,
otherwise, may cause hazards, and the manufacturer has the right not to
provide warranty service;
Steel cutting producers used to manufacture with sharp edges. The
manufacturer has dealt with these sharp edges during production, however,
we insist the operator take care when in contact with this piece of equipment;
Always keep hands, hair and clothing away from heating source.
Wait the unit cools down before cleaning. Because the unit is too hot
to handle after using.
8. Operating Instructions
Before operating, make sure to place the unit horizontally by adjusting
bottom adjustable legs, and place the catch tray properly.
To ensure that the air flow in the bottom of the equipment.
Do not use fan or air-conditioning blowing at the flame, in order to avoid
extinguishing flame and cause safety accidents;
Must be installed the matched exhaust hood according to the local
regulations above the equipment.
To ensure that the air in the kitchen is kept in circulation.
The pilot light has been set at the factory. Each burner has a pilot light.
8.1 Lighting the fire（hot plates）
①、Align the control valve knob on the "O" position (Fig.2), so that the valve
is closed.
②、And then axial press the front air valve knob, left 30 degrees, to the
fire position (Fig.3).
③、At the fire position, completely press the knob, meanwhile light the
fire by pilot with another hand. Keep pressing the knob about 10-15 seconds,
and observe stability of fire.
④、If the fire is not lit, please repeat the above steps until the fire
is ignited.
Tip ：The pilot light may not be lighted immediately, for existing gas

- 17 -
in the pipe. Wait a minute, the pilot light will be lighted after the gas
extinguished.
8.2 Igniting the main burner（hot plates）
Revolve the main fire control valve knob anticlockwise after lighting
the pilot light, and then the main fire burner is ignited by the pilot light.
When knob reaches to " " (90 degrees), burner is in the maximum power
(Fig.4). Once again axial press the knob and revolve it anticlockwise, the
power of burner reduces gradually with the rotation angle increases. When
knob is rotated 150 degrees to " ", burner is working with a minimum power
(Fig.5).
8.3 Lighting the pilot（oven）
①、Align the OFF indicative line of thermostat
valve knob to the arrow (Figure 6) to close the
valve.
②、Open the underside panel of oven (figure 7),
thoroughly press the thermostat valve knob to the
bottom, and turn it anticlockwise till it
reaches" "(figure 8), and press the button of the
piezo igniter with another hand simultaneously
( figure 9). There is electric spark between pilot and fire
needle. If the fire is not lit, please repeat this action
until the fire is ignited, and observe stability of fire.
(If it is the first time to light up the oven, it may take longer time
for the gas to flow to the pilot）
Figure 6
Figure 2
Figure 3
Figure 4
Figure 5

- 18 -
Tip ：The pilot light may not be lighted immediately, for existing gas in the
pipe. Wait a minute, the pilot light will be lighted after the gas extinguished.
8.4 Igniting the main burner（oven）
After the pilot was ignited, the main fire valve was opened ，and turn the
thermostat valve knob to the required temperature position，At this moment,
the oven burner is ignited. When reaching the set temperature, the thermostat
valve will automatically adjust the gas flow to keep the temperature in the
oven constant.
8.5 Turn off the valve
1、Hot plates
①When the control knob is rotated to the fire position (Fig.3), the main
fire burner flame is extinguished, but the pilot light will continue to work.
②Axial press the knob to rotate knob clockwise continually, so that the
direction of the knob on the "O" position, at this time, the fire extinguished,
the valve closed. (Figure. 2)
2、Oven
①When the control knob is rotated to the pilot position (Fig.8), the
main fire burner flame is extinguished, but the pilot light will continue
to work.
②Axial press the thermostat valve knob to rotate knob clockwise continually,
Align the OFF indicative line of thermostat valve knob to the arrow (Figure.
6) to close the valve, at this time, the fire extinguished, the valve closed.
After turn off the equipment, the main fire should be stop more than
5 minutes before next use.
Figure 7
Figure 8
Figure 9

- 19 -
8.6 Stove Operation
Before using the stove for the first time, please use a mild detergent
to wipe it clean. Do not use corrosive or abrasives detergent.
Turn the burners on about 15-20 minutes before broiling for preheating,
according to the cooking requirement to adjust the flame size.
Notice: When first preheating, the furnace will smoke above. This is
caused by protective lipids on the grates and other parts are heated, it is
normal, and it will be eliminated after the power up to the maximum for burning
an hour.
8.7 Adjust air input
①Hot plates：Remove the cooking grates and cover, adjust an
appropriate distance to the need, then tighten the damper fastening screws,
to ensure the equipment will not get loose in the process of moving and
translation. Reinstall burner and the cooking grates.
Hot plates Oven
②: Oven: Open the underside panel of oven (figure 7), loosen the
fastening screws of damper(figure 10)
and rotate the damper horizontally
(figure 11). Meanwhile, observe the
flame. Adjust the damper to the
appropriate opening angle. Then,
tighten the fastening screw bolt of
damper to guarantee the appliance does
not get loose. At last, reinstall the
Figure 10
Figure 11
Natural Gas L=8mm
Propane L=8mm
ULPG L=8mm
Natural Gas H=12mm
Propane H=12mm
ULPG H=12mm
