Cookworks CBES User manual

COOKWORKSBUILT-INOVEN
Operating and Installation Instructions CBES
mportant - Please read these instructions fully before installing or using
These instructions contain important information which will help you get the best from your
appliance and help to ensure safe and correct installation, use and maintanence.
If you need help or have damaged or missing parts, call the Customer Helpline:0345 257 7271

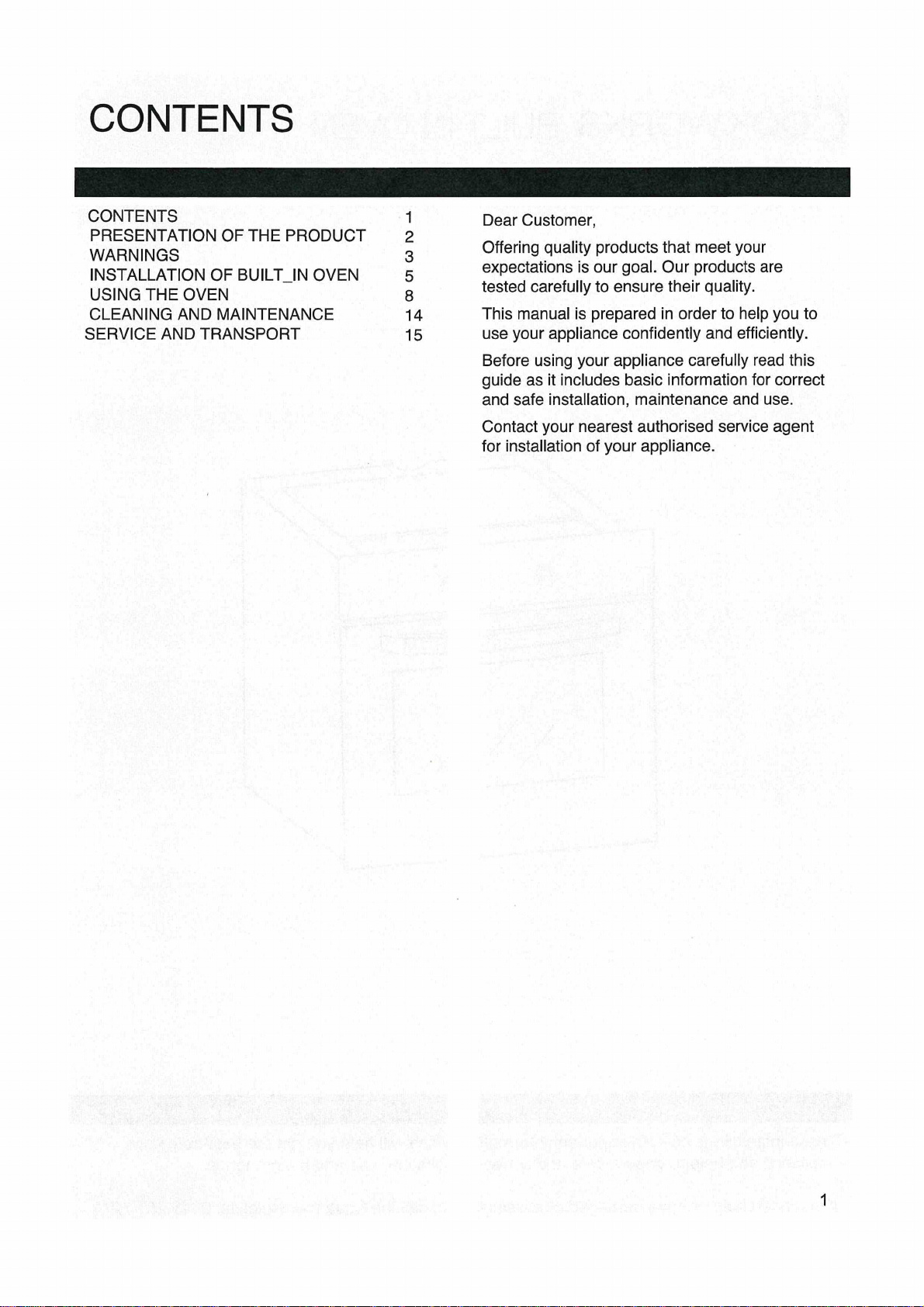

CONTENTS
CONTENTS
PRESENTATION OF THE PRODUCT
WARNINGS
INSTALLATION OF BUILT_IN OVEN
USING THE OVEN
CLEANING AND MAINTENANCE
SERVICE AND TRANSPORT
1
2
3
5
8
14
15
Dear Customer,
Offering quality products that meet your
expectations is our goal. Our products are
tested carefully to ensure their quality.
This manual is prepared in order to help you to
use your appliance confidently and efficiently.
Before using your appliance carefully read this
guide as it includes basic information for correct
and safe installation, maintenance and use.
Contact your nearest authorised service agent
for installation of your appliance.
1

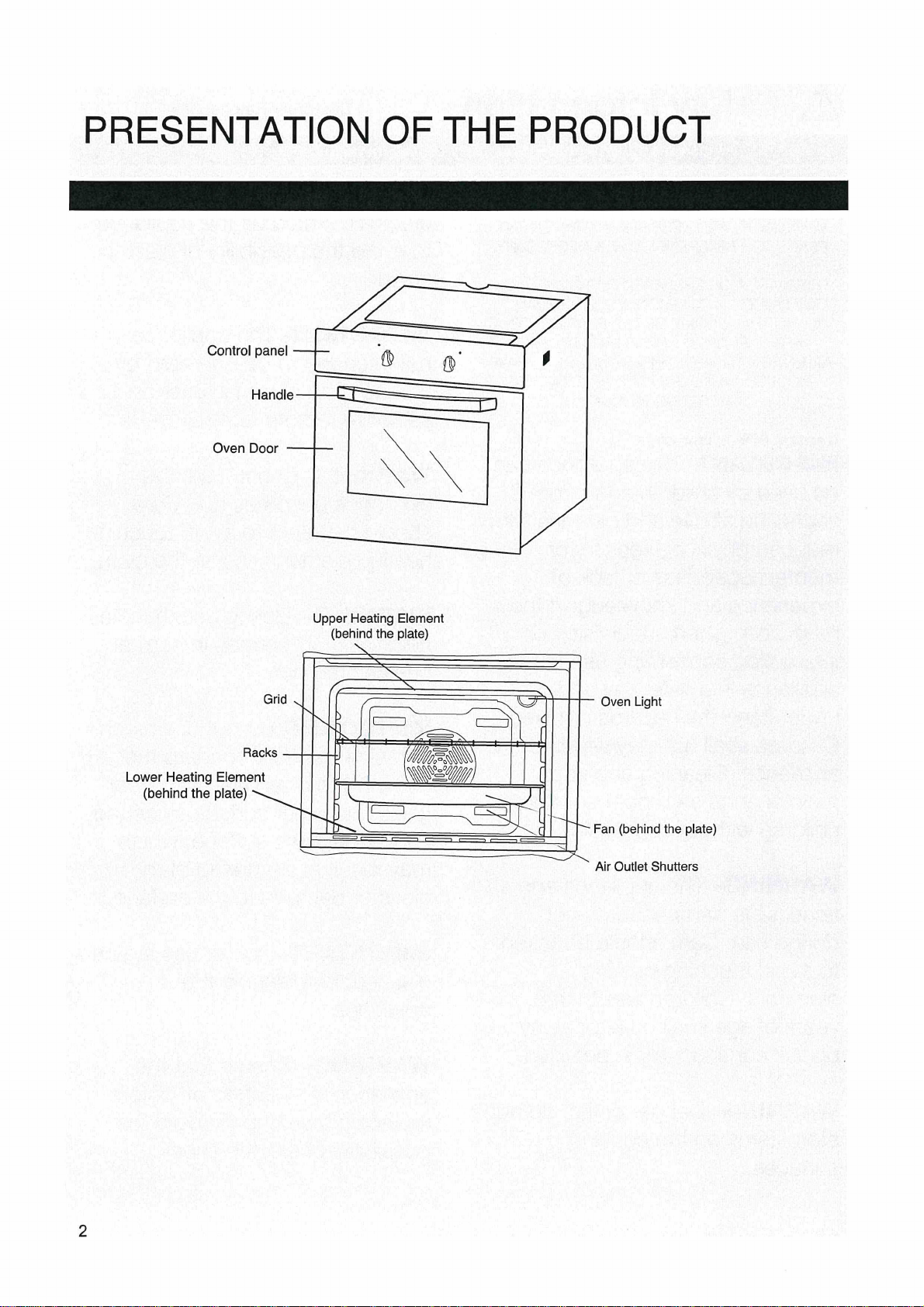

PRESENTATION OF THE PRODUCT
Control panel
Handle
Oven Door
Lower Heating Element
(behind the plate)
Upper Heating Element
(behind the plate)
Oven Light
Fan (behind the plate)
Air Outlet Shutters
2

ASafety Information Customer Helpline 0345 257 7271
Important - Please read these instructions fully before installation
READ THESE INSTRUCTIONS CAREFULLY AND
COMPLETELY BEFORE USING YOUR
APPLIANCE, AND KEEP IT IN A CONVENIENT
PLACE FOR REFERENCE WHEN NECESSARY.
THIS MANUAL IS PREPARED FOR MORE THAN
ONE MODEL IN COMMON. YOUR APPLIANCE
MAY NOT HAVE SOME OF THE FEATURES THAT
ARE EXPLAINED IN THIS MANUAL. PAY
ATTENTIONTO THE EXPRESSIONS THAT HAVE
FIGURES, WHILE YOU ARE READING THE
OPERATING MANUAL.
General Safety Warnings
IMPORTANT- This appliance can
be used by children aged from 8
years and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
WARNING- The appliance and its
accessible parts become hot
during use. Care should be taken
to avoid touching heating
elements. Children less than 8
years of age shall be kept away
unless continuously supervised.
WARNING- Danger of fire: do not
store items on the cooking
surfaces.
2
WARNING- If the surface is
cracked, switch off the appliance
to avoid the possibility of electric
shock.
IMPORTANT- The appliance is
not intended to be operated by
means of an external timer or
separate remote -control system.
WARNING- During use, the
appliance becomes hot. Care
should be taken to avoid touching
heating elements inside the oven.
WARNING- During use, handles
held for short periods in normal
use can get hot.
IMPORTANT- Do not use harsh
abrasive cleaners or sharp metal
scrapers to clean the oven door
glass and other surface since they
can scratch the surface, which
may result in shattering of the
glass or damage to the surface.
IMPORTANT- Do not use steam
cleaners for cleaning the
appliance.
WARNING- Ensure that the
appliance is switched off before
replacing the lamp to avoid the
possibility of electric shock.

ACustomer Helpline 0345 257 7271
Important - Please read these instructions fully before installation
CAUTION- Accessible parts may
be hot when the cooking or grilling
is in use. Young children should be
kept away.
IMPORTANT- Your appliance is produced in
accordance with all applicable local and
international standards and regulations.
IMPORTANT- Maintenance and repair work must
be made only by authorized service technicians.
Installation and repair work that is carried out by
unauthorized technicians may endanger you. It is
dangerous to alter or modify the specifications of
the appliance in any way.
IMPORTANT- Prior to installation, ensure that the
local distribution conditions (nature of the gas and
gas pressure or electricity voltage and frequency)
and the requirements of the appliance are
compatible. The requirements for this appliance
are stated on the label.
CAUTION- This appliance is designed only for
cooking food and is intended for indoor domestic
household use only and should not be used for
any other purpose or in any other application, such
as for non -domestic use or in a commercial
environment or room heating.
IMPORTANT- Do not try to lift or move the
appliance by pulling the door handle.
IMPORTANT- All possible security measures have
been taken to ensure your safety. Since the glass
may break, you should be careful while cleaning to
avoid scratching. Avoid hitting or knocking on the
glass with accessories.
IMPORTANT- Ensure that the supply cord is not
wedged during the installation. If the supply cord is
damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to prevent a hazard.
IMPORTANT- While the oven door is open, do not
let children climb on the door or sit on it.
Installation Warnings
IMPORTANT- Do not operate the appliance
before it is fully installed.
IMPORTANT- The appliance must be installed by
an authorized technician and put into use. The
producer is not responsible for any damage that
might be caused by defective placement and
installation by unauthorized people.
IMPORTANT- When you unpack the appliance,
make sure that it is not damaged during
transportation. In case of any defect; do not use
the appliance and contact a qualified service
agent immediately. As the materials used for
packaging (nylon, staplers, styrofoam...etc) may
cause harmful effects to children, they should be
collected and removed immediately.
IMPORTANT- Protect your appliance against
atmospheric effects. Do not expose it to effects
such as sun, rain, snow etc.
IMPORTANT- The surrounding materials of the
appliance (cabinet) must be able to withstand a
temperature of min 100°C.
During usage
IMPORTANT- When you first run your oven a
certain smell will emanate from the insulation
materials and the heater elements. For this
reason, before using your oven, run it empty at
maximum temperature for 45 minutes. At the
same time you need to properly ventilate the
environment in which the product is installed.
IMPORTANT- During usage, the outer and inner
surfaces of the oven get hot. While opening the
oven door, step back to avoid the hot steam
coming out of the oven. There may be a risk of
burns.
IMPORTANT- Do not put flammable or
combustible materials, in or near the appliance
when it is operating.
IMPORTANT- Always use oven gloves to remove
and replace food in the oven.
3

ACustomer Helpline 0345 257 7271
Important - Please read these instructions fully before installation
IMPORTANT- Do not leave the cooker while
cooking with solid or liquid oils. They may catch
fire on condition of extreme heating. Never pour
water on to flames that are caused by oil. Cover
the saucepan or frypan with its cover in order to
choke the flame that has occured in this case and
turn the cooker off.
IMPORTANT- If you will not use the appliance for
a long time, plug it off. Keep the main control
switch off. Also when you do not use the
appliance, keep the gas valve off.
IMPORTANT- Make sure the appliance control
knobs are always in the "0" (stop) position when it
is not used.
IMPORTANT- The trays incline when pulled out.
Be careful not to let hot liquid spill over.
IMPORTANT- When the door or drawer of the
oven is open, do not leave anything on it. You may
unbalance your appliance or break the cover.
IMPORTANT- Do not put heavy things or
flammable or ignitable goods (nylon, plastic bag,
paper, cloth...etc) into the drawer. This includes
cookware with plastic accessories (e.g. handles).
IMPORTANT- Do not hang towels, dishcloths or
clothes from the appliance or its handles.
During cleaning and maintenance
IMPORTANT- Always turn the appliance off
before operations such as cleaning or
maintenance. You can do it after plugging the
appliance off or turning the main switches off.
IMPORTANT- Do not remove the control knobs to
clean the control panel.
TO MAINTAIN THE EFFICIENCY AND SAFE I Y OF
YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE ORIGINAL SPARE PARTS AND TO
CALL ONLY OUR AUTHORIZED SERVICE
AGENTS IN CASE OF NEED.
4

INSTALLATION OF BUILT-IN OVEN
We hope that this modern , functional oven , which
is made with quality parts and materials will meet
your cooking needs. Make sure you read the
manual to help to ensure successful results and
also to help prevent problems with the appliance in
the future. The information given below
contains important information that is necessary for
correct positioning and service operations. They
should be read without exception especially by the
technician who will position the appliance.
CONTACT AN AUTHORISED SERVICE
AGENT FOR INSTALLATION OF YOUR OVEN!

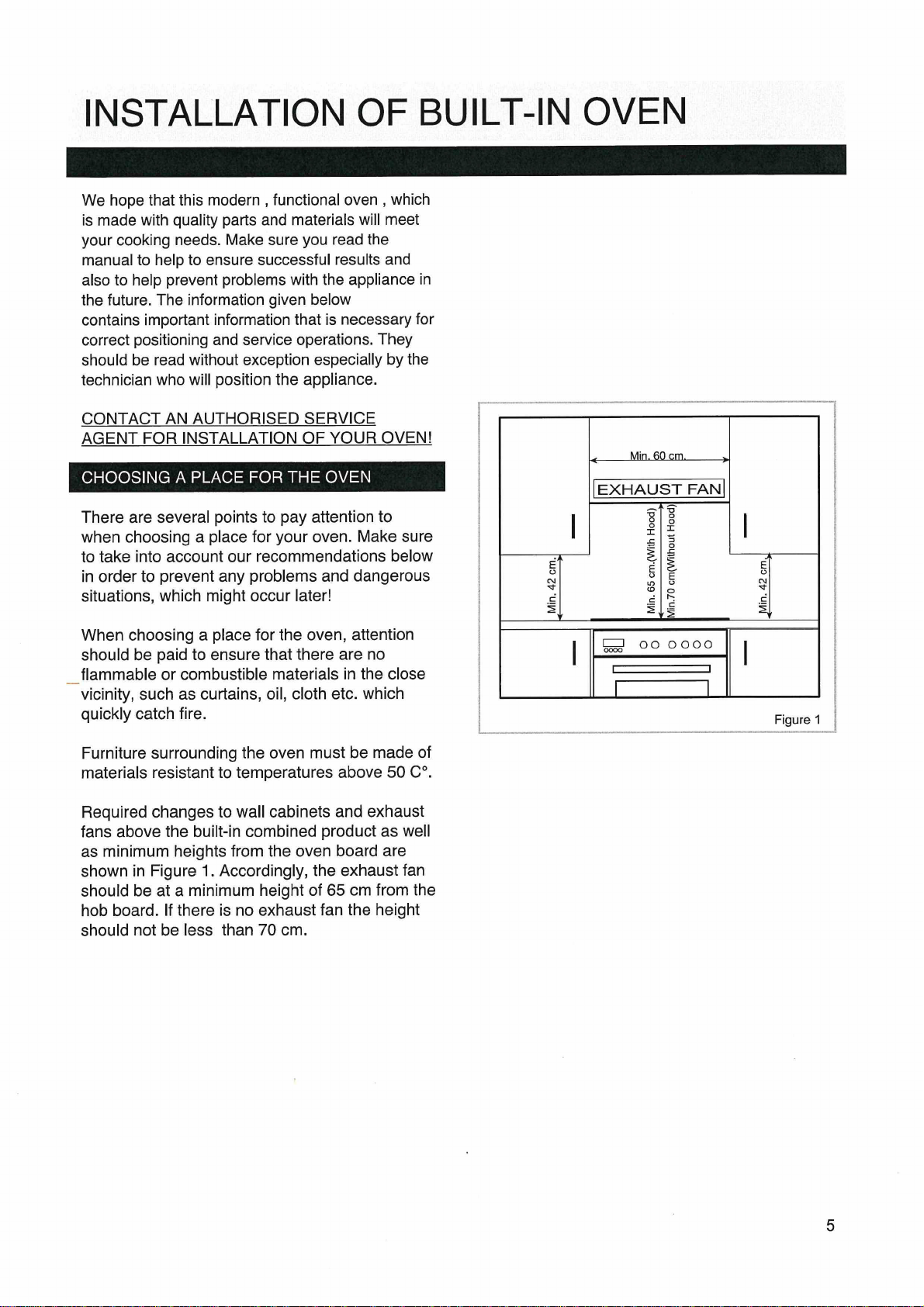

CHOOSING A PLACE FOR THE OVEN
There are several points to pay attention to
when choosing a place for your oven. Make sure
to take into account our recommendations below
in order to prevent any problems and dangerous
situations, which might occur later!
When choosing a place for the oven, attention
should be paid to ensure that there are no
flammable or combustible materials in the close
vicinity, such as curtains, oil, cloth etc. which
quickly catch fire.
Furniture surrounding the oven must be made of
materials resistant to temperatures above 50 C°.
Required changes to wall cabinets and exhaust
fans above the built-in combined product as well
as minimum heights from the oven board are
shown in Figure 1. Accordingly, the exhaust fan
should be at a minimum height of 65 cm from the
hob board. If there is no exhaust fan the height
should not be less than 70 cm.
s_a_can
EXHAUST FAN
Min. 6 5 c m .( W ith H o o d)
Min.7 0 c m (VVith o ut H o o d)
M in. 4 2 c m
100001 oo 0000
Figure1
5

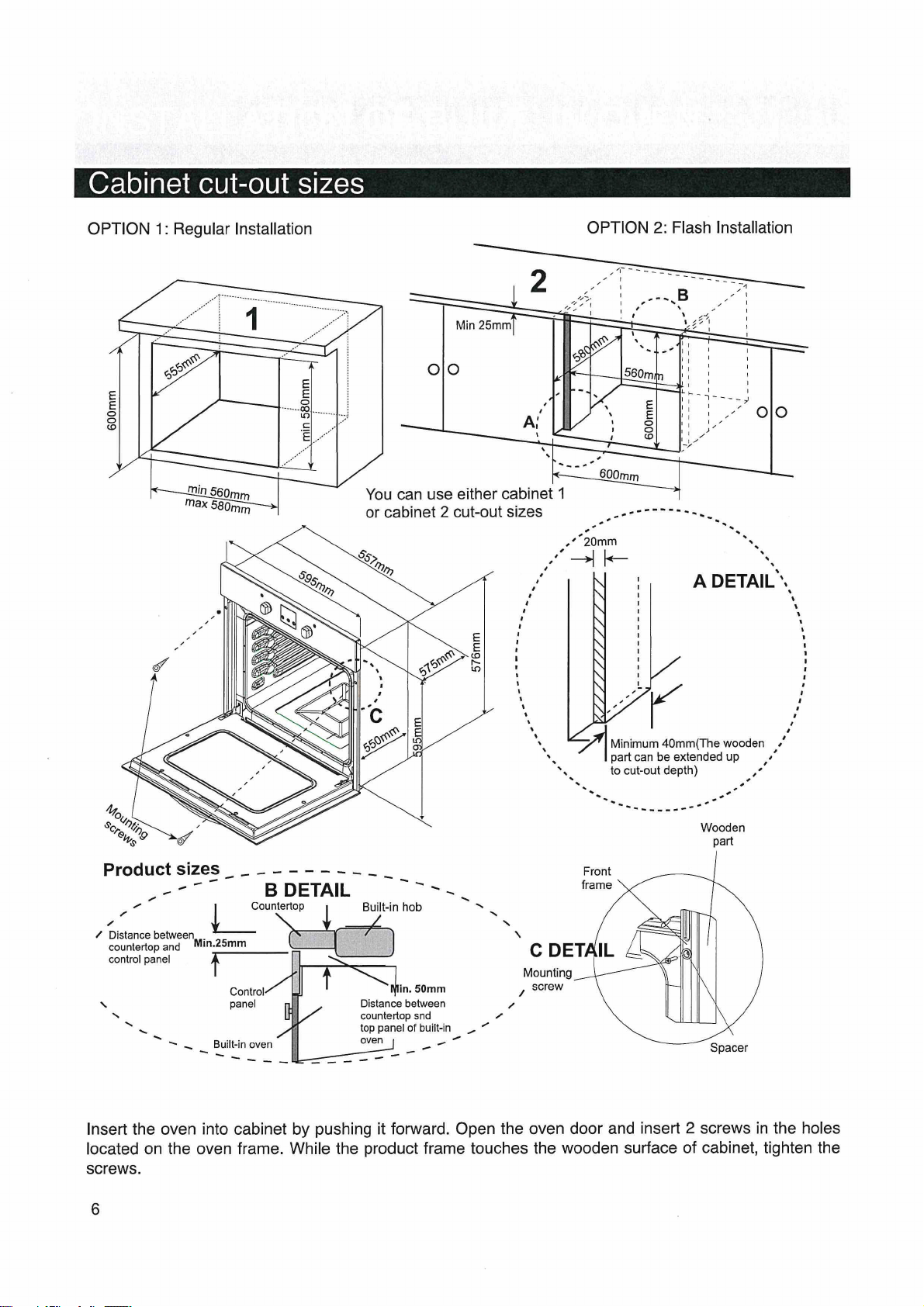

Cabinet cut-out sizes
OPTION 1: Regular Installation
You can use either cabinet 1
or cabinet 2 cut-out sizes
Product sizes _ _ _ ------ _
- B DETAIL
/ Distance between
countertop and Min.25mm
control panel
ICountertop-
ControlControl
panel
Built-in oven
Built-in hob
in. 50mm
Distance between
countertop snd
top panel of built-in ,
oven
771Minimum 40mm(The wooden
part can be extended up
•,,,
A DETAIL\
C DET
Mounting
screw
OPTION 2: Flash Installation
- - - - -- -
/ 20MM
s. to cut-out depth) ,
. ,
- • ------- - -
Wooden
part
Fmnt
frame
Il
TA IL
Spacer
Insert the oven into cabinet by pushing it forward. Open the oven door and insert 2 screws in the holes
located on the oven frame. While the product frame touches the wooden surface of cabinet, tighten the
screws.
6

The dimensions and material of the cabinet in
which the oven will be installed must be
appropriate and resistant to increases in
temperature. In a correct installation, contact
with electrical or insulated parts must be
prevented. Insulating parts need to be fitted in a
way to ensure that they cannot be removed by
using any kind of tool. Installing the appliance in
the close vicinity of a refrigerator or a deep-
freezer is not recommended. Otherwise, the
performance of the above -mentioned appliances
will be negatively affected due to emanating
heat. After removing your oven from its
packaging, be sure that the oven is not
damaged. If you suspect of any damage to the
appliance, do not use it; immediately contact the
Authorised Service agent.
WIRING AND SAFETY OF BUILT-IN OVEN
The instructions given below must be followed
without fail during wiring :
The earthing cable must be connected via the
screw with the earthing mark. Feeder cable
connection must be as shown in Figure 6. If
there is no earthed outlet conforming to
regulations in the installation environment, call
the Authorised Service immediately.
The earthed outlet must be in close vicinity of
the appliance. Never use an extension cord.
The feeder cable should not contact the
products hot surface.
In case of any damage to the feeder cable,
please call the Authorised Service agent. The
cable must be replaced by the Authorised
Service agent.
Wiring of the appliance must be performed by
the Authorized Service agent. HO5VV-F type
feeder cable must be used.
Faulty wiring may damage the appliance. Such
damage will not be covered under the warranty.
The appliance is designed to connect to 220-
240V-- electricty supply if your household supply
is different than the value given above, call the
Authorized Service immediately.
The Manucaturer declares that it bears no
responsibility whatsover for any
kind of damage and loss arising from not
complying with these safety instructions.
Ui
UJ
cc
GENERAL WARNING AND PRECAUTIONS
Your appliance is produced in conformity with the
relevant safety regulations relating to electrical
appliances. Maintanance and repair works must
be performed only by Authorised Service
technicians or suitably qualified. Installation and
repair works, performed without observing the
rules may be dangerous.
The outer surfaces are heated while your
appliance is operating. The elements heating the
inner surface of the oven and the steam out are
extremely hot. These sections will continue to
preserve their heat for certain while even if the
appliance is switched off. Never touch the hot
surfaces. Keep children away.
Do not move away from the hob while cooking with
fat or oil. Flaring may occur in case of overheating.
Never pour water into flaring oil.
In order to cook in your oven, the oven function and
temperature setting butttons need to be adjusted
and the oven timer, if avaible, needs to be
programmed. Otherwise, the oven will not
operate.
While the oven door or drawer is open, do not
place anything on it. You may disturb the balance
of the appliance or break the door.
Protect your appliance from atmospheric effects.
Do not leave it under the effects of the sun,rain,
snow, dust etc. 7

USING THE OVEN
BUILT IN OVEN CONTROL PANEL
•9
llou. °HIE. OvenLIght
COOKWOR KS MO.
rti 110
ISO
CBES
8

USING THE OVEN PART OF THE APPLIANCE
Oven Function Control Knob:
For you to select the oven functions Figure 3.
Explained in the next part and in Table 1. You
need to adjust the function selection button and
the oven thermostat knob together to a
temperature value you wish to select -Otherwise
the function stage you selected will not operate.
Oven Thermostat Knob:
For you to select the oven function control knob.
When the temperature inside your oven reaches
the value you set, the thermostat will cut the
circuit and the thermostat light will go off. When
the temperature falls below the set value, the
thermostat will again be turned on and the
thermostat light will be on.
9

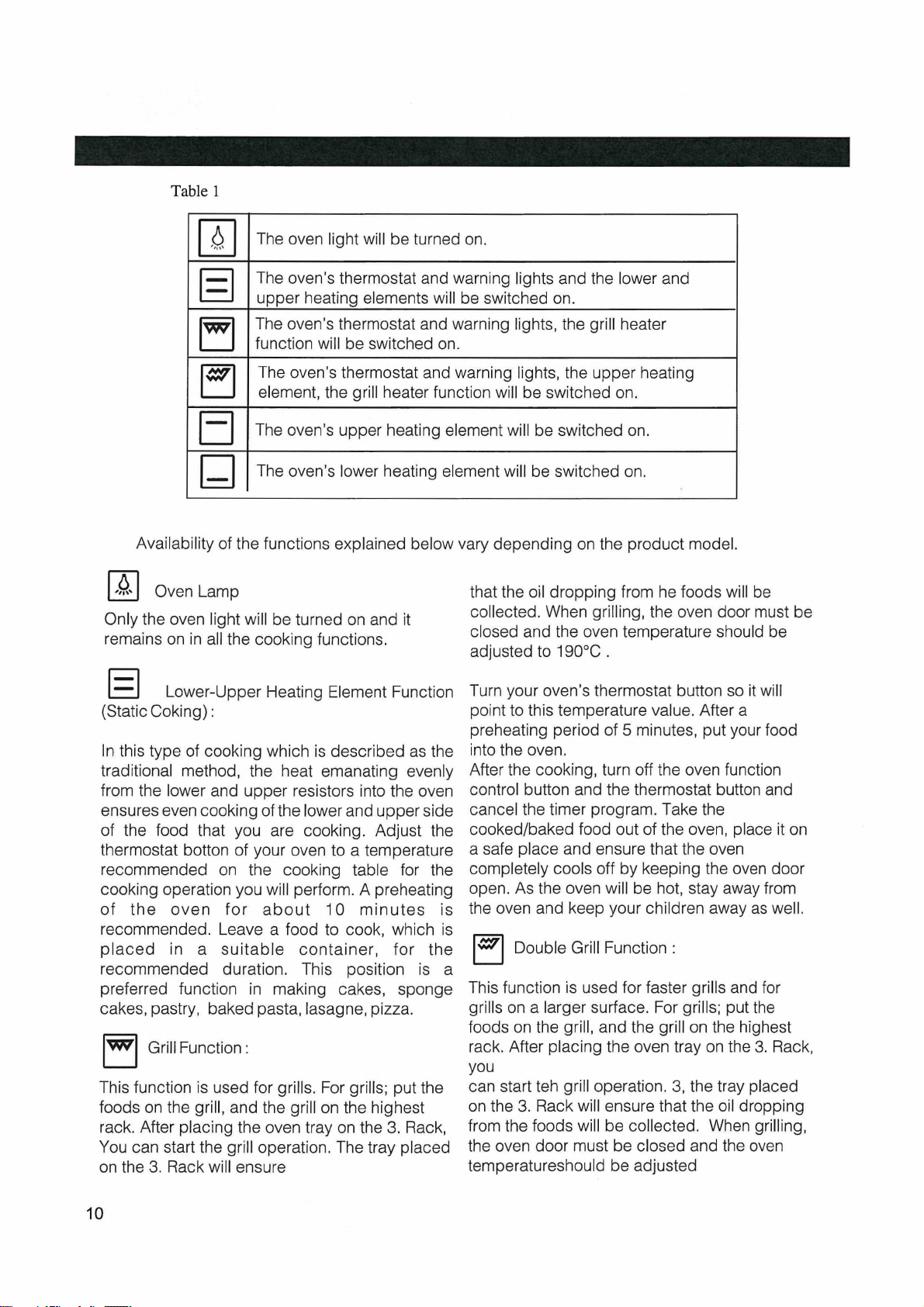

Table 1
The oven light will be turned on.
—The oven's thermostat and warning lights and the lower and
upper heating elements will be switched on.
v47 The oven's thermostat and warning lights, the grill heater
function will be switched on.
47 The oven's thermostat and warning lights, the upper heating
element, the grill heater function will be switched on.
—The oven's upper heating element will be switched on.
The oven's lower heating element will be switched on.
Availability of the functions explained below vary depending on the product model.
Oven Lamp
Only the oven light will be turned on and it
remains on in all the cooking functions.
Lower -Upper Heating Element Function
(Static Coking) :
In this type of cooking which is described as the
traditional method, the heat emanating evenly
from the lower and upper resistors into the oven
ensures even cooking of the lower and upper side
of the food that you are cooking. Adjust the
thermostat botton of your oven to a temperature
recommended on the cooking table for the
cooking operation you will perform. A preheating
of the oven for about 10 minutes is
recommended. Leave a food to cook, which is
placed in a suitable container, for the
recommended duration. This position is a
preferred function in making cakes, sponge
cakes, pastry, baked pasta, lasagne, pizza.
Nic7 Grill Function:
This function is used for grills. For grills; put the
foods on the grill, and the grill on the highest
rack. After placing the oven tray on the 3. Rack,
You can start the grill operation. The tray placed
on the 3. Rack will ensure
10
that the oil dropping from he foods will be
collected. When grilling, the oven door must be
closed and the oven temperature should be
adjusted to 190°C .
Turn your oven's thermostat button so it will
point to this temperature value. After a
preheating period of 5 minutes, put your food
into the oven.
After the cooking, turn off the oven function
control button and the thermostat button and
cancel the timer program. Take the
cooked/baked food out of the oven, place it on
a safe place and ensure that the oven
completely cools off by keeping the oven door
open. As the oven will be hot, stay away from
the oven and keep your children away as well.
Double Grill Function :
This function is used for faster grills and for
grills on a larger surface. For grills; put the
foods on the grill, and the grill on the highest
rack. After placing the oven tray on the 3. Rack,
you
can start teh grill operation. 3, the tray placed
on the 3. Rack will ensure that the oil dropping
from the foods will be collected. When grilling,
the oven door must be closed and the oven
temperatureshould be adjusted

to 190° C.
Turn your oven's thermostat button so it will
point to this temperature value. After a
preheating period of 5 minutes, put your foods
into the oven.
After the cooking, turn off the oven function
control button and the thermostat button and
cancel the timer program if available. Take the
cooked/baked food out of the oven, place it on
a safe place and ensure that the oven
completely cools off by keeping the oven door
open.
As the oven will be hot, stay away from the
oven and keep your children away as well.
piLower Heating Function
The oven's thermostat and warning lights will
be turned on, the lower heating element will
start operating.
The lower heating function is ideal for baking
pizza, as the heat rises from the bottom of the
oven and warms the food up. This function is
appropriate for heating the food instead of
cooking.
piUpper Heating Function
The oven's thermostat and warning lights will
be turned on, the lower heating element will
start operating.
The lower heating function is ideal for baking
pizza, as the heat rises from the bottom of the
oven and warms the food up. This function is
appropriate for heating the food instead of
cooking.

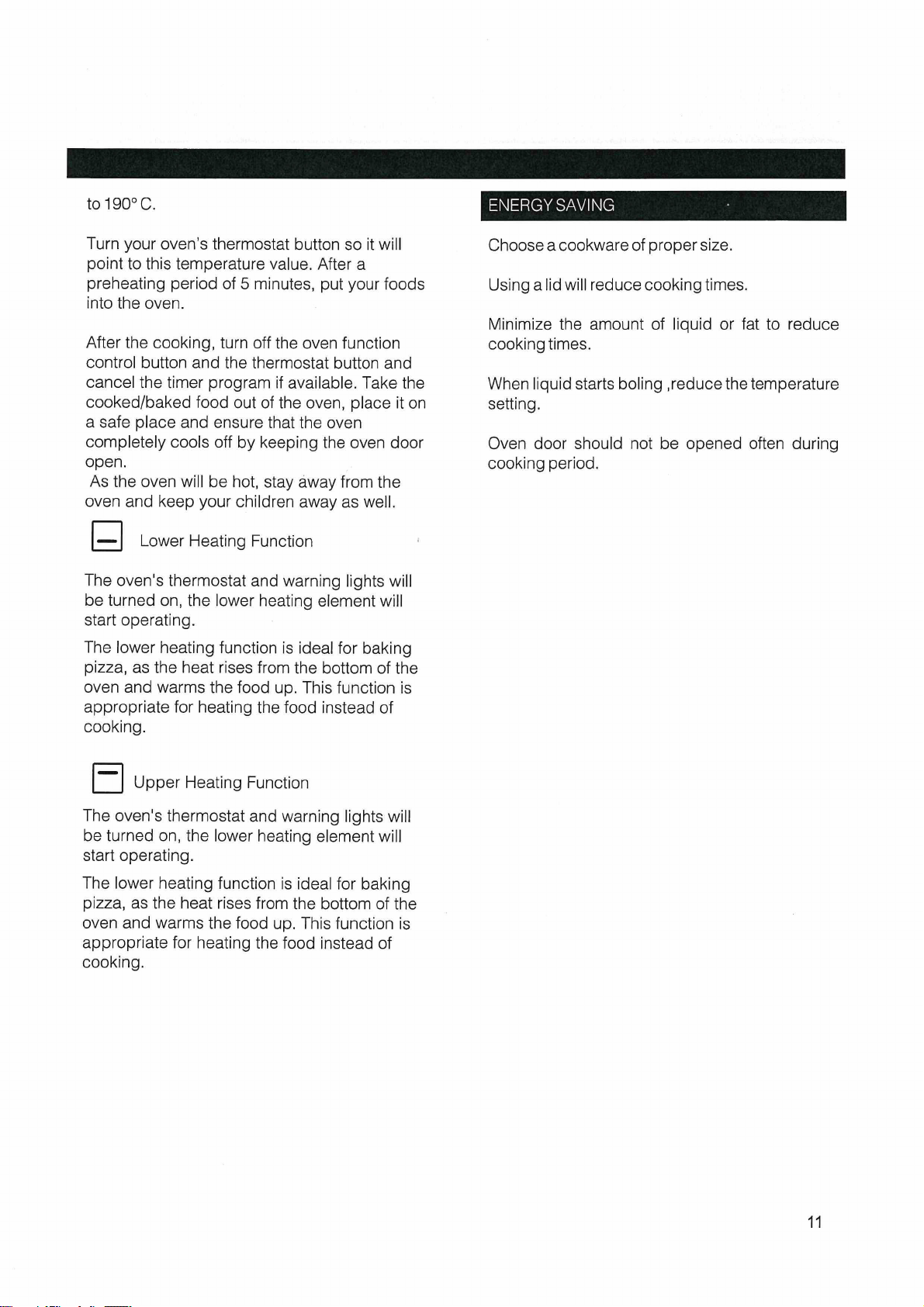

ENERGY SAVING
Choose a cookware of proper size.
Using a lid will reduce cooking times.
Minimize the amount of liquid or fat to reduce
cooking times.
When liquid starts boling ,reduce the temperature
setting.
Oven door should not be opened often during
cooking period.
11

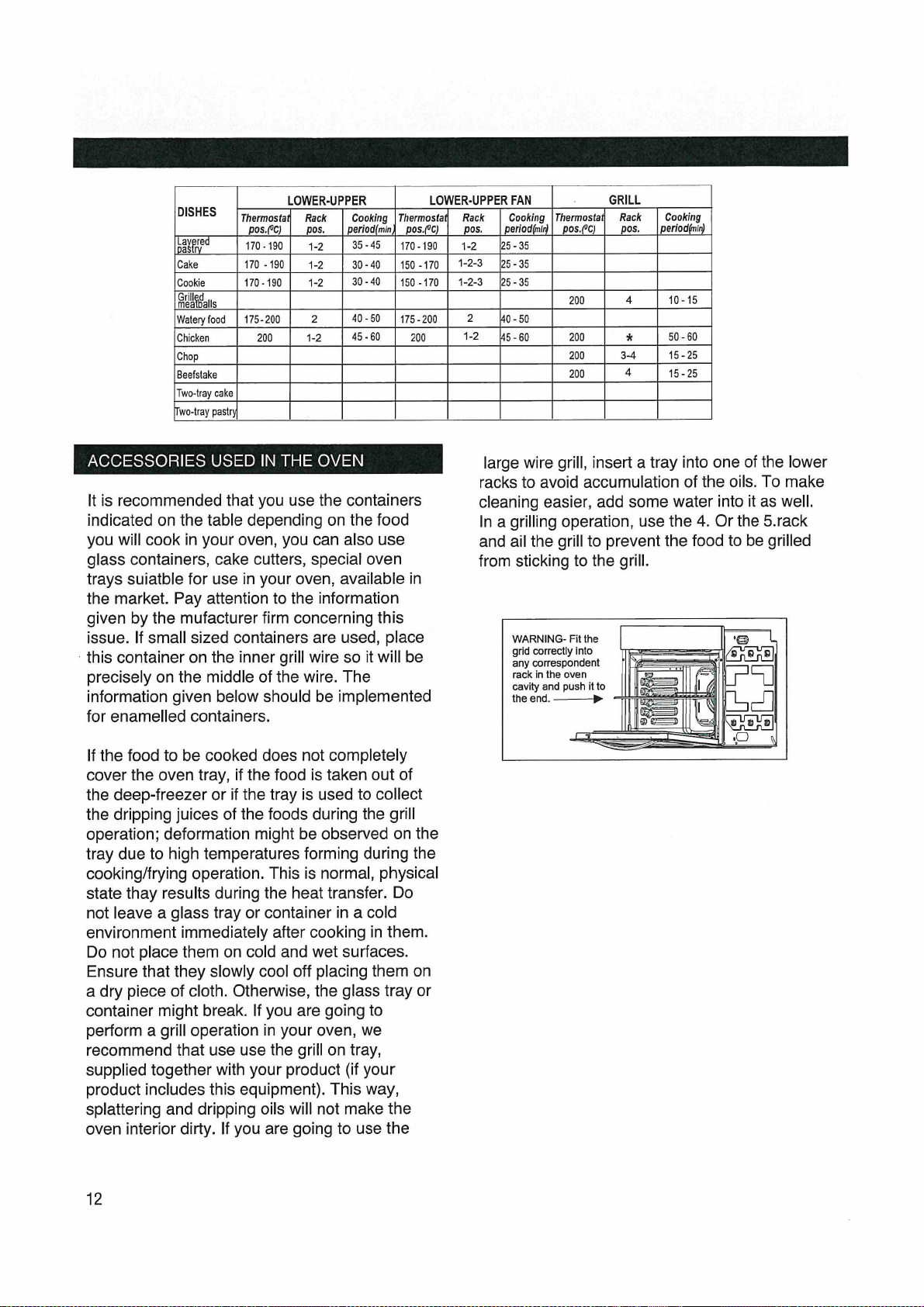

LOWER -UPPER LOWER -UPPER FAN GRILL
DISHES Thermostat
pos.(0C) Rack pos. Cooking
period(mini Thermostat pos.(°c) Rack pos. Cooking
perior4e4 Thermostat posec) Rack pos. Cooking
period(mir)
lamed 170-190 1-2 35-45 170-190 1-2 25-35
Cake 170 -190 1-2 30-40 150 -170 1-2-3 25-35
Cookie 170.190 1-2 30-40 150 -170 1-2-3 25-35
MraValls 200 4 10 -15
Wateryfood 175-200 2 40-50 175-200 2 40-50
Chicken 200 1-2 45-60 200 1-2 45-60 200 .*50-60
Chop 200 3-4 15-25
Beefstake 200 415-25
Two-traycake
Two-traypastry
ACCESSORIES USED IN THE OVEN
It is recommended that you use the containers
indicated on the table depending on the food
you will cook in your oven, you can also use
glass containers, cake cutters, special oven
trays suiatble for use in your oven, available in
the market. Pay attention to the information
given by the mufacturer firm concerning this
issue. If small sized containers are used, place
this container on the inner grill wire so it will be
precisely on the middle of the wire. The
information given below should be implemented
for enamelled containers.
If the food to be cooked does not completely
cover the oven tray, if the food is taken out of
the deep -freezer or if the tray is used to collect
the dripping juices of the foods during the grill
operation; deformation might be observed on the
tray due to high temperatures forming during the
cooking/frying operation. This is normal, physical
state thay results during the heat transfer. Do
not leave a glass tray or container in a cold
environment immediately after cooking in them.
Do not place them on cold and wet surfaces.
Ensure that they slowly cool off placing them on
a dry piece of cloth. Otherwise, the glass tray or
container might break. If you are going to
perform a grill operation in your oven, we
recommend that use use the grill on tray,
supplied together with your product (if your
product includes this equipment). This way,
splattering and dripping oils will not make the
oven interior dirty. If you are going to use the
12
large wire grill, insert a tray into one of the lower
racks to avoid accumulation of the oils. To make
cleaning easier, add some water into it as well.
In a grilling operation, use the 4. Or the 5.rack
and ail the grill to prevent the food to be grilled
from sticking to the grill.
WARNING- Fit the
grid correctly into
any correspondent
rack in the oven
cavity and push it to
t h e e n d . - -1 0 .

CLEANING AND MAINTENANCE
CLEANING
Before starting to clean your oven, be sure that
all control buttons are off and your appliance has
cooled off. Unplug the appliance.
Do not use cleaning materials containing
particles that might scratch the enamelled and
painted parts of your oven. Use cream cleaners
or liquid cleaners, which do not contain particles.
As they might harm the surfaces, do not use
caustic creams, abrasive cleaning powders,
rough wire wool or hard tools. In the event the
excess liquids spilling over your oven should
burn, it may cause a damage to the enamel.
Immediately clean up the split liquids. Do not
use steam cleaners for cleaning the oven.
Cleaning the interior of the oven
Make sure to unplug the oven before starting to
clean it. You will obtain best results if you clean
the oven interior while the oven is slightly warm.
Wipe your oven with a soft piece of cloth
dampened with soap water after each use. Then
wipe it again, this time with a wetted cloth, and
wipe it dry. A complete cleaning using dry and
powder type cleaners. For product with catalytic
enamel frames, the rear and side walls of the
inner frame do not require cleaning. However;
depending on usage, it is recommended that
you replace them after a certain period of time.
MAINTENANCE
Replacing the Oven Light
It is recommended that you leave this operation
to the Authorized Service. Unplug the oven first
and make sure that is cold. After removing the
lid in front of the light, take also the bulb of its
place. Insert the new bulb resistant to 100°C,
which you will find at Authorized Services, into
the place of the bulb you have removed. Then
fit the light protecting glass back into its place.
After that, your oven will be ready for use.
13

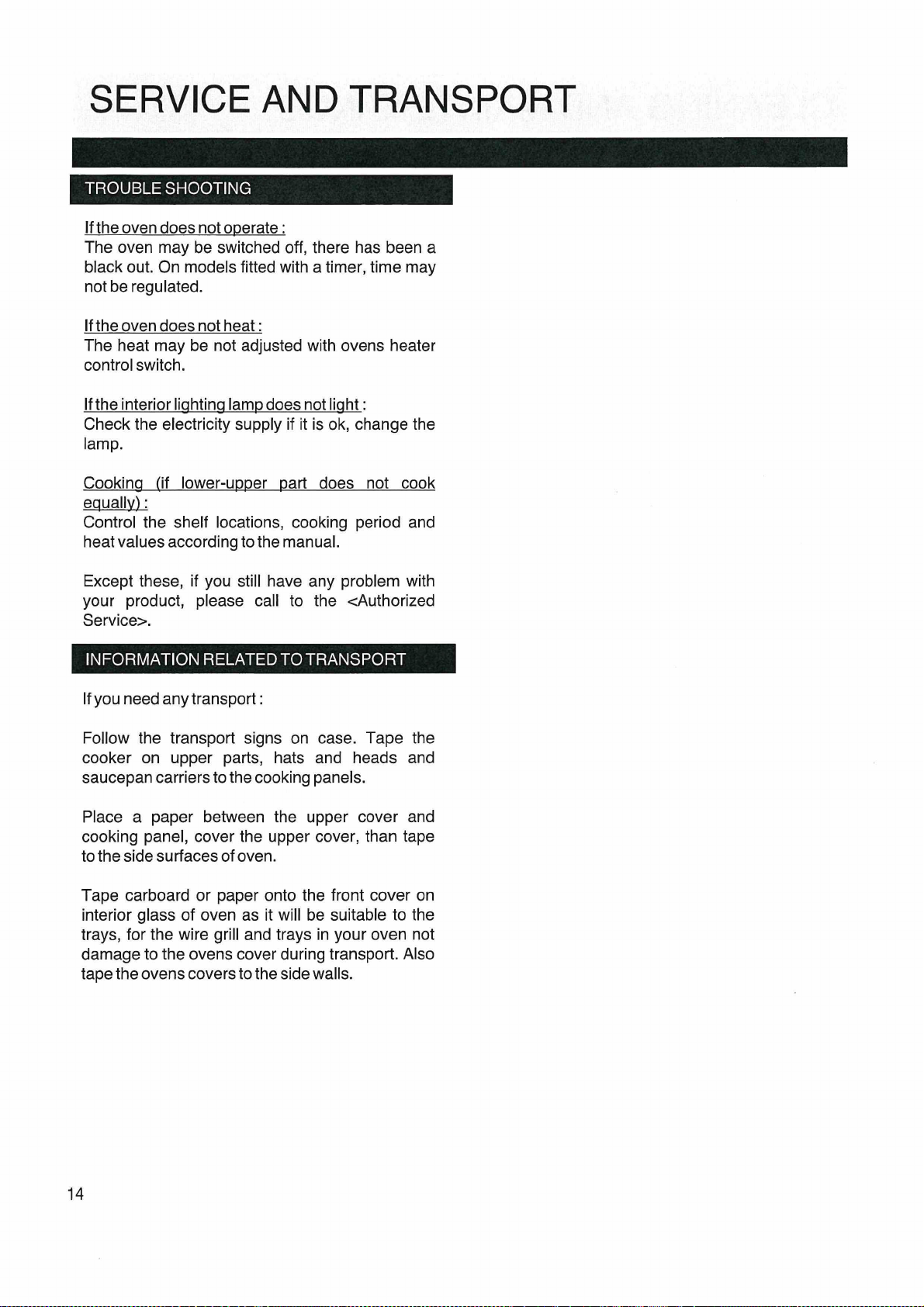

SERVICE AND TRANSPORT
TROUBLE SHOOTING
If the oven does not operate:
The oven may be switched off, there has been a
black out. On models fitted with a timer, time may
not be regulated.
If the oven does not heat:
The heat may be not adjusted with ovens heater
control switch.
If the interior lighting lamp does not light:
Check the electricity supply if it is ok, change the
lamp.
Cooking (if lower -upper part does not cook
equally) :
Control the shelf locations, cooking period and
heat values according to the manual.
Except these, if you still have any problem with
your product, please call to the <Authorized
Service>.
INFORMATION RELATED TO TRANSPORT
If you need any transport:
Follow the transport signs on case. Tape the
cooker on upper parts, hats and heads and
saucepan carriers to the cooking panels.
Place a paper between the upper cover and
cooking panel, cover the upper cover, than tape
to the side surfaces of oven.
Tape carboard or paper onto the front cover on
interior glass of oven as it will be suitable to the
trays, for the wire grill and trays in your oven not
damage to the ovens cover during transport. Also
tape the ovens covers to the side walls.
14

Technical Specifications
Brand COOKWORKS
Model CBES
Type of Oven ELECTRIC
-—
Mass kg 28,5 _
Energy Efficiency Index - conventional 0,85 _
Energy Efficiency Index - fan forced -
Energy Class A
Energy consumption (electricity) - conventional kWh/cycle 103,8
Energy consumption (electricity) - fan forced kWh/cycle - -
Number of cavities 1
Heat Source ELECTRIC
Volume I 64
This oven complies with EN 60350-1
Energy Saving Tips
Oven
- Cook themeals together, if possible.
- Keep the pre -heating time short.
-Donot elongatecookingtime.
- Do not forget toturn-off the men at theend of cooking.
- Do not open men door during cooking period.
Model/Item CBES
Power supply (230)V—/50Hz
Maximum power 2600W
Size(HxWxD) 595x595x570mm
Cut-out Dimensions (HxWxD) 600x600x580mm
CEWe apologise for any inconvenience caused by any minor inconsistencies in these
instructions , which may occur as a result of product improvemenst and development.
Disposal information
The symbol on the product or
on its packaging indicates that
this product may not be treated
as household waste. Instead it
shall be handed over to the
applicable. collection point for
the recycling of electrical and
electronic equipment.
By ensuring this product is disposed of correctly,
you will -help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product. For
more detailed information about recycling of this
product, please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.

Guarantee
Argos
Product Guarantee
This product is guaranteed against manufacturing defects for a period of
II Year
This product is guaranteed for twelve months from the date of original purchase.
Any defect that arises due to faulty materials or workmanship will either be replaced,
refunded or repaired free of charge where possible during this period by the dealer
from whom you purchased the unit.
The guarantee is subject to the following provisions:
• The guarantee does not cover accidental damage, misuse, cabinet parts, knobs
or consumable items.
• The product must be correctly installed and operated in accordance with the
instructions contained in this manual.
• It must be used solely for domestic purpose.
• The guarantee will be rendered invalided if the product is re -sold or has been
damaged by inexpert repair.
• Specifications are subject to change without notice.
• The manufacturer disclaims any liability for the incidental or consequential damages.
• The guarantee is in addition to, and does not diminish your statutory or legal rights.
• In the event of a problem with the product with in the guarantee period call the
Customer Helpline: 0345 257 7271.
Guarantor: Argos Ltd
489 - 499 Avebury Boulevard
Central Milton Keynes
MK9 2NW 52169004 05/15
