Cool-Icam CIC-390 User manual

TM
User’s Manual
TV C@m

3
• Product Overview
1. Viewnder
2. LCD Screen
Back View
12
1. Shutter button
2. Feature change button
3. Feature button
4. Power on/off button
5. USB port
6. Lens
7. Viewnder
8. Battery door
2
13
4
8
7
65
1. Docking station connector door
2. Tripod mount socket
Bottom View
2
1
1. Digital Camera Connector
2. Floppy Diskette Slot
3. Eject Button
4. Power Supply Port
5. Video Out Port
6. Menu Display Button
7. Scroll (Left) Button
8. Select Button
9. Power LED
10. Scroll (Right) Button
1
DC IN 9V
TV OUT
9
10
7
6
8
2
3
5
4

4
Table of Contents
1 Getting Started ............................................................................................6
• What Can I do with my Camera? .................................................................6
• What can I do with my Digital Pictures?........................................................6
• Camera Package Contents ..........................................................................6
• Attaching the wrist strap ............................................................................7
• Installing the batteries ...............................................................................7
• Turning the Camera On and Off ...................................................................7
• Checking the battery level ..........................................................................8
• Automatic power off saves batteries.............................................................8
• Checking Camera Status ............................................................................8
2 Taking Pictures .............................................................................................9
• Taking a Picture ........................................................................................9
• Other Picture Taking settings.......................................................................9
• Setting the picture quality ..........................................................................9
• Setting the 2X digital zoom.........................................................................10
• Self Timer ................................................................................................10
• Re-formatting the camera...........................................................................10
3 Viewing your Pictures on your TV Screen .........................................................11

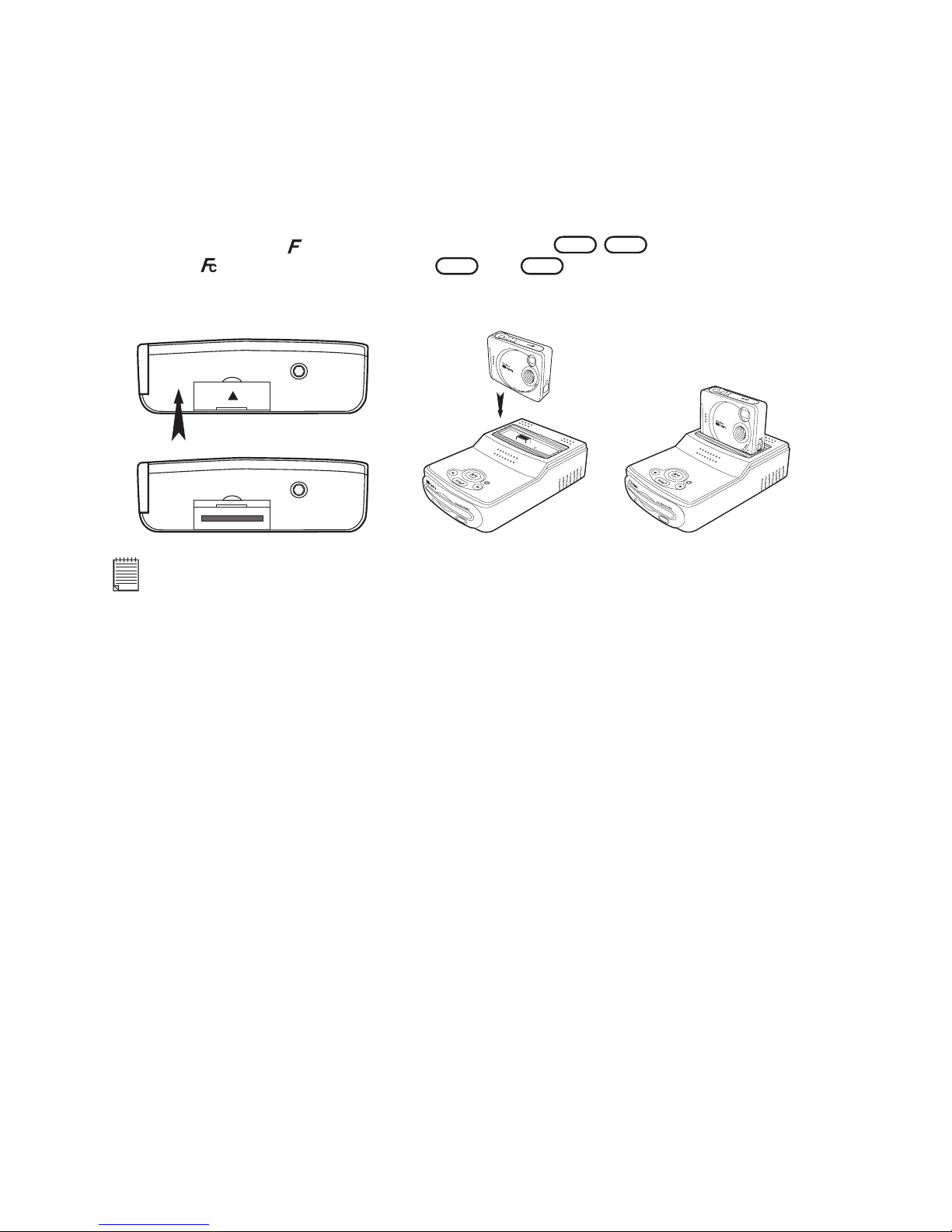

• TV C@m TV Docking Station .......................................................................11
• Connecting the Docking Station to the TV .....................................................11
• Docking the Camera ..................................................................................12

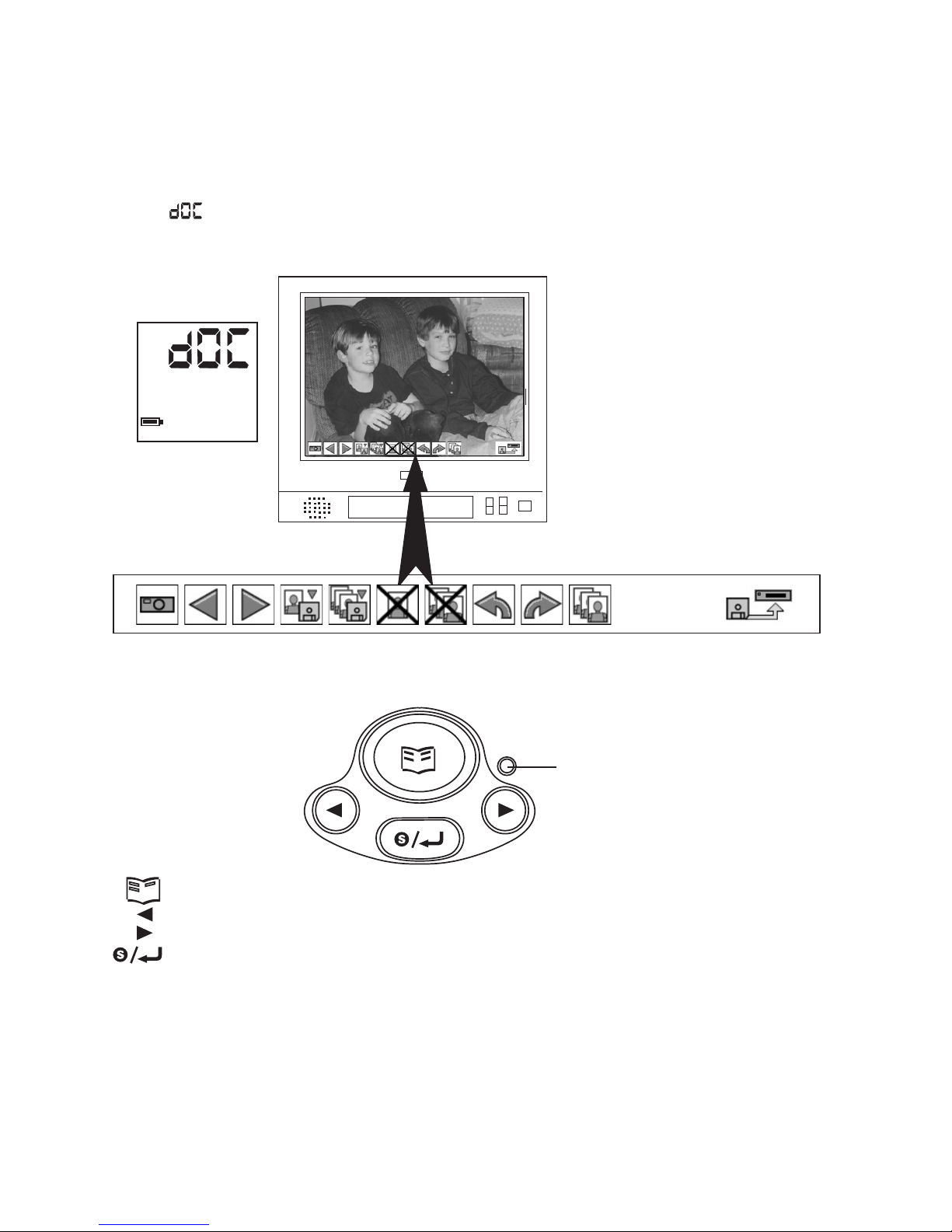

• Using the TV menu bar...............................................................................13
• Here’s how to view the pictures...................................................................14
• Basic functions..........................................................................................15

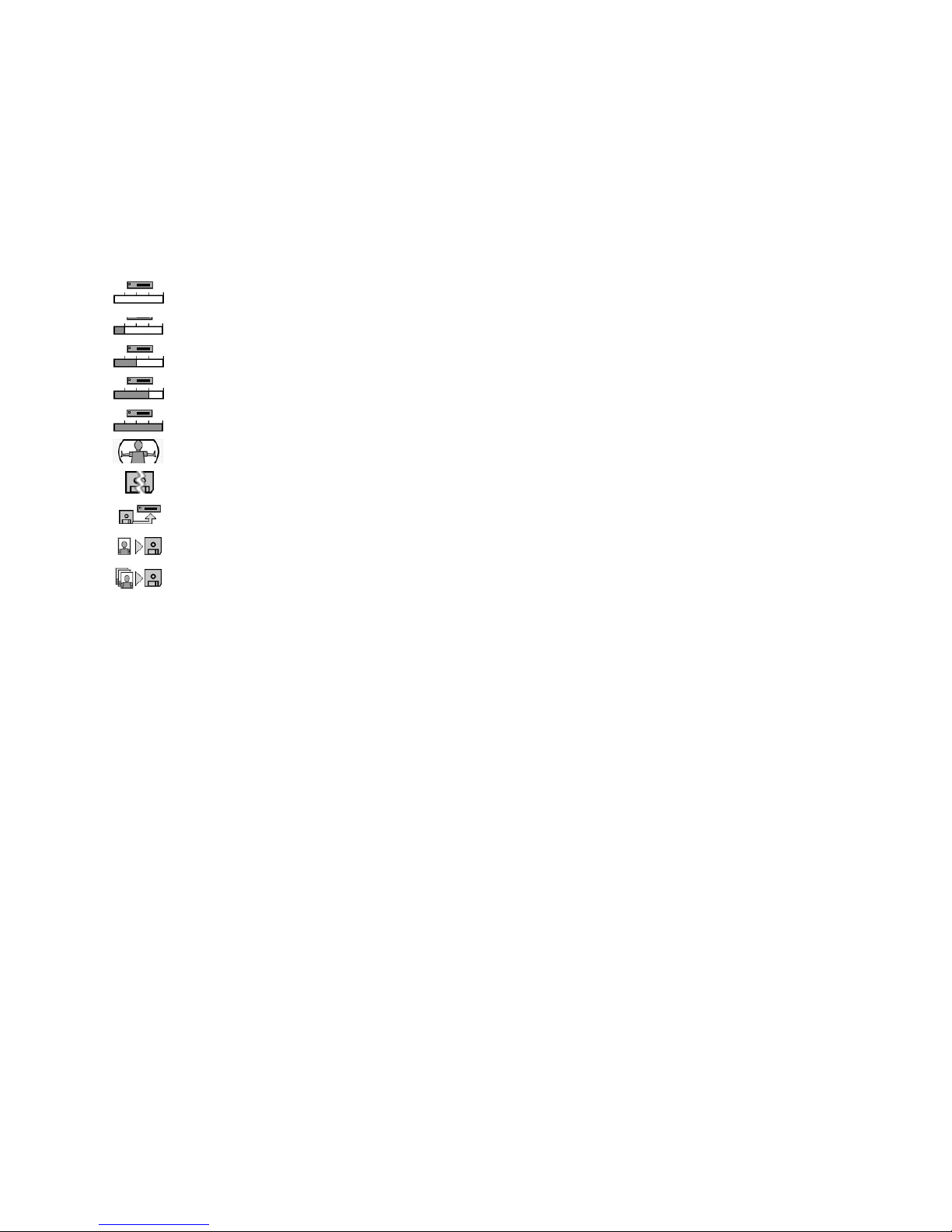

• Other important information displayed on the TV menu bar.............................16
4 Loading a Floppy Disk ...................................................................................17
• Loading a Floppy Disk ................................................................................17
• Removing a Floppy Disk from the docking station ..........................................17
• Transferring your images from disk to a computer..........................................17

5
5 Installing your Software onto a Computer(for computer users only) ................................18
• Install the software....................................................................................18
• Software included with your camera.............................................................18
• How to Install ArcSoft® Software PC MAC .........................................20
• How to Install Microsoft® Netmeeting™ PC ..............................................20
• How to install Adobe® Acrobat® Reader PC MAC .........................................21
• Computer system requirements PC MAC .........................................22
• Uninstalling the Camera Driver PC MAC .........................................22
6 Transferring Pictures To Your Computer(for computer users only) ....................................23
• Before you transfer pictures........................................................................23
• Connecting to your computer PC MAC .........................................23
• Transferring the Pictures PC MAC .........................................23
• How to use other Softwares ........................................................................24
• How to use PhotoStudio® 4.0 PC MAC .........................................24
• How to use Arcsoft Funhouse™ 1.0 PC MAC .........................................25
• How to use Arcsoft PhotoPrinter® 2000 PC MAC .........................................26
• How to use Arcsoft VideoImpression™ 1.6 PC MAC .........................................27
7 Using your camera as a Web Cam(for computer users only) ..........................................28
• Setting up PC ...................................................................................28
• Making a call PC ...................................................................................28
8 Troubleshooting Problems ..............................................................................29
• Troubleshooting - Camera PC MAC .........................................29
• Troubleshooting - Docking Station ...............................................................30
9 Getting Help ................................................................................................31
• Software Help ...........................................................................................31
• Cool-iCam Online Services ..........................................................................31
• Customer Support .....................................................................................31
10 Appendix .....................................................................................................32
• Camera Specications ................................................................................32
• TV Docking Station specications.................................................................32
• Using your batteries ..................................................................................33
• Tips, Your Safety & Maintenance..................................................................33
• Picture Storage Capacities & Picture File Name Conventions ............................34
• Regulatory Information ..............................................................................34
• PAL/NTSC International TV settings .............................................................35

6
1 Getting Started
• What Can I do with my Camera?
Capture Enjoy point & shoot operation. Store pictures in the Cameras 4MB
internal memory.
Set Up Select various Camera settings
Communicate Use the camera as a Web Camera
• What can I do with my Digital Pictures?
View Pictures either on a TV screen or Computer
Save Pictures to a oppy disk or a computer memory
Communicate Send the pictures over the internet to family and friends.
• Camera Package Contents
TM TV Cam
Quick Start Guide
Product Overview
1. Viewnder
2. LCD Screen
Back View
12
1. Shutter button
2. Feature change button
3. Feature button
4. Power on/off button
5. USB port
6. Lens
7. Viewnder
8. Battery door
2
13
4
8
7
6
5
1. Docking station connector door
2. Tripod mount socket
Bottom View
2
1
TV C@M
USB Cable
4 x AAA
Batteries
CD-ROM includes “My Digital Camera” Manager
ArcSoft® Software Suite (PC & Mac),
Microsoft® NetMeeting™ (PC) &
Adobe® Acrobat® Reader (PC & Mac),
User’s Manual.
Wrist Strap
Camera Bag
Quick Guide
TV Docking Station Mains Adaptor 3 x Formatted
Floppy Diskettes
Please take a moment to fill out and return this Registration Card.
Your valuable input will help us to serve you better.
Product Registration Card
3
First Name
Mr.
Middle Initial
Last Name
Address
Ms.Mrs.Miss
Please provide any comments you have regarding this product.
Registration Card No.:
T
own County
Post CodeT
elephone No.
E-mail AddressDate of purchase
DayMonthYear
5
Age of user
5-78-1010-1516-2021+
7
Retail ShopCatalogueOthers: (Please specify)
MagazineCatalogue BrochureInternetFriends
Where did you purchase this product?
Where did you first see this product?
Others: (Please specify)
Internet
TV
Please check here if y
ou are not interested in receiving information from
Character Options Ltd. about current and future products.
Character Options Ltd.
Customer Services Department.
Helpline T
el: 0161 633 9808
E-mail: [e-mail]
TM
Registration Card
Video out Cable

7
• Attaching the wrist strap
• Installing the batteries
4 x AAA Alkaline batteries are supplied with the product
1. Open the battery door.
2. Insert the batteries as shown, ensuring you follow the +/- signs correctly.
3. Close the battery door.
12
3
• Turning the Camera On and Off ON/OFF Button
To turn the camera on, press the power button until the LCD display comes on. To turn
the camera off, press the power button again. The LCD display will switch off.
Note:
Whenever the camera is not in use, please return it to the docking station, or remove the batteries from
the camera in order to extend the battery life.

8
• Checking the battery level
Check the battery power level before taking pictures. For guidelines on
battery usage, see Using Your Batteries
1. Turn the camera on.
2. Check the battery status level that appears on the camera LCD
screen
batteries have adequate power
batteries need to be replaced
• Automatic power off saves batteries
Your Camera is designed to switch off and save battery life after 60 seconds of non use.
Press the ON/OFF button to reactivate the camera.
• Checking Camera Status
Switch the Camera on, view the camera LCD screen to check which camera settings are
active. If an icon is not displayed, that camera feature is not activated.

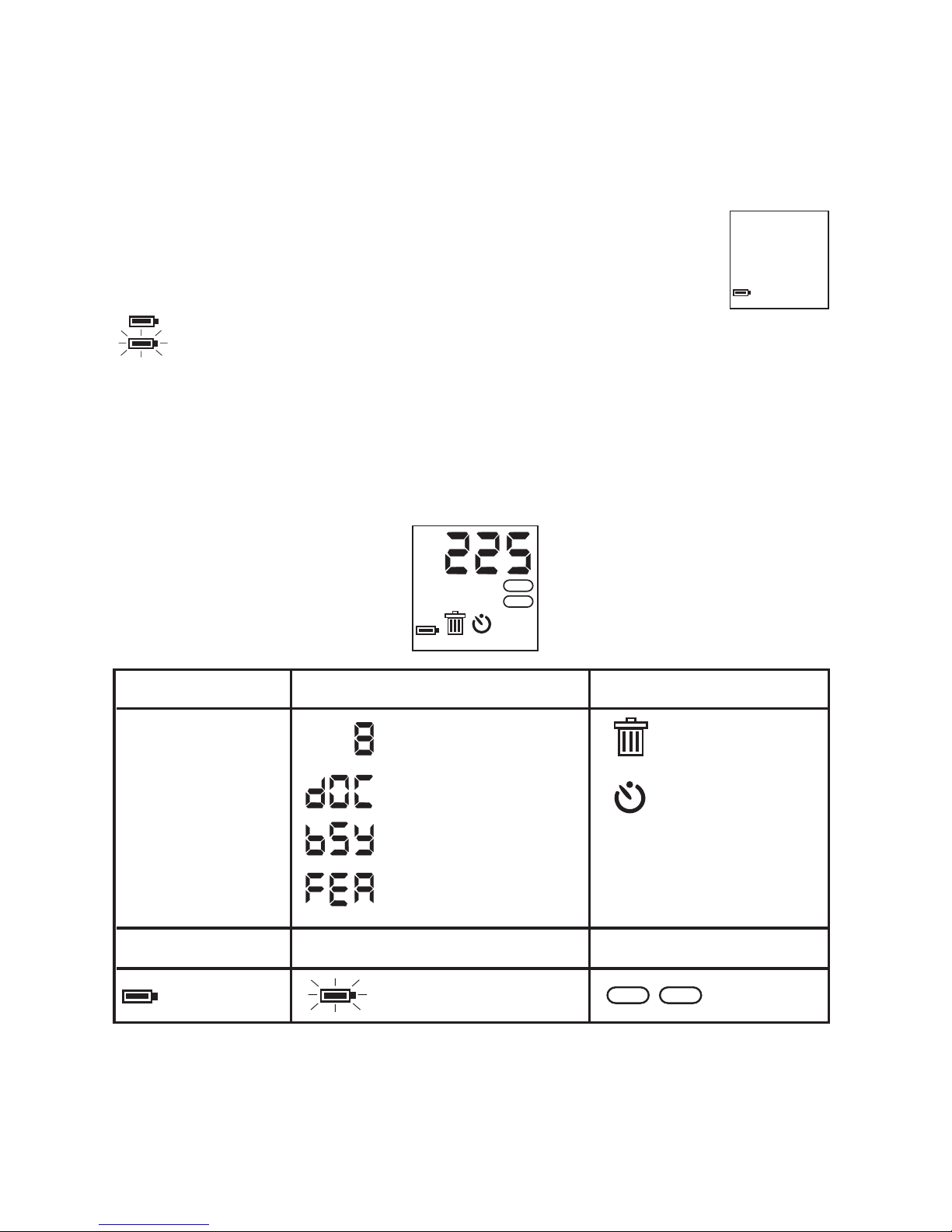

Status Bar Icons
HIGH NORMAL LOW
PAL
NTSC
2X
HIGH
NORMAL
LOW
Best
Pictures taken
Better
Good
Docking station connected
Camera busy
Feature button selected
Picture Quality Camera Status
2X
Full Battery Low Battery
Delete all pictures
Other Features
Self-Timer Mode
2X Digital Zoom Mode
TV Settings
PAL NTSC

9
2 Taking Pictures
• Taking a Picture
ON/OFF Button
1. Press the ON/OFF button once to switch the camera ON.
2. Frame your subject using the camera viewnder.
3. Hold the camera steadily. Press the Shutter button completely down to take an image.
A beep sound is made when the picture has been taken and the counter will increase by
one. The counter will stop bilnking when the picture exposure has been completed.
4. Under some lighting conditions there may be a delay before image is captured,
After pressing the shutter button, hold the camera steady until you hear a
beep. The beep singals exposure is complete. Moving the camera before the
beep may result in a blurry image. Shutter Button
Note:
Whenever the camera is not in use, please return it to the docking station, or remove the batteries from
the camera in order to extend the battery life.
• Other Picture Taking settings
Setting Section
Set Picture Quality Setting the Picture Quality
Set 2 x Digital Zoom Setting the 2 x Digital Zoom
Self Timer Setting the self timer
Deleting Pictures Deleting Pictures from the camera
• Setting the Picture Quality
1. Press the Feature button, will appear and then press the Feature Change button
to select between High, Normal or Low economy pictures.
2. The camera will wait a few moments and then set the Picture quality selected.
• High HIGH (640 x 480) with high compression for detailed images, large le size and
prints pictures up to 2.13” x 1.6” (54.2mm x 40.6mm)
• Normal NORMAL (640 x 480) with low compression for normal images, large le size
and prints pictures up to 2.13” x 1.6” (54.2mm x 40.6mm)
• Low Economy LOW (320 x 240) for small print sizes, e-mailing or screen display. Small
le size and prints pictures up to 1.06” x 0.8” (27.1mm x 20.3mm)
3. Take the picture.

10
• Setting the 2X Digital Zoom
1. Press the Feature button and then press the Feature Change button to select 2X
Digital Zoom 2X setting.
2. The camera will wait a few moments and then set the 2X Digital Zoom mode.
3. Take the Picture.
• Picture resolution in 2 x Digital Zoom mode is 320 x 240. You may notice a decrease in
picture quality when using digital zoom mode.
• Self Timer
You camera is designed with a self timer function which will allow you to take pictures with
10 seconds timer built in. Frame our subject and use a stand (not supplied) to position
your camera.
1. Switch the camera on.
2. Use the Feature button to select the self timer mode . Press Feature Change
button to conrm. The self timer icon will ash until set.
3. Frame your subject.
4. Press the shutter button, the camera counter will automatically count 10 seconds before
taking a picture.
• Re-formatting the camera
PLEASE NOTE! ALL PICTURES WILL BE DELETED WHEN RE-FORMATTED
1. Press the Feature button until the icon appears. Press the Feature Change
button to conrm.
2. The camera will wait up to 40 seconds for the formatting to be completed. The icon
will be displayed during this time.
