Coolmed CMWF29 User manual

Model number:
CMWF29/CMWF125/CMWF300
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am –4pm
or visit us at www.coolmed.co.uk
IMPORTANT:
RETAIN FOR FUTURE REFERENCE
WARD FRIDGE
Instruction Manual
SET
LO
HI
SET
LO
HI
SET
LO
HI

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
Contents
Safety Instructions ………………………………………. 3-4
Electrical Safety ………………………………………. 4
Transportation & Handling ………………………………………. 5
Installing & Switching on your Appliance ………………………………………. 5
Before Switching On ………………………………………. 6
Product Overview ………………………………………. 7
Unit & Spare Parts ………………………………………. 7
Usage ………………………………………. 8
Temperature Selection ………………………………………. 8
Min Max Temperature Data ………………………………………. 9
Min Max Temperature Reset ………………………………………. 9
Alarm ………………………………………. 10-11
Internal Light ………………………………………. 12
Defrosting ………………………………………. 12
Energy Saving Advice ………………………………………. 13
Maintenance & Cleaning ………………………………………. 14
Troubleshooting ………………………………………. 15-16
Connection to the Mains Supply ………………………………………. 17
Guarantee ………………………………………. 18
Technical Specifications ………………………………………. 19-20
Notes ………………………………………. 21

Safety Instructions
Important note: Please read this booklet before installing and switching on this
appliance. The manufacturer assumes no responsibility for incorrect installation
and usage as described in this booklet.
•This model uses natural refrigerant gas as part of its cooling system.This
gas is known as R600a (Isobutane) and is environmentally friendly but can be
combustible.Care should therefore be taken when handling or transporting the
product to ensure that none of the refrigeration circuit components is
damaged,
•Do not obstruct ventilation openings in the appliance
•The appliance must not be placed or rested on its power cable.
•Do not use mechanical devices or other artificial means to accelerate the
defrosting process,such as aheater or ahair dryer.
•Do not use electrical appliances in the refrigerator compartment of the
appliance.
•If this appliance is to replace an old refrigerator with a lock, the lock must be
removed as a safety measure before storing it or disposing of it.This is to
protect children from locking themselves inside the appliance.
•Old refrigerators and freezers contain insulation gases and refrigerant, they
must be disposed of properly. Contact your local authority or your dealer if
you have any questions. Please ensure that you do not damage the scrapunit
prior to being collected by the relevant waste disposal service.
•Do not use adaptors or extensionleadswhen connecting the appliance to the
electrical power supply
•Do not plug in damaged plugs.
•Do not pull, twistor damage the powercable.
•Do not plug-in or un-plug the appliance withwet hands, to prevent electrical
shock.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
3

•This appliance is designed to be used by adults. Do not allow childrento play
with the appliance or letthem hang on the door.
•Do not place explosiveor flammable material in this appliance for your own
safety.
•Bottles containing a highpercentage of alcohol mustbe sealedwell and placed
vertically in the refrigerator.
•Do not coverthe body or the top of the appliance
•Fix down the accessories in the appliance during transportation to prevent
damage to them.
Electrical Safety
THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET
•Before switching on, make sure that the voltage of your electricity supply is the
same as that indicated on the rating plate. This product is designed to operate
on 230 –240V AC; 50Hz. Connection to any other power source may damage
the unit.
•This product may be fitted with a non re-wireable plug. If it is necessary to
change the fuse in the plug, the fuse cover must be refitted. If the fuse cover
becomes lost or damaged, the plug must not be used until a suitable
replacement is obtained.
•If the plug has to be changed because it becomes damaged in any way, it should
be cut off and an appropriate plug fitted. This should be carried out by a
qualified electrician. The plug removed must be disposed of safely, as insertion
into a 13amp socket is likely to cause an electrical hazard.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
4

Transportation and Handling
For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the
base and rear corners of cabinet. Lift the refrigerator carefully. To move the
refrigerator on a flat level surface, tilt it slightly backwards and push backwards.
This unit is heavy and could cause injury –ensure there are adequate people
present to move the appliance.
Installing and Switching on Your Appliance
•Operating voltage for your appliance is 230-240Vat 50Hz.
•Before plugging in the power supply, ensure that the voltage on the rating label
corresponds to the working voltage of the electrical system in your home.
•Insertthe plug into an approved Earth connection. If the socket hasno Earth
contact or the plug does not match, we suggestyou call an authorised electrician for
assistance.
•Place your appliance in an area that is not exposedto direct sunlight.
•Your appliance should be placed at least 10cm away from stoves, ovens and other
heating sources.
•This appliance should neverbe usedoutdoors or left in the rain.
•When your appliance is placed nextto achestfreezer or freezer, thereshould be at
least 10cm betweenthem to prevent humidityon the outer surface.
•Do not place anything on top of your appliance and install the unit in a suitable place,
so that there is at least 30cm clearance above it.
•If placing your appliance nextto cabinets, leave 5cm betweenthem.
•The rear of the appliance should be at least 6cm away from the back wall.
•The appliance must be used in the vertical position and on a flat surface.
•To level the appliance, use the adjustable feet on the appliance.
•Do not place your appliance on a carpeted surface as this will prevent adequate
ventilation.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
5

•This appliance should only be placed on a flat, firm surface.
•Choose a dry and well-ventilated space.
•The appliance should be positioned so that the plug is easily accessible.
•If you need help or are unsure how to install the unit, please contact
Customer Services on 0161 772 5600 or visit www.coolmed.co.uk.
Before SwitchingOn
•Before using your appliance, remove all transport tapes and foam protection
pieces and ensure that the appliances is not connected to the power source.
add a teaspoon of bicarbonate of soda to warm water and with a damp cloth
wipe down all exterior parts of the new appliance, then repeat the process with
a clean damp cloth and wipe dry.
•Clean the interior with a cloth dampened in lukewarm soap and water. Repeat
the process with a clean damp cloth and wipe dry with a soft cloth.
•There may be an odour when you first switch on the appliance, it will disappear
when the appliance starts to cool.
•When the appliance has been positioned, adjust the feet to ensure the unit is
stable. This is essential to ensure quiet running and proper door opening
/closing.
•Connect to the electrical socket but do not switch on the power to the
refrigerator for at least 3 hours. The coolant within the product needs time to
settle after it has been transported and installed. Failure to do this will affect
the cooling performance of your appliance and may invalidate your warranty.
•Once the appliance has settled, turn on the appliance at the mains socket and
the compressor will begin to work.
•You may hear faint gurgling or bubbling sounds when the refrigerant is pumped
to the cooling system and through the coils or tubing at the rear of the
appliance. When the compressor is in operation you may hear a slight whirring
sound or pulsating noise. The thermostat controls the operation of the
compressor, and you may hear a slight click as it cycles in and out (this is
normal).
•To save energy, you should minimize the frequency and duration of door
opening.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
6

Product Overview
Unit Parts & Spare Parts
Before installation, check that all parts detailed in the product overview are
present. If any parts are missing, please contact the Customer
Service team on 0161 772 5666 or visit us at www.coolmed.co.uk
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
7

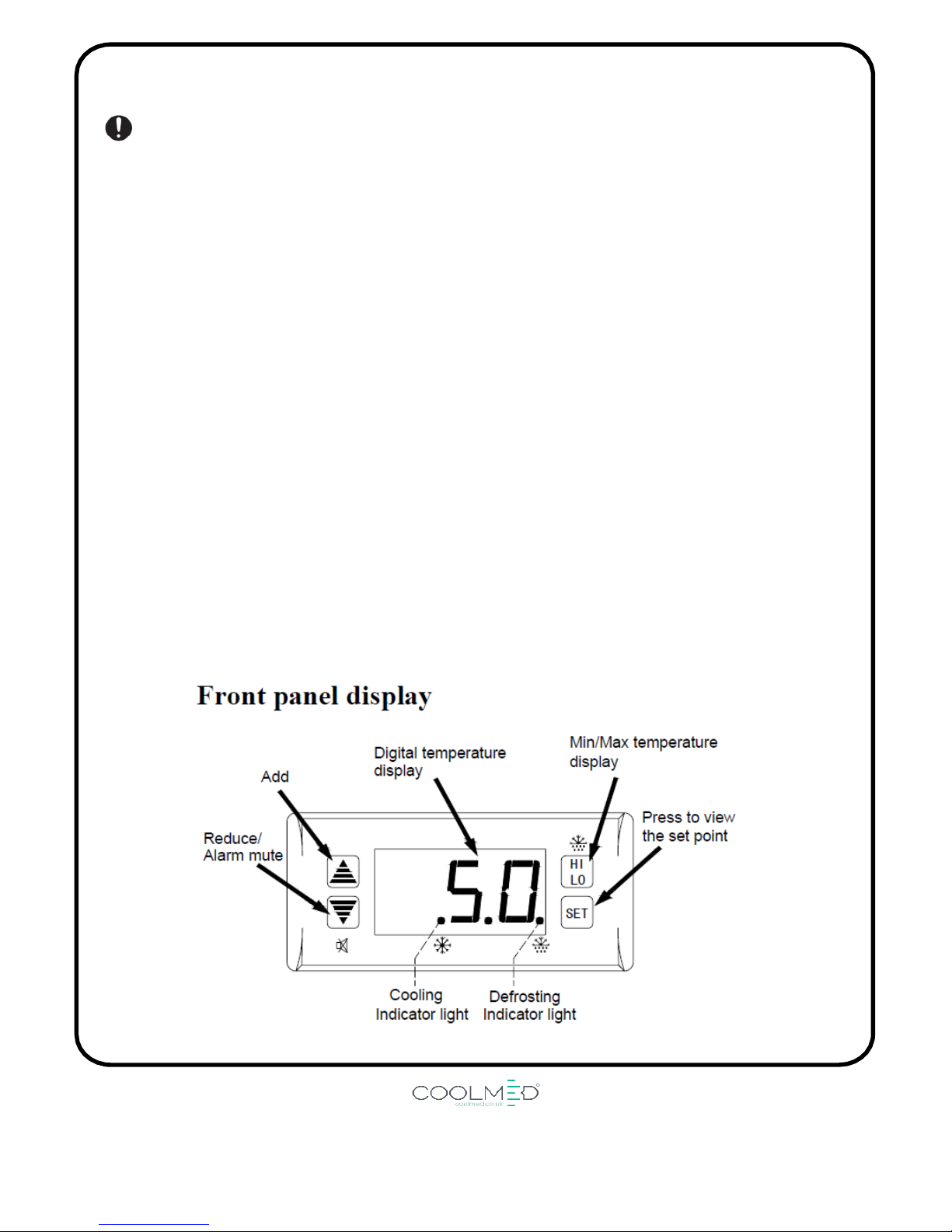

The temperature in the appliance is controlled by the temperature control panel
located outside the fridge. Press the set button and the display will start to flash,
press the up and down buttons to select the desired temperature and press set
again. Your temperature now is set and it will take time to reach the set
temperature depending on the room temperature. The display will now revert
back to the actual temperature in the fridge. The fridge is now running to
achieve the desired set temperature . After around 10 minutes the alarm will
sound if the temperature of the fridge is higher than 8 Degrees Celsius and the
display will flash HP2. The alarm will stop once the temperature of the fridge
reaches 8 Degrees Celsius or alternatively the alarm can be stopped by pressing
the up or down arrows.
Insert 4 AA batteries in the battery compartment on the right hand side of the
fridge. This is to ensure the temperature recorder still records the temperature
in the event of a power failure.
On the temperature control, pressing the down arrow will reduce the
temperature and the up arrow will increase the temperature. The temperature
range is 1 –5 Degrees Celsius, according to MHRA guidelines for food storage.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
8
Allow to stand for a minimum of 3 hours before plugging in to the mains
Usage

Min / Max Temperature Data
The fridge records the min and max temperatures when the fridge is plugged
into the mains electricity, however it will still record if the batteries are fitted.
This information is stored until the fridge is reset.
This information can be accessed if you press the button and release. The
display will show HI and the high temperature recorded since the last reset will
be displayed, followed by LO and the lowest temperature will be displayed.
Min / Max Temperature Reset
It recommended that the fridge temperatures be monitored and recorded at
least once a day. Once you have taken the temperatures for the fridge it is
important you reset the recorder on the control panel. This is because the fridge
will display the highest and lowest temperature since the last reset. The fridge
does not automatically reset. This needs to be done manually.
To reset press and hold button until the display flashes HL. Then the
display will revert back to normal and the previous highest and lowest
temperature recording will have been deleted.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
9

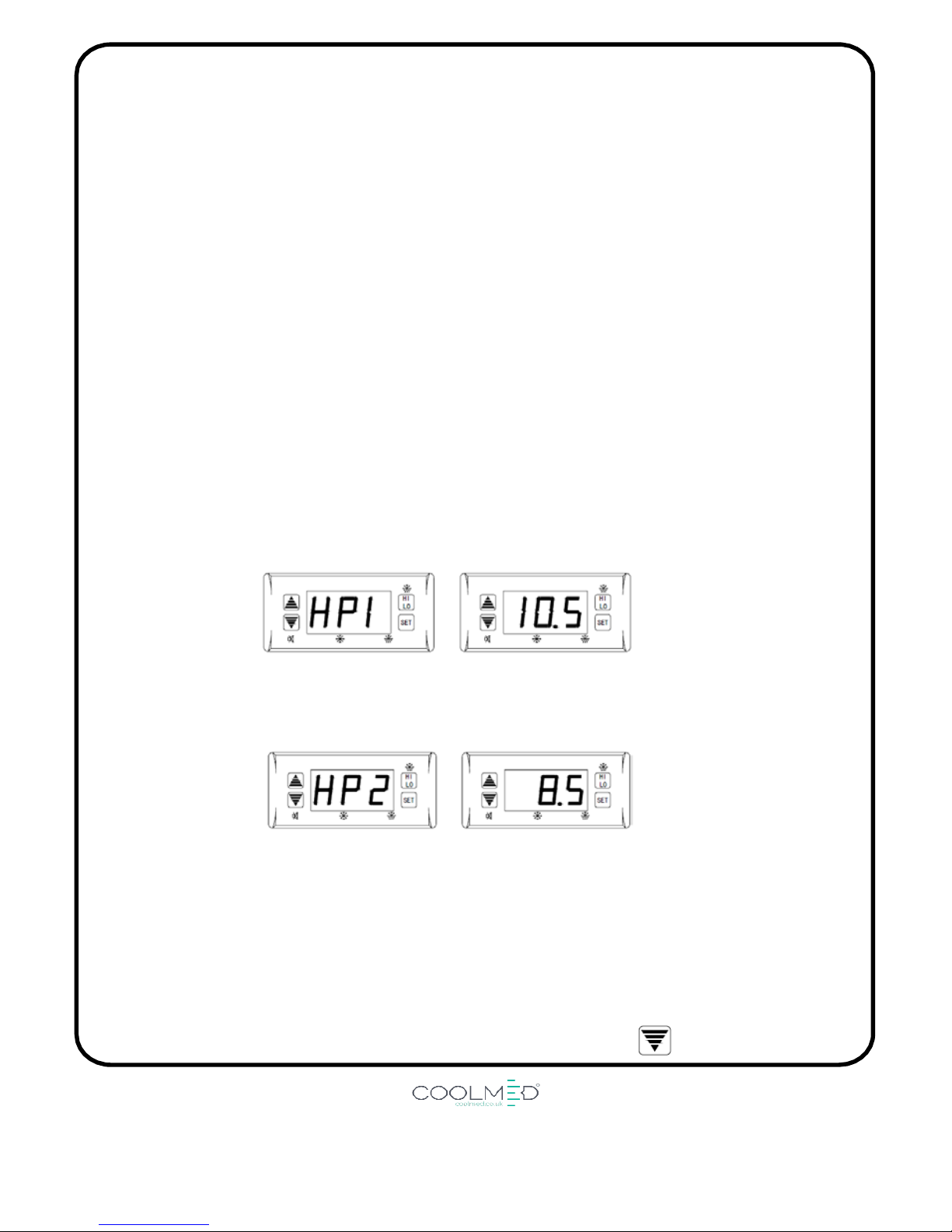

Alarm Function
Display Alarm Codes
SC1 -Temperature probe P1 is short circuit
S01 -Temperature probe P1 is open circuit
SC2 -Temperature probe P2 is short circuit error
S02 -Temperature probe P2 is open circuit error
HP1 -Temperature probe P1 is too high
LP1 -Temperature probe P1 is too low
HP2 -Temperature probe P2 is too high
LP2 -Temperature probe P1 is too high
do -The door has been left open over 3 minutes
High / Low Temperature Alarm
If the temperature recorded by P1 is higher than the preset value ( factory set at
9 °C) for more than 10 minutes, an alarm will sound and the display will flash
HP1
If the temperature recorded by P2 is higher than the preset value ( factory set at
8 °C) for more than 10 minutes, an alarm will sound and the display will flash
HP2
The cause of the rise in temperature should be investigated immediately.
Usually the cause is the door being left open or not being shut fully. This can
also happen if the fridge has just been restocked with goods at a higher
temperature than the fridge. It is recommended to check the fridge to ensure
that the fridge is returning to the normal temperature after the alarm has
been activated. If you want to turn the alarm off, press button.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
10

Low Temperature Alarm
If the temperature recorded by P1 is lower than the preset value ( factory set at
-1 °C) for more than 10 minutes, an alarm will sound and the display will flash
HP1
If the temperature recorded by P2 is lower than the preset value ( factory set at
-1 °C) for more than 10 minutes, an alarm will sound and the display will flash
LP2
The cause of the drop in temperature should be investigated immediately.
Usually the cause is that extremely cold goods have been placed in the fridge.
The fridge should be monitored to ensure it is returning back to the correct
temperature.
Remote Alarm
In the event of a low, high temperature or door alarm, the alarm can be
connected remotely to the red alarm connector at the back. The 4 pin
connector is not to be used as this is factory use only.
Note: the maximum rating for this connection is 1A 30Vdc
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
11

Internal Light
There is a light fitted internally at the top of the fridge, which can be turned on
and off by the switch on the front of the fridge.
Defrosting
Ice may build up on the evaporator, this may happen occasionally during high
periods of humidity. This can also happen due to the door being left open or
excessively opened, moist items being placed in the fridge, or too low an
operating temperature. Ice build up may impair the product’s performance
and a manual defrost should be performed. Ensure all goods in the fridge are
transferred to another fridge prior to defrosting.
Defrost by pressing and holding and buttons together for 6
seconds until the controller beeps and the defrost light is on. The fridge will
now start to defrost and this will take approximately 25 minutes.
If you want to cancel the defrosting, then press and hold buttons
together for 6 seconds until the controller beeps and the defrost light starts
flashing.
Note: Do not use any mechanical or other means to defrost the fridge.
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
12

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
13
Energy Saving Advice
•Do not install the appliance close to sources of heat, such as a cooker,
dishwasher or radiator.
•Locate the appliance in a cool well-ventilated room and make sure that the air
vents are clear.
•Try to avoid keeping the doors open for a long time, warm air will enter the
cabinet and may cause a build-up of ice as well as affecting the energy
consumption. Ensure there are no obstructions preventing the doors from
closing properly.
•Ensure that the door seals are clean and there are no tears or splits.
•Do not overload the appliance: the cooling air that circulates to keep the
appliance cold gets blocked and pockets of warm air form.
•Do not put hot items into the fridge –let them cool down first.

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
14
Maintenance & Cleaning
Disconnect the appliance from the power supply before cleaning.
Internal Cleaning
•Disconnect from the power source.
•Do not pour water over or into the appliance.
•The cavity should be cleaned periodically using a solution of bicarbonate of
soda and lukewarm water (5ml to 0.5 litre of water)
•Clean the accessories separately with soap and water. Do not put them in the
dishwasher.
•Do not use abrasive products, detergents or soaps.
•After washing, rinse with clean water and dry carefully with a soft cloth.
•When you have finished cleaning reconnect the plug with dry hands and
switch the power back on.
External Cleaning
•Wash the outer cabinet with warm soapy water. Do NOT use abrasive products.
•There are sharp edges on the underside of the product so care should be taken
when cleaning.
•Once or twice a year, dust the rear of the appliance and the compressor at the
back of the appliance with a brush or vacuum cleaner, as an accumulation of
dust will affect the performance of the appliance and cause increased energy
consumption.
When the appliance is not in use
When the appliance is not in use for long periods, disconnect from the electricity
supply, empty the appliance and clean the inside. Leave the door open to prevent
the build-up of odours.

Troubleshooting
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
15
Problem
Solution
The fridge doesn't work
Check that the appliance is switched on.
Check that there has not been a power cut.
Check that the plug is not
faulty.
Check that the fuse has not blown.
Check that the voltage is correct for the appliance.
Are there any faults with the socket? For this purpose, try
the plug of your appliance by connecting it to a socket
which you are sure is working.
The temperature inside the
appliance is not cold enough
Check that the appliance is not overloaded.
Check that the thermostat is set to a suitable
temperature.
Check that the appliance is not placed in direct sunlight,
or too near to a heating source.
Check that the ambient temperature is within the
operation limits of the appliance.
Are the doors of the appliance opened frequently? Once
the door is opened, the humidity found in the air in the
room enters the appliance, especially if the humidity
levels in the room are very high. The more frequently the
door is opened in humid conditions the more chance of
the build up of moisture.
The temperature within the
appliance is too cold.
Increase the working temperature by adjusting the
thermostat to a lower setting.
The
highest setting should only be used as a rapid cool
setting and should only be set 2 hours before a large
number of items is placed in the fridge. If this is not done
the temperature in the fridge compartment could fall
below
0ºC as the compressor will run continuously.
The inner surfaces of the
appliance are wet
Caused by condensation
-dry the inside of the appliance.
The outer surfaces of the
appliance are wet
Caused by condensation
-dry the outer of the appliance
carefully.

Troubleshooting
For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
16
Problem Solution
Smell/odour
Check all the goods in the fridge are in date and correctly
packaged. If not, then they should be removed
immediately.
Check for spillages on each shelf. You may need to
remove the shelves to check that no spillages have settled
underneath them. Spillages that have not been cleaned
up and have been left can cause unwanted odours.
Check the drainage pipe is not clogged or the drip tray at
the back of the appliance is full. The pipe can be cleared
by pouring hot water through, but you must ensure the
appliance is turned off, the plug is removed from the
socket and a jug or bucket is in place to catch the flow of
water.
The doors do not close properly
Ensure there are no obstructions preventing door closure.
Check the door compartments and shelves are correctly
in place.
Check the door seal is not warped or torn.
Check the appliance is level.
Unusual noises
Check that the appliance is on a flat, level surface and is
stable.
Check the spacing around the appliance and ensure it is
not touching other items.
Bubbling and gurgling sound: • This noise is emitted as
the coolant fluid flows through the pipes within the
system. This is normal.
Water flowing sound:
• This is the normal sound of water
flowing into the drain trough during the defrosting
process.
If the appliance is operating noisily (compressor noise):
This is normal. This noise indicates that the compressor is
operating normally.
As the compressor is being energized,
it might run a bit more noisily for a short period of time.

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
17
WARNING: THIS APPLIANCE MUST BE EARTHED
This appliance is designed to operate from amains supply of AC230V-240V; 50HZ.
Check that the voltage marked on the product corresponds with your supply voltage.
For UK use only –Plug fitting details (where applicable):
As the colours of the wires in the mains lead of this appliance may not correspond
with the coloured markings identifying the terminals in your plug, proceed as follows:
The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which
is marked with the letter Eor by the earth symbol or coloured GREEN or
GREEN/YELLOW.
The BLUE wire is the NEUTRAL and must be connected to
the terminal marked with the letter Nor coloured BLACK.
The BROWN wire is the LIVE wire and must be connected
to the terminal marked with the letter Lor coloured RED.
Always ensure that the plug cable grip is fastened correctly.
If a13A(BS1363)fused plug is used it must be fitted with a13amp fuse conforming
to BS1362 and be BSI or ASTA approved.
Connection to the Mains Supply

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
18
Guarantee
This product is guaranteed for 5years from the date of the original
purchase, subject to registration online @www.coolmed.co.uk within 30
days of purchase, otherwise the standard warranty of 1year applies.
If any defect arises due to faulty materials or workmanship, you must
contact with the original proof of purchase, so that a
replacement or refund can be arranged.
Refund or replacement is at the discretion of
The following conditions apply:
•will require avalid proof of purchase at the point of
replacement or refund.
•The product must be installed and used in accordance with the
instructions contained in this instruction guide and any other
instructions for use which has been supplied.
•It must be used for its intended purpose only.
•This guarantee does not cover wear and tear, damage, misuse or
consumable parts.
This does not affect your statutory rights.
Imported by
Manchester
M17 1PZ

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
19
Technical Specification –Solid Door
Model number CMWF29
Rated Voltage 230V –240V ~ 50Hz
Capacity 30L Net / 31L Gross
External Dimensions(HxWxD) 535mm x 445mm x 485mm
Model number CMWF125
Rated Voltage 230V –240V ~ 50Hz
Capacity 125L Net / 128L Gross
External Dimensions(HxWxD) 820mm x 595mm x 595mm
Model number CMWF300
Rated Voltage 230V –240V ~ 50Hz
Capacity 300L Net / 308L Gross
External Dimensions(HxWxD) 1500mm x 595mm x 650mm

For Customer Services & Spare Parts please call 0161 772 5666
Opening times: Monday - Friday 9am – 4pm
or visit us at www.coolmed.co.uk
21
Notes
