CoolSpace CHILL CSC-200 Setup guide

Thank you for choosing COOL-SPACE
Please read and save instructions prior to use.
Installation, Operation and Service Manual
CHILL
200
C S C-2 0 0

1
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
•COOL-SPACE CHILL Evaporative Cooler
•AC/DC Power Adapter
•Quick Step Guide
•Owner’s Manual
COOL. EASY. PORTABLE.
Evaporative cooling is the reduction in temperature resulting from
evaporation. When water evaporates, it takes heat from the immediate air,
leaving that air cooler in the process – like a cool, refreshing breeze off the
ocean on a hot day.
Our personal cooling products cool the air by flash-evaporating water,
naturally reducing the temperature of the airflow propelled from the unit. No
longer is there a need to cool an entire house or area to enjoy cool air. The
CHILL uses unique technology that allows you to direct a cool stream of air
where you need it most whether indoors, outdoors, or even on the go.
Package Contents
Table of Contents
User Tips
TABLE OF CONTENTS ..................................................................................... 1
PACKAGE CONTENTS..................................................................................... 1
USER TIPS.......................................................................................................... 1
PLACEMENT AND CLEARNACE .................................................................... 2
SAFETY .............................................................................................................. 3
USE & OPERATION .......................................................................................... 4
CARE................................................................................................................... 6
FAQ ..................................................................................................................... 10
TROUBLESHOOTING...................................................................................... 11
WARRANTY....................................................................................................... 12

2www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
TIPS FOR OPTIMIZED PERSONAL COOLING:
The units are designed for portable, personal cooling, unlike fixed AC that
uses chemical refrigerants to reduce the ambient temperature (temperature
on the thermostat) of entire homes and rooms
•Place the unit at least 3 feet (0.9m) from you and do not block the
cool breeze, as the maximum cooling effect is felt directly in the
stream of airflow
•Do NOT use in an enclosed space (small room with closed windows
and doors), as this will increase humidity / moisture and reduce
cooling effect
•Do NOT place on or blowing directly at electronics
•The temperature change of the projected airflow will vary
depending on the temperature, humidity and other variables in your
location / application
User Tips
Placement & Clearnace
Table
Table
Table
Table
Table
Table
Window
Entry Way
Legend: Recommended
Placement
=
3 feet (0.9m)
GOOD AREAS
•Open room with air
circulation
•On floor near entryway
•Near open window
•On a table
•Directed towards user(s)
CAUTION: DO NOT COVER UNIT WITH FABRIC
CLEARANCE
Reccomend at least 3 feet (0.9m)

3
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
Safety
READ AND SAVE THIS MANUAL FOR FUTURE REFERENCE.
WARNING: To reduce the risk of re, electric shock, or injury:
1. Make sure that the power source complies with the electrical
requirements of the product.
2. Do not use this product with damaged or missing filter(s).
3. If the product is not working correctly, has missing parts, has been
dropped, damaged, or dropped in water, call 1.800.557.5716 or email
[e-mail] for evaluation, adjustment, or repair.
4. To protect against electrical shock, do not immerse unit, plug, or
cord in water or spray with liquids.
5. Keep the power cord away from heated surfaces.
6. Do not operate the product if the unit, power cord, or plug is
damaged in any manner.
7. Do not run the cord under any carpets, throw rugs, runners, or
similar coverings.
8. Do not route cord under furniture or appliances, and place cord away
from trafficked area where it will not be tripped over.
9. Do not insert or allow any foreign objects to enter the intake or
exhaust air openings.
10. Do not block or tamper with the atomizing nozzles, as it may reduce
or impede the product’s performance.
11. With the exception of replacing filters, the item is not intended to
be serviced in the field. Do NOT open the housing in an attempt to
repair the system, as this may alter the performance and void the
warranty.
12. Disconnect the power cord before moving or performing any
maintenance on the product.
13. This product must be grounded. Plug into an appropriate ground
fault circuit interrupter (GFCI) protected outlet that is properly
installed and in accordance with all local codes and ordinances.
14. Do not hang or mount the product on a wall or ceiling.
15. This product should not be used in potentially dangerous conditions,
such as flammable, explosive, or chemically loaded atmospheres.
16. Do not store outside or near hazardous materials.

4www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
Use & Operation

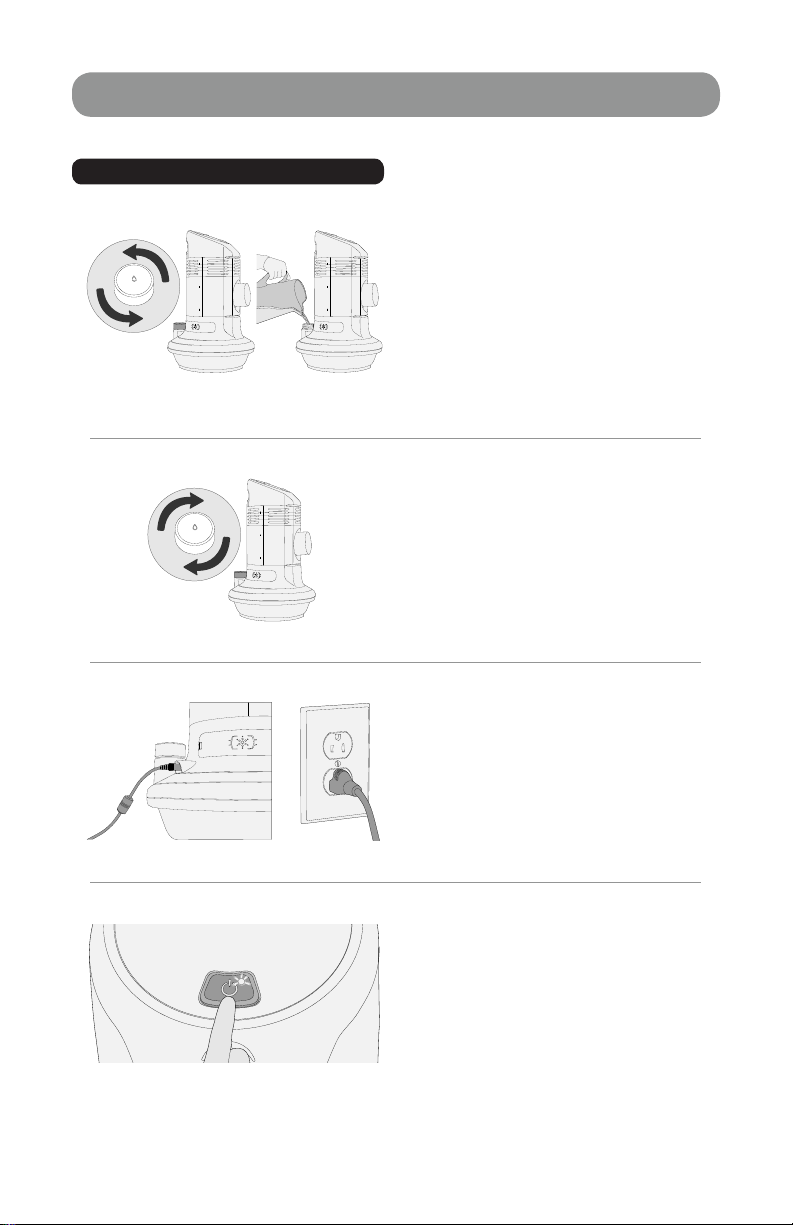

POWER ON
1. Remove tank cap and ll
water tank with 1 gallon of
any drinkable water (tap, hose,
bottled, or distilled) to the
bottom of the ll basket.
NOTE: Do not overll tank. If
you see water in plastic basket,
the tank is overlled.
2. Replace cap and tighten until
fully sealed.
NOTE: Unit will not function
properly if cap is not fully
tightened.
3. Plug AC/DC power adapter
supply into the power port on
the unit. Plug the three-pronged
plug into an outlet.
4. Press the POWER button at the
top of the unit to turn on the
ash evaporative cooler. Green
light will illuminate.

5
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
NOTE: The CHILL ash evaporative cooler will continue to atomize for a short
time while the unit depressurizes. Be sure to turn o product before unplugging.
POWER OFF

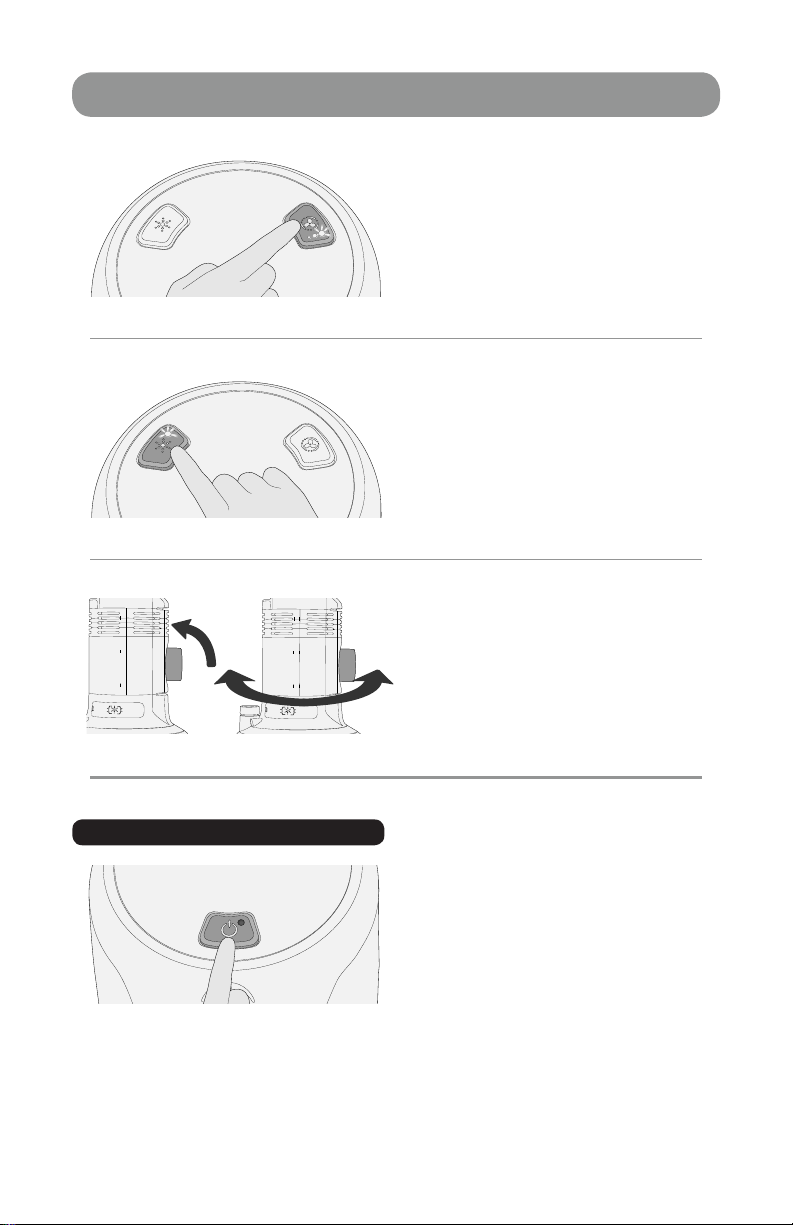

5. Press the FAN button to turn on
fan. Adjust air speed by pressing
button: (high, med, low) Green
light will illuminate.
6. Press the COOL button to
activate atomization. Green light
will illuminate.
7. Adjust the cooling port(s) to the
desired positions up-down and
side-to-side.
Press the POWER button to turn
off. Green light will turn off.
Use & Operation

6www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
Care
CLEANING & STORING
Clean the outside with a soft cloth
and mild soap solution.
No Water in System
When Storing
NOTE: Do NOT store cooler (or
leave unused) with water in the
system for more than 5 days.
Clean water tank (see page 7
for additional instructions) if an
unpleasant odor is detected or prior
to long-term storage.
Prior to storing, clean the water
tank (see pg. 8), ensure water tank is
empty (see pg. 9) and untighten cap
one full turn to the left to allow for
ventilation to the water tank. Store
the cooler in a clean and dry place.

7
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
Care
CLEANING WATER TANK
1. Completely drain water tank.
(See Empyting Water Tank on
page 8).
2. Remove tank cap and ll water
tank with half a gallon of any
drinkable water (tap, hose,
bottled, or distilled).
3. Add 1 tablespoon (half a capful)
of vinegar to the water tank.
4. Replace cap and turn until
sealed. Run until the unit is
out of the water and vinegar
solution.
5. The cooler is clean and ready for
continued operation or longterm
storage.

8www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
Care

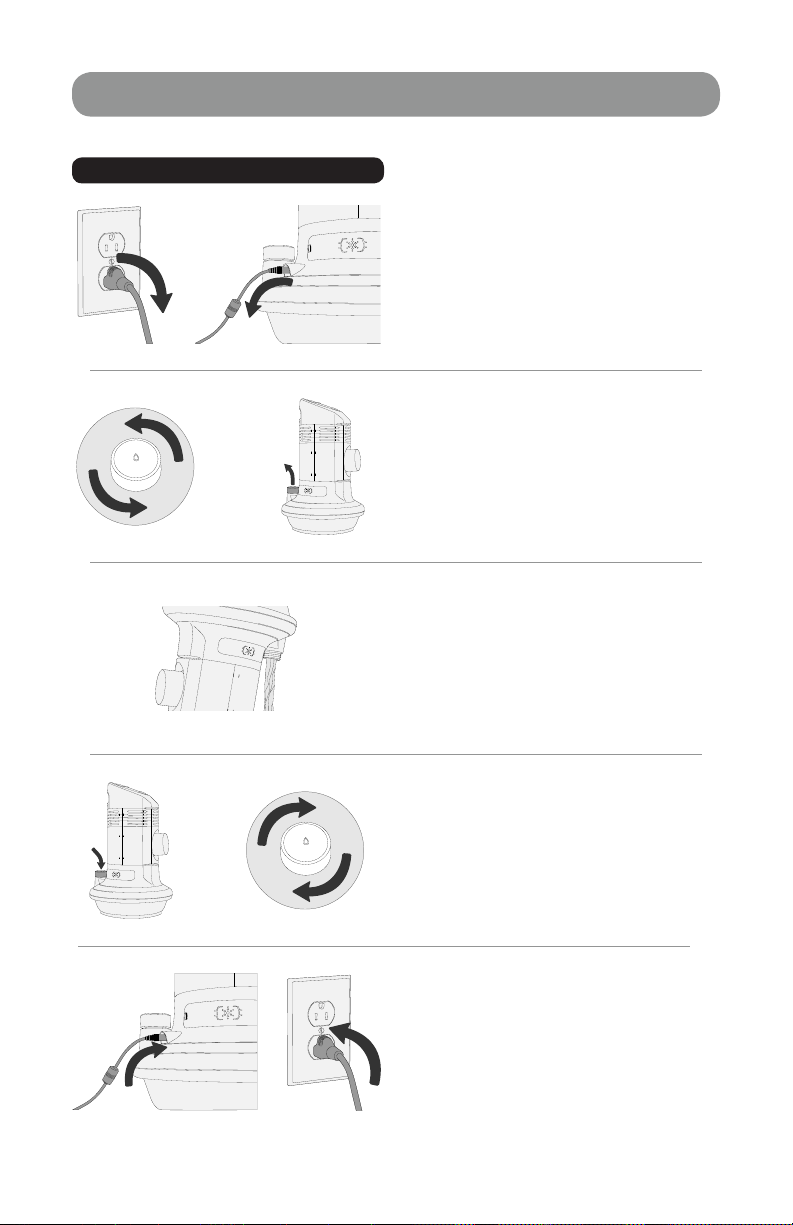

EMPTYING WATER TANK
1. Unplug the power supply.
2. Remove the water tank ll cap.
3. Carefully turn the cooler over to
allow water to drain out
4. Replace ll cap and turn until
sealed
5. Plug the cooler in and run
the COOL function until the
atomized water stops

9
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
Care
MAINTENANCE / FILTERS
Each cooler has two lters:
•WATER FILTER
•AIR FILTER
The lters are located inside the lter
access doors on each side of the
cooler.
It is only necessary to change your
lters if you notice a dierence in the
evaporation / performance of the
cooler.
NOTE: Filter style may dier from
image.
NOTE: High mineral count, calcium,
and/or hard water may reduce the life
of the lters. Although not required,
distilled water may be used to extend
the life of the lters and system.
For parts and support, please contact
your COOL-SPACE representative.
For more information, tips, and oers
visit our website at
www.cool-space.com

10 www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
What is the run time with COOL on and how much water does it
take?
CHILL100: 10+ hours
CHILL200: 6+ hours
Both the CHILL100 and CHILL200 will hold up to 1 gallon of water.
Can it be left outdoors?
It is not recommended to leave your cooler outside when it is not being
used. (Think of it like a portable stereo - you can use it outdoors, but not
recommended to leave outdoors.)
Where can you use the CHILL evaporative coolers?
The CHILL evaporative coolers were designed to be used both outdoors and
indoors.
What type of water can you ll the cooler with?
You should use any drinkable water (tap, hose, bottled, or distilled).
Does ice water make it colder?
Water temperature does not noticeably impact the cooling performance.
What happens if the cooler runs out of water?
If the cooler runs out of water, it will simply stop atomizing water. No harm
will be done by operating the cooler without water.
Where is the best place to use the unit?
(See Optimal Operating Placement Image on page 2)
Should there be a certain amount of space around the unit?
Yes, there should be at least 3 feet of space in front of the port. (See
Recommended Clearance image on page 2)
FAQ
Additional questions?
Visit us online at www.cool-space.com.

11
www.cool-space.com | 1.800.557.5716 | [e-mail]. 3.1.17
Troubleshooting
PROBLEM CAUSE CORRECTION
Power button is
not illuminating
a.) POWER button is in
the OFF position
b.) Power cord is not
connected
c.) Wall outlet is not
providing power
a.) Press POWER button one
time
b.) Connect power cord and
press POWER button one
time
c.) Find an alternate power
outlet
No air coming
from port
FAN button is in the
OFF position
Press FAN button to activate
(high, med, low)
No atomization
coming from
port
a.) COOL button is in
the OFF position
b.) Water tank is empty
c.) Tank cap is not fully
tightened
d.) Water lter is
clogged
a.) Press COOL button one
time
b.) Fill tank with water
c.) Tighten tank cap
d.) Replace water lter
Water
streaming from
nozzle(s)during
shutdown
Water tank is overlled
•Open tank cap to release
pressure.
•Drain tank to bottom of ll
basket.
•During next start up the
cooling function may
stream water for a few
seconds until the lines have
been cleared.
Water
streaming from
nozzle(s) during
operation
Air lter is clogged
Replace air lter - contact
your COOL-SPACE
representative for parts.

12 www.cool-space.com | 1.800.557.5716 | [e-mail] Rev. 3.1.17
Warranty
1 YEAR LIMITED WARRANTY
•The COOL-SPACE CHILL, evaporative cooler is warranted for one
year from the date of purchase against defects in materials and
workmanship. At our discretion, parts that prove to be defective
will either be repaired or replaced, or the whole product will be
replaced. In either case, a copy of your proof of purchase will be
required.
•In case any mechanical or electrical repairs are required during the
warranty period, send your complete product, postage or freight
prepaid to the COOL-SPACE service location.
•This warranty does not include the air or water lters.
•This warranty applies for only 90 days if this product is ever used
for commercial or rental purposes.
•The serial number, model number, and manufacturing date code
can be found on the label attached to the back of the unit. You
should record these numbers and the date of purchase and keep in
a safe place for future reference.
MODEL NUMBER:
MFG DATE CODE:
SERIAL NUMBER:
DATE PURCHASED:
PURCHAED FROM:
Register your product online at www.cool-space.com
THANK YOU FOR YOUR PURCHASE!

Rev. 3.1.17
315 N Madison Street
Fortville, IN 46040
1.800.557.5716
[e-mail]
www.cool-space.com
