Cooper & Hunter CH-09DKT230VI User manual

Model Numbers:
CH-09DKT230VI/ CH-09DKT230VO
CH-12DKT230VI/ CH-12DKT230VO
CH-18DKT230VI/ CH-18DKT230VO
CH-24DKT230VI/ CH-24DKT230VO
dakota HYPER MINI Split Air
Conditioner WITH HEAT PUMP
SERVICE MANUAL
Table of Contents
1. Precaution
2. Part Names And Functions
3. Dimension
4. Refrigerant Cycle Diagram
5. Wiring Diagram
6. Installation Details
7. Operation Characteristics
8. Electronic Function
9. Troubleshooting
10. Disassembly Instructions

CONTENTS
1. Precaution.....................................................................................................................................................1
1.1 Safety Precaution........................................................................................................................1
1.2 Warning.......................................................................................................................................1
2. Part Names And Functions..........................................................................................................................4
2.1 Model Names of Indoor/Outdoor units.........................................................................................4
2.2 Part names of Indoor/Outdoor units ............................................................................................5
3. Dimension .....................................................................................................................................................6
3.1 Indoor Unit...................................................................................................................................6
3.2 Outdoor Unit................................................................................................................................9
4. Refrigerant Cycle Diagram ........................................................................................................................10
5. Wiring Diagram...........................................................................................................................................11
6 Installation Details.......................................................................................................................................11
6.1 Wrench torque sheet for installation..........................................................................................11
6.2 Connecting the cables...............................................................................................................11
6.3 Pipe length and the elevation....................................................................................................11
6.4 Installation for the first time .......................................................................................................12
6.5 Adding the refrigerant after running the system for many years................................................12
6.6 Re-installation while the indoor unit need to be repaired...........................................................13
6.7 Re-installation while the outdoor unit need to be repaired.........................................................13
7. Operation Characteristics .........................................................................................................................15
8. Electronic Function....................................................................................................................................16
8.1 Abbreviation ..............................................................................................................................16
8.2 Display function.........................................................................................................................16
8.3 Main Protection .........................................................................................................................17
8.4 Operation Modes and Functions ...............................................................................................18
9. Troubleshooting .........................................................................................................................................23
9.1 Indoor Unit Error Display...........................................................................................................24
9.2 Outdoor unit error display..........................................................................................................25
9.3 Diagnosis and Solution..............................................................................................................29
10 Disassembly Instructions.........................................................................................................................58
10.1 Indoor unit ...............................................................................................................................58
10.2 Outdoor unit.............................................................................................................................62

1
1. Precaution
1.1 Safety Precaution
To prevent injury to the user or other
people and property damage, the following
instructions must be followed.
Incorrect operation due to ignoring
instruction will cause harm or damage.
Before service the unit, be sure to
read this service manual at first.
1.2 Warning
Installation
Do not use a defective or underrated
circuit breaker. Use this appliance on a
dedicated circuit.
There is risk of fire or electric shock.
For electrical work, contact the dealer,
seller, a qualified electrician, or an
authorized service center.
Do not disassemble or repair the product,
there is risk of fire or electric shock.
Always ground the product.
There is risk of fire or electric shock.
Install the panel and the cover of
control box securely.
There is risk of fire of electric shock.
Always install a dedicated circuit and
breaker.
Improper wiring or installation may cause
electric shock.
Use the correctly rated breaker of
fuse.
There is risk of fire or electric shock.
Do not modify or extend the power
cable.
There is risk of fire or electric shock.
Do not install, remove, or reinstall the
unit by yourself (customer).
There is risk of fire, electric shock, explosion,
or injury.
Be caution when unpacking and
installing the product.
Sharp edges could cause injury, be especially
careful of the case edges and the fins on the
condenser and evaporator.
For installation, always contact the
dealer or an authorized service center.
Do not install the product on a
defective installation stand.
Be sure the installation area does not
deteriorate with age.
If the base collapses, the air conditioner could
fall with it, causing property damage, product
failure, and personal injury.
Do not let the air conditioner run for a
long time when the humidity is very high
and a door or a window is left open.
Take care to ensure that power cable
could not be pulled out or damaged during
operation.
There is risk of fire or electric shock.
Do not place anything on the power
cable.
There is risk of fire or electric shock.
Do not plug or unplug the power
supply plug during operation.
There is risk of fire or electric shock.
Do not touch (operation) the product
with wet hands.
Do not place a heater or other
appliance near the power cable.
There is risk of fire and electric shock.
Do not allow water to run into
electrical parts.
It may cause fire, failure of the product, or
electric shock.
Do not store or use flammable gas or
combustible near the product.
There is risk of fire or failure of product.
Do not use the product in a tightly
closed space for a long time.
Oxygen deficiency could occur.
When flammable gas leaks, turn off
the gas and open a window for ventilation
before turn the product on.
If strange sounds or smoke comes
from product, turn the breaker off or
disconnect the power supply cable.

2
There is risk of electric shock or fire.
Stop operation and close the window
in storm or hurricane. If possible, remove
the product from the window before the
hurricane arrives.
There is risk of property damage, failure of
product, or electric shock.
Do not open the inlet grill of the
product during operation. (Do not touch the
electrostatic filter, if the unit is so equipped.)
There is risk of physical injury, electric shock,
or product failure.
When the product is soaked, contact
an authorized service center.
There is risk of fire or electric shock.
Be caution that water could not enter
the product.
There is risk of fire, electric shock, or product
damage.
Ventilate the product from time to
time when operating it together with a stove
etc.
There is risk of fire or electric shock.
Turn the main power off when
cleaning or maintaining the product.
There is risk of electric shock.
When the product is not be used for a
long time, disconnect the power supply plug
or turn off the breaker.
There is risk of product damage or failure, or
unintended operation.
Take care to ensure that nobody
could step on or fall onto the outdoor unit.
This could result in personal injury and
product damage.
CAUTION
Always check for gas (refrigerant)
leakage after installation or repair of
product.
Low refrigerant levels may cause failure of
product.
Install the drain hose to ensure that
water is drained away properly.
A bad connection may cause water leakage.
Keep level even when installing the
product.
It can avoid vibration of water leakage.
Do not install the product where the
noise or hot air from the outdoor unit could
damage the neighborhoods.
It may cause a problem for your neighbors.
Use two or more people to lift and
transport the product.
Do not install the product where it will
be exposed to sea wind (salt spray) directly.
It may cause corrosion on the product.
Corrosion, particularly on the condenser and
evaporator fins, could cause product
malfunction or inefficient operation.
Operational
Do not expose the skin directly to
cool air for long time. (Do not sit in the
draft).
Do not use the product for special
purposes, such as preserving foods, works
of art etc. It is a consumer air conditioner,
not a precision refrigerant system.
There is risk of damage or loss of property.
Do not block the inlet or outlet of air
flow.
Use a soft cloth to clean. Do not use
harsh detergents, solvents, etc.
There is risk of fire, electric shock, or damage
to the plastic parts of the product.
Do not touch the metal parts of the
product when removing the air filter. They
are very sharp.
Do not step on or put anything on the
product (outdoor units).
Always insert the filter securely.
Clean the filter every two weeks or more
often if necessary.
A dirty filter reduces the efficiency of the air
conditioner and could cause product
malfunction or damage.
Do not insert hands or other objects
through air inlet or outlet while the product
is operated.
Do not drink the water drained from
the product.

3
Use a firm stool or ladder when
cleaning or maintaining the product.
Be careful and avoid personal injury.
Replace the all batteries in the remote
control with new ones of the same type. Do
not mix old and new batteries or different
types of batteries.
There is risk of fire or explosion.
Do not recharge or disassemble the
batteries. Do not dispose of batteries in a
fire.
They may burn of explode.
If the liquid from the batteries gets
onto your skin or clothes, wash it well with
clean water. Do not use the remote of the
batteries have leaked.

4
2. PartNames And Functions
2.1 Model Names of Indoor/Outdoor units
Series
Capacity Indoor units Outdoor units
Inverter
9k CH-09DKT230VICH-09DKT230VO
18k CH-18DKT230VI CH-18DKT230VO
24k CH-24DKT230VI CH-24DKT230VO
12k CH-12DKT230VICH-12DKT230VO

5
2.2 Part names of Indoor/Outdoor units
24 in (60 cm) above bovve
24in
(60m)
on right
c
12in
30cm on
left
79in
(200cm)
in front
12in back w
(30cm)
fromall
4.75in (12cm)
or more
90.55in (2.3m) or more
4.75in (12cm)
or more
5.9in (15cm) or more

6
3. Dimension
3.1 Indoor Unit
W D
Model
W D H
CH-09DKT230VI32.9in
(835mm)
7.8in
(198mm)
11.0in
(280mm)
CH-12DKT230VI
39.0in
(990mm)
8.6in
(218mm)
12.4in
(315mm)
CH-18DKT230VI
46.7in
(1186mm)
10.2in
(258mm)
13.5in
(343mm)
CH-24DKT230VI

7
CH-09DKT230VI, CH-12DKT230VI
Right rear wall
32.9in ( 835mm )
5.5in
(140mm
)
4.3in ( 110mm )
1.8in (45mm)
1.8in (45 mm)
11in (280mm)
1.4in
(
36.5mm
)
 LQ  PP 
Left rear wall hole
2.5in (65mm)
hole 2.5in ( 65mm )
,QGRRUXQLW
RXWOLQH
CH-18DKT230VI
39in ( 990mm )
5.3 in ( 135mm )
10.2in ( 260mm
)
0.9in (23.2mm)
1.8 in (45mm)
12.4in (315mm)
LQ PP 
,QGRRUXQLWRXWOLQH
CH-24DKT230VI
1.8in (45mm)
21.5mm(0.85in)
LQPP
46.7in ( 1186mm )
10.1in (257mm)10.8in (275mm)
13.5in (343mm)
Left rear wall hole
2.5in 65mm
Right rear wall hole
2.5in 65mm
,QGRRUXQLW
RXWOLQH
Left rear wall hole
2.5in 65mm Left rear wall hole
2.5in 65mm

8
3.2 Outdoor Unit
Note: Theabove drawing isonlyforreference. The appearance of your units maybe different.
Model
W in/mm
D in/mm
H in/mm
W1 in/mm
A in/mm
B in/mm
CH-09DKT230VO 31.5”/800mm13.11”/333mm21.81”/554mm34.25”/870mm 20.24”/514mm13.39”/340mm
CH-12DKT230VO
33.27”/845mm14.29”/363mm 27.64”/702mm 35.98”/914mm 21.26”/540mm13.78”/350mm
CH-18DKT230VO
CH-24DKT230VO 37.24”/946mm16.14”/410mm31.89”/810mm40.55”/1030mm 26.50”/673mm15.87”/403mm
More than 23.6in ( 60cm )
More than 27.6in (7 0cm )
More than 11.8in ( 30cm )
More than 23.6in ( 60cm )
(Service space)
Fence or
obstacles
More than 11.8in ( 30cm )

9
4. Refrigerant Cycle Diagram
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
Accumulator TP Discharge temp. sensor
T4 Ambient
temp. sensor
INDOOR OUTDOOR
Electronic
expansion valve
CAPILLARY
tube

5. Wiring Diagram
(Pls refer the wiring diagram on the unit)
6 Installation Details
6.1 Wrench torque sheet for
installation
Outside diameter
Torque (N.cm/lb.ft)
Additional tightening
torque
(lb.ft/N.cm)
11 lb.ft /1500 N.cm
11.8 lb.ft/1600 N.cm
18.4 lb.ft/2500 N.cm
19.8 lb.ft/2600 N.cm
25.8 lb.ft /3500 N.cm
26.55 lb.ft/3600 N.cm
33.1 lb.ft/4500 N.cm
34.67 lb.ft/4700 N.cm
47.94 lb.ft/6500 N.cm
49.42 lb.f/6700 N.cm
6.2 Connecting the cables
The power cord should be selected according
to the following specifications sheet.
Appliance Amps
AWG Wire Size
10
18
13
16
18
14
25
12
30
10
The cable size and the current of the fuse or
switch are determined by the maximum
current indicated on the nameplate which
located on the side panel of the unit. Please
refer to the nameplate before selecting the
cable, fuse and switch.
Models
Standard
length
Max.
Elevati
on
Max.
Length
A
Additional
refrigerant
CH-09DKT230VI+
CH-09DKT230VO 24.6ft
(7.5m)32.8ft (10m)82.0ft (25m)0.16oz/ft (15g/m)
CH-12DKT230VI+
CH-12DKT230VO
CH-18DKT230VI+
CH-18DKT230VO 24.6ft
(7.5m)65ft
(20m)98ft (30m)0.16oz/ft
(15g/m)
CH-24DKT230VI+
CH-24DKT230VO
24.6ft
(7.5m)82ft
(25m)164ft (50m)0.32oz/ft
(30g/m)
1/4in
3/8in
1/2in
5/8in
3/4in
Ø6.35mm
Ø9.52mm
Ø12.7mm
Ø16.0mm
Ø19mm
10
6.3 Pipe length and the elevation
Models
Pipe size
Gas
Liquid
3/8in
(Ø9.52mm) 1/4in (Ø6.35mm)
CH-09DKT230VI + CH-09DKT230VO
CH-12DKT230VI + CH-12DKT230VO 1/2in
(Ø12.7mm) 1/4in (Ø6.35mm)
CH-18DKT230VI + CH-18DKT230VO
CH-24DKT230VI + CH-24DKT230VO
5/8in
(Ø16mm)
3/8in
(Ø9.52mm)

11
6.4 Installation for the first time
Air and moisture in the refrigerant system have
undesirable effects as below:
●Pressure in the system rises.
●Operating current rises.
●Coolingor heating efficiency drops.
●Moisturein the refrigerant circuit may
freeze and block capillary tubing.
●Watermay leadto corrosionof partsinthe
refrigerant system.
Therefore, the indoor unitsandthepipes
between indoor and outdoor units mustbe leak
tested andevacuated to remove gas and
moisturefrom the system.
Gas leak check(Soapwater method):
Applysoap water or a liquid neutral
detergent on the indoor unit connections or
outdoor unit connections by a soft brush to
check for leakageof the connecting points of
the piping. If bubbles come out, thepipes have
leakage.

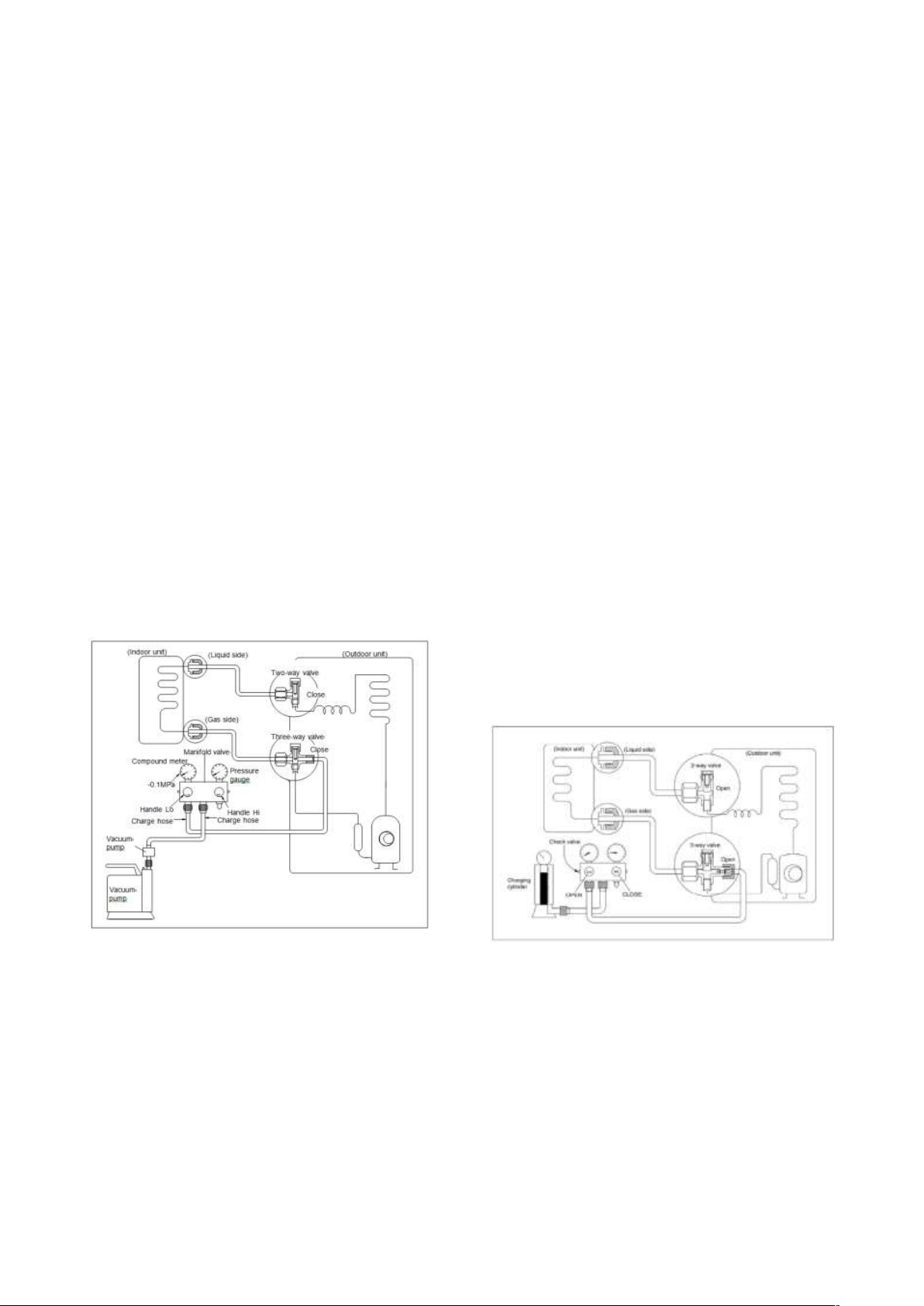

1. Air purging with vacuum pump
1) Completely tighten the flare nuts of the
indoorandoutdoor units, confirm that both
the 2-way and 3-way valvesareset to the
closed position.
2) Connect the charge hose with the push pin
of handle lo to the 3-way valves gas service
port..
3) Connect the charge hose of handle hi
connection to thevacuumpump.
4) Fully openthe handle Lo of themanifold
valve.
5)Operate the vacuum pump to evacuate.
6)Make evacuation for 30 minutes and check
whether the compound meterindicates
14.5Psi(-0.1Mpa). If themeterdoes not
indicate 14.5Psi(-0.1Mpa) afterpumping30
minutes,it should be pumped20 minutes
more. If the pressure can’t achieve 14.5Psi
(-0.1Mpa)after pumping 50 minutes, please
check if there are some leakage points.
Fully close the handle Lo valve of the
manifold valve and stoptheoperation of the
vacuum pump. Confirm that thegauge
needle does not move (approximately 5
minutes after turning off the vacuum pump).
7)Turn the flare nut of the3-way valves about
45°counterclockwise for6 or 7seconds
after thegas coming out, then tightenthe
flare nut again. Make sure the pressure
display in the pressure indicatorisalittle
higher than theatmosphere pressure. Then
remove thecharge hose from the 3 way
valve.
8)Fully openthe 2 way valve and 3 way valve
and securely tighten the cap of the 3 way
valve.
6.5 Adding therefrigerant afterrunning
the system for many years
Procedure
1). Connect thecharge hose to the3-way
service port, open the2-way valve and the
3-way valve.
Connect the charge hose to thevalve at the
bottom of thecylinder. Ifthe refrigerant is
R410A,make thecylinder bottom up to ensure
liquid charge.
2). Purge theair from the charge hose.
Open the valve at the bottom ofthecylinder

12
and press the checkvalve onthechargeset to
purge theair(be careful of the liquid
refrigerant).
3)Put thechargingcylinder onto theelectronic
scale and record the weight.
4)Operate theair conditioner at thecooling
mode.
5)Open the valves (Low side) on the charge set
and charge thesystem with liquidrefrigerant.
6)Whenthe electronic scale displays the
proper weight (referto the gaugeand the
pressure of the low side), disconnect the charge
hose from the3-way valve’s service port
immediately and turn off theair conditioner
beforedisconnecting the hose.
7). Mount the valvestem caps and the service
port
Use torque wrench to tighten the service port
cap to a torque of 18N.m.
Be sure to checkforgas leakage.
6.6 Re-installation while the indoor unit
need to be repaired
1. Collecting the refrigerant into the outdoor
unit
Procedure
1). Confirm that both the2-way and3-way
valves are set to the opened position
Remove thevalve stem caps and confirm that
the valvestemsarein the opened position.
Be sure to use a hexagonal wrench to operate
the valvestems.
2). Connect thecharge hose with thepush pin
of handle lo to the 3-way valves gas service
port.
3). Air purging of thecharge hose.
Open the handle Lo valve of themanifold valve
slightly to purgeair from the charge hose for 5
seconds and then close it quickly.
4)Set the 2-way valveto the close position.
5)Operate theair conditioner at thecooling
cycle and stop itwhen the gaugeindicates
14.5Psi(-0.1Mpa).
6)Set the 3-way valveto the closed position
immediately.
Dothis quicklyso that thegaugeends up
indicating 43.5Psi(0.3Mpa) to 72.5Psi(0.5 Mpa).
Disconnectthe charge set,andtightenthe 2-
way and3-way valve’s stem nuts.
Use a torque wrench to tighten the 3-way valves
service port capto a torque of 18N.m.
Be sure to checkforgas leakage.
2.Air purging with vacuum pump
1) Completely tighten the flare nuts of the indoor
and outdoor units, confirm that both the 2-way
and 3-way valves are set to the closedposition.
2) Connect the charge hose with the push pin of
handle lo to the 3-wayvalves gas service port.
3) Connectthe charge hose of handle hi
connection to thevacuumpump.
4) Fully open thehandle Lo of themanifold
valve.
5) Operate the vacuum pump to evacuate.
6) Make evacuation for30 minutes and check
whether the compound meterindicates 14.5Psi
(-0.1Mpa). If themeterdoes not indicate
14.5Psi(-0.1Mpa)afterpumping30 minutes, it
shouldbe pumped 20minutes more. If the
pressure can’t achieve 14.5Psi(-0.1Mpa) after

13
pumping 50 minutes,please check if thereare
some leakage points. Fully close the handle Lo
valve of themanifold valve andstop the
operationof the vacuum pump. Confirm that the
gauge needle does not move (approximately 5
minutes after turningoff the vacuum pump).
7)Turn the flare nut of the 3-way valvesabout
45°counterclockwise for 6 or 7seconds after
the gas coming out,then tighten the flarenut
again. Make sure the pressure display in the
pressure indicator isalittle higher than the
atmosphere pressure. Then remove thecharge
hose from the 3 wayvalve.
8) Fully open the2 wayvalve and 3 wayvalve
and securelytightenthecapof the 3 wayvalve.
6.7 Re-installation while the outdoor
unit need to be repaired
1. Evacuation forthe whole system

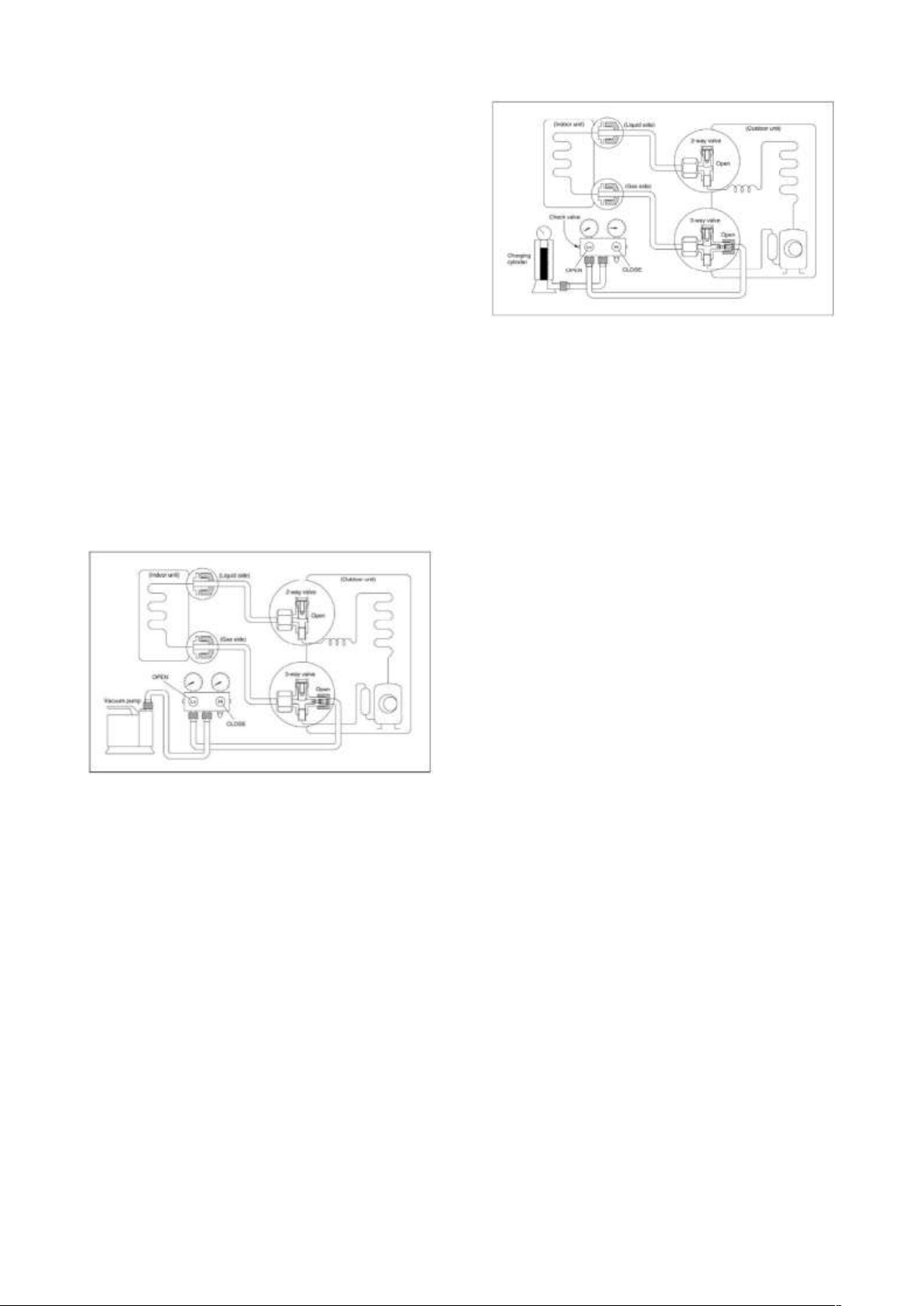

Procedure:
1) Confirm that both the 2-way and 3-way
valves are set to the opened position.
2)Connect thevacuum pump to 3-way valve’s
service port.
3)Evacuation for approximately one hour.
Confirm that the compound meterindicates
14.5Psi(-0.1Mpa).
4)Close the valve(Lowside)on the charge set,
turnoff the vacuum pump, and confirm that the
gauge needle does not move (approximately 5
minutes after turningoff the vacuum pump).
5)Disconnect the chargehose from the
vacuum pump.
2. Refrigerant charging
Procedure:
1)Connect the charge hose to the charging
cylinder, open the 2-way valve and the 3-way
valve
Connect the charge hose which you
disconnectedfrom the vacuum pump to the
valve at thebottom of thecylinder. Ifthe
refrigerant is R410A,make thecylinder bottom
upto ensure liquid charge.
2)Purge theair from the charge hose
Open the valveat the bottom ofthecylinder
and press the checkvalve onthechargeset to
purge theair(becareful of the liquid
refrigerant).
3)Put thechargingcylinder onto theelectronic
scale and record the weight.
4)Open the valves (Low side) on the charge set
and charge the system with liquid refrigerant If
the systemcannot becharge with the specified
amount of refrigerant,or canbe chargedwitha
little at a time (approximately 5.29 150geach
time), operating the air conditioner in thecooling
cycle; however, one time isnot sufficient, wait
approximately1 minute and then repeat the
procedure.
5)Whenthe electronic scale displays the proper
weight,disconnect the charge hose from the3-
way valve’s service port immediately
If the systemhas beencharged with liquid
refrigerant while operatingtheair conditioner,
turnoff the air conditioner beforedisconnecting
the hose.
6)Mounted the valvestem caps and the
service port. Use torque wrench to tightenthe
service port capto a torque of 18N.m. Be sure
to check for gas leakage.

14
7. Operation Characteristics
Temperature
Mode
Cooling operation Heatingoperation Drying operation
Room temperature
62℉～90℉
(17℃～32℃)
32℉～86℉
(0℃～ 30℃)
50℉～90℉
(10℃～ 32℃)
Outdoor temperature
CH-09DKT230VI
CH-12DKT230VI
CH-18DKT230VI
CH-24DKT230VI
-22°F～122°F
-30°C～50°C -22°F～86°F
-30°C～30°C 32°F～122°F
0°C～50°C
󰇛󰇜  󰇛󰇜
+32
CAUTION:
1. If the air conditioner is used beyond the above conditions, certain safety protection features may
come into operation and cause the unit to operate abnormally.
2. The room relative humidity should be less than 80%. If the air conditioner operates beyond this
figure, the surface of the air conditioner may attract condensation. Please set the vertical air flow louver to
its maximum angle(verticallyto the floor), and set HIGH fan mode.
3. The optimum performance will be achieved during thisoperating temperature zone.

15
8. Electronic Function
8.1 Abbreviation
T1: Indoor room temperature
T2: Coil temperature of evaporator
T3: Coil temperature of condenser
T4: Outdoor ambient temperature
TP: Compressor discharge temperature
8.2 Display function
8.2.1 Icon explanation on indoor display board.
ION indication lamp (optional function)：This lamp illuminates when Clean
Air feature is activated.
DEFROST indication lamp: Lights up when the air conditioner starts
defrosting automatically or when the warm air control feature is activated in heating
operation.
OPERATION indication lamp：This lamp illuminates when the air conditioner is in
operation.
TIMER indication lamp：Lights up during Timer operation.
Temperature indicator：Displays the temperature settings when the air conditioner
is operational. Displays the malfunction code.

16
8.3 Main Protection
8.3.1 Three minutes delay atrestartfor
compressor
Lessthan 1 minute delay for the 1sttime
stand-upand 3 minutes delayforothers.
8.3.2 Temperature protection of compressor
top
Theunit will stopworkingwhen the compressor
top temp. protector cutoff,andwill restart after
the compressortoptemp.protector restart.
8.3.3 Temperature protection of compressor
discharge
Compressor discharge temp. TP>239°F(115℃)
for 5s, compressorstops.
8.3.4 Fan speed is out of control
When Indoor fan speedkeeps too low
(300RPM) or too high(1500RPM) for certain
time, the unit will stopand the LED will display
the failure.
8.3.5 Inverter module protection
TheInverter module has a protection function
about current, voltage and temperature. If these
protections happen, thecorrespondingcode
will displayon indoorunit and the unit will stop
working.
8.3.6 Indoorfan delayedopen function
When the unit starts up, the louver will be active
immediately and the indoor fanwill open10s
later.
If the unit runs in heating mode, the indoorfan
will be also controlled by anti-cold wind
function.
8.3.7 Compressor preheating functions
Preheating permitting condition:
When T4(outdoor ambient temperature)＜
37.4°F(3°C), the preheating function will
be activate.
8.3.8 Zero crossing detection error
protection
If AC detectstime interval is notcorrectfor
continuous 240s,theunit will stopandtheLED
will displaythefailure. Thecorrectzero
crossing signal time interval should bebetween
6-13ms.
8.3.9 Sensor protection at open circuit and
breaking disconnection.
When there’s only one temperature sensor in
malfunction, the air conditioner will keep
working but show the errorcode, in case of any
emergency use.
When there’s more than one temperature
sensor in malfunction, the air conditioner will
stopworking.
8.3.10 Refrigerant leakage detection
This function is only active in cooling mode. It
can better prevent the compressor being
damaged by refrigerant leakage or compressor
overload.
Open condition:
When compressor is active, the value of the
Coil temperature of evaporator T2 has no
change or verylittle change.

17
8.4 Operation Modes and Functions
8.4.1 Fan mode
(1) Outdoor fan and compressor stop.
(2) Temperature setting function is disabled,
and no setting temperature is displayed.
(3) Indoor fan can be set to high/med/low/auto.
(4) The louver operates same as in cooling
mode.
(5) Auto fan:
8.4.2 Cooling Mode
8.4.2.1 Compressor running rules
When T1-Ts< 28.4°F (-2℃), the compressor
will stop,when T1—TS> 31.1°F (-0.5℃)，the
compressor will be activated.
When the AC run in mute mode, the
compressor will run with low frequency.
When the current is more than setting value,
the current protection function will be activated,
and the compressor will stop.
8.4.2.2 Outdoor fan running rules
The outdoor unit will be run at different fan
speed according to T4.
For different outdoor units, the fan speeds are
different
8.4.2.3 Indoor fan running rules
In cooling mode, indoor fan runs all the time
and the speed can be selected as high,
medium, low and auto.
When the setting temperature is reached, if
the compressor stop running, indoor fan motor
will run in Minimum speed or setting speed.
The indoor fan is controlled as below:
Setting fan
speed
Actual fan speed
H+(H+=H+G)
AH（=H）
B
C
M+(M+=M+Z)
DM(M=M)
E
F
L+(L+=L+D)
GL(L=L)
H
I
T1-Td ℃(°F)
L
L-(L-=L-D)
H
H-（H-=H-G)
M
M-(M-=M-Z)
The auto fan acts as below rules:
8.4.2.3 Condenser temperature protection
When condenser temperature is more than
setting value, the compressor will stop.
8.4.2.5 Evaporator temperature protection
When Evaporator temperature is less than
setting value, the compressor will stop.
8.4.3 Heating Mode
8.4.3.1 Compressor running rules
When T1-Ts>-ΔT, the compressor will stop,
when T1-TS<ΔT-1.5，the compressor will be on.
ΔT is the programmed parameter of
temperature compensation.
a
bc
d
T1
e
T4
A+
A
B
C
D
E
a
bc
d
T1
e
T3
Resume
Off
Decrease
Hold

18
When the AC run in mute mode, the
compressorwill run with low frequency.
When the current is morethan setting value,
the current protectionfunction will be activated
and the compressorwill stop.
8.4.3.2 Outdoor fan running rules
The outdoor unit will be run at different fan
speedaccordingto T4.
For different outdoor units, the fan speeds are
different
8.4.3.3 Indoor fan running rules
When the compressor is on, the indoor fan can
beset to high/med/low/auto/mute.
When indoor unit coil temp. is low, the anti-cold
air function will start and indoor fan motor will
run at low speed,the speed can’t be
changed,when the temp. is lower than setting
value, the indoorfanmotorwill stop.
When the indoor temp reaches the setting
temp., the compressor will stop, the indoor fan
motor will run at the minimum speed or setting
speed. (The anti-cold air function isvalid).
Theindoor faniscontrolledasbelow:
Setting fan
speed
Actual fan speed
H（=H）
H+(H+=H+G)
M(M=M)
M+(M+=M+Z)
L(L=L)
L+(L+=L+D)
H-（H-=H-G)
M-(M-=M-Z)
L-(L-=L-D)
T1-Td℃
L
H
M
-
Auto fanaction in heatingmode:
8.4.3.4 Defrosting mode
AC will enter the defrosting mode according to
the value of temp. of T3 and the value range of
temp. change of T3 and also the compressor
running time.
During the defrosting mode, the compressor keep
running, indoorandoutdoormotorwill stop,
defrostlamp of the indoor unit will be lighted
“.”Will bedisplayed.
8.4.3.5 Evaporator coil temperature
protection
When evaporator temperature temp. is more
thanthe setting protection value, the
compressorwill stop.
8.4.4 Auto-mode
This modecanbe chosen with remote controll
and the setting temperature can be
changedbetween62.6°F (17°C)~ 86°F(30°C).
In auto mode,themachine will choose cooling,
heating orfan-only mode according to ΔT
T4
E
D
C
B
A
A+
T1-Td+ΔT
T2
Resume
Off
Decrease
Hold
