Cooper & Hunter CH-PT09HPGF User manual

PACKAGED TERMINAL
AIR CONDITIONER
Quick-Start Guide
Designed by Cooper&Hunter International Corporation, Oregon, USA
www.cooperandhunter.com
For proper operation,please read and keep this manual carefully.
O N /O F F
T E M P
SHORT
CUT
MODE FAN
For the model: CH-PT09HPGF

1
CONTENTS
2
Rated Voltage
8m
3.0V(Dry batteries R03/LR03×2)
Environment
Signal Receiving Range
2
3
4
5
6
7
Handling the remote control .........................................................
Remote control Specifications.......................................................
Function buttons .................. .........................................................
Remote LCD screen indicators .....................................................
How to use the basic functions........................................................
How to use the advanced functions ...............................................
Remote Control Specifications
ON/OFF
TEMP
SHORT
CUT
MODE FAN
RG57J(B)/BG(C)E
O O O O
-5 C~60 C(23 F~140 F)

3 4
Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the How to Use Basic Functions section of this manual.
SHORT CUT
Sets and activates your
favorite pre-settings.
ON/OFF
Turns the unit on or off.
MODE
Scrolls through operation
modes as follows:
COOL g
HEAT
FAN SPEED
Selects fan speeds in
the following order:
LOW gMED g HIGH
TEMPp
Increases temperate in
O O
1 C(1 F) increments.
Max. temperature is
O O
30 C(86 F) .
TEMPq
Decreases temperate in
O O
1 C(1 F) increments.
Min. temperature is
O O
17 C(62 F) .
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and
How to Use Advanced Functions sections
of this manual for a detailed description of
how to use your air conditioner.
SPECIAL NOTE
Button designs on your unit may differ
slightly from the example shown.
If the indoor unit does not have a particular
function, pressing that function s button
on the remote control will have no effect.
When there are wide differences between
Remote controller Illustration and
USER'S MANUAL on function description,
the description of USER'S MANUAL
shall prevail.
TIPS FOR USING REMOTE CONTROL
The remote control must be used within 8
meters of the unit.
The unit will beep when remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal receiver.
Remove batteries if the remote will not be
used more than 2 months.
Inserting and Replacing Batteries
Your air conditioning unit comes with two AAA
batteries. Put the batteries in the remote control
before use.
1. Slide the back cover from the remote
Control downward, exposing the battery
compartment.
2. Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
3. Slide the battery cover back into place.
BATTERY NOTES
For optimum product performance:
Do not mix old and new batteries, or
batteries of different types.
Do not leave batteries in the remote control
if you don t plan on using the device for
more than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted
municipal waste. Refer to local laws for
proper disposal of batteries.
,
,
ON/OFF
TEMP
SHORT
CUT
MODE FAN
Function Buttons
Handling The Remote Control
,
,,
,
,
,
,
,
,
,,
,
NOTE：Please do not select
HEAT mode if the machine you
purchased is cooling only type.
Heat mode is not supported by
the cooling only appliance.
NOTE: Press and hold
and buttons together for
3 seconds will alternate the
temperature display
O O
between the C & F scale.
p
q
g
FAN

FAN
5 6
MODE display
Displays the current
mode, including:
COOL
HEAT
Transmission Indicator
Lights up when remote sends
signal to unit
ON/OFF display
Appears when the unit is turned on,
and disappears when it is turned off
Battery display
SILENT display
FAN SPEED display
Displays selected FAN SPEED:
HIGH, MED,
or LOW
Temperature/Timer display
Displays the set temperature by default.
O O O
Temperature range: 17-30 C(62 F-86 F)
This display is blank when operating in FAN mode.
1. Press the MODE button to select
COOL mode.
2. Set your desired temperature using
the Temp or Temp button.
3. Press the FAN button to select the
fan speed: LOW, MED,or HIGH.
4. Press the ON/OFF button to start the
unit.
SETTING TEMPERATURE
The operating temperature range for units is
O
17-30 C. You can increase or decrease the
O
set tmeperature in 1 C increments.
COOL operation
1
2
4
Not available for this unit
Low battery
detection
Remote LCD Screen Indicators How To Use The Basic Functions
ON/OFF
TEMP
SHORT
CUT
MODE
1
2
4
ON/OFF
TEMP
SHORT
CUT
MODE FAN

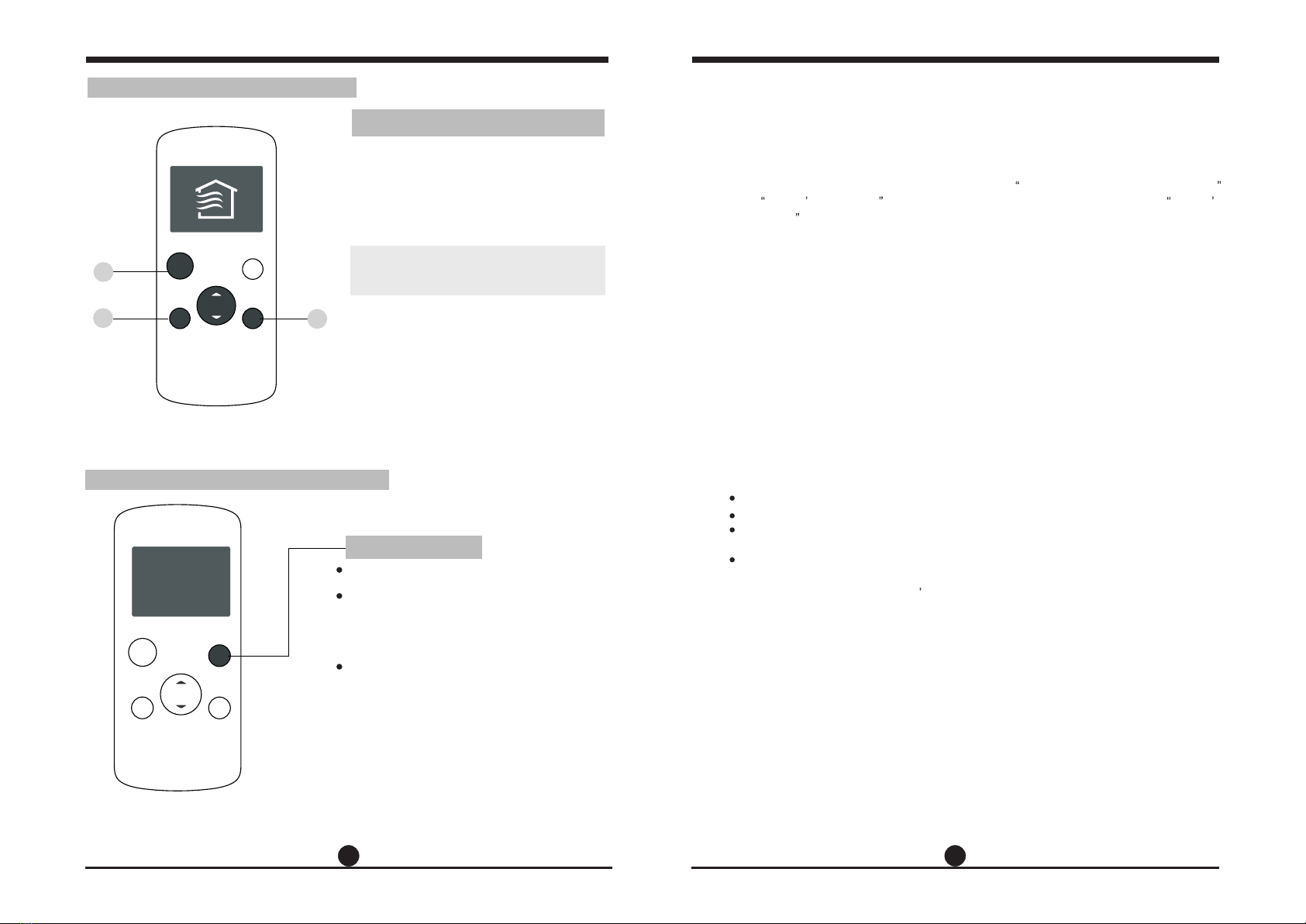

1. Press the MODE button to select
HEAT mode.
2. Set your desired temperature using
the Temp or Temp button.
3. Press the FAN button to select the
fan speed: LOW, MED,or HIGH.
4. Press the ON/OFF button to start the
unit.
HEAT operation
NOTE: As outdoor temperature drops,the
performance of your unit s HEAT function
may be affected. In such instances, we
recommend using this air conditioner in
conjunction with other heating appliance.
,
3
3
FAN

7
SHORTCUT function
Used to restore the current settings or resume
previous settings.
Push this button when remote control is on, the
system will automatically revert back to the
previous settings including operating mode,
setting temperature, fan speed level and sleep
feature (if activated).
If pushing more than 2 seconds, the system
will automatically restore the current operation
settings including operating mode, setting
temperature, fan speed level and sleep feature
(if activated).
How To Use The Advanced Functions
ON/OFF
TEMP
SHORT
CUT
MODE FAN
8
NOTE:
-Buttons design is based on typical model and might be slightly different
from the actual one you purchased, the actual shape shall prevail.
-All the functions described are accomplished by the unit, if the unit has
no this feature, there is no corresponding operation happened when
press the relative button on the remote control.
-When there are wide differences between Remote control Illustration
and USERS MANUAL on function description, the description on USERS
MANUAL shall prevail.
-The device could comply with the local national regulations. In Canada,
it should comply with CAN ICES-3(B)/NMB-3(B). In USA, this device
complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interfe-
rence, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
-This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not approved by the party responsible for
compliance could void suers authority to operate the equipment.
FAN
1
3
How To Use The Basic Functions
ON/OFF
TEMP
SHORT
CUT
MODE
2
1.Press the MODE button to select FAN
mode.
2.Press FAN button to select the fan
speed: HIGH, MED or LOW.
3.Press the ON/OFFbutton to start the
unit.
,
NOTE: You can t set temperature in FAN
mode. As a result, your remote control s
LCD screen will not display temperature.
FAN operation
,
