Cooper & Hunter SOPHIA User manual

HIGH-WALL DUCTLESS
AIR CONDITIONING &
HEATINGSYSTEM
Quick-Start Guide
SOPHIA
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING

CONTENTS
2
3
5
7
8
8
8
9
9
10
13
Handling the remote controller ......................................................
Remote controller Specifications...................................................
Function buttons .................. .........................................................
Indicators on LCD ..........................................................................
How to use the buttons .................................................................
Auto operation.................................................................................
Cooling/Heating/Fan operation......................................................
Dehumidifying operation ...............................................................
Adjusting air flow direction............................................................
Timer operation...............................................................................
SLEEP/FRESH function..................................................................
LED/FOLLOW ME function ........................................................... 14
TURBO/SELF CLEAN function ..................................................... 14

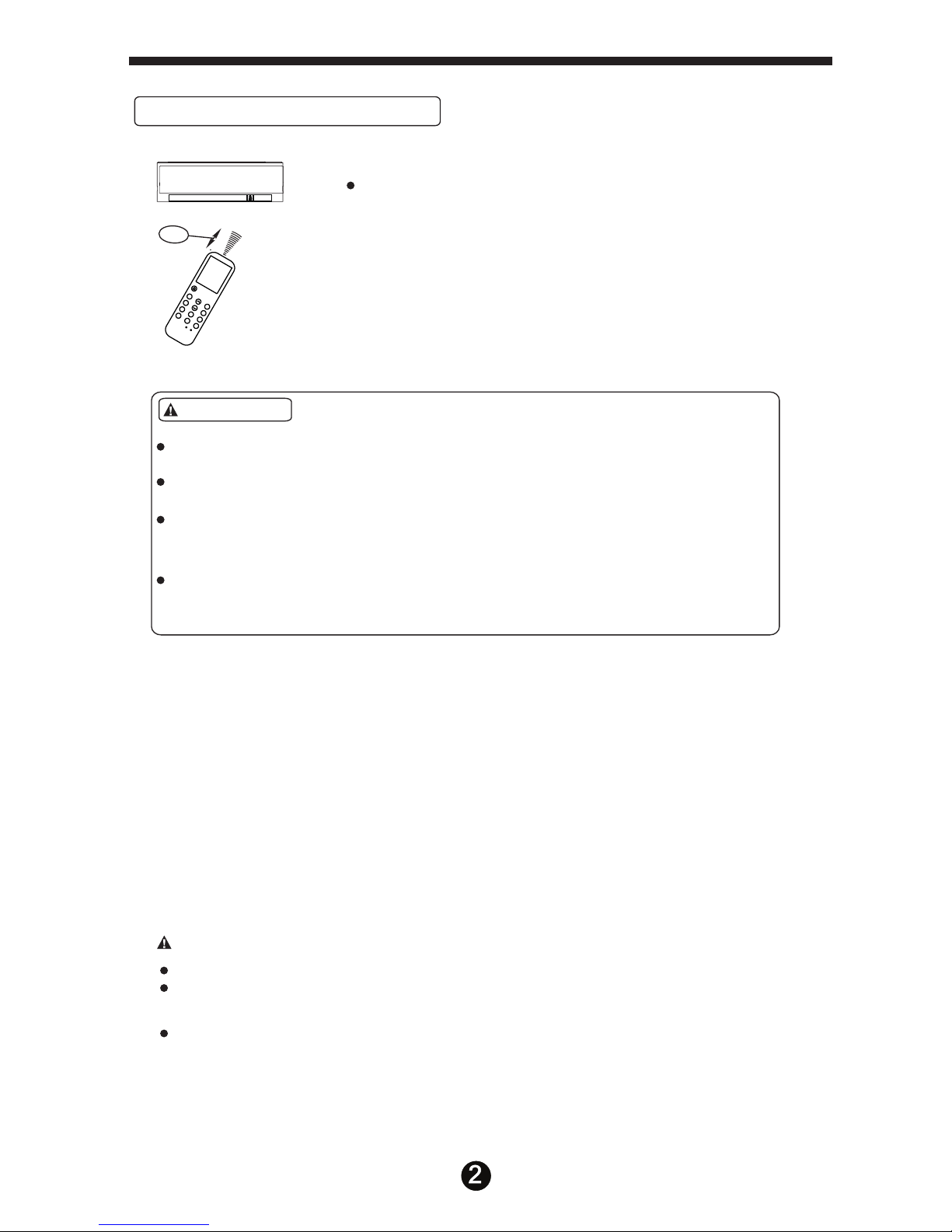

Use the remote controller within a distance of 26,2ft
(8 meters) from the appliance, pointing it towards the
receiver. Reception is confirmed by a beep.
Location of the remote controller.
8m
The remote controller is powed by two dry batteries(R03/LR03X2) housed in the
rear part and protected by a cover.
(1) Remove the cover by pressing and sliding off.
(2) Remove the old batteries and insert the new batteries,placing the(+) and (-)
ends correctly.
(3) Reattach the cover by sliding it back into position.
NOTE: When the batteries are removed, the remote controller erases all progra-
mming. After inserting new batteries, the remote controller must be reprogrammed.
Replacing batteries
Handling the remote controller
CAUTIONS
The air conditioner will not operate if curtains, doors or other materials
block the signals from the remote controller to the indoor unit.
Prevent any liquid from falling into the remote controller. Do not expose
the remote controller to direct sunlight or heat.
If the infrared signal receiver on the indoor unit is exposed to direct
sunlight, the air conditioner may not function properly. Use curtains to
prevent the sunlight from falling on the receiver.
If other electrical appliances react to the remote controller. either move
these appliances or consult your local dealer.
CAUTIONS
Do not mix old and new batteries or batteries of different types.
Do not leave the batteries in the remote controller if they are not
going to be used for 2 or 3 months.
Do not dispose batteries as unsorted municipal waste. Collection of such
waste separately for special treatment is necessary.
MODE
SWINGTEMP
SHORTCUT
FAN
SPEED
TIMER
OFF
RESETLOCK
LED
FOLLOWME
TIMER
ON
TURBO
SELFCLEAN
DIRECT
SLEEP
FRESH

Rated Voltage
26,2ft ( 8m)
3.0V(Dry batteries R03/LR03×2)
Remote Controller Specifications
1. Operating Mode: AUTO, COOL, DRY, HEAT(Cooling only model without),
and FAN.
2. Timer Setting Function in 24 hours.
O O
3. Indoor Setting Temperature Range: 62 F~86 F.
4. Full function of LCD (Liquid Crystal Display).
Environment
Signal Receiving
Range
Performance Feature
O O
23 F~140 F
NOTE:
Buttons design might be slightly different from the actual one you
purchased depending on individual models.
All the functions described are accomplished by the indoor unit.
If the indoor unit has no this feature, there is no corresponding
operation happened when press the relative button on the remote
controller.

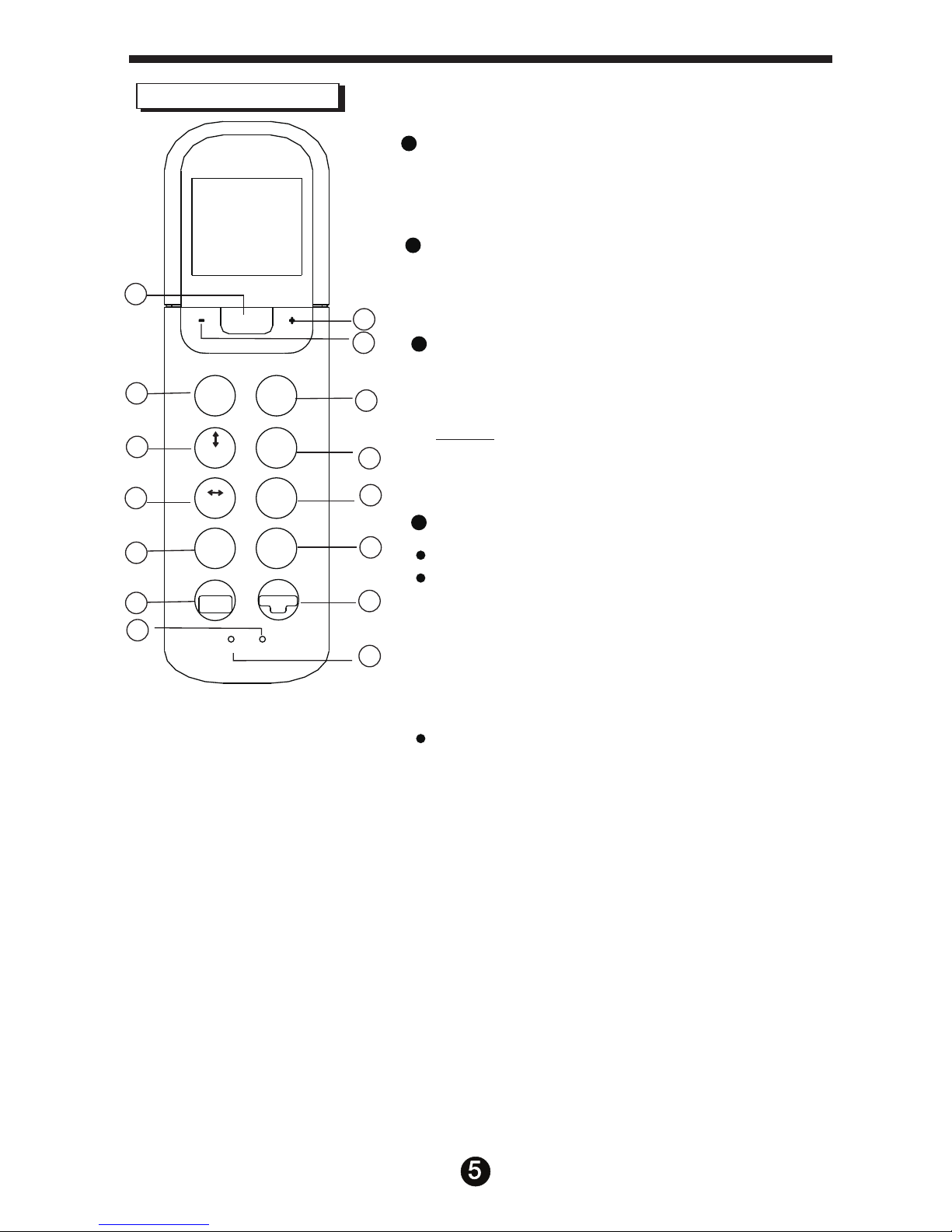

Function buttons
1
2
Each time the button is pressed, the operation
mode is selected in a sequence of following:
3
MODE Button
4
5
ON/OFF Button
Operation starts when this button is pressed
and stops when this button is pressed again.
NOTE: Heat mode is for Cooling & Heating models only.
AUTO COOL
DRY HEAT FAN
NOTE: While the unit is running under SLEEP
mode, it would be cancelled if press the MODE,
FAN SPEED or ON/OFF button.
6
Active/Disable SLEEP function.
SLEEP Button
Swing Button
Swing Button
Used to stop or start horizontal louver move-
ment .
Active/Disable TURBO function. If pushing
more than 2 seconds, the SELF CLEAN
function will be activated, pushing more than
2 seconds again to disable.
TURBO/SELF CLEAN Button:
,
,
Used to stop or start vertical louver movement.
When the vertical louver swing feature is
activated, the display area of indoor unit
displays , flashes four times, then the
IIII
temperature setting reverts back. If the vertical
louver swing feature is stopped, it displays LC
and remains on for 3 seconds.
NOTE: For some units , the indoor units
display when the swing feature is
activated, and display when the swing
feature is stopped.
,
,
,
,
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING
,,
,
,

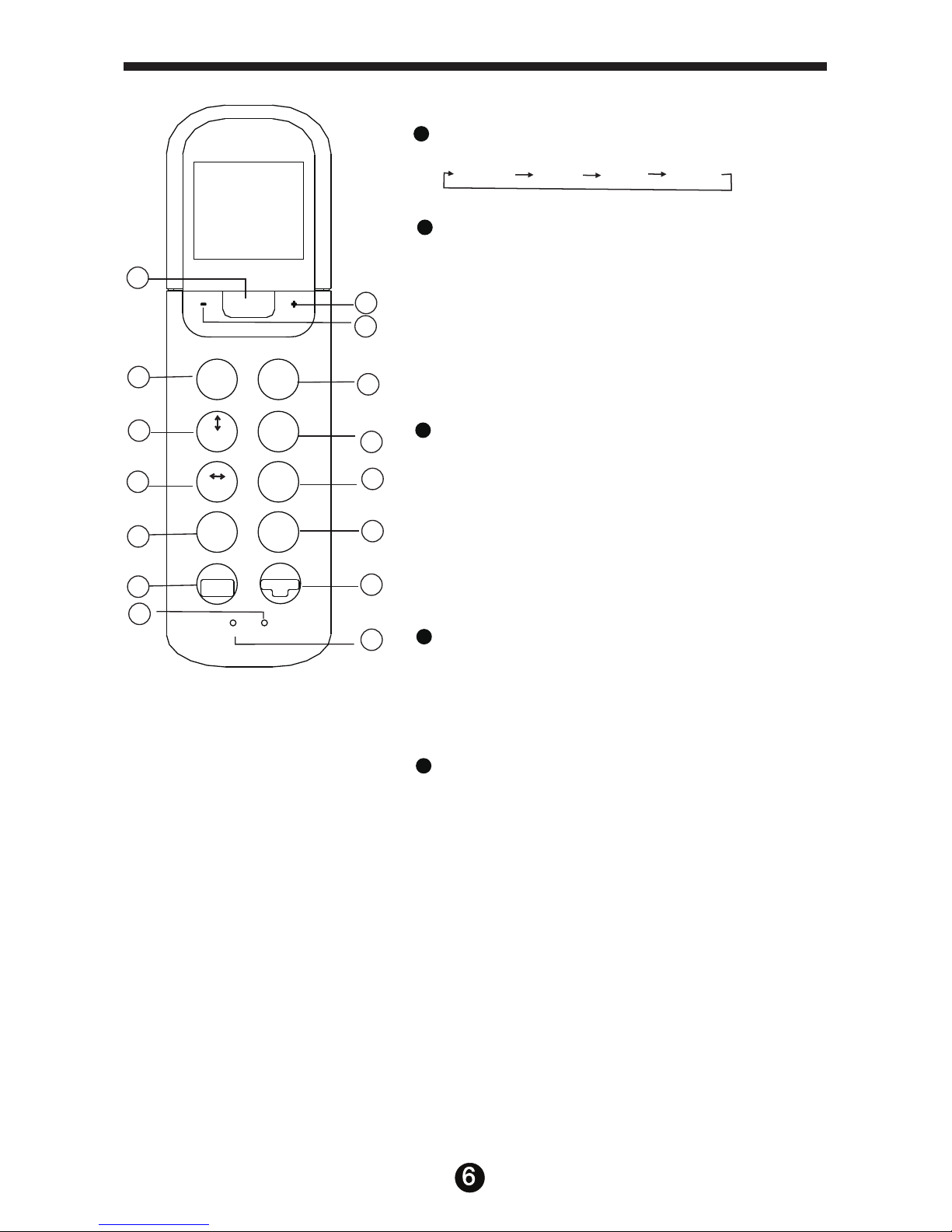

This function can maintain the most comfortable
temperature and save energy. This function is
available on COOL, HEAT or AUTO mode only .
For the detail, see Sleep operation in
USER S MANUAL .
,
,,
,,
,,
,,

Function buttons
8
9
-
+
10
SILENCE/FP Button
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING
7
When you press the recessed RESET button,
all current settings are cancelled and the
control will return to the initial settings.
RESET Button:
Active/Disable SILENCE function.
When the Silence function is activated, the
compressor will operate at low frequency and
the indoor unit will bring faint breeze, which will
reduce the noise to the lowest level and create
a quiet and comfortable room for you. Due to
low frequency operation of compressor, it may
result in insufficient cooling and heating capacity.
During the heating operation(only when the
setting mode is HEAT),If pushing this button
more than 2 seconds, the FP function is
activated. The unit will operate at high fan
speed with the temperature automatically set to
O O
8C(46 F).The display window of indoor unit
will display FP . For the unit without display
area, the Defrost indicator light will be
keeping on for 2 seconds, and then be off for
2 seconds by turns. Press ON/OFF,SLEEP,
FP,MODE, FAN SPEED,UP, DOWN button
while operating will cancel the FP function.
,
,
,
,
,
,
,
,
UP Button( )
Push this button to decrease the indoor
o o
temperature setting in 1 F increments to 86 F.
DOWN Button( )
Push this button to increase the indoor
o o
temperature setting in 1 F increments to 62 F.
NOTE: Press and hold UP and DOWN buttons
together for 3 seconds will alternate the temper-
O O
ature display between the C & F scale.

TIMER ON Button
TIMER OFF Button
12
13
11
Used to select the fan speed in four steps:
AUTO LOW MED HIGH
FAN SPEED Button

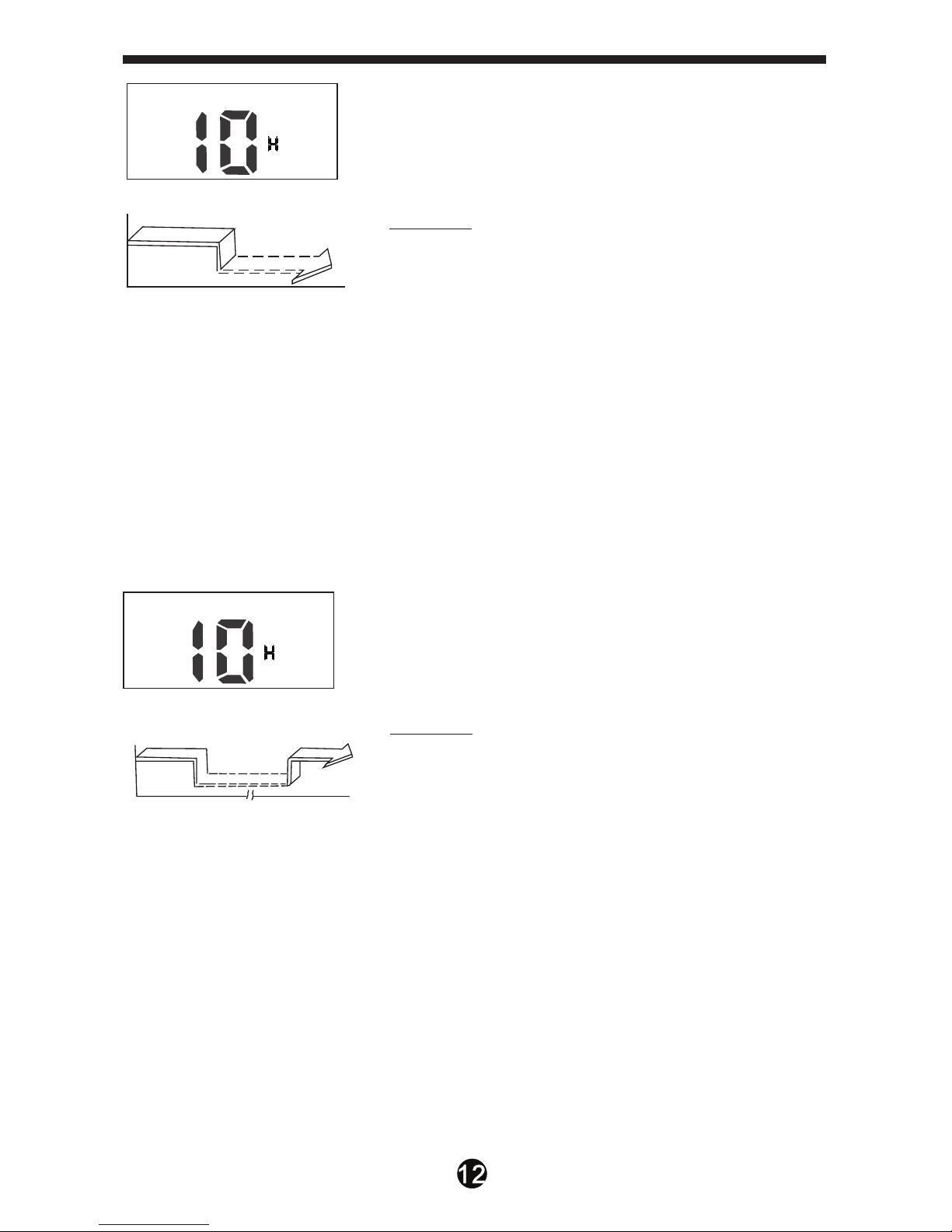

Press this button to initiate the auto-on time
sequence. Each press will increase the
auto-timed setting in 30 minutes increments.
When the setting time displays 10H, each
press will increase the auto-timed setting
60 minutes increments. To cancel the
auto-timed program, simply adjust the
auto-on time to 0:0.
Press this button to initiate the auto-off time
sequence. Each press will increase the
auto-timed setting in 30 minutes increments.
When the setting time displays 10H, each
press will increase the auto-timed setting
60 minutes increments. To cancel the
auto-timed program, simply adjust the
auto-off time to 0:0
1
2
4
5
3
9
10
8
6
7
11
12
13
14
15
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING
14
15
LOCK Button
When you press the recessed LOCK button,
all current settings are locked in and the
remote controller does not accept any
operation except that of the LOCK. Press
again to cancel the LOCK mode.
LED/FOLLOW ME Button
Disable/Active indoor screen Display. When
pushing more than 2 seconds, the FOLLOW
ME function will be activated, pushing more
than 2 seconds again to disable.
,
,

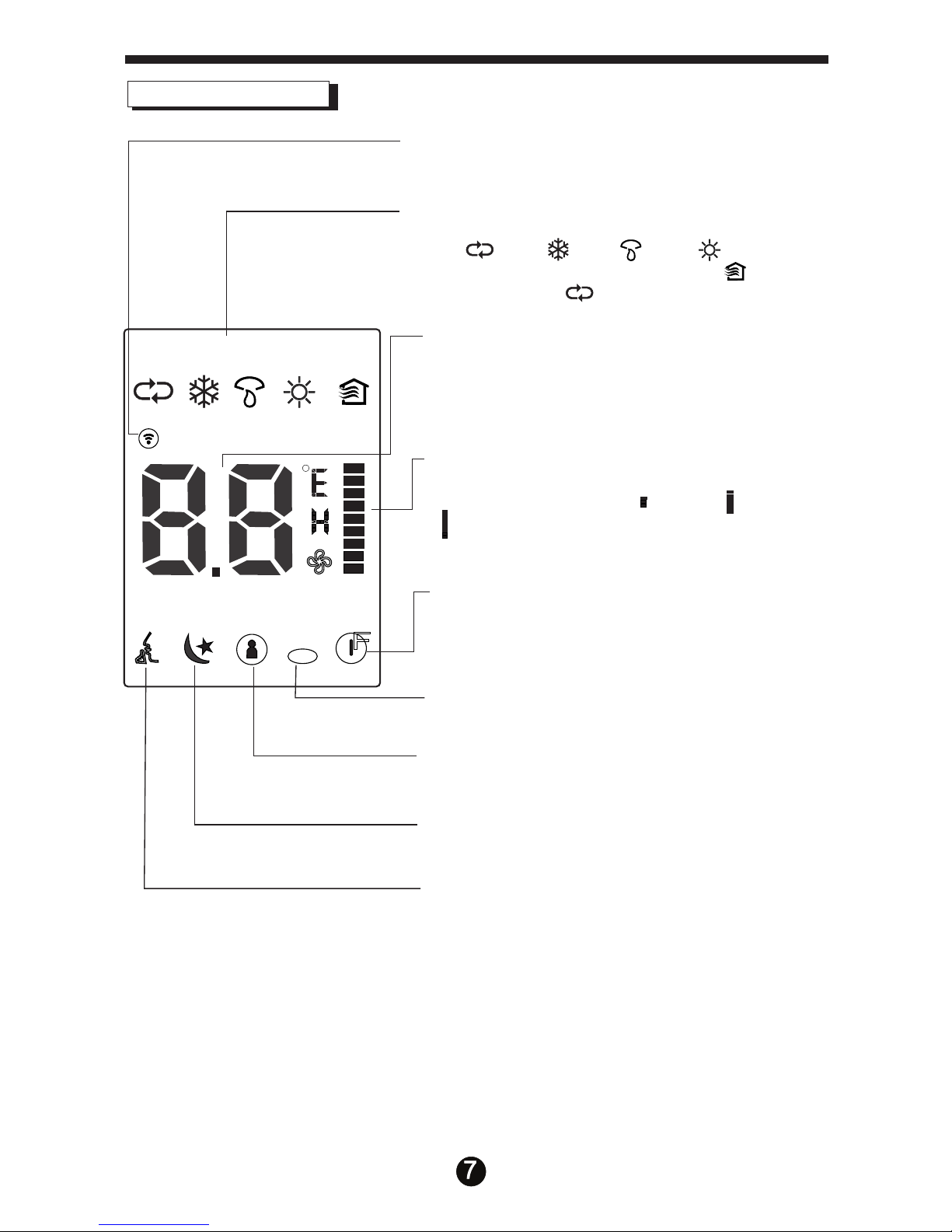

Indicators on LCD
Transmission Indicator
Temp./Timer display
Fan speed display
Silence Display
Sleep Display
Mode display
ON/OFF display
This transmission indicator lights when remote
controller transmits signals to the indoor unit.
Displays the current operation mode. Including
auto( ), cool( ), dry( ), heat( ) (Not
applicable to cooling only models), fan( )
and back to auto( ).
O O
Displays the temperature setting(62 F~86 F). When
you set the operating mode to FAN, no temperature
setting is displayed. And
shows the ON and OFF settings of the TIMER.
if in the TIMER mode,
Displayed by pressing the ON/OFF button.
Press the ON/OFF button again to remove.
Displays the selected fan speed, AUTO(no display)
and three fan speed levels " " (LOW) " " (MED)
" " (HIGH) can be indicated. The fan speed is AUTO
when the operating mode is either AUTO or DRY.
Displayed when SILENCE function is activated.
Displayed under sleeping operation.
Press the SLEEP button again to remove.
Note:
of clear presentation. But during the actual operation
only the relative functional signs are shown on the
display window.
All indicators shown in the figure are for the purpose
Lock Display
Displayed when LOCK mode is activated.
FOLLOW ME Display
Displayed when FOLLOW ME function is activated.
F
auto cool dry heat fan
silence sleep follow me lock run
SET TEMP. TIMER ONOFF

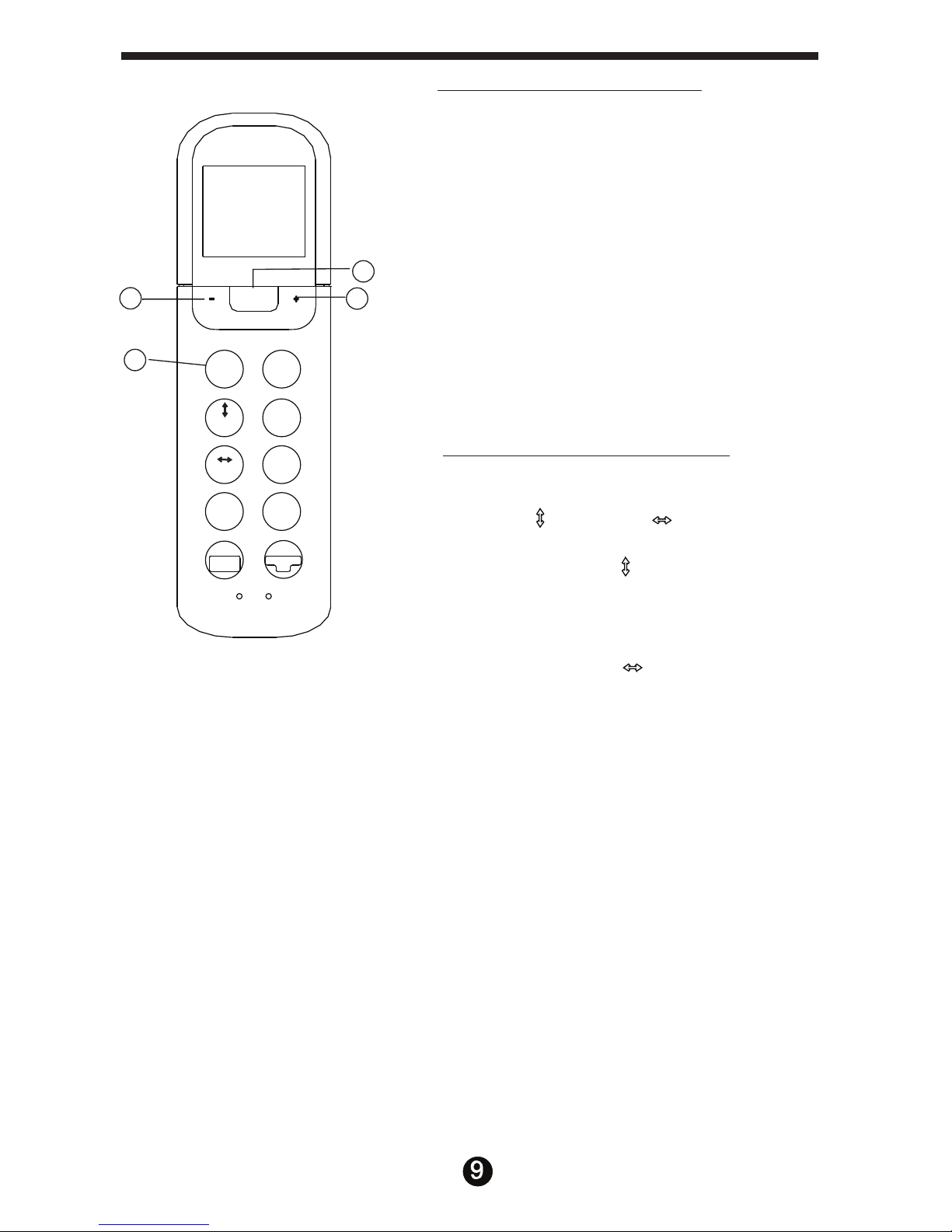

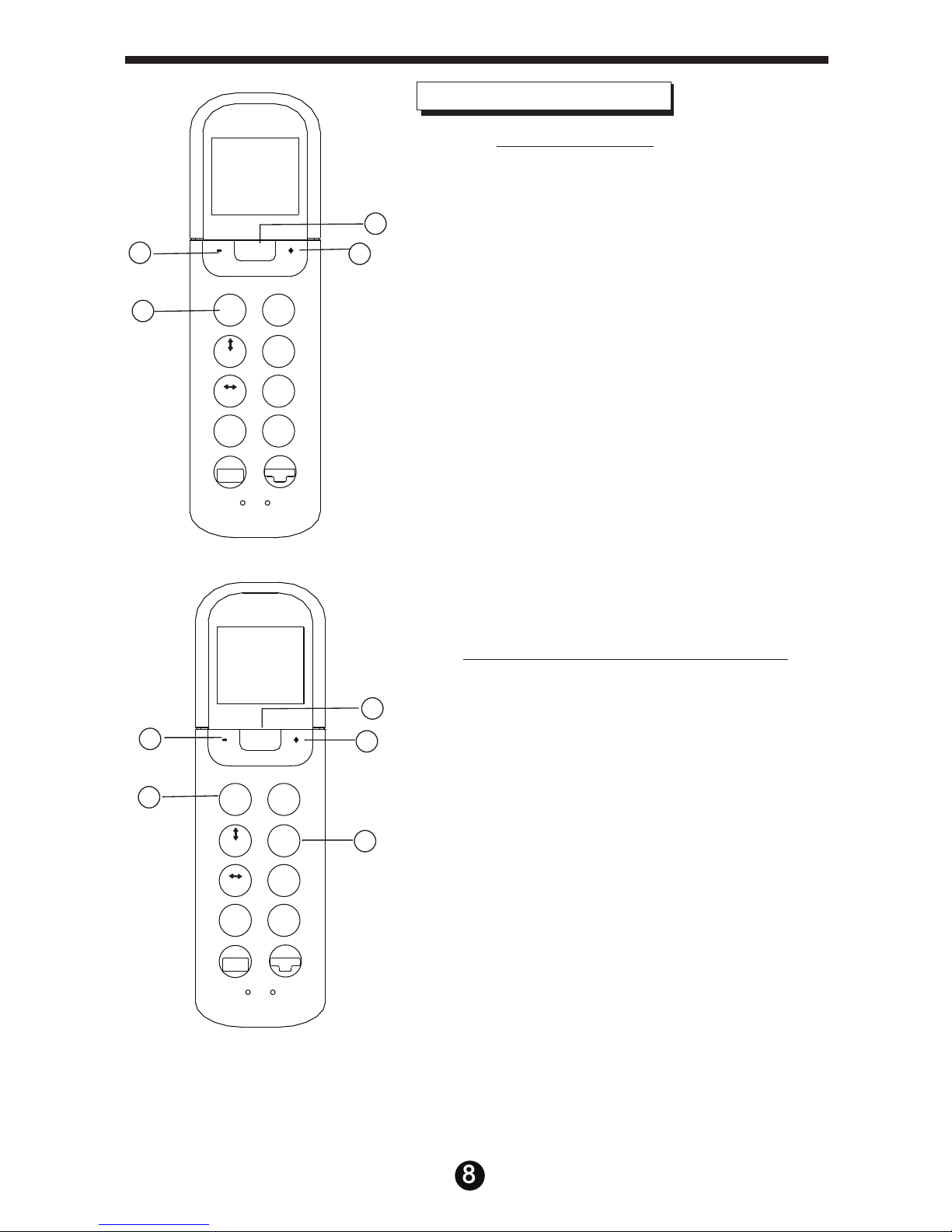

How to use the buttons
Cooling /Heating/Fan operation
Ensure the unit is plugged in and power is
available.
1. Press the MODE button to select COOL,
HEAT(cooling & heating models only) or
FAN mode.
2. Press the UP/DOWN buttons to set the
desired temperature. The temperature can
O O O
be set within a range of 62 F~86 F in 1 F
increments.
3. Press the FAN button to select the fan speed
in four steps- Auto, Low, Med,or High.
4. Press the ON/OFF button to start the air
conditioner.
In the FAN mode, the setting temperature is not
displayed in the remote controller and you are not
able to control the room temperature either. In this
case, only step 1, 3 and 4 may be performed.
NOTE
Auto operation
Ensure the unit is plugged in and power is
available. The OPERATION indicator on the
display panel of the indoor unit starts flashing.
1. Press the MODE button to select Auto.
2. Press the UP/DOWN button to set the
desired temperature. The temperature can
O O
be set within a range of 62 F~86 F in 1 F
increments.
3. Press the ON/OFFbutton to start the air
conditioner.
O
1. In the Auto mode, the air conditioner can logically
choose the mode of Cooling, Fan, and Heating
by sensing the difference between the actual
ambient room temperature and the setting
temperature on the remote controller.
2. In the Auto mode, you can not switch the fan speed.
It has already been automatically controlled.
3. If the Auto mode is not comfortable for you , the
desired mode can be selected manually.
NOTE
3
1
2
4
1
2
3
2
2
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING

Dehumidifying operation
Ensure the unit is plugged in and power is
available. The OPERATION indicator on the
display panel of the indoor unit starts flashing.
1. Press the MODE button to select DRY mode.
2. Press the UP/DOWN buttons to set the
desired temperature. The temperature
O O O
can be set within a range of 62 F~86 F in 1 F
increments.
3. Press the ON/OFF button to start the air
conditioner.
In the Dehumidifying mode, you can not switch the
fan speed. It has already been automatically controlled.
NOTE
Adjusting air flow direction
3
1
2
2
Use the SWING and SWING buttons to adjust
the desired airflow direction.
1. When push the SWING button, the horizontal
louver changes 6 degree in angle for each push.
If pushing more than 2 seconds, the louver
will automatically swing up and down.
2. When push the SWING button, the vertical
louver changes 6 degree in angle for each push.
If pushing more than 2 seconds, the louver
will automatically swing left and right.
NOTE: When the horizontal/vertical louver swing
or move to a position which would affect
the cooling or heating effect of the air
conditioner, it would automatically change
the swing/moving direction.
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING

Timer operation
Press the TIMER ON button can set the auto-on
time of the unit. Press the TIMER OFF button
can set the auto-off time of the unit.
1. Press the TIMER ON button. The remote
controller shows TIMER ON, the last Auto-on
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to reset
the Auto-on time to START the operation.
2. Push the TIMER ON button again to set desired
Auto-on time. Each time you press the button,
the time increases by half an hour between 0
and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER ON ,there will be a one
second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
To set the Auto-on time.
To set the Auto-off time.
1. Press the TIMER OFF button. The remote
controller shows TIMER OFF, the last Auto-off
setting time and the signal "h" will be shown on
the LCD display area. Now it is ready to reset
the Auto-off time to stop the operation.
2. Push the TIMER OFF button again to set
desired Auto-off time. Each time you press the
button, the time increases by half an hour
between 0 and 10 hours and by one hour
between 10 and 24 hours.
3. After setting the TIMER OFF ,there will be a
one second delay before the remote controller
transmits the signal to the air conditioner. Then,
after approximately another 2 seconds, the
signal "h" will disappear and the set temperature
will re-appear on the LCD display window.
1
2
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING

The effective operation time set by the remote controller for the timer function
is limited to the following settings: 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0,
5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15,16,17, 18, 19, 20,
21, 22, 23 and 24.
CAUTION
!
Example of timer setting
Start
Off
6 hours later
(Auto-on Operation)
The TIMER ON feature is useful when you want
the unit to turn on automatically before you return
home. The air conditioner will automatically start
operating at the set time.
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last setting
of starting operation time and the signal "h"
will show on the display area.
2. Press the TIMER ON button to display "6:0h"
on the TIMER ON display of the remote
controller.
3. Wait for 3 seconds and the digital display
area will show the temperature again. The
"TIMER ON" indicator remains on and this
function is activated.
TIMER ON
Example:
Set
TIMER ON

Stop
On
Set 10 hours later
(Auto-off Operation)
The TIMER OFF feature is useful when you want the
unit to turn off automatically after you go to bed. The
air conditioner will stop automatically at the set time.
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last setting of
stopping operation time and the signal "h" will
show on the display area.
2. Press the TIMER OFF button to display "10h" on
the TIMER OFF display of the remote controller.
3. Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
OFF" indicator remains on and this function is
activated.
TIMER OFF
Example:
On
Stop
2 hours later
after setting
Set
To stop the air conditioner 2 hours after setting and
start it again 10 hours after setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to display
2.0h on the TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to display 10h
on the TIMER ON display .
5. Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
ON OFF" indicator remains on and this function is
activated.
TIMER OFF →TIMER ON
(On →Stop →Start operation)
This feature is useful when you want to stop the air
conditioner after you go to bed, and start it again in
the morning when you wake up or when you return
home.
Example:
COMBINED TIMER
(S both ON and OFF )etting timers simultaneously
Start
10 hours later
after setting
TIMER OFF
TIMER ON OFF

Example:
TIMER ON →TIMER OFF
(Off →Start →Stop operation)
This feature is useful when you want to start
the air conditioner before you wake up and
stop it after you leave the house.
To start the air conditioner 2 hours after setting,
and stop it 5 hours after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to display
2.0h on the TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to display
5.0h on the TIMER OFF display .
5. Wait for 3 seconds and the digital display area
will show the temperature again. The "TIMER
ON OFF" indicator remains on and this function
is activated.
Off Stop
Start
2 hours later
after setting
5 hours later
after setting
Set
TIMER ON OFF

21
LED/FOLLOW ME function
Press this button less than 2nds will initiate LED
function. And if keep pressing this button more
than 2nds,the FOLLOW ME function is initiated.
When the Follow Me function is activated,
the remote display is actual temperature at
its location. The remote control will send this
signal to the air conditioner every 3 minutes
interval until press the FOLLOW ME button
again.
The Follow Me function is not available under
DRY and FAN mode.
Switch the operation mode or turn off the unit
will cancel the Follow Me function automatically.
Press this button less than 2nds will initiate
TURBO function. And if keep pressing this
button more than 2nds,the SELF CLEAN
function is initiated.
Turbo function enables the unit to reach the
preset temperature at cooling or heating
operation in the shortest time(if the indoor unit
does not support this function, there is no
corresponding operation happened when
pressing this button.)
Under SELF CLEAN mode, the air conditioner
will automatically clean and dry the Evaporator
and keep it as fresh for the next operation.
TRUBO/SELF CLEAN function
TURBO
SELF
CLEAN
SLEEP
SILENCE
FP
TIMER
ON
TIMER
OFF
LOCK RESET
LED
FOLLOW
ME
FAN
SPEED
SWING
MODE
TEMP
ON/OFF
SWING

CR149-RG36F1EU1
2020550A9223
.
For complete instructions on these and other functions,
as well as important safety information, see the Owners Manual.
For more information, visit www.cooperandhunter.us
Specifications are subject to change without notice. Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice or without incurring
obligations. © 2016 .All rights reserved.
Why does the fan continue to run even when the unit is not cooling or heating?
To maintain consistent temperatures and minimize energy-loss from constant starts and
stops, the fan keeps air flowing past the thermostat.
What temperature is displayed on the remote controller?
The remote always displays your desired indoor temperature. (You may view current
indoor and outdoor temperatures on the indoor unit’s Front Panel Display.)
What happens if the remote is lost or damaged?
Use the Manual Override button to manually operate the unit. Lift up the front panel
section on the indoor unit and locate the button right-hand side. Press the button to turn
ON the unit. (Not all functions will be available.) Press again to cancel Manual Override
Mode and transfer control back to the remote controller.
Not all features available on all models. Your actual air conditioning and heating system and related devices
may differ from the images shown in this manual
FAQs
