SECTION 3 - PRODUCT OVERVIEW
Unpacking and Inspection
• Unpack the equipment.
• Check the packing list to insure all accessories are there.
• Examine the packing material carefully for separately packed items.
• Check the incubator for external surface damage.
• Check that the display is not broken or damaged.
• Check that the lid and locking mechanism operate correctly without any hindrance.
Accessories
Standard Accessories
24 volts main adapter (PSU)
Order code: K51122
Mains Cable
Standard Schuko Order code: 52768
UK Order code: 53886
US Order code: 52773
Connection cable for 12 volt car cigarette
lighter socket.
Order code: 51016
Two plastic blocks for holding the warming
blocks in place.
Plastic insulation
White Order code: 50004
Black
Gas connector
Order code: 52156
Order code: 52192
Silicone tube
Order code: 11066
Order code: 52772

Section 3
4
Product Overview
3
CooperSurgical, Inc.
Warming block B28
Holds on 4-well dish
NUNC 176740
Order code: 26029
Warming block B06
Holds twelve tubes of Ø12mm
Falcon 352003
Order code: 26006
Warming block B08
Holds ten tubes of Ø17 mm
Falcon 352001
Order code: 26008
Warming blocks for dishes
Warming block B16
Holds two culture dishes
B16-Falcon 353001
Order code: 26059
B16N-NUNC 150318
Order code: 26060
Warming block B25
Holds one 60mm culture dish
Falcon 353002
NUNC 150288
Order code: 26028
Optional Equipment
Optional equipment consists of a range of warming blocks, owmeters and gas humidiers.
CooperSurgical recommend that the GHO1 is used for supplying gas to the portable incubator
(See the section on Supplementary equipment)
Warming blocks for tubes
Warming block B26
Holds one 4-well Falcon dish with lid
Falcon 353654
Order code: 26031
Warming block B24
Holds one centre well dish
Falcon 353653
Order code: 260027
Warming block B29
Holds on 5-well dish
MiniTüb 19021/0005
Order code: 26030

Section 3
Product Overview
5
3
CooperSurgical, Inc.
Supplementary equipment
The G95 is designed as a transport device, and not as a block warmer. It can be used in
conjunction with the following K-Systems products.
GH01
Standalone gas warmer, humidier and
ow regulator.”
Order code: 31059
G73
Dry Bath Incubator for heating samples in test
tubes.
Order code: 22065
Intended Use
The K-SYSTEMS CooperSurgical G95 Portable incubator is designed to provide a short-term
environment with controlled temperature at or near body temperature and gas levels (CO2,
O2) for gametes and embryos during transit for assisted reproductive technology (ART)
treatments.
The warming blocks should be pre-warmed to the desired temperature and allowed to
stabilize before placing inside the G95 transport incubator.
The temperature indication on the display is that of the maintaining temperature. If cool blocks
are placed within the incubator, sucient time is required for the temperature to stabilize.
When the unit is not in use it is recommended that it is left on charge.
General Description
The compartment and aluminium warming blocks maintain a preset temperature in the range of
ambient to 49.9°C. The temperature is electronically controlled and can be read on the display
in increaments of 0.1°C resolution. An alarm system provides both visual and audible alarm, if
the temperature should be out of range or in case of low battery (when the mains adapter is not
connected).
A built-in battery maintains the temperature for 4 to 5 hours depending on ambient temperature.
The battery will be charged when the incubator is connected to the mains adapter.
The incubator can be connected to a 12V car cigarette lighter socket during transport and whilst
incubating samples. This provides power to maintain the temperature but does not charge the
battery.
The atmosphere is controlled by ushing with a gas mixture. The gas valve is automatically
closed when the quick connector is disconnected. Interchangeable aluminium warming
blocks, holding a variety of culture dishes and test tubes, are available. The blocks are held in
position during transport by a removable plastic block.
Caution: additional heat can be generated whilst charging the battery. Do not place
samples in the incubator whilst connected to the mains adapter.

Section 3
6
Product Overview
3
CooperSurgical, Inc.
Unit Performance
The unit is connected and allowed to stabilise to the set point.
Culture dishes and/or test tubes are placed in the interchangeable warming blocks which are
held in secure positions during transport.
The chamber is purged with the desired gas mixture (regulated for example by the GH01).
During purging, the door is closed, but only sealed after purging. (See page 24)
The gas supply is disconnected from the (quick release) valve at the back of the unit.
Connections
Should the transport time exceed the 4 to 5-hour battery time the unit can be connected to the
12V cigarette lighter socket found in most automobiles.
When not in use the unit should be connected to the mains power supply but should not be used
for incubating samples.
The unit can only be heated up from ambient using the mains adapter. The battery is designed
only to maintain the temperature once warmed up.
The car adaptor can only be used to extend the transport time. It will not charge the battery.
General Care
Do not obstruct or block the ventilation holes at the back of the unit. Excessive force or pressure
should not be put on the front door when it is fully opened. Ensure that the door hinges are
clean and free of any obstructions. When closing the door, ensure that there are no objects
preventing it from closing, as too much force will damage the closing catch, thereby degrading
its performance.

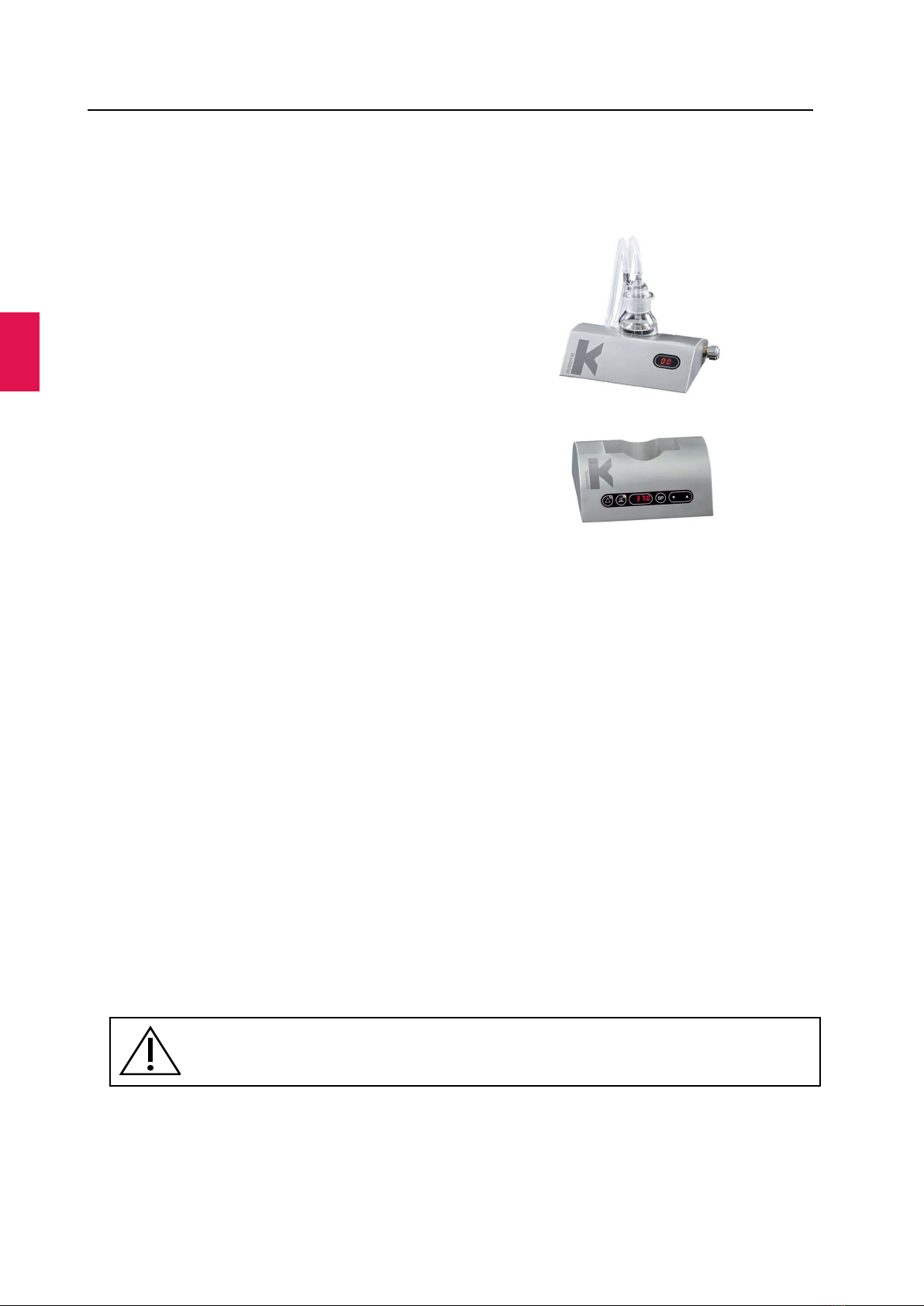

Car socket / GH01
RS 232
connector
No longer supported
Blanking
plug
PSU
socket
Gas inlet
Warning: This incubator is designed to transport pre-warmed blocks and does not
have the capability of warming the blocks in a short period of time

Section 4
Basic Operation
7
4
CooperSurgical, Inc.
SECTION 4 - BASIC OPERATION
Features and Operation
Assembling the G95
No assembly needed. Just follow the directions below and the unit is ready for use.
Connection to the Mains
The mains voltage is automatically regulated to the correct level by the main adapter (PSU).
Connect the G95 to the mains supply using the enclosed PSU.
Start of Apparatus
Connect the unit to the PSU and the PSU to the mains wall socket.
To power up the unit, press the Heat ON/O button on the keyboard. The display will indicate
the current temperature.
8888
Alarm Heat
ON/OFF
LED Display Set-point Arrow keys
UP/DOWN
Operating the Heated Compartment
Keyboard Functions
Action Key Display
Press heat ON/OFF key to show the actual temperature.
36.0

Section 4
8
Basic Operation
4
CooperSurgical, Inc.
Temperature Setting and Control
The display indicates the average temperature of the surface.
Action Key
Press set-point key until set temperature is shown.
Press and hold set-point key.
While holding the set-point key in, press either the arrow UP or arrow
DOWN key to raise or lower the set temperature.
When the desired temperature is reached, let go of the set-point key.
Note: The set-point can be adjusted to a reading between ambient and 49.9˚C.
Combination Keys
Action Key Display
Press alarm and UP key. The keyboard is locked.
Press alarm and UP key. The keyboard is unlocked.
Press Heat ON/OFF and set-point
key.
Switches between temperature and
time.
Press alarm and set point key to go
into power save mode. Switches o the display.
Note: Powersave mode:
Now only a small LED will light, showing when the heat is active. All other functions are kept
normal. By switching o the display the energy is conserved and the battery charge holding
time prolonged.
+
+
+
+

Section 4
Basic Operation
9
4
CooperSurgical, Inc.
Temperature Alarm
The temperature alarm indicates too high or too low temperature. The alarm will be activated if
the temperature rises or falls more than 0.5°C from the set point. There will be an acoustic signal
and the red LED light in the alarm key will be activated.
Action Key
Press alarm key to mute the acoustic signal.
Press alarm key once again to bring the signal back on.
Note: The red LED light and the acoustic signal will turn o when the temperature stabilizes to
the set-point level
Warming Up
Warming up from 20.0 to 39.0°C takes less than 15 minutes under normal conditions.
When a cold item is placed in the chamber it may need up to 30 minutes to stabilize, depending
on the thermal mass of the object and the initial temperature. It is recommended to pre-warm
warming blocks before they are placed in the incubator.
Always let the unit stabilize before use.
Caution: Check the temperature at the base of the incubator chamber with a
calibrated thermometer before placing the samples inside.
Warming Blocks
It is necessary to use warming blocks. Please contact your local distributor or K-SYSTEMS for
details about the full range of warming blocks.
A selection of dierent tubes and dishes can be transported. Either tubes or dishes can be
transported at one time, not a combination of both.
Warning: Warming blocks should always be pre-heated before usage.

Section 5
10
Menu Function
5
CooperSurgical, Inc.
SECTION 5 - MENU FUNCTION
The user can access a number of advanced functions via the menu.
Action Key Display
Press and hold UP+DOWN key for 3 seconds to
enter the menu.
The rst option “UNIT” will appear in the display.
Press UP/DOWN key to navigate within the Menu.
While holding the set-point key in, press either the
arrow UP or arrow DOWN key to change values
within the options.
Press and hold UP+DOWN key for 3 seconds again
to exit the menu.
The menu consists of the 10 options listed below. For further detail see the description on the
following pages.

Section 5
Menu Function
11
5
CooperSurgical, Inc.
Overview of Options
˚C
˚F
UNIT
On
S-1
S-2
Send
Off
RS232
+0.05
-0.05
TUNE
+0.1
-0.1
INT.T
M + 1
H + 1
Ti.St
M + 1
H + 1
St.St
On
Off
HEAT
On
Off
A-St
On
Off
HOUR
REST ----
Software version
Calib. value
}
Version 3

Section 5
12
Menu Function
5
CooperSurgical, Inc.
Unit
In the UNIT option the displayed temperature unit can be set to either degrees Celsius or
Fahrenheit.
Follow these steps to navigate in the UNIT option.
Action Key Display
Press and hold UP+DOWN key for 3 seconds to
enter the menu.
The menu “UNIT” will appear in the display.
Press and hold set-point key to change values.
While holding the set-point key in, press either
the arrow UP or arrow DOWN key to select the
required type of unit.
When the required type has been selected let go
of the set-point key.
Press and hold UP+DOWN key for 3 seconds to
exit the menu.
RS232
The RS232 port is only for service purposes.

Section 5
Menu Function
13
5
CooperSurgical, Inc.
Tune
The TUNE option is for calibration of the displayed temperature.
If there is an oset between the value on the display and any measurements made with a high
precision external temperature sensor, this can be corrected.
The new temperature reading will be kept as the displayed value, with temperature control
conducted on this basis.
Follow these steps to navigate in the TUNE option.
Action Key Display
Press and hold UP+DOWN key for 3 seconds to
enter the menu.
The menu “UNIT” will appear in the display.
Press DOWN key until the option “TUNE” appears
in the display.
Press and hold set-point key to change values.
While holding the set-point key in, press either the
arrow UP or arrow DOWN key to select the value
temperature.
When the required setting is activated, let go of the
set-point key.
Press and hold UP+DOWN key for 3 seconds to exit
the menu.
To see the calibration value
Action Key Display
Press and hold set point key.
While holding the set point key in, press the HEAT
Key.
The calibration value
is shown
tunE
+
Caution: Any change in the factory set calibration should always be based on very
accurate temperature measurements. CooperSurgical only recommends the use
of a high quality PT-100 sensor that is calibrated with the precision instrument
used for measuring according to the manufacturers specications. Also ensure an
optimal contact between the sensor and the place measured. Use only a sensor
type that is correct for the purpose and of correct size. If in doubt contact your local
CooperSurgical distributor.

Section 5
14
Menu Function
5
CooperSurgical, Inc.
TI.St
The Ti.St (Time Set) option is for setting the time.
Follow these steps to navigate in the Ti.St option.
Action Key Display
Press and hold UP+DOWN key for 3 seconds to
enter the menu.
The option “UNIT” will appear in the display.
Press DOWN key until the option “Ti.St.” appears
in the display.
Press and hold set-point key to change values.
While holding the set-point key in, press either the
arrow UP to change minutes or arrow DOWN key
to change the hour.
When the time is set, let go of the set point key.
Press and hold UP+DOWN key for 3 seconds to exit
the menu.
INT.T
The INT.T (Integral Time) option is for changing the base value for the PID controller.
This should not be attempted by unauthorised persons. If set at a dierent level the controlling
principle will be aected.
From the factory it is set to a closely calculated value specic for the model.
In version 3, this value is locked and can’t be changed.
Caution: Do not change the value here. If by mistake any changes are made or doubts
occur if the value are correct please see the REST function in the menu for the restore
of the defaults

Section 5
Menu Function
15
5
CooperSurgical, Inc.
St.St
The St.St (Start Set) option is the timer function for the heat.
By using this option, time can be saved as the G95 can be ready for use before procedures start
in the morning.
Note: This function will only work correctly if the clock is set.
Follow these steps to navigate in the St.St option.
Action Key Display
Press and hold UP+DOWN key for 3 seconds to
enter the menu.
The menu “UNIT” will appear in the display.
Press key DOWN until the option “St.St” appears
in the display.
Press and hold set-point key to change values.
While holding the set-point key in, press either the
arrow UP to change minutes or arrow DOWN key
to change the hour.
When the time is set, let go of the set-point key.
Press and hold UP+DOWN key for 3 seconds to exit
the menu.
Note: If the function Heat is set, a dot will light up in the right side of display.
St.St is connected with HEAT. It must be chosen when the timer starts. To turn the heater on,
(see page 16)
Warning: Always make sure when the timer function is being used, that the heated
area is clear of any objects that might be damaged by the heat or adversely aected
in way. Caution should always be exercised when a heated area is turned on without
any supervision.
