COOPS & FEATHERS 223-44 User manual

B 4x
2
3
1
x2
4
5
x4
(4) POLE SUPPORTS
(ATTACHES TO BOTTOM
LOWER BASE (1))
1
2
1 1
4
"
A
1 3
4
"
B
IDENTIFY ALL PARTS AND HARDWARE THAT ARE
INCLUDED WITH YOUR DOUBLE CHICKEN ROOSTING
PERCH. GRAB A SCREWDRIVER (OR HAND DRILL).
FIND A LEVEL PLACE TO BUILD IT AND AN EXTRA SET
OF HANDS WOULD BE HELPFUL. START BUILDING!
6
1
(2) BOTTOM LOWER
BASE (TOP IS
NOTCHED)
BOTTOM UPPER BASE
(BOTTOM IS NOTCHED)
MEDIUM SUPPORT
POLE-38 INCHES
CENTER SUPPORT
PERCH-30.4 INCHES
(7) ROOSTING PERCHES
(2) UPPER LANDING PAD
8
x2
7
x7
3
4
BB
BB
1
2
1
2
8 pcs
26 pcs
3
1
LARGE SUPPORT
POLE-46 INCHES

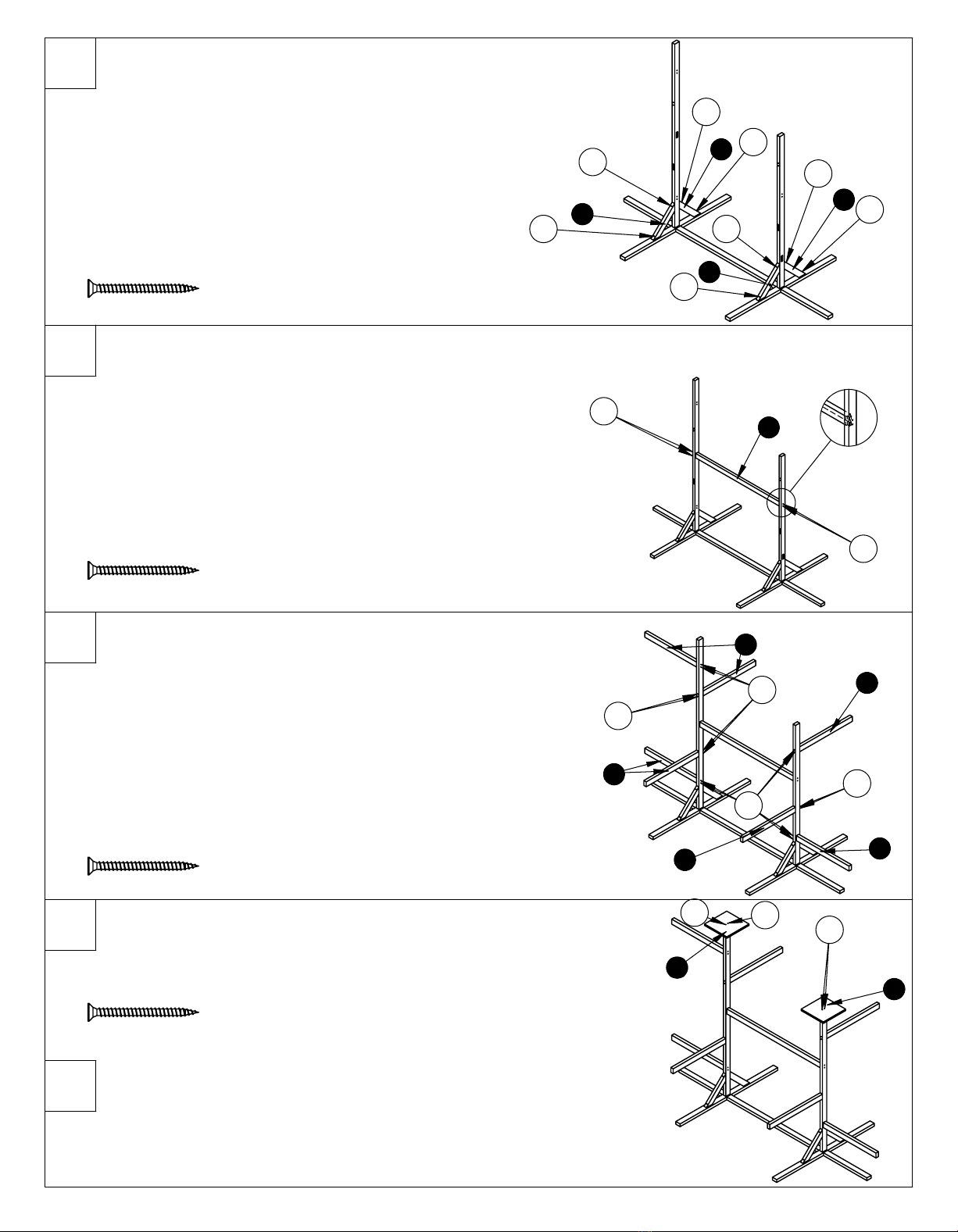

PLACE BOTH BOTTOM LOWER BASES (1) WITH
NOTCH FACING UP ON THE GROUND PARALLEL TO
EACH OTHER 30 INCHES APART. TAKE BOTTOM
UPPER BASE (2) WITH NOTCHES FACING DOWN
AND NEST INTO BOTTOM LOWER BASES (1).
FIND YOUR EXTRA SET OF HANDS. GET THE LARGE SUPPORT POLE (3) AND MEDIUM
SUPPORT POLE (4). LOCATE THE NOTCHED HOLES 23.1 INCHES UP FROM THE BOTTOM
ON EACH POLE. THESE NOTCHES WILL FACE TOWARDS EACH OTHER WHEN INSTALLED
AND ARE FOR THE CENTER SUPPORT PERCH (6) IN STEP 5. PLACE LARGE SUPPORT POLE
(3) CENTERED OVER THE NOTCHED PORTION ON LEFT BOTTOM LOWER BASE (1). MAKE
SURE IT IS NOT TWISTED AND THE NOTCH THAT IS 23 INCHES UP IS FACING TO THE
RIGHT. INSERT TWO SCREWS (B) INTO PRE-DRILLED HOLES THROUGH THE UNDERSIDE
CENTER OF THE NOTCHED BASE AND TIGHTEN WITH YOUR SCREWDRIVER OR HAND
DRILL. REPEAT WITH MEDIUM SUPPORT POLE (4) ON THE RIGHT SIDE AND MAKE SURE
THE NOTCH THAT IS 23 INCHES UP FROM THE BASE IS FACING TO THE LEFT. SET
UPRIGHT.
ASSEMBLY INSTRUCTIONS
Double Chicken Roosting Perch
Model# 223-44

B 4x
7
8
B
14x
7
A
8x
7
8
B 4x
.
.
.
.
A
A
A
A
A
A
A
A
7
7
BB
BB
.
BB
BB
BBBB
BBBB
BB
.
.
.
.
.
.
.
5
5
5
5
6
BB
BB
.
.
4
5
6
7
LARGE SUPPORT POLE: SECURE CENTER POLE SUPPORT (5) TO LARGE
SUPPORT POLE (3) AND BOTTOM LOWER BASE (1) WITH SCREWS (A)
THROUGH TOP AND BOTTOM PRE-DRILLED HOLES AND LIGHTLY
TIGHTEN. REPEAT ON OPPOSITE SIDE. MEDIUM SUPPORT POLE: SECURE
CENTER POLE SUPPORT (5) TO LARGE SUPPORT POLE (3) AND BOTTOM
LOWER BASE (1) WITH SCREWS (A) THROUGH TOP AND BOTTOM PRE-
DRILLED HOLES AND LIGHTLY TIGHTEN. REPEAT ON OPPOSITE SIDE.
NOW, SECURELY TIGHTEN ALL CENTER POLE SUPPORT SCREWS.
PLACE CENTER SUPPORT PERCH (6) INTO NOTCHED AREAS
(TONGUE/GROOVE) THAT ARE 23 INCHES UP ON LARGE
SUPPORT POLE (3) AND MEDIUM SUPPORT POLE (4). INSERT
TWO SCREWS (B) INTO PRE-DRILLED HOLES ON EACH SIDE
AND SECURELY TIGHTEN.
STARTING AT THE LOWEST LEVEL, INSERT ROOSTING PERCH (7) INTO
TONGUE/GROVE NOTCH AND USE TWO SCREWS (B) AND SECURELY
TIGHTEN TO SUPPORT POLE. REPEAT MOVING UPWARDS WITH THE
REMAINING PERCHES. THERE ARE FOUR ROOSTING PERCHES ON THE
LARGE SUPPORT POLE (3) AND THREE ROOSTING PERCHES ON THE
MEDIUM SUPPORT POLE (4).
SQUARELY PLACE UPPER LANDING PAD (7) ON TOP OF LARGE SUPPORT POLE
(3). INSERT TWO SCREWS (B) INTO PRE-DRILLED HOLES AND SECURELY TIGHTEN.
REPEAT FOR MEDIUM SUPPORT POLE (4).
8
WE RECOMMEND EXTENDING THE LIFE OF YOUR DOUBLE CHICKEN ROOSTING PERCH
WITH OUTDOOR PAINT OR A CLEAR FINISH. THIS ROOSTING PERCH HAS BEEN STAINED
BUT USING A NON-TOXIC OUTDOOR PRODUCT OR A CLEAR POLYURETHANE WILL
PROVIDE ADDITIONAL PROTECTION AGAINST RAIN, MOISTURE, HUMIDITY AND SNOW
FOR MANY SEASONS TO COME. NOW! SET OUTSIDE FOR YOUR FREE-RANGE BIRDS OR
WITHIN YOUR COOP AREA AND LET YOUR BIRDS ENJOY!
