COP-USA CD58NV-IRTVI20 User manual


HD-TVI IR High Speed Camera
Operation Manual
Prior to operation, please carefully read this manual！


Safety attentions:
Caution:
Electric shock,
Do not open
Caution:
For preventing electric shock, no removal
without authorization, no parts inside may be
repaired by the users themselves, which may
be only done by the qualified staff.
A flash of light in equilateral triangle is used for reminding user that “there are non-insulated dangerous voltage points nearby
this product”, endanger the personnel safety.
An exclamation mark in equilateral triangle is used for reminding user of referring to the literal description about its
operation and maintenance.
V2.0
！


CONTENTS
Attention ………………………………………………………………………………………………………………………………………………………………….5
Chapter I Functions and features ……………………………………………………………………………………………………………………………………7
1.1 Dome Specifications………………………………………………………………………………………………………………………………………………..7
1.2 Auxiliary lighting…………………………………………………………………………………………………………………………………………………..8
1.3 Dome functions………………………………………………………………………………………………………………………………………………………9
Chapter II Network menu Setting..………………………………………………………………………………………………………………………………………11
2.1 System connection diagram………………………………………………………………………………………………………………………………………11
2.2 ONVIF Discovery Tool configuration camera IP address………………………………………………………………………………………………………11
2.3 Log in the network………………………………………………………………………………………………………………………………………………….13
2.4 Video Activex install…………………………………………………………………………………………………………………………………………………15
2.5 Video preview……………………………………………………………………………………………………………………………………………………….17
2.6 Device parameters…………………………………………………………………………………………………………………………………………………..23
2.7 File management…………………………………………………………………………………………………………………………………………………….33
2.8 System information………………………………………………………………………………………………………………………………………………….33
Chapter III OSD menu setup………………………………………………………………………………………………………………………………………………35
3.1 Main menu……………………………………………………………………………………………………………………………………………………………35
3.2 System information………………………………………………………………………………………………………………………………………………….35
3.3 Camera setup…………………………………………………………………………………………………………………………………………………………35
3.4 DOME setup…………………………………………………………………………………………………………………………………………………………37
3.5 System setup……………………………………………………………………………………………………………………………………..43
Chapter IV DOME Installation Description…………………………………………………………………………………………………………………46
4.1 Safety measures……………………………………………………………………………………………………………………………………46


4.2 Warning………………………………………………………………………………………………………………………………………………….46
4.3 Ambient requirements…………………………………………………………………………………………………………………………………….46
4.4 Cabling safety………………………………………………………………………………………………………………………………………………….47
4.5 Installation preparation………………………………………………………………………………………………………………………………………….47
4.6 Installation ways…………………………………………………………………………………………………………………………………………………..48
4.7 Installation description………………………………………………………………………………………………………………………………………………..49
4.8 Outgoing lines of DOME…………………………………………………………………………………………………………………………………………51
Annex I: Troubleshooting……………………………………………………………………………………………………………………………………………………53
Annex Ⅱ:24VAC line gauge and transmission distance relationship…………………………………………………………………………………………………54
Annex Ⅲ: Lightning and surge protection………………………………………………………………………………………………………………………………….55
Annex Ⅳ: Maintenance of the terms of service………………………………………………………………………………………………………………………….57

5
Attention
Electrical safety
The installation and use of this product must strictly comply with national and local electrical standards. It has self-provided power supply. Power
is supplied to the product in two modes: DC12V (on-board) and AC24V (ordinary DOME) (refer to product identification or connecting line
identification). When you use, must be comply with all kinds of electric safety stardard,use products self dedicated power adaptor.
Transport safety
During transport, storage and installation, damage of the product caused by heavy load, violent vibration and soaking shall be prevented. This
product is transported in form of integral packaging. Any damage of the product caused by transport not in the packaging form adopted during
delivery will not be under the coverage of warranty whether it is shipped by the supplier or returned to the factory for repair.
Installing safety
During installation, please refer to the user installation manual, handle the DOME with care and do not squeeze any structural component lest
mechanical failure might be caused. The camera glass is a high-grade optical product and may not be touched with a naked hand as it may
scratch the glass, impairing image quality.
Qualification of maintenance workers
All installation and maintenance work about this device shall be completed by qualified maintenance technicians or system installation personnel.
In case of a failure, please find the reason in reference to the manual before repair. If the reason cannot be found, please ask professionals for repair.
All related maintenance work must be done by the maintenance personnel authorized by us.
No removal of camera without authorization
Do not remove the screws or protective cover of the DOME. There are no parts repairable by users in the DOME. The repair shall be done by qualified
maintenance personnel.
Environmental requirements
Temperature: -35~+55 Humidity: 90% Air pressure: 86-106kpa

6
Installation request
Install the device at a location with sufficient bearing capacity.
Do no store, install or use the product in an inflammable, explosive and dangerous area.
Do not install the product beyond the specified temperature, humidity or power specification.
Do no remove any internal component of the DOME lest it might affect the use. There are no parts repairable by users inside it.
Whether the DOME is powered on or not, please do not aim the camera at the sun or a very bright object and do not aim it at or have it monitor a bright
and still object in a long time.

7
Chapter I Functions and features
1.1 DOME Specifications
Power supply AC24V 2.5A
Power consumption 60W
Preset position 255pcs
Cruising 8group, each group contain 255 presets
Pattern 8pcs, each pcs can record 1024pcs DOME order
Alarm 1channel alarm input, 1channel alarm output
Privacy mask 8 area
Focus limiting DOME according to current zoom to change manual control
speed automaticly
Auto flip After camera tilt,pan will autorotation180°
Horizontal scan 8pcs limit scan\360°scan, scan speed adjustable
Pan speed 0°～120°/s
Pan range 360°endless
Tilt range 0～90°
Tilt speed 0°～90°/s
Baud rate 2400/4800/9600/19200 bps
Fan/Heater Auto control
Relative humidity 10-75%（under no agglomeration）
Environment
temperature -35°C～+55°C

8
1.2 Auxiliary lighting
Optional accessories
Ordinary infrared
Infrared illuminant High brightness LEDx36pcs
Wavelength 850nm
Projection distance >100m
Power consumption 4W
Control of the infrared lamp Auto/manual
Life of the infrared lamp >20000h

9
1.3 DOME functions
The network DOME camera is an embedded digital surveillance product integrating a megapixel high-definition camera, a universal speed-variable DOME
and a network video server. It is a real HD IP camera, supporting a resolution of above 720p(1280*720),contain 11920*1080P resolution. It adopts an
embedded LINUX operating system and has high efficiency in system dispatching and high stability and reliability. Moreover, it also has such advantages as
easy installation and maintenance, high-definition image quality, scheduled surveillance and remote control.
1.3.1 Main functions and application
IR MAX distance up to 120m ；
High-strength aluminum alloy housing, IP66
TVI low delayed real-time transmission,no block, transmission distance can be 300m
TVI smooth transition to HD, no need change lines
TVII install convenient, its install and operate is the same as tradition CCTV products
Suitable for HDTVI standard’s DVR gang control control standards
Built-in high speed PTZ, pan 360 degree continuous rotation
Image resolution, Max support 1080P，1920(H)×1080(V)30fps；
Video coding , H264 High Profile；
255pcs preset, 8pcs cruise, each can set 32pcs preset, 8 groups pan scanning
Support motion detection\ network cable break\ storage full etc alarm function
Video function, support auto\manual\ timing etc function
Support 3D position
1.3.2 Synchronous infrared - applicable to infrared synchronous DOME
Adopt world’s most advanced high-power infrared lamp technology.
The infrared lamp features high photoelectric conversion efficiency, small heat, long life and low power (<5W). Its unique encapsulation process
ensures the 10000h lumens depreciation is less than 5%, overcoming the deadly defect of conventional infrared lamps – fast lumens depreciation.
By applying single-point high power and visibility - a feature of a point light source, an infrared lamp with a changeable angle is developed. Its angle is

10
changed with the visual angle of the integrated machine synchronously, ensuring the infrared lamp is not wasted and does not have an effect of a
flashlight. It maximally uses infrared light and overthrows the conventional practice of tens of watts and large volume.
Its intelligent synchronization and automatic identification method is original in the world. It can automatically identify Sony, Hitachi and CNB
integrated machines. So far it is the most user-friendly product.
1.3.3 Laser synchronous – applicable to laser synchronous DOME
Continuous motor-driven focusing of the laser light source: The motor-driven focus control technology dedicated to a semiconductor laser unit is
adopted. The light spot may be adjusted according to the range and distance of surveillance,laser angle can change from 1 degree to 18
degree.During focusing, the laser light spot does not bounce. After special treatment, the laser transmittance of the optical lens may exceed 98%.
Homogenization of laser light spot: As the light source adopts a semiconductor laser unit with optical output, after the laser light source is incorporated
into the optical fiber and transmitted, a unique homogenization technology will be adopted to make the lighting effect more uniform and clearer.
Unique all-directional fine tuning device: A high-accuracy vertical and horizontal fine tuning device, which may easily adjust laser beam and camera to
a same axle.
Long-life laser unit: Adopt German laser chip, Au/Sn eutectic soldering encapsulation, perfect aging testing technology and advanced optical fiber
coupling technology, making the life of the laser unit is more than 10000h.
Laser control is in an automatic state in general. The laser acts automatically with the enabling/disabling of low illumination level of the camera. During
zooming, laser will act along with the camera to minimize its loss.

11
Chapter II Network menu Setting
2.1 System connection diagram
2.2 ONVIF Discovery Tool
configuration camera IP address
In system CD,we support ONVIF Discovery Tool for user, it can used for device management test:
Search IP camera or Video server device which in the network
View IP,Hardware...etc information
Modify IP, subnet mask and gateway

12

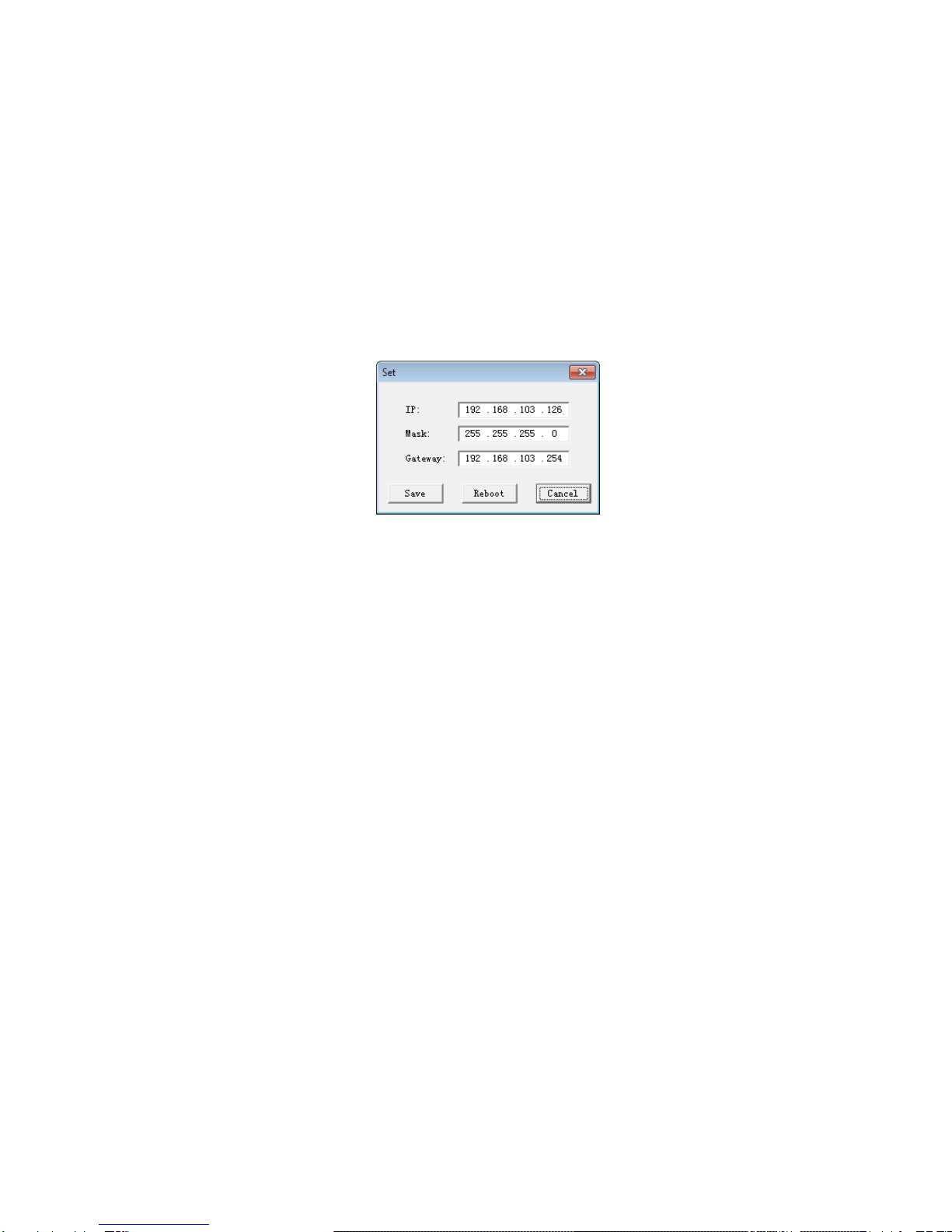

Run ONVIF Discovery Tool management tool,auto searching avaliable IP camera in current network. List IP address,UUID、Hardware..etc.information.
Due to each camera from factory, all the ID address are the same,so if before install Ip camera, you can use ONVIF Discovery Tool to configurate IP
address. Use mouse to choose the device,input the device ONVIF protocol’s username and password, double-click will popup current device’s information
dialog box, can configurate IP adrress..etc.After modity, click”SAVE”, it will show you a tip to tell you are sucess, then click”Reboot” to re-start the device.

13
Test whether connected
After setup IP address, click left bottom of PC: Start--all program--attachment”,open”Command Prompt”,use PING command to test whether PC has
connected with IP camera.
Command as: Ping 192.168.1.8
If screen show“Request timed out.”or” destination host unreachable”,it means install not OK.Pleae check below:
Hardware connect correct or not
PC’s TCP/IP set Full-Mesh as IP camera or not.
Whether network forbit PING command or not,please ask network manager.
2.3 Log in the network
This chapter introduce how to access IP camera through web browser. This manual’s interface are under Windows XP and IE8.

14

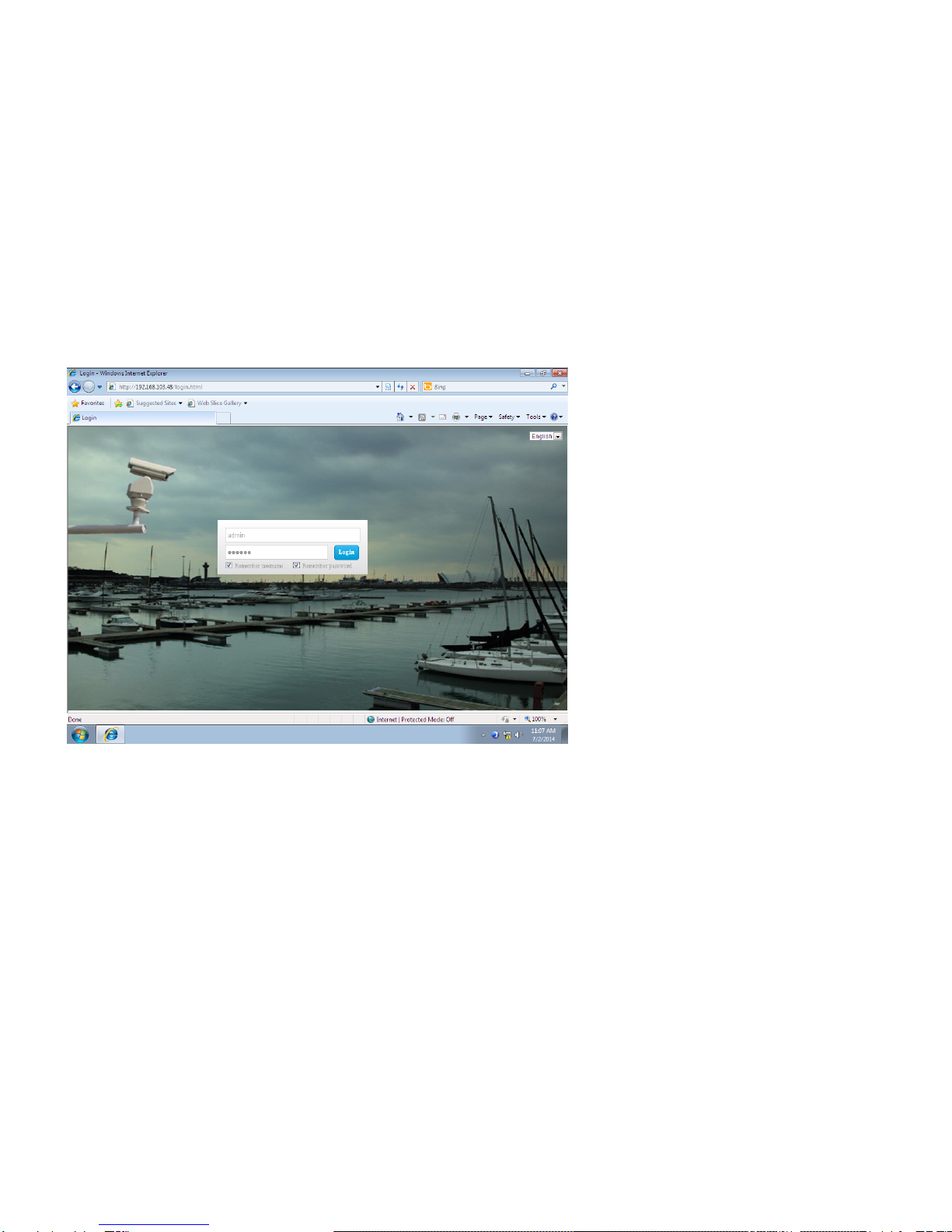

When through IE brower to preview IP camrea’s image,
need install VLC.EXE software firstly, after install, open IE,
input IP address (Default: 192.168.1.8),Enter into login
interface. In login interface,input IP camera’s
username(Default: Admin),Password(Default:
888888) ,you can choose remember username and
PW,then click” login”,when going into user interface, will
popup below dialog box, click”OK” , after a series install
operate, and install video Activex, re-start brower, you can
view video.

15
2.4 Video Activex install
Log into user interface, you can click top right”Player download”
Interface will popup player download dialog box,shown as right
Picture,choose”Run”, will popup below dialog box:
Click’Run”,install video Activex.

16

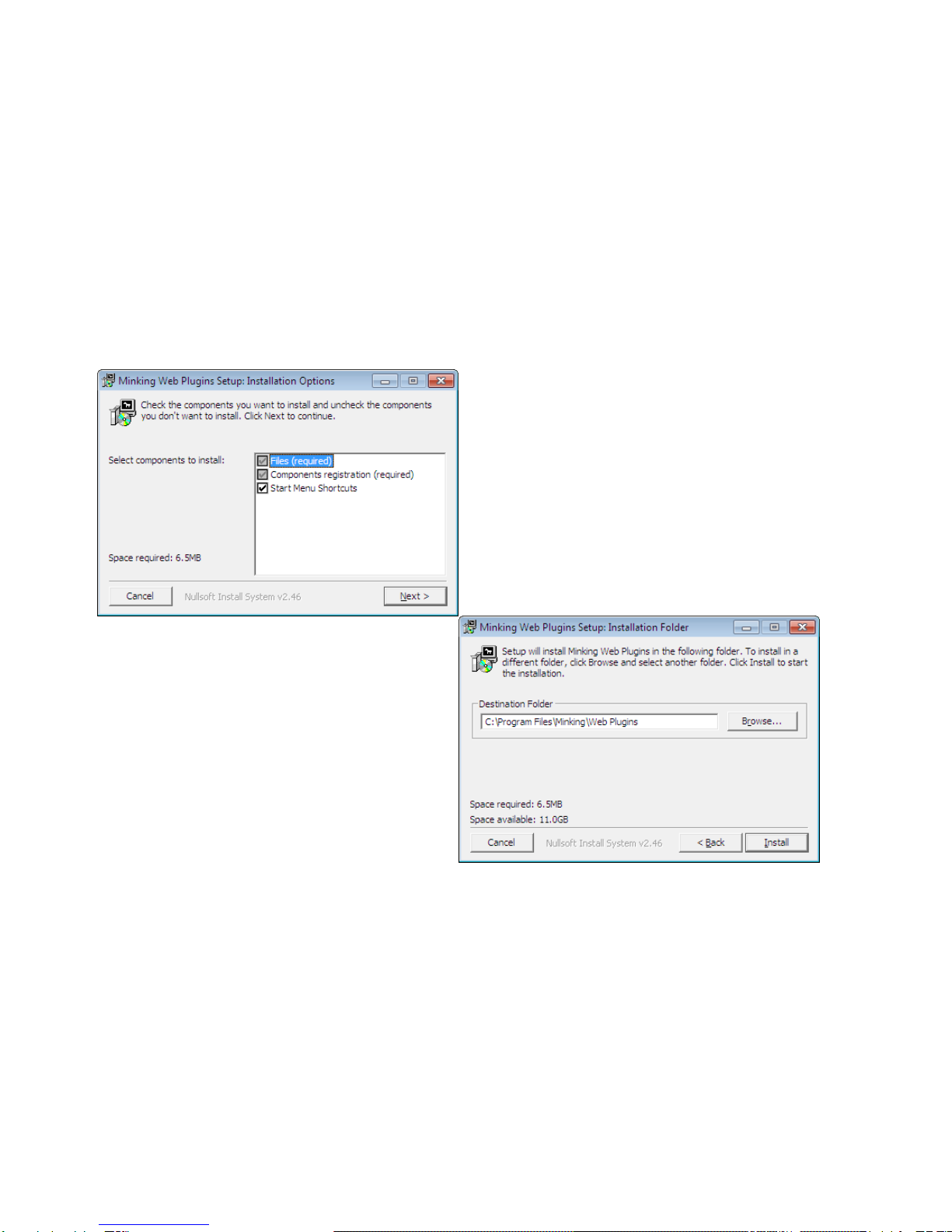

Click “Next” ,continue install
Choose a disk to install this software, then click”Install”,
Continue install.

17
After install,as right picture,Click”Close”,finish
Install, close IE. Then Login DOME IP address, can view video.
Ps: If your Activex in your PC is old version,
IE will popup information, to ask you install newest
Activex version.
2.5 Video preview
1
2 4
3

18
Note：It always has delay if transmission by IP, it depends on user’s PC CPU and qualities of switcher and router.Normally, MP IP
video has <500ms delay.
Area 1: Toolbar: Click into corresponding function
ICON Explan
Enter the image code stream, DOME, camera control interface
Into network parameters and speed dome function Settings
Enter the picture management or local video playback and
download
System information display
Player Activex download
Exit user interface, back to Login interface
Area 2: Front-end capture, and capture file will save into TF card.
Area 3: Preview interface:
Top left OSD show DOME’s protocol,ID,Year,date,time,DOME direction and specific coordinates,camera’s zoom,DOME
current movemen.
Area 4: DOME control, camera specification,Peripherals management function.
3

19
4
5
2.5.1 DOME control
After open preview image, each key in the right of interface means:
①Speed key Setup DOME totate speed.
②Direction
key Control DOME”up,top left,top right,down,left bottom,right bottom,right,left. Click
icon,can call OSD menu
③Zoom Change lens zoom(invalid for auto Zoom camer)
④Focal Change lens’ focus (invalid for auto focus camer)
⑤IRIS Change Lens’s IRIS (invalid for auto IRIS camer)
 Preset
1. In preset box choose preset No. Trough[2nd key]to adjust camera position,click“ ”
will save current preview point. If need customize other reset,pleaes re-done Setp 1.
2.Call back preset:In prset box choose preset No.Click“ ” can access seted preset
⑦Scan
Scan means DOME constant speed in a clockwise from left limit point to the right limit
point,setup step as below:
1. Through adjust camera to desired point,click “ ” can set left limit point. Pan move
DOME to 2nd position, click“ ” can set right limit point&scan speed
2. After operate,click“ ” can call back scaning line.
⑧Patrol
Patrol is a path for camera, through multiple serial number cruise points,patrol setup as
below:
1. Setup patrol point 1,in display box, choose patrol No.click“ ”,go into patrol point
editcontain: title,preset,stop time,and patrol speed.
Re-operate 1st step,to setup other patrol point. After operate, click“ ” can callback
patrol line.
 Pattern
Pattern used to recode camera running line.Pattern setup as below:
1. Click“ ”,start into pattern setup
2. Operate DOME kinds of control。
3. After operate, re-click“ ” can finish setup.
Search pattern: Click“ ” start run pattern.
1
2
3
6
7
8
9

20
2.5.2 Camera spcification
After open device preview, choose right side “Camera”, specification as below:(Different camera module, specification will different)
Camera brand Display camera brand
Camera model Display camera model
D-zoom ON/OFF
Zoom speed 0-7
Focus mode Auto/Manual
ICR Mode Day/Night/Auto
AE Mode Auto/Manual/SP/AV
Shutter speed 1-1/10000
Exp Comp -7-7
Backlight ONOFF
WDR mode ON/OFF
Aperture 0-15 (Aperture priority effectively)
WB mode
Auto/Indoor/Outdoor/Auto tracking
Manual RGC 0-255
BGC 0-255
Denoise 0-5
Gamma Standard/Direct line/low/middle/high
Flip ON/OFF
Default setting Camera parameter is set back to factory Settings
