COP-USA CD55NV-DSP-09 User manual

※ Please read the operation manual carefully before installing this unit
Installation/Operation Manual
for High Speed Dome Camera V1.2

SAFETY PRECAUTIONS
The lighting flash with a arrowhead symbol, in an equilateral triangle,
is intended to alert the user. There is uninsulated “dangerous volt-
age” presence near by the product’s enclosure which may be risk
of to persons.
The exclamation point within an equilateral triangle is intended to
alert the user to reference of the important operating and mainte-
nance (servicing) instructions.
RISK OF ELECTRIC
SHOCK. DO NOT OPEN!
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO DOT
OPEN COVERS. NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
THE PRODUCT CODE MARKED ON THE BOTTOM COVER.
PLEASE FILL THE CODE IN THE FOLLOWING BLANK. PLEASE
SAVING THIS SPECIFICATION CAREFULLY, SO THAT CHECKING
MODEL:
PRODUCT CODE:
A
SAFETY
PRECAUTIONS

Important Safeguards
I. The Installation of the System
1. The Style of the Installation
2. Steps of Installation
II. The outlines description
III. Appendix I Lightning Proof and Surge Signal Proof
Appendix II The Cleaning of Clear Down Cover
Appendix ⅢⅢ
ⅢⅢ
ⅢAC24V Wire diameter and transmission
distance comparison chart
Appendix ⅣⅣ
ⅣⅣ
ⅣWire Gauge Conversion Chart
INSTALLATION INDEX
1
2
2
3
7
9
9
10
11
Important Safeguards
I. Description of Functions
II. Setup of the Menu of the Dome Camera
III. Setup of the Dome Camera
1. Connection of the System
2. Setup of Coding Switch of Dome Camera
3. Setup of the Protocol and the Default Baud Rate
4. Setup of the Baud Rate of Communication
5. Selection of the Terminal Resistor of the Dome Camera
IV Technical data table
V Troubleshooting
VI Appendix
Ⅰ: RS485 Bus Basic Knowledge
OPERATION INDEX
12
13
16
27
27
28
29
30
30
31
33
34
34
B
INDEX

IMPORTANT SAFEGUARDS
1
IMPORTANT
SAFEGUARDS

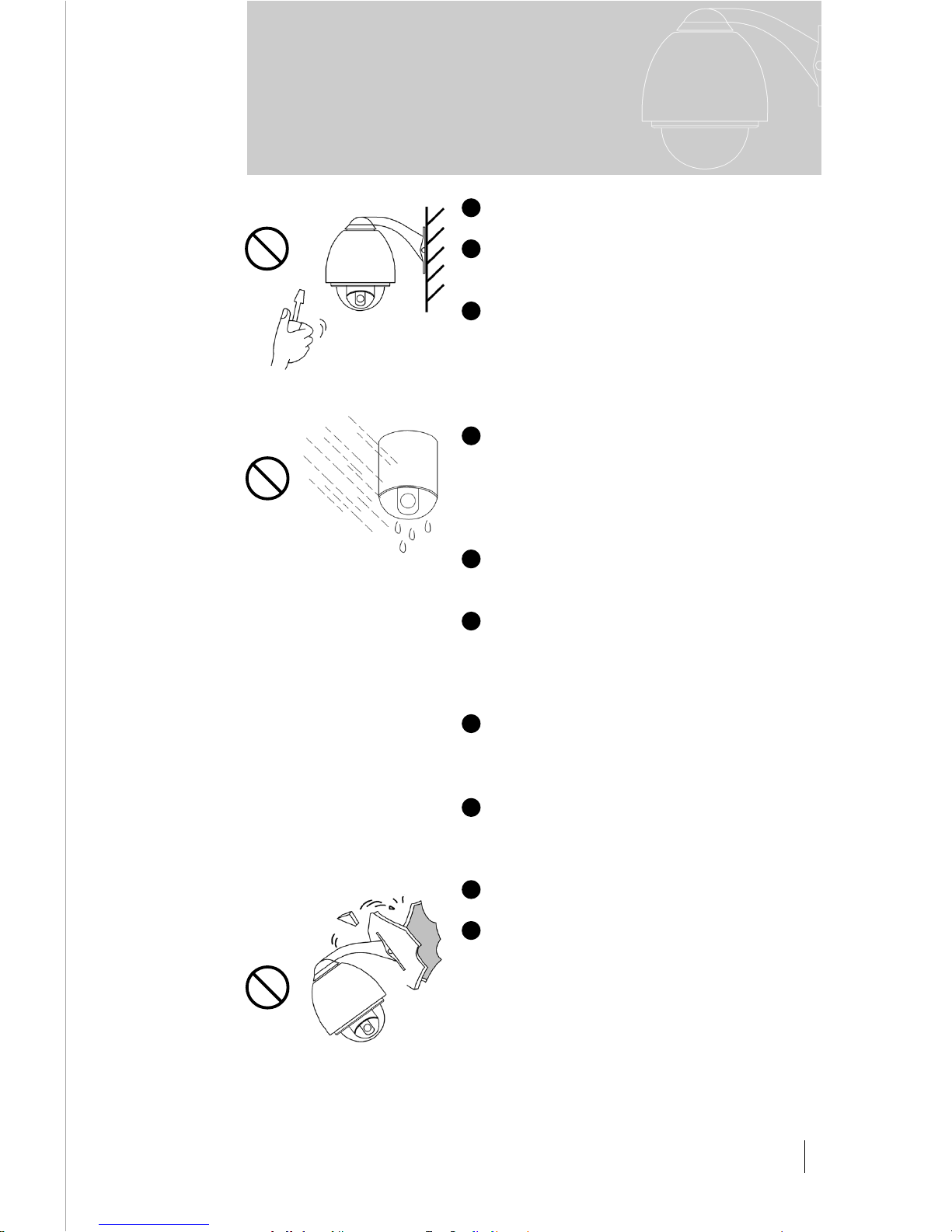

1 All the safety and operating instruction should
be read before the units is operated.
2 The power supply for the dome：AC24V/1.
7A, Which is displayed on the bottom of the
pedestal or other place of the dome.
3 Do not attempt to disassemble the camera.
In order to prevent electric shock, do not re-
move screws or covers. There are no user-
serviceable parts inside.
4 The product should be indoor installed and
operated to avoid rain and moisture. Do not use
it in wet places. If outdoor installation is needed,
the closed protect cover should be used and it is
absolutely prohibited to use it in open air
independently.
5 Do not operate it in case temperature, humid-
ity and power supply are beyond the limited
stipulations.
6 Do not let the camera aim at the sun or the
object with extreme light whatsoever it is
switched on or not. Do not let the camera aim at
or monitor bright and standstill object for a long
time.
7 Do not use aggressive detergent to clean the
main body of the camera. Wipe dirt with dry
cloth. If needed, mild detergent can be used
suitably.
8 Operate the intelligent speed dome camera
with great care to avoid shock or vibration. It
operate incorrectly, the Speed Dome could be
damaged.
9 Please install the dome to the suitable place
for bearing enough capacity.
10 If necessary, use a commercial lens clean-
ing paper to clear the lens windows. Gently wipe
the lens window until clean.
※We offer three-year guarantees on all
products,excepting the CCDS for one-year
guarnntee.

300
268
ø100
ø80
4-ø9
The Style of the Installation
a) Wall Installation
b) In-Ceiling Installation
c) Indoor Ceiling Installation d) Indoor Embedded Installation
2The Installation of
the System
120
142
80
58
4-ø9
ø152
ø219
262
202.5
Figure 1
1
Figure 2
210
ø135
ø197
ø156
131
Direct
Figure 3 Figure 4
I. The Installation of the System

Figure 8 Figure 9
PUSH
LOCK
MARK
OPEN LOCK
Steps of Installation
a) Wall Installation
1) Unpacking the carton and carefully take out the dome camera and its
attachments.
2) Take out the cover of the wall-installed bracket.（Figure5）.
3) Take out system control wires from the bracket（Figure 6）.
4) Fix the bracket on the wall（Figure7）.
5）Aiming the "MARK" of the bracket to the "MARK" of the flange, push the
dome upward to the end and rotate it with the direction of the arrow until it is
clicked and tightened.（Figure 8）.
6）It's ok to fix the dome to the bracket with hexagon socket head cap screw
（Figure 9）.
b) Steps of Installation for Indoor Ceiling Style
1) Unpacking the carton and carefully take out the dome camera and its
attachments .
2) Take out of the bracket, and fix the bracket on the wall.（Figure10）.
3) Please connect the system control wires, video wires, power wires with the
3
The Installation of
the System
2
Figure 5 Figure 6 Figure 7

4The Installation of
the System
bracket and go through it. Aiming the "MARK" of the bracket to the "MARK"
of the flange, push the dome upward to the end and rotate it with the direction
of the arrow until it is clicked and tightened（Figure11）.
4) And then, please fix the dome to the bracket with bolts.（Figure12）.
c) Steps of Installation for Indoor Ceiling Style.

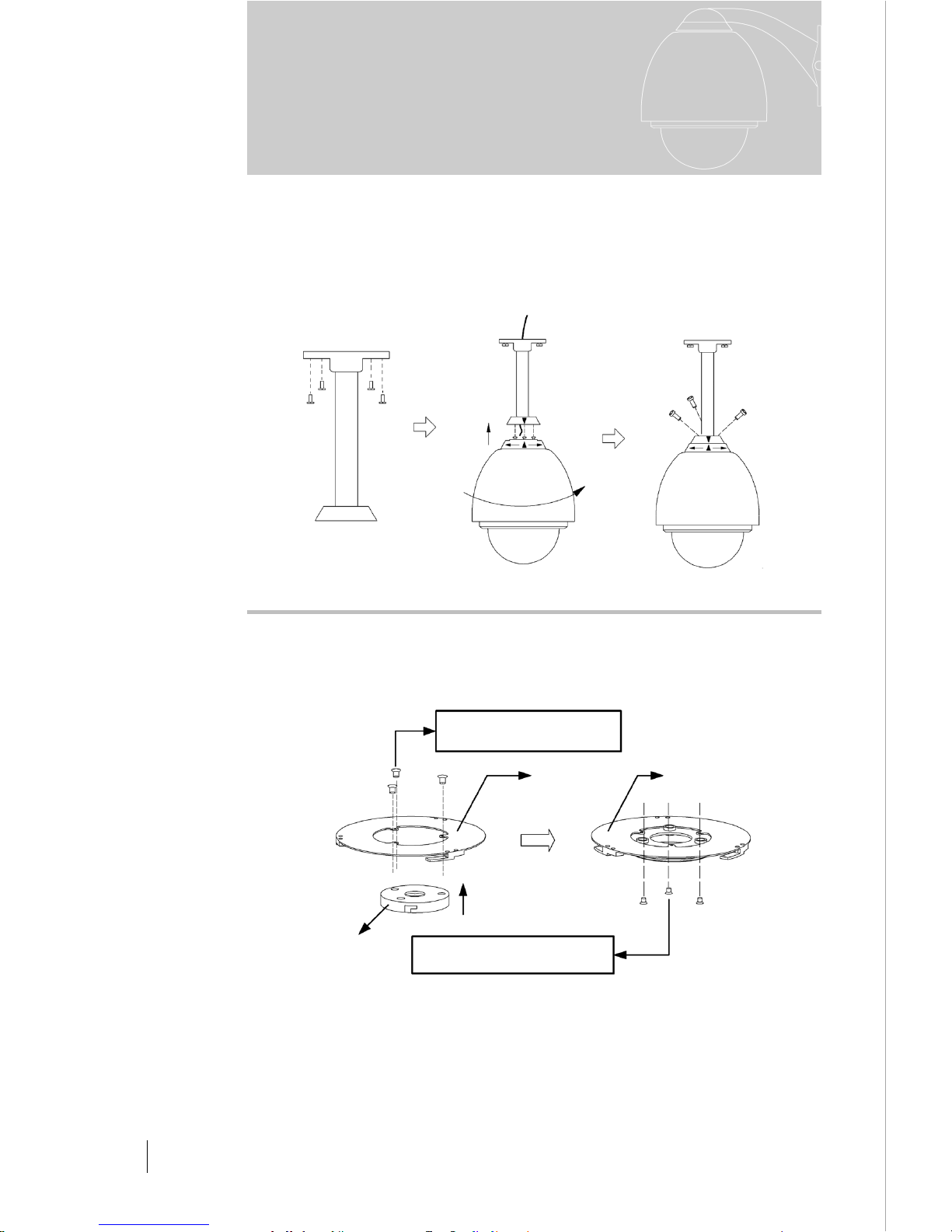

1) Install the pedestal on the base plate（Figure13）.
2) Fix the pedestal assembly on the ceiling (Figure14).
3) Aiming the "MARK" on the dome at the notch on the pedestal, push the
dome upward to the end and rotate clockwise until it is clicked（Figure15）.
Figure 10 Figure 11 Figure 12
Figure 13 Figure 14
LOCK
Q3:M4 ×1.25”stainless steel
wood screw
Q6:M2.5 ×5 round head black
screw
AD
B

5
The Installation of
the System
4) Put the decoration ring near the ceiling and rotate it clockwise until it is
tightened（Figure15）.
5) (Figure 16) shows the system is installed.
6) The names of some parts are as follows:
A):Base Plate B): Pedestal C): Decoration Ring D):Pedestal Assembly

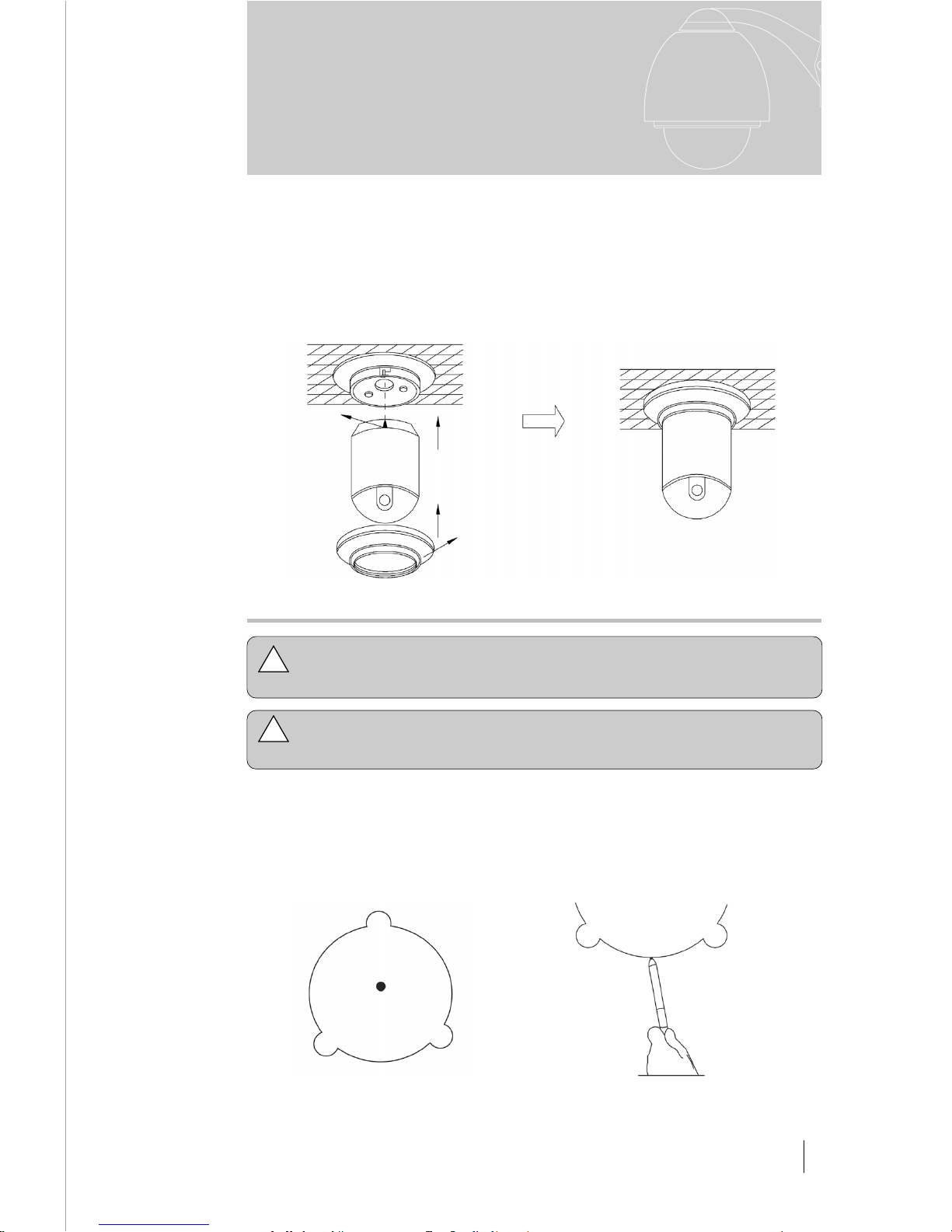

1) It has the drill map in embedded bracket，tip the black parts of double
paper, the central of drill map have a red spot, which is central spot
（Figure17）.
2) Base on the red spot to draw the sign（Figure18）.
MARK
Figure 15 Figure 16
Figure 17 Figure 18
d) Notice: The thickness of the ceiling to install speed dome
must be ≤≤
≤≤
≤1.65 inch (4.2 cm) and ≥≥
≥≥
≥0.38 inch (0. 8cm).
Notice: The ceiling should withstand 4 times the load of the
speed dome weight.
！
！
Decoration Ring

3) According the material of ceiling, choose the different tools to drill
（Figure19）.
4) Fixup the "installation pedestal" with the embedded mount（Figure 20）.
5) For easy installation, adjust the three swing mounting clips to let the
distance between the clips and the flange a little longer than ceiling thickness.
6) Swing the three mounting clips to adhere to back box wall. Place the back
box inside the ceiling hole. Let the flange cling to the ceiling.
7) Turn the three mounting clip bolts to let the mounting clips press the ceiling
and swing out gradually. The ceiling is clamped between the mounting clips
and the flange, thus the back box is secured above the ceiling.（Figure 21）.
6
Figure 21
Figure 19 Figure 20
M4 ×12 countersunk head
screw(3pcs)
Indoor drop celing
installation bracket
Ceiling
Swing Mounting Clip
Decoration Ring
Flange
The Installation of
the System

Figure 22
RED CONNECTOR
(POWER IN)
BLACK CONNECTOR
(RS485 CONTROL IN)
VIDEO OUT
RED LINE (AC24V IN)
BLACK LINE (AC24V IN)
ORANGE LINE (RS485+)
YELLOW LINE(RS485-)
RED1:
ORANGE2:
YELLOW3:
GREEN4:
BLACK5:
WHITE6:
BLUE7:
PINK8:
The synthetical wires as follows（Figure22），Orange isRS485+、
Yellow is RS485-；While you are using AC24V power line，the red and
black is the input side of the power ；BNC connector is the video-out side
(Take carefully while you connect these wires).
The description of Alarm out-line
（Figure23）.
The o description of Alarm out-line.
According the fig of D3 to connection. As show of figure 24-1, when dome
identify the alarm signal, that will set according the program immediately,
then startup camera, switching the image of alarm field to main monitor.
Surveillance the alarm preset, then record it in time. Fig24-2 is connection
of alarm control.
II. The outlines description
7
Figure 23
1
2
3
！
Input of alarm: Input signal of switch type, any other input signal will
damage dome. When multi-channel with alarm signal, dome will
respond one by one, the removed time is two sec.
！
Once the dome have alarm input, dome will not respond“scanning”、
“patrol”、“remember tracking”etc function.
The outlines
description
ALARM-1 IN
ALARM-2 IN
ALARM-3 IN
ALARM-4 IN
ALM IN COM
ALARM OUT COM
ALARM NO OUT
ALARM NC OUT

8The outlines
description
Figure 24-1
Figure 24-2
Alarm input
ALM-1
Alarm ouput
！
ALM-2 ALM-3 ALM-4
D3
ALM-4
ALM-3
ALM-2
ALM-1
GND
COM
NC
NO
ALM-4:Channel 4 collector alarm input:1
ALM-3:Channel 3 collector alarm input:2
ALM-2:Channel 2 collector alarm input:3
ALM-1:Channel 1 collector alarm input:4
GND:Common collector alarm input:5
COM:Common collector alarm output:6
NC:Close collector alarm output:7
No:Open collector alarm output:8
VIDEO OUT
VIDEO GND
1: AC24V IN
2: AC24V IN
3: RS485+
4: RS485-
D2: connect fan/heater
(AC24V)
Presetting the preset of NO.29、30、31、32,
then the alarm could respond.
NO.1-channel alarm was activation,then call No.29 preset
NO.2-channel alarm was activation,then call No.30 preset
NO.3-channel alarm was activation,then call No.31 preset
NO.4-channel alarm was activation,then call No.32 preset

Appendix ⅠⅠ
ⅠⅠ
Ⅰ: Lightning Proof and Surge Signal Proof

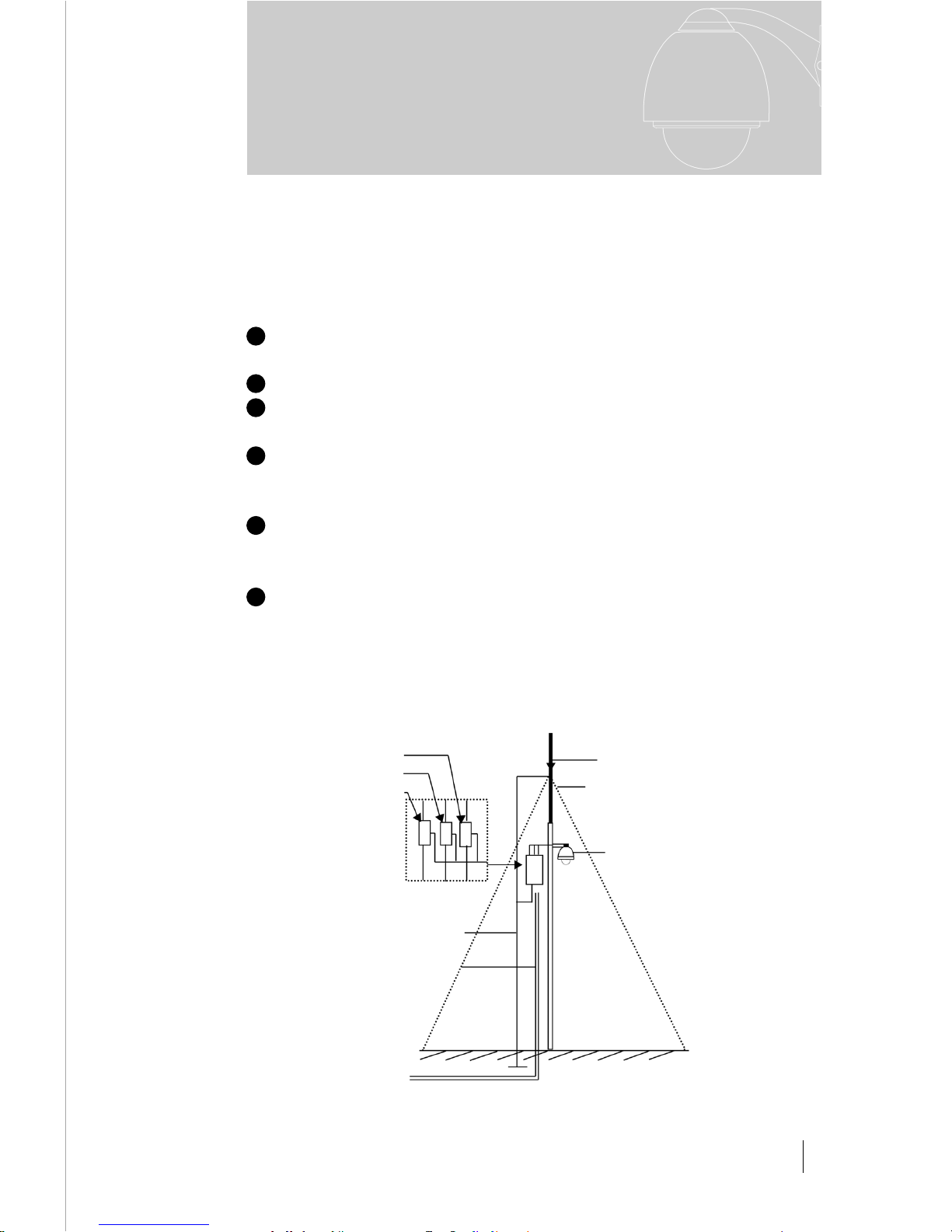

The product adopts TVS lightning proof technology to prevent from damage
by lightning strike below 1500 W and impulse signals such as surge; but it is
also necessary to abide by the following precautions to ensure electrical
safety based on practical circumstances:
1 Keep the communication cables at least 50 meters away from high
voltage equipment or cables.
2 Make outdoor cable laying-out under eaves as possible as you can.
3 In open area shield cables in steel tube and conduct a single point ground
to the tube. Trolley wire is forbidden in such circumstances.
4In strong thunderstorm or high faradic zone (such as high voltage
transformer substation), extra strong lightning proof equipment must be
installed.
5 Take the building lightning proof requirements into account to design the
lightning proof and grounding of outdoor equipment and cable laying-out in
accordance with the national and industrial standards.
6The system must be grounded with equal potentials. The earth ground
connection must satisfy the anti-interference and electrical safety require-
ments and must not short circuited with high voltage electricity net. When the
system is grounded separately, the resistance of down conductor should be
≤4 Ωand the sectional area of down conductor should be ≤25mm2
III. Appendix
9
Appendix
Figure 25
Video cable lighting conductor
Communication cable lighting conductor
Power cable lighting conductor
Lighting rod
45°
The dome must be
installed within the 45°
angle area under the
lighting rod with vertical
line as the bisector
The resistance of
down conductor
should be ≤4Ω
Shield Steel tube

Appendix ⅡⅡ
ⅡⅡ
Ⅱ: The Cleaning of Clear Down Cover
To obtain constant clear videos, user should clean the down cover periodically.
1 Be cautious when cleaning. Hold the down cover ring only to avoid direct
touch to the acrylic down cover. The acid sweat mark of fingerprint will
corrode the coating of down cover and scratch on down cover will cause
vague images.
2 Use soft dry cloth or the substitute to clean the inner and outer surfaces.
3For hard contamination, use neutral detergent. Any cleanser for high
grade furniture is applicable.
Appendix ⅢⅢ
ⅢⅢ
Ⅲ
：：
：：
：24VAC Wire Diameter and Transmission Dis-
tance Comparison Chart
When the line diameter size is certain, when the 24VAC voltage attrition rate
is lower than 1 0%, the recommendation maximum transmitting range.
(Talking of the exchange power supply's equipment, the biggest permission
voltage attrition rate is 1 0%. For example: An equipment rated power is
80VA, the Installed Min diameter size which is 35 feet away from the
transformer (10m) needs is 0.8000mm .
Wire diameter (mm)
Transmission
Distance
feet(m)
Power{VA}
0.8000
283 (86)
141 (42)
94 (28)
70 (21)
56 (17)
47 (14)
40 (12)
35 (10)
31 (9)
28 (8)
25 (7)
23 (7)
21 (6)
20 (6)
18 (5)
17 (5)
16 (4)
15 (4)
14 (4)
14 (4)
1.000
451 (137)
225 (68)
150 (45)
112 (34)
90 (27)
75 (22)
64 (19)
56 (17)
50 (15)
45 (13)
41 (12)
37 (11)
34 (10)
32 (9)
30 (9)
28 (8)
26 (7)
25 (7)
23 (7)
22 (6)
1.250
716 (218)
358 (109)
238 (72)
179 (54)
143 (43)
119 (36)
102 (31)
89 (27)
79 (24)
71 (21)
65 (19)
59 (17)
55 (16)
51 (15)
47 (14)
44 (13)
42 (12)
39 (11)
37 (11)
35 (10)
2.000
1811 (551)
905 (275)
603 (183)
452 (137)
362 (110)
301 (91)
258 (78)
226 (68)
201 (61)
181 (55)
164 (49)
150 (45)
139 (42)
129 (39)
120 (36)
113 (34)
106 (32)
100 (30)
95 (28)
90 (27)
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
10 Appendix

Appendix ⅣⅣ
ⅣⅣ
Ⅳ：：
：：
：Wire Gauge Conversion Chart
Bare Wire diameter
metric size（mm）
(Approximate)
AWG
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
16
15
12
(Approximate)
SWG
47
46
45
44
43
42
41
39
37
35
33
31
30
29
28
24
23
22
21
20
19
18
14
Bare wire cross sec-
tional area（mm
2
）
0.00196
0.00283
0.00385
0.00503
0.00636
0.00785
0.00950
0.01327
0.01539
0.02011
0.02545
0.03142
0.04115
0.04909
0.06605
0.08553
0.09621
0.1237
0.1602
0.2463
0.2827
0.3958
0.4417
0.5027
0.6362
0.7854
1.2266
1.7665
3.1420
4.9080
7.0683
0.050
0.060
0.070
0.080
0.090
0.100
0.110
0.130
0.140
0.160
0.180
0.200
0.230
0.250
0.290
0.330
0.350
0.400
0.450
0.560
0.600
0.710
0.750
0.800
0.900
1.000
1.250
1.500
2.000
2.500
3.000
11
Appendix

IMPORTANT
SAFEGUARDS
IMPORTANT SAFEGUARDS
All the safety and operating instructions should be read before the units
is operated.
During the course of transportation, storage and installation, the product
should be avoided from incorrect operations such as heavy pressing,
strong vibration etc., which can cause damage of product as there are
sophisticated optical and electronic devices inside the machine.
Do not attempt to disassemble the camera. In order to prevent electric
shock, do not remove screws or covers. There are no user-serviceable
parts inside.
Always follow all electrical standards for safety when it is in operation.
Adopt the particular power supply which is provided with the unit. RS-485
and video signal should keep enough distance with high voltage equip-
ments and cables when they are in transmission. Precautions for anti-
lightning and anti-surging should be taken if necessary.
Do not operate it in case temperature, humidity and power supply are
beyond the limited stipulations.
Do not let the camera aim at the sun or the object with extreme light
whatsoever it is switched on or not. Do not let the camera aim at or
monitor bright and standstill object for a long time.
Please do not make any operation to the product if you meet any trouble
with it, please find the trouble with this manual, if you can not find the
trouble please ask the professional person to repair it. Only the autho-
rized person by our company could repair this product.
1
2
3
4
5
6
7
12

Description of
Functions
I. Description of Functions
13
The intelligent dome camera is a hi-tech CCTV product which incorporates
high-clarity color camera, panoramic speed-variable PAN/TILT, multifunc-
tional decoder, universal character generator, CPU processor, memory chip
into a whole. It can largely reduce connection and installation processes of
components in the system, rise up reliability of the system and facilitate
installation and maintenance. Therefore it has advantages of beautiful
appearance, compact structure and easy operation.
Integrated Multi-Protocol Decoder
a With integrated decoder and multi-protocol, it can integrate 16 kinds of
communication protocols in maximum. As its baud rate of communication
can be adjusted, it is compatible with many normal systems by easy setup
inside the dome camera, so it has stronger versatility.
b RS485 serial control: addresses of camera 1-1023.
Integrated Speed-Variable PAN/TILT
a Turning 360°horizontally and continuously with unlimited positions and
an adjustable speed from 0.2 - 300 °/s; turning 0 - 90°vertically with a
speed up to 120 °/s.
b Running stably at low speed with super lower noise. Pictures have no
shaking.
c Automatic 180°flip and panoramic monitoring without blind point, the
location precision up to ±0.1°.
High Intelligent Degree
a As much as 128 preset positions can be preset with powerless memory.
b The camera can scan horizontally between two points and scan speed
can be modified. The positions of linear scan are optional and the dome
camera can scan the range larger or smaller than 180°between any two
points with adjustable speed;
c Six sets of programmable tour locus with 16 position each set. The
detention time is adjustable respectively;
d The self-learning function of the locus. 3 loci, the time length of each locus
is more than 120 seconds with powerless memory;
1
2
3
