Copytrax DaVinci pro 6 photo User manual

DaVinci pro 6 photo
Instructions for installing and using your new printer.
User Guide
High resolution inkjet printer for CD and paper.

DaVinci Pro CD printer.
Contents.
Space to work.
Connecting the cables.
Fitting the input guide.
Fitting the output support.
Connection.
Installing the printer driver.
Connection.
Installing the printer driver.
Changing the printer settings for
CD printing.
Setting the print area.
Optimizing print quality.
Image software.
For printing CDs, CD business
cards and 80mm discs.
For printing photo quality images
on inkjet photo paper.
Positioning the CD tray.
Loading the tray with Cds.
Adjusting the fit of the CD.
Printing.
Remove the outer support.
Positioning the paper carrier.
Positioning the paper.
Printing.
Output.
Unpacking.
Setting up.
Connection and software
installation(windows).
Connection and software
installation(Macintosh).
Control panel functions.
Installing the ink cartridges.
Printer settings.
Printing.
Recomended printer settings.
Printing CDs.
Printing paper.

DaVinci Pro CD printer.
Unpacking.
1.
Prepare a clean area of desk space to unpack the printer parts.
Check that all of the parts shown are included in the box.
Note.
*CD protection spray may not be included, depending on shipping/air frieght regulations.
**Free bundled image software may vary, depending on stock at time of order/shipping.
***Free sample discs may not be shipped, depending on stock at time of order/shipping.
Do not discard the box but store it safely in case the printer should ever need to be returned for any
reason.
Unpacking.

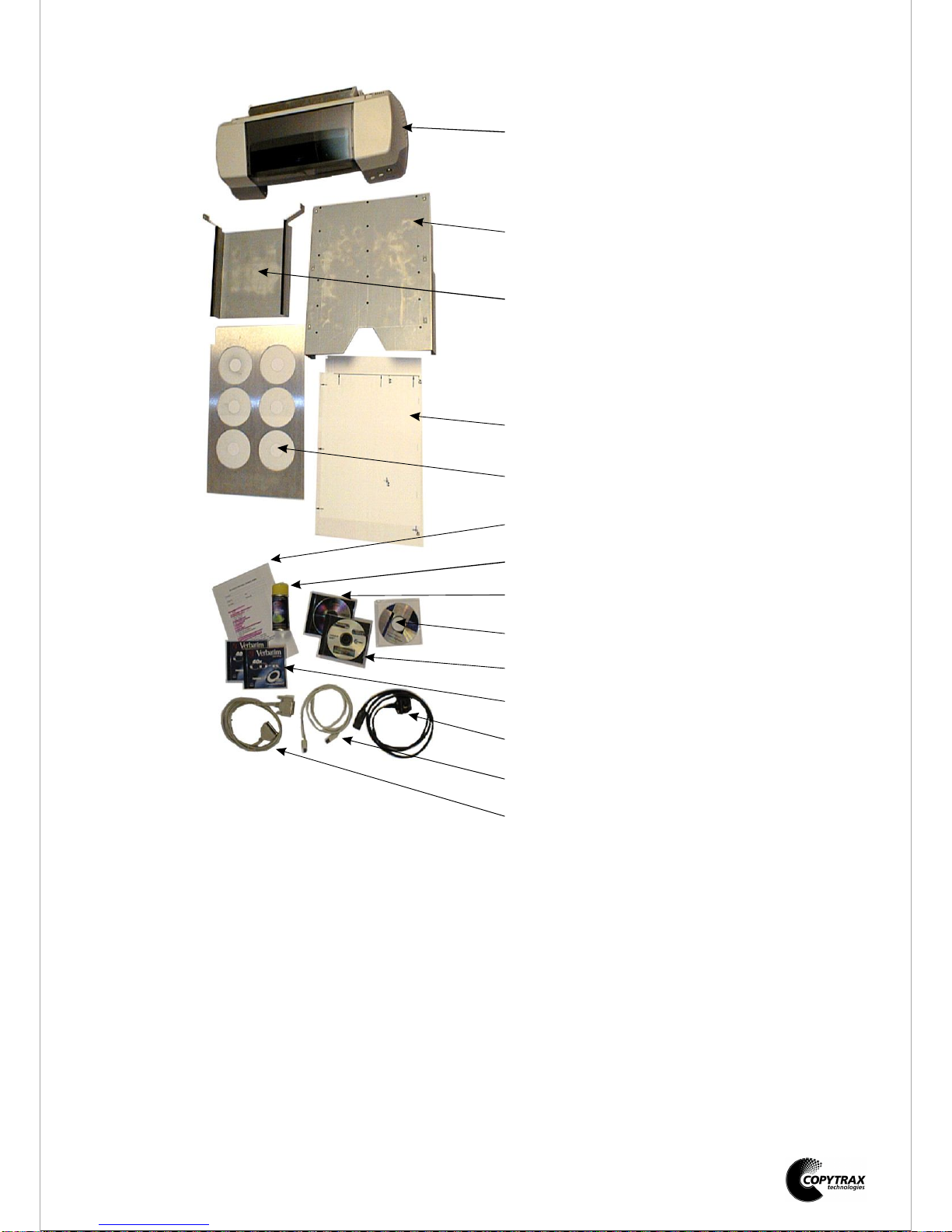

Printer
Input guide
Output support
Paper carrier
CD tray
Packing checklist
CD protection spray*
Image software**
Printer driver
User manual
2 free Verbatim CDs***
Mains cable
USB cable
Parallel cable
Printer cartridges

135cm
Mains
Cables
USB
Parallel
DaVinci Pro CD printer.
Setting up. 1.
Prepare an area of desk space to set up the
printer. A space of 135cm wide x 62 cm deep
is required.
The desk should be stable and level, in a
place free from dust, humidity, movement,
vibrations and away from direct sunlight.
Place the printer in the centre of the desk
space with the control end of the printer
nearest the front of the desk.
When using the printer you will be working
from the side of the printer and not from the
front as desktop printers are conventionally
used.
2.
Move the input guide aside. Do not connect
the mains cable to the mains supply at this
point, but plug it into the rear of the printer.
Plug in either the USB or parallel cable into
the rear of the printer.
3.
Locate the 2 pins on the underside of the
input guide into the location holes on the
metalwork on the rear of the printer.
Ensure that the input guide is sitting level on
the desk top and that the cables pass through
the opening in the side of the input guide and
are not trapped underneath it.
4.
Flex the two wings on the end of the output
support enough to locate the 2 pins on the
support into the 2 location holes in the printer
body.
Ensure that the support sits level on the
desktop and nothing is trapped underneath it.
Space to work.
Connecting the cables.
Fitting the input guide.
Fitting the output support.
Input guide
Output support
Locating holes
Pins under
input guide
Location holes
Pins
Output support
1
2
3
4

DaVinci Pro CD printer.
Connection and software installation .(Windows)
1. .
Connect the USB cable to your PC. (Or
Connection
parallel cable if required). If you have the
choice we recommend you use the USB cable.
Connect the mains plug to the mains supply.
If the printer comes on when you plug in the
mains cable by pressing the
on/off button.
After connecting the printer and PC you need
to install the printer driver from the CD
marked ‘Epson stylus photo 1290 Printer
Software’.
turn it OFF
2. Installing the printer driver.
A. Make sure that printer is off, then turn on
your computer. Turn off any virus protection
software and cancel any set-up wizard or the
‘New hardware found’ window if it has
opened.
B. Insert the printer software CD. If the
Installer dialog box does not appear click on
‘my computer’, click on the CD rom icon, then
click ‘open’. Then double-click on
EPsetup.exe.

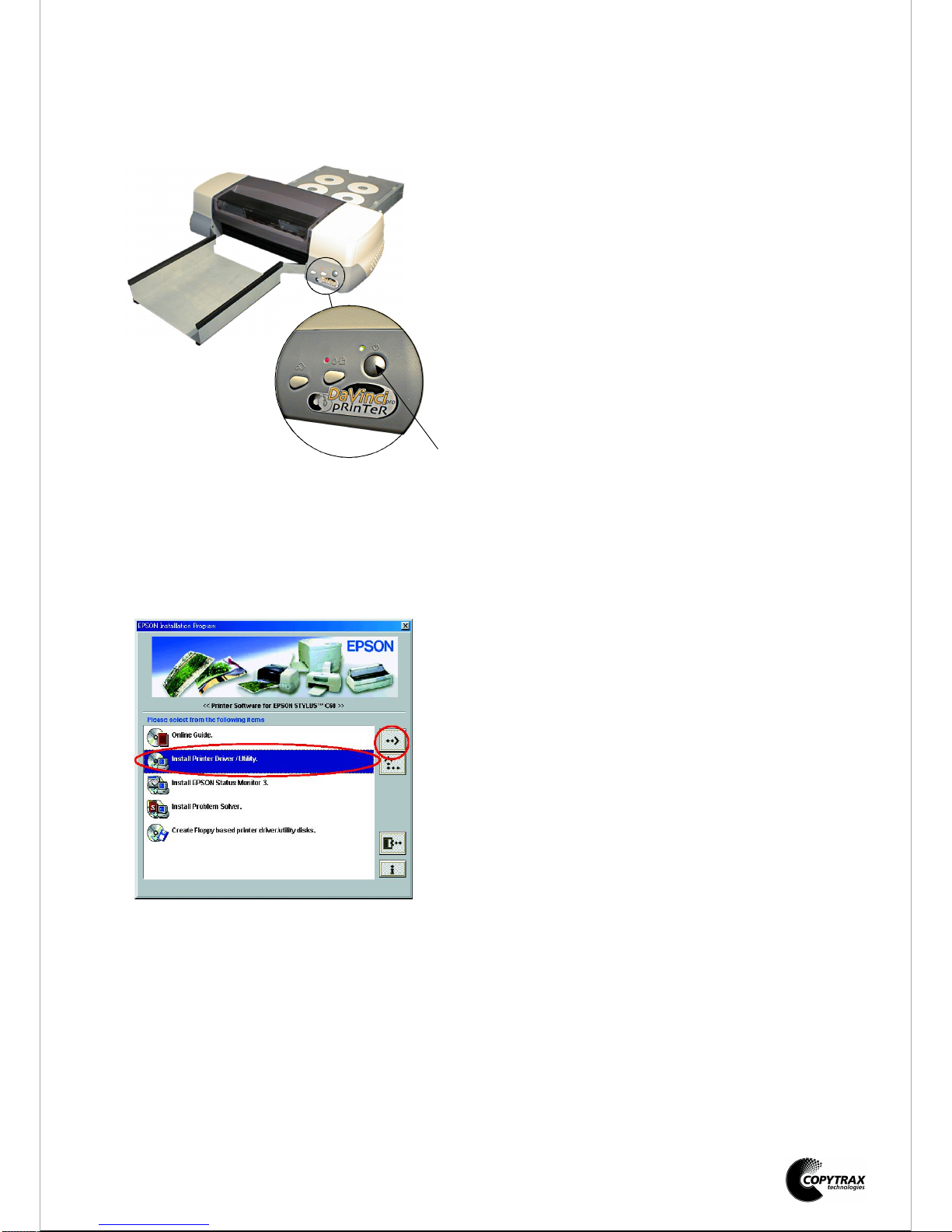

C. Select Install Printer Driver/Utility, and
click . Then click OK in the dialog box that
appears.
D. Follow the onscreen instructions to turn on
the printer. The printer port configuration
starts automatically for widows Me and 98
users and for printers connected via a USB
cable.
E. When a message appears asking you to
restart your computer, do so.
For windows 2000 users using a parallel
cable, click the ‘stop search’ button when the
USB device driver starts. Then follow the
onscreen instructions.
F. After restarting your PC and turning on the
printer the ‘Set-up utility’ opens
automatically. Follow the onscreen
instructions to install the ink cartridges or
refer to the next section ‘Installing the ink
cartridges’.

On/Off

DaVinci Pro CD printer.
Connection and software instalation .(Macintosh)
1. .
Connect the USB cable to your mac.
Connection
Connect the mains plug to the mains supply.
If the printer comes on when you plug in the
mains cable by pressing the
on/off button.
After connecting the printer and mac you
need to install the printer driver from the CD
marked ‘Epson stylus photo 1290 Printer
Software’.
turn it OFF
2. Installing the printer driver.
A. Make sure that printer is off, then turn on
your Macintosh. Turn off any virus protection
software.
B. Insert the printer software CD. The printer
driver software opens automatically.
B. If the Install Printer Driver/Utility folder
appears in the Epson folder, open it and
double click on the installer icon.
C. At the initial screen, click ‘continue’. Then
the installer dialog box appears.
D. Make sure that the correct drive is shown
in the ‘Install location’ box, then click ‘install’.
E. When a message appears to inform you
that the installation is complete click ‘restart’
and restart your mac.
F. After restarting your mac you need to open
the chooser and select the printer icon
‘Sp1290’ and the port that the printer is
connected to. Turn ‘background printing’ on
and close the chooser.
On/Off

DaVinci Pro CD printer.
Control panel functions.
Installing the ink cartridges .
Controls.

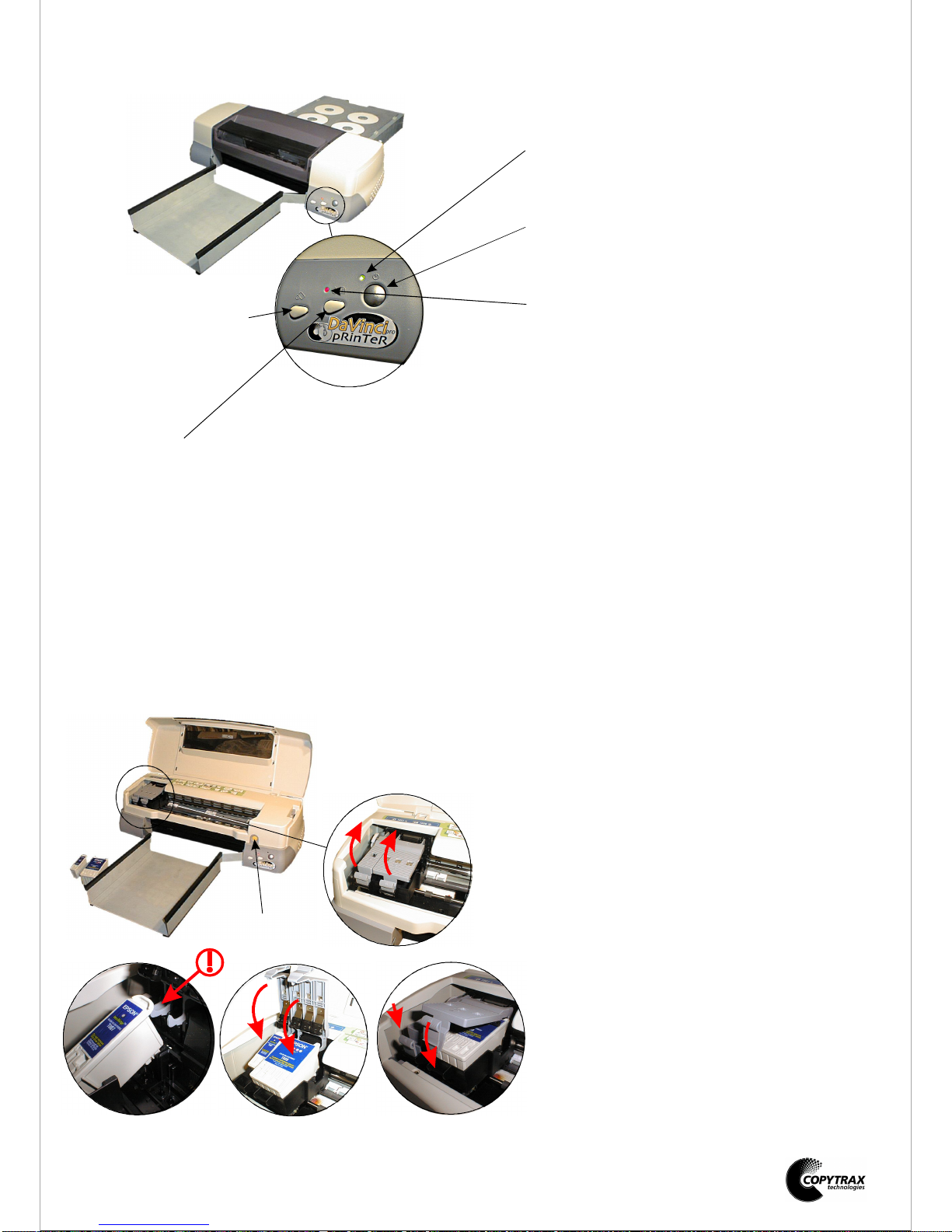

The control panel on the front corner of the
printer has three buttons and two indicator
lights.
Installing new ink cartridges.
1. Lift the printer cover and press the On/Off
button. Wait for the print head to move
across to the cartridge change position.
2. Push back the release tabs and lift up the
cartridge clamps.
3. Remove the cartridges from their packing
and remove the yellow tape seals. Gently
position the cartridges in the head, with the
tab on the cartridge resting on the tab on the
underside of the opened cartridge clamp.
4. Close the cartridge clamps.
5. Push down to lock the cartridge clamps in
position and press the cartridge change
button.
6. The head will now move back and the
printer pump will charge the print head.
Feed/ink status indicator light.
A. On solid when the printer is ready for the
CD tray, or paper tray, to be pushed in. (After
spooling the image).
B. On solid if the printer is jammed during
printing.
C. Flashing when either of the ink cartridges is
low.
D. On solid when either of the ink cartridges
are empty.
E. Flashing slow when the print head is in the
cartridge change position and the black
cartridge requires changing.
F. Flashing fast when the print head is in the
cartridge change position and the colour
cartridge requires changing.
Printer status indicator light.
A. On solid when the printer is on but
inactive.
B. Flashing when the printer is active.
Roll paper button.
Not used on this model.
Feed/Clean button.
A. Feeds in the CD tray or paper tray.
B. Ejects the CD tray or paper tray.
C. Cleans the print head when pressed for 3
seconds with the Feed/ink status light off and
the CD tray out.
Moves the print head to the cartridge change
position when an ink cartridge is empty.
On/Off button
A. Used to turn the printer on and off.
B. Used to clear the printers memory if
pressed twice while the printer is on.
Ink change button
1
2
345

DaVinci Pro CD printer.
Printer settings. 1. .
In the control panel select the printers folder.
Select the Epson stylus photo 1290 and right
click and select rename. In the rename
window type ‘DaVinci 6’ and click OK.
In the Da Vinci 6 properties window select the
‘paper’ tab.
2.
The print area has to be set to correspond
with the size of the CD tray. This is done by
setting a custom paper size.
Select sheet feeder in the paper source box.
Select ‘Portrait’.
Select ‘Standard’.
In the paper size box select ‘User defined’.
In the User defined paper size window type
‘CD tray’ into the paper size name box.
T
Select the unit as 0.01cm.
Then click save and then OK.
Changing the printer settings for CD
printing
Setting the print area.
Select the DaVinci 6 and right click and select
properties
ype in the paper width as 3200 and the
paper height as 4200.

DaVinci Pro CD printer.
Printer settings continued. 3.
In the DaVinci 6 properties window ‘CD
tray’will now show in the paper size selection
box.
Click on the ‘Main’ tab and then click ‘custom’
and ‘Advanced’.
The Advanced properties window now opens.
Select ‘photo enhance 4’ and set the tone to
hard and the sharpness to high.
Turn ‘high speed’ off.
Click save settings and in the custom settings
window type in ‘CD’.
Click save.
Now when the DaVinci 6 properties window
appears all the settings should be ready for
CD printing.
CD tray should appear as the Paper size.
CD should show in the mode, custom setting
box and as confirmation the settings shown
on the white area should be ‘Photo-1440’,
Photo enhance 4, Micro weave: On, and High
speed: Off.
If all the settings are correct click on apply
and then OK.
Your printer is now set up for printing CDs
and will default to these settings
automatically.
Optimizing print quality.
elect
1440dpi.
If the page setup in the graphics
application does not match the page size
320x420mm then the paper size will default
to A4 and will require re-selecting when
printing.
In the advanced properties window s
Note;

DaVinci Pro CD printer.
Printing. 1. Image software.
Discus is a high quality dedicated software
package for printing CDs and Jewel case
inserts etc. It is supplied with your printer.
It is very easy to use and we offer telephone
support should you need it.
It is also possible to create images and print
CDs using other graphics programmes. For
example; Corel Draw, Photo shop, Quark
Express, Illustrator, etc.
If you regularly use a graphics programme we
recommend that you continue using it and
make a template to the dimensions given.
Templates for Corel draw are available on our
website.
The dimensions are shown for a CD printing
template, the dimensions will however, need
to be fine tuned to accurately fit the output
from your printer.
420mm
118mm dia
38mm dia
349.3mm
0
0
219.2mm
93.7mm 241.2mm 320mm
89.1mm
Template dimensions
Discus

DaVinci Pro CD printer.
Recommended printer settings. 1.
‘CD tray’ should always be selected as the
paper size.
‘Plain paper’ setting gives the best results
over the range of printable discs available and
ensures that the template will be in the
correct position. (Choosing ‘photo paper’ for
example will move the print down approx
10mm on the discs).
Using the CD setting, (set-up in the previous
pages), will give optimum results when
printing on printable CDs. Photographic
images of high quality can be printed.
Printing time for 6 discs is just less than 20
minutes.
If print quality in not so important and speed
is of importance then these settings can be
changed.
At 1440dpi with ‘high speed on’, printing time
is less than 13 minutes.
At the extreme of the possible settings, at
360 dpi with ‘high speed on’, printing time is
less than 1minute and 30 seconds. This
setting could only practically be used to print
text and very simple graphics.
2.
Select the type of paper to be printed, photo
paper and heavyweight matte inkjet paper
are recommended as they absorb ink without
swelling under the print head.
Select the size and orientation of the paper to
be printed
Switch the ‘high speed’ off
Set the orientation of the paper.
In the ‘Printable area’ box select ‘Standard’
and ‘Centered’.
For printable CDs, CD cards and 80mm
discs.
For printing photo quality images on
inkjet photo paper.
Select the Print quality, for a photo quality
image 1440dpi is recommended.
Select photo enhance, tone hard and high
sharpness for a vivid image. Experiment with
these settings for other effects.

DaVinci Pro CD printer.

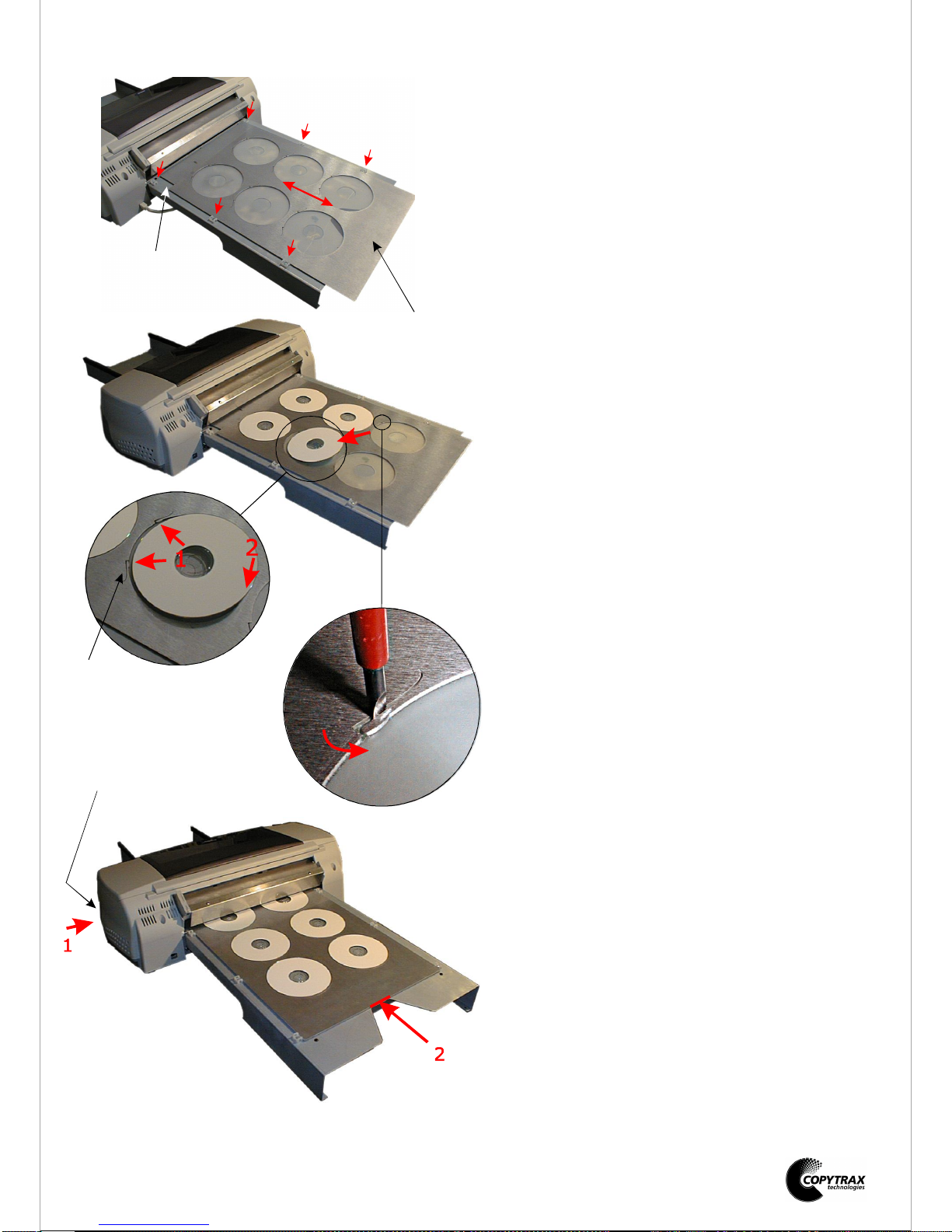

Printing CDs. 1.
Place the empty CD tray onto the input
guide.
The tray fits between the 6 nylon guide blocks
and should run freely between them.
2.
The CD tray holds 6 CDs, all 6 CDs must be
loaded before attempting to print. If only 1
CD is required the remaining positions must
still be filled.
Load the CDs, one at a time, by pushing them
against the two fingers in the tray cutout
and then pushing the opposite side of the CD
down into the cutout (2). Finally, push
down all the CD edge into the cutout.
3.
The fingers lightly clamp the CD during
printing, preventing movement and rotation
caused by printer vibration. If the fingers do
not touch the CDs, they can be twisted
slightly until they do by removing the CD and
inserting a screwdriver into the slit behind the
finger and twisting slightly.
Take care not to bend the finger up above the
tray surface as it may rub against the print
head during printing.
4.
The print image must be spooled to the
printer before pushing in the tray.
When the print image is received by the
printer it will make certain movements and
noises and prepare to print.
Wait until the red light on the control panel is
lit.
Press the feed/clean button on the control
panel whilst pushing firmly against the middle
of the rear edge of the CD tray. The printer
will draw in the CD tray. Stop pushing the CD
tray when your finger reaches the edge of the
cutout in the input guide.
The printer will now print the CDs.
Positioning the CD tray.
Loading the tray with Cds.
Adjusting the fit of the CD.
Printing.
The corner cutout, in the tray, is
positioned towards the printer and the
cutouts for the CDs to the top of the tray.
CDs are loaded into the tray after it has been
positioned on the input guide.
(1)
firmly
Cut out
CD tray
Fingers
Red light and feed/clean button
1
3
2
4

DaVinci Pro CD printer.
Printing paper. 1.
An area of free, level desk space, the size of
the paper carrier is needed on the output side
of the printer.
2.
Remove the film protecting the adhesive area.
Place the empty paper carrier onto the input
guide. The corner cutout in the carrier is
positioned towards the printer and the
adhesive area facing up.
The carrier fits between the nylon guide
blocks and should run freely between them.
3.
Align the paper with the front edge of the
cutout in the paper carrier (A), and then the
edge marked with arrows (B). Press down the
paper onto the adhesive area and smooth out
(C).
4.
If you are printing on photo paper, using the
photo paper setting, it is necessary to insert
the paper carrier before spooling the image to
the printer. (Otherwise the print image will
start before the top edge of the paper).Only
one copy can be printed.
If you are printing using the plain paper
setting it is necessary to spool the image to
the printer, wait for the red feed/ink status
indicator to light, and then insert the paper
carrier. Multiple copies can be printed.
In either case, to insert the paper carrier,
press the feed/clean button on the control
panel (A), whilst pushing gently but firmly
against the middle of the rear edge of the
paper carrier. The printer will draw in the
paper carrier. Stop pushing the paper carrier
when your finger reaches the edge of the
cutout in the input guide (B).
5.
The paper carrier and paper are drawn
through by the printer and exit onto the
desktop at the output end of the printer. The
paper carrier must drop onto the desktop to
keep the paper tensioned during printing.
Warning! Printing large areas of deep colour
onto unsuitable paper will cause the paper to
swell, rise, and touch the printhead.
Remove the output support.
Positioning the paper carrier.
Positioning the paper.
Printing. (At this point there are two
different techniques to use).
Output.
AB
B
C
1
2
3
4
5

Problem solving.
Problem.
When printing deep colours, on plain paper or on heavyweight matte paper, the wet
paper rises and rubs on the bottom of the head, or the paper edge is caught by the print
head. (No problem on photo paper).
Cause.
The paper carrier supports the paper from below and the paper can only rise.
Solution.
Use only photo paper for printing deep colours.
Problem.
When printing using the ‘no margins’ setting, ink is printed onto the paper carrier.
Cause.
The carrier is bigger than the paper; normally there is nothing under the paper edge.
Solution.
Do not print using the ‘no margins’ setting.
Problem.
The front edge of the paper carrier catches on the output tray as it leaves the printer.
Cause.
The carrier is not rigid.
The front edges, of the support rails, have no ramp.
Solution.
Do not use the output tray when printing paper. The paper carrier falls down and runs
along the desktop, holding the paper taught.
Problem.
Printing starts 10mm earlier on photo paper setting.
Cause.
The paper feed winds differently when photo paper is selected.
Solution.
Feed the paper into the printer before spooling the image and do not print multiple
copies.
Problem.
Ink marks on the bottom edge of the paper.
Cause.
The paper flips up as it leaves the top rollers.
Solution.
Apply low tack adhesive to the paper carrier underneath the bottom edge of the paper.
Do not use ‘no margins’ printing setting.
Problem.
Paper sticks to the paper carrier and is damaged when removed.
Cause.
The adhesive is too strong on the paper carrier.
Solution.
Repeatedly apply and remove a piece of paper onto the adhesive to weaken it.
