Corequip CM30E/30E GD Series User manual

Instruction Manual
Please read this instruction manual carefully
before operating the unit.
MODEL#: CM30E/30E GDseries
CM40E/40E GDseries
CM50E/50E GDseries
CM60E/60E
GDseries

INTRODUCTION
Thank you for purchasing our absorption refrigerator. This unit is designed to improve your living
and entertaining comfort. The absorption system refrigerator is a compact, totally silent refrigerator
that uses no compressors or fans. Originally developed for commercial use or similar use. With its
silent operation and attractive design, you will enjoy the convenience and comfort for years to
come.
Please read these instructions carefully before operating this appliance. When using this
appliance, always exercise basic safety precautions.
This easy-to-use manual will guide you to getting the best use of your absorption refrigerator.
REFERENCE INFORMATION
Please complete the following information for future reference. You will need it to
obtain warranty service.
Model Name*: __________________________________
Serial Number *: __________________________________
Date of Purchase: __________________________________
Place of Purchase: _________________________________
*The above information is written on the back of the unit. Retain this Owner’s Manual with your
sales receipt as a permanent record of your purchase.
TABLE OF CONTENTS PAGE
Introduction ………………………………………….………………………………. 2
Reference Information …………………….……………………………….………. 2
Important Safety Precautions…………………………………….………………… 3
Installation ...................………………………………….………………………….. 4
Product Parts and Features …….………………….…………………….………... 5
How to Operate…………………………………….………………………………... 5
Absorption refrigerator Care and Cleaning ………………………….…...………. 6
Limited Warranty …………………………………..………………………………. ..6
Environmental Protection……………………… ……………………………………6
Reversing The Door (Option)……………………..……………..…………………...7
Circuit Diagram ........…………………………..……………..………………….….7
Technical data…………………………………………………………………………8
1

IMPORTANT SAFETY PRECAUTIONS
Before you use your absorption refrigerator, please read this instruction manual
carefully.
Use this appliance only for its commercial purpose as described in this owner’s manual.
This absorption refrigerator must be properly installed in accordance with the installation
instructions before it is used.
Never unplug you absorption refrigerator by pulling on the power cord. Always grasp the plug
firmly and pull straight out from the wall outlet.
1) Repair or replace immediately, all electric service cords that have become frayed or otherwise
damaged. Do not use a cord that shows cracks or abrasion damage along its length, the plug or
the connector end.
2) Unplug your absorption refrigerator before cleaning or before making any repairs.
NOTE: If for any reason this product requires service, we strongly recommend that a certified
technician perform the service.
3) Do not operate your absorption refrigerator in the presence of explosive fumes.
4) The power supply must be properly grounded.
5) Do not use an adapter plug or extension cord.
6) Do not use the unit in the immediate surroundings of a bath, shower or swimming pool.
7) Before discarding or storing, we recommend that you remove the door and leave the shelves in
place. This will reduce the possibility of danger to children.
8) Do not store food in absorption refrigerator as the interior temperature may not be cool enough
to prevent spoilage.
9 The instructions concerning persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge and children playing with the appliance
are not required.
10) If the power supply is damaged, it must be replaced by the manufacturer, its service agent or
similar qualified persons in order to avoid a hazard.
11) Do not try to fix the lamp and open the back guard, refer to agent or manufacture for help.
12) Maximum loading of each shelf in storage compartment is 8 kg.
13) Maximum loading of door balcony is 5 kg.
14) Sound pressure level at workstation is far below 70dB.
15) AVOID CONTACT WITH STRONG OXIDIZING AGENTS.
2

INSTALLATION
It is advisable to clean the inside of the absorption refrigeratorwith lukewarm water using a
mild detergent, and then to dry it thoroughly prior to use.
The temperature in the appliance will depend on:
The temperature in the room
The frequency and duration of periods when the door is open.
How many items are in the fridge
It may therefore be necessary to adjust the thermostat from time to time.
The refrigeration system of the cabinet is designed to operate with the cabinet located on a
flat surface. Avoid tilting the cabinet side.
If the cabinet must be tilted on an angle for handling or moving purposes, allow it to sit in an
upright position 20 to 30 minutes prior to plugging it in and starting the cooling of the storage
compartment.
Grounding plug and socket should be provided in accordance with local regulations. The
cable-size should meet the refrigerator’s requirements. The unit must be connected to proper
electrical network, which is shown on the nameplate, through an omnipoplar circuit-breaker. To
assure the proper function of the refrigerator, please observe the following recommended.
1. To ensure the circulation, the unit should be kept at 12 cm, away from the wall.
2. Locate the unit away from direct sunlight. This will enable you to obtain the best performance
and save energy.
3. Under no circumstances should the top grid be covered by any objest. It will preclude the
warm air from circulating.

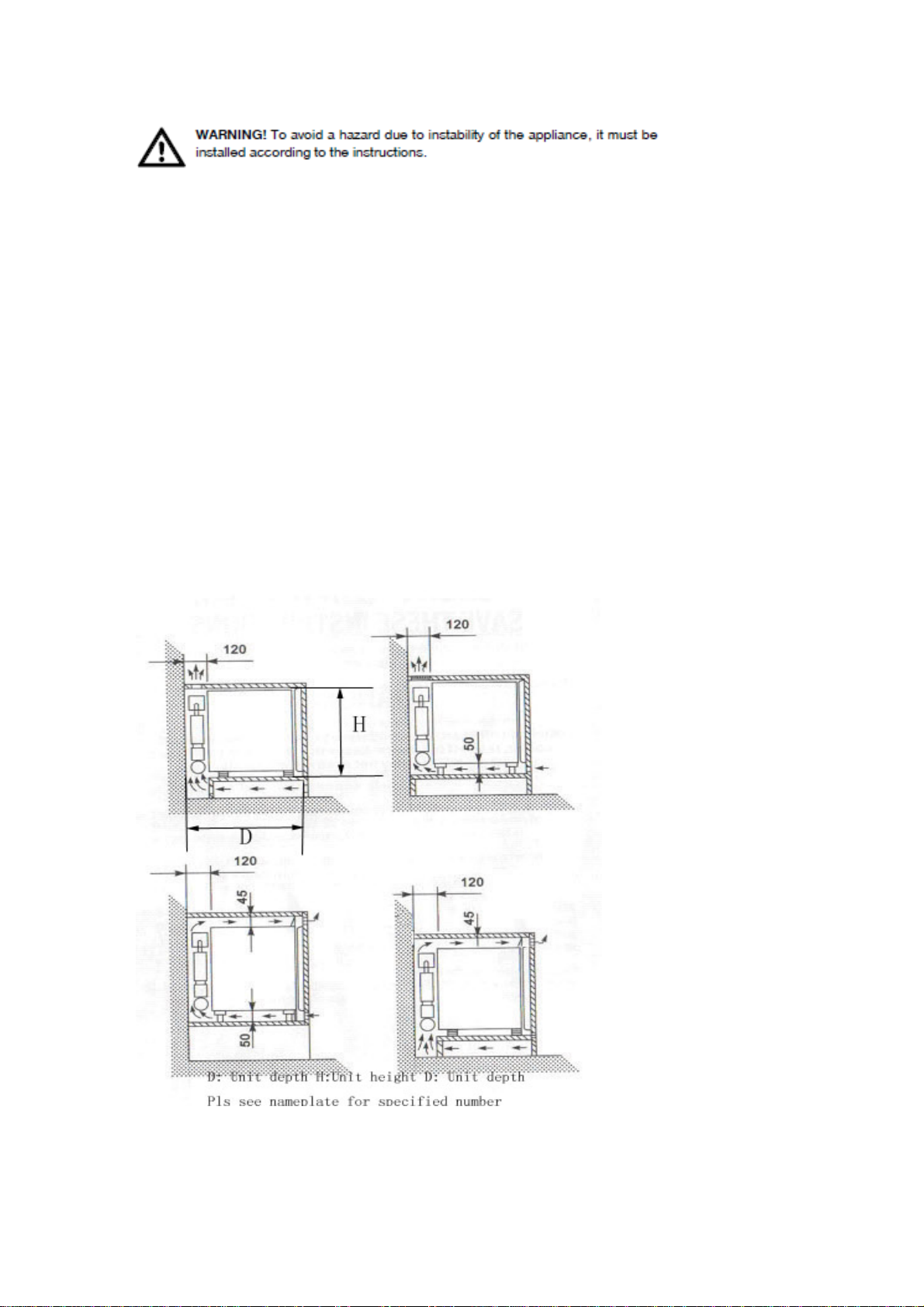

Installation Figure
3

PRODUCT PARTS AND FEATURES
HOW TO OPERATE ABSORPTION REFRIGERATOR
1. Insert power plug into wall outlet
2. To adjust the temperature turn thermostat knob inside the cabinet.
Automatic Defrosting
For models suffix “E” are with automatic defrosting system. For other models which are with
manual defrosting system, you just turn the thermostat knob to zero position until the accumulated
frost melts，then return to normal position. for the details refer to page 8 technical data.
Temperature Control
4
Shelf
Feet
Lamp
Balcony
The inner temperature ranges from 0℃to 12℃.You can turn the
thermostat knob to have your desired temperature. Turn the knob
clockwise rotation, which the position varies from 1 to 6, you can get a
lower temperature inside. Setting 1 is the highest temperature and the
setting 6 is the lowest temperature.

ABSORPTION REFRIGERATOR CARE AND CLEANING
Warning:To avoid electric shock always unplug you absorption refrigerator before cleaning.
Ignoring this warning may result in injury.
General:Do not use harsh chemicals, abrasives, ammonia, chlorine bleach,
concentrated detergents, solvents or metal scouring pads. Some of
these chemicals may dissolve, damage and/or discolor your absorption refrigerator.
1) Remove the contents of the appliance
2) Wipe the inside and outside surfaces with a damp cloth. The addition of vinegar to the
water is good for the prevention of mold and fungus.
3) Wipe all parts thoroughly after the cleaning.
IMPORTANT:
When the absorption refrigerator is not in use it must be completely dry inside to avoid mold
growth (if possible have the door open).
LIMITED WARRANTY
As a condition to any warranty service obligation, the consumer must present this Warranty
Certificate along with a copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
1) Damage, accidental or otherwise, to the absorption refrigerator while in the possession of a
consumer not caused by a defect in material or workmanship.
2) Damage caused by consumer misuse, tampering, or failure to follow the care and special
handling provisions in the instructions.
3) Damage to the finish of the case, or other appearance parts caused by wear
4) Damage caused by repairs or alterations of the absorption refrigerator by anyone other than
those authorized by the manufacturer.
5) Freight and Insurance cost for the warranty service
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE
LIMITED TO CLAIMED DURATION. THE MANUFACTURER DISCLAIMS ANY LIABILITY FOR
CONSEQUENTIAL OR INCIDENTAL DAMAGES.
ENVIRONMENTAL PROTECTION
5

REVERSING THE DOOR (OPTION)
How to reverse the door
Remove the lower hinge by loosening and removing the screws with screwdriver.
Carefully lower the door and remove it.
Remove the two screws from the left top hinge position, take the metal part off the hinge
position.
Remove the two screws from the right top hinge and take off the hinge, insert the metal part,
rivet the two screws thereafter.
Take off the lower hinge and fix it to the opposite side.
Take the door. Insert the lower hinge axle into the right bottom hole of the door.
Fix the spare hinge to the left top position of the cabinet. Adjust the door, make it straight and
in alignment with the cabinet.
Note:As the door gasket gets pressed-in during shipment, after reversing the door the gasket
might have to be reset. This will be good for seal to avoid any air escaping. If there is a gap
between the cabinet and the door gasket, set the gasket bygently pulling it out to seal the gap.
If necessary, you are recommended also to use the hair drier to warm the gasket to get rid of
the gap.
CIRCUIT DIAGRAM
6
①XP
②SAT
③HT
①XP Power Supply
②SAT Temperature Control
③HT Heating Tube
④LAMP
④LAMP
⑤LAMP SWITCH
⑤LAMP SWITCH
