Coronado Controls TH-2005RF User manual

TH-2005 Wireless Programmable Thermostat
This Programmable R/F controlled Room- Thermosta-
Pair consists of a mobile Transmier Unit TH-2005(TX)
(Surface-mount bracket for installing this unit is
available) and a Receiver unit RV-0356 which is designed
with ush-mounng structure to t most commercially
available recessed conduit boxes of 60 mm for controls
of 1channel(2 pipes) heang /cooling. Surface-mount
box for installing Receiver and a Stand to for holding
Transmier on desk are included.
Its installaon requires no wiring between Transmier
& Receiver and can be ed in any normal operang
environment within 30 meters range between the two
units.
Unique facility of R/F-address code seng is built
into R/F Receiver as part of commissioning procedure
to ensure that your R/F Receiver will only respond
to instrucon sent to it from Transmier. The special
feature of blue-backlit & so-Key in the Transmier
provide easy operang in dim surrounding.
There are 3 working frequencies in this thermostat-
pair available for choice. Working “frequency” is marked
on the top of plasc housing on both Transmier and
Receiver. The marked frequency on both units must be
consistent, or this thermostat pair will not operate.
The transmier unit requires 2 x AAA Alkaline for
operaon to power the thermostat, the Receiver unit
will be connected to the main in operaon.
Technical Data
Transmier Unit TH-2005
1. Power supply: 1.5 V AAA Baery x 2
2. Baery Low protecon integrated.
3. Temperature reading: °C/°F selecve by internal
seng.
Default seng: °C
4. Clock format: 24H/12H selectable by internal seng.
Default seng: 24H
5. Temperature sampling rate: 1 minute
6. Switching dierenal (Hysteresis):
0.5°C~1.0°C / 1.0°F~2.0°F selectable by internal
seng
7. Temperature control range : 5~35°C
8. Temperature display range : 0~50°C
9. Temperature seng: 1.0°C
10. Programming feature:
7-d or 5-1-1d day-format & P6/P4 program- periods/
day by default seng, not selectable at user’s side.
Default seng : 5-1-1d /P4
11. Shortest cycle rate protecon : 3-minute. Default
seng “deacvated”.
12. Non volale EEPROM ensure no program/seng loss
13. Temperature sensor: NTC 100K Ω at 25 °C
14. Working Frequency: 3 types for opon
(preset ,not selecve at user’s side)
• T433: 433 MHZ
• T868: 868 MHZ
• T915: 915 MHZ
15. Working distance: 30 meters
16. Dimension: 138 W x 86 H x 29 D mm.
Receiver Unit RV-0356
1. Operangpow:er:230±10%Vac, 50/60Hz
2. Power consumpon:5VA
3. Out put rang: Volt-free, 10Amp/250Vac resisve, in
each channel.
4. Storage temperature: -10°C ~ 60°C
5. Working frequency:
• 433MHz
• 868MHz
• 915MHz
6. Working distance: 30 Meters
7. Tempe rature sensor: NTC 10 KΩ at 25°C
8. Installaon: 60 mm ush-mount
9. Dimension : 88.0 W x 88.0 H x 39.4 D mm
SAVE THESE INSTRUCTIONS
1/6
BT-20050-00003
VER:20121108-01

Product Descripon
Transmier Unit
Receiver Unit
Heang ON/OFF
Indicator (Blue LED)
RF failed - LED will be on consistantly.
Heang will be o 10 minutes aer
RV-0356 fails to receive signal from
transmier
Manual mode heang start-up when RF signal fails, press this
buon to tentave resume heang if required
Aer R/F operang resumed, temperature will be controlled by
Transmier-unit again.
Assemble Plug-in Stand on Transmier
Align boom of the Transmier with plug-in hooks as show below:
Press the plug-in stand with both hands onto Transmier unit as
shown below:
Use both hands to detach Transmier from the plug-in stand aer
assembly as shown below:
Replace baeries
Please follow the instrucon below to replace the baery when the
system shows low baery
Look for the slot on the le
side of the transmier
Insert p of a at-head screw
driver and lt to open
Baery compartment is siutated as shown above
Changing the RF Matching Sengs:
Both Transmier and Receiver units much have matching RF codes
to correctly work with each other. Please follow the sengs below
and set both Transmier and Receiver units to have the same address
codes:
2/6
BT-20050-00003
VER:20121108-01

Default Sengs
There are a few “preset sengs” from factory default,
and these sengs are not user selectable. Please
consult with your supplier to acquire suitable model
to your home and residence before ordering. (Refer to
Descripons to models codes for ordering informaon.)
1. Cool/Heat Mode: default seng heat mode for this
RF oor heang
2. Shortest Cycle protecon: 3-minutes, default is set
as Deacvated
3. 7D/5-1-1D: Program period (event) per day, and this
is subjected to ordering
4. P6/P4: 6 or 4 Program period (event) per day, and
this is subjected to ordering
Checking the model you have ordered, and program it in
accordance with following instrucons.
The unit was produced with special features of
“ashing display” on LED to assist users to complete the
programming process.
Start Programming
Internal Seng (User Congurable Sengs)
Press and hold for 6 seconds to enter seng selecon
mode. Follow the ashing symbols on the LCD to
complete following sengs:
1. ˚C/˚F: Press or to choose Fahrenheit or Celsius
seng.
2. Press to enter next seng (24H/12H selecon)
aer ˚C/˚F selecon is completed. Connue to use
or buons to choose.
3. Repeat procedures by pressing buon for next
seng and then press or buons to connue
compleng seng the Date/Clock
• Date: Month, Day, and Year
• Clock: Hour and Minute
• Switching Dierenal (Hysteresis)
• Filter (Service Interval): Counng the me that
the transmier unit has been in use. Smallest
me counng unit is 100 hours.
4. Press buon aer internal seng & Date/Clock
sengs are completed.
5. Seng the required programs into transmier unit.
Programming 7D
Each of 7 days of week, can be programmed separately.
Please follow the instrucon on the LCD to complete
programming:
1. Press buon to enter program seng, (you shall
see a ashing digits as the temperature).
2. Press or buon to set desired temperature
setpoint for 1st program period (event).
3. Press buon to enter seng me setpoint for 1st
program period (event)
4. Press or buon to set me setpoint for 1st
program period (event)
5. Press buon to enter seng temperature
setpoint for 2nd program period (event, aer me
setpoint of 1st program period is completed
6. Repeat same programming procedures
or
7. When enre programming is completed, press
twice and then press buon to start the system.
Copy Funcon (In 7D format only)
First to select any day of whole 7-Day and to complete
enre temperature/me setpoints to each program
period of the day. (Please refer to Programming
procedure described in Program 7D)
Taking the selected day as the reference day for this
“Copy” funcon, and follow the instrucons below:
1. Press to enter program seng, and then press
again
From begins the ashing on LCD (Choosing the reference
day from)
2. Press to select the reference-day
3. Press aer reference-day is selected.
To shall begin ashing on LCD
4. Press to select the day in week to copy programs
to them.
5. Press aer the day for “copy programs to”
selected.
6. Repeang the above procedures by pressing
to select more days to copy the
programs to or press to delete the selected day.
7. Press twice, aer desired days for “Copy” was
completed.
Programming 5-1-1D
All 5 weekdays shall have the same programming, while
Saturday and Sunday each would has its own sengs.
1. Press to enter program seng. (Temperature
reading shall begin to ash on LCD)
2. Press or to set desired temperature setpoint
for 1st program-period (event).
3. Press aer temperature setpoint for 1st program-
period is completed. (The display shall now show
ashing “Hour & Start Time”)
4. Press or to set desired me setpoint for 1st
program-period (event).
5. Press to enter seng temperature setpoint for
2nd program-period (event), aer me setpoint
of 1st program-period completed. (Flashing
temperature reading appears on LCD again)
6. Repeat same programming procedures to complete
each of temperature & me setpoints for every
program-period (event) of weekdays (5D).
or
And to complete programming Saturday & Sunday
aer programming weekdays was completed.
7. Press twice and then press to start operang
3/6
BT-20050-00003
VER:20121108-01

Reminder
• In programming mode, if users want to stop
programming the thermostat, either wait for
30 seconds without pressing any buons, the
thermostat shall automacally exit the programming
mode and return to regular operaon, or to
press key twice and then press key to set
the thermostat to immediately run the new
programming.
• Follow up with the guidance by ashing digits/
symbols on LCD to complete programming.
• Importance
1. To program’s logic, each day’s ending me is
at 11:59 in 12H-format, 23:59 in 24H-format.
Therefore, do not set 12:00PM for NIGHT (P4)
nor 24:00 for NIGHT (P6).
2. Thermostat is designated to run programs by
sequenal order, do not set program either
overlap in me sequence, nor non-sequenal
me-seng in program seng.
Programming default sengs
Mode 7D/P6 Factory Present
Mon~Fri Time Temperature
Heang mode Cooling mode
MORN (P1) 6:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 60˚F (15.5˚C) 85˚F (29.5˚C)
NOON (P3) 12:00pm 70˚F (21.0˚C) 75˚F (24.0˚C)
BREAK (P4) 2:00pm 60˚F (15.5˚C) 85˚F (29.5˚C)
EVEN (P5) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT(P6) 10:30pm 65˚F (18.5˚C) 80˚F (26.5˚C)
Saturday Time Temperature
Heang mode Cooling mode
MORN (P1) 7:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 70˚F (21.0˚C) 75˚F (24.0˚C)
NOON (P3) 12:00pm 70˚F (21.0˚C) 75˚F (24.0˚C)
BREAK (P4) 2:00pm 70˚F (21.0˚C) 75˚F (24.0˚C)
EVEN (P5) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT(P6) 10:30pm 65˚F (18.5˚C) 80˚F (26.5˚C)
Sunday Time Temperature
Heang mode Cooling mode
MORN (P1) 7:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 70˚F (21.0˚C) 75˚F (24.0˚C)
NOON (P3) 12:00pm 70˚F (21.0˚C) 75˚F (24.0˚C)
BREAK (P4) 2:00pm 70˚F (21.0˚C) 75˚F (24.0˚C)
EVEN (P5) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT(P6) 10:30pm 65˚F (18.5˚C) 80˚F (26.5˚C)
NOON and BREAK will not appear in P6 mode.
Mode 5-1-1D P4 Factory Preset
Mon~Fri Time Temperature
Heang mode Cooling mode
MORN (P1) 6:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 60˚F (15.5˚C) 85˚F (29.5˚C)
EVEN (P3) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT (P4) 10:30pm 60˚F (15.5˚C) 80˚F (26.5˚C)
Saturday Time Temperature
Heang mode Cooling mode
MORN (P1) 7:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 70˚F (21.0˚C) 85˚F (29.5˚C)
EVEN (P3) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT (P4) 10:30pm 65˚F (18.5˚C) 80˚F (26.5˚C)
Mon~Fri Time Temperature
Heang mode Cooling mode
MORN (P1) 7:00 70˚F (21.0˚C) 75˚F (24.0˚C)
DAY (P2) 8:30 60˚F (15.5˚C) 85˚F (29.5˚C)
EVEN (P3) 4:30pm 70˚F (21.0˚C) 75˚F (24.0˚C)
NIGHT (P4) 10:30pm 60˚F (15.5˚C) 80˚F (26.5˚C)
4/6
BT-20050-00003
VER:20121108-01

Override Funcon (The same on both 7D & 5-1-1D)
Operang guide to each of the 4 modes
A. Temporary Override: Change current temperature
seng unl next setpoint
1. Press or buons to adjust temperature.
(“Temp. Set” symbol shall be ashing on LCD)
2. Wait for 10 seconds, the thermostat shall
automacally run this temporary override setpoint.
(Or to press to immediate run this override
without waing for 10 seconds)
3. Aer Temporary Override is running, press will
exit Override immediately.
B. Comfort Override: Change current temperature
setpoint to new setpoint for desired hours. Thermostat
shall resume its original programming aer Comfort
Override execung stopped.
1. Press
2. Press or buons to adjust desired
temperature. (“Temp. Set” symbol shall be ashing
on LCD)
3. Press to select desired hours for Comfort-
Override execung
4. Press or buon to set desired hours (minimum
duraon is 1 hour)
5. Press to run Comfort-Override
6. Aer Comfort-Override is running, press will exit
Comfort-Override immediately.
C. Permanent Hold Temperature: holds temperature at
desired setpoint permanently unl it is cancelled.
1. Press
2. Press again (read indicator on LCD)
3. Press or buon to adjust desired temperature.
(“Temp. Set” symbol shall be ashing on LCD)
4. Press to Permanent Hold Temperature (LCD
display shall indicate it is running Permanent Hold
Temperature)
5. Aer Permanent Hold Temperature is running, press
will exit Comfort-Override immediately.
D. Temperature Unl. (Vacaon Hold): Hold
temperature at desired setpoint unl a specic date.
1. Press
2. Press again
3. Press to select desired duraon of Hold
Temperature Unl.
4. Press or buon to select Month rst, and then
press to select Day, again by pressing or to
select desired Day
5. Press to run Hold Temperature Unl
6. Aer Hold Temperature Unl is running, press
will exit Comfort-Override immediately.
REMINDER
• In Override seng mode, the thermostat shall
automacally resume its prior programming 30
seconds without receiving any inputs from user.
• Keep pressing , thermostat shall show 4 Override
modes in sequence on the LCD.
• To follow guidance by ashing on the LCD during
the enre procedures of programming override
funcons.
To Resume Default Sengs
1. Press and hold and buons at the same me
for 6 seconds, “Reset” symbol shall appear on the
LCD screen.
2. Press buon and all previous seng will be
purged and removed, all programming will return to
its default sengs.
Important Note
(By FCC, for applicaon of 915MHz devices)
1. The changes or modicaons not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
2. To comply with the FCC RF exposure compliance
requirements, no change to the antenna nor the
device could result in the device exceeding the RF
exposure requirements and void user’s authority to
operate the device.
3. This device complies with Part 15 of FCC rules.
Operaon is subject to the following two condions,
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operaon.
5/6
BT-20050-00003
VER:20121108-01

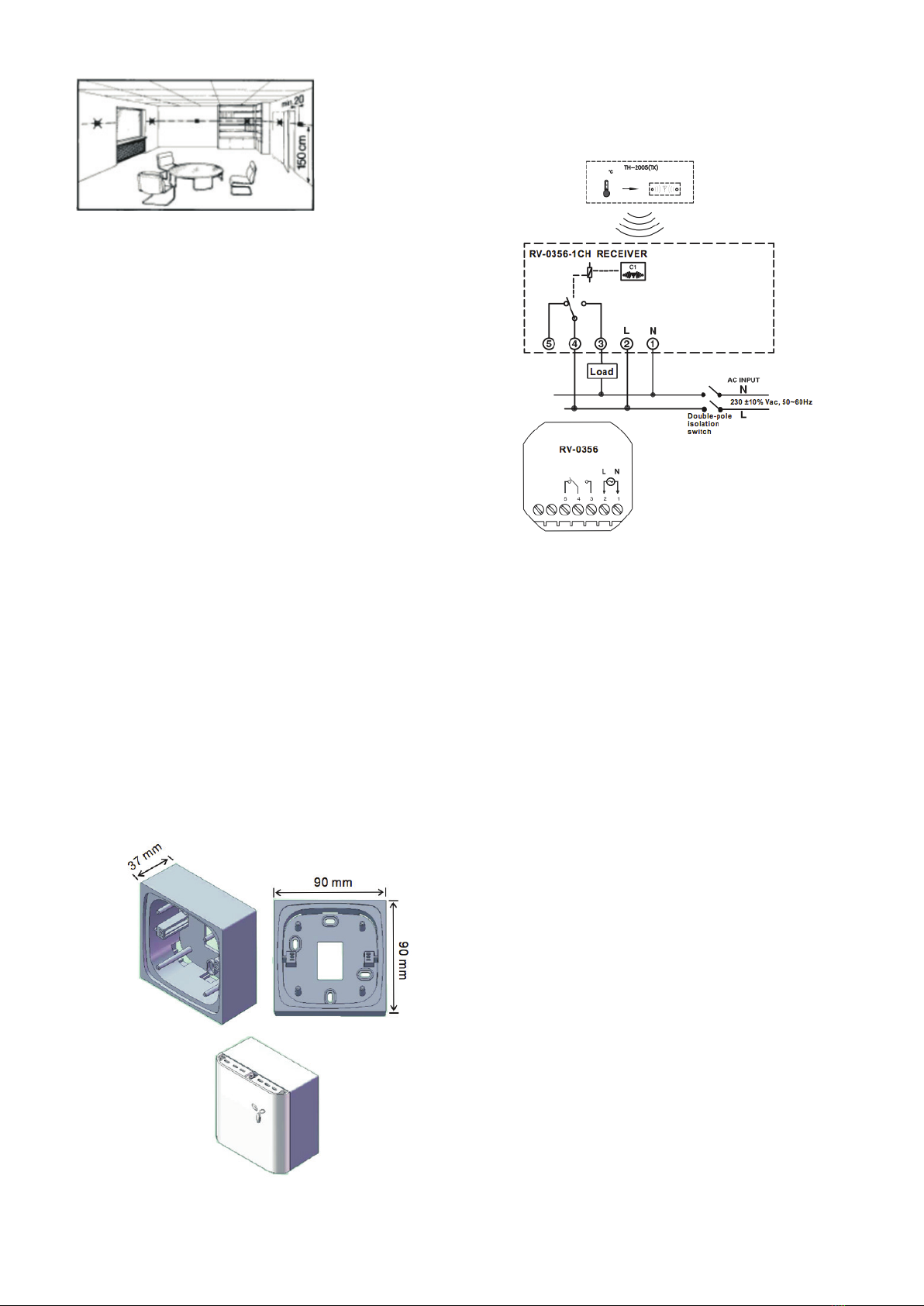

Choosing Correct Locaon for the Thermostat pair
• The receiver-unit is mobile device, keep it at the
locaon near you for control of heang.
• A surface-mount bracket is available for opon, if
mounng the transmier-unit on wall is required
(Refer to the page - Oponal Accessories).
• The mounng height of Reciever-unit should be
approximately 1.5 meters above the oor.
• Receiver-unit can be ed to most commercially
available recessed conduit boxes or directly on the
wall. Surface-mount box for installing this unit is also
available (Refer to the page - Oponal Accessories).
• Transmier and Receiver unit should be posioned
within 30 meters range in the same room.
Packaging Content
In Transmier Unit pakage contains:
1. Transmier unit: 1 unit
2. Instrucon sheet: 1 set
3. Alkaline AAA Baery: 2 pieces
4. Plug-in Stand: 1 piece
5. Machine screw 3.5ϕ * 20mm: 2 pieces
6. Self-tapping screw 3.5ϕ * 25mm: 2 pieces
7. Anchor 9ϕ * 25mm: 2 pieces
In Receiver Unit pakage contains:
1. Receiver unit: 1 unit
2. Self-tapping screw 3.5ϕ * 25mm: 2 pieces
3. Anchor 9ϕ * 25mm: 2 pieces
Oponal Accessories
Wall-mount box for Receiver unit (RV-0356)
1. Machine screw #5*3/4”: 2 pieces
2. Ancor 4ϕ*20mm: 2 pieces
Included in the package
Wiring Diagram
• Please Disconnect the main before performing
wiring.
• Output rang:
10Amp/250Vac Resisve, Volt-free
6/6
BT-20050-00003
VER:20121108-01
