Corsynth C106 User manual

C106 Dual Loopable
VC AD Envelope & more
USER MANUAL
U
S
E
R
M
A
N
U
A
L
DUAL LOOPABLE VC AD ENVELOPE & MORE
C106
ATTACK A
MIN MAX
DECAY A
MIN MAX
END A OUT A A-B OUT END B OUT B
BIPOLAR A BIPOLAR B
A CV
GATE A GATE B
LOOP
SINGLE
D SHAPE B
EXP LOG
ATTACK B
MIN MAX
DECAY B
MIN MAX
AT SHAPE B
EXP LOG
AB-A
AB-E
OFF
BA-E
D CV
A+D CV
A CV
D CV
A+D CV
D SHAPE A
EXP LOG
AT SHAPE A
EXP LOG
A+B OUT
LOOP
SINGLE

C106 Dual Loopable VC AD Envelope & more
1
HTTP://WWW.CORSYNTH.COM
DUAL LOOPABLE VC AD ENVELOPE & MORE
C106
ATTACK A
MIN MAX
DECAY A
MIN MAX
END A OUT A A-B OUT END B OUT B
BIPOLAR A BIPOLAR B
A CV
GATE A GATE B
LOOP
SINGLE
D SHAPE B
EXP LOG
ATTACK B
MIN MAX
DECAY B
MIN MAX
AT SHAPE B
EXP LOG
AB-A
AB-E
OFF
BA-E
D CV
A+D CV
A CV
D CV
A+D CV
D SHAPE A
EXP LOG
AT SHAPE A
EXP LOG
A+B OUT
LOOP
SINGLE
The C106 Dual Loopable VC AD Envelope & more
it’s a really versatile module. It’s not only a Dual Voltage
Controlled Attack / Decay envelope, it’s also a dual VC
LFO, an audio generator, a complex contour generator, a
dual pulse delay, a voltage controlled AD envelope with
adjustable delay and more….
The core of this module are two loopable voltage
controlled Attack / Decay envelopes that can be
interconnected in dierent ways to create dierent
functions.
Connection modes:
1 - Two independent Attack / Decay envelopes ( single
shot or looping )
2 - Envelope A triggers the Envelope B after reach the
end of the Attack phase
3 - Envelope A triggers the Envelope B after reach the
end of the Decay phase
4 - Envelope B triggers the Envelope A after reach the
end of the Decay phase
5 - Envelope A triggers the Envelope B after reach the
end of the Attack phase and Envelope B triggers Envelope
A after reach the end of the Decay phase
6 - Envelope A triggers the Envelope B after reach the
end of the Decay phase and Envelope B triggers Envelope
A after reach the end of the Decay phase
Each envelope has four manual controls,
Attack/Decay time and Attack/Decay shape, continuously
variable from exponential to logarithmic. The A/D times
can be voltage controlled using the three available
modulation inputs, one for the Attack time, one for the
Decay time and one that controls the Attack and Decay
times simultaneously.
C106 Dual Loopable
VC AD Envelope & more

C106 Dual Loopable VC AD Envelope & more
2
HTTP://WWW.CORSYNTH.COM
Attack / Decay times without voltage control:
Exponential Attack : from 0.5 ms to 7.5 s
Logarithmic Attack : from 5.5 ms to 68 s
Exponential Decay : from 4 ms to 10 s
Logarithmic Decay : from 37 ms to 94 s
Each envelope has an envelope output (0 to 5V), a bipolar output ( +/-5V ), an END pulse output (outputs a short
pulse every time the envelope reach the end of the Decay stage) and a gate/trigger input.
There are also another two common outputs with special functions :
A+B output: outputs the addition of the Envelope A and Envelope B. This function is really useful to
create complex envelopes.
A-B output: outputs the subtraction of the Envelope A and Envelope B. Using this output you can get
inverted envelopes, complex waveforms…

C106 Dual Loopable VC AD Envelope & more
3
HTTP://WWW.CORSYNTH.COM
C106 Dual Loopable VC AD Envelope & More
Front Panel Description
DUAL LOOPABLE VC AD ENVELOPE & MORE
C106
ATTACK A
MIN MAX
DECAY A
MIN MAX
END A OUT A A-B OUT END B OUT B
BIPOLAR A BIPOLAR B
A CV
GATE A GATE B
LOOP
SINGLE
D SHAPE B
EXP LOG
ATTACK B
MIN MAX
DECAY B
MIN MAX
AT SHAPE B
EXP LOG
AB-A
AB-E
OFF
BA-E
D CV
A+D CV
A CV
D CV
A+D CV
D SHAPE A
EXP LOG
AT SHAPE A
EXP LOG
A+B OUT
LOOP
SINGLE
Attack Time CV input
Attack Time control
Decay Time Control
Loop on / o switch
Decay Time CV input
Attack Time CV input
Attack Shape
Attack + Decay CV Input
Decay Shape
Attack Shape
Decay Shape
Attack + Decay CV Input
Attack Time CV input
Env A + Env B output
Gate input
Env B Bipolar Output
Envelope B Output
End B Pulse Output
Loop on / o switch
Decay Time Control
Decay Time CV input
Env A - Env B output
Envelope A Output
End A Pulse Output
Env A Bipolar Output
Gate input
A - B connection switch
B - A connection switch

C106 Dual Loopable VC AD Envelope & more
4
HTTP://WWW.CORSYNTH.COM

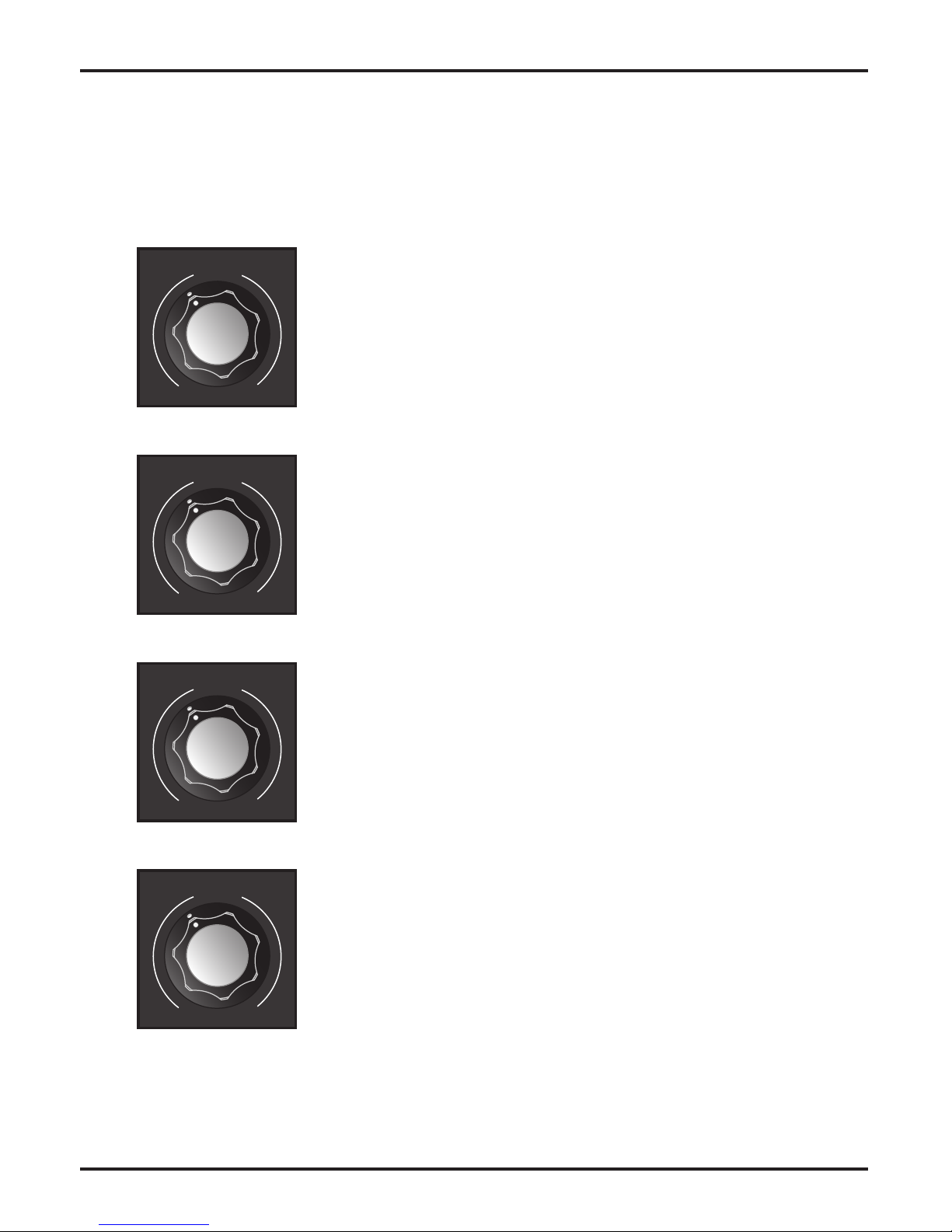

CONTROL DESCRIPTION
ATTACK A
This control sets the Attack Time of the Envelope A. The total Attack
time is also dependent on the Attack Shape and the Attack CV.
Attack times without voltage control:
Exponential Attack : from 0.5 ms to 7.5 s
Logarithmic Attack : from 5.5 ms to 68 s
ATTACK A
MIN MAX
DECAY A
This control sets the Decay Time of the Envelope A. The total Decay
time is also dependent on the Decay Shape and the Decay CV.
Decay times without voltage control:
Exponential Decay : from 4 ms to 10 s
Logarithmic Decay : from 37 ms to 94 s
DECAY A
MIN MAX
AT SHAPE A
This control denes the Envelope A Attack curve . The Attack Shape
is continuously variable from exponential to logarithmic.
D SHAPE A
This control sets the Envelope A Decay curve . The Decay Shape is
continuously variable from exponential to logarithmic.
AT SHAPE A
EXP LOG
D SHAPE A
EXP LOG

C106 Dual Loopable VC AD Envelope & more
6
HTTP://WWW.CORSYNTH.COM

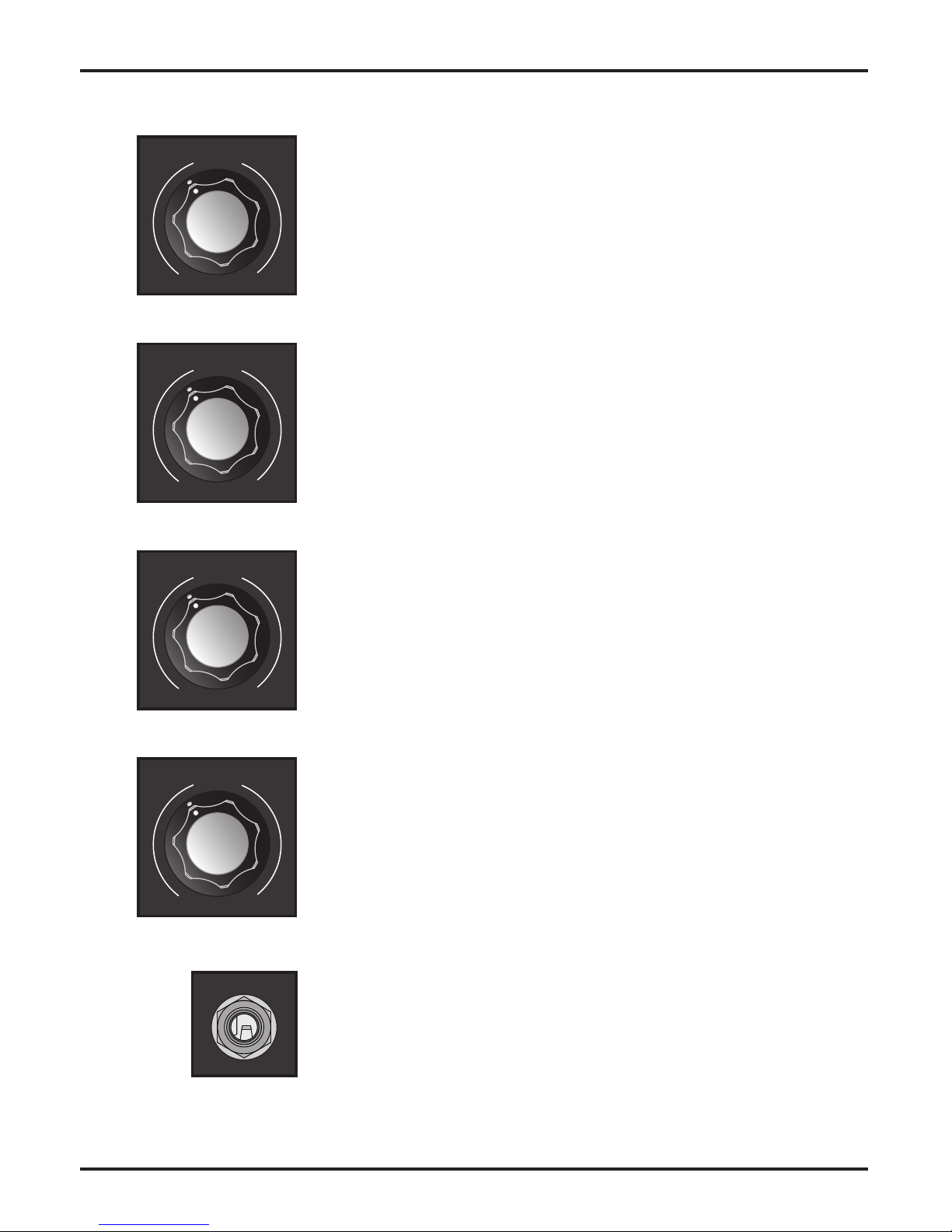

ATTACK B
This control sets the Attack Time of the Envelope B. The total Attack
time is also dependent on the Attack Shape and the Attack CV.
Attack times without voltage control:
Exponential Attack : from 0.5 ms to 7.5 s
Logarithmic Attack : from 5.5 ms to 68 s
ATTACK B
MIN MAX
DECAY B
This control sets the Decay Time of the Envelope B. The total Decay
time is also dependent on the Decay Shape and the Decay CV.
Decay times without voltage control:
Exponential Decay : from 4 ms to 10 s
Logarithmic Decay : from 37 ms to 94 s
DECAY B
MIN MAX
AT SHAPE B
This control denes the Envelope B Attack curve . The Attack Shape
is continuously variable from exponential to logarithmic.
D SHAPE B
This control sets the Envelope B Decay curve . The Decay Shape is
continuously variable from exponential to logarithmic.
AT SHAPE B
EXP LOG
D SHAPE B
EXP LOG
A CV ( Envelope B )
Attack Time CV input. This signal is added to the Attack Time set by
the Attack B potentiometer. This input accepts positive and negative
signals (+/- 5V). A positive signal results in longer attack times and a
negative signal results in shorter attack times.
A CV

C106 Dual Loopable VC AD Envelope & more
7
HTTP://WWW.CORSYNTH.COM
LOOP ON/OFF SWITCH ( Envelope B )
Loop mode: After reach the end of the Decay phase the envelope
restarts automatically.
Single Shot mode: After reach the end of the Decay phase the enve-
lope remain at 0 Volts until another trigger/gate signal is received.
D CV
A+D CV
LOOP
SINGLE
D CV ( Envelope B )
Decay Time CV input. This signal is added to the Decay Time set by
the Decay B potentiometer. This input accepts positive and negative
signals (+/- 5V). A positive signal results in longer decay times and a
negative signal results in shorter decay times.
A+D CV ( Envelope B )
Attack and Decay Time CV input. This signal is added to the Attack/
Decay Time set by the Attack B and Decay B potentiometers. This
input accepts positive and negative signals (+/- 5V). A positive signal
results in longer attack/decay times and a negative signal results in
shorter attack/decay times.

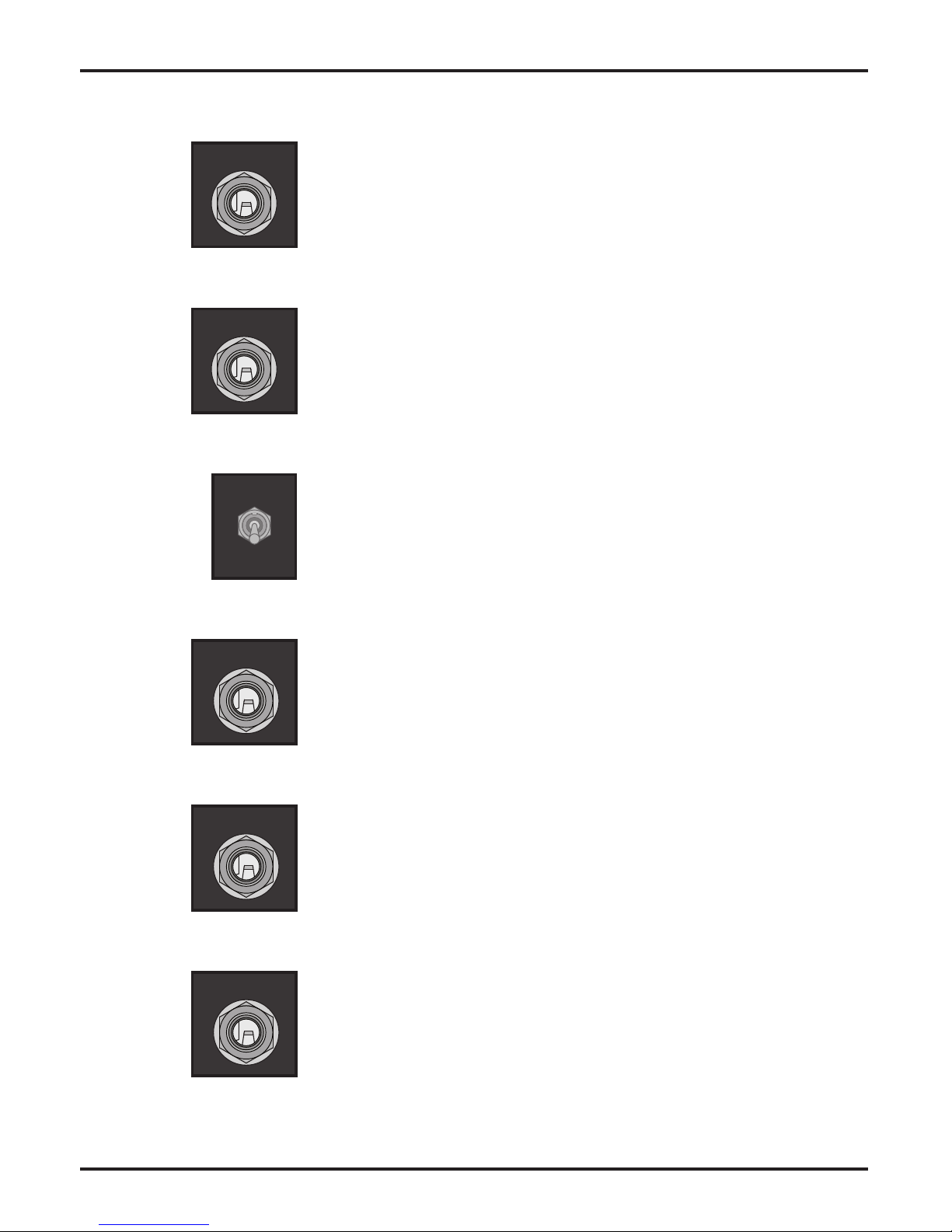

GATE A
Envelope A Gate input. This input is used to starts the envelope. The
envelope is a AD type so it doesn't matter if the signal received is a
gate or a trigger. The envelope can be re-triggered at every moment
of the Decay phase, if a Gate/Trigger signal is received during the
Attack phase this signal will be ignored.
GATE A
END A
End of Envelope A Pulse Out. A short pulse will be delivered every
time the Envelope A reach the end of the Decay Phase. This pulse can
be used to trigger envelopes, restart LFOs ....
END A
ENVELOPE A BIPOLAR OUTPUT
This output provides a bipolar version (+/-5V) of the Envelope A . This
signal can be used as VC LFO, Audio Generator or even adding oset
as 10Vpp envelope. If no envelope signal is pressent, this output will
remain at -5V so it can be use as voltage source.
BIPOLAR A

C106 Dual Loopable VC AD Envelope & more
8
HTTP://WWW.CORSYNTH.COM

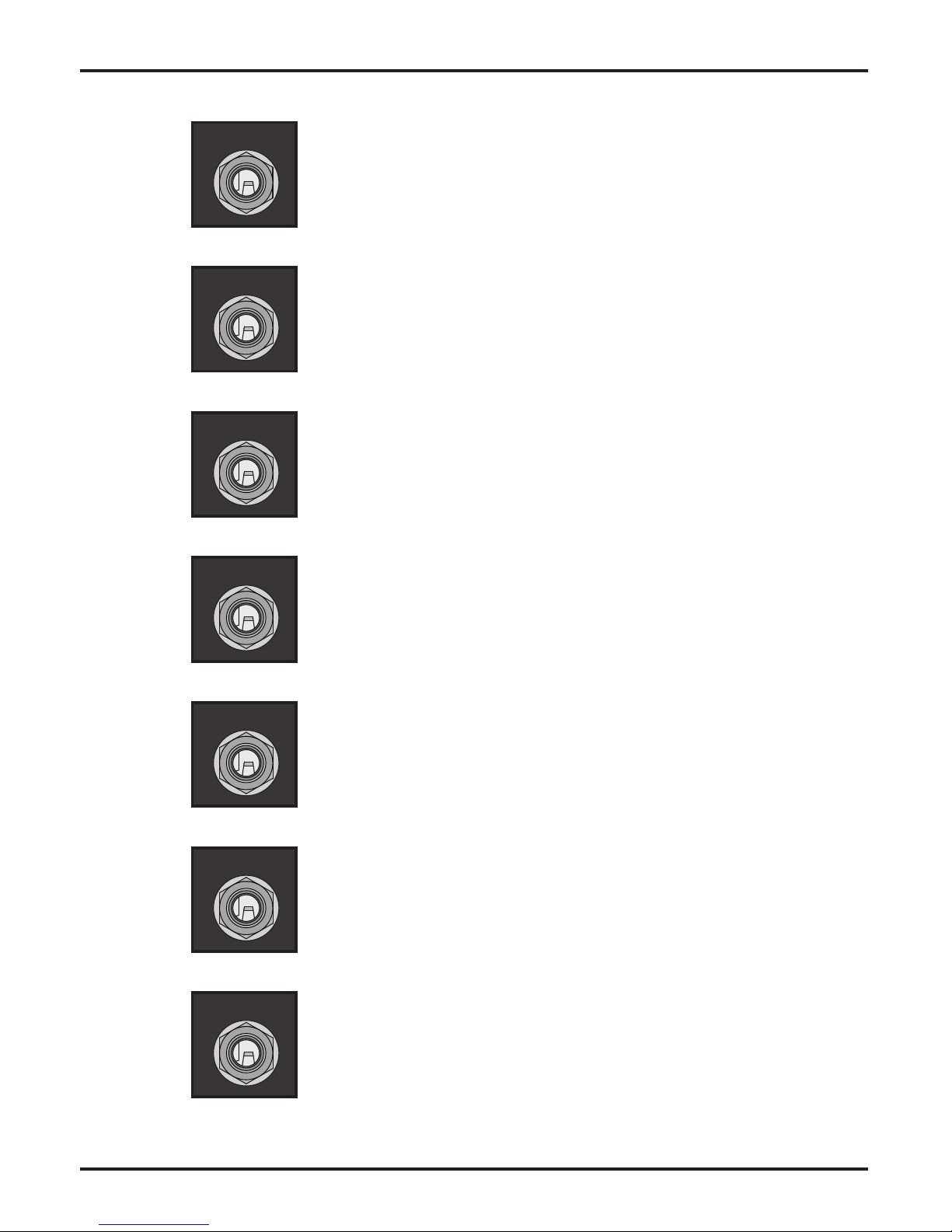

ENVELOPE A OUTPUT
Envelope A output
ENVELOPE A + ENVELOPE B OUTPUT
Outputs the addition of the Envelope A and Envelope B. This function
is really useful to create complex envelopes.
GATE B
END B
BIPOLAR B
ENVELOPE A - ENVELOPE B OUTPUT
Outputs the subtraction of the Envelope A and Envelope B. Using this
output you can get inverted envelopes, complex waveforms that can
be used as modulation source or audio source...
OUT A
A+B OUT
A-B OUT
OUT B
GATE B
Envelope B Gate input. This input is used to starts the envelope. The
envelope is a AD type so it doesn't matter if the signal received is a
gate or a trigger. The envelope can be re-triggered at every moment
of the Decay phase, if a Gate/Trigger signal is received during the
Attack phase this signal will be ignored.
END B
End of Envelope B Pulse Out. A short pulse will be delivered every
time the Envelope B reach the end of the Decay Phase. This pulse can
be used to trigger envelopes, restart LFOs ....
ENVELOPE B BIPULAR OUTPUT
This output provides a bipolar version (+/-5V) of the Envelope B . This
signal can be used as VC LFO, Audio Generator or even adding oset
as 10Vpp envelope. If no envelope signal is pressent, this output will
remain at -5V so it can be use as voltage source.
ENVELOPE B OUTPUT
Envelope B output

C106 Dual Loopable VC AD Envelope & more
9
HTTP://WWW.CORSYNTH.COM
ATTACK / DECAY RESPONSE CURVE
Exponential Attack Linear Attack
Logarithmic Attack Exponential Decay
Linear Decay Logarithmic Decay

C106 Dual Loopable VC AD Envelope & more
10
HTTP://WWW.CORSYNTH.COM
AB-E MODE + BA-E MODE
A
B
A + B OUT
A - B OUT
A
B
A + B OUT
A - B OUT
AB-A MODE + BA-E MODE
CONNECTION EXAMPLES

C106 Dual Loopable VC AD Envelope & more
11
HTTP://WWW.CORSYNTH.COM
Synthesizers.com
power connector
MOTM
power connector
POWER CONNECTORS
Module Format : 5U, MU format ( Synthesizers.com, Moog )
Module Width : 2 MU ( Moog unit )
Module Depth :56 mm ( 2,2 inches )
Power : +15V@67mA , -15V@68mA
Power connectors : Synthesizers.com , MOTM ( 4 pin )
Signal level : Envelope 5Vpp ( 0V / +5V ) , Bipolar 10Vpp ( +/- 5V )
TECHNICAL DATA
+15V+5V
GND
-15V
N/C
+15V-15V GND
GND
Synthesizers.com
MOTM
IMPORTANT !!!!
This module has two power connec-
tors (Synthesizers.com and MOTM).
Only one is needed to power the
module. (Synthesizers.com or MOTM).
Never connect both at the
same time.

C106 Dual Loopable VC AD Envelope & more
12
HTTP://WWW.CORSYNTH.COM
