Costar Video Systems CCI2100HW User manual

USER MANUAL
CCI2100HW

2
1 Introduction
The network camera supports the network service for a sensor image with progressive scan,
which can be monitored on a real-time screen regardless of distances and locations. By
using its dedicated program, many users are able to have an access to the network camera
at once or a single user can monitor various network cameras at the same time. It also
enables users to play, store and retrieve a monitoring image by using a PC. All the settings
and real-time monitoring screens are also provided through an access to the web.
The network camera is fully featured for security surveillance and remote monitoring needs.
It is based on the DSP compression chip, and makes it available on the network as real-
time, full frame rate Motion JPEG and H.264 video streams.
1.1 Components
This system comes with the followingcomponents;
Network Camera 1
Installation Guide / CD 1
BNC Cable (Optional) 1
U-shaped Mount 1
Bracket Extenders 2
Hardware (two types of mounting screws)

3
2 Installation
2.1 Basic Configuration of Camera System
The camera must be installed by qualified service personnel in accordance with all local and
federal electrical and building codes.
No.
Description
1
12VDC
2
GND
3
AUDIO IN
4
AUDIO OUT
5
GND
6
ALARM IN
7
ALARM OUT
8
GND
9
VIDEO OUT(CVBS)
10
GND
11
NETWORK / PoE
12
DC - IRIS
C/CS Mount Camera

4
• Installing Camera
Mounting Brackets (Optional)

5
• Dimension
< CS mount >

6
2.2 Micro-SD Card Insertion
• Micro SD memory cardinsertion
User can install and change Micro-SD card as shown in the following picture.

7
2.3 Connections
•Connecting the Network
Connect a standard RJ-45 cable to the network port of the camera. Generally a crossover cable
is used for directly connecting to a PC, while a direct cable is used for connection to a hub.
•Connecting Audio
Connect audio output line and audio input line.
•Connecting Alarms
–AL_IN (Alarm Input)
You can use external devices to signal the camera to react on events. Mechanical or electrical
switches can be wired to the A1 (Alarm Input 1) and G (Ground) connectors.
–GND (Ground)
NOTE: All the connectors marked G or GND are common.
Connect the ground side of the alarm input and/or alarm output to the G (Ground) connector.
–AL_OUT (Alarm Output)
The camera can activate external devices such as buzzers or lights. Connect the device to the
AO (Alarm Output) and G (Ground) connectors.
•Connecting the Power
Connect power of 12VDC for the camera.
When using a 12VDC adapter, connect the positive (+) pole to the ‘+’ position and the negative
(-) pole to the ‘-’ position.
Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.
–Be careful not to reverse the polarity when you connect the power cable.

8
2.4. Network Connection & IP assignment
The camera supports operation through the network. When a camera is first connected to the network,
it is necessary to allocate an IP address to the device with the SmartManager utility on the CD.
(Default IP 192.168.0.129)
1) Connect the network camera/device to the network and power up.
2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager).
The main window will display, and after a short while any network devices connected to the network
will be displayed in the list.
3) Select the camera on the list and click right mouse button. You can see the pop-up menu as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.
NOTE: For more information, refer to the SmartManager User’s Manual.

9
3 Operation
The network camera can be used with Windows operating system and browsers. The recommended
browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow ActiveX
controls.
3.1 Access from a browser
1. Start a browser (Internet Explorer).
2. Enter the IP address or host name of the network camera in the Location/Address field of your
browser.
3. You can see a starting page. Click Live View, Playback, or Setup to enter web page.
4. The network cameras Live View page appears in your browser.

10
3.2 Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access the network
camera from the Internet you must configure your broadband router to allow incoming data traffic to
the network camera. To do this, enable the NAT traversal feature, which will attempt to automatically
configure the router to allow access to the network camera. This is enabled from Setup > System >
Network > NAT. For more information, please see “System > Network > NAT” of User’s Manual.
3.3 Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be set. This is done
in the Admin Password dialog, which is displayed when the network camera is accessed for setup at
the first time. Enter your admin name and password, set by the administrator.
NOTE: The default administrator user name and password is admin. If the password is lost, the network
camera must be reset to the factory default settings. Please see Resetting to the factory default
settings.
To prevent network eavesdropping when setting the admin password, this can be done via an
encrypted HTTPS connection, which requires an HTTPS certificate (see NOTE below). To set the
password via a standard HTTP connection, enter it directly in the first dialog shown below. To set the
password via an encrypted HTTPS connection, please see “System > Security > HTTPS” of User’s
Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the traffic between
web browsers and servers. The HTTPS certificate controls the encrypted exchange of
information.

11
3.4 Live View Page
The Live View page comes in several screen modes: 1920x1080, 1280x1024, 1280x720(960),
1024x768, 704x480(576), 640x480(360) and 320x240. Users are allowed to select the most suitable
mode for their application needs. Adjust the mode in accordance with your PC specifications and
monitoring purposes.
1) General controls
Live View Page Playback Page Setup Page Help Page
The video drop-down list allows you to select a customized or preprogrammed video
stream on the Live View page. Stream profiles are configured under Setup > Basic
Configuration > Video & Image. For more information, please see “Basic
Configuration > Video & Image” of User’s Manual.
The resolution drop-down list allows you to select the most suitable video
resolution to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of protocols and
methods to use depending on your viewing requirements, and on the properties of
your network.
The preset drop-down list allows you to select thepreset number forthe PTZ camera
being used.

12
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following buttons:
The Stop button stops the video stream being played. Pressing the key again toggles the play
and stop.
The Play button connects to the network camera or starts playing a video stream.
The Pause button pauses the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the image is
saved can be specified.
The Digital Zoom button activates a zoom-in or zoom-out function for video image on the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other windows
will be visible. Press the ’Esc’ button on the computer keyboard to cancel full screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the event.
The PTZ button activates a pop-up window for Zoom, Focus control and Preset setting.
- The camera can save and run preset number 1~32.
- If you select and run Preset 33~256, the preset command will be sent through RS-485 port of
the camera.
The VCA button shows/hides VCA rule setting and detected objects.
The Face Detector button shows/hides detected faces.
The Speaker button activates/deactivates external speaker.
The Mic button activates/deactivates microphone input.
Use this scale to control the volume of the speakers and microphones.
NOTE1: VCA and Face Detector buttons appear only when each function is activated.
NOTE2: VCA and Face Detector works exclusively to each other.
3) Video Streams
The network camera provides several images and video stream formats. Your requirements and the
properties of your network will determine the type you use.
The Live View page in the network camera provides access to H.264 and Motion JPEG video
streams, and to the list of available video streams. Other applications and clients can also access
these video streams/images directly, without going via the Live View page.

13
3.5 Playback
The Playback window contains a list of recordings made to the memory card. It shows each recording’s
start time, length, the event type used to start the recording, calendar and time slice bar indicates if the
recording exists or not.
The description of playback window follows.
1) Video Screen
You can see the video screen when playing the video clip in the Micro SD memory.
2) Playback Buttons
To view recorded data in the SD local storage, select it from the list and click the Playback buttons.
Go to the first: go to the beginning of the video clip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the video clip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the video clip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the video clip.
Fast forward play: play fast forward of the video clip.
Go to the last: go to the end of the video clip.
Clip copy: copy the video clip.
Zoom In: zoom in the video clip.
Full Screen: display full screen of the video.

14
3) Time Chart
Display an hour-based search screen for the chosen date. If there is recorded data, a blue section
will be displayed on a 24-hour basis. If you select a particular hour in the chart, a yellow square on
the hour will be displayed.
4) Speaker Control Bar
Use this scale to control the volume of the speakers.
5) Search Calendar
Search results from the SD local storage in the network camera connected are displayed monthly.
If there is a recorded data for a particular date, a blue square on the date will be displayed. If you
select a particular date in the calendar, a yellow square on the date will be displayed.
6) Play Time
Displays time of the video playing.

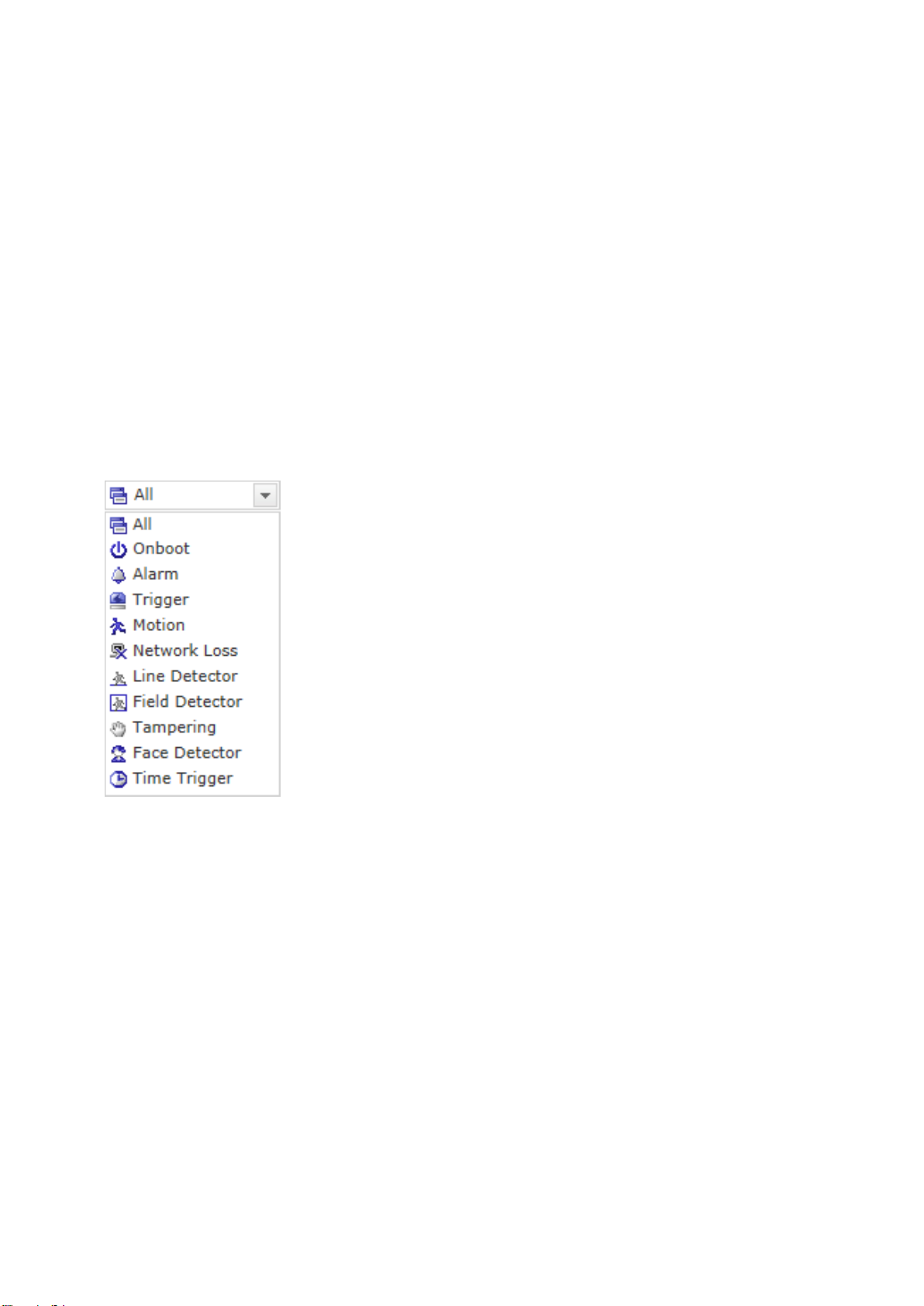

7) Event Search Window
Select a search option in the drop-down list and click GO button. You can also enter the time period
for searching. To display the Calendar search, click Start Date or End Date.
8) Event List Window
Event List displays the event(s) that were recorded in the SD local storage. Select an event and
click the play button. The video clip will be played.

15
3.6 Network Camera Setup
This section describes how to configure the network camera.
Administrator has unrestricted access to all the Setup tools, whereas Operators have access to the
settings of Basic Configuration, which are Live View, Video & Image, Audio, Event, Dome
Configuration, and System.
You can configure the network camera by clicking Setup either in the first connection page or the top
second-right button of the Live View page. Accessing the network camera from a computer for the first
time opens the Admin Password dialog box. Enter your administrator or operator ID and password to
get into setup page.
NOTE: If the password is lost, the network camera must be reset to the factory default settings. Please
see “Resetting to the Factory Default Setting”.

16
3.7 Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System > Maintenance
web page (described in “System > Maintenance” of User’s Manual) or use the Reset button on the
network camera, as described below:
•Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings using the Reset
button.
1. Switch off the network camera by disconnecting the power adapter.
2. Press and hold the Reset button on the board with your finger while reconnecting the power.
3. Keep the Reset button pressed for about 2 seconds.
5. Release the Reset button.
6. The network camera resets to factory defaults and restarts after completing the factory reset.
CAUTION: When performing a Factory Reset, you will lose anysettings that have been saved. (Default
IP 192.168.0.129)

17
System Requirement for Web Browser
•Operating System: Microsoft Windows OS Series
•CPU: Intel Core 2 Duo 2GHz or higher, 1GB RAM or more, 10GB free disk or higher
•VGA: AGP, Video RAM 32MB or higher (1024x768, 24bpp or higher)
General Performance Considerations
When setting up your system, it is important to consider how various settings and situations will affect
performance. Some factors affect the amount of bandwidth (the bit rate) required, others can affect the
frame rate, and some affect both. If the load on the CPU reaches its maximum, this will also affect the
frame rate.
The following factors are among the most important to consider:
•High image resolutions and/or lower compression levels (or high bitrates) result in larger images.
Frame rate and Bandwidth affected.
• Accessing both Motion JPEG and H.264 video streams simultaneously. Frame rate and bandwidth
affected.
•Heavy network utilization due to poor infrastructure. Frame rate and Bandwidth affected.
•Heavy network utilization via wireless router due to poor infrastructure. Frame rate and bandwidth
affected.
•Viewing on poorly performing client PCs lowers perceived performance. Frame rate affected.
4 Product Specification
Model
CS Mount NETWORK CAMERA
Lens
-
Angle of View
-
Image Sensor
Type
1/2.8”SONY Exmor CMOS sensor
Pixels
2000(H) x 1241(V)
Min. Illumination
Color : 0.04 Lux @ F1.2, 50IRE
BW : 0.01 Lux @ F1.2, 50IRE
Scanning Mode
Progressive Scan
Wide Dynamic Mode
True WDR (120dB)
Noise Reduction
2DNR, 3DNR
Digital Zoom
Yes (ROI)
Exposure Control
Auto
White Balance Control
Auto, Incandescent, Fluorescent, Outdoor
Back Light Compensation
Yes
Image effect
Flip, Mirror, Aisle
Flicker Free Mode
50Hz, 60Hz
Shutter Speed
Auto(1/10,000 ~ 1sec), Manual

18
VIDEO/AUDIO
Compression
H.264(Baseline, Main, High Profile), MJPEG
Bitrate Control
CVBR, VBR
Resolution
1920x1080, 1280x1024, 1280x720/960, 1024x768, 704x480/576,
640x360/480, 320x240
Frame Rate
Max. 50fps/60fps
Streaming
50/60fps (Dual Stream : H.264 x 1,
MJPEG x 1)
25/30fps (Triple Stream : H.264 x 2,
MJPEG x 1)
Composite Out
Yes(25/30fps Mode)
Audio Compression
G.711
Audio Streaming
2 Way
SYSTEM
Video Contents Analysis
DIS, Defog, Face Detector, Tampering, Line Detector, Field Detector
Motion Detection Area
16 Programmable Area (Include Area 8, Exclude Area 8)
Privacy Mask Zone
8 Programmable Zone
FTP Uploading
MJPEG
Event Notification
E-mail, FTP, Notification Server, XML Notification, Audio Alert, AIHM
Audio Alert
User-Defined 3 Audio files
Login Authority
Administrator, Operator, Guest
Event Buffering
FTP
Pre : 30sec, Post : 30sec
SD Record
Pre : 10sec, Post : 60sec
Manual Trigger
4 Programmable Trigger
Security
Multi User Authority, IP Filtering, HTTPS, SSL
Network Time Sync
NTP Server, Synchronized Computer, Manual
Software Reset
Restart, Reset, Factory Default
Hardware Factory Reset
Yes
Auto Recovery
Backup, Restore
Remote Upgrade
Web Browsing(IE, Chrome, Safari, Firefox), Smart Manager
SD Recording Mode
Event, Continuous
NETWORK
Protocols
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, QoS, FTP, UPnP, RTP, RTSP,
RTCP, DHCP, ARP, Zeroconf, Bonjour
Client Software
Web, SmartManager, Client S/W, Mobile S/W
Max. User Connection
Live : 10 Users, Playback : 3 Users
API Support
Open API, ONVIF Compliance
Mobile Support
Android, i-OS
EXTERNAL
IN/OUT
Video Composite Out
1 Output
1 Output(25/30fps Mode)
Audio
1 Input, 1 Output
Alarm
1 Input, 1 Output
Ethernet
RJ-45 (10/100Base-T)
u-SD Card
SDHC (Max. 32GB)
ETC
Operating Humidity
0 ~ 90% RH (Non-condensing)
Operating Temperature
-10℃~ +50℃
Power Supply
PoE(IEEE802.3af compliance, Class0), 12VDC
Power Consumption
120mA(5.8W) @ PoE, 370mA(4.5W) @ 12VDC
Dimensions
54(W)mm x 55(H)mm x 49.7(D)mm
Net Weight
155g(Unit)
*Specifications are subject to change without notice.

19
Full-HD NETWORK SQUARE CAMERA
50303998B
