Costar Video Systems CDI2112SV User manual

CDI2112SV
User Manual

i
Precautions
Precautions
Fully understand this document before using this device, and strictly observe rules in
this document when using this device. If you install this device in public places,
provide the tip "You have entered the area of electronic surveillance" in an eye-
catching place. Failure to correctly use electrical products may cause fire and severe
injuries. To prevent accidents, carefully read the following context:
Symbols
This document may contain the following symbols whose meanings are described
accordingly.
Symbol
Description
It alerts you to fatal dangers which, if not avoided, may
cause deaths or severe injuries.
It alerts you to moderate dangers which, if not avoided,
may cause minor or moderate injuries.
It alerts you to risks. Neglect of these risks may cause
device damage, data loss, device performance
deterioration, or unpredictable results.
It provides a tip that may help you resolve problems or
save time.
It provides additional information.
To prevent electric shocks or other dangers, keep power plugs dry and clean.
Strictly observe installation requirements when installing the device. The
manufacturer shall not be held responsible for device damage caused by users' non-
conformance to these requirements.

ii
Strictly conform to local electrical safety standards and use power adapters that are
marked with the LPS standard when installing and using this device. Otherwise,
this device may be damaged.
Use accessories delivered with this device. The voltage must meet input voltage
requirements for this device.
If this device is installed in places with unsteady voltage, ground this device to
discharge high energy such as electrical surges in order to prevent the power supply
from burning out.
When this device is in use, ensure that no water or any liquid flows into the device.
If water or liquid unexpectedly flows into the device, immediately power off the
device and disconnect all cables (such as power cables and network cables) from
this device.
Do not focus strong light (such as lighted bulbs or sunlight) on this device.
Otherwise, the service life of the image sensor may be shortened.
If this device is installed in places where thunder and lightning frequently occur,
ground the device nearby to discharge high energy such as thunder strikes in order
to prevent device damage.
Avoid heavy loads, intensive shakes, and soaking to prevent damages during
transportation and storage. The warranty does not cover any device damage that is
caused during secondary packaging and transportation after the original packaging
is taken apart.
Protect this device from fall-down and intensive strikes, keep the device away from
magnetic field interference, and do not install the device in places with shaking
surfaces or under shocks.
Clean the device with a soft dry cloth. For stubborn dirt, dip the cloth into slight
neutral cleanser, gently wipe the dirt with the cloth, and then dry the device.
Do not jam the ventilation opening. Follow the installation instructions provided in
this document when installing the device.
Keep the device away from heat sources such as radiators, electric heaters, or other
heat equipment.
Keep the device away from moist, dusty, extremely hot or cold places, or places
with strong electric radiation.
If the device is installed outdoors, take insect- and moisture-proof measures to
avoid circuit board corrosion that can affect monitoring.
Remove the power plug if the device is idle for a long time.
Before unpacking, check whether the fragile sticker is damaged. If the fragile
sticker is damaged, contact customer services or sales personnel. The manufacturer
shall not be held responsible for any artificial damage of the fragile sticker.

iii
Special Announcement
All complete products sold by the manufacturer are delivered along with nameplates,
operation instructions, and accessories after strict inspection. The manufacturer shall
not be held responsible for counterfeit products.
This manual may contain misprints, technology information that is not accurate
enough, or product function and operation description that is slightly inconsistent with
the actual product. The manufacturer will update this manual according to product
function enhancement or changes and regularly update the software and hardware
described in this manual. Update information will be added to new versions of this
manual without prior notice.
This manual is only for reference and does not ensure that the information is totally
consistent with the actual product. For consistency, see the actual product.

iv
Contents
Precautions.................................................................................................................... i
1 Overview ................................................................................................................... 1
1.1 Hardware connection...................................................................................................... 1
1.2 Features.......................................................................................................................... 3
2 Device Dimensions ................................................................................................. 4
3 Device Installation................................................................................................... 5
3.1 Installation Preparation................................................................................................... 5
3.2 Installation Modes.......................................................................................................... 6
3.2.1 Ceiling Mount Installation ................................................................................. 6
3.2.2 Wall Mount Installation.................................................................................... 14
4 Quick Configuration ............................................................................................. 17
4.1 Login and Logout......................................................................................................... 17
4.2 Browsing Video............................................................................................................ 17
4.2.1 Download the right control in the Internet Explorer......................................... 19
4.2.2 In the Google, Firefox, or Safari browsers watch real-time video.................... 19
4.3 Setting Local Network Parameters............................................................................... 19
5 Technical Specifications....................................................................................... 22
A Hazardous Substance Declaration..................................................................... 26

1
1 Overview
1.1 Hardware connection
Figure 1-1 shows the multi-head cable used by Vandal Dome Network Camera, which
is described in Table 1-1.
Multi-head cable
Multi-head cable description
NO.
Color
Port
Description
1
N/A
RJ45
Connects to a standard Ethernet cable.
2
Video Out
BNC
Analog Video Out
3
Power Port
Connects to a 12V direct current (DC)
power supply.

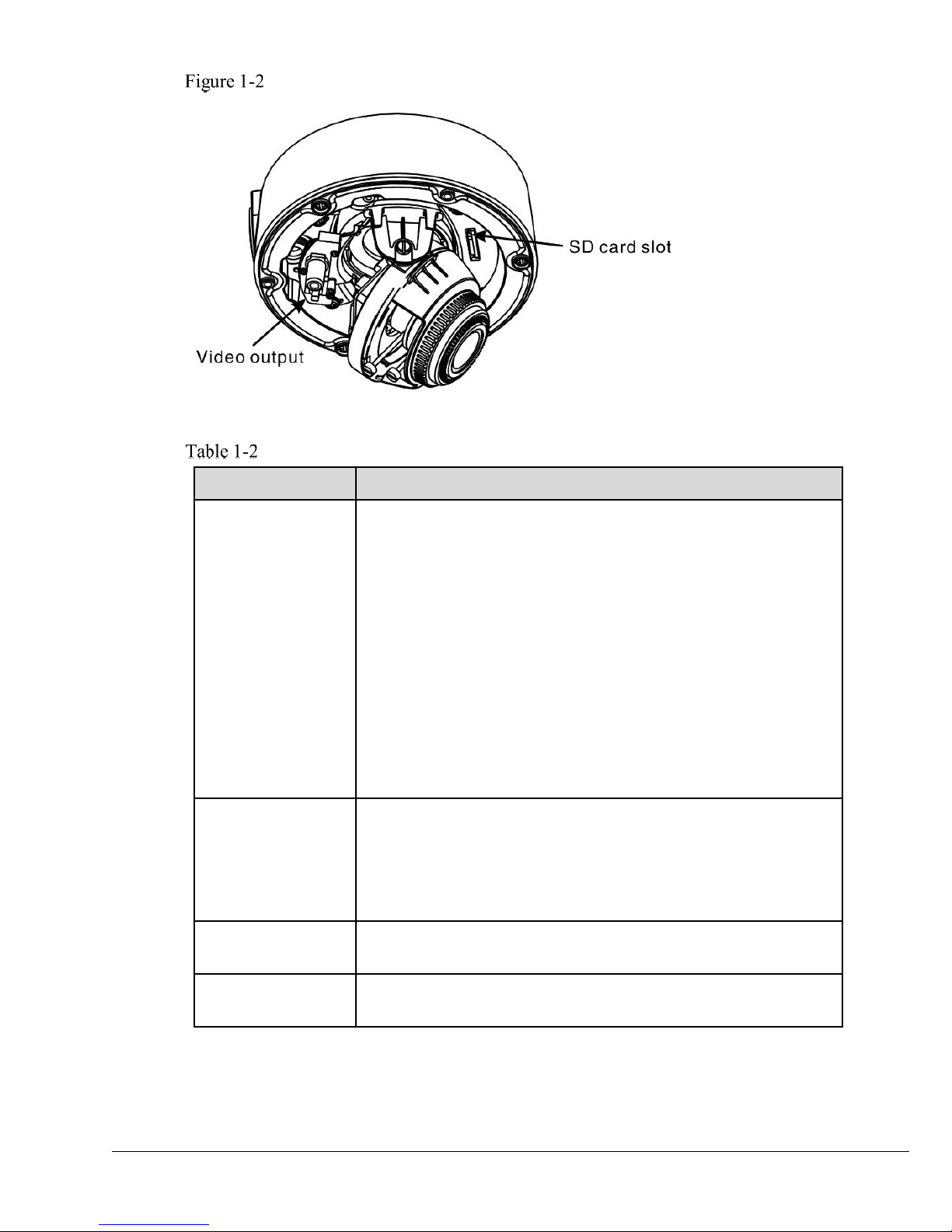

Figure 1-2 shows the SD card slot, which is described in Table 1-2.

2
SD card slot
Hardware port connection
Port
Description
SD card slot
Installs an SD card.
NOTE
Before installing an SD card, verify that the SD card is not in the
write protection state.
Before removing an SD card, verify that the SD card is not in the
write protection state. Otherwise, some data may be lost or the
SD card may be damaged.
Before installing or removing an SD card when the camera is
running, stop video recording first.
SD card indicator
Indicates the SD card status. The status is described as
follows:
Off: No SD card is inserted.
On: An SD card is inserted.
RESET button
Restores the camera to the factory settings by pressing and
holding this button for more than five seconds.
Network indicator
When plug into the network cable, the red indicator on and
the green indicator is flashing which in the adjacent position.

3
1.2 Features
Network Features
Supports the complete TCP/IP protocol suite.
Support video, audio, and alarm data.
Provides a built-in web browser and supports access using Microsoft Internet
Explorer.
Supports network data transmission and remote access.
Supports Point-to-Point Protocol over Ethernet (PPPoE), Dynamic Host
Configuration Protocol (DHCP), and Dynamic Domain Name System (DDNS)
protocols.
Supports matching Power over Ethernet (PoE) that complies with the IEEE802.3af
standard. The IP camera can connect to a switch or router supporting the PoE
function to implement PoE.
Supports remote upgrade and maintenance.
Image Processing Features
Supports multiple streams. Single-stream or dual-stream mode can be selected
based on the site requirement. Encoding parameters for the main stream and sub
stream can be configured separately.
Supports dynamic stream parameters based on different image quality
requirements.
Supports independent hardware compression, constant bit rate (CBR), and Variable
bit rate (VBR). Videos can be compressed using the Motion Joint Photographic
Experts Group (MJPEG) or H.264 standard. The frame rate and bit rate can be
configured.
I/O Features
Support bidirectional intercom, and unidirectional broadcast.
Provides a 10/100 Mbit/s self-adaptive Ethernet port.
Other Features
Supports the heartbeat function that allows the management host to learn the
running status of the IP camera in real time.
Supports level-based user rights management.

4
2 Device Dimensions
Figure 2-1 shows the vandal dome camera dimensions.
Dimensions (unit: mm)

5
3 Device Installation
3.1 Installation Preparation
When installing the camera, you may require the following tools and accessories listed
in Table 3-1. You need to prepare only listed tools as accessories are delivered with the
camera.
Installation tools
Tool
Appearance
Phillip Head Screwdriver (self-provided)
Claw hammer (self-provided)
Impact drill (self-provided)
Level (self-provided)
Black Screws (delivered with the camera)
Phillip Head Screws (delivered with the
camera)
T15 Screwdriver (delivered with the
camera)
Phillip Head Screws (delivered with the
camera)

6
Tool
Appearance
Video cables (delivered with the camera)
Plug Wrench (delivered with the camera)
White anchors (delivered with the camera)
To avoid moisture influence, install the dome cover at least half an hour after the
camera is installed and powered on.
3.2 Installation Modes
You can install the vandal dome camera in the ceiling mount, wall mount, wall side
mount bracket, or ceiling bracket installation mode depending on the actual installation
scenario. This section describes how to install the camera in the ceiling and wall mount
modes.
Do not detach the protective film from the dome cover before all the installation steps are
complete.
Keep the dome cover clean during the installation. Do not contact the dome by hand or
with other materials to avoid affecting video image quality.
3.2.1 Ceiling Mount Installation
The ceiling mount installation mode can be subdivided into installation by the white
lower cover and direct installation by the main body black base cover. The ceiling
mount installation mode applies to indoor ceilings or eaves, as shown in Figure 3-1.

7
Ceiling mount installation
Installation by the White Lower Cover
Step 1 Use the T15 Screwdriver in the accessory package to unscrew the three white plum

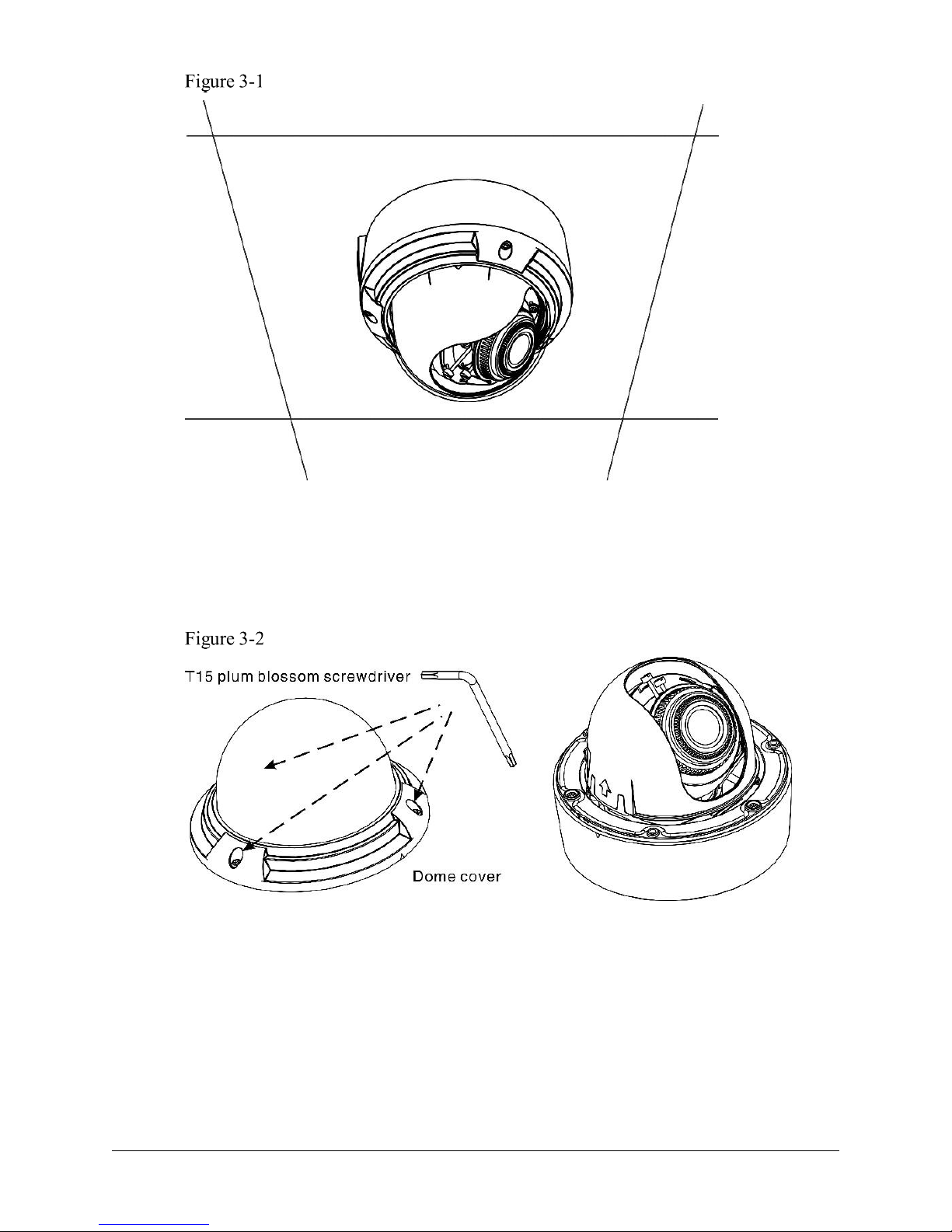

blossom screws on the dome cover. The camera is opened, as shown in Figure 3-2.
Opening the camera
Step 2 Press the left and right indicating arrows marked on the lining to remove and put the
lining aside. Use a Phillip Head Screwdriver to unscrew the three black screws and put
the screws aside. Turn the lower cover clockwise for 5 degrees and remove the lower
cover. See Figure 3-3.

8
Removingthe lining and lower cover
Step 3 Fetch the positioning labeling from the accessory package, remove the release paper
from the positioning labeling, and stick the labeling to the place where the camera is to
be installed.

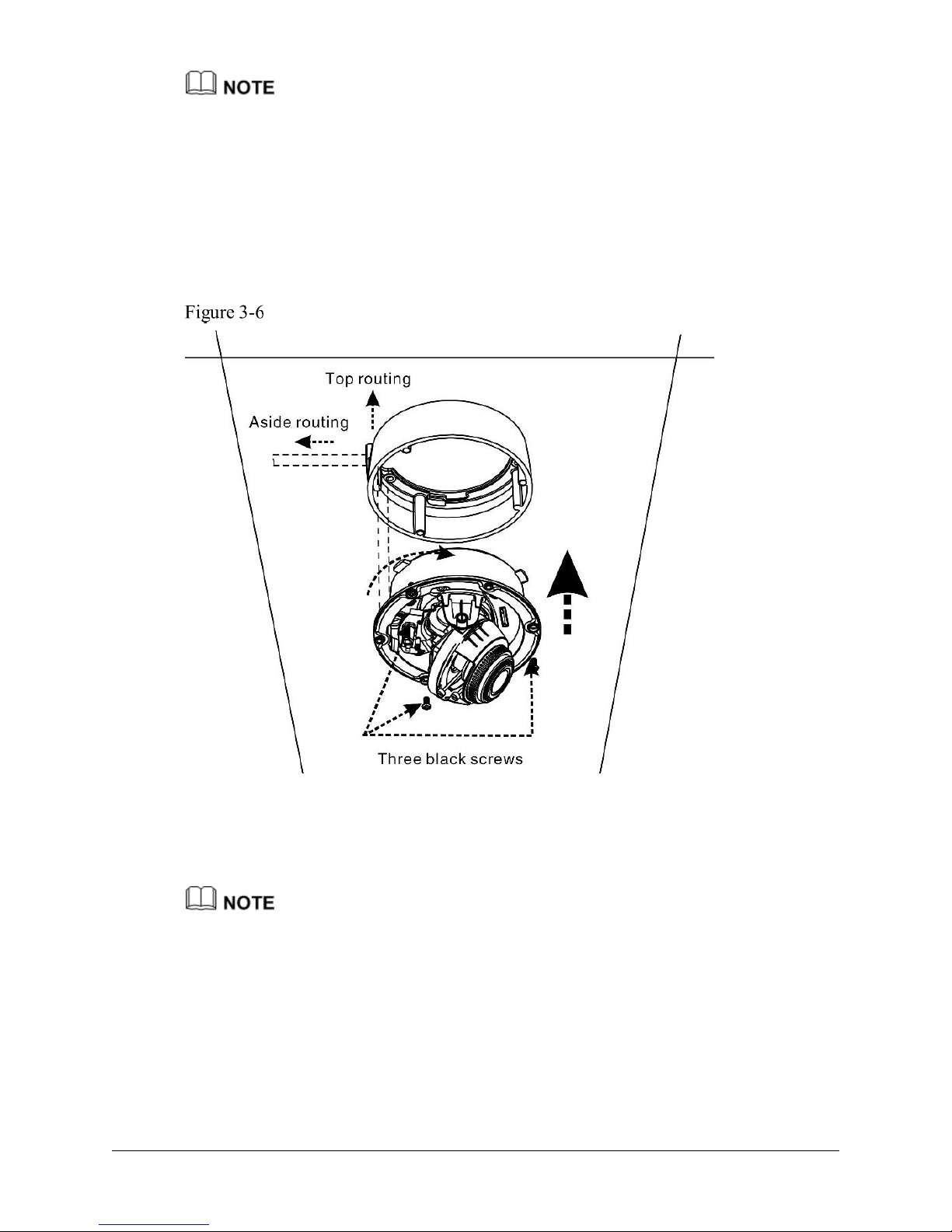

In the ceiling mount installation mode, you can route cables from the top or from aside.
Select the routing method depending on the installation scenario.
If you use the top routing method (which has high requirements on installation), drill a
routing opening with a diameter of 30 mm in the gap of the positioning labeling.
If the ceiling or eaves do not allow the routing opening, use the aside routing method.
When you route cables from aside, align the gap of the positioning labeling with the
cable routing direction and use the Plug Wrench to unscrew a plug on the lower cover to
facilitate cable routing.

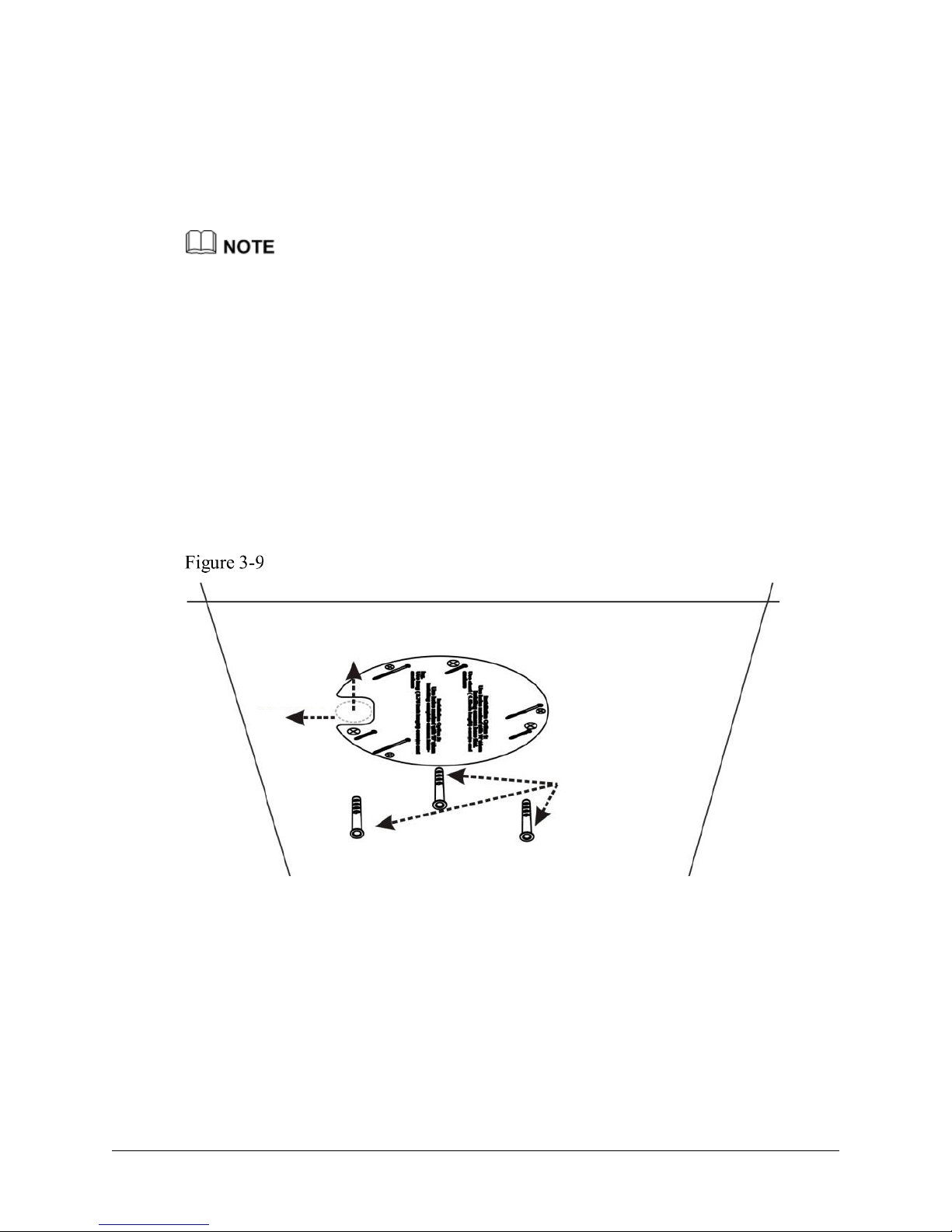

Step 4 Use a drill with a diameter of 5.5 mm to drill three round holes with a depth of 40 mm
in the places marked with "A" on the positioning labeling. Use a hammer or any other
rigid object to nail the three white plastic buttons into the round holes. Ensure that the
wall surface is level and the plastic buttons align with the wall surface. See Figure 3-4.

9
Nailing the white plastic buttons
Positioning
labeling
Three white
plastic buttons
Step 5 Fetch the lower cover, aim the three through-holes on the bottom of the lower cover at
the three white plastic buttons in the wall, and use three black self-tapping screws with
a length of 30 mm to fix the lower cover on the wall. See Figure 3-5.
Fixing the lower cover
Top routing
Aside routing
opening
Three white
plastic buttons
Three short
black self-
tapping screws
Plug
Plug wrench Positioning labeling
Step 6 Route the multi-head composite cables of the main body obtained in Step 2. See Figure
3-6.

10
If you use the top routing method, route the multi-head composite cables through the
routing opening with a diameter of 30 mm on the top.
If you use the aside routing method, route the multi-head composite cables through the
aside opening on the lower cover.
Step 7 Turn the main body clockwise for about 5 degrees to assembly it with the lower cover
that has been fixed on the wall in Step 5. Then screw the three black screws in Step 2
by using a Phillip Head Screwdriver to fix the main body to the lower cover. See
Figure 3-6. The accessory package contains spare black screws.
Fixing the main body to the lower cover
Step 8 Use the video cable in the accessory package to connect the second video port. Then
view the video, adjust the lens angle horizontally and vertically, and adjust the lens
focal length and field angle range, and insert the SD card. See Figure 3-7.
After adjustment, use a straight screwdriver to fasten the main body fixation screws if the
main body becomes loose.

11
Fastening screws
Step 9 Assemble the lining that has been removed in Step 2 with the main body and buckle the
four button placements with the main body bracket. Aim the three white plum blossom
screws, which have been unscrewed from the dome cover in Step 1, at the three
threaded holes on the main body black cover. Then prop the dome cover with one hand
and screw the plum blossom screws by using the T15 Screwdriver with the other hand
to fasten the dome cover. See Figure 3-8.
Assembling the lining and fastening the dome cover

12
----End
Direct Installation by the Main Body Base Cover
Step 1 Fetch the positioning labeling from the accessory package, remove the release paper
from the positioning labeling, and stick the labeling to the place where the camera is to
be installed.
In the ceiling mount installation mode, you can route cables from the top or from aside.
Select the routing method depending on the installation scenario.
If you use the top routing method (which has high requirements on installation), drill a
routing opening with a diameter of 30 mm in the gap of the positioning labeling.
If the ceiling or eaves do not allow the routing opening, use the aside routing method.
When you route cables from aside, align the gap of the positioning labeling with the
cable routing direction and use the Plug Wrench to unscrew a plug on the lower cover to
facilitate cable routing.
Step 2 Use a drill with a diameter of 5.5 mm to drill three round holes with a depth of 40 mm
in the places marked with "B" on the positioning labeling. Use a hammer to nail the
three white plastic buttons into the round holes. Ensure that the wall surface is level
and the plastic buttons align with the wall surface. See Figure 3-9.
Drilling round holes and nailing plastic buttons
Top routing
Aside routing
opening
Three white plastic
buttons
Step 3 Unscrew the three black screws on the main body black base cover and keep the lower
cover immobile.
Step 4 Route the multi-head composite cables of the camera.

13
If you use the top routing method, route the multi-head composite cables through the
routing opening with a diameter o 30 mm on the top.
If you use the aside routing method, route the multi-head composite cables through the
aside opening on the lower cover.

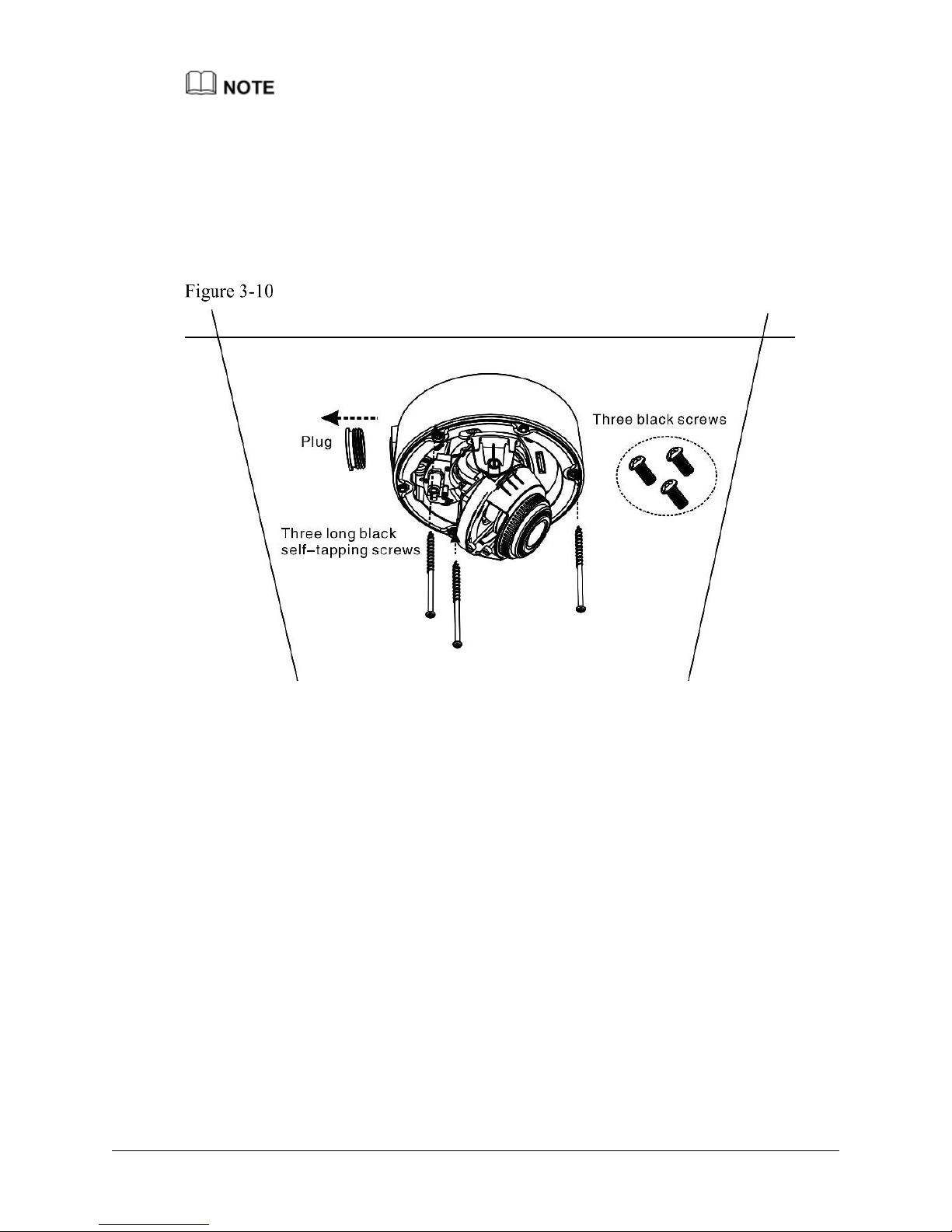

Step 5 Fetch three black self-tapping screws from the accessory package. Then prop the
camera with one hand and screw the self-tapping screws by using a Phillip Head
Screwdriver with the other hand to fasten the camera on the wall. See Figure 3-10.
Fastening the camera

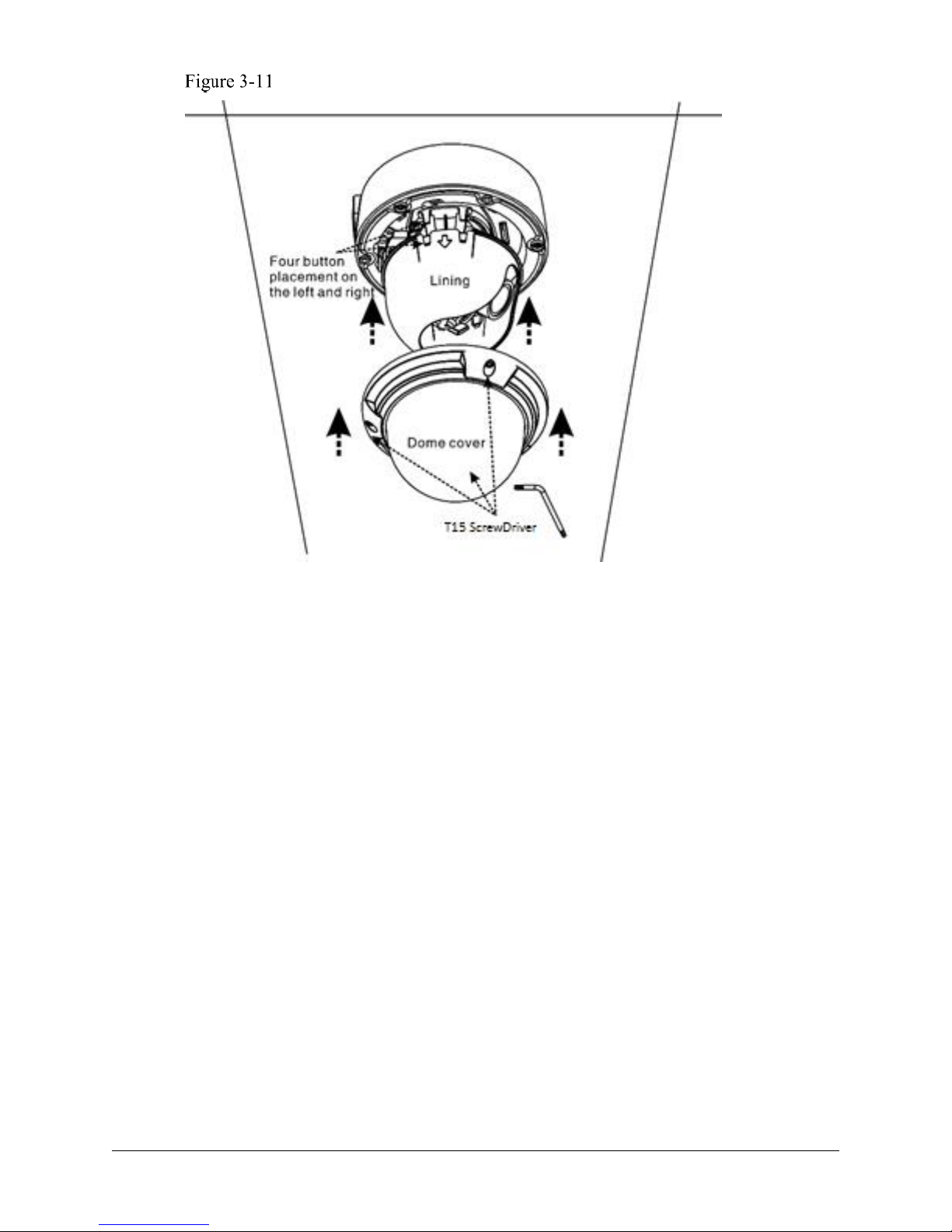

Step 6 Buckle the lining with the main body bracket and screw the three plum blossom screws
by using the T15 Screwdriver to fasten the dome cover. See Figure 3-11.

14
Assembling the lining and fastening the dome cover
----End
3.2.2 Wall Mount Installation
The wall mount installation mode can be subdivided into installation by the white
lower cover and direct installation by the main body black base cover. The wall mount
installation mode applies to walls and the aside routing mode is generally adopted, as
shown in Figure 3-12.
