Costway EP24920US User manual

Please give us a chance to make it right and do better !
Contact our friendly customer service department for help first.
Replacements for missing or damaged parts will be shipped ASAP !
Contact Us!
Do NOT return this item.
Jump Starter
EP24920US
USER’S MANUAL
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
US office: Fontana UK office: Ipswich AU office: Truganina
DE office: Hamburg
FR office: Saint Vigor d'Ymonville PL office: Gdańsk
US:[e-mail]
UK:[e-mail]
AU:[email protected]

ATTENTION !
SAVE THIS MANUAL. These instructions are important, and
contain operating and safety information that can help prevent
personal injury or death, and prevent damage to you jump
starter itself as well as vehicles and equipment it may be
connected to. The safety information in this manual includes
both WARNING and CAUTION that indicate the hazard.
To ensure the product a longer life and more efficient, please note:
1. Fully charge the battery when first received.
2.Fully charge the battery after each use.
3.Fully charge the battery every 3 months.
MAINTENANCE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION
WARNING
Your Jump Starter is capable of delivering significant current to
start cars, light trucks, ATV's, boats, lawn and garden equipment
and other 12V equipment. Three Battery Status Indicator LEDs
indicate the battery power level and show when the unit is being
charged and fully charged.
Before You Start
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that, where possible, all items are assembled
near to the area in which they will be placed in use, to avoid
moving the product unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product
away from babies and children as they potentially pose a serious
choking hazard.
Model
Voltage
Amps
Battery type
AC/DC ADAPTOR
EP24920US
12V
700A Cranking amps (5s)
Lead-acid battery 12V 22AH
ETL certificated
INPUT 120V AC, 60Hz, 0.25A
OUTPUT 12V DC 1A
02 03

Risk of Electric Shock. Fire and Explosion
1. Read entire manual before using this product. Follow the
instructions in this manual and the instructions provided by the
manufacturer of the battery you are connecting to as well as the
vehicle or equipment you are jump starting or powering.
2. Wear safety goggles.
3. Keep out of reach of children.
4. Do not use if the case, cables, or clamps are damaged.
5. Do not allow the battery inside the unit to freeze.
6. Never attempt to jump start a frozen battery.
7. Do not touch the clamps together or to the same piece of
conductive metal.
8. Do not submerge in water.
9. Do not disassemble. No user-serviceable parts inside. Refer to
service section of this manual.
10. Use in conjunction with lead acid batteries only. Do not use
with dry cell batteries or other battery types such as lithium ion,
nickel hydride, or others.
11. This product is intended for negative ground applications only.
DO NOT USE ON POSITIVE GROUND SYSTEMS.
12. Wear rubber gloves and protective clothing when working
around lead acid batteries.
13. Do not smoke. Do not allow any open flame or sparks near a
lead acid battery.
14. Remove rings, bracelets, necklaces, watches and other
personal metal items. A lead acid battery can produce short circuit
current strong enough to weld metal items and cause severe
burns.
15. Be careful with tools around lead acid batteries; do not drop
tools on battery- -sparks and explosion could result.
16. If battery acid contacts your skin or clothing, wash with soap
and water. If acid enters your eye, immediately flood the eye with
cold running water for 10 minutes and seek medical attention.
17. If battery acid is swallowed, drink milk, egg whites or water
and DO NOT induce vomiting. Get immediate medical attention.
18. When working under the hood, be careful of moving fan
blades, belts, pulleys and other moving parts that may cause
injury.
WARNING
Risk of electric shock, fire or explosion.
Lead acid batteries generate explosive gas. They
contain sulfuric acid which is highly corrosive.

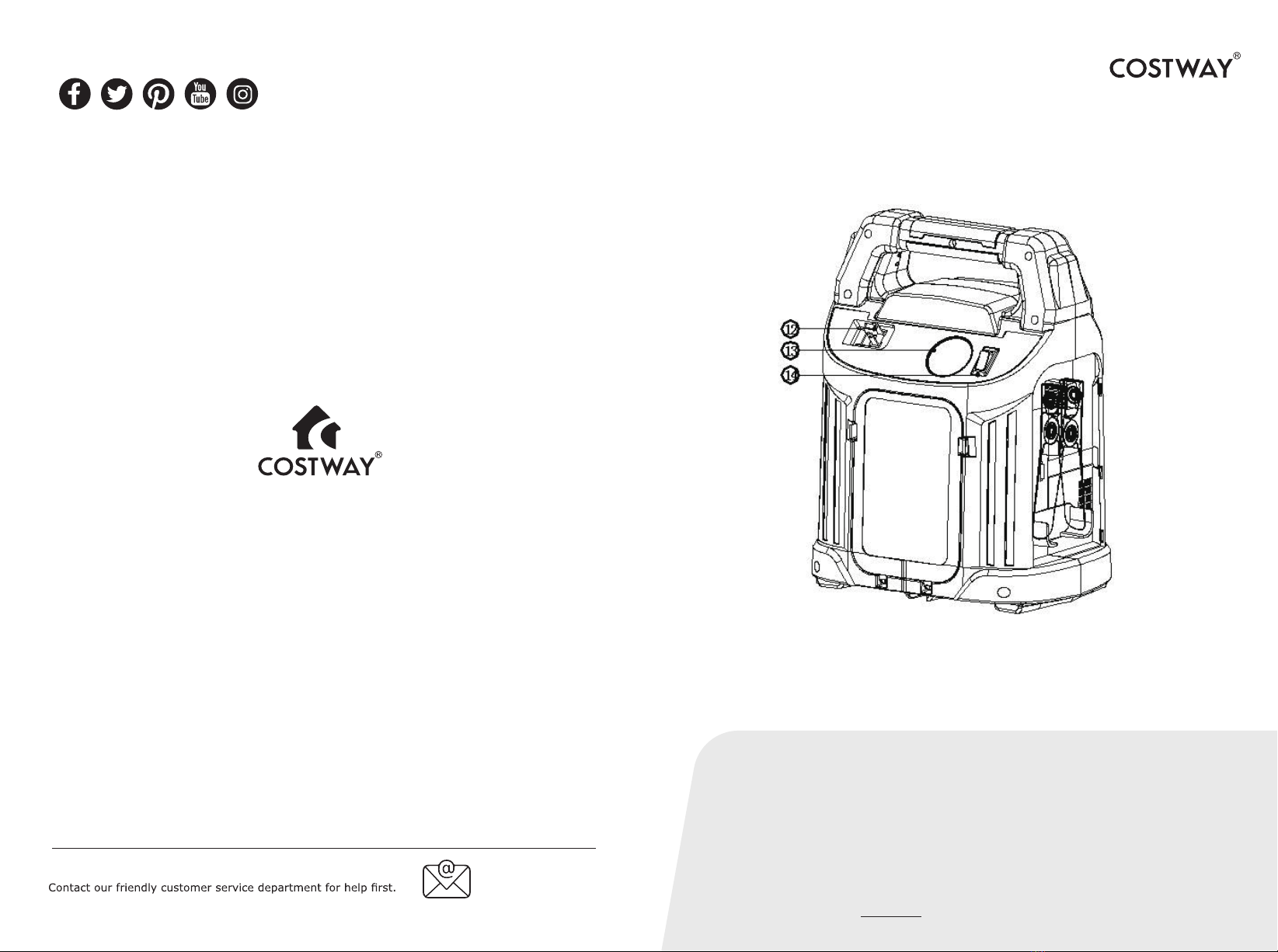

1. Work light
2. 12V cigarette lighter
3. 5V1.3A USB port
4. Test/USB/Light 3S button
5. Power switch
6. 120V AC outlet
7. Inverter ON/OFF switch
8. Inverter indicator LED
9. Battery status indicator LEDs
10. Wrong connection indicator LED
11. 5V2.1A USB port
12. AC charger plug
13. Air compressor gauge
14. Air compressor ON/OFF switch
1
2
3
9
10
12
13
14
11
4
5
6
7
8
Use Your Jump Starter Safely
Control and Components
19. Always wrap the cables back into position and store the
clamps properly.
20. Do not use while the unit is recharging. Disconnect from
charger before use.
21. No lubrication is recommended or required.
22. Avoid storing in direct sunlight, in extreme heat, cold, or very
moist areas.
Caution
04 05

g. Start the engine for 3-5 seconds. If the engine does not start
within 10 seconds, stop cranking and wait at least 4 minutes
before attempting again. This permits the battery to cool down
and prevents damage and overheating.
h. Turn the unit off and disconnect the clamps, first negative and
then positive.
i.Recharge the unit after use.
NOTE: Your jump starter is used for only 12V vehicles. If it
connects to a 24V vehicle, the red LED will flash slowly with
constant alarm on. This could cause serious damage.
a. Connect the red (positive +) clamp to the positive input
terminal and the black (negative -) clamp to the negative input
terminal.
b. Make sure that clamps are connected correctly and firmly, and
then turn Power Switch to the ON position. The Connection Status
Indicator LED will turn Green, and the unit is now supplying
current to your device.
c. After using, turn the unit off, and then disconnect the clamps.
d. Recharge the unit after use.
USING AS A 12V POWER SOURCE
USING 12V CIGARETTE LIGHTER POWER
The 12V DC cigarette lighter outlet is protected by a 15 amp
circuit breaker, which resets automatically.
a. Turn Power Switch to the ON position;
b. Insert the 12V DC Cigarette Lighter plug from the device into
the Cigarette Lighter Outlet on the front panel, and the unit is now
supplying current to your device;
c. To use the unit with an external power inverter:
● Turn the external power inverter (not included) off;
● Plug the 12V DC Cigarette Lighter plug from the power inverter
into the Cigarette Lighter Outlet.
● Turn the power inverter on.
● Plug the device into the power inverter.
Using cigarette lighter plug extension cord:
Please insert one plug of the cigarette lighter plug extension cord
into the Cigarette Lighter Outlet on the front panel of jump starter,
and insert the other plug into your device's Cigarette Lighter
Outlet. Then the unit is now supplying current to your device.
JUMP STARTING A 12V VEHICLE
a. Turn device off at first.
b. Make sure Power Switch on the front of the unit is on the OFF
position at first.
c. Connect the red (positive +) clamp to positive pole on the
battery.
d. Connect the black (negative -) clamp to negative pole on the
battery
e. If internal battery voltage is <8V, red LED will flash with alarm
on. Please charge unit before use.
f. If connecting the clamps reversal, the red LED will flash quickly
with alarm on. DO NOT turn the unit on. This could cause serious
damage.
OPERATING INSTRUCTIONS
Use Your Jump Starter Safely
● If the unit is not fully charged it may shut down under heavy
load if it cannot deliver sufficient voltage.
● Failure to keep internal battery charged will lead to permanent
battery damage.
CAUTION
06 07

NOTE: The charger will automatically shut off to prevent
overcharging. Leave the unit plugged in to make sure it is
charged for emergencies.
NOTE: Do not use while unit is recharging. Disconnect from
charger before use.
NOTE: Do not run for more than 10 minutes maximum at a
time. Allow it to cool down for 10 minutes before using
again.
The air compressor is rated for 180 PSI.
a. Remove the air compressor hose from the storage position.
Install adapters as necessary.
b. Attach the air compressor hose to the product or accessory to
be inflated.
c. Turn AIR COMPRESSOR Switch on and inflate the product.
d. When the product is inflated to the proper air pressure (using
the air compressor gauge), turn the AIR COMPRESSOR SWITCH off
and remove the hose.
e. Recharge the unit as soon as possible after using the air
compressor.
USING AIR COMPRESSOR
INFLATING OTHER INFLATABLES WITH
ADAPTERS (NOZZLES)
Inflation of other items requires use of one of the adapters
(nozzles).
1. Select the appropriate adapter nozzle.
2. Lift the thumb latch on the nozzle, insert the adapter (i.e.
needle) into the nozzle connector and close thumb latch.
3. Insert adapter (i.e. needle) into item to be inflated.
4. Turn on the Inflator Power Switch —inflate to desired pressure
or fullness.
NOTE: Small items such as volleyballs, footballs, etc. inflate very
rapidly. Do not over-inflate.
5. Remove adapter.
6. Switch the Inflator Power Switch off.
7. Allow unit to cool before storing away.
8. Store inflator hose and tire fitting in storage compartment.
● Red Indicator LED flashes and audible alarm sounds
Means the internal battery voltage is too low. The unit is never used
and needs to be charged immediately.
b. Press and release the button again after test to prevent draining
the battery needlessly.
a. Plug the AC Power Cord into the built-in adapter pin on the back
of the jump starter.
b. Plug the AC Power Cord into a 120V wall outlet.
c. Continue charging until the Green Battery Status Indicator LED
is kept on, and then reverse these steps when charging is finished.
CHARGING JUMP STARTER USING AC POWER CORD
VOLTAGE TESTING
Fluctuations in temperature can accelerate battery discharge.
Check the unit often
a. Press and release Test/USB/Light 3S button and check the
internal battery's voltage level from three Battery Status Indicator
LEDs.
● Green Indicator LED flashes and audible alarm sounds
Means the internal battery voltage is too high. Please check if the
unit is on charge wrongly.
● Green Indicator LED is on
Means the unit is charged and ready to be used.
● Yellow Indicator LED is on
Means the unit needs to be charged as soon as possible.
● Red Indicator LED is on
Means the unit is never used and needs to be charged
immediately.
08 09

IMPORTANT: IF YOU ARE USING THE POWER INVERTER TO
OPERATE ANY TYPE OF BATTERY CHARGER, MONITOR THE
TEMPERATURE OF THE BATTERY CHARGER FOR ABOUT 10
MINUTES. IF THE BATTERY CHARGER BECOME
ABNORMALLY WARM, DISCONNECT IT FROM THE INVERTER
IMMEDIATELY.
Always run a test to establish whether the inverter will operate a
particular piece of equipment or device.
In the event of power overload, the inverter is designed to
automatically shut down.
This safety feature prevents damaging the inverter while testing
devices and equipment with the 200-watt range.
If powering more than one device, start once device at a time to
avoid the power surge and/or inverter overload. The surge load of
each device should not exceed the inverter's Continuous Operation
wattage rate.
CAUTION
You can use EXTENSION CORD from the inverter to the device
without significantly decreasing the power being generated by the
inverter. For best operating results, the extension cord should be
16AWG (1.31 mm2) or larger and suggest no longer than 50 feet.
IMPORTANT: This inverter uses a modified sine waveform, which
is not quite the same as power company electricity. For the
following devices, we strongly recommend that you use caution
and check the device's manual to make sure it is compatible with
modified sine waveform.
USING 5V USB POWER
The USB power outlet provides the maximum of 5V DC 1.3A & 5V
DC 2.1A power to an external USB-powered device.
a. Plug the USB-powered device into the USB power outlet.
b. Press and release Test/ USB/Light 3S button, and the Battery
Status Indicator LEDs will be on to show the battery voltage level.
c. Turn the device on.
3. The inverter is fitted with short circuit protection, which switches
off the auxiliary starter if the connected equipment short-circuits.
4. If the inverter indicator LED on the inverter comes on RED, check
that the connected equipment is working correctly and does not
need too much power for the auxiliary starter. Also check the
charge level in the battery.
Operating procedures:
(1) Set the inverter power switch to the ON position.
(2) Insert the cable from the external equipment into the 120 V
outlet
(3) Start the external equipment
(4) The inverter can be shut down automatically or by the power
switch.
USING THE WORK LIGHT
1. Press for 3 seconds and release Test/USB/Light 3S button, the
work light on the front of jump starter will begin to work. During
the use of the work light, the Battery Status Indicator LEDs will be
on to show the voltage level.
2. Press and release the button again, the work light will flash for
alert use.
3. Press and release the button again, the work light will shut off.
4. Recharge the jump starter as soon as possible after using the
work light.
NOTE: When the internal battery voltage is too low, the
work light will be shut off automatically.
USING BUILT-IN INVERTER
1. The inverter can supply 120V AC, 60Hz, 200Watts
2. To protect the battery, the inverter is fitted with undervoltage
protection. If the voltage falls too low, an alarm will be emitted
and the inverter will be switched off. It will be reset automatically
when the battery voltage is higher.
10 11

d. Reverse these steps after using the USB power.
e. Recharge the unit as soon as possible after using the USB
power.
NOTE: When the internal battery voltage is too low, the USB
power will be shut off automatically.
ADDITIONAL FEATURE
LOW VOLTAGE ALARM when using jump starter
When using the unit, for example, turning the Power Switch on,
jump starting a vehicle, using as 12V Power Outlet, using as work
light, etc., the microprocessor inside the unit will detect the
internal battery voltage automatically. Once the internal battery
voltage is too low, the Red Battery Status Indicator LED will flash
and audible alarm will sound for reminding you to charge the unit
immediately. When you stop using the unit or the internal battery
voltage is back to normal, the Red Battery Status Indicator LED
will be OFF and the audible alarm will stop.
MAINTENANCE INSTRUCTIONS
TO PREVENT SERIOUS INJURY: Turn all switches to OFF position
before performing any inspection, maintenance, or cleaning
procedures.
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use
damaged equipment. If noise or vibration occurs, have the
problem corrected before further use.
1. BEFORE EACH USE, inspect the general condition of the unit.
Check for loose hardware, misalignment or binding of moving
parts, cracked or broken parts, damaged electrical wiring, and any
other condition that may affect its safe operation.
2. AFTER USE, wipe external surfaces of the tool with clean cloth.
3. Protect from sunlight and moisture.
4. LEAD-ACID BATTERIES MUST BE RECYCLED OR DISPOSED OF
PROPERLY. Do not short-circuit the terminals. Do not incinerate.
12
