Cottage Spas Collins User manual
OWNERS MANUAL
cottage spas
Model: _______________________________________________________
Serial Number: _________________________________________________
Date Installed: __________________________________________________
Dealer: ________________________________________________________
Address: ______________________________________________________
Telephone: ____________________________________________
Note: The serial number/identification label is located within the equipment
compartment and skimmer housing.
Thank you for your recent Cottage Spas purchase.
This owner's manual has been designed to acquaint you with your Cottage Spas operation
and general maintenance. Keep this manual available for future reference. If you have any
questions regarding your Cottage Spas model, contact your local dealer.
Thank you.
COTTAGE SPAS
MODEL AVG. FILL AVG. FILL WEIGHT AVG. DRY WEIGHT
350 gal.
350 gal.
3622 lbs.
3622 lbs.
700 lbs.
700 lbs.
Collins
Whitman
1
COTTAGE SPAS
OWNER'S MANUAL
TABLE OF CONTENTS
SAFETY INSTRUCTIONS
Avoiding Risk to Children ................. 2
Avoiding Risk of Electrical Shock ...........2-3
Avoiding Risk of Injury.................... 3
Unclean Water .......................... 3
Avoiding Risk of Hyperthermia.............. 4
Avoiding Risk of Skin Burns ................ 4
Important Do's and Don'ts................. 5
COTTAGE SPAS MODELS
Specifications ........................... 6
INSTALLATION INSTRUCTIONS
Location Preparation...................... 7
Outdoor Installation ..................... 7
Indoor Installation ....................... 7
ELECTRICAL REQUIREMENTS
AND PRECAUTIONS
220 V Permanently Connected Models ....... 8
Electrical Installation Instructions ..........8-9
Electrical Spa Wiring Connection Instructions .. 9
INITIAL OPERATING INSTRUCTIONS
Start-up and Refill Procedures ............. 10
Model Start-up Procedures ................ 11
EQUIPMENT MAINTENANCE
Light Bulb Replacement .................. 12
CONTROL PANEL FUNCTIONS

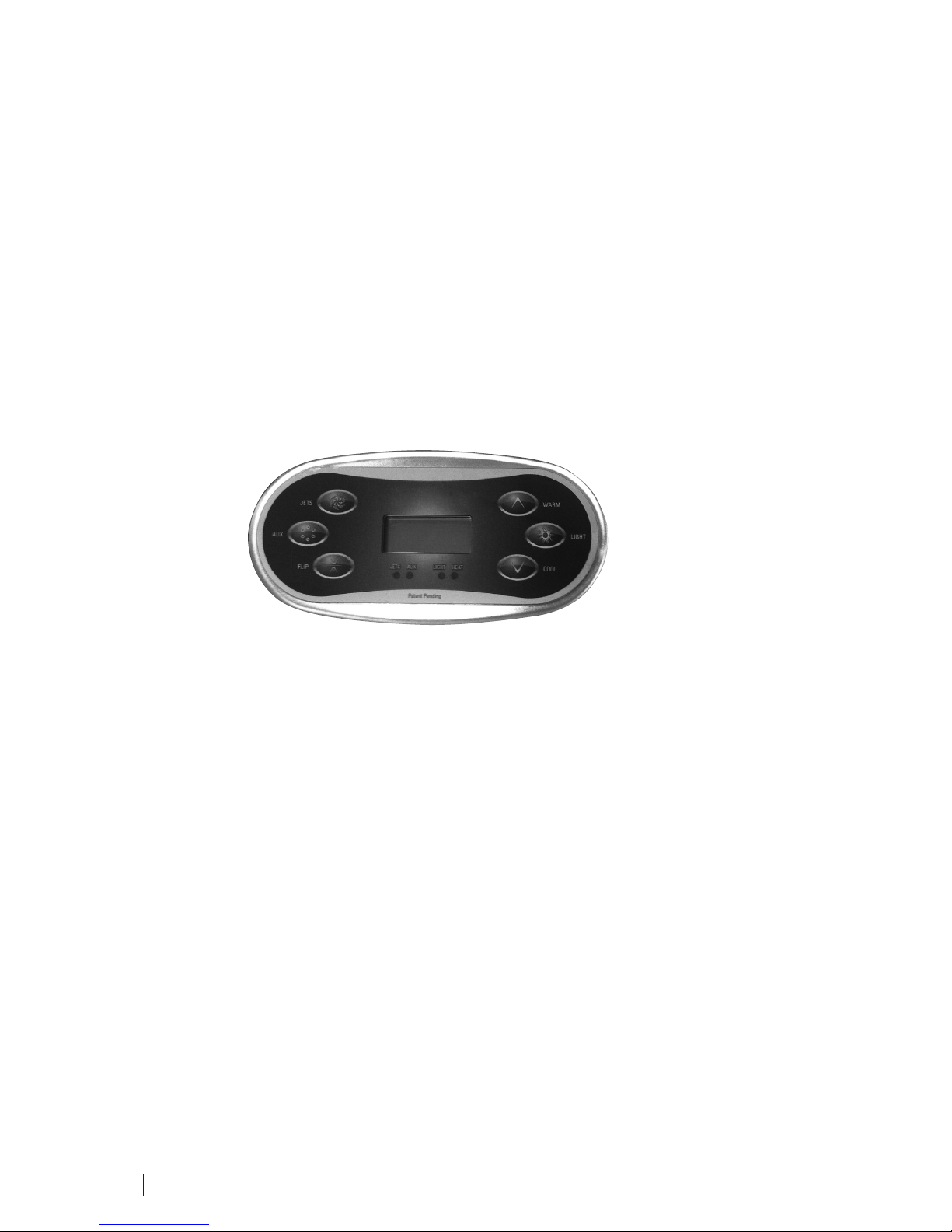

Main Control Panel ..................... 12
Main Control Panel Navigation ............ 12
Temperature Controls ..................12-13
Panel Functions......................... 13
Hold, Lock/Unlock, 24 Hour Clock,
Temp Display, Flip Button
Operating the Hydro Pumps............... 14
Jet Buttons ........................ 14
Clean-up cycle...................... 14
Light Control Button ................ 14
Heating Modes .......................14-15
Filter Cycle Modes ....................15-16
Reminder Messages ...................... 16
Diagnostic Messages ..................... 17
SPA CARE & WATER MAINTENANCE
General Information ..................18-19
Filter Cartridge Removal and Cleaning ...... 19
Care of Pillows .......................19-20
Care of Exterior ........................ 20
Care of Spa Cover ....................20-21
Winterizing Your Spa ..................21-22
Water Quality Maintenance .............23-25
TROUBLESHOOTING
Operational Trouble Shooting Guide ......26-27
Control Panel Identification ............... 27
SERVICE & WARRANTY INFORMATION
Service and Warranty Information .......... 28
Spa Care and Maintenance Record ......... 29
2COTTAGE SPAS
OWNER'S MANUAL
COTTAGE SPAS SAFETY INSTRUCTIONS
Read And Follow All Instructions
AVOIDING THE RISK TO CHILDREN
RISK OF CHILD DROWNING
Extreme caution must be exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use a spa unless they are supervised at all times.
• Toreducetheriskofinjury,donotpermitchildrentousethisspaunlesstheyareclosely
supervisedatalltimes.
•Toreducetheriskofinjury,lowerwatertemperaturesandcontrolthetimeofhotwater
exposureforyoungchildren.Childrenareespeciallysensitivetohotwater.
RISK OF ELECTROCUTION
• Connect only to a grounded source.
• Do not bury the power cord. A buried power cord may result in death, or serious
personal injury due to electrocution if direct burial-type cable is not used, or if
improper digging occurs.
• A ground terminal (pressure wire connector) is provided on the control box inside the
unit to permit connection of a minimum No. 8 AWG (8.4 mm2) solid copper bonding
conductor between this point and any metal equipment, metal water pipe, metal
enclosures of electrical equipment, or conduit within five feet (1.5 m) of the unit as
needed to comply with local requirements.
• To reduce the risk of electrocution, replace all damaged cords immediately. Failure to
do so may result in death or serious personal injury due to electrocution.
• Do not connect any auxiliary components (for example, additional cable speakers,
headphones or other audio components) to the audio system unless approved by
Saratoga Spa® Company.
• Do not self-service audio components by opening or removing the cover as this
may expose you to dangerous voltage or other risk of injury. Only qualified service
personal should service your spa and it's components.
• Do not attach an external antenna to a spa audio system unless it is installed by a
licensed electrician in accordance with Article 810 of the National Electric Code,
ANSI/NFPA 70.
AVOIDING RISK OF ELECTRICAL SHOCK
• Do not permit any electrical appliance, such as a light, telephone, radio or television
within 5 feet (1.5 m) of a spa. These units DO NOT have an internal ground fault
circuit interrupter. The installation of a ground fault circuit interrupter MUST be
done by a qualified Electrician and must meet all local and national codes. Failure
to maintain a safe distance may result in death, or serious personal injury due to
electrocution, if the appliance should fall into the spa.
!
!
!
!
!
!
3
COTTAGE SPAS
OWNER'S MANUAL
• Install at least 5 feet (1.5 m) from all metal surfaces. A spa may be installed within 5 feet
of a metal surface if each metal surface is permanently connected by a minimum No. 8
AWG (8.4 mm2) solid copper conductor attached to the wire ground connector on the
terminal box that is provided for this purpose if in accordance with National Electrical
Code ANSI/NMFPA70-1993.
• Install your spa in such a way that drainage is away from the electrical compartment
and from all electrical components.
AVOIDING RISK OF INJURY
• To reduce the risk of injury to persons, DO NOT remove suction fittings located at
the bottom footwell of the spa.
• The suction fittings in the spa are sized to match the specific water flow created by the
pump. Never replace a suction fitting with one rated less than the flow rate marked on
the original suction fitting. Never operate the spa if the suction fittings are broken or
missing.
• There is a danger of slipping and falling. Remember that wet surfaces can be very
slippery. Take care when entering or exiting the spa.
• People with infectious diseases should not use the spa.
• Keep any loose articles of clothing or hanging jewelry away from rotating jets or other
moving components.
• The use of drugs, alcohol, or medication before or during spa use may lead to
unconsciousness with the possibility of drowning.
• Persons using medications should consult a physician before using a spa; some medication
may cause a user to become drowsy, while other medication may affect heart rate, blood
pressure, and circulation.
• Persons taking medications which induce drowsiness, such as tranquilizers,
antihistamines or anticoagulants should not use the spa.
• Water temperature in excess of 104˚F (38˚C) may be injurious to your health.
• Pregnant women should consult a physician before using spa.
• Persons suffering from obesity, or with a medical history of heart disease, low or high
blood pressure, circulatory system problems, or diabetes should consult a physician
before using spa.
• Persons using or having Implanted Pacemakers or Defibrillators should consult their
physician prior to using a spa, as there are risks of electrocution.
UNCLEAN WATER
• Keep the water clean and sanitized with correct chemical care.
• Maintain water chemistry in accordance with chemical manufacturer’s instructions.
Important:
• Turn the Jet Pump on high speed and it will operate for a 15 minute cycle after adding ANY
spa water chemicals into the spa.
• Clean the filter cartridges monthly to remove debris and mineral buildup which may
affect the performance of the jets, limit the flow, or cause a high limit problem.
!
!
4COTTAGE SPAS
OWNER'S MANUAL
AVOIDING RISK OF HYPERTHERMIA
The causes, symptoms and effects of hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of the body reaches a level several
degrees above the normal body temperature of 98.6°F (37°C). The symptoms of
hyperthermia include an increase in the internal temperature of the body, dizziness,
lethargy, drowsiness and fainting.
The effects of hyperthermia include:
1. Failure to perceive heat.
2. Failure to recognize the need to exit the spa or hot tub.
3. Unawareness of impending hazard.
4. Fetal damage in pregnant women.
5. Physical inability to exit the spa or hot tub.
6. Unconsciousness resulting in drowning.
Theuseofalcohol,drugs,ormedicationcangreatlyincreasetheriskoffatal
hyperthermiainhottubsandspas.
To Reduce The Risk of Injury:
• The water in the spa should never exceed 104°F (40˚C). Water temperatures between
100°F (37.7˚C) and 104°F (40˚C) are considered safe for a healthy adult.
• Lower water temperatures are recommended for extended use (exceeding ten
minutes) and for young children. Extended use can cause hyperthermia.
• Pregnant or possibly pregnant women should consult with their physician before
entering a spa. Failure to do so may result in permanent injury to your baby.
• Do not use spa immediately following strenuous exercise.
AVOIDING RISK OF SKIN BURNS
• To reduce the risk of injury, before entering a spa the user should measure the water
temperature with an accurate thermometer, since the tolerance of temperature-
regulating devices may vary by as much as ±5˚F.
• Test the water with your hand before entering the spa to be sure it’s comfortable.
!
!
!
!
!
!
!
!
5
COTTAGE SPAS
OWNER'S MANUAL
Do:
• Make sure you always lock the child resistant spa cover locks after using the spa for
your children’s safety. Every Cottage Spas model is equipped with a locking cover that
meets the ASTM F1346-91 Standard for Safety Covers.
• Test the water temperature with your hand before allowing children to enter the spa to
be sure that it’s comfortable. Children are especially sensitive to hot water.
• Remind children that wet surfaces can be very slippery. Make sure that children are
careful when entering or exiting the spa.
• Use and lock the vinyl cover when the spa is not in use, whether it is empty or full.
• Follow the Spa Care and Maintenance recommendations stated in this manual.
• Use only approved accessories and recommended spa chemicals and cleaners.
• Keep the spa cover locked when the spa is not in use.
• Check the equipment compartment monthly for any signs of tampering to the spa
equipment.
• Follow the maintenance instructions of the spa found in this owner’s manual.
• Be sure your spa is connected to the power supply correctly - use a licensed electrical
contractor.
• Test the Ground Fault Circuit Interrupter(s) once a month.
• Place the spa on a level load bearing surface.
Don't:
• Allow children or pets to climb onto the spa cover.
• Allow children to have unsupervised access to the spa.
• Leave the Cottage Spa exposed to the sun without water or the cover in place.
Exposure to direct sunlight can cause solar distress of the shell material and will void
the warranty.
• Lift or drag the vinyl cover by using the cover lock straps; always lift or carry the cover
by using the handles.
• Attempt to open the electrical control box. There are no user serviceable parts inside.
Opening of the control box by the spa owner will void the warranty. If you have an
operational problem, carefully go through the steps outlined in the Troubleshooting
section. If you are not able to resolve the problem, contact your authorized Cottage
Spas dealer. Many problems can easily be diagnosed over the telephone by an
Authorized Service Technician.
• Block or sit on the filter compartment area.
• Allow excessive weight to be placed on the spa cover. Doing so could damage the spa
cover and void any warranty.
• Use the spa with the equipment compartment door removed.
• Place electrical appliances within 5 feet (1.5 m) of the spa.
• Block the equipment compartment vents. This could cause damage to the spa
equipment and will void the warranty.
* SAVE THESE INSTRUCTIONS *
IMPORTANT DO'S & DON'TS
Important:
The following contains important spa information, and we strongly encourage you to read
and apply them.
!
!
!
!
6COTTAGE SPAS
OWNER'S MANUAL
Due to the risk of property damage and injury, the manufacturer of the Cottage Spas
strongly suggests a structural engineer or contractor be consulted before the spa is
placed on an elevated deck.
Note: The “Average Full” weight of the spa includes only the spa and the water inside the spa.
SPA SPECIFICATIONS
!
!
Width Length Height Average
Fill
Dry
Weight
Average
Fill
Weight
Seating
Locations
Collins 80” 84" 36” 350 gal. 700 lbs. 3,622 lbs. 5
Whitman 80” 84” 36” 350 gal. 700 lbs. 3,622 lbs. 5
7
COTTAGE SPAS
OWNER'S MANUAL
INSTALLATION INSTRUCTIONS
Location Preparation
Your Cottage Spa model is totally self-contained and portable. You can install the spa outside or
inside. Preferable places are on a patio, deck or indoors. The spa should always be placed on a
level, load bearing surface in accordance with your local building code requirements. Other items
you need to consider are the following:
• Verify that the location chosen can support the weight of the spa, the water of the spa and
its occupants.
• Always check the surface of the site to see if it is level before filling the spa with water.
• Allow access to the equipment compartment for routine maintenance.
• When positioning the spa, be sure to allow for drainage away from the electrical compartment.
• Leave easy access to the GFCI breaker.
YourCottageSpaismanufacturedtobeaportableunit.Anypermanentinstallation
ofthisproductisdoneattheriskoftheowner.Permanent
installationofthisunitviolateswarrantycoverage.
Outdoor Installation
Always keep in mind what type of climate you live in. In a climate with cold, snowy winters you
may want to consider locating the spa close to the house for easy access. In climates where it is
normally warm or hot year-round, it would be recommended to place the spa in a shaded or cool
area. With deck installations it is recommended that a qualified building contractor or structural
engineer review the weight the deck can support. The spa specification sheet (on page 6) can
assist you with the weights and dimensions of your spa.
Indoor Installation
Special requirements are needed for indoor installation. Spas normally produce moisture. A
ventilation system needs to be considered. Your spa area should contain moisture resistant wall/
floor coverings and building materials to avoid damage from moisture over time. Proper drainage
of the spa water also needs to be considered.
Your Cottage Spas model is equipped with air vents to allow for circulation of air
throughout the equipment compartment. These vents are found on the face of the
equipment compartment panel and under the corners of the spa at the equipment
compartment end. Do not allow vents to be blocked as to prevent the circulation of
air in the equipment compartment.
Your Cottage Spas dealer can help you with information such as local
zoning regulations and building codes.
!
!
!
!
8COTTAGE SPAS
OWNER'S MANUAL
ELECTRICAL REQUIREMENTS AND PRECAUTIONS
Your Cottage Spas model has gone through numerous tests to verify that all of the spa functions
operate. Beyond the tests, your Cottage Spas model has been designed to provide the maximum
safety against electrical shock. Read and follow the electrical installation requirements and
instructions completely. The next few pages will assist you in properly connecting the electrical
input. Follow the electrical instructions for your specific spa model. Serious risks or injuries may
occur if the spa is improperly wired.
220 Volt Permanently Connected Models:
• Collins • Whitman
Cottage Spas must be wired in accordance with all applicable local electrical codes. Use
NEC 250-122(table) and local codes for more information. All electrical work should
be done by an experienced, licensed Electrician. We recommend the use of appropriate
electrical conduit, fittings and wire for all circuits.
220 Volt installations require a 60 Hz, single phase, three-wire electrical service plus
ground (Line 1, Line 2, Neutral and Ground) and must be connected using a minimum
supply conductor ampacity of 50 AMPs and a minimum circuit breaker size of 50 AMPs.
Note: Use copper wire only (3 wire with ground; 8 gauge under 50', 6 gauge over 50')
220 Volt model spas must be connected to a “dedicated” 220 volt 50 Amp grounded
circuit. The term “dedicated” means the electrical circuit is not being used for any other
electrical items (lights, appliances, etc.). If the spa is connected to a non-dedicated
circuit, overloading will occur and nuisance tripping of the GFCI breaker switch at the
house breaker panel will occur.
A ground lug connector is provided on the exterior surface of the spa pack (operations
center) inside the equipment compartment. This is to permit the connection of a
bonding wire between this point and any metal equipment, enclosures, pipe or conduit
within five feet (1.5 m) of the spa. This bonding wire must be at least 8 AWG solid
copper wire.
Due to the risk of equipment damage or fire, use only approved pressure-type wire
splicing lugs or connectors suitable for the size and type of wiring used.
Electrical Installation Instructions for 220 Volt Models
1. To connect the electrical service, first remove the screws from the equipment compartment
door. Carefully remove the access panel.
2. Locate the spa power pack. Loosen the screws on the front of the control box. Remove the
screws and the control box cover.
3. Input the electrical service from the GFCI breaker into the spa equipment compartment.
The GFCI breaker must be placed in sight of the spa, at a minimum distance of five
feet (1.5 m) away.
As of January 1, 1996 the National Electric Code (NEC) requires GFCI (Ground Fault
Circuit Interrupter) on all spa installations.
4. Connect the supply conduit to the spa power pack.
!
!
!
!
!
!
9
COTTAGE SPAS
OWNER'S MANUAL
Electrical Spa Wiring Connection Instructions
Due to the risk of damaging the PC Board, the equipment and the GFCI tripping,
never, under any circumstances, should you connect power to the neutral terminal.
1. Identify the TB1 terminal block, located inside the spa power pack on the left side.
2. Connect the 8 AWG, WHITE wire, from the GFCI 50 amp breaker, to the WHITE "NEU"
terminal on TB1.
3. Connect the 8 AWG, BLACK wire, from the GFCI 50 amp breaker, to the BLACK "HOT"
terminal on TB1.
4. Connect the 8 AWG, RED wire, from the GFCI 50 amp breaker, to the RED "HOT"
terminal on TB1.
5. Connect the 8 AWG, GREEN wire, from the GFCI 50 amp breaker, to the GREEN
"GROUND" location on the "BONDING LUGS" terminal.
6. At least two additional lugs marked “BONDING LUGS” are provided on the external surface
of one of the bonded components metal enclosures. To reduce the risk of electrical shock,
connect the local common bonding grid in the area of the hot tub or spa to these terminals
with an insulated or bare copper conductor not smaller than No. 6 AWG.
7. All field-installed metal components such as rail, ladders, drains or other similar hardware
within 10 ft (3m) of the spa or hot tub shall be bonded to the equipment grounding bus with
copper conductors not smaller than No. 6 AWG.
8. Replace the control box cover and securely tighten the fastening screws. Close and secure the
equipment compartment panel.
Always use copper wire only (3 wire with ground; 8 gauge under 50 ft, 6 gauge over
50 ft). The electrical supply for this product must include a suitable rated switch or
circuit breaker to open all ungrounded supply conductors to comply with Section
422.20 of the National Electrical Code ANSI/NEPA 70-1987. The disconnecting
means must be readily accessible to the tub occupant but installed at least 5 feet
(1.5 m) from tub water
Please review the back of the spa pack cover, located in the spa equipment bay, for a
complete spa equipment wiring diagram.
PowertoSpa
NeutraltoSpa
Factory
Installed
Neutral
(Pigtail)
GroundtoSpa
OutgoingPowertoSpa
OutgoingNeutraltoSpa
IncomingPower(BlackorRed)
IncomingNeutral(White)
Incoming
Power(Black)
Incoming
Ground(Green)
BOTTOM VIEW
OF BREAKER
!
!
!
!
!
!
10 COTTAGE SPAS
OWNER'S MANUAL
INITIAL OPERATING INSTRUCTIONS
Start-Up and Refill Procedures
Your Cottage Spas model has been tested at the manufacturing plant to ensure that all of the spa
functions operate. During the test procedure, a small amount of water may have remained in
the spa plumbing. Through the shipping process water may have spotted the spa shell. You may
need to wipe down the shell with a soft cloth. Please read and follow the start-up instructions to
ensure a successful start-up or refill.
• Inspect and clean spa shell of any debris
• Do not turn power on to spa unless filled with water to appropriate level (See pg 11).
The spa pack must never be operated without water in the spa; serious damage to the
heater and/or pump(s) may result.
• Do not fill spa with water before checking the items below (below items may become
loose in transit):
• Do not fill spa with hot water. This may cause a false error code to the temperature sensor.
A
A
C
A. Hand tighten unions at the pumps
B. Tighten drain valve
Note: The Drain Valve is left open for
shipping and must be closed before filling spa.
C . Tighten unions on heater
B
!
!
C
11
COTTAGE SPAS
OWNER'S MANUAL
Start-up Procedures
1. For a successful start-up, remove both filter cartridges, and fill the spa with water through the
openings in the filter compartment.
a. Locate the filter compartment area.
b. Pull up and remove filter cover.
c. Remove each filter cartridge and screen adapter by turning counter clockwise.
d. After removing the filter cartridges and screen adapters, place a garden hose through one
of the filter openings.
e. Turn water on and run water until it reaches a minimum level of 2” above the top of the
filters.
Note: Besides filling the spa to 2” above the top of the filter, all models will need to be
filled to 2” above the highest jet(s) in the spa. This is the minimum level allowed to run
the spa's circulation system, and/or jet pump(s).
2. Check all plumbing (clamps, unions and drain valve) connections for leaks.
3. Re-install filter cartridges and screen adapters by turning them clockwise. Exit garden hose
from the spa.
4. At this point turn power on to the spa control system by turning on the GFCI breaker. A
startup sequence of numbers will appear on the display. If no button is pressed, LINK will
appear after the startup sequence. Press any button to link the panel with the system. The spa
will go into Priming Mode. During the Priming Mode the heater will be disabled. Priming
Mode will end automatically in 4 minutes. (Pressing a TEMP button will exit Priming Mode
manually). When the Priming Mode ends Pump 1 low speed will start, however the water
temperature will not appear for a minute or so. Press the Jets Button(s) to turn the pumps on
and off to verify that all air is purged from the plumbing, particularly the plumbing associated
with the heater. (Pump 1 low speed). If the pump(s) have been primed continue to next step.
If the pump(s) have not primed after 2 minutes, and the water is not flowing from the jets in
the spa it may be necessary to manually prime the pump(s) by taking the following steps: First
turn the power off at the GFCI breaker. Next loosen, but do not remove, the union nut on the
top most area of the pump(s). Once all the air has escaped tighten the union nuts back down.
After the pump(s) have been vented, turn on the spa control system by turning on the GFCI
breaker. The spa will now go back into Priming Mode.
5. After you verify the pumps are primed, turn them off by pressing the Jet(s) button(s). The
Priming Mode ends after 4 minutes, or Press TEMP to exit manually. The current factory
default set temperature will display flashing 80*F (26*C) (The set temperature and actual
water temperature are often different). While the numbers are flashing, Press TEMP again
to change the Set Temperature. Press and hold for faster adjustment. After the new Set
Temperature stops flashing, in about 10 seconds, the actual water temperature is displayed
again and the new set temperature is programmed. The spa will now heat to the new set
temperature as needed.
6. Re-install filter cover and allow spa to heat to desired set temperature; this normally takes 24
hours. 110 Volt models may take up to 48 hours to reach desired set temperature.
7. Water must be balanced and shocked upon start-up. See your dealer or pages 23-25 of this
manual for details. This procedure must be repeated each time the spa is drained and refilled.
It is recommended to press and release the ground fault circuit interrupter (GFCI)
RESET button monthly to verify GFCI is working properly.
Note: When there is a heat demand, a cool down period (30 seconds after heater turns off),
or when the pump is running because of a filter cycle, the controller will turn the pump on
low speed.
!
!
12 COTTAGE SPAS
OWNER'S MANUAL
EQUIPMENT MAINTENANCE
Replacing the Spa’s Light Bulb
The spa’s light bulb is located inside the equipment compartment. Remove the front access
panel, by first removing the screws on the access panel. Then locate the light housing mounted
to the spa shell. Grasp the bulb holder on the back of the light niche. Turn bulb holder counter
clockwise to release it from the light niche. Pull bulb out of receptacle and replace it with a new
light bulb, available at your Cottage Spas dealer. Re-attach the light bulb holder to the light
niche by turning the light bulb holder clockwise.
CONTROL PANEL FUNCTIONS
MAIN CONTROL PANEL
Cottage Spas models are equipped with a main control panel located on the top collar of the spa.
The main control panel controls all of the spa functions.
The panel/topside will indicate the operations of the hydro jet pump(s), spa light, and water
temperature and will display the spa’s status regarding diagnostics, reminders and system functions.
MAIN CONTROL PANEL NAVIGATION
The main control panel includes navigation, setting functions and modes (time of day,
temperature, filter cycles, light and preferences) activate or deactivate the hydro jet pump(s),
sensor related messages, reminder messages and diagnostic messages as well as much more.
IMPORTANT - PLEASE READ
Navigating the entire menu can be accomplished with the TEMP and the LIGHT buttons.
From this point on, the “WARM” and “COOL” will be referred to as TEMP button. TEMP
buttons are “action” buttons (changing temperature, flashing screen for further prompts,
changing preferences within a menu). The LIGHT button is a “choose” button (LED Lights on
and off, enters menus when numbers are flashing, scrolls through the menu, makes a selection).
Waiting for 10 seconds will return the panel to normal operation and a display of spa status.
DUAL TEMPERATURE CONTROL
This system incorporates Dual Temperature Range settings with independent set temperatures.
Your spa uses a HIGH RANGE (80˚F – 104˚F) or a LOW RANGE (55˚F – 99˚F) temperature
adjustment. The HIGH RANGE would be primarily for a ready to use mode of your spa, while
the LOW RANGE can be utilized for a vacation mode or during non-use periods.
HIGH RANGE is indicated on the display as RANGE , the LOW RANGE .
Temperature Adjustment
Press TEMP buttons (marked “Warm” or “Cold”) for desired set temperature. The numbers flash
during the temperature adjustment. Press LIGHT to return to main menu; or, the main screen
will return in 5 seconds. If the panel has only one TEMP button, the first TEMP button press
causes the temperature to flash, the second TEMP press causes the temperature to change, then
pressing LIGHT or waiting five seconds will return you to the main menu.
If a Temperature button is pressed and held when the temperature is flashing, the temperature
will continue to change.
13
COTTAGE SPAS
OWNER'S MANUAL
When the spa is first powered up the water temperature will not be displayed until the pump has
been running for at least two minutes. The Default Water Temp from the factory will be 80*F in
HIGH RANGE.
The temperature shown on the display without pressing the Warm or Cool button reflects the
temperature of the water at that particular moment.
HOLD Mode
“Hold Mode” is used to disable the pumps during service functions like cleaning or replacing the
filter. Press TEMP to desired hold temperature, Press LIGHT repeatedly to HOLD, then Press
TEMP to count down. The clock will count down from 60 minutes.
LOCK and UNLOCK Mode
Locking the panel prevents the spa from being used; it also prevents unwanted temperature
adjustments. All automatic functions are still active. Locking the temperature allows Jets and
other feature to be used, but the Set Temperature and other programmed settings cannot be
adjusted. Temperature Lock allows access to a reduced selection of menu items, which include
Set Temperature, FLIP, LOCK, UTIL, INFO and FALT LOG.
To engage LOCK MODE, Press TEMP, Press LIGHT repeatedly until LOCK appears, then
Press TEMP. To continue, Press LIGHT to toggle TEMP or PANL, Press TEMP to toggle ON
or OFF, then Press LIGHT to exit menu.
Note: To Unlock (UNLK) the above features, Press TEMP, then LOCK appears on
display, Press and hold TEMP while pressing LIGHT twice. UNLK screen appears, and
then will exit to main screen in approximately 3 seconds.
Setting 24 Hour Clock
This action changes a 12 hour clock to a 24 hour clock.
Press TEMP to initiate a flashing display. When the temperature is flashing, press LIGHT
repeatedly until PREF appears on the screen. When PREF appears, Press TEMP until F/C
appears. When F/C appears press LIGHT. When "24 and 12" hour appear, you then will press
TEMP to toggle between the two to select your choice.
Then Press LIGHT to:
1) enter choice.
2) again to exit PREF menu
3) again to exit UTL menu and return to main menu
Temperature F/C Display
Provides an option to choose between Fahrenheit and Celsius
To choose between Fahrenheit and Celsius, toggle between F and C in PREF menu. Press
TEMP, then Press LIGHT repeatedly until PREF appears, Press TEMP to toggle F/C choice,
Press LIGHT twice to exit to main menu.
FLIP Button
Pressing the panel button marked FLIP will invert the display on the panel, allowing you to read
the display from inside or outside of the spa.
14 COTTAGE SPAS
OWNER'S MANUAL
OPERATING THE HYDRO PUMP(S)/JET BUTTON(S)
Activate the hydro jet pump(s) for maximum hydrotherapy jet action. Press the “Jets1” button once for
low speed, twice for high speed and a third time to turn the pump off. “Jets2” operates the Turbo Boost
Pump feature when activated with the "Jets1" Pump. The Turbo Boost Feature forces more air into the
jet plumbing lines giving added hydrotherapy performance and intensity through the jetting in the spa.
"Jets2" Button operates as an off/on option. Press once and it is on, press again and it is off.
NOTE: The Turbo Boost is not designed as a stand-alone therapy option and will produce very little
performance through the jetting without "Jets1" operating simultaneously with it.
If either pump is left running, they will turn off automatically in 15 minutes if on High speed or 30
minutes if on Low Speed.
Also, note, if your spa is in READY MODE, pump 1 low speed may turn on for at least 1 minute
every 30 minutes to detect the spa temperature (polling) and then to heat to the set temperature if
needed. When low speed turns on automatically, it cannot be deactivated from the panel; however, the
high speed may be started by pressing the “Jets1” button.
Clean-Up Cycle
When “Jets1” is manually turned on, a “Clean-Up Cycle” begins 30 minutes, on low speed, after “Jets1” is
turned off. If your spa is equipped with an Ozone Generator, it will operate with “Jets1” on low speed.
Light Button
The spa lighting is controlled using the LIGHT button. Each time the LIGHT button is pressed, it will
activate different functions of the LED lights. Keep pressing the LIGHT button through the cycle until
lights shut off.
HEATING MODES
There are two Heating Modes, described as READY and REST.
READY Mode will allow the spa to “Poll” (circulating the water every 30 minutes to sense the temp.)
and determine a need for heat. The Panel will maintain a “current” temperature display.
-READY Mode maintains a constant water temperature. It will circulate water every 30
minutes, heat as needed in order to maintain a constant set water temperature using Pump 1
Low Speed and refresh the temperature display.
REST Mode will not “Poll” and will only heat during filter cycles. The panel will not display a
current temperature until Pump 1 has circulated for a minute or two.
-REST Mode will only allow heating during programmed filter cycles. In REST Mode it
won’t circulate every 30 minutes to sense the water temperature, so the temperature display
may not show a current temperature until the filtration pump has been running for a
minute or two.
15
COTTAGE SPAS
OWNER'S MANUAL
Choosing Between Ready and Rest Mode
Press the TEMP button, then the LIGHT button repeatedly until MODE appears. Pressing the
TEMP button will toggle between SET READY and SET REST. Choose one, and then Press LIGHT
to set and exit.
If the filtration pump has been off for an hour or more, and when any function button (except
Light) is pressed on the panel, the pump used in conjunction with the heater will run so that the
temperature can be sensed and displayed.
In REST Mode the screen will display [RUN][PUMP][FOR][TEMP] if the filtration pump has not
run for over 1 hour.
FILTER CYCLE MODES
Filter Cycles are set using a start time and duration. Start Time is indicated by an “A” for a.m.
and a “P” for p.m. in the bottom right corner of the display. The Duration setting has no “A” or
“P” indicator.
The Cycles and the Duration settings can be adjusted in 15 minute increments. The panel
calculates the end time and displays it automatically. You have two Cycles you can adjust. The
spas default is one cycle per day. If you choose to have only one cycle the duration should be in
the 4 to 6 hour range as a minimum.
Based on your spa use, you may need to operate two cycles per day. The more the spa is used the
longer the filter cycles should operate. Start with two, 2 Hour filter cycles and adjust up or down
as you observe the use pattern of the spa. The cycles are identified by “FILT1” and”FILT2”.
Duration and Start Times of Filter Cycles
To customize your filter cycles and times, start by Pressing TEMP.
• While the temperature is still flashing Press LIGHT repeatedly until FLTR1 appears
flashing. (If you press the LIGHT button one more time it will take you to FLTR2)
• Press the TEMP button to advance to the beginning of the time setting process for
filtration.
• Pressing TEMP will advance to first screen to change time for F1 and “BEGN” (Begin) will
appear on screen.
• Press TEMP, and hour will flash; Pressing TEMP will change the hour.
• Press LIGHT to advance to minutes, and then Press TEMP to change minutes. Minutes
advance in 15 minute intervals.
• Press LIGHT to set Run Hours (the actual start time of the cycle)
• Press TEMP to begin the hour change, each TEMP press will move time of day one hour.
• Press LIGHT to advance the minutes in 15 minute increments.
• Press LIGHT when finished.
The read out scrolls the information that is now programmed; F1 ENDS 12:45A.
Repeat this process to create the FLTR2 cycle if desired.
Press TEMP to exit to main screen.
16 COTTAGE SPAS
OWNER'S MANUAL
Continuous Filtration Non-Circulation Pump
To set a continuous filtration, set Filter 1 to begin at a specified time as listed above. Because
you will be running the Pump 1 low speed continuously, any start time will be fine, as the start
and end time will be the same. Remember that your cost of operation will increase by operating
Pump 1 on low speed as continuous filtration.
{Example: Start time: 8 a.m. - End time: 8 a.m. = 24 Hour Circulation}
Then set the duration as listed above, advancing the duration hours to 24. The FLTR2 cycle start
time, 12 hours after the FLTR1 start time will only engage the Purge Cycle. The end time for
FLTR2 in this setting will be unavailable with 24 hour duration.
* When Pump 1 low is operating and an ozone generator is installed, they will operate together.
*Default factory setting is one filter cycle set to run in the evening (assuming the time of day is
properly set). The second filter cycle can be enabled as needed.
*At the start of each filter cycle Pump 2 (if one is present) will run briefly to purge its plumbing
to maintain water quality.
REMINDER MESSAGES
Reminder Messages help in the general maintenance of the spa. You can suppress these messages
through the PREF Menu. Press TEMP to initiate a flashing display, then Press LIGHT
repeatedly until PREF appears, then Press LIGHT until “Reminders” scrolls across screen, then
Press TEMP for options, TEMP toggles between “ NO” and “YES”, then Press LIGHT to exit
the PREF menu, Press LIGHT 3 times to return to MAIN menu. To reset a displayed reminder
message, Press a TEMP button.
The Reminder options are as follows;
• Check PH displays CHEK PH every 7 days
• Check Chemistry displays CHEK CHEM every 7 days
• Clean Filter displays CLN FLTR every 30 days
• Test GFCI displays TEST GFCI every 30 days
• Change Water displays CHNG WATR every 90 days
• Clean Cover displays CLN COVR every 180 days
• Treat Wood displays TRT WOOD every 180 days (Saratoga Spas® uses a
thermoplastic, low maintenance cabinet, not wood)
• Change Filter displays CHNG FLTR every 365 days
• Change Cartridge displays CHNG CART as needed. (This refers to a Mineral
Cartridge, see Dealer for details)
Note: These are guidelines and reminders and do not override the user’s responsibility to
maintain their spa. The more the spa is used, the more care the water will require. The harsher
the climate you live in, the more care the exterior features of the spa will need.
Not all Reminders will be relevant to your spa, ask your Dealer regarding details that may
pertain to your spa.
17
COTTAGE SPAS
OWNER'S MANUAL
DIAGNOSTIC MESSAGES
NO COMM The panel is not receiving communication from the system Call for Service
---˚F ---˚C Temperature unknown After pump has run for 1 minute, the
temperature will be displayed
HTR TOO
HOT (OHH)
One of the water temp sensors has detected 118˚F
(47.8˚C) in the heater and the spa is shut down.
DO NOT ENTER THE WATER.
Remove the spa cover and allow water
to cool. Once the heater has cooled,
reset by pushing any button. If spa
does not reset, shut off the power to
the spa and call your dealer or service
organization.
WATR TOO
HOT (OHS)
One of the water temp sensors has detected spa water
110˚F (43.3˚C) and spa functions are disabled.
DO NOT ENTER THE WATER.
Remove the spa cover and allow water
to cool. At 107˚F/42˚C, the spa should
automatically reset. If spa does not
reset, shut off the power to the spa and
call your dealer or service organization.
42*F TOO
COLD
A potential freeze condition has been detected or Aux
Freeze Switch has closed
All pumps are activated automatically
& stay on at least 4 minutes after
potential freeze condition has ended
or aux freeze switch opens. This is
an operational message, not an error
indication.
102F SNSR
BALANCE
Temperature sensors MAY be out of sync by 2˚F or 3˚F Call for Service
SNSR SYNC Temperature sensors ARE out of sync. The Sensor Balance
is Poor. Fault has been established for at least 1 hour.
Call for Service
SNSR A A temperature sensor or sensor circuit has failed Call for Service
SNSR B A temperature sensor or sensor circuit has failed Call for Service
HTR FLOW
LOSS (HFL)
There may not be enough water flow through the heater to
carry the heat away from the heating element. Heater start-
up will begin again after 1 minute.
See FLOW RELATED CHECKS
below
HTR FLOW
FAIL (LF)
There IS NOT enough water flow through the heater to
carry the heat away from the heating element and the heater
has been disabled. After the problem is resolved, you must
press any button to reset and begin heater start up.
See FLOW RELATED CHECKS
below
HTR MAY BE
DRY (dr)---
WAIT
POSSIBLE dry heater, or not enough water in the heater
to start it. The spa is shut down 15 min. Press any button
to reset the heater start-up.
See FLOW RELATED CHECKS
below
HTR DRY There IS NOT enough water in the heater to start it. The
spa is shut down. After the problem has been resolved, you
must press any button to reset and restart heater start-up.
See FLOW RELATED CHECKS
below
102T Control System is in Test Mode Call for Service
PRES BTTN
TO RSET
Some errors may require power to be removed and
restored. A reset message may appear with other messages
Press button to reset
HOT FALT A pump appears to be stuck ON, a serious condition that
COULD result in overheated spa water
Call for Service
*Please contact your Dealer for the following messages: MEM FAIL, MEM RSET, CNFG FAIL, STUK PUMP*
Note: Start-up Procedures – page 11 in current Cottage Spas OM
Scroll Message Meaning Action Required
FLOW RELATED CHECKS -
Check for low water level, suction flow restrictions, ensure filters are clean, closed valves, trapped air, too many closed jets
and pump prime.
On some systems even when the spa is shut down, some equipment may occasionally turn on to continue monitoring
temperature or if freeze protection is needed.
All messages may not appear on your panel display.
18 COTTAGE SPAS
OWNER'S MANUAL
SPA CARE AND WATER MAINTENANCE
GENERAL INFORMATION
Cottage Spas are manufactured from the highest quality, most durable materials available today.
We recommend that a spa maintenance program be followed. The care you take will ultimately
determine how long your spa or its individual components will last. This section will help you
maintain your investment.
Replacing The Water
Proper spa maintenance (regular draining and replacing of spa water according to these
directions along with filter cleaning), proper spa water treatment (water balance and maintaining
correct sanitizer levels), and proper installation (adequate ventilation) are the keys to ensuring
sanitary, healthy spa water.
It is recommended that you completely drain your spa every 45 to 90 days. Normally, after a
period of time the water will become sudsy and harder to maintain and should be replaced. The
IPSE WRI, Water Replacement Interval Formula is as follows:
WRI = .33 X Spa Volume in US Gallons
Average Bathers per Day
Note: Heavy usage may require more frequent draining.
To Drain Your Spa:
1. Disconnect the spa from the power supply by tripping the GFCI breaker located in the
house breaker panel or at the GFCI disconnect breaker at the spa.
2. Take off the equipment access panel by first removing the screws and then pulling out the
access panel. Locate main drain valve and attach the inlet of a garden hose to the drain
valve. Route garden hose to an appropriate draining area away from the spa to avoid
flooding of the surroundings around the spa.
Note: Spa water with a high sanitizer level may harm plants and grass.
3. Open the drain valve by turning the knob. The spa will drain by gravitational flow.
4. Cottage Spas will drain to the lower suction fittings in the footwell of the spa. It may be
necessary to vacuum or sponge up a small amount of the remaining water in the spa.
5. When empty, inspect the spa shell and clean as required.
6. Close the drain valve and remove garden hose.
7. Replace or close the equipment access door and replace screws.
8. Refill the spa through the filter compartment BEFORE restoring power.
Important:
Always clean the filter cartridges each time the spa is drained for cleaning.
This manual suits for next models
1
Table of contents
