FEATURES
Fill the water through upper water supplier. Now, you can ll the water with time-
saving way without inconvenience for detaching the product.
You can select the timer so it automatically turns off when the desired time has
elapsed.
Both a humidifying disc and humidity sensor* have been adopted to generate
adequate amount of moisture to be supplied on the basis of the room humidity.
*Humidity sensor is applied on AM-1012AD/ED only.
The operation part displays the product’s operating status via LED indicators. Also,
water level indicator informs you to stop lling the water. They will be helpful for
you to understand and use your product’s functions.
Pre-lter removes large dust particles in the air. Aroma kit gives ne fragrance.
Also, the ionizer (AM-1012ED) pluses sterilizing and deodorizing effect. You will
experience a brand-new refreshing air by this air washer.
FEATURES.........................................1
CONTENTS........................................1
SAFETY PRECAUTIONS...................2
PRODUCT COMPONENTS...............4
Outer / Inner view (AM-1012AD/ED)
.4
Outer / Inner view (AM-1012BD)....5
Indication part / Operation part
(AM-1012AD/ED) ...........................6
Indication part / Operation part
(AM-1012BD) .................................7
AIR TREATMENT PROCESS ............8
HOW TO USE...................................09
CLEANING .......................................10
NATURAL EVAPORATION
HUMIDIFYING SYSTEM..................15
TROUBLESHOOTING .....................16
SPECIFICATIONS............................17
WARRANTY CARD..........................19
CONTENTS
SAFETY PRECAUTIONS
• Do not use a damaged power plug or loose electric outlet.
• Please connect the power plug to a dedicated grounded electrical outlet for 220 V - 240 V~ 50 Hz /
60 Hz.
• Do not move the product by pulling only the power cord.
• Do not handle the power plug with wet hands.
• Do not forcefully bend the power cord or place it under a heavy object to prevent it from being
damaged or deformed.
• Do not repeatedly connect and disconnect the power plug.
• If the electric outlet is wet, carefully unplug the product and let the electric outlet dry completely before
subsequent use.
• Make sure to unplug the product before repairing, inspecting or replacing a part.
• Remove any dust or water from the power plug.
• Do not plug the product into an electrical outlet or power strip that is being used by several other
appliances. Use an electrical outlet dedicated to the product.
• Unplug the system if it is not used for a long time.
• Do not attempt to repair or modify the power cord yourself.
• If the power cord is damaged, do not replace the cord yourself. Call a service center to have it
replaced.
• Do not install the product near a heating device.
• Do not install the product in locations exposed to moisture or water (rainwater).
• Do not use the product in areas where ammable gases or combustible materials are used or stored.
• Do not insert sharp objects such as a gimlet into the pollution sensor.
• If the product produces a strange noise, burning smell or smoke, unplug it from the electrical outlet
immediately and call our service center.
• Never place the product in water.
• Do not spray any ammable materials such as insecticides or air fragrances near or into the air inlet.
• Do not disassemble, repair, or modify the product at your own discretion.
• Do not place any containers with water, medicine, food, metallic objects or ammable material on top
of the product.
• Unplug the system before cleaning it.
• Do not clean by spraying water directly and do not clean the product using benzene or thinner.
• Do not use detergents containing chemical solvents (thinners, etc.), bleach, chlorine, or abrasives
when cleaning.
• Do not use the air washer in a factory or industrial setting where machine oil may be present in the air.
• Do not eat the antibiotics in the water tank.
• Avoid external impacts to the water tank. A strong impact may damage the water tank.
• Empty the water tank before moving the product.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric
shock, this plug is intended to t in a polarized outlet only one way. If the plug does not t fully in the
outlet, reverse the plug. If it still does not t, contact a qualied electrician. Do not attempt to defeat
this safety feature.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service
facility for examination and/or repair.
3
SAFETY PRECAUTIONS
• Do not insert ngers or foreign objects into the air inlet or outlet.
• Do not let children hang on to the product or climb on it.
• When removing the top cover, exercise caution that a part of your body or any kind of object does not
become stuck in the top part of the product.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do
not route cord under furniture or appliances. Arrange cord away from trafc area and where it will not
be tripped over.
• Suitable for use with solid-state speed controls.
CAUTION :
• Do not install the product on a sloped surface.
• Do not apply force or impact to the product.
• When the product is in use, maintain a distance of at least 7.9 inch from the walls or adjacent objects
and 11.8 to 23.6 inch above the product.
• Install the air washer so that no obstacles block the circulation of air around the product.
• Install the air washer away from strong articial lighting or direct sunlight.
• Install the air washer at least 6.6 ft away from electronic appliances such as a TV.
• Do not install the air washer in a location exposed to direct sunlight.
• Clean the Pre-lter with water regularly and dry it completely before use.
READ AND SAVE THESE
INSTRUCTIONS
4
Water tank
5
Water tank
6
Use it to turn the product on and off. When
the power is on, the indicator is on.
Use it to set the operation mode. The
operation mode settings are as per the
following: Auto → Sleep.
3
Use it to set the fan speed. The airow
speed settings are as per the following:
Level 1 → Level 2 → Level 3.
4
Use it to activate the AUTO-OFF mode. The
AUTO-OFF modes are as per the following:
1hr → 2hr→ 4hr → 8hr. If the off-timer is
cancelled, all indicator lamps are turned off.
5
Use it to activate ionizer. The indicator is
ON/OFF when you touch this button.
4
It shows current humidity as per the
following: 20 % → 40 % → 60 %.
6
Fill the water when this indicator blinks.
-
The air washer becomes inoperable when the
water is not relled.
5Ionizer
4
6
3
3
4
5
7
3
3
Use it to turn the product on and off. When
the power is on, the indicator is on.
Use it to set the fan speed. The airow
speed settings are as per the following:
Level 1 → Level 2 → Level 3.
3
Use it to activate the AUTO-OFF mode.
The AUTO-OFF modes are as per the
following: 1hr → 4hr → 8hr. If the off-timer is
cancelled, all indicator lamps are turned off.
It shows the current airow speed.
It shows the current time-setting.
3
Fill the water when this indicator is on.
-
The air washer becomes inoperable when the
water is not relled.
8

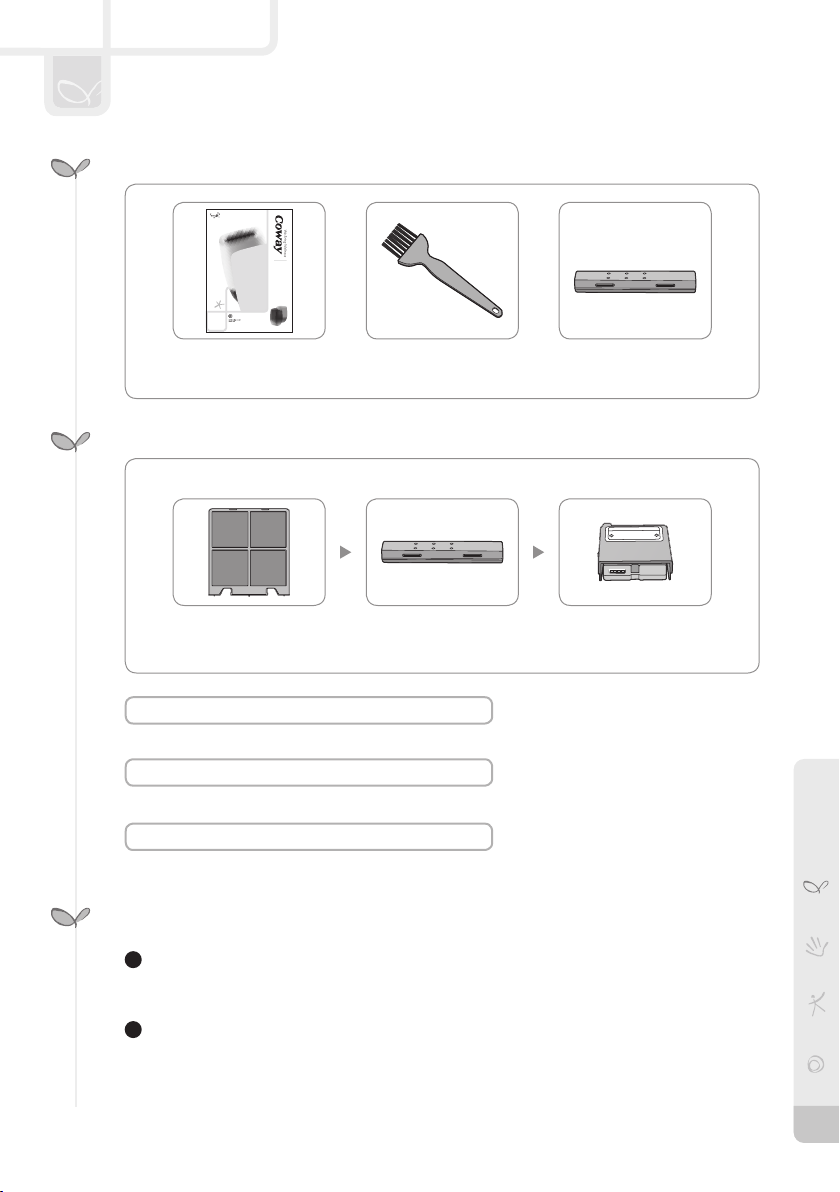

It removes relatively large dust and mold, human hair, pet hair, and so on.
It makes ne scents in the air.
It removes air pollutants and gives deodorizing effect.
Water tank
Supplies the appropriate amount of water to the humidifying disc and provides an anti-bacterial
effect. Stores 4.5 L of water.
A permanent rotating disc sits in the base of the humidier and absorbs water. A fan then blows
the dry air in the room through the humidifying disc causing the water particles in the lter to
evaporate into the room.
AM-1012AD/ED/BD
AIRWASHER
User’smanual
-English
-Русский
Beforeoperating the product,please read this manual
thoroughly,and retain it forfuture reference.
9
HOW TO USE
Turn the product on by pressing the power button and select an
airow speed by pressing the airow speed button.
Level 1 → Level 2 → Level 3.
Turn the product on by pressing the power button and select a
mode by pressing the Mode button.
Auto → Sleep
This mode minimizes the airow for a quiet, pleasant
environment. This mode is a low-noise and low power
consumption mode.
Using the off timer function, you can select 1, 2, 4 or 8 hours
(AM-1012AD/ED) or 1, 4, or 8 hours (AM-1012BD) to use the
product for desired time.
- To cancel an off timer, press the off-timer button until the
off-timer indicator is turned off.
- Connect the power plug to the electrical outlet before operating the product.
- When the air washer is turned on, it automatically operates in Auto mode.
Tips
▶
Automatically controls the airow speed (Level 1 → Level 2 → Level 3) according to the
air moisture level detected by the humidity sensor in order to generate moisturized air
more effectively.
▶
Minimizes the airow for the air purication or humidifying air purication operation to
ensure a quiet, pleasant environment.
Clean the air inlets and air outlet cover with a soft brush.
- Take care that no dust enters into the air washer when
cleaning it.
Press the ionizer button to activate the ionizer. The indicator is
ON/OFF when you press the ionizer button.

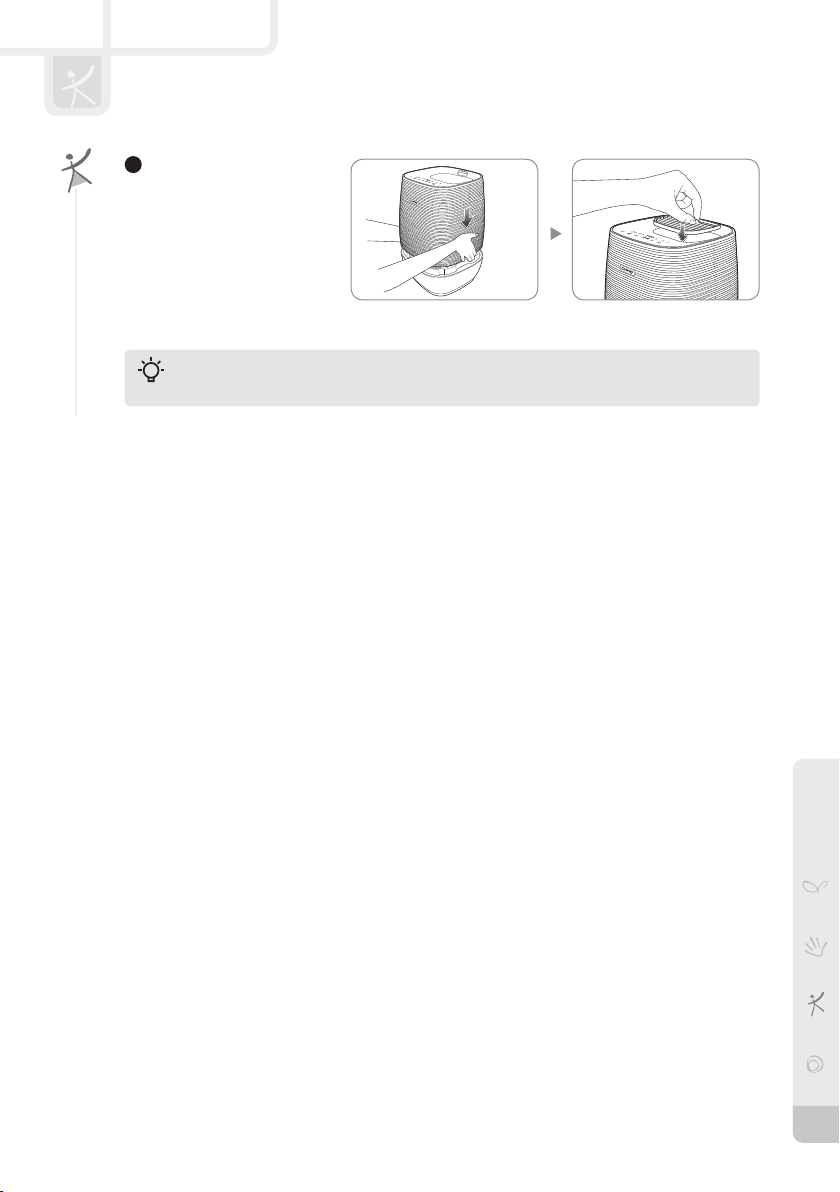

Fill the water when the rell indicator is on. Choose either A or B to rell the water.
A Pour the water through water lling opening.
- Stop lling the water when you see ‘FULL’ on the water
level indicator.
Detach the top cover and ll the water in water tank.
- Fill the water by maximum level.
Use an included cleaning brush when cleaning the
air inlets and air outlet cover.
Tips
- Always unplug the power cord before cleaning it.
- Do not use detergents that contain chemical solvents (solvent, thinner, etc), bleach,
chlorine, or abrasives.
- Do not place the product into water or spray water onto it.
Tips

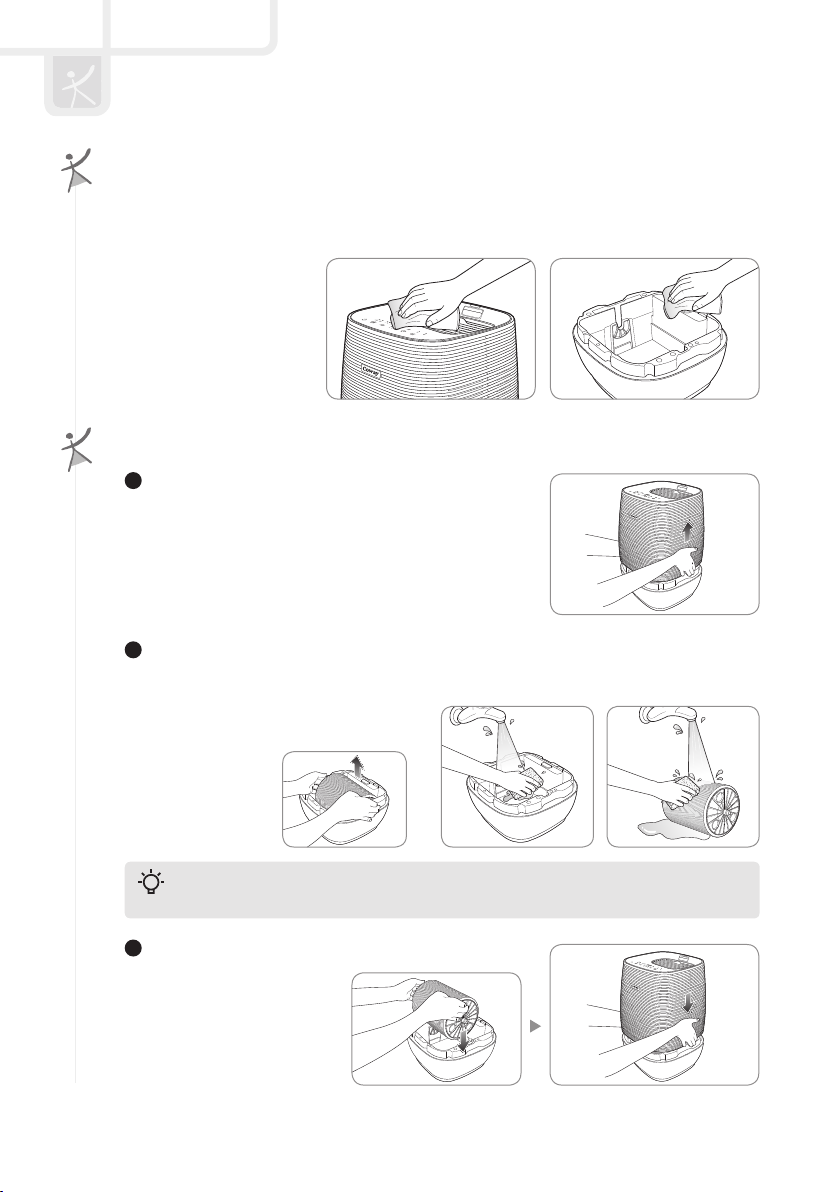

Separate the top cover from the product and remove any dust attached at surface of top cover and
water tank using a soft cloth or brush.
- If the grime is stubborn, wipe it away with a wet cloth.
∗
Do not use abrasives.
Detach the top cover.
Separate the humidifying disc from the water tank and clean the water tank and disc with a
damp soft cloth and neutral detergent under owing water.
Wipe the moisture from the water tank with a soft, dry cloth and dry it in the shade.
3 Attach the disc in place. Then, close the top cover.
Use an included cleaning brush when cleaning the humidifying disc.
Tips
▶
Detach the top cover.
Detach the pre-lters pulling upward.
3 Clean the lter with a vacuum cleaner or with water depending on the level of contamination.
4 Install the pre-lters after completely removing any moisture.
Push them until it clicks in place.
- Always unplug the product before cleaning the lters.
- The Pre-lter is reusable by removing dust or cleaning it with water.
- If the Pre-lter is not cleaned for a long time, the product performance may be
declined.
Tips

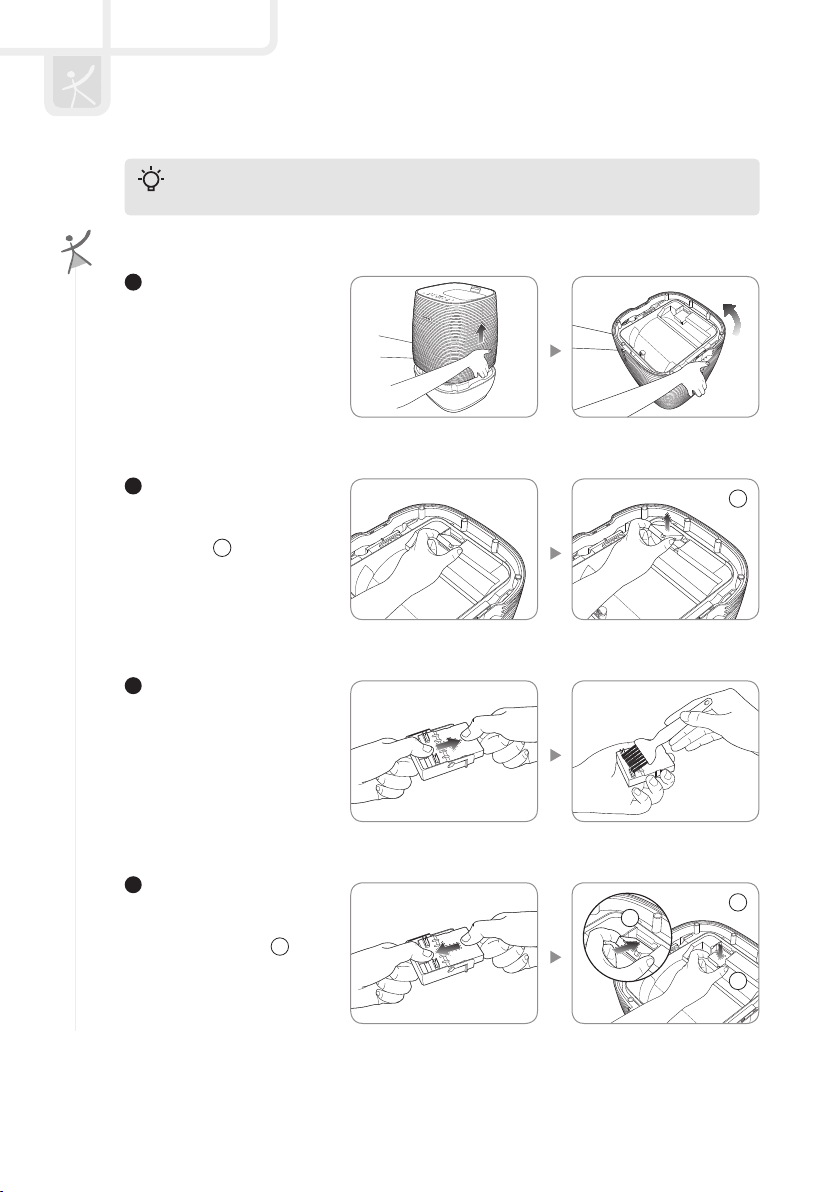

Detach the top cover.
Then, turn over the top cover.
a) Grab and lift up the ionizer
set.
b) Detach the ionizer set as
image .
3 a) Pull out the ionizer from its
cover.
b) Clean the two pins of
ionizer with enclosed
cleaning brush.
4 a) Push in the ionizer to its
cover until it clicks.
b) Place the ionizer set in
place as image .
- Remove the air outlet cover and aroma kit before top cover detachment.
If not, those components may fall down.
Tips
5 a) Close the top cover.
b) Place the air outlet cover
and aroma kit in place.
- The actual exterior design of ionizer set may be differ from this user’s manual.
The change may occur to improve the product performance.
Tips

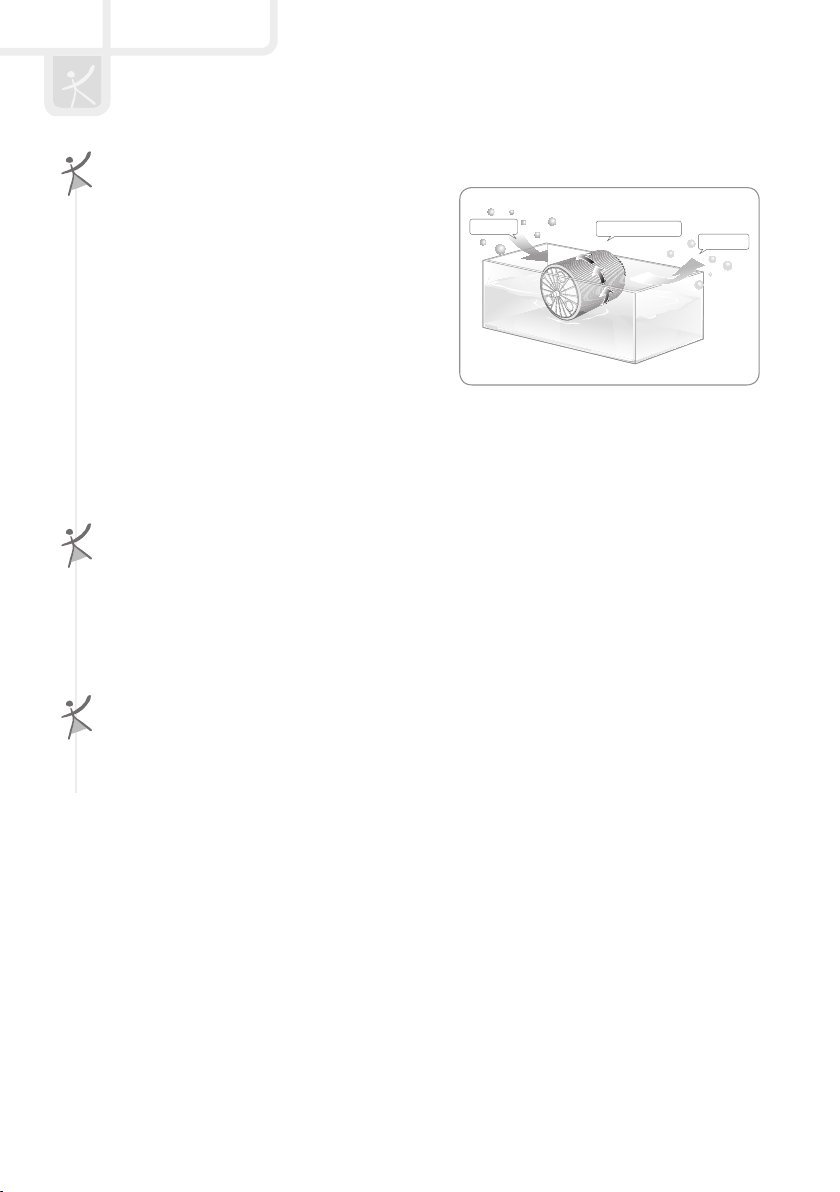

The humidication method adopted in this product
is the natural evaporation humidifying system.
The humidication part consists of two parts,
a water tank and a humidifying disc. Water is
supplied to the water tank and the water moves
upward as the humidifying disc installed in
the water tank rotates. The dry air sucked into
the product becomes humid as it passes the
humidication lter through the humidifying disc
and is dispersed into the room humidifying the air.
- Since the warm and dry air passes the
humidifying disc and acquires moisture and loses heat, the air may become colder depending
on the size or temperature of the room as the airow from the product is colder than before.
- The amount of moisture supplied by the natural vaporization humidication type varies
depending on the surrounding temperature or humidity. Therefore, if the humidity is high or the
temperature is low, the amount of moisture supplied by the humidication function may be low.
In the case of an ultrasonic type humidier, since the water particles sprayed into the air are big
and heavy, only the area around the humidier is humidied and the area around the humidier
becomes wet after operating for a long time. However, since the natural evaporation humidifying
system vaporizes water in the same way that water is vaporized naturally and the water particles
are small and light, not only are respiratory organs not irritated and the surrounding area does not
become wet, but also the entire area is humidied evenly.
This product is designed for a room size of 538 ft²(CA Standard). If this product is used in a large
space, the humidication effect may not be satisfactory.
Dry air
Humidifying disc
Humid air
No air is blowing.
• Is the power cord connected? Connect the power cord to an
electric 220 V~ 50 Hz outlet.
• Is the display part completely
turned off?
Press the power button and then
select a function.
• Has the power gone out? Use the air washer after the power
has been turned on.
The airow speed
does not change.
• Is the operating mode set to
Manual? Set an operating mode.
• Is the operating mode in Sleep
mode?
In Sleep mode, the airow speed is
xed to the minimum level.
The airow speed is
signicantly weaker
than before.
• Did you clean the pre-lter? Check the last date of cleaning pre-
lters, then clean the pre-lter.
A bad smell is
emitted by the air
outlet.
• Did you clean the water tank?
Check the last date of cleaning
water tank, then clean the water
tank.
Rell indicator blinks. • Fill the water.
When other
functional problems
are detected.
• Check the symptoms, unplug the product, and then request a service
or ask for assistance from our service center.
All the congured
humidity indicators
blink.
• Request a service or ask for assistance from our service center.
All the current
humidity indicators
blink.
• Is the water tank properly
installed?
Install the water tank properly by
pushing it in fully.
Users might improperly operate the product due to their unfamiliarity with How to use the
product. Check the following items to resolve such issues. If issues cannot be resolved using
these procedures, please contact the service center.
SPECIFICATIONS
Product name
Model AM-1012AD/ED/BD
Power supply 220 V - 240 V~ 50 Hz / 60 Hz
Phase Single Phase
Power consumption 56 W
Product insulation grade Grade 2 Device
Safety devices Power is cut off when the top cover is opened.
Installation location Indoor use
Maximum
humidication
capacity
AM-1012AD/ED 450 ml / h
AM-1012BD 360 ml / h
Dimensions 312 mm (W) x 312 mm (D) x 409 mm (H)
Weight
AM-1012AD/ED 6.3 kg
AM-1012BD 6.0 kg
► The specications are subject to minor changes to improve the product performance.
► This product is designed for Russian power standard 220V/50HZ.
Заливка воды через верхнее подающее устройство воды. Теперь заливка
воды может осуществляться намного быстрее и без необходимости разборки
устройства.
Настраиваемый таймер для автоматического выключения устройства по
истечении заданного периода времени.
Увлажняющий диск и датчик увлажнения* настроены на выработку требуемого
количества влаги в зависимости от уровня влажности воздуха в помещении.
* Датчик увлажнения имеется только на модели AM-1012AD/ED.
Индикаторы кнопок управления отображают рабочее состояние устройства.
Кроме того, индикатор уровня воды сообщающий, когда нужно прекратить
заливку воды. Индикаторы позволяют легко определять и правильно
использовать функции устройства.
Предварительный фильтр задерживает крупные частицы пыли, содержащиеся
в воздухе. Комплект ароматизаторов обеспечивает приятный аромат
в помещении. Кроме того, ионизатор (AM-1012ED) усиливает эффект
стерилизации и дезодорирования. Использование данного воздухоочистителя
обеспечивает принципиально новый способ освежения воздуха.
ОСОБЕННОСТИ ...............................1
СОДЕРЖАНИЕ..................................1
МЕРЫ ПРЕДОСТОРОЖНОСТИ.......2
КОМПОНЕНТЫ УСТРОЙСТВА ........4
Вид снаружи/внутри
(AM-1012AD/ED)
.............................4
Вид
снаружи/внутри
(AM-1012BD) .................................5
Индикаторы/кнопки управления
(AM-1012AD/ED) ...........................6
Индикаторы/кнопки управления
(AM-1012BD) .................................7
ПРОЦЕСС ОЧИСТКИ ВОЗДУХА......8
ИСПОЛЬЗОВАНИЕ .........................09
ОЧИСТКА.........................................10
СИСТЕМА УВЛАЖНЕНИЯ С
ЕСТЕСТВЕННЫМ ИСПАРЕНИЕМ.15
ПОИСК И УСТРАНЕНИЕ
НЕИСПРАВНОСТЕЙ.......................16
ТЕХНИЧЕСКИЕ
ХАРАКТЕРИСТИКИ.........................17
WARRANTY CARD..........................19
This manual suits for next models
2
Table of contents
Languages:
Other Coway Humidifier manuals
