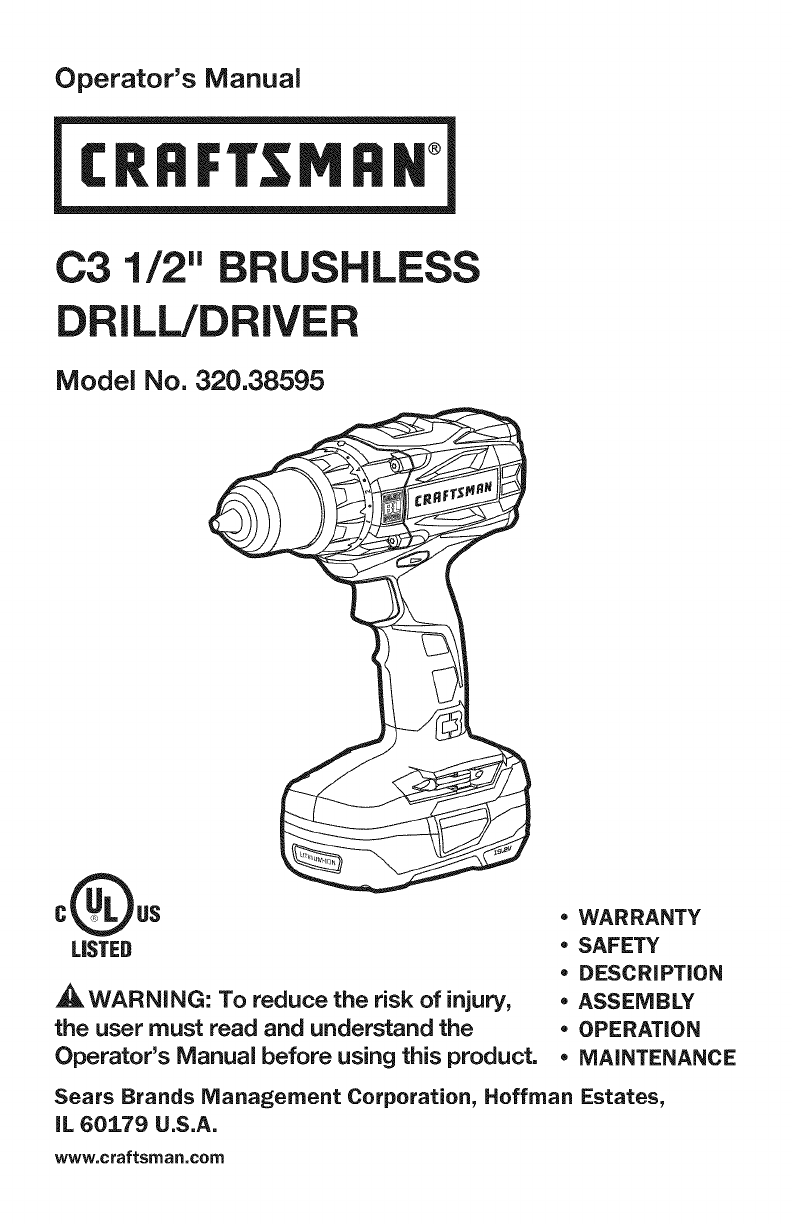

Craftsman 320.38595 User manual

Operator's ManuaJ
®
C3 1/2" BRUSHLESS
DRILL/DRIVER
Model No. 320.38595
_WARNiNG: To reduce the risk of injury,
the user must read and understand the
Operator's Manual before using this product.
* WARRANTY
* SAFETY
* DESCRiPTiON
* ASSEMBLY
* OPERATION
* MAINTENANCE
Sears Brands Management Corporation, Hoffman Estates,
IL 60179 U.S.A.
www,craftsman,com

Warranty Page 2
Safety Symbols Pages 4-5
Safety Instructions Pages 6-9
Description Pages 10-11
Assembly Page 12
Operation Pages 13-20
Maintenance Pages 21-22
Troubleshooting Page 23
Parts List Pages 24-25
CRAFTSMAN ONE YEAR LiMiTED WARRANTY
FOR ONE YEAR from the date of purchase, this product is warranted
against any defects in material or workmanship. With proof of purchase,
defective product will be replaced free of charge.
For warranty coverage details to obtain free replacement, visit the
web page: www.craftsman.com/warranty
This warranty does not cover the bit, which is an expendable part that can
wear out from normal use within the warranty period.
This ONE YEAR warranty is void if this product is ever used while providing
commercial services or if rented to another person. For 90 DAY commercial
and rental use terms, see the Craftsman warranty web page.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179.
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
This drill/driver has many features for making its use more pleasant and
enjoyable. Safety, performance, and dependability have been given top priority
in the design of this product making it easy to maintain and operate.
2 © Sears Brands, LLC

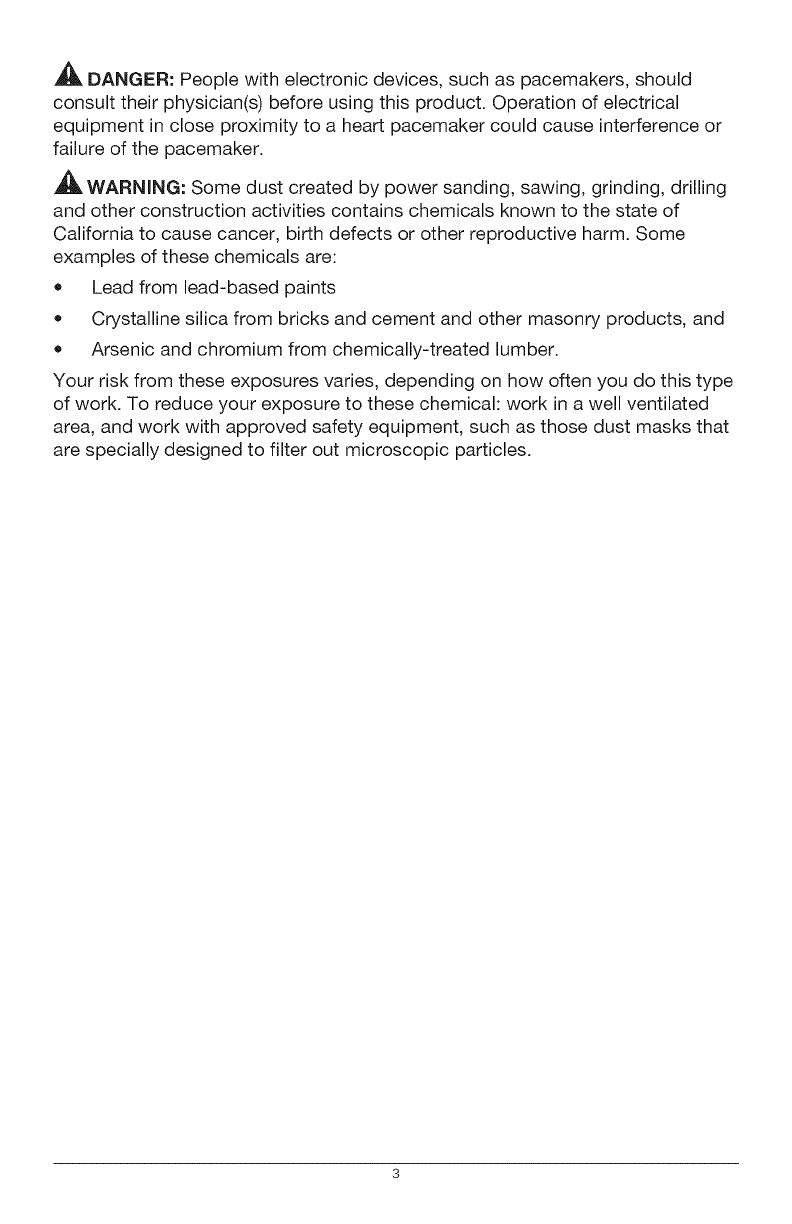

,_, DANGER: People with electronic devices, such as pacemakers, should
consult their physician(s) before using this product. Operation of electrical
equipment in close proximity to a heart pacemaker could cause interference or
failure of the pacemaker.
_,WARNING: Some dust created by power sanding, sawing, grinding, drilling
and other construction activities contains chemicals known to the state of
California to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• Lead from lead-based paints
Crystalline silica from bricks and cement and other masonry products, and
Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemical: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.

Thepurposeofsafetysymbolsistoattractyourattentiontopossibledangers.
Thesafetysymbolsandtheexplanationswiththemdeserveyourcareful
attentionandunderstanding.Thesymbolwarningsdonot,bythemselves,
eliminateanydanger.Theinstructionsandwarningstheygivearenosubstitutes
forproperaccidentpreventionmeasures.
WARNING:Besuretoreadandunderstandallsafetyinstructionsinthis
manual,includingallsafetyalertsymbolssuchas"DANGER,""WARNING,"and
"CAUTION"beforeusingthistool.Failuretofollowallinstructionslistedinthis
manualmayresultinelectricshock,fireand/orseriouspersonalinjury.

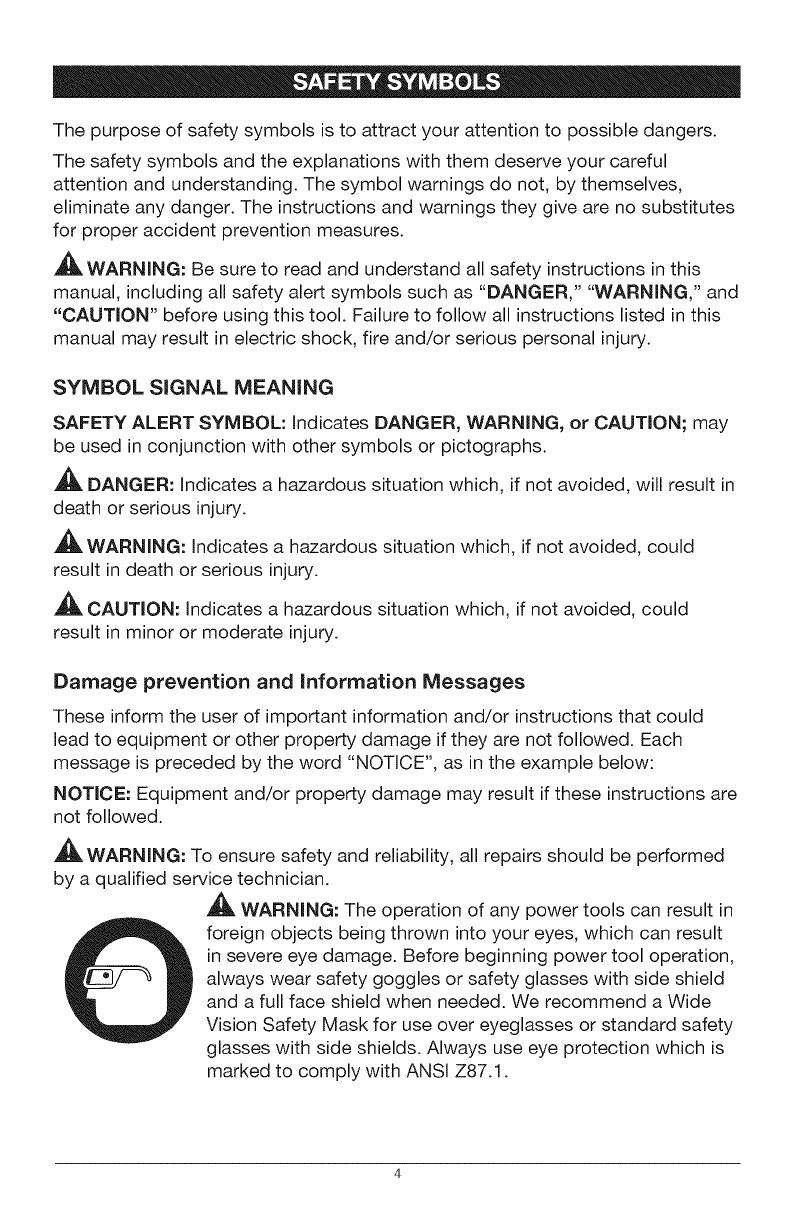

SYMBOL SIGNAL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION; may
be used in conjunction with other symbols or pictographs.
,_ DANGER: Indicates a hazardous situation which, if not avoided, will result in
death or serious injury.
,_, WARNING: Indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
_1_ CAUTION: Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Damage prevention and Information Messages
These inform the user of important information and/or instructions that could
lead to equipment or other property damage if they are not followed. Each
message is preceded by the word "NOTICE", as in the example below:
NOTICE" Equipment and/or property damage may result if these instructions are
not followed.
_WARNING: To ensure safety and reliability, all repairs should be performed
by a qualified service technician.
,_ WARNING: The operation of any power tools can result in
foreign objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation,
always wear safety goggles or safety glasses with side shield
and a full face shield when needed. We recommend a Wide
Vision Safety Mask for use over eyeglasses or standard safety
glasses with side shields. Always use eye protection which is
marked to comply with ANSI Z87.1.

SAVE THESE iNSTRUCTiONS

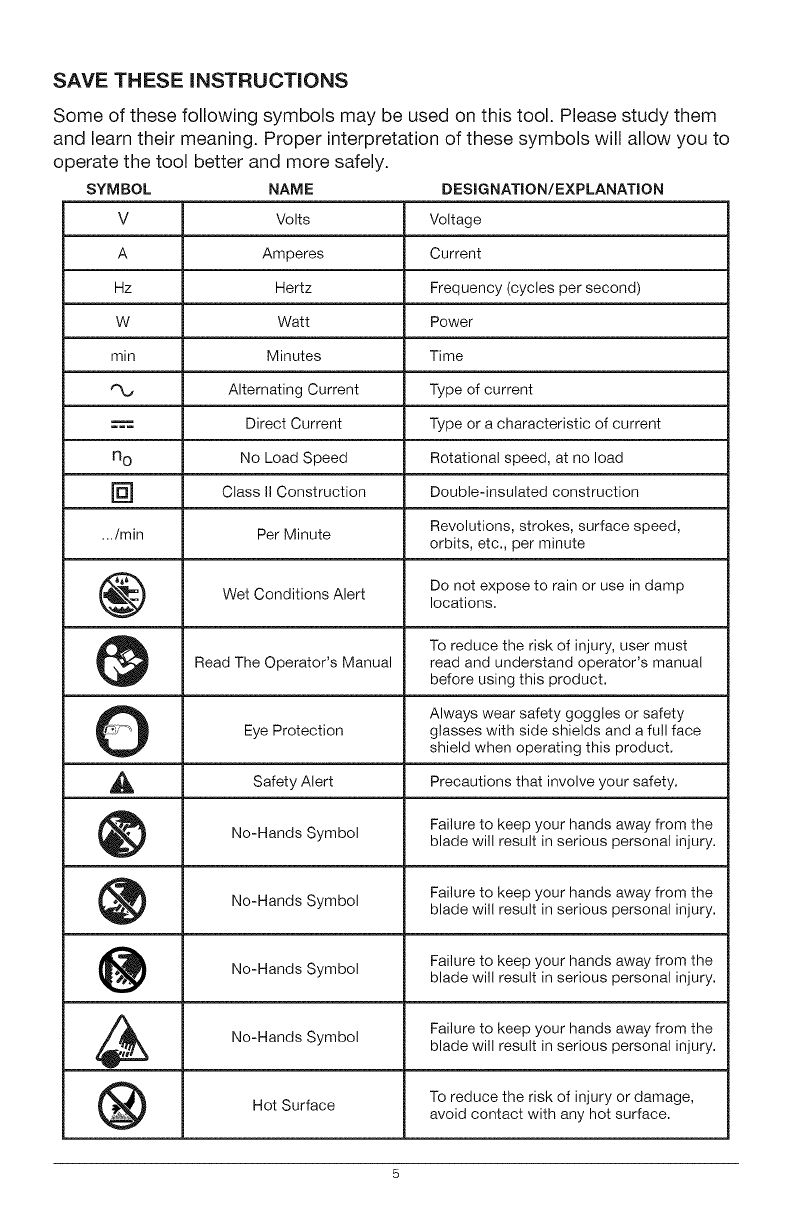

Some of these following symbols may be used on this tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to
operate the tool better and more safely.
SYMBOL NAME DESIGNATION/EXPLANATION
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
min Minutes Time
Alternating Current Type of current
Direct Current Type or a characteristic of current
n O No Load Speed Rotational speed, at no load
[] Class II Construction Double=insulated construction
.../min Per Minute Revolutions, strokes, surface speed,
orbits, etc., per minute
Wet Conditions Alert Do not expose to rain or use in damp
locations.
To reduce the risk of injury, user must
Read The Operator's Manual read and understand operator's manual
before using this product.
O Always wear safety goggles or safety
Eye Protection glasses with side shields and a fulI face
shield when operating this product.
_IL Alert Precautions that involve
Safety your safety.
No=Hands Symbol Failure to keep your hands away from theblade will result in serious personal injury.
No=Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
No=Hands Failure to keep your hands away from the
Symbol blade will result in serious personal injury.
No=Hands Symbol Failure to keep your hands away from the
blade will result in serious personal injury.
Hot Surface To reduce the risk of injury or damage,avoid contact with any hot surface.
5

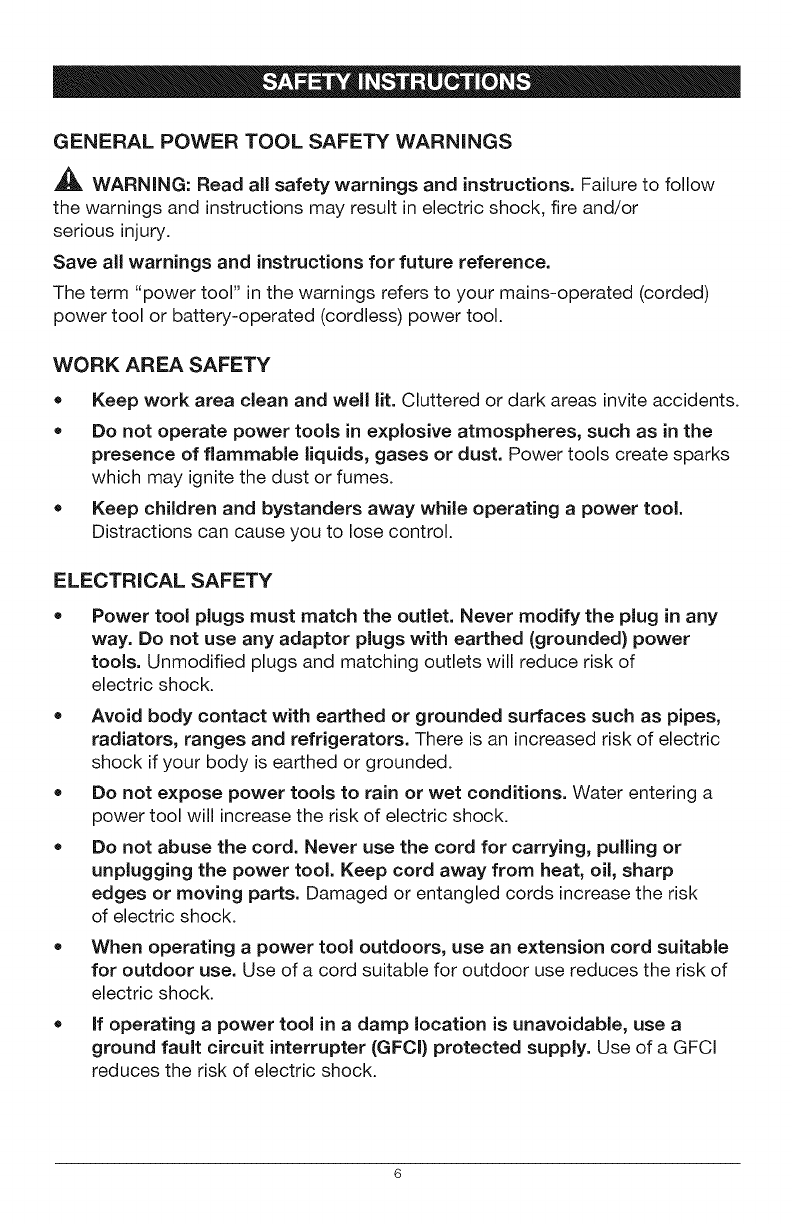

GENERAL POWER TOOL SAFETY WARNINGS
,_ WARNING: Read aii safety warnings and instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
WORK AREA SAFETY
• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
ELECTRICAL SAFETY
Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adaptor plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
Avoid body contact with earthed or grounded surfaces such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
if operating a power tool in a damp location is unavoidable, use a
ground fault circuit interrupter (GFCl) protected supply. Use of a GFCI
reduces the risk of electric shock.

PERSONAL SAFETY
* Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use tool while tired or under the
influence of drugs, alcohol, or medication. A moment of inattention while
operating power tools may result in serious personal injury.
* Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
* Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your finger on the switch or
energizing in power tools that have the switch on invites accidents.
* Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool may
result in personal injury.
* Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
*Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
* If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
of these devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
* Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the
rate for which it was designed.
* Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must
be repaired.
* Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
* Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.

* Maintainpower tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect the
power tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained power tools.
* Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
* Use the power tool, accessories and tool bits etc., in accordance with
these instructions, taking into account the working conditions and the
work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.

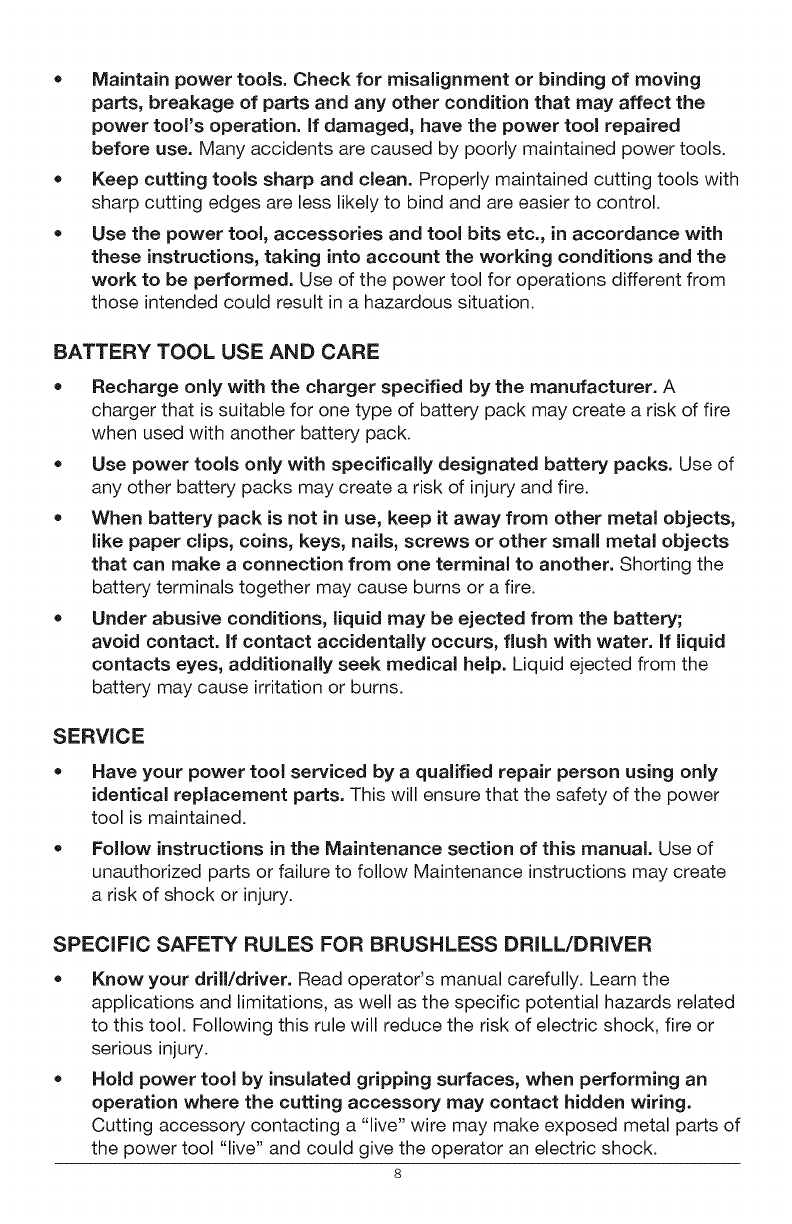

BATTERY TOOL USE AND CARE
• Recharge only with the charger specified by the manufacturer. A
charger that is suitable for one type of battery pack may create a risk of fire
when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of
any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects,
like paper clips, coins, keys, nails, screws or other small metal objects
that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
•Under abusive conditions, liquid may be ejected from the battery;
avoid contact. If contact accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
SERVICE
Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power
tool is maintained.
Follow instructions in the Maintenance section of this manual. Use of
unauthorized parts or failure to follow Maintenance instructions may create
a risk of shock or injury.
SPECiFiC SAFETY RULES FOR BRUSHLESS DRILL/DRIVER
,, Know your drill/driver. Read operator's manual carefully. Learn the
applications and limitations, as well as the specific potential hazards related
to this tool. Following this rule will reduce the risk of electric shock, fire or
serious injury.

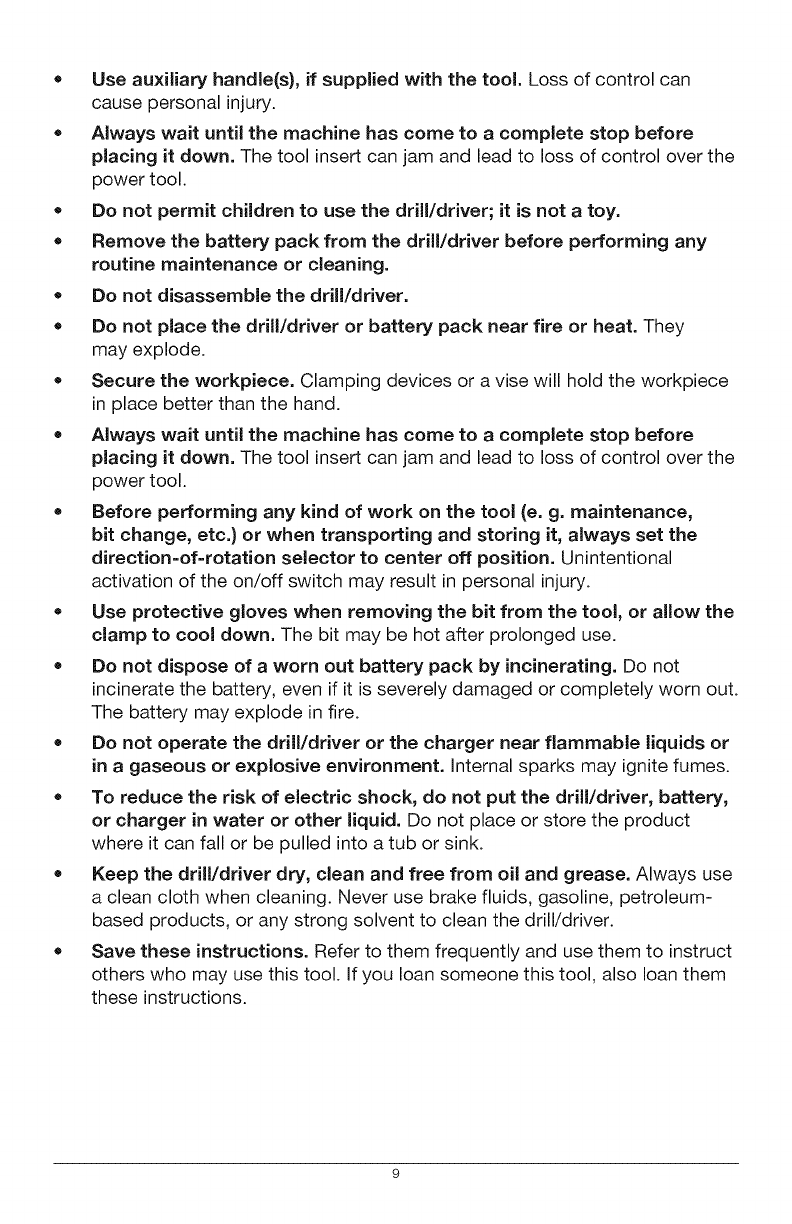

,, Hold power tool by insulated gripping surfaces, when performing an
operation where the cutting accessory may contact hidden wiring.
Cutting accessory contacting a "live" wire may make exposed metal parts of
the power tool "live" and could give the operator an electric shock.
8

=Use auxiliary handle(s), if supplied with the tool. Loss of control can
cause personal injury.
• Always wait until the machine has come to a complete stop before
placing it down. The tool insert can jam and lead to loss of control over the
power tool.
Do not permit children to use the drill/driver; it is not a toy.
Remove the battery pack from the drill/driver before performing any
routine maintenance or cleaning.
Do not disassemble the drill/driver.
®
®Do not place the drill/driver or battery pack near fire or heat. They
may explode.
Secure the workpiece. Clamping devices or a vise will hold the workpiece
in place better than the hand.
Always wait until the machine has come to a complete stop before
placing it down. The tool insert can jam and lead to loss of control over the
power tool.
= Before performing any kind of work on the tool (e. g. maintenance,
bit change, etc.) or when transporting and storing it, always set the
direction-of-rotation selector to center off position. Unintentional
activation of the on/off switch may result in personal injury.
• Use protective gloves when removing the bit from the tool, or allow the
clamp to cool down. The bit may be hot after prolonged use.
• Do not dispose of a worn out battery pack by incinerating. Do not
incinerate the battery, even if it is severely damaged or completely worn out.
The battery may explode in fire.
•Do not operate the drill/driver or the charger near flammable liquids or
in a gaseous or explosive environment. Internal sparks may ignite fumes.
• To reduce the risk of electric shock, do not put the drill/driver, battery,
or charger in water or other liquid. Do not place or store the product
where it can fall or be pulled into a tub or sink.
= Keep the drill/driver dry, clean and free from oil and grease. Always use
a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-
based products, or any strong solvent to clean the drill/driver.
= Save these instructions. Refer to them frequently and use them to instruct
others who may use this tool. If you loan someone this tool, also loan them
these instructions.

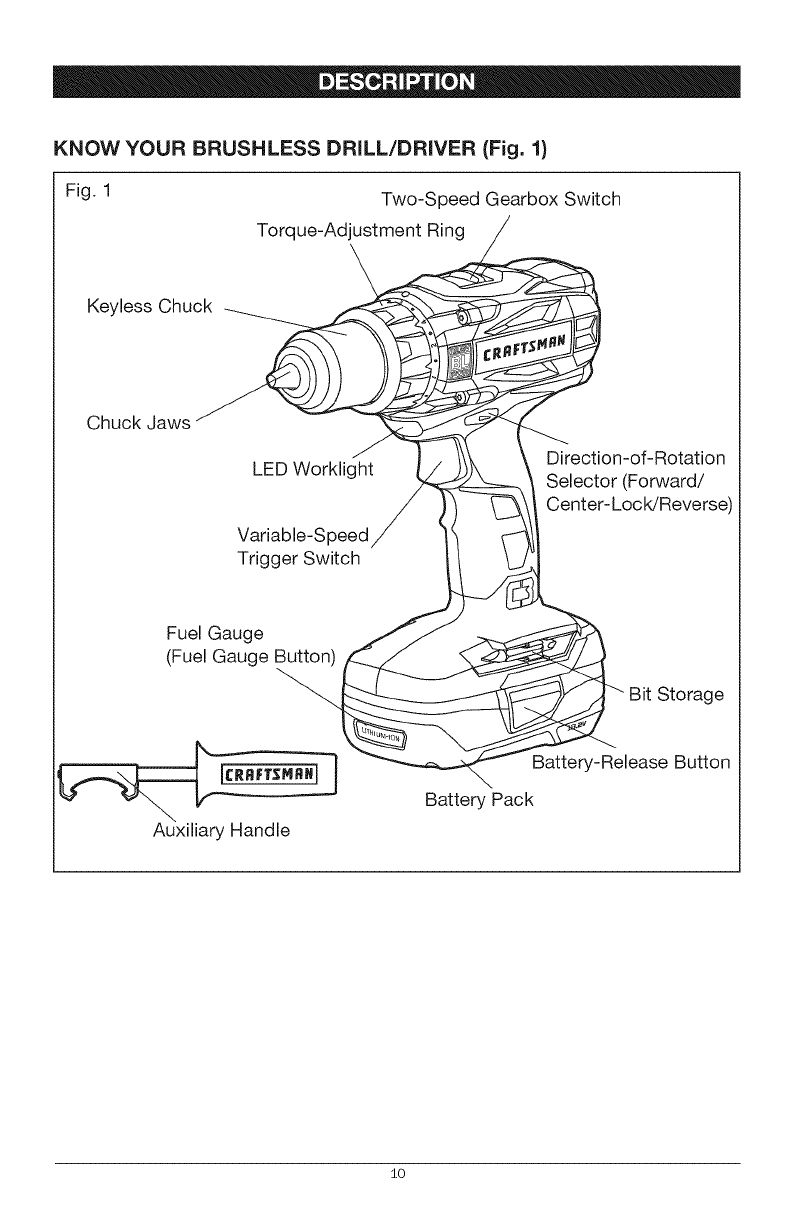

KNOW YOUR BRUSHLESS DRILL/DRIVER (Fig. 1)
Fig. 1 Two-Speed Gearbox Switch
Torque-Adjustment Ring
Keyless Chuck
Chuck Jaws
LED Worklight
Variable-Speed
Trigger Switch
Direction-of-Rotation
Selector (Forward/
Center-LocWReverse)
Fuel Gauge
(Fuel Gauge Button)
Storage
Auxiliary Handle
Battery-Release Button
Battery Pack
10

PRODUCT SEPCIFICATIONS
Motor 19.2 Volt DC
Chuck 1/2 in. (13mm)
No-load Speed LO 0-470/min/HI 0-1800/min
Clutch 22 Position
Torque 600 in.lbs
Battery Type Lithium-Ion
Battery Voltage 19.2 Volt DC
Charger Input 120-Volts, 60 Hz AC only
Optimum Charging Temperature 50°F (10° C) -104°F (40°C)
WARNING: The safe use of this product requires an understanding of the
information on the tool and in this operator's manual, as well as knowledge of
the project you are attempting. Before use of this product, familiarize yourself
with all operating features and safety rules.
ADJUSTABLE TORQUE
The drill/driver has a 22-position clutch: 1 drill position and 21 torque positions.
TWO=SPEED GEARBOX
The two-speed gearbox is designed for drilling or driving at LO or HI speeds. A slide
switch is located on top of your drill/driver for selecting the appropriate speed.
VARIABLE SPEED
The variable-speed trigger switch delivers higher speed with increased trigger
pressure and lower speed with decreased trigger pressure.
KEYLESS CHUCK
The keylesschuck allowsyouto hand-tighten or releasethe drill bit inthe chuck jaws.
FORWARD/CENTER=LOCK/REVERSE
The drill/driver has a direction-of-rotation selector located above the trigger
switch for changing the direction of bit rotation. Setting the trigger switch in the
OFF (center-lock) position helps reduce the possibility of accidental starting
when not in use.
LED WORKLIGHT
The LED worklight, located on the front of the drill/driver, illuminates when the trigger
switch is depressed. This feature provides extra light for increased visibility.
11

,_ WARNING: If any parts are broken or missing, do not attempt to attach
the battery pack or operate the drill/driver until the broken or missing parts are
replaced. Failure to do so could result in possible serious injury.
_1_ WARNING: Do not attempt to modify this drill/driver or create accessories
not recommended for use with this drill/driver. Any such alteration or
modification is misuse and could result in a hazardous condition leading to
possible serious injury.
_, WARNING: To prevent accidental starting that could cause serious personal
injury, always remove the battery pack from the drill/driver when changing bits.
UNPACKING
This product has been shipped completely assembled.
* Carefully remove the tool and any accessories from the carton. Make sure
that all items listed in the packing list are included.
* Inspect the tool carefully to make sure no breakage or damage occurred
during shipping.
* Do not discard the packing material until you have carefully inspected and
satisfactorily operated the tool.
* If any parts are damaged or missing, please return the tool to the place
of purchase.
PACKING LiST
Brushless drill/driver, auxiliary handle, double-ended bit (installed on the drill/
driver), soft bag and operator's manual.
12

TO ATTACH BATTERY
PACK (Fig, 2)
1. Lock the trigger switch on
the drill/driver by placing the
direction-of-rotation (forward/
center-lock/reverse) selector
in the center position.
2. Align the raised rib on the
battery pack with the groove
inside the drill/driver, and
then insert the battery pack
into the tool.
Fig. 2
Rib.
_ Latch
,_,,_.._-Y_ Battery-Release
_ Button
NOTICE: Make sure that the latch on the battery pack snaps into place and
the battery pack is secured to the tool before beginning operation. Improper
assembly of the battery pack can cause damage to internal components.
TO DETACH BATTERY PACK (Fig. 2}
1. Lock the trigger switch on the drill/driver by placing the direction-of-rotation
(forward/center-lock/reverse) selector in the center position.
2. Depress both battery-release buttons, located on the sides of the battery
pack, to release the battery pack.
3. Pull the battery pack out and remove it from the tool.
,_ WARNING: Battery tools are always in operating condition. Therefore,
the direction-of-rotation selector should always be locked when not in use or
carrying the tool at your side.
13

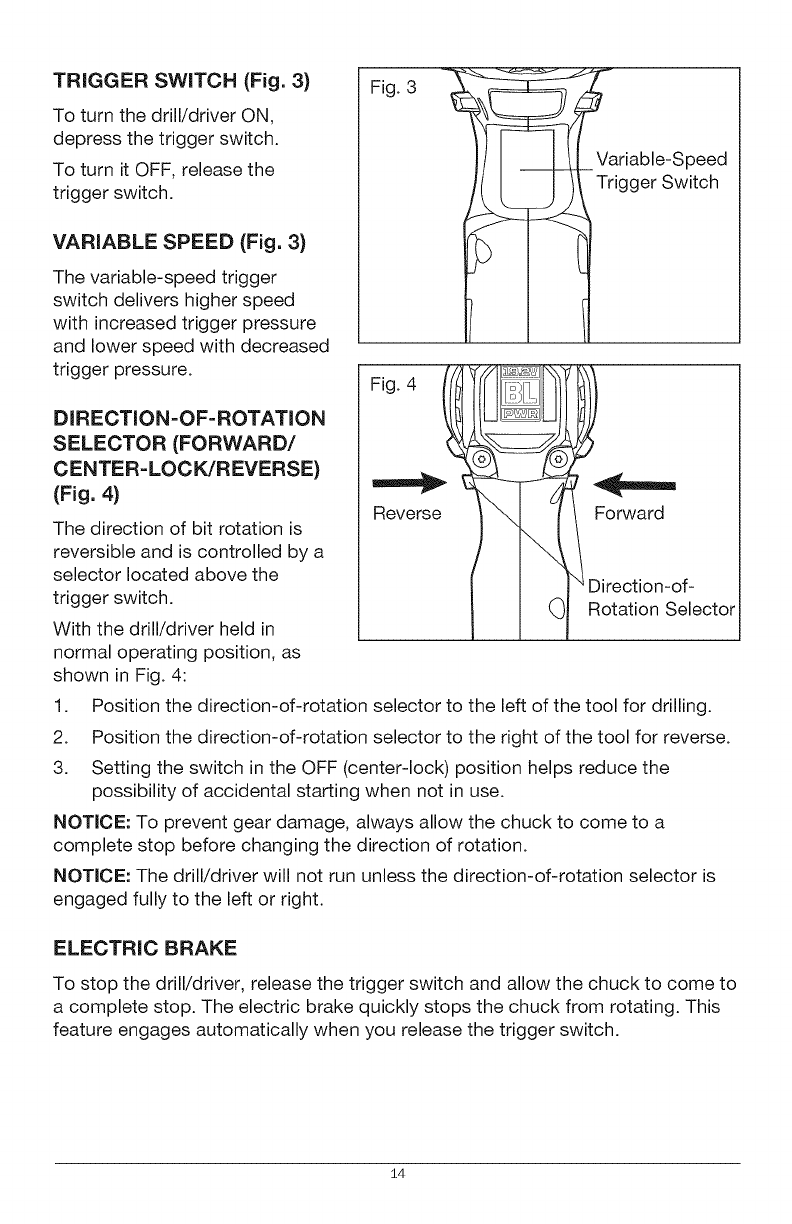

TRIGGER SWITCH (Fig. 3)
To turn the drill/driver ON,
depress the trigger switch.
To turn it OFF, release the
trigger switch.
VARIABLE SPEED (Fig. 3)
The variable-speed trigger
switch delivers higher speed
with increased trigger pressure
and lower speed with decreased
trigger pressure.
DIRECTION=OF=ROTATION
SELECTOR (FORWARD/
CENTER=LOCK/REVERSE)
(Fig. 4}
The direction of bit rotation is
reversible and is controlled by a
selector located above the
trigger switch.
With the drill/driver held in
normal operating position, as
shown in Fig. 4:
Fig. 3
Fig. 4
Reverse
Variable-Speed
rigger Switch
Forward
Direction-of-
Rotation Selector
1. Position the direction-of-rotation selector to the left of the tool for drilling.
2. Position the direction-of-rotation selector to the right of the tool for reverse.
3. Setting the switch in the OFF (center-lock) position helps reduce the
possibility of accidental starting when not in use.
NOTICE: To prevent gear damage, always allow the chuck to come to a
complete stop before changing the direction of rotation.
NOTICE: The drill/driver will not run unless the direction-of-rotation selector is
engaged fully to the left or right.
ELECTRIC BRAKE
To stop the drill/driver, release the trigger switch and allow the chuck to come to
a complete stop. The electric brake quickly stops the chuck from rotating. This
feature engages automatically when you release the trigger switch.
14

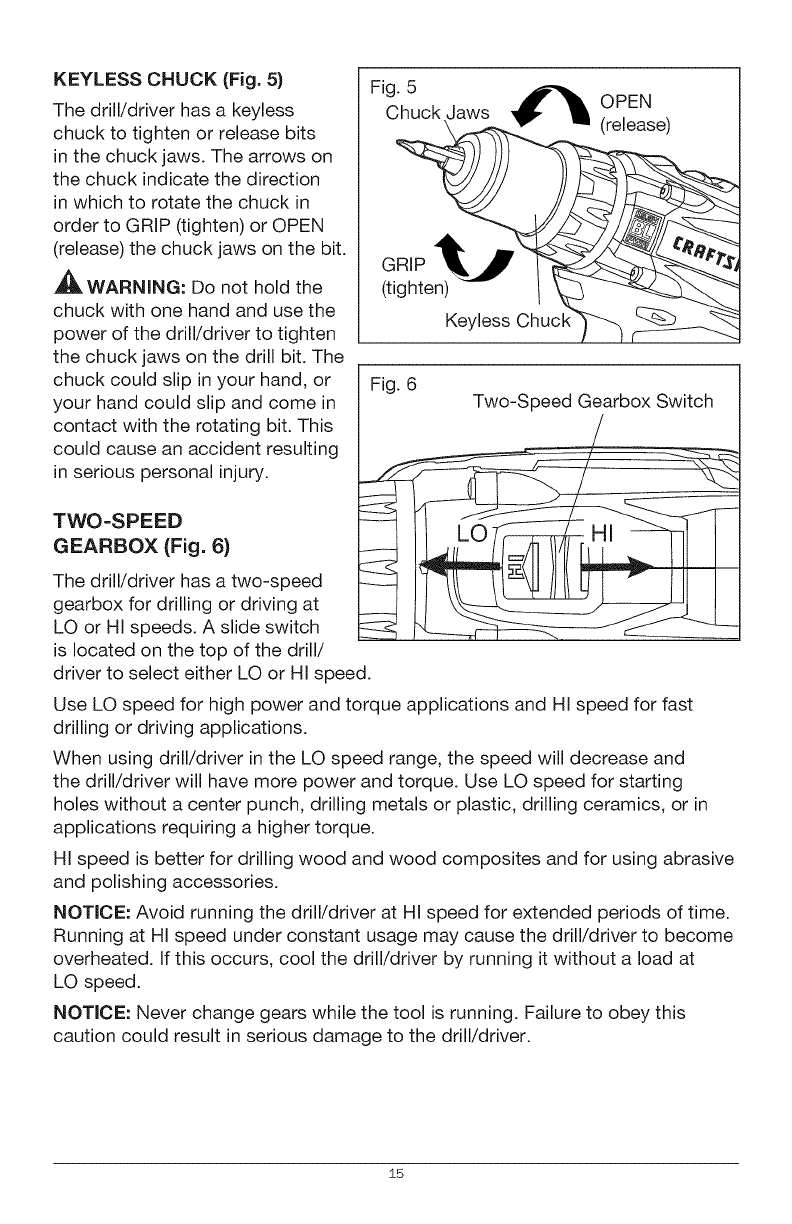

KEYLESS CHUCK (Fig. 5}
The drill/driver has a keyless
chuck to tighten or release bits
in the chuck jaws. The arrows on
the chuck indicate the direction
in which to rotate the chuck in
order to GRIP (tighten) or OPEN
(release) the chuck jaws on the bit.
,_ WARNING: Do not hold the
chuck with one hand and use the
power of the drill/driver to tighten
the chuck jaws on the drill bit. The
chuck could slip in your hand, or
your hand could slip and come in
contact with the rotating bit. This
could cause an accident resulting
in serious personal injury.
TWO=SPEED
GEARBOX (Fig. 6)
The drill/driver has a two-speed
gearbox for drilling or driving at
LO or HI speeds. A slide switch
is located on the top of the drill/
Fig. 5 _OPEN
Chuck Jaws (release)
Fig. 6 Two-Speed Gearbox Switch
driver to select either LO or HI speed.
Use LO speed for high power and torque applications and HI speed for fast
drilling or driving applications.
When using drill/driver in the LO speed range, the speed will decrease and
the drill/driver will have more power and torque. Use LO speed for starting
holes without a center punch, drilling metals or plastic, drilling ceramics, or in
applications requiring a higher torque.
HI speed is better for drilling wood and wood composites and for using abrasive
and polishing accessories.
NOTICE: Avoid running the drill/driver at HI speed for extended periods of time.
Running at HI speed under constant usage may cause the drill/driver to become
overheated. If this occurs, cool the drill/driver by running it without a load at
LO speed.
NOTICE: Never change gears while the tool is running. Failure to obey this
caution could result in serious damage to the drill/driver.
15

ADJUSTABLE=TORQUE
CLUTCH (Fig. 7}
The higher the torque drill setting,
the more force the drill/driver
produces to turn an object in
either LO or HI rotation speed.
When using the drill/driver for
different driving applications,
increase or decrease the torque
in order to help prevent damage
to screw heads, threads,
workpiece, etc.
Fig. 7 To decrease torque
T
Tidustment
Adjust the torque by rotating the torque-adjustment ring. The proper setting
depends on the job and the type of bit, fastener, and material you will be using.
In general, use greater torque for larger screws. If the torque is too high, the
screws may be damaged or broken.
For delicate operations, such as removing a partially stripped screw, use a
low torque setting. For operations such as drilling into hardwood, use a higher
torque setting.
NOTICE: When adjusting the torque clutch make sure that the speed switch is
either completely in the LO or HI position.
,_, CAUTION: Do not change the torque setting when the tool is running.
DRILL MODE (Fig. 8}
Select the drill mode for
drilling and other
heavy-duty applications.
To select drill mode, rotate the
torque-adjustment ring until the
drill icon aligns with the torque
indicator and the ring clicks
into position.
Fig. 8 Torque Indicator
Drill Idon
16

LED WORKMGHT (Fig. 9}
The LED worklight, located on
the base of the drill/driver, will
illuminate when the trigger switch
is depressed. This provides
additional light on the surface of
the workpiece.The LED worklight
will turn off when the trigger
switch is released.
NOTICE: The LED worklight
will begin flash slowly if the tool
becomes overloaded or if the
temperature becomes too high
during use.
BiT STORAGE (Fig. 10)
When not in use, the bit provided
with the drill/driver can be placed
in the storage area located on the
base of the drill/driver. Store the
bit on the base of the drill/driver
by snapping it into place in the
bit clip.
Fig. 9
LED Worklight
Fig. 10
Bit Clip
FUEL GAUGE (Fig. 11)
This lithium-ion battery pack is
equipped with a Fuel Gauge that
indicates the battery pack
charge level.
To display the amount of charge
left in the battery, press the
battery Fuel Gauge button; it
will illuminate and then it will
turn off automatically about 4
seconds later.
Fig. 11
Fuel Gauge (Fuel Gauge Button)
• If the charge indicator light
glows green, the battery pack is fully charged.
If it glows orange, it has a usable charge remaining but will soon require
recharging.
If it glows red, the battery requires recharging.
NOTICE: The Fuel Gauge can be used whether the battery is attached or
removed from your tool.
i7

iNSTALLiNG BITS (Fig. 12)
1. Lock the trigger switch by
placing the direction-of-
rotation selector in the OFF
(center-lock) position.
2. Open or close the chuck jaws
to a point where the opening
is slightly larger than the bit
you intend to use.
3. Raise the front of the drill/
driver slightly to keep the
bit from falling out of the
chuck jaws.
4. Insert a bit.
Fig. 12 Chuck Jaws PEN (release)
Double-Ended Bit
Chuc
5. Rotate the chuck in the direction of the arrow marked GRIP to close the
chuck jaws.
NOTICE: Do not use a wrench to tighten or loosen the chuck jaws.
6. Tighten the chuck jaws securely on the bit.
REMOVING BITS (Fig. 13)
1. Lock the trigger switch by
placing the direction-of-
rotation selector in the OFF
(center-lock) position.
2. Open the chuck jaws.
3. Rotate the chuck in the
direction of the arrow marked
OPEN to loosen the
chuck jaws.
Fig. 13
Double-Ended Bit OPEN (release)
Chuck jaws
Keyless Chuck
NOTICE: Do not use a wrench to
tighten or loosen the chuck jaws.
4. Remove the bit.
,_ WARNING: Make sure to insert the bit straight into the chuck jaws. Do not
insert the bit into the chuck jaws at an angle and then tighten. This could cause
the bit to be thrown from the drill/driver, resulting in possible serious personal
injury or damage to the chuck.
18

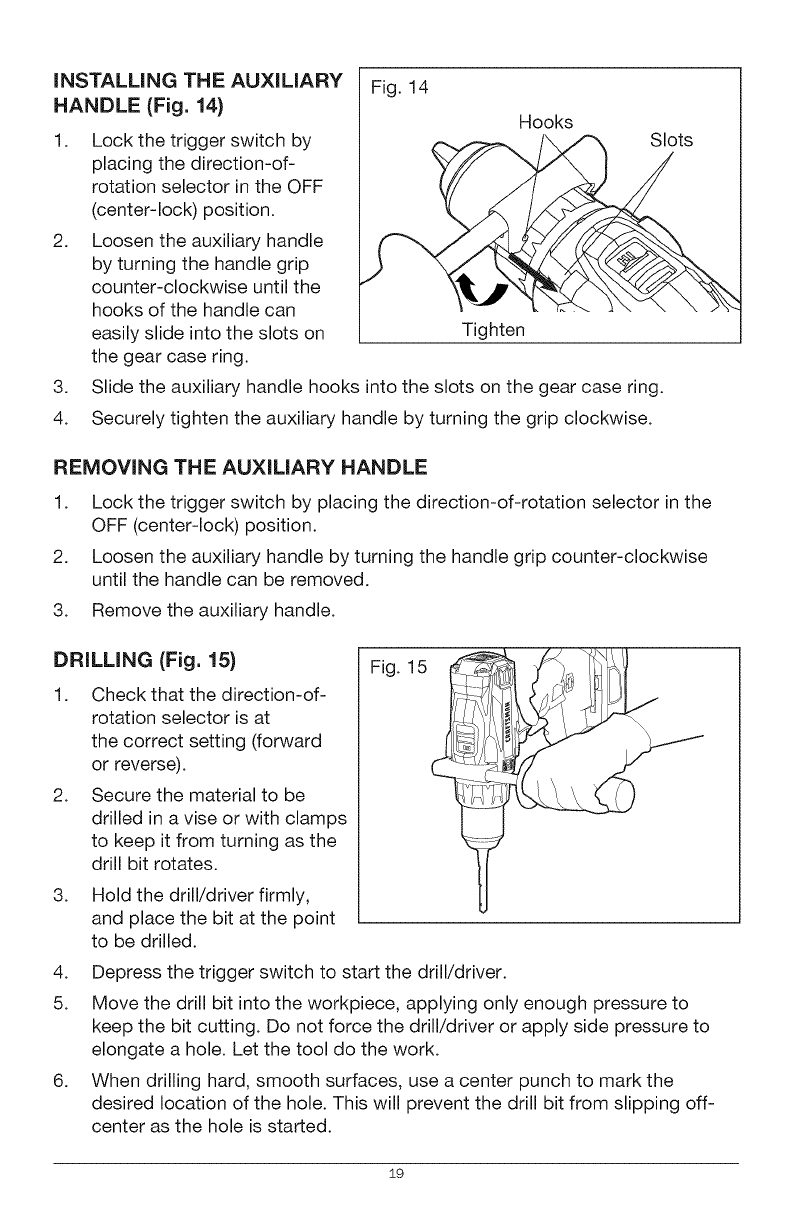

iNSTALLiNG THE AUXiLiARY
HANDLE (Fig. 14)
1.
2.
3.
4.
Fig. 14
Hooks
Lock the trigger switch by
placing the direction-of-
rotation selector in the OFF
(center-lock) position.
Loosen the auxiliary handle
by turning the handle grip
counter-clockwise until the
hooks of the handle can
easily slide into the slots on Tighten
the gear case ring.
Slide the auxiliary handle hooks into the slots on the gear case ring.
Securely tighten the auxiliary handle by turning the grip clockwise.
Slots
REMOVING THE AUXILIARY HANDLE
1. Lock the trigger switch by placing the direction-of-rotation selector in the
OFF (center-lock) position.
2. Loosen the auxiliary handle by turning the handle grip counter-clockwise
until the handle can be removed.
3. Remove the auxiliary handle.
DRILLING (Fig. 15}
1. Check that the direction-of-
rotation selector is at
the correct setting (forward
or reverse).
2. Secure the material to be
drilled in a vise or with clamps
to keep it from turning as the
drill bit rotates.
3. Hold the drill/driver firmly,
and place the bit at the point
to be drilled.
Fig. 15
4. Depress the trigger switch to start the drill/driver.
5. Move the drill bit into the workpiece, applying only enough pressure to
keep the bit cutting. Do not force the drill/driver or apply side pressure to
elongate a hole. Let the tool do the work.
6. When drilling hard, smooth surfaces, use a center punch to mark the
desired location of the hole. This will prevent the drill bit from slipping off-
center as the hole is started.
19

7. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
8. If the bit jams in the workpiece or if the drill/driver stalls, stop the tool
immediately. Remove the bit from the workpiece and determine the reason
for jamming.
NOTICE: This drill/driver is equipped with an electric brake. When the brake is
functioning properly, sparks may be visible through the vent slots in the housing.
This is normal and results from the action of the brake.
WOOD DRILLING
For maximum performance, use high-speed steel or brad-point bits for
wood drilling.
1. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
2. Increase speed as the drill bit bites into the material.
3. When drilling "through" holes, place a block of wood behind the workpiece
to prevent ragged or splintered edges on the back side of the hole.
METAL DRILLING
For maximum performance, use high speed steel bits for metal or steel drilling.
1. When drilling metals, use light oil on the drill bit to keep it from overheating.
The oil will prolong the life of the bit and increase the drilling action.
2. Begin drilling at a very low speed to prevent the bit from slipping off the
starting point.
3. Maintain a speed and a pressure which allow cutting without overheating
the bit. Applying too much pressure will:
• Overheat the drill/driver
• Wear the bearings
• Bend or burn bits
• Produce off-center or irregularly shaped holes
2O
