Craftsman 247.28984 User manual

Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
Visit our website: www.craftsman.com
Operator’s Manual
GARDEN TRACTOR
28 HP, 54” Tractor
Electric Start
PGT9000
Model No. 247.28984
IMPORTANT:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions about
this product, Call:
1-800-659-5917
Craftsman Tractor Help Line
5am - 5 pm, Mon - Sat
This product has a low emission engine which operates differently
from previously built engines. Before you start the engine, read and
understand this Operator’s Manual.
• Español, p. 62
Form No. 769-05601
(August 3, 2010)

34
PARTS LIST
Steering and Axle — Model No. 247.28984
15
10
13
32
19
16
33
7
39
2
1
17
18
7
8
11
14
9
9
4
6
12
26
29
25
30
24
28
7
29
25
12
6
5
26
26
30
24
22
20
27
36
34
35
31
23
21 36
40
41
37
38
35
34
3

35
PARTS LIST
Ref.
No. Part No. Description
1710-04095 Hex Head Screw, 3/8-16:1.00
2710-0514 Hex Head Screw, 3/8-16:1.00
3710-0643 Hex Head Screw, 5/16-18:1.00
4711- 04998 LH Drag Link
5711-04999 RH Drag Link
6912-0240 Jam Nut, 7/16-20
7712-04065 Flangelock Nut, 3/8-16
8712-0459 Flangelock Nut, 7/16-20
9712-3004A Flangelock Nut, 5/16-18
10 717-1550F Steering Gear
11 717-1554 Steering Pinion Gear
12 923-0448A Ball Joint, 7/16-20
13 936-3004 Flat Washer, .406 x .875 x .105
14 736-3084 Flat Washer, .51 x 1.12 x .06
15 783-06043-0637 Steering Support Bracket
16 738-04263 Steering Shaft, .625 OD x 24.25 LG
17 738-04363 Shoulder Spacer, .385 x 1.25 x .3025
18 738-04364B Spacer, .38 x 1.375
19 741-04237B Hex Flange Bearing 5/8 PM
20 638-04040-0637 RH Axle Assembly
21 638-04041-0637 LH Axle Assembly
Ref.
No. Part No. Description
22 710-0395 Hex Head Screw, 5/16-18:2.25
23 710-0859 Hex Head Screw, 3/8-16:2.50
24 710-3180 Hex Head Screw, 5/16-18:1.75
25 912-0214 Hexlock Nut, 3/8-24
26 712-04063 Flangelock Nut, 5/16-18
27 714-0162 Cotter Pin, 5/32:1.25
28 719-04413A Pivot Bar Axle
29 748-04065-0637 Steering Block
30 748-04068 Spacer, .71 ID x .125 OD x .56LG
31 750-05280 Spacer, .385 x 1.00 x 1.5075
32 631-04415 Steering Wheel
33 731-06825 Steering Wheel Cap
34 731-05674 Bumper Cap
35 736-04228A Flat Washer, .781ID x 1.590OD
36 634-04466-0961 Wheel Assembly
37 734-1727 Tire
38 934-04082-4042 Rim Assembly
39 934-0255 Tubeless Air Valve
40 741-0516B Flange Bearing, .760 x 1.00 x 1.20LG
41 741-0990B Flange Bearing, .760ID
Steering and Axle — Model No. 247.28984

36
PARTS LIST

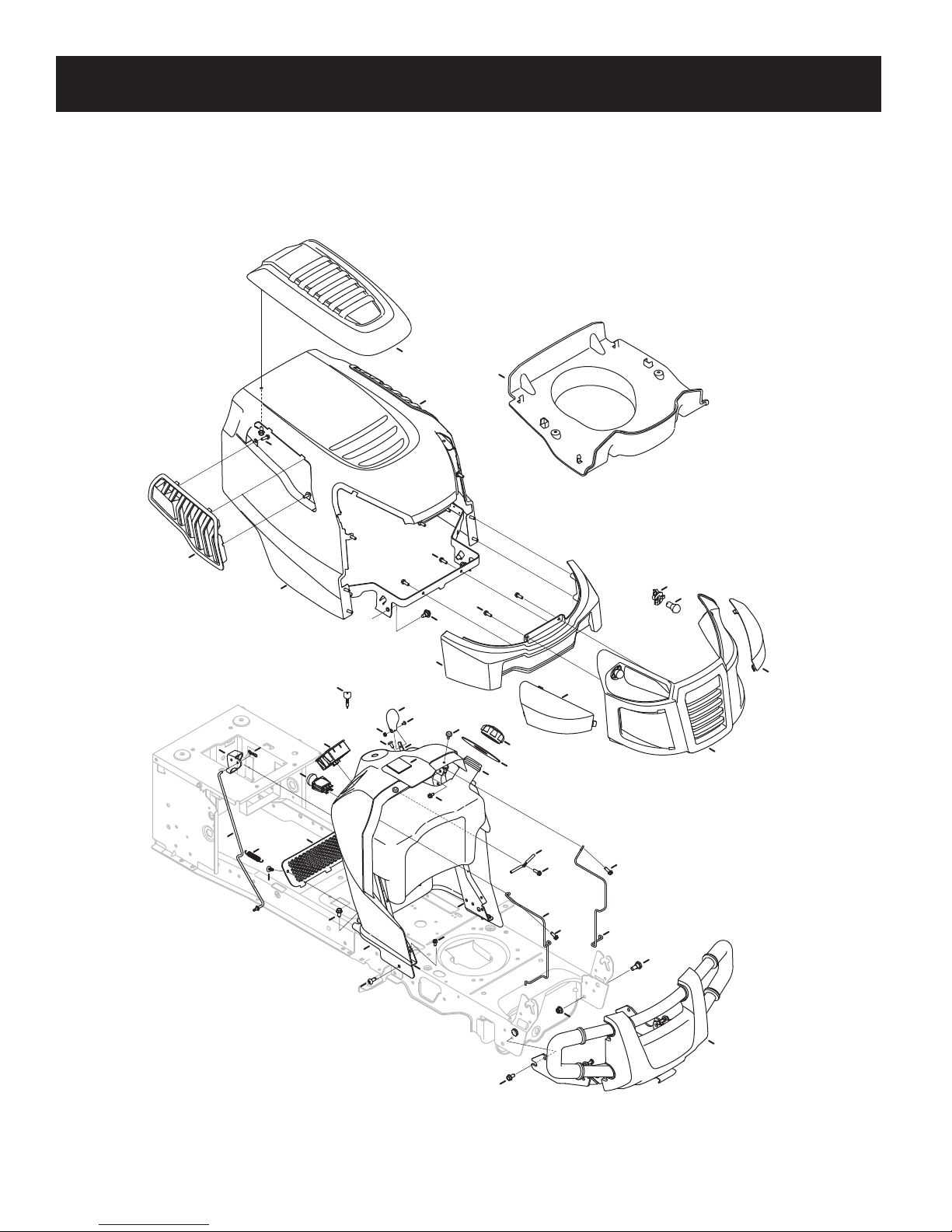

Hood and Dash — Model No. 247.28984
46
45
33
47
6
20
2
12
2
17
22
31
34
35
33
4
3
36
19
48
9
5
43
39
24
24
29
42
1
16
37
11
7
40
25
38
27
28
32
24
15
26
8
44
14
10 41
13
30
18
23
21

37
PARTS LIST
Ref.
No. Part No. Description
1631-04353P Dash Lever
2710-04484 Taptite Screw, Lock Washer, 5/16-18:.750
3710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500
4710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750
5710-1017 Screw, 1/4-14:0.625
6710 -1611B Taptite Screw, 5/16-18:0.750
7710-1652 Taptite Screw, 1/4-20 x .625
8710-3217 Machine Screw, #8-32:0.375
9712-0142 Hex Nut, #8-32:GRA
10 714-04040 Bow-tie Cotter Pin
11 726-3046 Ratchet Clip:.250 DIA
12 731-07456 Dash
13 731-07550 Control Knob
14 732-04580 Extension Spring, .500 DIA x 2.733 LG
15 735-0271A Bumper
16 735-04076 Accessory Net
17 747-05280 Control Rod Latch
18 747-1196 Lever Rod
19 783-04285F-0637 RH Dash Support Plate
20 783-04323F-0637 LH Dash Support Plate
21 625-04124 Key (Set of 2)
22 683-04618-0691 Hood Assembly
23 710-04187 Hi-lo Screw, Lock Washer, 1/4-15:0.50
24 710-05108 Screw, Lock Washer, 1/4 DIA:.750
25 931-07457 Grill
Ref.
No. Part No. Description
26 731-07458 RH Lens
27 731-07459 LH Lens
28 931-07461 Hood Scoop
29 731-07467 Lower Grill
30 731-07469 LH Hood Scoop
31 731-07470 RH Hood Scoop
32 738-04091A Shoulder Screw, .43 x .29:TT:5/16-18
33 710-0642 Taptite Screw, 1/4-20:0.750
34 747-05049 RH Tank Support Rod
35 747-05050 LH Tank Support Rod
36 751-0603A Fuel Cap
37 951-10573 Fuel Tank, 2.75 Gallons
38 689-00157 Guard Assembly
39 725-04992 Key Switch Module
40 735-04170 Fuel Tank Gasket
41 746 -1100 Throttle Control
42 731-07495 P-Style Plen
43 725-04258 PTO Switch
44 925-04036C Hour Meter
45 925-0963 Miniature Lamp, 12V
46 925-1649 Lamp Socket
47 738-0143 Shoulder Bolt, .496 x .336:3/8-16
48 712-04065 Flangelock Nut, 3/8-16
—777X44365 RH Reflector Label (Not Shown)
—777X55366 LH Reflector Label (Not Shown)
Hood and Dash — Model No. 247.28984

38
PARTS LIST
Seat and Fender — Model No. 247.28984
14
40
41
18
13
16
8
7
10
30
19
18
21
33
32
25
38
39
22
17
37
36
29
18
26
2
34
28
35
1
4
15
9
12
2
5
3
11
6
31
23
27
24
A
A
20
40: 783-06181
Lift Bracket

39
PARTS LIST
Ref.
No. Part No. Description
1683-04301-0637 Lift Shaft Assembly
2712-04063 Flangelock Nut, 5/16-18
3712-04065 Flangelock Nut, 3/8-16
4914-0104 Cotter Pin, .072 DIA. x 1.13 LG
5714-04040 Bow-Tie Cotter Pin
6716-0106A E-Ring, .625 DIA. SHAFT
7720-04150 Handle Grip
8732-0874 Torsion Spring
9736-0105 Spring Washer, .401 x .870 x .063
10 738-0138A Shoulder Screw, .437 x .470:5/16-18
11 938-0380 Shoulder Bolt, .500 x .270:3/8-16
12 941-0225 Hex Flange Bearing
13 746-0968 Lift Cable, 16.16 LG
14 747-04962A Lift Handle
15 756-04331 Pulley Roller Cable
16 783-05546A-0637 Lift Arm
17 710-04482 Hex Head Flange, 3/8-16:.875
18 710-04484 Taptite Screw, Lock Washer, 5/16-18:.750
19 712-3004A Flangelock Nut, 5/16-18
20 725-0157 Cable Tie, 3/16 x .05 x 7.4
21 732-04561 Compression Spring, 1.71 x 3.735 x .238
Ref.
No. Part No. Description
22 732-04563 Compression Spring, .68 x 1.065 x .055
23 938-0296 Shoulder Screw, .437 x .268:5/16-18
24 783-06049-0691 Seat Mounting Bracket
25 783-06050 Seat Adjustment Lever
26 783-06088-0691 Seat Pivot Bracket
27 783-06448 Switch Retainer Clip
28 710-04187 Hi-Lo Screw, Lock Washer, 1/4-15:0.50
29 710-0451 Carriage Bolt, 5/16-18:.750
30 710-0599 Taptite Screw, Lock Washer, 1/4-20:0.500
31 710-0895 Hi-Lo Screw, Lock Washer, 1/4-15:0.750
32 731-05837 LH Fender Cover
33 731-06754 RH Fender Cover
34 736-3078 Flat Washer, .344 x 1.00 x .063 HDN
35 783-06118-0691 Fender
36 726-3046 Ratchet Clip
37 735-04137 LH Foot Pad
— 735-04139 RH Foot Pad
38 757-04128 Seat
39 757-04134 Armrests
40 783-06181-0637 Lift Bracket
41 925-05013 Seat Switch
Seat and Fender — Model No. 247.28984

40
PARTS LIST
Drive and Rear Wheels — Model No. 247.28984
48
12
42
8
14
43
35 36
31
50
11
41
6
4
67
68
13
30
1
25
24
10
47
28 41
11
44
44
23
21
53
29 33
5
57
66
59
58
46
18
32
5
5
64
63
65
55
61
16
51
18
34
52
61
45
39
17
1
18
16
5
40
6
18
38 56
62 54
37
7
2
27
5
49
60
15
18
9
26
49
5
3
22
20
19
69
71
70

41
PARTS LIST
Ref.
No. Part No. Description
1918-04317 Wheel Assembly Hub
2918-04917 Transmission
3710-0189 Hex Screw, 5/16-18:3.00
4710-0227 Screw, #8-18:0.500
5710-04484 Taptite Screw, 5/16-18:.750
6710-0599 Taptite Screw, 1/4-20:0.500
7710-0909A Taptite Screw, 5/16-18:1.750
8710-1007 Taptite Sems Screw, 3/8-16:1.500
9710-1008 Taptite Sems Screw, 3/8-16:1.875
10 710 -1189 Screw, #12-24:0.625
11 710-1325 Taptite Screw, 1/4-20:1.625
12 710 -3011 Hex Screw, 3/8-16:2.25
13 710 -3119 Hex Screw, 3/8-16:.750
14 712-0240 Jam Nut, 7/16-20
15 712-04063 Flangelock Nut, 5/16-18
16 712-04065 Flangelock Nut, 3/8-16
17 914-0104 Cotter Pin, .072 DIA. x 1.13 LG
18 914- 0111 Cotter Pin, 3/32:1.0
19 725-0157 Cable Tie, 3/16 x .05 x 7.4
20 725-04791A Jumper Harness
21 725-1644 Short Spring Switch
22 926-0154 Push Mount Cable Tie 7.5 LG
23 926-0320 Insulator Nut Plate
24 931-1449A Blade Fan
25 732-04528 Extension Spring, .50 DIA x 5.0 LG
26 732-04624 Extension Spring, 1.00 DIA x 4.75
27 732-0716D Extension Spring, .59 OD x 4.00 LG
28 732-0932 Extension Spring, .38 DIA x 5.6
29 732-3118 Extension Spring, .375 OD x 1.44 LG
30 936-0227 Flat Washer, .390 x 1.500 x .134
31 936-0264 Flat Washer, .330 x .630 x .0635
32 936-3008 Flat Washer, .344 x .750 x .120
33 736-3010 Flat Washer, .407 x .812 x .135
34 647-04152A Brake Control Assembly
35 738-04420 Shoulder Spacer, 1.375 x .380 x .183
36 747-04957A Footpedal Bypass Transmission Rod
Ref.
No. Part No. Description
37 747-05124 Brake Rod
38 747-05125A Control Rod
39 747-05130 Disengage Rod
40 747-05181 Belt Keeper, 5/16
41 750-04456 Spacer, 260 x .372 x 1.420 LG
42 954-04244A V Belt, 4L x 77.0
43 756-04224 Flat Idler Pulley, 2.75 OD
44 756-04325 V Idler Pulley, 3.06
45 783-05443A-0637 Torque Bracket
46 783-05841 Switch Bracket
47 783-06027A Center Idler Bracket
48 783-06501A-0637 Deck Bracket
49 783-06503 Plate Bracket
50 783-0693A-0637 Axle Bracket
51 683-04571 Pedal Bracket Assembly
52 710-0604A Taptite Screw, 5/16-18:0.625
53 711-05068 Clevis Pin, 5/16 x 3.985
54 714-04040 Bow-Tie Cotter Pin
55 726-0214 Push Cap
56 732-04587 Extension Spring, .63 DIA x 4.95 LG
57 735-04118A Forward Pedal Pad
58 735-04135 Reverse Pedal Pad
59 735-04136 Brake Pedal Pad
60 938-0380 Shoulder Bolt, .500 x .270:3/8-16
61 741-0495 Flange Bearing, .630 ID x .695 OD x .60
62 748-04203 Cruise Latch
63 783-05914 Pedal Support Bracket
64 783-05940 Pedal Support Bracket, 5/8
65 783-06059-0637 Drive Pedal Bracket
66 783-06103A-0637 Brake Pedal Bracket
67 634-0202A-0961 Complete Wheel
68 712-3050 Lug Nut, 7/16-14
69 934-0255 Air Valve
70 734-04147-0901 Tire
71 634-04238-4042 Rim Assembly
Drive and Rear Wheels — Model No. 247.28984

42
PARTS LIST

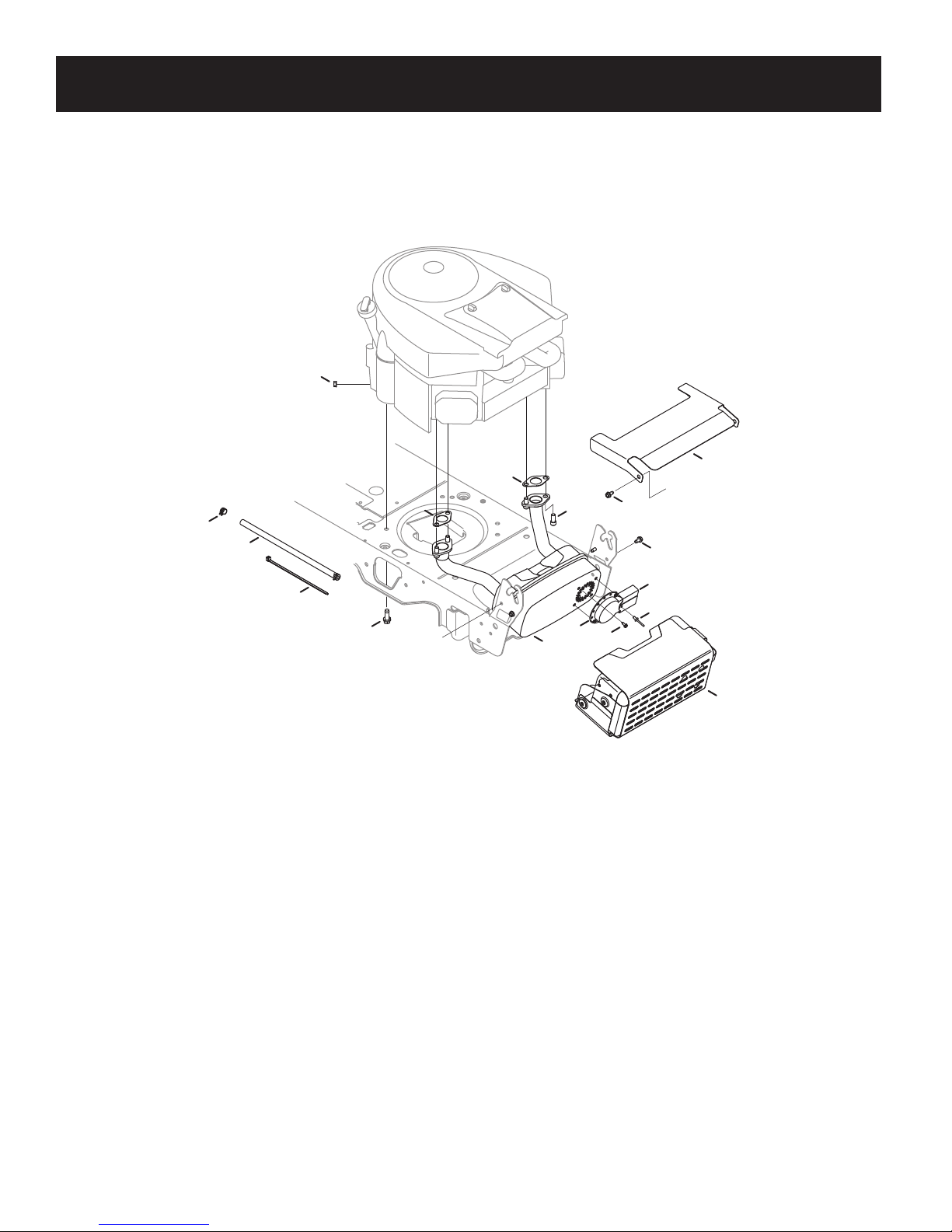

Engine Accessories — Model No. 247.28984
A
A
11
7
6
7
4
4
10
2
3
8
13
9
12
14
5
1
15

43
PARTS LIST
Ref.
No. Part No. Description
1683-04549-0637 Mulffler Shield Assembly
2710-0227 Screw, Indented Washer, #8-18:0.500
3710-04683 Taptite Screw, Indented Washer, 3/8-16:1.000
4710-0599 Taptite Screw, Indented Washer, 1/4-20:0.500
5710-1314A Socket Head Screw, 5/16-18:.750
6712-0271 Sems Nut, 1/4-20
7721-0460 Exhaust Gasket
8725-0157 Cable Tie, 3/16 x .05 x 7.4
9726-0205 Hose Clamp, .490 DIA.
10 728-04000 Rivet, .188 DIA x .300 L
11 783-06378A Heat Shield
12 751-0564B Muffler Deflector
13 751-10349 Fuel Hose
14 751-10353 Long Muffler Deflector
15 751-10542A Muffler Deflector
Engine Accessories — Model No. 247.28984

44
PARTS LIST

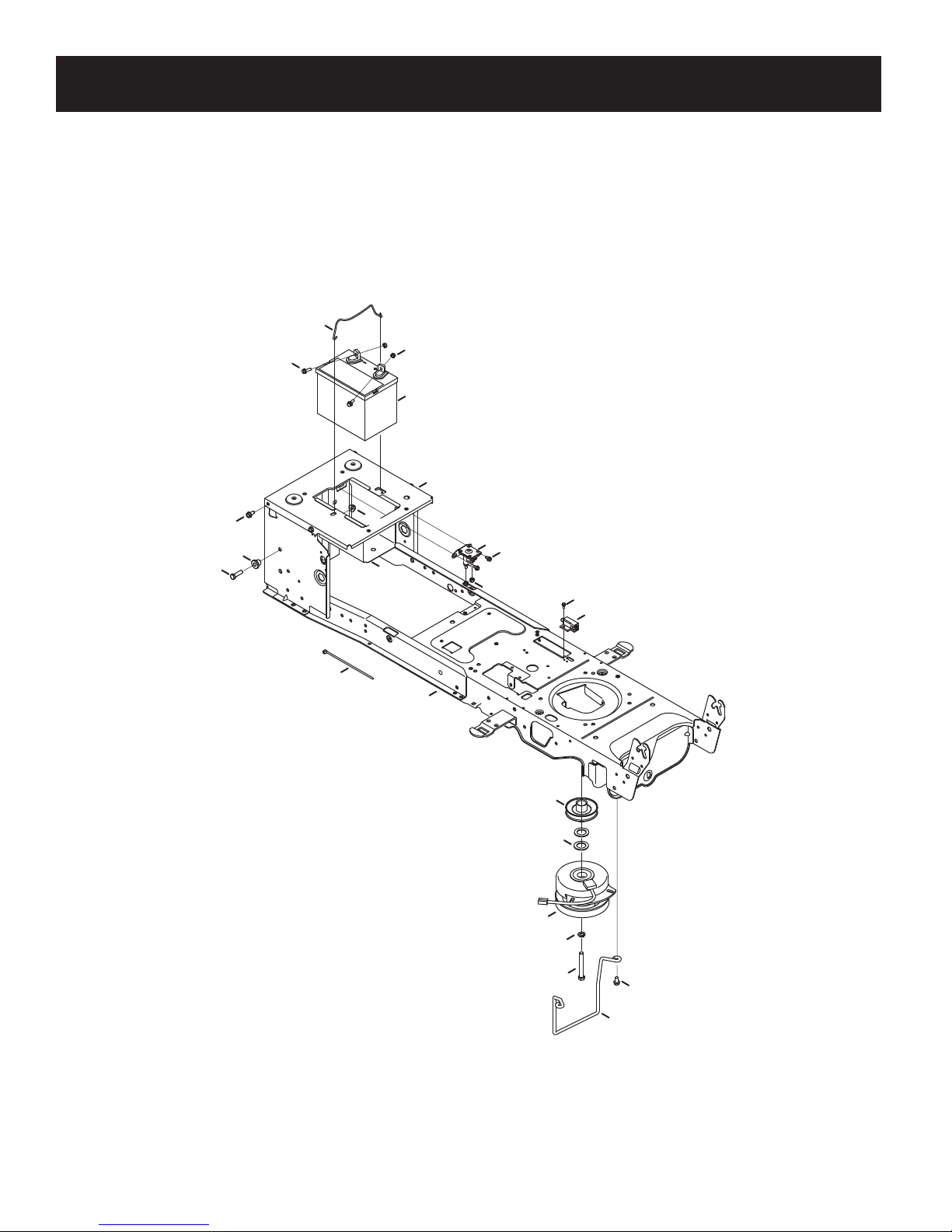

PTO and battery — Model No. 247.28984
1
4
2
7
3
8
16
20
18
19
14
15
22
17
13
8
23
10
11
9
21
6
5
12

45
PARTS LIST
Ref.
No. Part No. Description
1710-04379A Hex Head Screw, 7/16-20:3.50
2917-1774C Electric PTO Clutch
3725-0157 Cable Tie, 3/16 x .05 x 7.4
4936-0171 Lock Washer, 7/16
5736-0277 Flat Washer, 1.031 x 1.620 x .095
6756-0978B Electric PTO Engine Pulley
7683-04469A-0691 Frame
8710-04484 Taptite Screw, Indented Washer, 5/16-18:.750
9710-3005 Hex Head Screw, 3/8-16:1.25
10 712-04065 Flangelock Nut, 3/8-16
11 738-04058 Shoulder Spacer, .38 x 1.0 x .70
12 747-04121A Battery Holder Rod
13 783-0349-0637 Battery Tray
14 783-06089-0637 Seat Frame Bracket
15 725-05088 Battery
16 710-0653 Taptite Screw, 1/4-20:0.375
17 712-04064 Flangelock Nut, 1/4-20
18 725-04363 Interlock Switch
19 725-04439 Solenoid, 12 V
20 738-04237A Shoulder Screw, #10-32:.500
21 710-04666 Hex Head Flange, 1/4-20:.75
22 712-0271 Sems Nut, 1/4-20
23 747-05195 Belt Keeper Rod
NS 925-04093 Wire Harness Assembly
PTO and battery — Model No. 247.28984

46
PARTS LIST
68
73
72
71
16
15
10
69 48
55
10
67
61
42
27
38
50 47
30
20
56
8
24
10
65
43
24
22
24
3
75
34
21
29
49
40
28
25
54
9
24
3
64
11
48
48
70
52
26
6
76
80
77
79
79
77
79
78
74
25
63
64
3
66
33
46
23
7
17
10
68
5
18
57
14
24
22
19
13
2
1
31
36
39
51
58
41
4
35 12
45
37
59
32
60
32
62
53
24
10
44

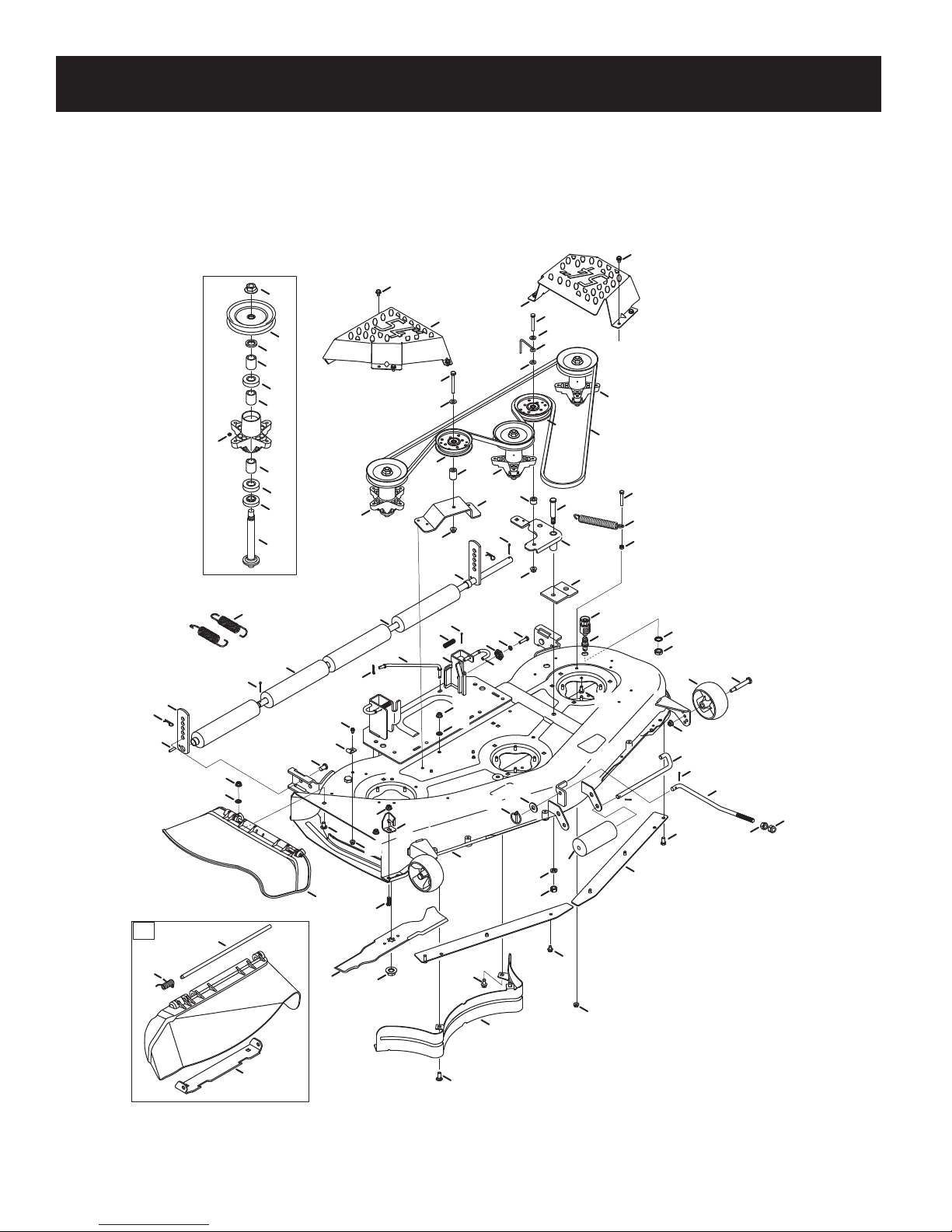

Deck — Model No. 247.28984

47
PARTS LIST
Ref.
No. Part No. Description
112650 Height Adjust Bracket
296606 Retainer Hook Bracket
3918-0671D Spindle Assembly
4683-0254B-4028 Deck Hanger Bracket Assembly
5983-04585-4028 Deck Assembly
6683-0459-0637 Idler Assembly
7703-2093-0637 Inner Baffle
8703-3279-4028 Deflector Chute Stop
9710-04095 Hex Screw, 3/8-16:1.00
10 710-04484 Taptite Screw, 5/16-18:.750
11 710-0521 Hex Screw, 3/8-16:3.00
12 710-0528 Hex Screw, 5/16-18:1.25
13 710-0597 Hex Screw, 1/4-20:1.00
14 710-0623 Taptite Screw, 3/8-16:0.750
15 710-0859 Hex Screw, 3/8-16:2.50
16 710-3103 Hex Screw, 5/16-18:2.00
17 710-3168 Carriage Bolt, 3/8-16:1.00
18 710-3178 Carriage Bolt, 3/8-16:0.75
19 911- 0332 Clevis Pin, .50 DIA x .78 LG
20 911-3314 Roller Pin, 1/2 DIA x 7.31 LG
21 912-0206 Hex Nut, 1/2-13
22 712-0229 Push Nut, 3/8
23 712-04063 Flangelock Nut, 5/16-18
24 712-04065 Flangelock Nut, 3/8-16
25 712-0417A Flange Nut, 5/8-18
26 912-0641 Hex Nut, M16-1.5 DIN 936
27 912-3010 Hex Nut, 5/16-18
28 712-3022 Hexlock Nut, Counterlock, 1/2-13
29 712-3083 Hexlock Nut, 1/2-13
30 914- 0111 Cotter Pin, 3/32:1.0
31 914-0145 Click Pin, .092 x 1.64 LG
32 714-0162 Cotter Pin, 5/32:1.25
33 753-04070 Lynch Pin, .1875
34 714-04040 Bow Tie Cotter Pin
35 914-0470 Cotter Pin, 1/8 x 1.25
36 715-0108 Spring Pin, 1/4 DIA x 1.00 LG
37 917-04074 Deck Gear
38 921-04041 Water Nozzle Adaptor
39 731-0335 Deck Roller
40 731-05679 Front Roller
Ref.
No. Part No. Description
41 732-04652 Compression Spring, .535 OD x 1.751 LG
42 732-04692 Extension Spring, .85 OD x 5.915 LG
43 732-0934 Extension Spring, 1.15 OD x 5.99 LG
44 734-04155 Deck Wheel
45 936 - 0119 Lock Washer, 5/16
46 936-0179 Flat Washer, .531 x 1.25 x .100
47 736-0225 Lock Washer, 5/8
48 936-0300 Flat Washer, .406 x .875 x .059
49 936-0921 Lock Washer, 1/2
50 737-04003D Deck Water Nozzle
51 738-0295 Shaft, .750 x .47.12
52 738-1229A Shield Screw, .625 x 2.50:1/2-13
53 938-3056 Shoulder Bolt, .496 x 2.50:3/8-16
54 942-0677B Blade
55 747-04938 Belt Keeper Rod
56 747-05141A Deck Lift Rod
57 712-04064 Flangelock Nut, 1/4-20
58 747-05284 Deck Sway Rod
59 747-1116 Deck Release Handle Rod
60 950-0212 Spacer, .82 ID x 1.00 OD x .53
61 750-04597 Spacer, .380 x .900 x 1.313
62 750-0933 Spacer, .385 ID x .88 x .64
63 954-04083 V Belt
64 756-04129B Idler Pulley, 4.25"DIA
65 783-04013A-0637 Pulley Stabilizer Bracket
66 783-04690B-0637 Deck Skirt
67 783-04726-0637 Stationary Idler Bracket
68 631-04070A Chute Assembly
69 783-1470A-4028 RH Spindle Cover
70 783-1471-4028 LH Spindle Cover
71 711-04565 Hinge Pin
72 732-04372 Torsion Spring, .44 ID x 2.0
73 783-05030 Chute Bracket
74 756-04213 Deck Pulley
75 937-3000 Lube Fitting
76 738-1197 Spindle Shaft, 6.95 LG
77 941-0919 Ball Bearing, .787 ID x 1.85 OD x .551
78 748-0160A Spacer, .790 ID x 1.25 OD x .175
79 750-1000 Spacer, .80 x 1.10 x 1.322 LG
80 750-1349A Spacer, .79 x 1.82 x .55 LG
Deck — Model No. 247.28984

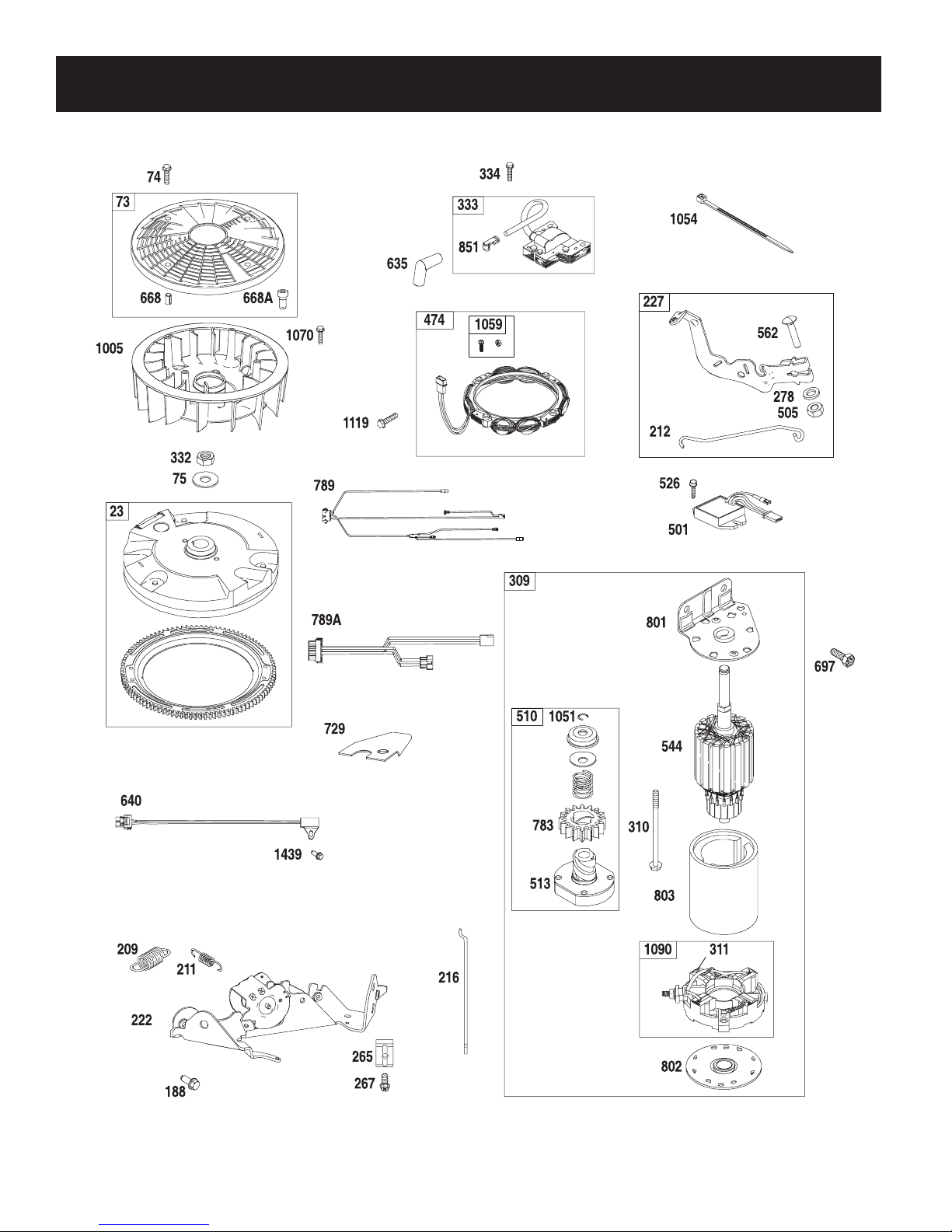

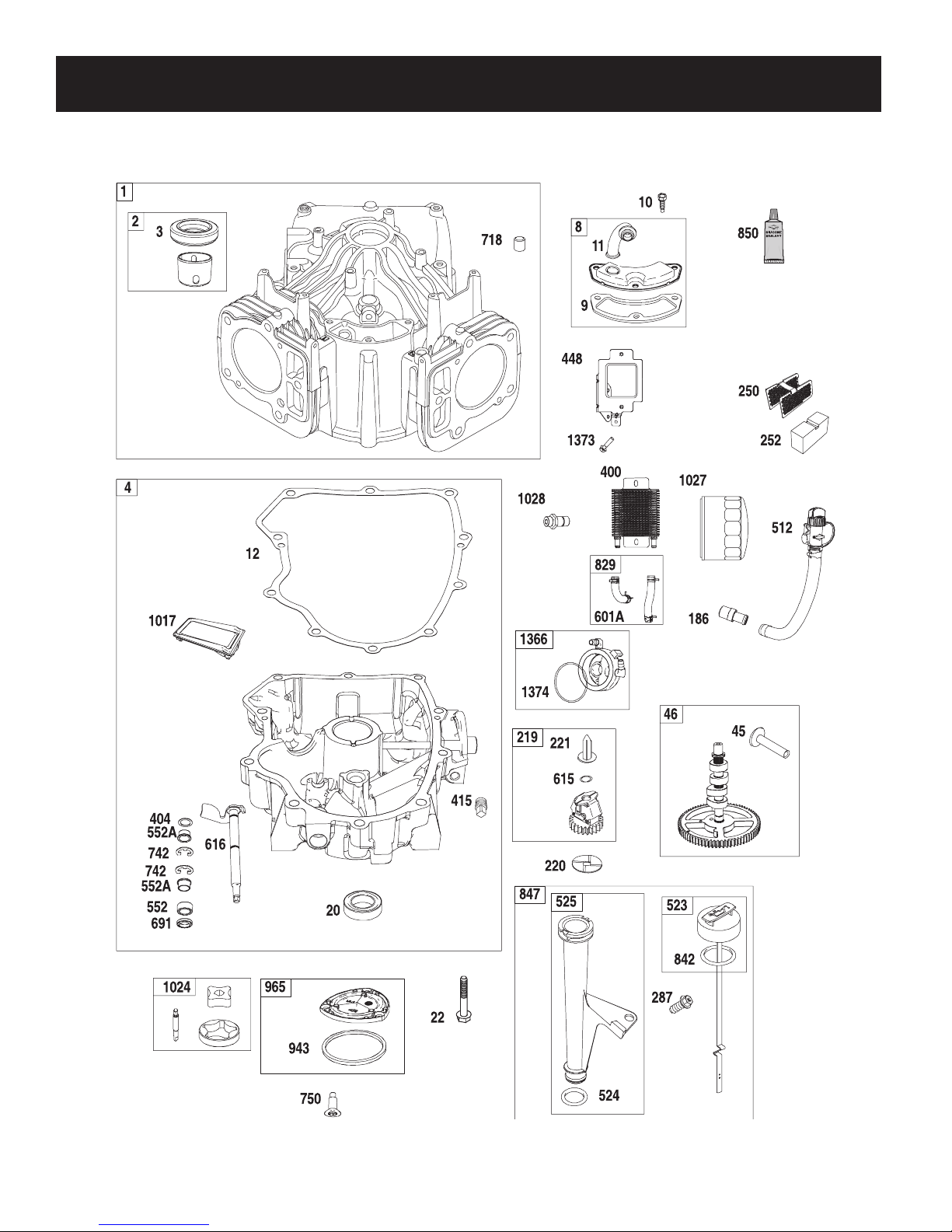

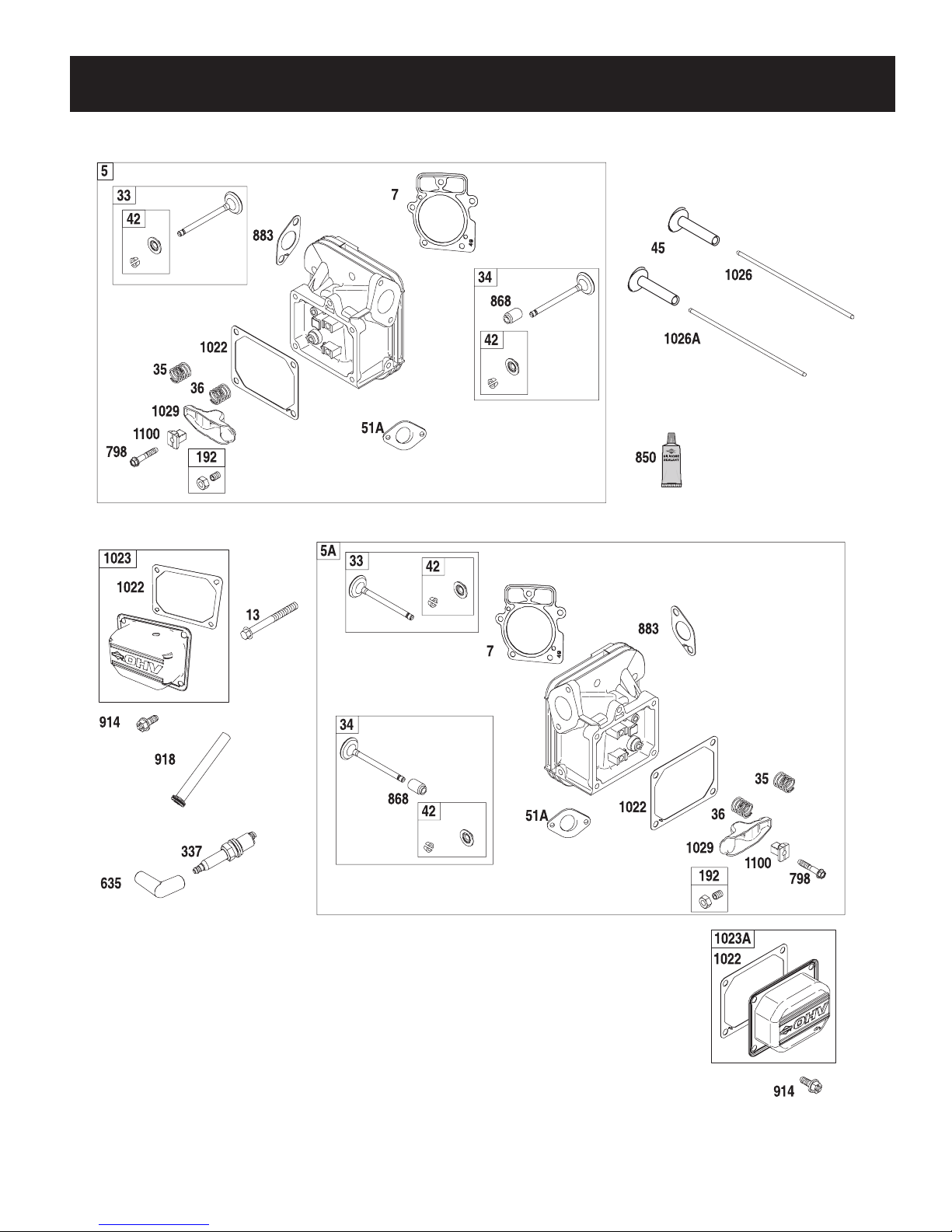

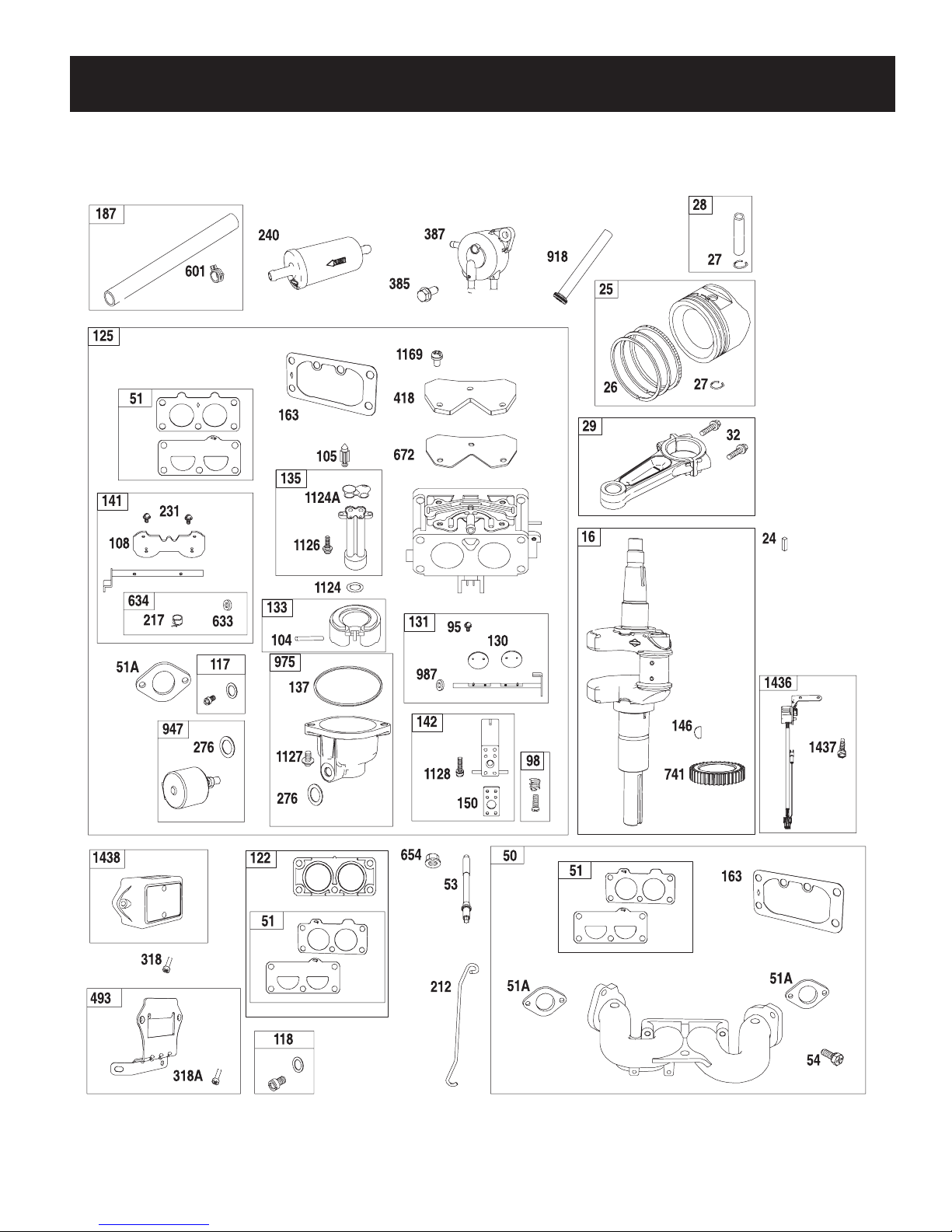

Engine — Model No. 247.28984
PARTS LIST
48

Engine — Model No. 247.28984
PARTS LIST
49

Engine — Model No. 247.28984
PARTS LIST
50

Engine — Model No. 247.28984
PARTS LIST
51

Engine — Model No. 247.28984
PARTS LIST
52
