Craftsman 118.22320 User manual

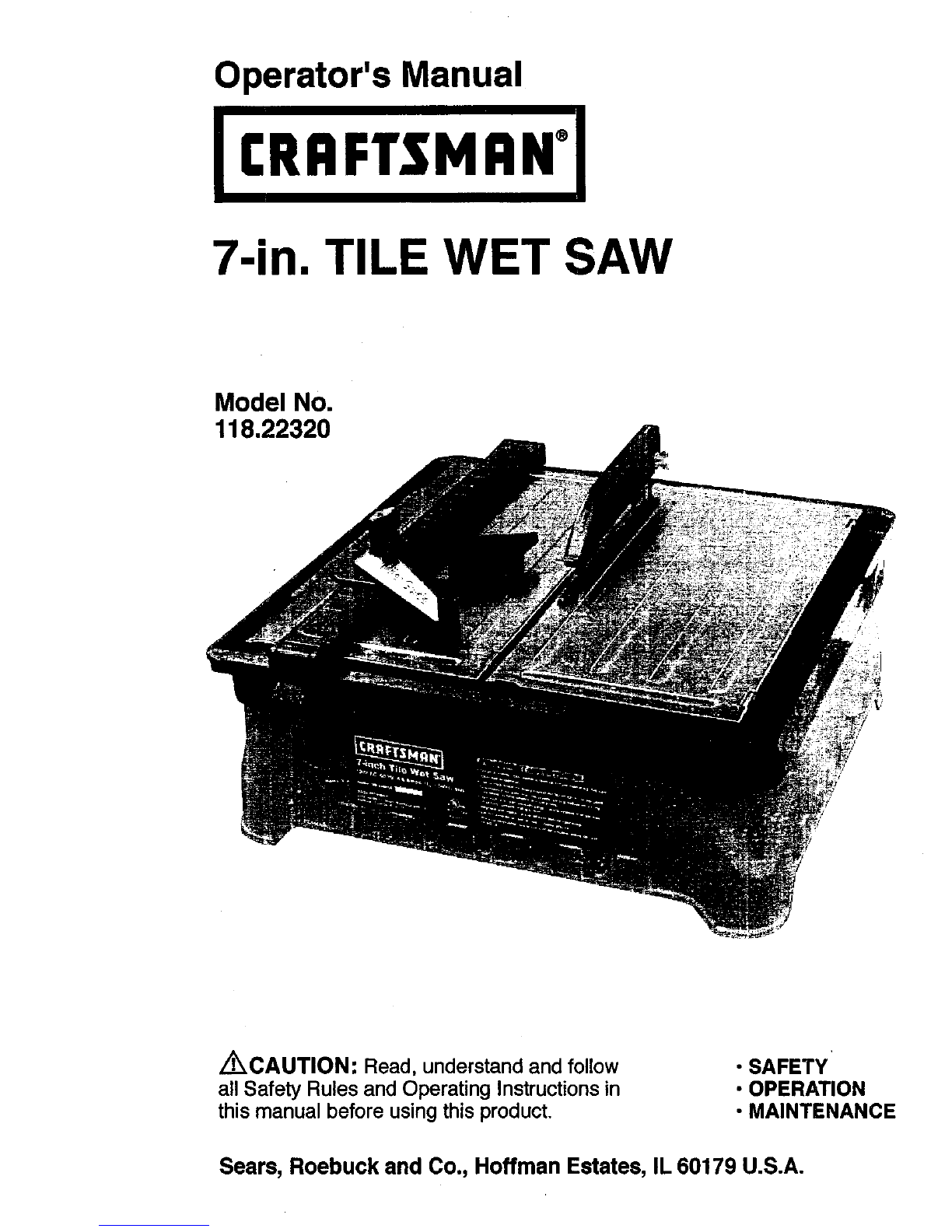

Operator's Manual
ICRAFTSMAN°J
7-in. TILE WET SAW
Model No.
118.22320
Z_CAUTION: Read, understand and follow
all Safety Rules and Operating Instructionsin
this manual before usingthis product.
• SAFETY
• OPERATION
•MAINTENANCE
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

Warranty .................................................................... Page 2
Safety Instructions .................................................. Pages 3-8
Safety Symbols ................................................... Page 8

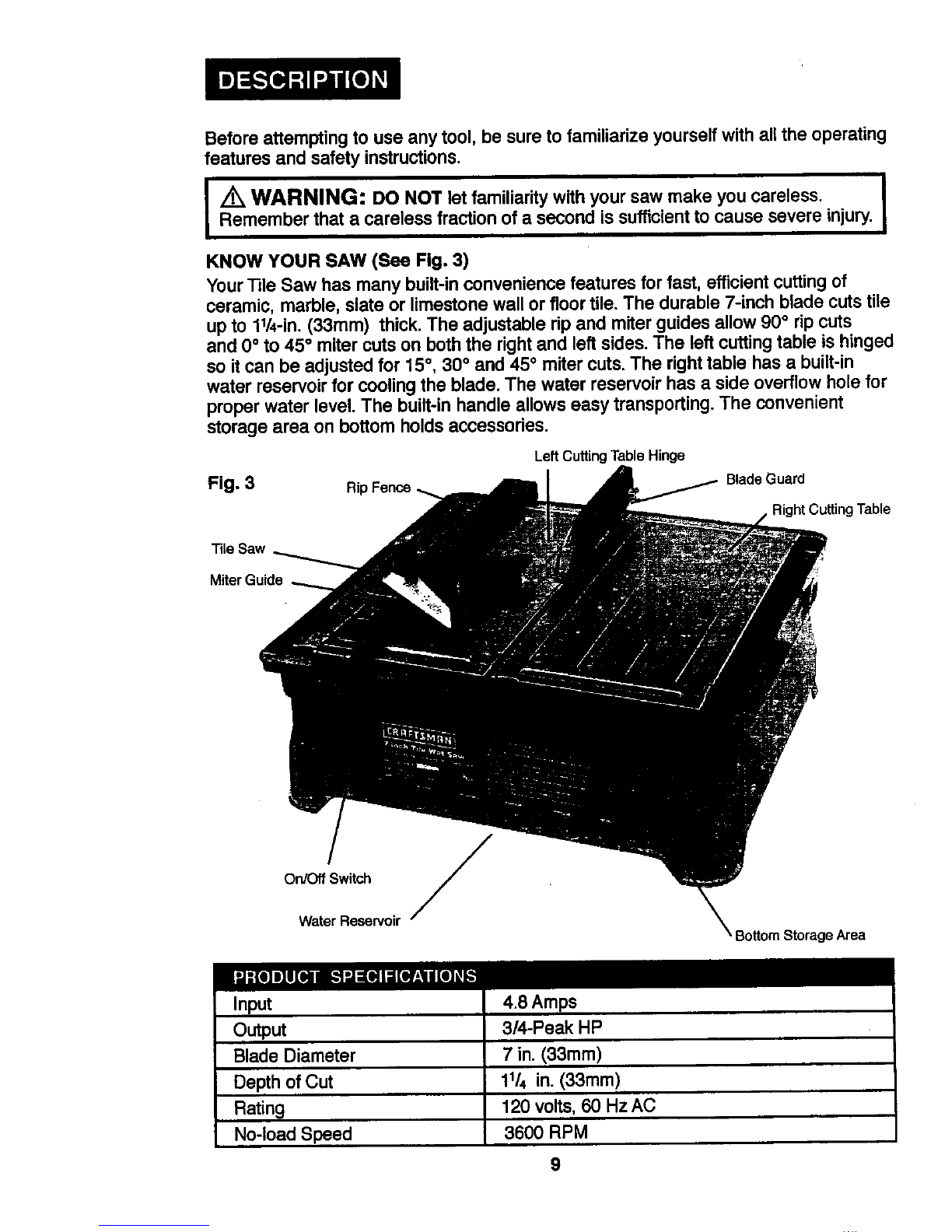

Description ................................................................. Page 9
Assembly .............................................................. Page 10
C)peration.............................................................. Pages 11-12
Maintenance ............................................................. Page 13
Repair Parts .............................................................. Page 14-15
Service Numbers ...................................................... Back Cover
ONE YEAR FULL WARRANTY ON CRAFTSMAN TOOL
If this Craftsman Tool fails to give complete satisfaction within one year from
the date of purchase, RETURN IT TO THE NEAREST SEARS STORE OR
SEARS PARTS AND REPAIR CENTER IN THE UNITED STATES, and
Sears will repair it, free of charge.
If this Craftsman Tool is used for commercial or rental purposes, this
warranty applies for only 90 days from the date of purchase.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817 WA, Hoffman Estates, IL 60179
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
2

WARNING: BE SURE to read and understand all instructions. Failure to
follow all instructions listed below may result in electric shock, fire and/or serious
personal injury.
WORKAREA SAFETY
1. ALWAYS keep your work area clean and well lit. Cluttered and dark areas invite
accidents.
2. DO NOT operate power tools in explosive atmospheres, such as in the
presenceof flammable liquids, gases, or dust. Power tools create sparks which
may ignite the dust or fumes.
3. ALWAYS keep bystanders, children and visitors away while operating a
power tool. Distractions can cause you to lose control.
PERSONAL SAFETY
1. ALWAYS stay alert, watch what you are doing and use common sense when
operating apower tool. DO NOT use tool while tired or under the influence of
drugs, alcohol or medication. A moment of inattention while operating power
tools may result in serious personal injury.
2. ALWAYS dress properly. DO NOT wear loose clothing or jewelry. Pull back
long hair. Keep your hair, clothing and gloves away from moving parts.
Loose clothing, jewelry or long hair can be caught in moving parts.
3. ALWAYS avoid accidental starting. BE SURE switch is in the "Off" position
before plugging in. DO NOT carry tools with your finger on the switch. Carrying
tools with your finger on the switch or plugging in tools that have the switch in the
"On" position invites accidents.
4. ALWAYS remove adjusting keys or wrenches before turning the tool on.
A wrench or a key that is left attached to a rotating part of the tool may result in
personal injury.
5. DO NOT overreach. ALWAYS keep proper footing and balance at all times.
Proper footing and balance enables better control of the tool in unexpected
situations.
6. ALWAYS use safety equipment. Always wear eye protection. Dust mask,
non-skid safety shoes, hard hat, or hearing protection must be used for appropriate
conditions
7. NEVER stand on tool. Serious injury could occur ifthe tool is tipped or ifthe blade
is accidentally contacted.
8. ALWAYS avoid accidental starting. BE SURE switch is in the "Off" position
before plugging in.
3

TOOL USE AND CARE SAFETY
WARNING: BE SURE to read and understand all instructions before I
operating this saw. Failure to follow all instructions listed below may result in I
electric shock, fire and/or serious personal injury.
1. ALWAYS use a splash hood in every operation in which itcan be used.
2. DO NOT directly wash the bottom of the motor.
3. DO NOT force the material being cut. ALWAYS let the blade cut.at its own speed.
4. DO NOT force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it.is designed.
5.-ALWAYS be sure that you are using the correct blade for the job you are doing.
6. ALWAYS disconnect the saw BEFORE servicing, changing cutting wheels and
cleaning
7. BE SURE the cutting edges are smooth and free of opening and grooves
BEFORE using this tool.
8. ALWAYS replace damaged cutting wheels BEFORE using.
9. ALWAYS use clamps or other practical ways to secure and support the
workpiece to astable platform. Holding the work by hand or against your body
is unstable and may lead to loss of control.
10. DO NOT use the tool if the switch does not turn it "On" or "Off". Any tool that
cannot be controlled with the switch is dangerous and must be repaired.
11. ALWAYS disconnect the plug from the power source before making
adjustments, changing accessories or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
12. ALWAYS keep guards in place and in good working order.
13. DO NOT use in dangerous environment. DO NOT use in damp or wet locations,
or expose to rain.
14. ALWAYS maintain tools with care. Keep tools sharp and clean for best and safest
performance. Read instructions for lubricating and changing accessories.
15. REDUCE THE RISK OF ACCIDENTAL STARTING. ALWAYS make sure the
switch is inthe OFF position BEFORE plugging in.
i6. ALWAYS store idle tools out of the reach of children and other untrained
persons. Tools are dangerous in the hands of untrained users.
17. ALWAYS maintain tools with care. Keep cutting tools sharp and clean.
Properly maintained tools with sharp cutting edges are less likely to bind and are
easier to control.
18. ALWAYS check for misalignment or binding of moving parts, breakage of
parts, and any other condition that may affect the tool's operation. If
damaged, have the tool serviced before using. Many accidents are caused by
poorly maintained tools.
[ Z_ WARNING: USE OF ACCESSORIES THAT ARE NOT RECOMMENDED IFOR USE WITH THIS TOOL MAY CREATE A HAZARDOUS CONDITION.
19. ALWAYS use only accessories that are recommended for this tool.
Accessories that may be suitable for one tool can become hazardous when
used on another tool.
4

ELECTRICAL SAFETY
IMPORTANT" We recommend using a GFCI (Ground Fault Circuit Interrupter)
protected receptacle because the blade of this saw is used in close proximity to water.
1. This tile saw is equipped with a 3-prong electrical plug. DO NOT alter the plug or
use a 2-prong receptacle.
2. The plug supplied on your tool may not fit into the outlet you are planning to use.
3. Your local electrical code may require slightly different power cord plug
connections. If These Differences Exist, refer to and make the proper
adjustments per your local code BEFORE your tool is plugged in and turned on.
4. In the event of a malfunction or breakdown, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock.
5. This tool is equipped with an electric cord having an equipment-grounding
conductor and a grounding plug, as shown in Figure 1. The plug must be plugged
into a GFCI protected matching outlet that is properly installed and grounded in
accordance with all local codes and ordinances
6. DO NOT modify the plug provided. If it will not fit the outlet, have the proper outlet
installed by a qualified electrician.
7. Atemporary GFCI protected adapter may be used to connect this plug to a
2-prong outlet, if aproperly grounded 3-prong outlet is not available.
8. This temporary adapter Should Be Used Only Until a properly grounded
3-prong outlet can be installed by a qualified electrician.
9. The green-colored (with or without yellow stripes) is the equipment-grounding
conductor and must be connected to a permanent ground, such as a properly
grounded outlet box:
10. Improper connecUon of the equipment-grounding adapter can result In a
risk of electrical shock.
11ill repair or replacement of the electric cord or plug is necessary, DO NOT connect
the equipment-grounding adapter to a live terminal.
12. If you do not fully understand the grounding Instructions, or If you are In
doubt as to whether the tool Is properly grounded, check with a qualified
electrician or service person.
13. ONLY USE 3-wire extension cords that have 3-prong grounding plugs and 3-pole
receptacles that will accept the tool's plug.
14. ALWAYS repair or replace damaged or worn cords immediately.
15. ALWAYS avoid the possibility of getting the plug or receptacle wet.
See Positioning the Saw on page 6.
16. ONLY USE UL Listed extension cords with this product. Other extension cords
may not supply sufficient power causing the tool to overheat. BE SURE that the
extension cord you use will supply sufficient power to the tool.
WARNING: Do not permit fingers to touch the terminals of plug when
installing or removing the plug to or from the outlet.
WARNING: If not properly grounded and GFCI protected this tool can
cause an electrical shock, particularly when used in damp locations, in
proximity to plumbing, or out of doors. If an electrical shock occurs there is
the potential of a secondary hazard, such as your hands contacting the
saw blade.
5

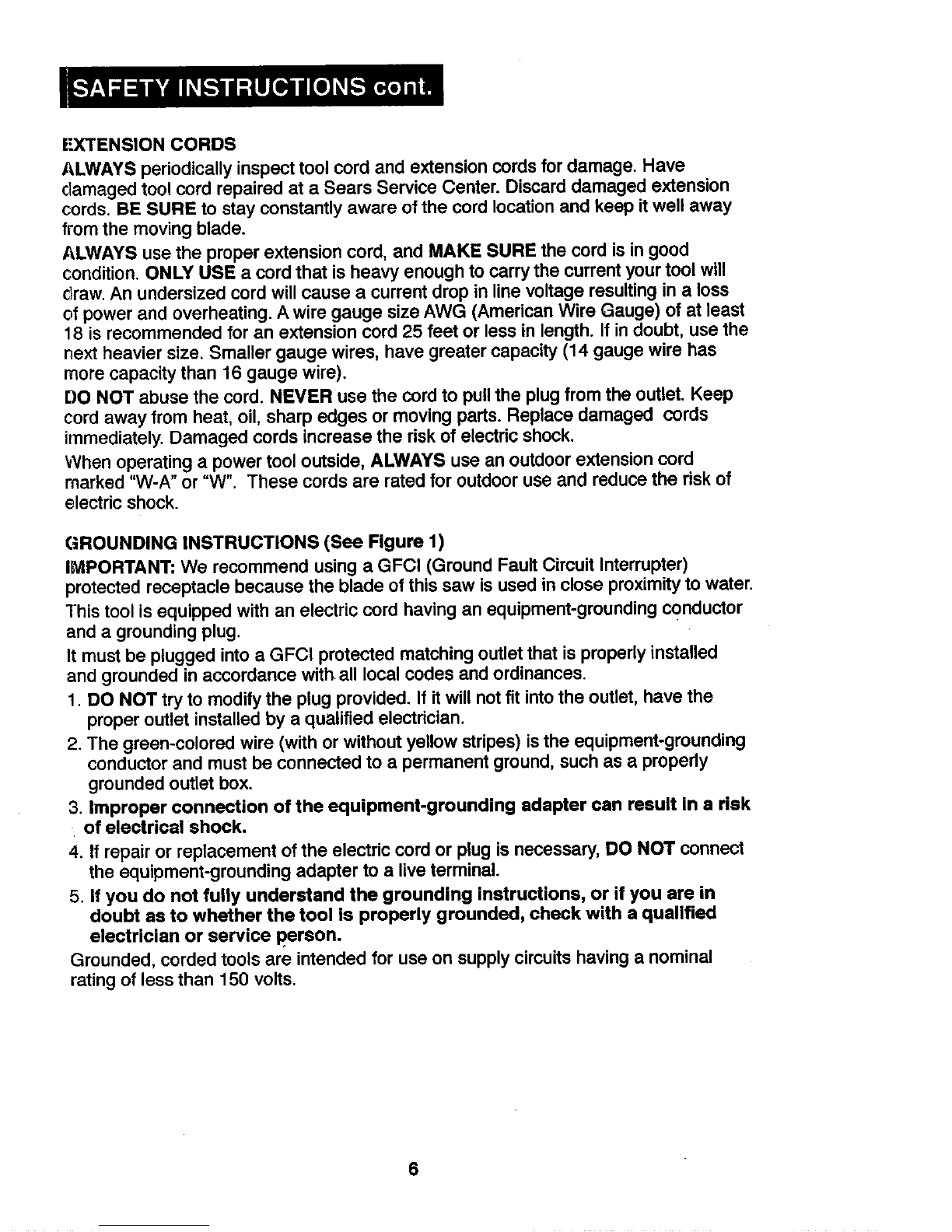

EXTENSIONCORDS
ALWAYSperiodicallyinspecttool cord andextensioncordsfor damage. Have
damaged tool cord repaired at a Sears Service Center. Discard damaged extension
cords. BE SURE to stay constantly aware of the cord location and keep itwell away
from the moving blade.
ALWAYS use the proper extension cord, and MAKE SURE the cord is in good
condition. ONLY USE a cord that is heavy enough to carry the current your tool will
draw. An undersized cord will cause a current drop in line voltage resulting in a loss
of power and overheating. Awire gauge size AWG (American Wire Gauge) of at least
18 is recommended for an extension cord 25 feet or less in length. If in doubt, use the
next heavier size. Smaller gauge wires, have greater capacity (14 gauge wire has
more capacity than 16 gauge wire).
DO NOT abuse the cord. NEVER use the cord to pull the plug from the outlet. Keep
cord away from heat, oil, sharp edges or moving parts. Replace damaged cords
immediately. Damaged cords increase the risk of electric shock.
When operating a power tool outside, ALWAYS use an outdoor extension cord
marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of
electric shock.
GROUNDING INSTRUCTIONS (See Figure 1)
IMPORTANT: We recommend using a GFCI (Ground Fault Circuit Interrupter)
protected receptacle because the blade of this saw is used in close proximity to water.
This tool is equipped with an electric cord having an equipment-grounding conductor
and a grounding plug.
It must be plugged into a GFCI protected matching outlet that is properly installed
and grounded in accordance with all local codes and ordinances.
1. DO NOT try to modify the plug provided. If it will not fit into the outlet, have the
proper outlet installed by a qualified electrician.
2. The green-colored wire (with or without yellow stripes) is the equipment-grounding
conductor and must be connected to a permanent ground, such as a properly
grounded outlet box.
3. Improper connection of the equipment-grounding adapter can result in a risk
of electrical shock.
4. If repair or replacement of the electric cord or plug is necessary, DO NOT connect
the equipment-grounding adapter to a live terminal.
5. If you do not fully understand the grounding instructions, or if you are in
doubt as to whether the tool is properly grounded, check with a qualified
electrician or service p.erson.
Grounded, corded tools are intended for use on supply circuits having a nominal
rating of less than 150 volts.
6

GROUNDING INSTRUCTIONS
(See Figure 1) cont.
This tool is intended for use in an
outlet resembling (A) in Figure I below.
A temporary adapter resembling (B)
in Figure 1 may be used to connect it
to a 2-pole receptacle, if a properly
grounded outlet is not available.
NOTE: The temporary adapter should
only be used until a properly-grounded
outlet can be installed by a qualified
electrician. The green-colored rigid
ear, lug, etc. extending from the
adapter MUST BE connected to a
permanent ground, such as a
properly-grounded outlet box.
Fig'1 i_ Coverer _
II Grounded -
_.__--_ Outlet Box \Groundin n
911 °
(A)
Metal Screw
G ounding I L.-o
GFCI-protected
(C) Adapter
POSITIONING THE TILE SAW (see Figure 2) Fig. 2
1. To help prevent the plug or receptacle from
getting wet ALWAYS place the tile saw to
one side of a wall-mounted receptacle to
prevent water from dripping into the
receptacle or plug.
2. ALWAYS arrange a drip loop so that part of
the cord is below the receptacle or a
connector (if extension cord is used) to
prevent water from traveling along the cord
that is in contact with the receptacle.
3. If the plug or receptacle does get wet,
DO NOT unplug the cord. Disconnect the
fuse or circuit breaker that is supplying
power to the tool. Then unplug and examine to see if water is present in
the receptacle.
=
Drip
Loop I
!
SERVICE SAFETY
1. If any part of this saw is missing or should break, bend, or fall in any way; or
should any electrical component fall to perform properly: ALWAYS shut off the
power switch and remove the saw plug from the power source and have the
missing, damaged or failed parts replaced BEFORE resuming operation.
2. Tool service must be performed only at a Sears Service Center. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
3. When servicing a tool, ALWAYS use only identical replacement parts. Follow
instructions in the Maintenance Section of this manual. Use of unauthorized
parts or failure to follow Maintenance Instructions may create arisk of electric
shock or injury.
7

[]

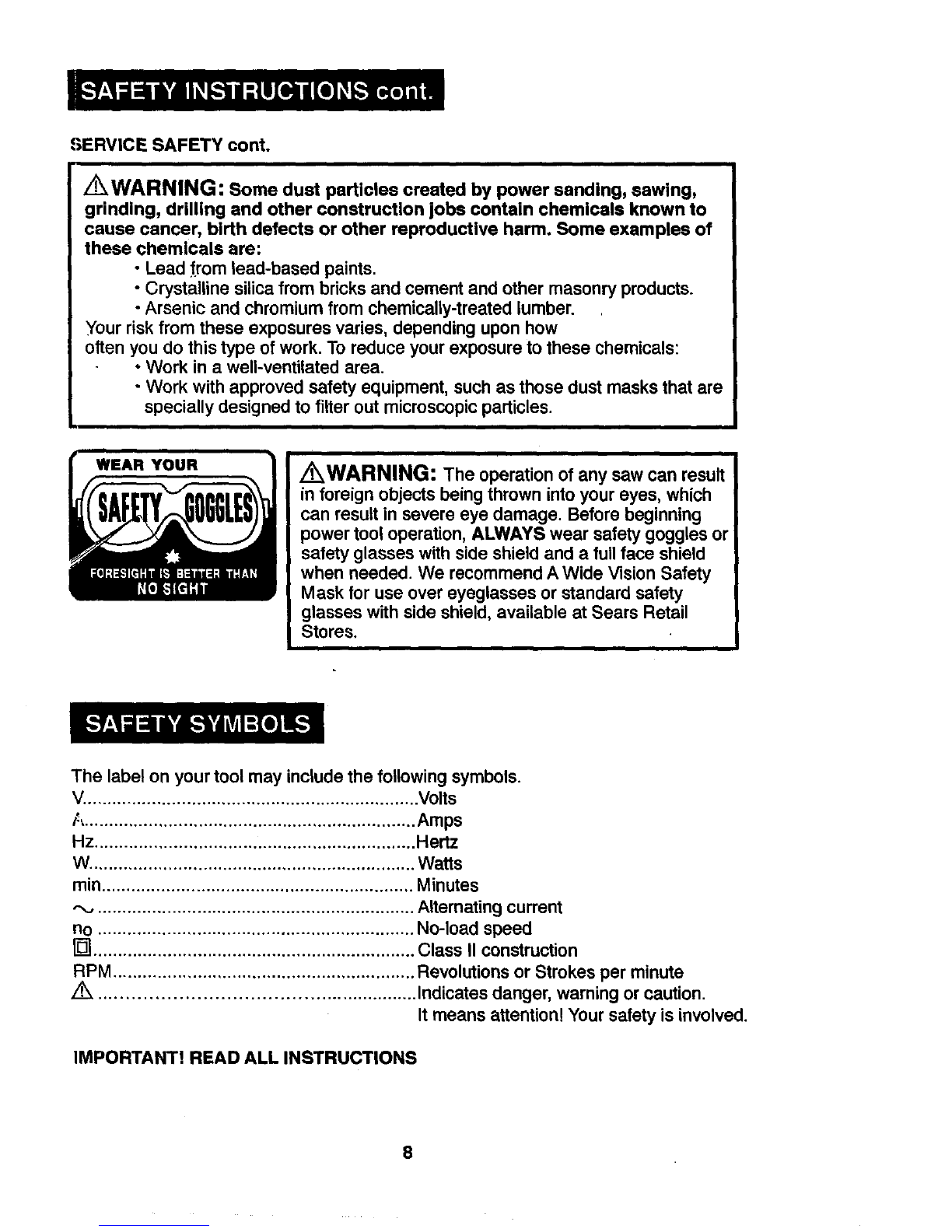

SERVICE SAFETY cont.
i
/ ,WARNING: Some dust particles created by power sanding, sawing,
grinding, drilling and other construction jobs contain chemicals known to
cause cancer, birth defects or other reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints.
•Crystalline silica from bricks and cement and other masonry products.
•Arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending upon how
often you do this type of work. To reduce your exposure to these chemicals:
• Work in a well-ventilated area.
• Work with approved safety equipment, such as those dust masks that are
specially designed to filter out microscopic particles.
i
,/_,WARNING: The operation of any saw can result
in foreign objects being thrown into your eyes, which
can result in severe eye damage. Before beginning
power tool operation, ALWAYS wear safety goggles or
safety glasses with side shield and afull face shield
when needed. We recommend A Wide Vision Safety
Mask for use over eyeglasses or standard safety
glasses with side shield, available at Sears Retail
Stores.
The label on your tool may include the following symbols.
V.................................................................... Volts
A................................................................... Amps
Hz ................................................................. Hertz
W.................................................................. Watts
rain ............................................................... Minutes
................................................................ Alternating current
no ................................................................ No-load speed
[] ................................................................. Class II construction
RPM ............................................................. Revolutions or Strokes per minute
/_, ......................................................... Indicates danger, warning or caution.
It means attention! Your safety is involved.
IMPORTANT! READ ALL INSTRUCTIONS
8

Beforeattemptingto use any tool, be sure to familiarize yourselfwith allthe operating
features and safety instructions. I
Z_ WARNING: DO NOT let familiarity with your saw make you careless. I
Remember that a careless fraction of a second is sufficient to cause severe injury, I
KNOW YOUR SAW (See Fig. 3)
Your Tile Saw has many built-in convenience features for fast, efficient cutting of
ceramic, marble, slate or limestone wall or floor tile. The durable 7-inch blade cuts tile
up to 11/4-in.(33ram) thick. The adjustable rip and miter guides allow 90° rip cuts
and 0° to 45 ° miter cuts on both the right and left sides. The left cutting table is hinged
so it can be adjusted for 15 °, 30 ° and 45° miter cuts. The right table has a built-in
water reservoir for cooling the blade. The water reservoir has a side overflow hole for
proper water level. The built-in handle allows easy transporting. The convenient
storage area on bottom holds accessories.
Left Cutting Table Hinge
Fig. 3 Ril: Blade Guard
Right Cutting Table
TileSaw
MiterGuide
On/Off Switch F
Water Reservoir Area
Input
Output
Blade Diameter
Depth of Cut
Rating
No-load Speed
4.8 Amps
3/4-Peak HP
7 in. (33mm)
11/4 in. (33ram)
120 volts, 60 HzAC
3600 RPM
9

UNPACKING
1. Remove all packing materialsfrom around your saw.
2. Carefully liftthe saw from carton and place it on a level work surface,
3. Do not discard the packing materials until you have carefully inspected the saw for
loose or damaged parts.
4. Inspect the saw carefully to make sure that no breakage or damage has occurred
during shipping. If any parts are damaged or missing return the saw to your
nearest Sears Store to have it replaced.
I WARNING: If any parts are damaged or missing, DO NOT attempt to
operate this saw. Operating this saw with damaged or missing parts could result
inpossible serious personal injury.
ii
ICAUTION: Follow all of the assembly and installation instructions in this
manual before connecting the tile saw to a power source or turning iton.
The follows Items are included In box with your tile saw:
7-in. Diamond Blade, Blade Guard, Rip Guide, Miter Gauge, Universal Wrench
and Operator's Manual
INSTALLING THE BLADE (Figure 4)
• i
/_ WARNING: Useonlycontinuous
rim blades with this saw. DO NOT use
segmented, "turbo" blades, wood sawing
blades, blades with openings, or any other
cutting devices with this tile saw. Using
these blades could result in serious
personal injury and damage to the saw.
I
Fig. 4
1. Carefully place the blade onto the shaft
and push it against the inner flange.
2. Be sure the side of the blade with the directional arrow is facing towards you.
3. Place the outer flange and the blade shaft nut onto blade.
4. Firmly tighten the blade shaft nut with the included wrench, but do not over tighten.
INSTALLING THE BLADE GUARD
(Figure 5)
1. Place the guard support into the socket.
2. Be sure the support is parallel to the blade.
3. Place blade guard onto the support and
tighten wing nut.
Fig. 5
10

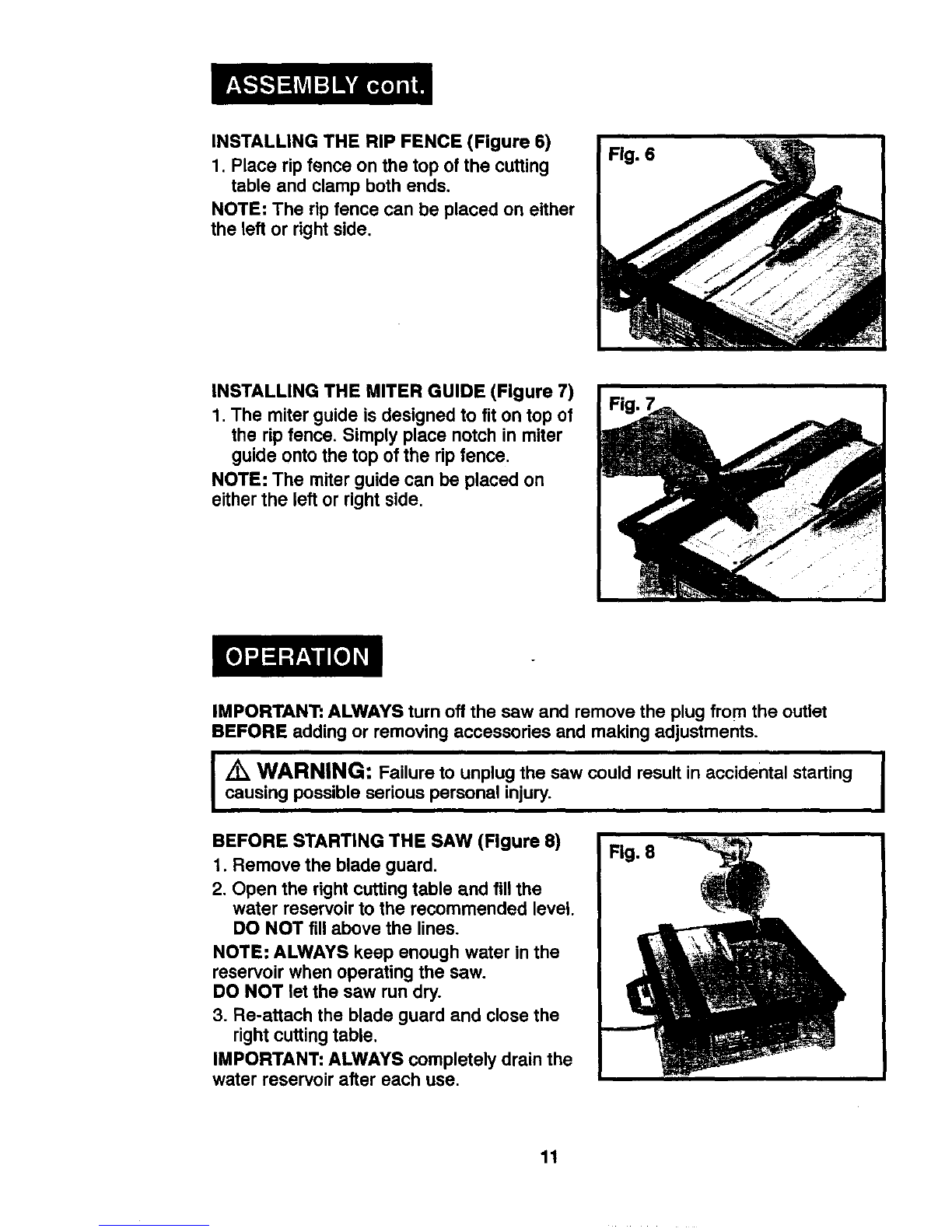

INSTALLING THE RIP FENCE(Figure 6)
1. Place rip fence on the top of the cutting
table and clamp both ends.
NOTE: The rip fence can be placed on either
the left or right side.
INSTALLING THE MITER GUIDE (Figure 7)
1. The miter guide is designed to fit on top of
the rip fence. Simply place notch in miter
guide onto the top of the rip fence,
NOTE: The miter guide can be placed on
either the left or right side,
IMPORTANT: ALWAYS turn off the saw and remove the plug from the outlet
BEFORE adding or removing accessories and making adjustments.
IWARNING: Failure to unplug the saw could result in accidental startingcausing possible serious personal injury.
BEFORE STARTING THE SAW (Figure 8)
1. Remove the blade guard.
2. Open the right cutting table and fill the
water reservoir to the recommended level.
DO NOT fill above the lines.
NOTE: ALWAYS keep enough water in the
reservoir when operating the saw.
DO NOT let the saw run dry.
3. Re-attach the blade guard and close the
right cutting table.
IMPORTANT: ALWAYS completely drain the
water reservoir after each use,
Fig. 8
11

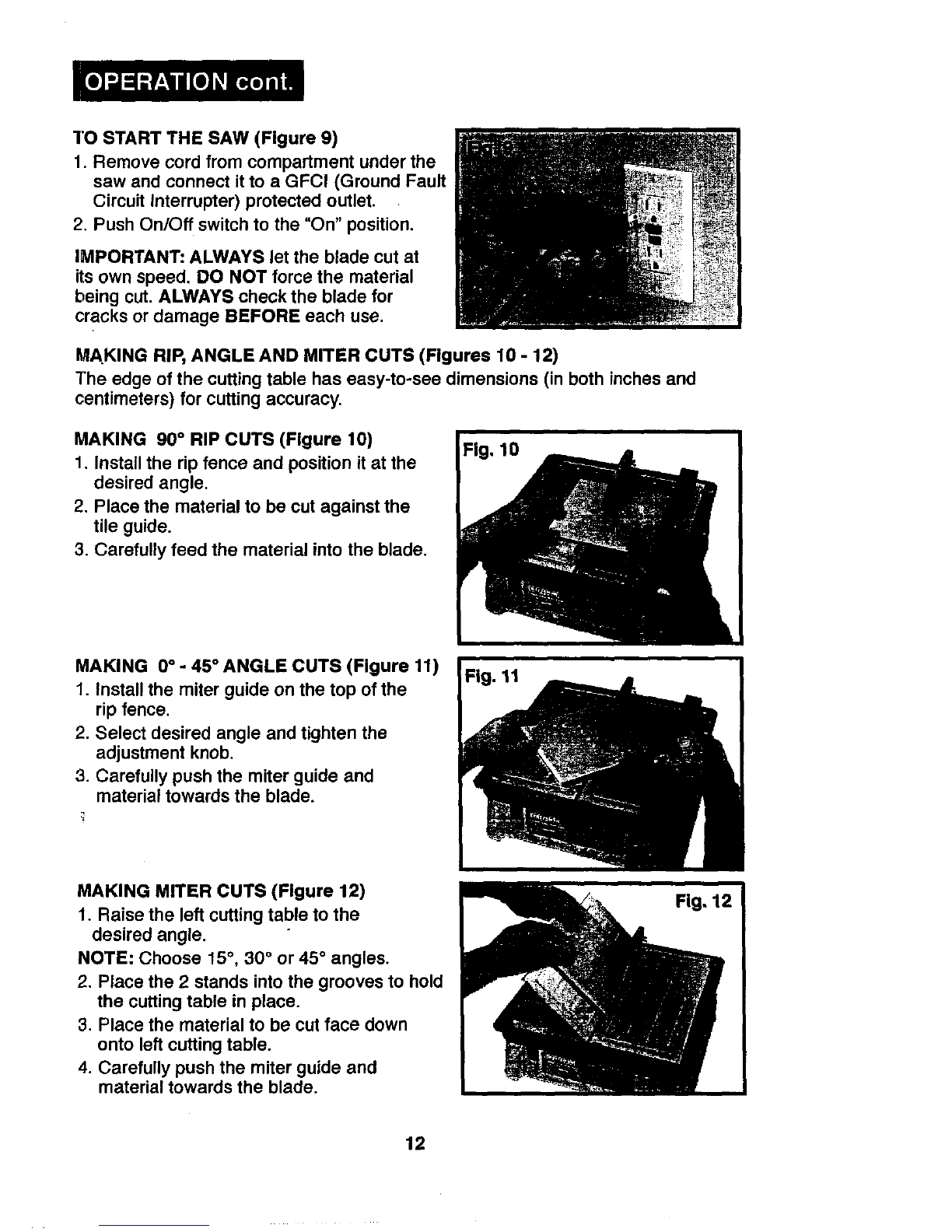

1'O START THE SAW (Figure 9)
1. Remove cord from compartment under the
saw and connect it to aGFCl (Ground Fault
Circuit interrupter) protected outlet.
2. Push On/Off switch to the "On" position,
IMPORTANT: ALWAYS let the blade cut at
its own speed. DO NOT force the material
being cut. ALWAYS check the blade for
cracks or damage BEFORE each use.
MAKING RIP, ANGLE AND MITER CUTS (Flgures 10 - 12)
The edge of the cutting table has easy-to-see dimensions (in both inches and
centimeters) for cutting accuracy.
MAKING 90 ° RIP CUTS (Figure 10)
1. Install the rip fence and position it at the
desired angle.
2. Place the material to be cut against the
tile guide.
3. Carefully feed the material into the blade.
Fig, 10
MAKING 0° - 45° ANGLE CUTS (Figure 11)
1. Install the miter guide on the top of the
rip fence.
2. Select desired angle and tighten the
adjustment knob.
3. Carefully push the miter guide and
material towards the blade.
MAKING MITER CUTS (Figure 12)
1, Raise the left cutting table to the
desired angle.
NOTE: Choose 15°,30 ° or 45 ° angles.
2. Place the 2stands into the grooves to hold
the cutting table in place.
3. Place the material to be cut face down
onto left cutting table.
4. Carefully push the miter guide and
material towards the blade.
Flg, 12
12

I/k, WARNING: To avoid accidents, ALWAYS disconnect the tool from the I
I
power source BEFORE cleaning or performing any maintenance. I
All parts represent an important part of the double insulation system and should be
serviced only at a Sears Service Center.
Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to
damage from various types of commercial solvents and may be damaged by their
use. Use clean cloths to remove dirt, carbon dust, etc,
/k, WARNING: DO NOT at any time let brake fluids, gasoline, petroleum-based
products, penetrating oils, etc. come in contact with plastic parts. They contain
chemicals that can damage, weaken or destroy plastic.
1. ALWAYS clean the tile saw after each use and store it in a dry location.
2. ALWAYS wipe off all exterior surfaces and keep the cutting table clean and free
of all debris.
3. ALWAYS check the blade for cracks or damage BEFORE each use.
4. ALWAYS store the cord in the compartment underneath the saw after each use.
13

TILE SAW- MODELNUMBER118.22320
The Model Number willbe found on the Nameplate.
Alwaysmentionthe ModelNumberinall correspondenceregardingyourtool.
PaNs No.
22320-1
22320-2
22320-3
22320-4
22320-5
22320-6
22320-7
22320-8
22320-9
2232040
2232041
2232042
2232043
2232044
2232O45
2232046
2232047
2232048
2232049
22320-20
22320-21
22320-22
22320-23
Part Description
Blade Guard Set (w/Screw, Wing Nut, Washer & Guard Support)
Miter Guide Set (w/Adiustment Knob & Hex Nut)
Rip Fence
Left Cutting Table
Right Cutting Table
Upper Frame
Blade Lock Nut
Outer Flange
7" Continuous Rim Blade
Inner Flange
Oil Seal for Motor
Motor (w/Screw*5)
Capacitor (w/Screw)
•Main Frame (w/Screw*6)
Waterproof Switch (w/Waterproof Rubber Cover)
Carrying Handle
Rubber Base
Power Cord
Strain Relief Bushing
Power Cord Shelter
Universal Wrench
Blade Guard
Carton
oty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
SEE BACK PAGE FOR PARTS ORDERING INSTRUCTIONS
14

122 5
I
6
89
21 12
16
19
18
0
-11
-13
--14
• _15
2O
15

Your Home
For repairin your home of all majorbrandappliances,
lawn andgarden equipment, or heatingand coolingsystem,
no matter who made it, no matter who sold It!
For the replacement parts, accessories and
owner's manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and the items like garage door openers and water heaters.
1-800-4-MY-HOME ®
(1-800-469-4663)
www.sears.com
Anytime, day or night
(U.S.A. and Canada)
www.sears.com
Our Home
For repair of carry-in products like vacuums, lawn equipment,
and electronic, call or go on-line for the nearest
Sears Parts and Repair Center.
1-800-488-1222 Anytime, day or night (U.S.A.)
www.sears.com ,=.,
To purchase a protection agreement (U.S.A.) or maintenance
agreement (Canada) on a product serviced by Sears:
1-800-827-6655 (U.SA) 1-800-361-6665 (Canada) _;:_
Para pedir sewicio de reparadSn Au Canada pour service en frarK_ais: .........
a domicilio,ypara ordenar piez_s: 1-800-LE-FOYER "c ,
1-888-SU-HOGAR _11
(1-888-784-6427) www.se,gxs.ca
,Sears
©Sears,_and Co.
®Registered Trademark /TMTrademark /SMService Mark ofSears, Roebuck and Co.
®Marca Registrada /TMMarca de F.brice /SMMarca de Servicio de Sears, Roebuck and Co.
MCMarque de commerce /MOMarque d_pos_e de Sears, Roebuck and Co.
