Operator's Manual
CNNFTSMNN
45" SNOW THROWER
Model No. 247.88045
CAUTION: Before using
this product, read this
manual and follow all
safety rules and operating
instructions.
• SAFETY
ASSEMBLY
OPERATION
MAINTENANCE
PARTS LIST
ESPANOL
Sears, Roebuck and Co., Hoffman Estates, IL 60179, U.S.A.
Visit our website: www, craftsrnan.corn FORMNO.769-03349
7/24/2007

WarrantyStatement..................................Page2
RepairProtectionAgreement...................Page3
SafeOperationPractices.........................Pages4-5
SafetyLabels............................................Page7
Assembly..................................................Pages8-11
Operation..................................................Pages12-15
ServiceandMaintenance.........................Pages16-23
Off-SeasonStorage..................................Page24
TroubleShooting......................................Page25
PartsList...................................................Page26-36
Espa_ol.....................................................Page40
ServiceNumbers......................................BackCover
Two-YearWarrantyon Craftsman SnowThrower
Thisequipmentiscoveredbyatwo-yearwarranty,providedthatitismaintained,lubricated,andtunedupaccordingtotheinstructionsinthe
operator'smanual.Duringthewarrantyyears,ifthisequipmentexperiencesanyfailureduetodefectsinmaterialorworkmanship,RETURNIT
TOYOURNEARESTSEARSPARTS&REPAIRCENTER,andSearswillrepairit,freeofcharge.In-homewarrantyserviceisavailable,butyou
willhavetopayatripcharge.
Thiswarrantydoesnotcover:
•Expendableitemswhichbecomewornduringnormaluse,suchasskidshoes,shaveplateandsparkplugs.
•Repairsnecessarybecauseof operatornegligence,includingbutnotlimitedto,electricalandmechanicaldamagecausedbyimproper
storage,bentcrankshafts,failuretousethepropergradeandamountofengineoil,orfailuretomaintaintheequipmentaccordingtothe
instructionscontainedintheoperator'smanual.
•Engine(fuelsystem)cleaningorrepairscausedbyfueldeterminedtobecontaminatedor oxidized(stale).Ingeneral,fuelshouldbeused
within30 daysof itspurchasedate.
•Equipmentifusedforcommercialorrentalpurposes.
Thiswarrantyappliesforonly90 daysifthis productiseverusedforcommercialor rentalpurposes.
This warrantyappliesonlywhilethisproductis usedintheUnitedStates.
This warrantygivesyouspecificlegalrights,andyoumayalsohaveotherrightswhichvaryfromstatetostate.
Sears, Roebuckand Co.,Hoffman Estates,IL 60179
EngineOil Type: SAE5W-30
EngineOil Capacity: 28 ounces
FuelCapacity: 4 Quarts
SparkPlug: Champion@RJ19LM
SparkPlugGap: .030"
ModelNumber.................................................................
Serial Number.................................................................
Dateof Purchase.............................................................
Recordthemodelnumber,serialnumber
anddateof purchaseabove
©SearsBrands,LLC

Congratulationson makingasmartpurchase.YournewCraftsman®
productisdesignedandmanufacturedforyearsofdependableopera-
tion.Butlikeall products,it mayrequirerepairfromtimetotime.That's
whenhavinga RepairProtectionAgreementcansaveyoumoneyand
aggravation.
Here'swhat'sincludedintheAgreement:
,, Expertservicebyour 12,000professionalrepairspecialists
,, Unlimitedserviceand nochargefor partsandlaboronall covered
repairs
,, Productreplacementifyourcoveredproductcan'tbe fixed
,, Discountof 10%fromregularpriceofserviceandservice-related
partsnotcoveredbytheagreement;also,10%off regularpriceof
preventivemaintenancecheck
,, Fasthelpbyphone- phonesupportfroma Searstechnicianon
productsrequiringin-homerepair,plusconvenientrepair
scheduling
Purchasea RepairProtectionAgreementnowandprotectyourself
fromunexpectedhassleandexpense.
OnceyoupurchasetheAgreement,a simplephonecallisall thatit
takesforyoutoscheduleservice.Youcancallanytimedayornight,or
schedulea serviceappointmentonline.
Searshasover12,000professionalrepairspecialists,whohave
accesstoover4.5millionqualitypartsandaccessories.That'sthe
kindofprofessionalismyoucancounton tohelpprolongthelifeof
yournewpurchaseforyearstocome.PurchaseyourRepairProtection
Agreementtoday!
Somelimitationsand exclusionsapply. Forpricesand additional
informationcall 1-800-827-6655.
SearsInstallation Service
ForSearsprofessionalinstallationof homeappliances,garagedoor
openers,waterheaters,andothermajorhomeitems,in theU.S.A.call
1-800-4-MY-HOME®

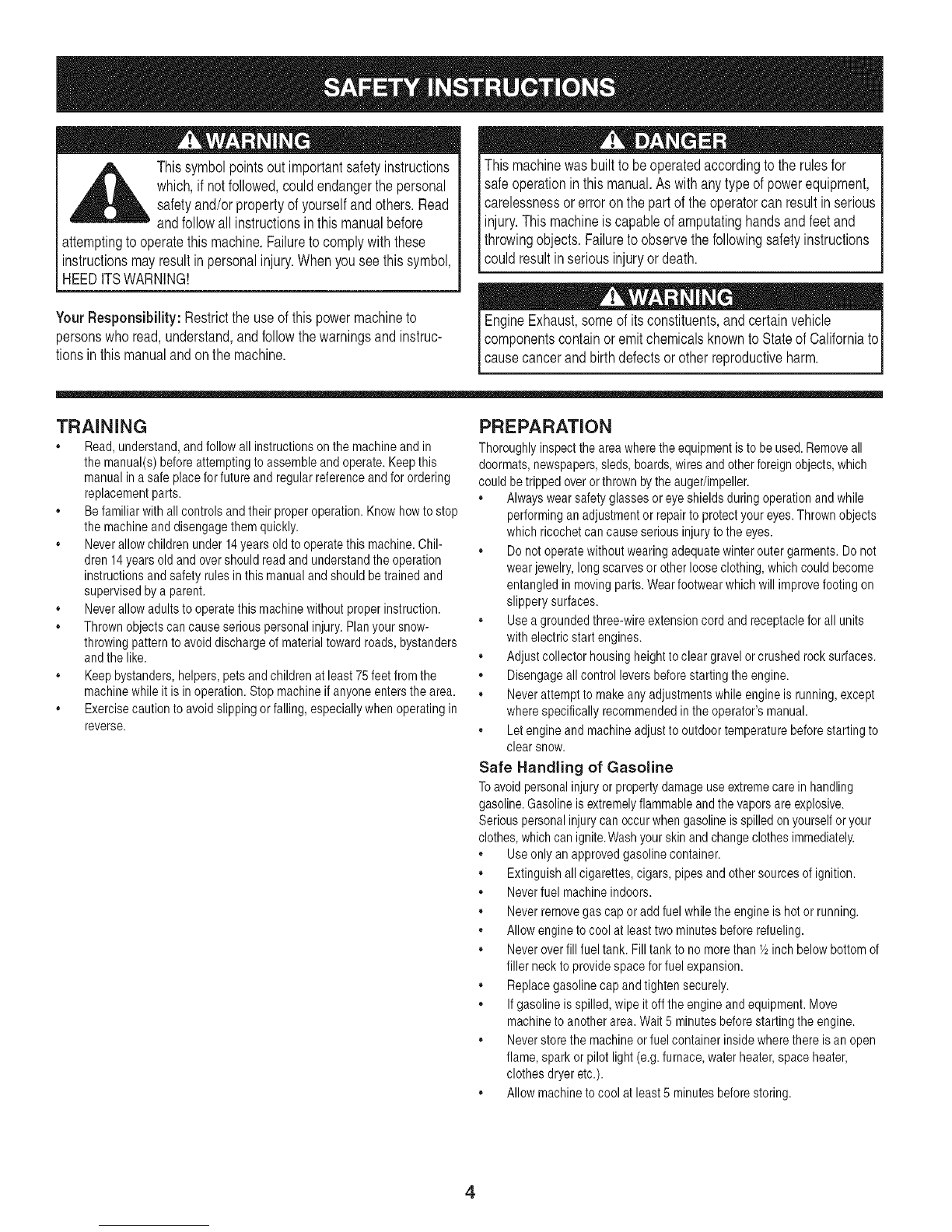

__L Thissymbolpointsoutimportantsafetyinstructions
which,ifnotfollowed,couldendangerthepersonal
safetyand/orpropertyofyourselfandothers.Read
andfollowallinstructionsinthismanualbefore
attemptingtooperatethismachine.Failuretocomplywiththese
instructionsmayresultinpersonalinjury.Whenyouseethissymbol,
HEEDITSWARNING!
YourResponsibility:Restricttheuseofthispowermachineto
personswhoread,understand,andfollowthewarningsandinstruc-
tionsinthismanualandonthemachine.
Thismachinewasbuilttobeoperatedaccordingtotherulesfor
safeoperationinthismanual.Aswithanytypeofpowerequipment,
carelessnessorerroronthepartoftheoperatorcanresultinserious
injury.Thismachineiscapableofamputatinghandsandfeetand
throwingobjects.Failuretoobservethefollowingsafetyinstructions
couldresultinseriousinjuryordeath.
Engine Exhaust, some of its constituents, and certain vehicle
components contain or emit chemicals known to State of California to1cause cancer and birth defects or other reproductive harm.
TRAINING
,, Read,understand,andfollowall instructionsonthe machineand in
the manual(s)beforeattemptingtoassembleandoperate.Keepthis
manualina safeplaceforfutureandregularreferenceandfor ordering
replacementparts.
,, Befamiliarwith allcontrolsandtheir properoperation.Knowhowto stop
the machineanddisengagethemquickly.
,, Neverallowchildrenunder14yearsoldto operatethismachine.Chil-
dren14yearsoldand overshouldreadand understandthe operation
instructionsand safetyrulesin thismanualand shouldbetrained and
supervisedbya parent.
,, Neverallowadultsto operatethis machinewithoutproperinstruction.
,, Thrownobjectscancauseseriouspersonalinjury.Planyoursnow-
throwingpatterntoavoiddischargeof materialtowardroads,bystanders
andthe like.
,, Keepbystanders,helpers,petsandchildrenatleast75feet fromthe
machinewhileit isinoperation.Stop machineif anyoneentersthearea.
,, Exercisecautiontoavoidslippingorfalling,especiallywhenoperatingin
reverse.
PREPARATION
Thoroughlyinspecttheareawheretheequipmentisto beused.Removeall
doormats,newspapers,sleds,boards,wiresandotherforeignobjects,which
couldbetrippedoverorthrownbythe auger/impeller.
,, Alwayswearsafetyglassesoreyeshieldsduringoperationandwhile
performinganadjustmentor repairto protectyoureyes.Thrownobjects
whichricochetcancauseseriousinjurytothe eyes.
,, Donotoperatewithoutwearingadequatewinteroutergarments.Donot
wearjewelry,longscarvesor otherlooseclothing,whichcouldbecome
entangledinmovingparts.Wearfootwearwhichwill improvefootingon
slipperysurfaces.
,, Usea groundedthree-wireextensioncordand receptaclefor all units
with electricstartengines.
,, Adjustcollectorhousingheighttoclear gravelor crushedrocksurfaces.
,, Disengageall controlleversbeforestartingthe engine.
,, Neverattemptto makeanyadjustmentswhileengineis running,except
wherespecificallyrecommendedinthe operator'smanual.
,, Letengineand machineadjustto outdoortemperaturebeforestartingto
clearsnow.
Safe Handling of Gasoline
Toavoidpersonalinjuryorpropertydamageuseextremecarein handling
gasoline.Gasolineisextremelyflammableand thevaporsareexplosive.
Seriouspersonalinjurycanoccurwhengasolineis spilledonyourselfor your
clothes,whichcan ignite.Washyourskinand changeclothesimmediately.
,, Useonlyan approvedgasolinecontainer.
,, Extinguishall cigarettes,cigars,pipesand othersourcesofignition.
,, Neverfuel machineindoors.
,, Neverremovegascapor addfuelwhilethe engineishot or running.
,, Allowenginetocoolatleasttwominutesbeforerefueling.
,, Neveroverfill fuel tank.Fill tankto nomorethan Y2inchbelowbottomof
fillerneckto providespacefor fuelexpansion.
,, Replacegasolinecapandtightensecurely.
,, Ifgasolineisspilled,wipeit offthe engineandequipment.Move
machineto anotherarea.Wait5 minutesbeforestartingthe engine.
,, Neverstorethe machineorfuelcontainerinsidewherethere isan open
flame,sparkor pilotlight(e.g.furnace,waterheater,spaceheater,
clothesdryeretc.).
,, Allowmachineto coolatleast5minutesbeforestoring.
4

OPERATION
. Do notputhandsorfeet nearrotatingparts,in theauger/impeller
housingor chuteassembly.Contactwiththe rotatingpartscanamputate
handsand feet.
,, Theauger/impellercontrolleverisasafetydevice.Neverbypassits
operation.Doingso makesthe machineunsafeand maycausepersonal
injury.
,, Thecontrolleversmust operateeasilyin bothdirectionsand automati-
callyreturnto thedisengagedpositionwhenreleased.
,, Neveroperatewitha missingor damagedchuteassembly.Keepall
safetydevicesinplaceand working.
,, Neverrunan engineindoorsor in a poorlyventilatedarea.Engine
exhaustcontainscarbonmonoxide,anodorlessanddeadlygas.
,, Do notoperatemachinewhileunderthe influenceofalcoholor drugs.
,, Mufflerand enginebecomehotand cancausea burn. Donottouch.
. Exerciseextremecautionwhenoperatingonorcrossinggravelsurfaces.
Stayalertfor hiddenhazardsortraffic.
. Exercisecautionwhenchangingdirectionandwhileoperatingon slopes.
. Planyoursnow-throwingpatterntoavoiddischargetowardswindows,
walls,carsetc.Thus,avoidingpossiblepropertydamageorpersonal
injurycausedbya ricochet.
. Neverdirectdischargeatchildren,bystandersand petsor allowanyone
infront ofthe machine.
. Do notoverloadmachinecapacityby attemptingto clearsnow attoofast
ofa rate.
. Neveroperatethismachinewithoutgoodvisibilityor light.Alwaysbe
sureofyourfootingandkeepa firmholdonthe handles.Walk, never
run.
. Disengagepowertothe auger/impellerwhentransportingor notin use.
,, Neveroperatemachineat hightransportspeedson slipperysurfaces.
Lookdownand behindandusecarewhenbackingup.
,, Ifthe machineshouldstarttovibrateabnormally,stopthe engine,
disconnectthe sparkplugwireandgroundit againsttheengine.Inspect
thoroughlyfor damage.Repairanydamagebeforestartingand operat-
ing.
. Disengageallcontrolleversandstop enginebeforeyouleavethe
operatingposition(behindthe handles).Waituntilthe auger/impeller
comestoa completestopbeforeuncloggingthe chuteassembly,making
anyadjustments,orinspections.
,, Neverputyour handin the dischargeor collectoropenings.Always
usetheclean-outtool providedto unclogthe dischargeopening.Do
not unclogchuteassemblywhileengineisrunning.Shutoffengine
andremainbehindhandlesuntilall movingpartshavestoppedbefore
unclogging.
,, Useonlyattachmentsand accessoriesapprovedbythe manufacturer
(e.g.wheelweights,tirechains,cabsetc.).
,, Ifsituationsoccurwhich arenotcoveredinthis manual,usecareand
goodjudgment.ContactyourSearsServiceCenterforassistance.
MAINTENANCE & STORAGE
. Nevertamperwith safetydevices.Checktheirproperoperation
regularly.Refertothe maintenanceandadjustmentsectionsofthis
manual.
,, Beforecleaning,repairing,or inspectingmachinedisengageallcontrol
leversand stopthe engine.Waituntiltheauger/impellercometoa
completestop.Disconnectthe sparkplug wireandgroundagainstthe
enginetopreventunintendedstarting.
. Checkboltsandscrewsforpropertightnessatfrequentintervalsto keep
the machinein safeworkingcondition.Also,visuallyinspectmachinefor
anydamage.
. Donotchangethe enginegovernorsettingor over-speedthe engine.
Thegovernorcontrolsthe maximumsafeoperatingspeedofthe engine.
. Snowthrowershaveplatesandskid shoesare subjectto wearand
damage.Foryoursafetyprotection,frequentlycheckallcomponents
and replacewith originalequipmentmanufacturer's(OEM)partsonly.
"Useof partswhich donot meetthe originalequipmentspecifications
may leadto improperperformanceandcompromisesafety!"
. Checkcontrolsperiodicallytoverifytheyengageand disengage
properlyandadjust,if necessary.Referto theadjustmentsectionin this
operator'smanualforinstructions.
. Maintainor replacesafetyand instructionlabels,asnecessary.
. Observeproperdisposallawsand regulationsfor gas, oil,etc.to protect
the environment.
. Priortostoring,runmachineafewminutesto clearsnowfrom machine
andpreventfreezeup ofauger/impeller.
. Neverstorethe machineorfuelcontainerinsidewherethere isanopen
flame,sparkor pilotlightsuch asa waterheater,furnace,clothesdryer
etc.
,, Alwaysrefertothe operator'smanualfor properinstructionson
off-seasonstorage.
Do not modify engine
Toavoidseriousinjuryor death,do notmodifyenginein anyway.Tampering
withthe governorsettingcanleadto arunawayengineandcauseitto operate
at unsafespeeds.Nevertamperwithfactorysettingofenginegovernor.
Notice Regarding Emissions
Engineswhicharecertifiedtocomplywith CaliforniaandfederalEPAemission
regulationsfor SORE(SmallOffRoadEquipment)arecertifiedtooperateon
regularunleadedgasoline,and mayincludethefollowingemissioncontrolsys-
tems:EngineModification(EM)andThreeWayCatalyst(TWO)if soequipped.

Thispage left intentionallyblank.
6

1.KEEPAWAYFROMROTATINGiMPELLER
ANDAUGER.CONTACTWiTHiMPELLEROR
AUGERCANAMPUTATEHANDSANDFEET.
2. USECLEAN-OUTTOOLTOUNCLOG
DISCHARGECHUTE.
3. DISENGAGECLUTCHLEVERS,STOPENGINE,
ANDREMAINBEHINDHANDLESUNTILALL
MOVINGPARTSHAVESTOPPEDBEFORE
UNCLOGGINGDRSERViCiNGMACHINE.
4. TOAVOIDTHROWNOBJECTSiNJURiES,
NEVERDIRECTDISCHARGEATBYSTANDERS.
USEEXTRACAUTIONWHENOPERATINGON
GRAVELSURFACES.
5. READOPERATOR'SMANUAL.
CLEAN-OUT TOOL
7

NOTE:Referencesto rightor leftsideofthesnowthrowerare
determinedfrombehindtheunitintheoperatingposition(standing
directlybehindthesnowthrower,facingthehandlepanel).
REMOVING FROM CRATE
1. Removescrewsand staplesfromthetop,sides,andendsofthe
shippingcrate.
2. Setpanelsasidetoavoidtirepuncturesorpersonalinjury.
3. Removeand discardplasticbagthat coversunit.
4. Removeanyloosepartsincludedwith unit(i.e.,Operator's
Manual,etc.).
5. Pushdownonhandlesand pullunitbackoutofcrate.
6. Makecertainthecratehasbeencompletelyemptiedbefore
discardingit.
ASSEMBLY
1. Makecertainthespringsat thelowerendoftheaugeranddrive
cablesaresecurelyhookedintotheirrespectiveactuator
bracketbeforepivotingthehandleupward.
a. Placetheshift leverin theF6position.
b. Removethelowerwingknobandcarriageboltfromeach
sideof theupperhandle.Pullupon upperhandleasshown
in Figure1.Alignupperhandlewiththelowerhandle.Again,
makecertainthespringsatthe lowerendoftheaugerand
drivecablesaresecurelyhookedintotheirrespective
actuatorbracket.Also,removeanyrubberbandssecuring
thecablestothewingnuts.
2. a. Securetheupperhandleandlowerhandlewiththetwo wing
knobsandcarriageboltsremovedearlier.
b. Tightenthetwo wingknobsalreadyinstalledintheupper
holestofirmlysecuretheupperhandleandsupporttubes.
3. Aligntheupperand lowershiftrods,thenslidetheshiftrod
connectordownovertheendofthelowershiftrod.Tapthe
connectoruntilthe lowerrod iscompletelythroughtheconnector.
SeeFigure2.
NOTE:If theconnectoris notproperlyassembled,theshiftrodwill
pivotand youwillnotbe abletochangespeedsor direction.
NOTE:If thefullrangeofspeeds(forwardandreverse)cannotbe
achieved,refertothe"MakingAdjustments"section.
4. a. Removetheinternalcotterpinfromtheupperchutecrank.
Slidetheupperchutecrankintothesleeveon thelower
chutecrank.SeeFigure3.
b. Aligntheholein theupperchutecrankwiththeholein the
sleeve(If necessary,usea pairofplierstoassistin aligning
holes).Insertthe internalcotterpinthroughtheholesto
securethechutecrank.SeeFigure3.
5. Removelocknutsandscrewssecuringoneoftheflangekeepers
tothechuteassembly.
6. Placechuteassemblyontochutebaseasshownin Figure4,
makingsurethat thenotchesengagewiththespiralend ofchute
directionalcontrol.
f
Figure1
/
/
//
i/ ..........
/'-_F .......
Figure2
/
/
/
Figure3
8

7. Secureflangekeeperremovedearlierwithlocknutsandscrews.
Tightendownnutssecuringtheothertwo flangekeepers.See
Figure5.
8. If notalreadydone,slipthecablesthatrun fromthehandle
paneltothedischargechuteintothecableguidelocatedontop
of theengine.SeeFigure4.
9. If notalreadydone,wrapthewireoftheheadlampwireharness
downtherighthandleuntilthewirecanbe pluggedintothe
enginealternatorwireconnectordownontheengine.
10. Normallythecableties holdingthesteeringcablesagainstthe
handlearelooselyinstalledoneachsideofthelowerhandleat
thefactory.Pullthecabletiestighttosecure.Cuttheexcess
fromtheendsofcableties.
Theextensioncordisfastenedwitha cabletietotherearof theauger
housingforshippingpurposes.Cutthecabletieandremoveitbefore
operatingthesnowthrower.
1/
ii
..............
SET-UP
Chute Clean-Out Tool
Achute clean-out tool isfastenedtothetopoftheaugerhousing
witha mountingclip.SeeFigure6.Thetoolisdesignedtocleara
chuteassemblyoficeandsnow.Thisitemisfastenedwitha cabletie
atthefactory.Cutthecabletiebeforeoperatingthesnowthrower.
Drift Cutters
1. Removethetwoscrewsand locknutsthat secureeachdrift
cutter,andremovethemfromthesidesoftheaugerhousing.
2. Turnthedrift cuttersaroundandpositionthemasshownin Figure
7 totheoutsideoftheaugerhousing.
3. Attachthedriftcutterswiththescrewsandlocknutsremoved
earlier.
Figure4
\
Figure5
:hule Clean-out Tool
Figure7 9Figure6

Tire Pressure f
Beforeoperating,checktirepressure.Refertothetiresidewallfor
exacttiremanufacturer'srecommendedor maximumpsi.
NOTE:If thetirepressureis notequalin bothtires,theunitmaynot
travelina straightpathandtheshaveplatemaywearunevenly.
ADJUSTMENTS
Skid Shoes
Thesnowthrowerskidshoesareadjustedupwardatthefactoryfor
shippingpurposes.Adjustthemdownward,if desired,priortooperat-
ingthesnowthrower.
It youoperate snow on gravelas
isnotrecommendedthat this thrower
it.caneasilypickup andthrowloosegravel,causingpersonalinjuryor i
_damageto thesnowthrowerand surroundingproperty, j
,, Forclosesnowremovalon a smoothsurface,raiseskidshoes
higherontheaugerhousing.
,, Usea middleor lowerpositionwhentheareatobeclearedis
uneven,suchasagraveldriveway
NOTE:If youchoosetooperatethesnowthrowerona gravelsurface,
keeptheskidshoesin positionfor maximumclearancebetweenthe
groundand theshaveplate.
Chute Tilt Controi_
Auger
Control----4_ .
Auger !
Control
Cable
Figure8
Toadjusttheskidshoes:
1. Loosenthesix hexnuts(threeon eachside)andcarriagebolts.
Moveskid shoestodesiredposition.SeeFigure8.
2. Makecertaintheentirebottomsurfaceofskidshoeisagainstthe
groundtoavoidunevenwearon theskidshoes.
3. Retightennutsandboltssecurely.
-Shift Lever
i Drive
_e--_ Contro
Drive
Control
Cable
7
J
Figure9
10

Testing Auger Drive Control "*
Priortooperatingyoursnowthrower,carefullyreadandfollowall
instructionsbelow.Performall adjustmentstoverifyyoursnow
throwerisoperatingsafelyandproperly.
Whentheaugercontrolisreleasedand inthedisengaged"up"posi-
tion,thecableshouldhaveverylittleslack,butshouldNOTbetight.
1. Ina well-ventilatedarea,startthesnowthrowerengineas
instructedin theO_erationsection.Makesurethethrottleissetin
thefastposition.G_p
2. Whilestandingintheoperator'sposition(behindthesnow
thrower),engagetheaugercontrolandallowtheaugertoremain
engagedforapproximatelytensecondsbeforereleasingthe
augercontrol.Repeatthis severaltimes.
3. Withtheenginerunninginthefastposition '_ andthe
augercontrolinthedisengaged"up"position,walktothefront
ofthemachine.Confirmthattheaugerhascompletelystopped
rotatingandshowsnosignsof motion.
4. If theaugershowsanysignsof rotating,immediatelyreturntothe
operator'spositionandshutofftheengine.Waitforall moving
partstostopbeforereadjustingtheaugercontrolcable.
Testing Drive Control &Shift Lever
RefertoFigure9 forlocationofcontrols.
1. Movetheshiftleverintosixth(6)position.
2. Withthewheeldrivecontrolreleased,pushthesnowthrower
forward,thenpullitback.Themachineshouldmovefreely.
3. Engagethedrivecontroland attempttomovethemachineboth
forwardandback,resistanceshouldbefelt.
4. Movetheshiftleverintothefastreverse(R2)positionandrepeat
theprevioustwosteps.
If youexperiencedresistancerollingtheunit,eitherwhenrepositioning
theshiftleverfrom6 toR2orwhenattemptingto movethemachine
withthedrivecontrolreleased,adjustthedrivecontrolimmediately.
SeeAdjustingDriveandAugerControls.
Adjusting Drive and Auger Controls
1. Frombeneaththehandle,pulldownwardon theappropriatecable
andunhookthespringfoundontheendofthecablefromits
respectiveactuatorbracket.RefertoFigures9 and10.
2. Slidethespringup thecabletoexposethecablecouplerthreads
andlocknut.Referto Figure11.
3. If adjustingthedrivecable,threadthelocknutoutward(downthe
coupler)tolengthenthecableandallowtheunittomovefreely
whenthecontrolisreleased.Threadthelocknutinward(upthe
coupler)toshortenthecableto reduceslippageandpreventthe
machinefrombeingeasilymovedwiththedrivecontrolengaged.
4. If adjustingtheaugercable,threadthelocknutdowntolengthen
thecableasnecessarytostoptheaugerfromturningwhenthe
controlis released.
f
4
Figure10
Figure11
Donotover-tightenthecable.Over-tighteningmaypreventtheauger I
Ifromdsengagngandcompromsethesafetyofthesnowthrower. J
5,
6. Reattachthespringto therearmostholein theactuatorbracket.
Repeatthewheeldriveandaugercontrolteststoverifyproper
adjustment.Repeatpreviousstepsifnecessarytoattainproper
adjustmentofeachcable.
11

fDriveControl
GasCa
Headlk Lever
Two-Way
Chute ControP
Control
I Steering
ol
•ChuteDirectional
Control
Drift
Cutters
/
OilFill
Chute
Assembl
/
Augers Tool
Skid Shoe
Figure11
Nowthatyouhavesetupyoursnowthrower,it'simportanttobecome NOTE:Donotturntheignitionkeyinan attempttostarttheengine.
acquaintedwith itscontrolsand features.RefertoFigure11. Doingso maycauseit tobreak.
SHIFT LEVER
Theshiftleverislocatedon therightsideofthehandlepanel.
Placetheshift leverintoanyofeightpositionsto controlthe
directionof travelandgroundspeed.
Forward
Ii CHOKE CONTROL
Yoursnowthrowerhassix forward(F)speeds.Positionone(1)is t 2 Thechokecontrolisfoundon therearof theengineandisactivated
FI
R1
R2
theslowestand positionsix (6) isthefastest.
Reverse
Yoursnowthrowerhastwo reverse(R)speeds.One(1)is the
slowerandtwo(2) isthefaster.
I11
byrotatingtheknobclockwise.Activatingthechokecontrolclosesthe
chokeplateonthecarburetorandaidsinstartingtheengine.
PRIMER
Depressingthe primerforcesfueldirectlyintotheengine'scarburetor
toaid incold-weatherstarting.
IGNITION KEY
Theignitionkeyisa safetydevice.It mustbefullyinsertedinorderfor
theenginetostart,Removetheignitionkeywhenthesnowthroweris
notinuse. OIL FILL
Engineoil levelcanbecheckedandoil addedthroughtheoil fill.
Meets ANSI Safety Standards
CraftsmanSnowThrowersconformto thesafetystandardoftheAmericanNationalStandardsInstitute(ANSI).
12

THROTTLE CONTROL
Thethrottlecontrolis locatedontherearoftheengine.
It regulatesthespeedoftheengineandwillshutoff the
enginewhenmovedintotheSTOPposition.
SKID SHOES
Positiontheskidshoesbasedon surfaceconditions.Adjust
upwardforhard-packedsnow.Adjustdownwardwhen
operatingongravelorcrushedrocksurfaces.
RECOIL STARTER HANDLE
This handleisusedto manuallystarttheengine.
ELECTRIC STARTER BUTTON
Pressingtheelectricstarterbuttonengagestheengine's
electricstarterwhenpluggedintoa 120Vpowersource.
ELECTRIC STARTER OUTLET
Requirestheuseofa three-prongoutdoorextensioncord(included)
anda 120Vpowersource/walloutlet.
DRIVE CONTROL/AUGER CONTROL LOCK
fDRIVE
CONTROL
@
Thedrivecontrolis locatedon therighthandle.Squeezethecontrol
gripagainstthehandletoengagethewheeldrive.Releasetostop.
Thedrivecontrolalsolockstheaugercontrolsoyoucanoperate
thechutedirectionalcontrolwithoutinterruptingthesnowthrowing
process.If theaugercontrolisengagedsimultaneouslywiththedrive
control,theoperatorcanreleasetheaugercontrol(ontheleft handle)
andtheaugerswillremainengaged.Releasebothcontrolstostopthe
augersandwheeldrive.
AUGERS
Whenengaged,theaugersrotateanddrawsnowintotheauger
housing.
CHUTE ASSEMBLY
Snowdrawnintotheaugerhousingisdischargedoutthechute
assembly.
NOTE:Alwaysreleasethedrivecontrolbeforechangingspeeds.
Failuretodosowillresultinincreasedwearon yourmachine'sdrive
system.
TWO=WAY CHUTE CONTROL TM
Thedistancesnowisthrowncanbechangedbyadjustingtheangle
of thechuteassembly.Movethechutecontrolforwardtodecreasethe
distance,towardtherearto increase.
GAS CAP
Unthreadthegascaptoaddgasolineto thefueltank.
AUGER CONTROL
S
Theaugercontrolislocatedonthe lefthandle.Squeezethecontrol
gripagainstthehandletoengagetheaugersandstartsnowthrowing
action.Releasetostop.
CHUTE DIRECTIONAL CONTROL
Thechutedirectionalcontrolislocatedontheleft sideofthesnow
thrower.
,, Tochangethedirectioninwhichsnowisthrown,crankclockwise
todischargetotheleftandcounterclockwisetodischargetothe
right.
WHEEL STEERING CONTROLS
Theleftand rightwheelsteeringcontrolsare locatedontheunderside
of thehandles.Squeezetherightcontroltoturnright;squeezetheleft
controlto turnleft.
NOTE:Operatethesnowthrowerinopenareasuntilyouarefamiliar
withthesecontrols.
HEADLIGHT
Theheadlightislocatedontopofthehandlepanel.It maybeadjusted
bylooseningthetwoscrewsoneachsideofthelighthousing,pivoting
thelightupor down,andretighteningthescrews.
DRIFT CUTTERS
Thedriftcuttersare designedforusein deepsnow.Theiruseis
optionalfornormalsnowconditions.
13

CLEAN-OUT TOOL NOTE:A plasticdustcapmaybefoundinsidethefuelfillopening.
Removeanddiscard,ifpresent.
Neveruseyourhandstocleara cloggedchuteassembly.Shut
off engineand remainbehindhandlesuntilallmovingpartshave
stoppedbeforeunclogging.
Thechuteclean-outtoolisconvenientlyfastenedtothe rearofthe
augerhousingwitha mountingclip. Shouldsnowandicebecome
lodgedin thechuteassemblyduringoperation,proceedasfollowsto
safelycleanthechuteassemblyandchuteopening:
1. ReleaseboththeAugerControlandtheDriveControl.
2. Stoptheenginebyremovingtheignitionkey.
3. Removetheclean-outtoolfromtheclipwhichsecuresittothe
rearoftheaugerhousing.
4. Usetheshovel-shapedendof theclean-outtooltodislodgeand
scoopanysnowandicewhichhasformedin andnearthechute
assembly.
5. Refastentheclean-outtooltothemountingclipon therearof
theaugerhousing,reinsertthe ignitionkeyandstartthesnow
thrower'sengine.
6. Whilestandingintheoperator'sposition(behindthesnow
thrower),engagetheaugercontrolfora fewsecondsto clearany
remainingsnowandicefromthechuteassembly.
BEFORE STARTING ENGINE
Read,understand,andfollowall instructionsandwarningsonthe
machineand inthis manualbeforeoperating.
Oil
Theunitwasshippedwithoil intheengine.Checkoil levelbeforeeach
operationtoensureadequateoil intheengine.Forfurtherinstructions,
refertothestepsonpage 17.
1. Removethedipstickfromtheoilfill.
2. Checkandmakesurethatthelevelofoil isupto theFULLmark
onthedipstick.
3. If theoil levelis notupto FULL,pourfreshmotoroil (5W-30,with
a minimumclassificationofSL/SJ)slowlythroughtheopening.
Replaceoil filldipstickandcheckoil levelagain.
Gasoline
Useextremecarewhenhandlinggasoline.Gasolineisextremely
flammableandthevaporsareexplosive.Neverfuel themachine
indoorsor whiletheengineishotor running.Extinguishcigarettes,
[c gars,ppesand othersourcesof gnt on.
,, Storegasolinein aclean,approvedcontainerandkeepthecapin
placeonthecontainer.
,, Makesurethatthecontainerfromwhichyoupourthegasolineis
cleanandfreefromrustor otherforeignparticles.
,, Alwaysfill thefueltankoutdoorsand usea funnelorspoutto
preventspilling.
,, Fillfueltankwithclean,fresh,unleadedgasoline.
,, Neverfill thefueltankcompletely.Fillthetanktowithin1/2"from
thetoptoprovidespaceforexpansionoffuel.
,, Makesuretowipeoff anyspilledfuelbeforestartingtheengine.
STARTING THE ENGINE
1. Attachsparkplugwiretosparkplug.Makecertainthe metal
loopon theend ofthesparkplugwire(insidetherubberboot)is
fastenedsecurelyoverthemetaltip onthesparkplug.
2. Makecertainboththeaugercontrolanddrivecontrolarein the
disengaged(released)position.
3. MovethrottlecontroluptoFAST_ position.Insertignitionkey
intoslot.Makesureitsnapsintoplace.Donotattempttoturnthe
key.
NOTE:Theenginecannotstartwithoutthekeyis fullyinsertedintothe
ignitionswitch.
Electric Starter
Determinethatyourhome'swiringisa three-wiregroundedsystem.
Aska licensedelectricianifyouarenotcertain.
Theoptionalelectricstarterisequippedwitha groundedthree-wire
powercordandplug,and isdesignedtooperateon 120voltAC
householdcurrent.It mustbe usedwith aproperlygroundedthree-
prongreceptacleatall timestoavoidthepossibilityofelectricshock.
Followall instructionscarefullypriortooperatingtheelectricstarter.
Ifyouhavea groundedthree-prongreceptacle,proceedasfollows:
1. Plugtheextensioncordintotheoutletlocatedontheengine's
surface.Plugtheotherend ofextensioncordintoathree-prong
120-volt,grounded,ACoutletina well-ventilatedarea.
2. RotatechokecontroltoFULL I,.#'1chokeposition(foracold
enginestart).
NOTE:If theengineisalreadywarm,placechokecontrolin theOFF
positioninsteadofFULL IJl •
3. Pushtheprimertwoor threetimesforcoldenginestart, making
suretocoverventholeinthecenterofthe primerwhenpushing.
NOTE:DONOTuseprimerto restarta warmengineaftera short
shutdown.
4. Pushstarterbuttontostartengine.
NOTE:Donotholdthebuttondownforlongerthanseven(7)seconds
ata time.Doingso maydamageyourengine'selectricstarter.
14

5. Oncetheenginestarts,releasestarterbutton.
6. Astheenginewarms,slowlyrotatechokecontrolto theOFF
position.Iftheenginefalters,quicklyrotatechokecontrolbackto
FULL 14D"IthenslowlyintotheOFFpositionagain.
7. Whendisconnectingtheextensioncord,alwaysunplugtheend
atthethree-prongwalloutletbeforeunpluggingtheoppositeend
fromthesnowthrower.
Recoil Starter
1. RotatechokecontroltoFULL IJl chokeposition(coldengine
start).
NOTE:Iftheengineisalreadywarm,placechokecontrolintheOFF
insteadofFULLIJ|.
position
2. Pushtheprimertwoorthreetimesforcoldenginestart,making
sureto coverventholeinthecenteroftheprimerwhenpushing.
NOTE:DONOTuseprimertorestartawarmengineaftera short
shutdown.
NOTE:Additionalprimingmaybe necessaryifthetemperatureis
below15°Fahrenheit.
3. Grasptherecoilstarterhandleandslowlypulltheropeout.Atthe
pointwhereitbecomesslightlyhardertopullthe rope,slowly
allowtheropetorecoil.
4. Pullthestarterhandlewitha firm,rapidstroke.Donotrelease
thehandleandallowit tosnapback.Keepa firmholdon the
starterhandleandallowittoslowlyrecoil.
5. Astheenginewarms,slowlyrotatethechokecontroltotheOFF
position.Iftheenginefalters,quicklyrotatethechokecontrol
backtotheFULL I,_1 positionandthenslowlyintotheOFF
positionagain.
NOTE:Allowtheenginetowarmupforafew minutesafterstarting.
Theenginewill notdevelopfullpoweruntilit reachesoperating
temperatures.
STOPPING THE ENGINE
Runenginefora fewminutesbeforestoppingto helpdryoff any
moistureontheengine.
MovethrottlecontroltoSTOP
1. position.
2. Removethe ignitionkeyandstoreina safeplace.
3. Wipeall snowandmoisturefromtheareaaroundtheengineas
wellastheareainand aroundthedrivecontrolandaugercontrol.
Also,engageandreleasebothcontrolsseveraltimes.
TO ENGAGE DRIVE
1. WiththethrottlecontrolintheFast_ position,moveshiftlever
intooneofthesix forward(F)positionsor tworeverse(R)
positions.Selecta speedappropriateforthesnowconditionsand
a paceyou'recomfortablewith.
NOTE:Whenselectinga DriveSpeed,usetheslowerspeedsuntil
youarecomfortableandfamiliarwiththeoperationofthesnow
thrower.
2. Squeezethedrivecontrolagainstthehandlethesnowthrower
will move.Releaseitanddrivemotionwillstop.
NOTE:NEVERrepositiontheshiftlever(changespeedsor direction
of travel)withoutfirstreleasingthedrivecontrolandbringingthesnow
throwertoa completestop.Doingsowillresultin prematurewearto
thesnowthrower'sdrivesystem.
TO ENGAGE AUGERS
1. Toengagetheaugersandstartthrowingsnow,squeezethe
augercontrolagainstthelefthandle.Releasetostoptheaugers.
REPLACING SHEAR PiNS
Theaugersaresecuredtothespiralshaftwithtwoshearpinsandcot-
terpins.if theaugershouldstrikea foreignobjector icejam,thesnow
throwerisdesignedsothattheshearpinsmayshear.Iftheaugerswill
notturn,checktoseeifthepinshavesheared.SeeFigure12.
NEVERreplacetheaugershearpinswith anythingotherthanOEM
PartNo.738-04124Areplacementshearpins.Anydamagetothe
augergearboxorothercomponentsasa resultoffailingtodo sowill
NOTbecoveredbyyoursnowthrower'swarranty.
Alwaysturnoffthesnowthrower'sengineand removethekeypriortc
replacingshearpins.
//
Figure12
15

ENGINE MAINTENANCE
Beforelubricating,repairing,orinspecting,disengageallcontrols
land stopengine.Waituntilall movingpartshavecometoa complete
[stop.
Checking Engine Oil
1. Besureengineisuprightandlevel
2. Unscrewoil fillcapfromoil fillertubeandwipedipstickclean.
3. Screwoil fillcapbackintooilfillertube.Tightensecurely.
4. Unscrewandremoveoilfillcapfromoilfillertube.Noteoil level.
If oil readingondipstickisbelow"ADD"mark,slowlyaddoil to
reach"FULL"level.SeeFigure13.
5. Screwoil fillcapbackintooilfillertube.Tightensecurely.
6. Wipeawayanyspilledoil.
Changing Engine Oil
Toavoidenginedamage,itisimportantto:
,, Checkoil levelbeforeeachuseandeveryfiveoperatinghours.
,, Changeoil afterfirsttwo (2)operatinghoursandevery25 operat-
inghoursthereafter.
,, Engineshouldstill bewarmbut nothotfromrecentuse.
1. Locatetheoildrainplug.SeeFigure14.
2. Besurethegascapisonand istightenedsecurely.
3. Cleanareaaroundoil drainplug.
4. Placeapprovedrecyclableoilcontainerunderoil drainplug.
5. Removeoil drainpluganddrainoil.
NOTE:Usedoil mustbedisposedofata propercollectioncenter.
6. Installoildrain plugandtightensecurely.
7. Refilltheenginewithrecommendedoil.SeeRecommendedOil
Usagechart.Theengine'soilcapacityis28 ounces.
Recommended Oil Usage
SAE0W-30
I
f --,,
FULL
ADD
Maintain oil level
between FULLand ADD
Figure13 J
f
8. Wipeawayanyspilledoil.
16

Checking Spark Plug
Checksparkplugyearlyor every100operatinghours
1. Cleanareaaroundsparkplug.
2. Removeand inspectsparkplug.
3. Replacesparkplugif porcelainiscrackedor ifelectrodesare
pitted,burnedorfouledwithdeposits
4. Checkelectrodegapwitha feelergaugeandset gapto.030
(0.76ram)ifnecessary.SeeFigure15.
5. Reinstallsparkplugandtightensecurely.
NOTE:A resistorsparkplugmustbeusedforreplacement.Contacta
SearsPartsand RepairCenterfora replacementsparkplug.
Carburetor
If yoususpectyourcarburetorneedsadjusting,seea SearsPartsand
RepairCenter.Engineperformanceshouldnotbe affectedataltitudes
upto7,000feet(2,134meters).Foroperationathigherelevations,
contacta SearsPartsand RepairCenter.
Engine Speed
Avoidseriousinjuryor death,DONOTmodifyenginein anyway.
Tamperingwiththegovernorsettingcancausetheengineand
equipmenttooperateatunsafespeeds.NEVERtamperwithfactory
settingofenginegovernor.Runningtheenginefasterthanthespeed
set atthefactoryisdangerous.
LUBRICATION
Drive and Shifting Mechanism
Atleastoncea seasonorafterevery25hoursofoperation,remove
rearcover.Lubricateall chains,sprockets,gears,bearings,shafts,and
theshiftingmechanism.Useengineoil or aspraylubricant.Referto
Figure16.
NOTE:Becarefulnotto getanyoilon thealuminumdriveplateor
rubberfrictionwheel.Doingsowillhinderthesnowthrower'sdrive
system.Wipeoff anyexcessor spilledoil.
Wheels
Atleastoncea season,removebothwheels.Cleanandcoattheaxles
witha multipurposeautomotivegreasebeforereinstallingwheels.
Chute Directional Control
Oncea season,lubricatetheeyeboltbushingandthespiralwith
3-in-1oil.
Auger Shaft
Atleastoncea season,removetheshearpinson augershaft.Spray
lubricantinsideshaft,andaroundthespacersandflangebearings
foundateitherendoftheshaft.SeeFigure17.
3
II
II
1..030 (.76ram)Gap
2. Electrodes
Porcelain Figure15 J
f -'-,
,,, <¢_._ , , ,
,,,, _,,,
,,,, _ ,,, _ [
,, ,_ [
|¢
f
I
•••L.i,
Figure16
Figure17 J
17

SHAVE PLATE AND SKID SHOES
Theshaveplateandskidshoesonthebottomofthesnowthrowerare
subjectto wear.Theyshouldbecheckedperiodicallyandreplaced
whennecessary.
Skid Shoes
NOTE:Theskidshoesonthismachinehavetwowearedges.When
onesidewearsout,theycan berotated180° tousetheotheredge.
1. Removethesix carriageboltsandhexnutsthatsecurethetwo
skidshoestothesidesoftheaugerhousing.RefertoFigure18.
2. Positionthenewskid shoesandsecurewiththecarriagebolts
andhexnuts.Makecertaintheskidshoesareadjustedtobe
level.
Shave Plate
1. Removethe hexnutsandcarriageboltsthatsecuretheshave
platetothebottomof thehousing.
2. Removethe rearmosthexnutandcarriageboltsecuringtheback
ofeachskidshoetothesidesofthehousing.Loosenthefour
remaininghexnutssecuringtheskidshoes.
3. Slidetheshaveplateoutoftheoff-setslot atthebottomofthe
housing,andfrombetweentheskidshoesandsidepanelsofthe
housing.
4. Withthemountingholestowardtheback,slidethenewshave
plateintopositionandsecurewith thefastenersremoved
previously.
ADJUSTMENTS
Shift Rod
If thefullrangeofspeeds(forwardandreverse)cannotbeachieved,
refertothefiguretotheleftandadjusttheshiftrodasfollows:
1. Lookingunderneaththehandlepanel,notewhichofthethree
holesintheshiftlevertheferruleisinsertedinto.Alsonotethe
directionofinsertion.Thenremovetheinternalcotterpin andflat
washerfromtheferruleandwithdrawtheferrulefromtheshift
lever.SeeFigure19.
2. Placeshiftleverin sixth(6)positionor fastestforwardspeed.
3. Pushshiftrodandshiftarmassemblydownsharplyasfarasit
willgo toputthedriveintothefastestforwardposition.
4. Asnecessary,rotatetheferruleupor downtheshiftrod untilthe
ferrulelinesupwiththeholefromwhichitwasearlierremoved.
SeeFigure19.
5. Fromthedirectionnotedearlier,inserttheferruleintotheproper
hole.
6. Reinstallthewasherandtheinternalcotterpin.
f m
Figure18
\
\\
\ \
Chute Control
Thedistancesnowisthrowncanbeadjustedbyadjustingtheangleof
thechuteassembly.Referto theOperationsectionforinstructions.
Theremotechutecontrolcableshavebeenpre-adjustedatthefactory.
Movetheremotechuteleveron thecontrolpanelforwardtopivotthe
upperchutedown;movetheleverrearwardto pivottheupperchute
up.
18

Drive Control
RefertotheAdjustmentsectionoftheAssemblyinstructionstoadjust
thedrivecontrol.Tofurtherchecktheadjustment,proceedasfollows:
1. Withthesnowthrowertippedforward(becertaintodraingasoline
orplaceplasticfilm underthegascapifthesnowthrowerhas
alreadybeenoperated),removetheframecoverunderneaththe
snowthrowerbyremovingtheself-tappingscrews.
2. Locatetheopeningbetweentheaxlesupportbracketand
thefrontframesupport(SeeFigure20). Lookingthroughthis
opening,withthedrivecontrolreleased,theremustbe clearance
betweenthefrictionwheelandthedriveplatein allpositionsof
theshiftlever.
3. Withthedrivecontrolengaged,thefrictionwheelmustcontact
thedriveplate.SeeFigure20.
4. If thereisnofrictionwheelclearance,orthefrictionwheeldoes
notsolidlycontactthedriveplate,re-adjustthelocknuton the
lowerendofthedrivecablefollowingtheinstructionsinthe
Assemblysection.
5. Reassembletheframecover.
NOTE:If youplacedplasticfilmunderthegascapearlier,removeit
now.
Chute Bracket
If thespiralatthebottomofthechutedirectionalcontrolisnotfully
engagingwiththechuteassembly,thechutebracketcanbeadjusted.
Todoso:
1. Loosenthetwonutswhichsecurethechutebracketand reposi-
tionitslightly.SeeFigure21.
2. Retightenthenuts.
Auger Control
RefertotheAssemblysectionforinstructionsonadjustingtheauger
controlcable.
Skid Shoes
RefertotheAssemblysectionforinstructionsonadjustingtheskid
shoes.
f --,,
Friction
Wheel
Drive_qj
Plate!
Figure20 J
f
/
f
Figure21 J
BELT REPLACEMENT
Belt Removal Preparation
1. Disconnectthechutecrankassemblyatthedischargechuteend
byremovingthehairpinclipandtheflat washer.RefertoFigure
22.
i/
jl
....JJ
Figure22 J
19

2. Removethe plasticbeltcover,locatedneartheengine,byremov-
ingthethreeself-tappingscrewsthatsecureit. SeeFigure23.
3. Loosentheboltshownin Figure24securingthebeltkeeper
bracketandremovetheotherbolt. Pushthebeltkeeperand
bracketup offtheenginepulley.SeeFigure24.
Auger Belt Replacement
1. Removethe hairpinclipandflatwasherfromtheferruleinorder
todisconnecttheaugeridlerrodfromthebrakebracketassem-
bly.SeeFigure25.
NOTE:Makesurethatthelocationoftheferruleontheauger
idlerrodis maintained.
2. Sliptheaugercontrolbelt(thefrontbelt)offtheenginepulley.
3. Pullthebrakebracketassemblytowardsthecableguideroller
andunhooktheaugercable"Z" fitting.SeeFigure26.
4. Frombothsidesofthetheframeassembly,usea 1/2"wrenchto
removethethreehextapscrewssecuringtheframetotheauger
housingassembly.Referto Figure22 on previouspage.
NOTE:Donotremovethelowerhexflangelocknutoneachside.
5. Placea blockofwoodunderneaththeaugerhousingasshownin
Figure27andseparateaugerhousingfromtheframebytiltingthe
housingforwardandpullingupthehandles.
6. Blockthe impellerwitha pieceofwoodtopreventitfromspinning
andusea 1/2"wrenchto removethehexscrewandflatwasher
fromthecenterofthe pulleyon theaugerhousing.SeeFigure28.
7. Liftthebrakebracketassemblyoutofthepulleygrooveandslide
thepulleyassemblyoffthepostsoftheaugerpulleyadapterto
removetheoldbelt.RefertoFigure28.
Figure23
f --,,
/
/
Loosen i
Figure24 ,,.-/"
/
//
f/" /, //
// //
// ,/
/
//
Figure25
Figure26 J
20
