Electronic Coin Validator
G-13.mft parallel
Standard, Casino, SGI, BDTA and AMU model
(from version /4)
Operating instructions

G-13.mftstandard/Casino/SGI/BDTA/AMU TABLEOFCONTENTS
3
National Rejectors, Inc. GmbH, Buxtehude
Table of contents
1 Generalinformation 7
General information about these instructions 7
Text conventions 7
Additionaltechnicaldocumentation 8
General information about the coin validator 8
Models and operating modes 9
Overview 9
Casino applications (Casino/SGI) 9
BDTA applications (with G-18/G-40 interface) 10
Applications for Spanish gaming market (AMU) 10
Top entry and front entry applications 10
2 Safetyinstructions 11
Proper use 11
Protecting yourself and equipment 12
3 Design 13
The coin route from insert funnel to cash-box/sorting
chute or return area 15
Switching blocks 16
Return lever and return button 16
Label 17

TABLEOFCONTENTS G-13.mftstandard/Casino/SGI/BDTA/AMU
4National Rejectors, Inc. GmbH, Buxtehude
4 Function 18
Coin acceptance and coin channels 18
Single or double block data-management 19
Accepted coin sensors 20
Exception: Casino model/mode 20
Transfer of coin values by means of coin impulses and
via coin signal lines 21
Coin signal processing of theAMU model 21
Coin released by machine 22
Coin rejected by machine 22
Coin impulse length 22
Control for external sorting device 23
Sortingprinciple 23
Sorting with NRI sorting device 24
Coininhibition 25
External common inhibit (notAMU model) 25
External inhibit of single coin types
(not with G-18 BDTAinterface) 25
Internal inhibit of single coin types/coin type groups 25
Teach mode 26
Options 26
Battery or low-power applications
(not with G-40 BDTAinterface) 26
High-voltageapplicationsup to 42 V 27
Inverted common inhibit signal line
(only standard and Casino model) 27
5 Start-up 28
Installing coin validator in the machine 28
Installingsortingdevice ... 29
... on the top entry model 29
... on the front entry model 31

G-13.mftstandard/Casino/SGI/BDTA/AMU TABLEOFCONTENTS
5
National Rejectors, Inc. GmbH, Buxtehude
6 Operation 32
Selecting memory block
(only with double block data-management) 32
Inhibiting coins/activating narrow coin channel ... 33
... with double block data-management (B-0 and B-1) 33
... with single block data-management 35
Teaching coin channels in the teach mode 38
Selecting Casino mode (only standard model) 41
7 Maintenanceandservice 42
Cleaningcoinvalidator 42
Troubleshooting 43
8 ThePC programming stationWinEMP 45
Function 45
Composition 45
Which functions can be set? 46

TABLEOFCONTENTS G-13.mftstandard/Casino/SGI/BDTA/AMU
6National Rejectors, Inc. GmbH, Buxtehude
9 Technicaldata 47
Device data 47
CE Certification 49
Interfaces (pin assignment and connection diagrams) 50
G-13.mft standard/Casino model – machine 50
Pin assignment 50
Interface description 50
Connection diagram 51
G-13.mft with G-18 BDTA interface – machine 52
Pin assignment 52
Interface description 52
Connection diagram 53
G-13.mft with G-40 BDTA interface – machine 54
Pin assignment 54
Interface description 54
Connection diagram 55
G-13.mftAMU model – machine 56
Pin assignment 56
Interface description 56
Connection diagram 57
G-13.mft – external sorting device 58
Accessories 59
Front plates 59
Sorting device 59
External wake-up sensor 59
Adapter housing for BDTA models 59
Testers 59
WinEMP PC programming station 59
SimpleGamingInterface(SGI) 60
What is the difference between the G-13.mft SGI and
the G-13.mft Casino? 60
Pilot lights 60
Machine interfaces 61
Pin assignment and compatibility 61
Interface description 61
Error diagnosis 62
Index 63
Glossary 67

G-13.mftstandard/Casino/SGI/BDTA/AMU GENERALINFORMATION
7
National Rejectors, Inc. GmbH, Buxtehude
1 General information
This chapter should provide a general overview of the advantages and
options regarding the coin validator G-13.mft with parallel interface (the
G-13.mft totalizer model is described in separate operating instructions).
The first section, however, is designed to help you navigate easily within
these operating instructions.
General information about these instructions
These operating instructions describe the design and operation of the
standard, Casino, BDTA and AMU models of the electronic coin validator
G-13.mft with parallel interface. Chapters 5 und 6 explain the necessary
stepsforstartingupandoperatingthecoinvalidator.Chapter 7explainshow
to clean the coin validator and remedy the cause of a malfunction.
Chap. 9 "Technical data" as well as the appended index and glossary
shorten the search for specific explanations.
The appended chapter "Simple Gaming Interface (SGI)" deals with the
highlightsoftheG-13.mft SGI.
Text conventions
Tomakeiteasierforyoutonavigatewithintheseinstructionsandtooperate
the device, the following markings were made in the texts:
Safety instructions, which have to be taken note of in order to
protect operators and equipment.
Special notes, which are to facilitate the use of the coin validator.
1 2 3 ... Requests to perform an action are numbered in anothertypeface.
At the beginning of a chapter you will find a short "guide", which
summarizes the content of the chapter.
Devicefunctionswhicharesetorpreparedbythemanufacturer
according to customer specifications and can be set or changed
usingtheNRIPCprogrammingstation WinEMP (see Chap. 8 "The
PC programming station WinEMP" and product accessory pages on
theinternet(www.nri24.com)).

GENERALINFORMATION G-13.mftstandard/Casino/SGI/BDTA/AMU
8National Rejectors, Inc. GmbH, Buxtehude
Additional technical documentation
Apart from these operating instructions there is the following technical
documentation for the G-13.mft with parallel interface:
• WinEMP – The configuration and diagnostics program for NRI coin
validators, operating instructions for the G-13.mft
• Tester G-19.0594/4 for G-13 EMP
• Electronic coin validator G-13.mft mounting dimensions
• Electronic coin validator G-13.mft parallel – 2-price totalizer, timer and
TVtotalizeroperation
If this documentation is not available to you, it can be downloaded
atanytimefromtheNRIhomepage(www.nri24.com)ina
compressedPDFformat.
General information about the coin validator
The electronic coin validator G-13.mft (multi-frequency technology) in
standardized 3 1/2" format is based on the tried and tested features of the
G-13.6000. Due to its modular and compact design, the G-13.mft is ideally
suited for amusement, vending and service machines.
The multi-frequency technology isnew intheG-13.mft. Itprovidesmore
flexibilityforthe measuringsensors,multiple scanningofthe coinsinserted
foroptimummaterialrecognitionandevaluationof24 measuringparameters
forreliableacceptanceofgenuinecoinsandrejectionoffalsecoins.Thanks
to the coin validator’s flash technology, software downloads to adapt the
measuring technology, coin data and control software can be executed
quickly and simply. The G-13.mft has 32 coin channels that can be data-
managed, starting from device version /4 and higher, either in a single
memory block or, when divided in 2 x 16 coin channels, in two memory
blocks with different coin configurations.
To be able to react as quickly as possible to new false coins and to enable
youtomakeyourindividualadjustments,thecoinvalidatorcanbeconnected
to a PC programming station which is made up of the configuration and
diagnostics software "WinEMP" (including card reader and licence chip
card) and an NRI tester for power supply of the G-13.mft.
Coins that have not been taken into consideration at the manufacturer’s
company can be configured in the teach mode directly at the coin validator
by inserting coins.

G-13.mftstandard/Casino/SGI/BDTA/AMU GENERALINFORMATION
9
National Rejectors, Inc. GmbH, Buxtehude
Models and operating modes
The G-13.mft models with parallel interface described in these operating
instructions mainly differ in their machine interfaces.
The G-13.mft with parallel interface is also available as totalizer
model. This model is described in separate operating instructions.
Overview
The following table lists the six G-13.mft models with their most important
options:
Model Designition Casino mode Front plates Sorting control Wake-up High-voltage Inv. Inhibit
(label) (switchable) sensor
Standard ECV 99 9 999
Casino Casino (–) 99 999
SGI SGI (–) 99 999
withG-18 BDTA 14 – 99 99–
interface
withG-40 BDTA 16 – 99 99–
interface
AMU AMU – 99 99–
Casinoapplications(Casino/SGI)
TheG-13.mftasSGIorasCasinomodelorintheCasinomodediffers from
allothermodelsinafastercoinacceptance(SGI:upto8 coins/sec.,Casino:
up to 6 coins/sec.), which is essential for the use in gaming machines.
For information on the highlights of the SGI model please refer to
theappendedChapter"SimpleGamingInterface(SGI)".

GENERALINFORMATION G-13.mftstandard/Casino/SGI/BDTA/AMU
10 National Rejectors, Inc. GmbH, Buxtehude
BDTAapplications (withG-18/G-40interface)
The Bundesverband der deutschen Tabakwaren-Großhändler und
Automatenaufsteller (BDTA = German tobacco association) determined
theDTGstandard 2fortheelectricalinterfacetothevendingmachine.This
standardincludethespecificationofthesupplyvoltage,thecoinsignallines,
inhibit functions and the return signal. In addition to further standardization
requirements for validators the measurement quality of validators is also
specified.
For applications in the tobacco sector you can not only obtain the both
NRI coinvalidatorsG-18andG-40butalsotheG-13.mftwiththeappropriate
14 or 16-pole BDTA interface. In order to adapt the G-13.mft to the
dimensions of the G-18.mft or G-40 there is an NRI adapter housing
available.
The standardized BDTA interface does not provide any inverted common
inhibitsignalline.
Applications for Spanish gaming market (AMU)
The AMU model has been designed for the Spanish gaming market. This
model mainly differs from the standard model of the G-13.mft in a specific
coin signal processing and a particular pin assignment.
The AMU coin signal processing excludes a fast coin acceptance for the
Casino mode.
Top entry and front entry applications
AllmodelsoftheG-13.mftareavailablewithtoporfrontentry.TheG-13.mft
withfrontentryusuallyhasaMIDIfrontplateoraMINIfrontplatefittedtothe
left-handsideofthedevice(seeChap. 3"Design").Thedeviceis,however,
also available as a front entry model without front plate.

G-13.mftstandard/Casino/SGI/BDTA/AMU SAFETYINSTRUCTIONS
11
National Rejectors, Inc. GmbH, Buxtehude
2 Safety instructions
Before operating the device for the first time, please read through these
instructions carefully at least once, and most importantly the safety
instructions. This is to ensure you have understood the contents of these
instructions as well as how to operate the coin validator.
Proper use
Series G-13.mft coin validators with a parallel interface described in these
instructions are intended to be used in amusement, vending and service
machines with a parallel interface and are supposed to check the coins
inserted in the machine for specific coin properties.
These coin validators have been constructed in compliance with the state
of the art and recognized safety regulations. Nevertheless this equipment
can be a source of danger. Therefore please observe the following safety
regulations.

SAFETYINSTRUCTIONS G-13.mftstandard/Casino/SGI/BDTA/AMU
12 National Rejectors, Inc. GmbH, Buxtehude
Protecting yourself and equipment
The coin validator may only be connected by a qualified
electrician.
Only use the coin validator according to proper use. Under no
circumstances can the manufacturer be held liable for any
damage or loss resulting from improper use of the device.
The coin validator pcb is fitted with components which may
be damaged beyond repair by electrostatic discharge. Please
observe the handling instructions for components exposed to
the risk of electrostatic discharge.
Pull out the machine’s mains plug before you install, clean or
remove the coin validator.
Select the correct voltage for the coin validator (see label).
Ensure the correct potential equalization in the machine.
Never pull the connecting cable of the coin validator from the
machine when a voltage is applied.
Contact NRI if you wish to alter the construction of the device
to a greater extent than that described in these instructions.
Keep water and other liquids away from the coin validator.
If the device is no longer required, please dispose of it
correctly.
We reserve the right to make technical modifications to the
device which are not covered by these instructions!

G-13.mftstandard/Casino/SGI/BDTA/AMU DESIGN
13
National Rejectors, Inc. GmbH, Buxtehude
3 Design
This chapter describes
• the main parts the G-13.mft consists of
• the coin route from insert funnel to cash-box/sorting chute or return
area
• all parts which you need to operate the coin validator
2
1
3
4
5
3
3
2
1
7
98
3
3
36
7Interface – machine/tester (10-pole)
(for G-18 BDTA model 14-pole,
for G-40 BDTA model 16-pole)
8Interface – external sorting (3-pole)
9Interface – PC programming station (WinEMP)

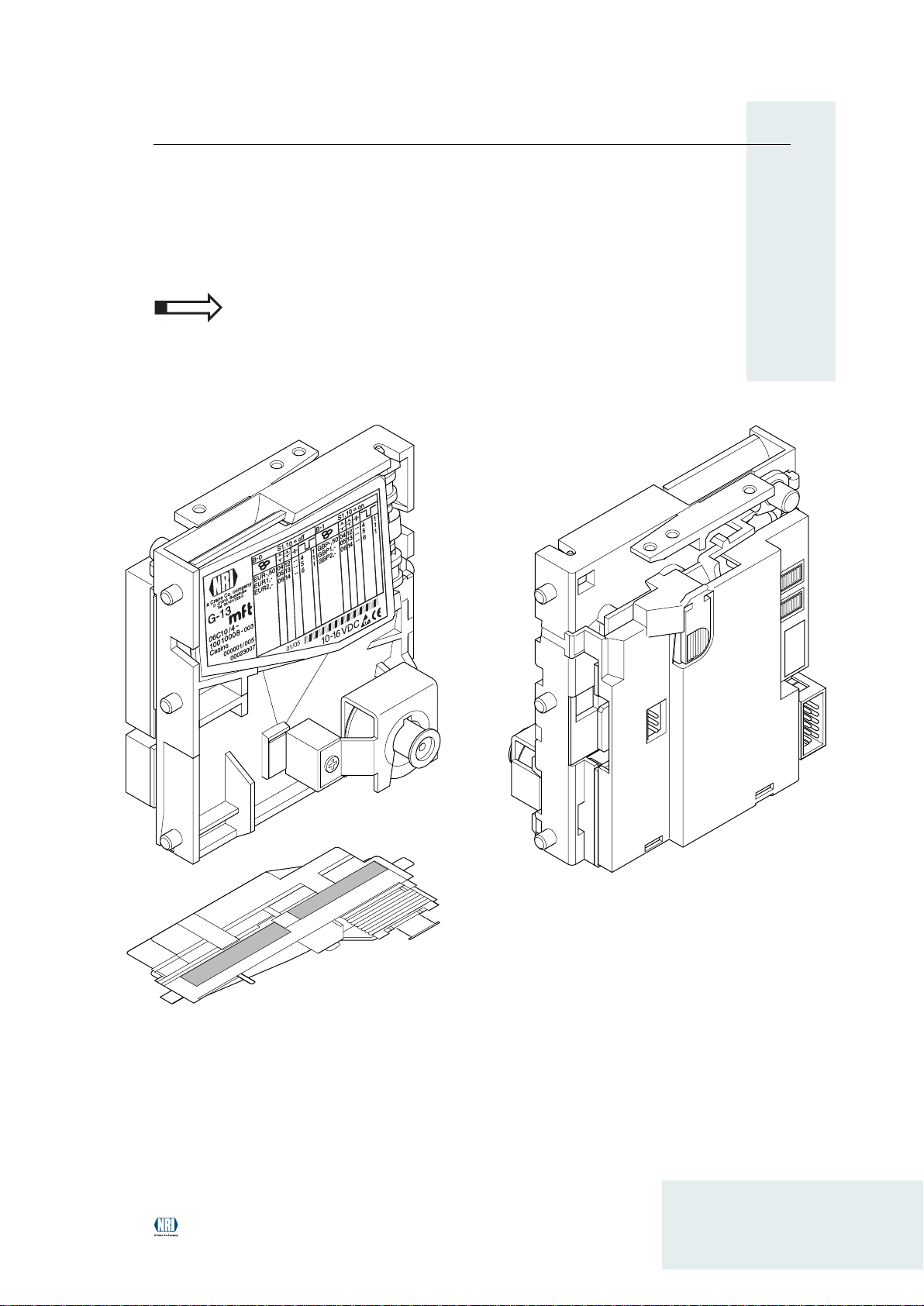

Fig. 1a: Design – G-13.mft, top entry model
1Retun lever
2Coin insert funnel
3Mounting studs
4Coin outlet – return area
5Coin outlet – cash-box
6Switching blocks

DESIGN G-13.mftstandard/Casino/SGI/BDTA/AMU
14 National Rejectors, Inc. GmbH, Buxtehude
3
2
5
5
5
1
1
4
MIDI
MINI
Fig. 1b: Design – G-13.mft, front entry model with front plate
7Interface – machine/tester (10-pole)
(for G-18 BDTA model 14-pole,
for G-40 BDTA model 16-pole)
8Interface – external sorting (3-pole)
9Interface – PC programming station (WinEMP)
7
98
3
3
3
6
1Return lever
2Coin insert funnel
3Mounting studs
4Coin outlet – cash-box
5Coin outlet – return area
6Switching blocks

G-13.mftstandard/Casino/SGI/BDTA/AMU DESIGN
15
National Rejectors, Inc. GmbH, Buxtehude
The coin route from insert funnel to cash-box/sorting chute
or return area
cash-box/
sortingdevice
return area
Fig. 2: Coin acceptance and rejection path

DESIGN G-13.mftstandard/Casino/SGI/BDTA/AMU
16 National Rejectors, Inc. GmbH, Buxtehude
S1
S2
Switching blocks
On the rear, the coin validator is equipped with
two switching blocks (6, Fig. 1) with 10 DIL
switches S1.1–10 and S2.1–10 each.
TheDILswitches have different functions,e.g.inhibit coin channels, select
memory block. For details on how to use the switching blocks to set the
individual functions, see Chap. 6 "Operation".
On the rear of the device you will find a brief description of the
individualswitchfunctions.
Return lever and return button
The return lever (1, Fig. 1a) on the top of the device is operated using the
returnbuttononthemachine,ifthecoinsthathavealreadybeeninsertedare
to be returned, or if a jam caused by, e.g., coins that have become stuck
must be removed. Operating the return lever opens the measurement and
validationareaofthecoinvalidatorsothatallobjectsinthecoinvalidatorare
transported into the return area.
Deviceswithfrontentrythroughafrontplatedonothaveareturnlever.Here
the measurement and validation area is opened by pressing the return
button (1, Fig. 1b) on the front plate.

G-13.mftstandard/Casino/SGI/BDTA/AMU DESIGN
17
National Rejectors, Inc. GmbH, Buxtehude

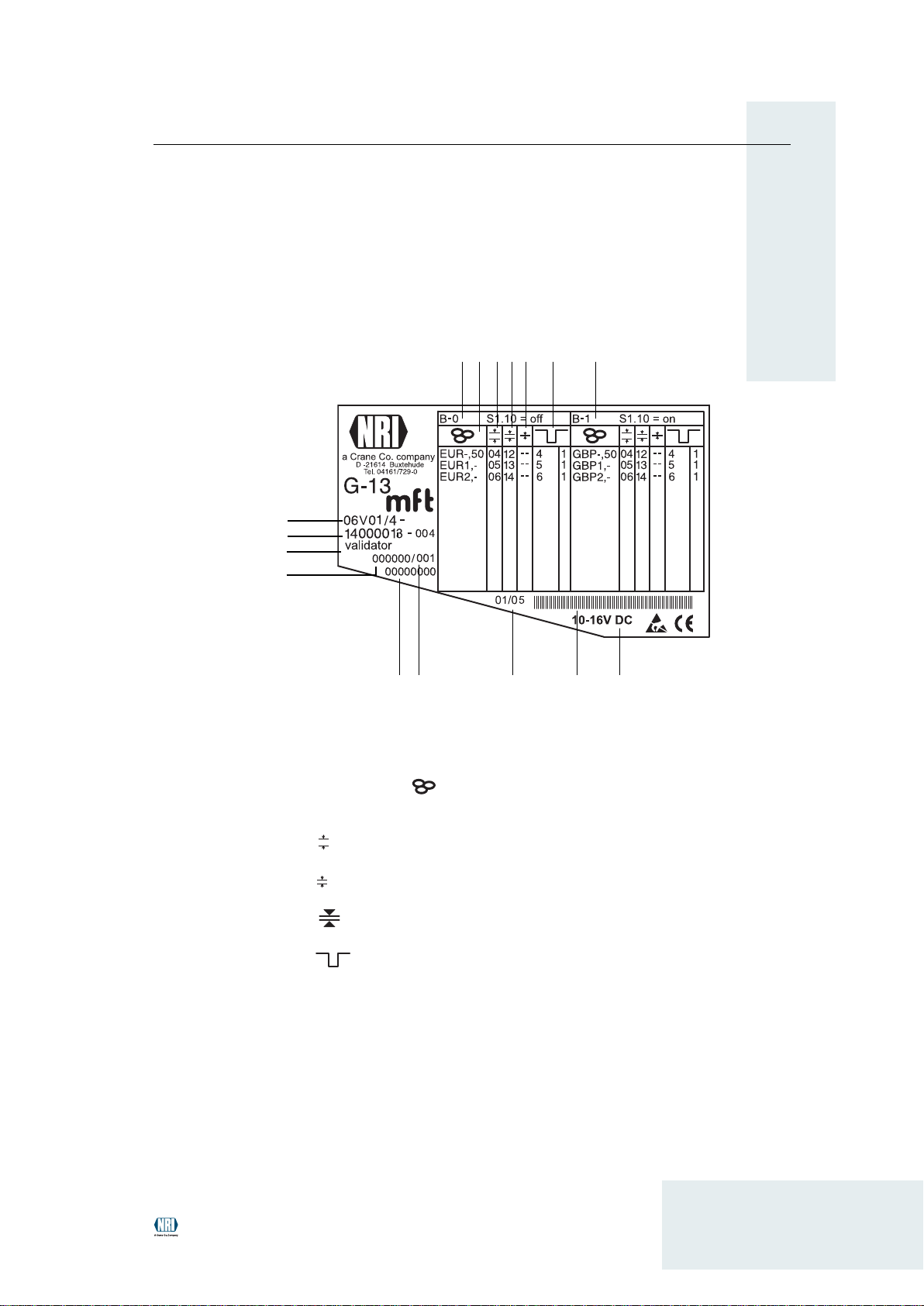

Fig.3: Label
1 2 3 4
91012
13
14
16
811
5 6 7
15
Label
Thelabel of thecoin validator containsall the datadefining thedevicesuch
as device series, device type and device operation as well as customer-
specific default values such as coin type or coin signal line:
9Barcode
10 Date of manufacture
11 Consecutive device number per order
number
12 Ordering code
13 Order number
14 Device model and mode
Validator = standard model
Casino = Casino model
AMU-Validator=AMUmodel
BDTA 14 = with G-18 BDTA interface
BDTA 16 = with G-40 BDTA interface
15 Data block number and revision
number
16 Device type
1Coin information – memory block 0
(if DIL switch S1.10 to OFF)
2Currency and coin type – memory
block 0
3Channel number, normal coin
channel – memory block 0
4Channel number, narrow coin
channel – memory block 0
5Channel number, very narrow coin
channel – memory block 0
6Coin signal line and impulse
number – memory block 0
7Coin information – memory block 1
(if DIL switch S1.10 to ON)
8Nominal voltage (option: up to
42 V DC)

FUNCTION G-13.mftstandard/Casino/SGI/BDTA/AMU
18 National Rejectors, Inc. GmbH, Buxtehude
4 Function
This chapter describes how the coin validator works:
• Coin acceptance and coin channels
• Single or double block data-management
• Accepted coin sensors
• Coin impulses and coin signal lines
• Control for external sorting device
• Coininhibition
• Teach mode
• Battery/low-power applications (optional)
• High-voltageupto42 V(optional)
• Inverted common inhibit signal line (optional)
Coin acceptance and coin channels
Thecoin validator has32 "memoryslots"for coinacceptancewhich canbe
assigned up to 32 different coin types or tokens. These "memory slots" are
termed coin channels. The acceptance band of a coin type/token is
allocated to a coin channel and the coin type/token is accepted in that
channel.
Inordertorejectfalsemoneyreliably,frequentlyforonecointype,inaddition
to the normal coin channel, channels with a narrow or even very narrow
acceptance band are set up (see section "Label" in Chap. 3 "Design"). The
limitvaluesofthesecoinchannelsareclosertooneanothersothatfalsecoins
with similar measured values are rejected, if the normal coin channel is
inhibited (see section "Inhibiting coins/activating narrow coin channel" in
Chap. 6"Operation").Narrowandverynarrowcoinchannels,however,also
possess a lower acceptance rate.
Inaddition,itispossibletoallocatecoinswithdifferentmeasuredvaluesbut
identicalcoinvaluestodifferentcoinchannels.Thisishowthecoinvalidator
can, for example, accept old and new coins of the same type.
However,acoinchannelisnotonlyassignedtheacceptancebandofacoin
type but also other coin information which defines further processing of the
coin after its acceptance: e.g. coin signal line and coin impulse number,
inhibit information, sort information for an external sorting device.

G-13.mftstandard/Casino/SGI/BDTA/AMU FUNCTION
19
National Rejectors, Inc. GmbH, Buxtehude
Since in most cases the manufacturer’s customer-specific programming
does not take up all the coin channels, channels which are still vacant can
beassignedcointypesandfurtherinformationdesiredatanytimeusingthe
configuration software. Existing configurations can be changed.
The last eight coin channels 25 to 32 (or 9 to 16 with double block data-
management,seesection"Singleordoubleblockdata-management"inthis
chapter)areintendedtobeusedfortheteachmode.Inthesecoinchannels
newcointypescanalsobetaughtwithoutconfigurationsoftware,directlyvia
the switching blocks on the coin validator; i.e. a coin channel is assigned a
coin type or also a token (see section "Teach mode" in this chapter).
Single or double block data-management
Atthemanufacturer’scompany,acustomer-specificsettingisprogrammed
to determine whether the 32 coin channels are to be data-managed in one
memory block or, when divided into 16 channels each, in two memory
blocks (double block data-management).
Ifthedoubleblockdata-managementhasbeenconfigured,theG-13.mftcan
data-manage two separately programmed (memory) blocks 0 and 1 (see
label). The 16 coin channels can be assigned to each block with different
coin types (also currencies), sorting information, etc. However, only one
blockcan beactiveat atimeand beusedfor thecoin measurementandfor
furthercoinprocessing.Youcanusetheupperswitchingblockonthedevice
toselectthedesiredblock(seesection"Selectingmemoryblock"inChap. 6
"Operation").

FUNCTION G-13.mftstandard/Casino/SGI/BDTA/AMU
20 National Rejectors, Inc. GmbH, Buxtehude
Accepted coin sensors
To ensure that accepted coins actually arrive in the cash-box or in an
external sorting device and that coin acceptance has not been tampered
with, accepted coin sensors, positioned in front of the cash-box coin outlet
checkwhether the insertedcoindrops unhinderedintothe cash-boxchute.
Acoinsignalisnottransmittedtothemachineuntilthecoinhaspassedthis
checking function.
If the accepted coin sensors are continuously covered, e.g. by a coin pile-
up, coin acceptance is inhibited.
Exception: Casino model/mode
DuetofastcoinacceptancetheCasinomodeloftheG-13.mftcannotutilize
the accepted coin sensors.
The accepted coin sensors are located in front of the cash-box coin outlet
andcheckwhetheracoinisdirectedintothecash-box.Usually,acoinsignal
is only sent to the machine when the accepted coin sensors notice that a
coinisbeingacceptedanddirectedintothecash-box(seeabove).Tospeed
upcoinacceptanceontheCasinomodel/intheCasinomode,thecoinsignal
is sent before the coin passes the accepted coin sensors. Consequently,
the acceptance gate of the coin validator is easier to tamper with, e.g. with
an inserted coin attached to a string.
For a balanced protection against manipulation, an accepted coin signal
independent of the coin signal can be transmitted via the return signal line
to the machine.
