INSTALLATION and OPERATION MANUAL
Submersible Sewage Ejector
Form No. 084829-Rev. D
IMPORTANT: Read all instructions in this manual before operating pump.
As a result of Crane Pumps & Systems, Inc., constant product improvement program, product
changes may occur. As such Crane Pumps & Systems, Inc., reserves the right to change product
without prior written notification.
SERIES: 4SE
0.9, 1.4 and 1.9 HP
1750 RPM
BARNES®
420 Third Street/P.O. Box 603 83 West Drive, Brampton
Piqua, Ohio 45356-0603 Ontario, Canada L6T 2J6
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
www.cranepumps.com
PUMPS & SYSTEMS
A Crane Co. Company
Manual Index
SUPERSEDED
Some parts may NOT
be available

TABLE OF CONTENTS
WARNINGS AND SAFETY PRECAUTIONS........................................................................ 3
A. PUMP SPECIFICATIONS..................................................................................................... 4
B. GENERAL INFORMATION................................................................................................... 5
C. INSTALLATION .................................................................................................................... 5 - 6
ELECTRICAL DATA ............................................................................................................. 7
D. START- UP OPERATION ...................................................................................................... 7
E. PREVENTATIVE MAINTENANCE........................................................................................ 8
F. SERVICE and REPAIR ......................................................................................................... 8 - 12
TROUBLE SHOOTING ......................................................................................................... 13
G. REPLACEMENT PARTS ...................................................................................................... 14

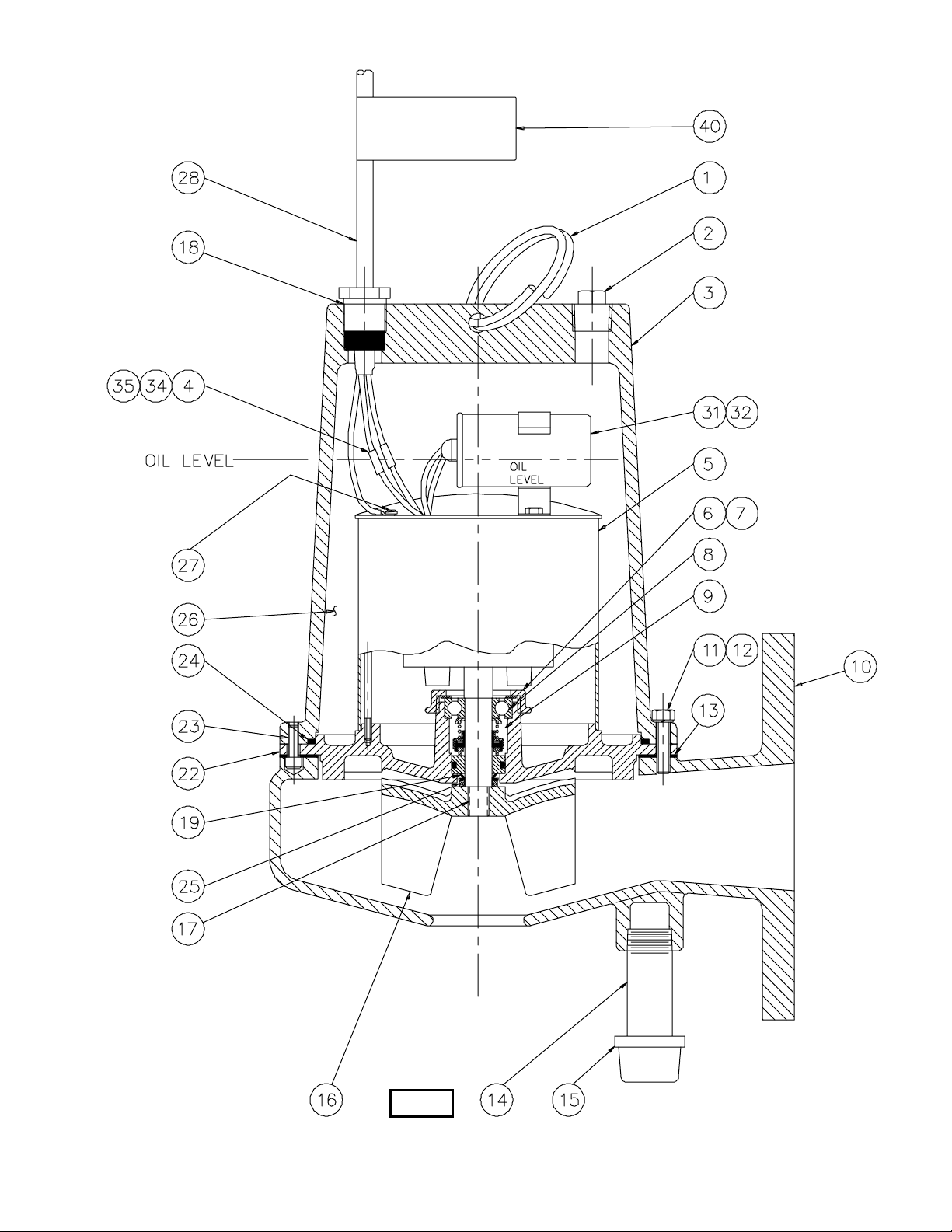

CROSS-SECTION (Fig. 8)................................................................................................... 15
EXPLODED VIEW (Fig. 9) ................................................................................................... 16
PARTS LIST ........................................................................................................................17 - 18
WARRANTY INFORMATION ............................................................................................... 19
WARRANTY
START-UP REPORT
WARRANTY REGISTRATION
SPECIAL TOOLS AND EQUIPMENT
INSULATION TESTER (MEGGER)
DIELECTRIC TESTER
SEAL TOOL KIT ( see parts list)
PRESSURE GAUGE KIT (see parts list)
Other brand and product names are trademarks or registered trademarks of their respective holders.
® Barnes is a registered trademark of Barnes Pumps, Inc.
© Barnes Pumps, Inc. 1994, 1997, 1998, 2002 Alteration Rights Reserved. Printed in U.S.A.
2
Manual Index

SAFETY FIRST!
PLEASE READ THIS BEFORE INSTALLING
OR OPERATING PUMP.
GENERAL
1. Most accidents can be avoided by using COMMON SENSE.
2. Read the operation and maintenance instruction manual supplied with the pump.
3. Do not wear loose clothing that may become entangled in the impeller or other moving parts.
4. Always wear appropriate safety gear, such as safety glasses, when working on the pump or piping.
5. Bronze/brass and bronze/brass fitted pumps may contain lead levels higher than considered safe for potable water
systems. Various government agencies have determined that leaded copper alloys should not be used in potable water
applications. For non-leaded copper alloy materials of construction, please contact factory.
PUMPS
6. Pumps build up heat and pressure during operation-allow time for pumps to cool before handling or servicing.
7. Only qualified personnel should install, operate and repair pump.
8. Keep clear of suction and discharge openings. DO NOT insert fingers in pump with power connected.
9. Do not pump hazardous materials (flammable, caustic, etc.) unless the pump is specifically designed and designated to
handle them.
10. Do not block or restrict discharge hose, as discharge hose may whip under pressure.
11. Make sure lifting handles are securely fastened each time before lifting.
12. Do not lift pump by the power cord (if applicable).
13. Do not exceed manufacturers recommendation for maximum performance, as this could cause the motor to overheat.
14. Secure the pump in its operating position so it can not tip over, fall or slide.
15. Keep hands and feet away from impeller when power is connected.
16. Submersible Pumps are not approved for use in swimming pools, recreational water installations, decorative fountains or
any installation where human contact with the pumped fluid is common.
17. Do not operate pump without guards and safety devices in place.
18. When towing pump behind a vehicle; make sure hitch is properly attached, always attach safety chains.
19. Always replace safety devices that have been removed during service or repair.
20. Operation against a closed discharge valve will cause premature bearing and seal failure on any pump, and on end suction
and self priming pump the heat build may cause the generation of steam with resulting dangerous pressures. It is
recommended that a high case temperature switch or pressure relief valve be installed on the pump body.
ELECTRICAL
21. To reduce risk of electrical shock, pump must be properly grounded in accordance with the National Electric Code (NEC),
or Canadian Electrical Code (CEC) and all applicable state, province and local codes and ordinances.
22. To reduce risk of electrical shock, always disconnect the pump from the power source before handling or servicing.
23. Any wiring of pumps should be performed by a qualified electrician.
24. Never operate a pump with a power cord that has frayed or brittle insulation.
25. Cable should be protected at all times to avoid punctures, cut, bruises and abrasions - inspect frequently.
26. Never handle connected power cords with wet hands.
27. Never operate a pump with a plug-in type power cord without a ground fault circuit interrupter.
28. Do not remove cord and strain relief. Do not connect conduit to pump.
29. To reduce risk of electrical shock, all wiring and junction connections should be made per the NEC or CEC and applicable
state or province and local codes. Requirements may vary depending on usage and location. See wiring diagrams in manual.
GAS/DIESEL ENGINE POWER PUMPS & DRIVES ONLY
30. Never operate in an enclosed building or area where exhaust gases can accumulate.
31. Do not breath exhaust fumes when working in the area of the engine. (Exhaust gases are odorless and deadly poison.)
32. Never operate near a building where exhaust gases can seep inside.
33. Never operate in a pit or sump without making provisions for adequate ventilation.
34. Allow exhaust system to cool before touching.
35. Never add fuel to the tank while the engine is running. Stop engine and allow to cool.
36. Do not smoke while refueling the engine.
37. Do not refuel near open flame.
38. Carefully read instruction manuals supplied by engine manufacturer before attempting to assemble, operate or service
the engine or any part. The "WARNING" statements indicate potentially hazardous conditions for operator or equipment.
IMPORTANT! Barnes® Pumps, Inc. is not responsible for losses, injury, or death resulting from a failure to observe these
safety precautions, misuse or abuse of pumps or equipment.
3
Manual Index

SECTION: A- PUMP SPECIFICATIONS
DISCHARGE: 3 (76) & 4" (102) 125 lb, Horizontal
LIQUID TEMPERATURE: 104°F (40°C) Continuous.
VOLUTE: Cast Iron ASTM A-48, Class 30.
MOTOR HOUSING: Cast Iron ASTM A-48, Class 30.
SEAL PLATE: Cast Iron ASTM A-48, Class 30.
IMPELLER:
Design: 2 Vane, Open, With Pump Out
Vanes On Back Side. Dynamically
Balanced. ISO G6.3.
Material: Cast Iron ASTM A-48 Class 30.
SHAFT: 416 Stainless Steel
SQUARE RINGS: Buna-N
HARDWARE: 300 Series Stainless Steel
PAINT: Air Dry Enamel.
SEAL:
Design: Single Mechanical, Oil-Filled Reservoir,
Secondary Exclusion Seal.
Material: Rotating Face - Carbon
Stationary Face - Ceramic
Elastomer - Buna-N
Hardware - 300 Series Stainless
CABLE ENTRY: 15ft. (4.5M) Cord (Plug On 115 Volt),
Pressure Grommet For Sealing And
Strain Relief.
SPEED: 1750 RPM (Nominal)
UPPER BEARING:
Design: Sleeve
Lubrication: Oil
Load: Radial
LOWER BEARING:
Design: Single Row, Ball
Lubrication: Oil
Load: Radial & Thrust
MOTOR:
Design: NEMA L-Single Phase, NEMA B-Three
Phase Torque Curve. Completely
Oil-Filled, Squirrel Cage Induction.
Insulation: Class A.
SINGLE PHASE: Permanent Split Capacitor (PSC).
Includes Overload Protection In Motor.
THREE PHASE: Tri Voltage 200-230/460;
Requires Overload Protection to be
Included in Control Panel.
OPTIONAL EQUIPMENT: Seal Material, Impeller Trims, N/C
Temperature Sensor with cable for
3 phase pumps, Additional Cable
CSA Listed on 3 phase pumps.
18.31
(465)
6.06
(154)
12.24
(311)
7.37
(187)
4.87
(124)
9.74
(247)
inches
(mm)
4
Manual Index

SECTION B: GENERAL INFORMATION
B-1) To the Purchaser:
Congratulations! You are the owner of one of the finest pumps
on the market today. Barnes®Pumps are products engineered
and manufactured of high quality components. Over one
hundred years of pump building experience along with a
continuing quality assurance program combine to produce a
pump which will stand up to the toughest applications.
This Barnes Pumps, Inc. manual will provide helpful
information concerning installation, maintenance, and proper
service guidelines.
B-2) Receiving:
Upon receiving the pump, it should be inspected for damage
or shortages. If damage has occurred, file a claim immediately
with the company that delivered the pump. If the manual is
removed from the packaging, do not lose or misplace.
B-3) Storage:
Short Term- Barnes Pumps are manufactured for efficient
performance following short inoperative periods in storage. For
best results, pumps can be retained in storage, as factory
assembled, in a dry atmosphere with constant temperatures
for up to six (6) months.
Long Term- Any length of time exceeding six (6) months, but
not more than twenty-four (24) months. The units should be
stored in a temperature controlled area, a roofed over walled
enclosure that provides protection from the elements (rain,
snow, wind-blown dust, etc.), and whose temperature can be
maintained between +40 deg. F and +120 deg. F. (4.4 - 49°C)
If extended high humidity is expected to be a problem, all
exposed parts should be inspected before storage and all
surfaces that have the paint scratched, damaged, or worn
should be recoated with a water base, air dry enamel paint. All
surfaces should then be sprayed with a rust-inhibiting oil.
Pump should be stored in its original shipping container. On
initial start up, rotate impeller by hand to assure seal and
impeller rotate freely. If it is required that the pump be installed
and tested before the long term storage begins, such
installation will be allowed provided:
1.) The pump is not installed under water for more than
one (1) month.
2.) Immediately upon satisfactory completion of the test,
the pump is removed, thoroughly dried, repacked in the
original shipping container, and placed in a temperature
controlled storage area.
B-4) Service Centers:
For the location of the nearest Barnes Pumps Service Center,
check your Barnes Engineered catalog, your Barnes Pumps,
Inc. representative or Barnes Pumps, Inc. Service Department
in Piqua, Ohio, telephone [phone] or Crane Pumps &
Systems Canada, in Brampton, Ontario,
[phone].
SECTION C: INSTALLATION
C-1) Location:
These pumping units are self-contained and are recommended
for use in a sump, lift station or basin. The sump, lift station or
basin shall be vented in accordance with local plumbing codes.
This pump is designed to pump sewage, effluent, or other
nonexplosive or noncorrosive wastewater. and shall NOT be
installed in locations classified as hazardous in accordance with
the National Electrical Code (NEC), ANSI/NFPA 70 or The
Canadian Electrical Code. Never install the pump in a trench,
ditch or hole with a dirt bottom; the legs will sink into the dirt and
the suction will become plugged.
C-1.1) Submergence:
It is recommended that the pump be operated in the submerged
condition and the sump liquid level should never be less than
dimension "A" in Fig. 1.
C-2) Discharge:
Discharge piping should be as short as possible. Both a check
valve and a shut-off valve are recommended for each pump
being used. The check valve is used to prevent backflow into
the sump. Excessive backflow can cause flooding and/or
damage to the pump. The shut-off valve is used to stop system
flow during pump or check valve servicing.
Barnes Pumps supplies a breakaway fitting discharge system
designed to allow the submersible wastewater pump to be
installed or removed without requiring personnel to enter the
wet well.

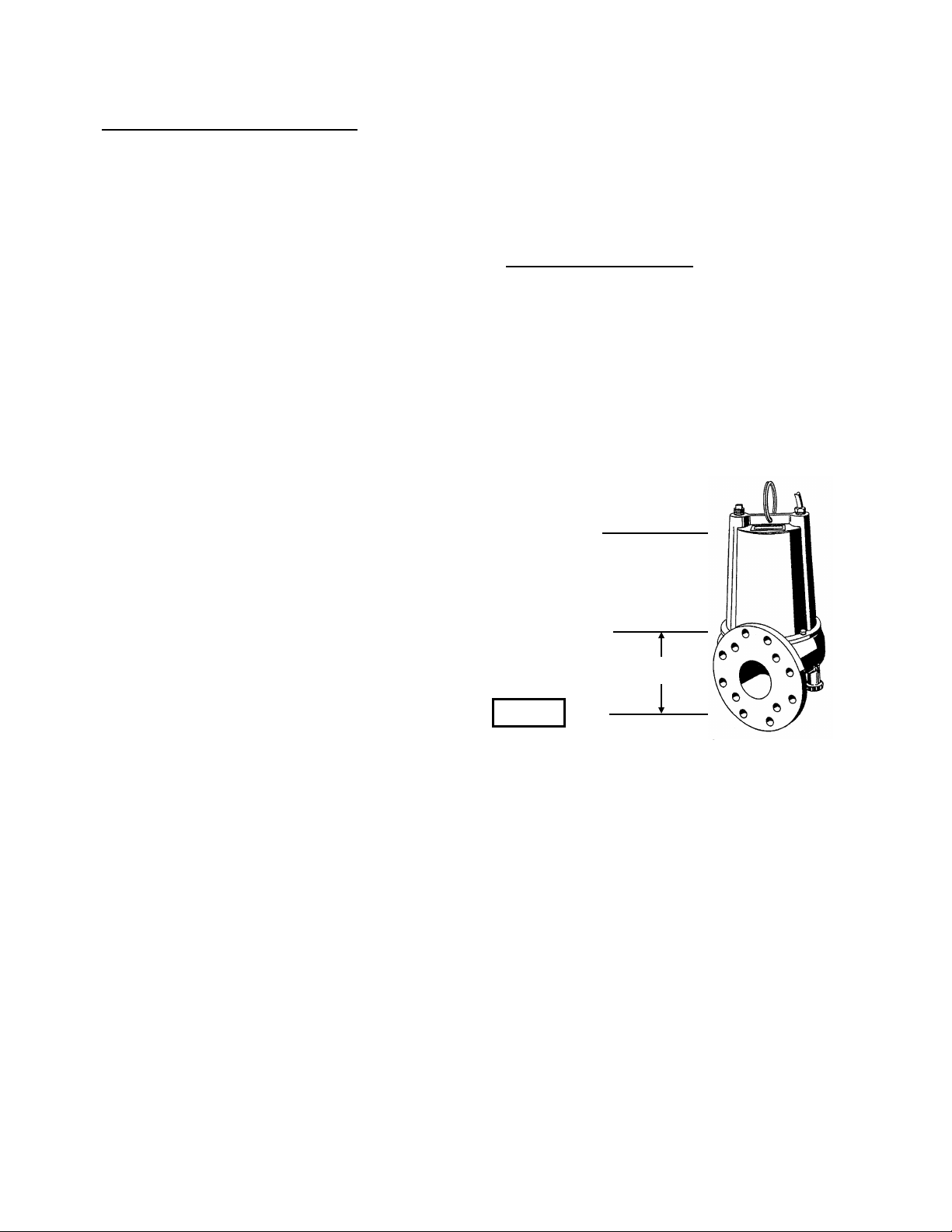

Recommended
Submergence
Level
Fig. 1
A= 8"
Minimum
Submergence
Level
Bottom of Feet
5
Manual Index

Place the Break Away Fitting (BAF) in position. Temporarily
secure the guide rails in the upper mounting brackets and
locate the base on the bottom of the wet well. Level the base
with grout and/or shims. Install the intermediate support
brackets, if required. Make sure the rails are in a true vertical
position so the pump will clear the access opening and will slide
freely down the rails into place on the discharge stationary
fitting. Once the rails are in proper alignment, bolt the base into
the floor of the station and connect the discharge pipe to the
elbow.
Connect the movable portion and other supplied fittings of the
BAF onto the pump and lower into wet well. See the Break
Away Fitting manual for more information.
C-3) Liquid Level Controls:
The level controls are to be supported by a mounting bracket
that is attached to the sump wall, cover or junction box. Cord
grips are used to hold the cords in place on the mounting
bracket. The control level can be changed by loosening the grip
and adjusting the cord length as per the plans and
specifications. Be certain that the level controls cannot hang
up or foul in it’s swing and that the pump is completely
submerged when the level control is in the "Off" mode.

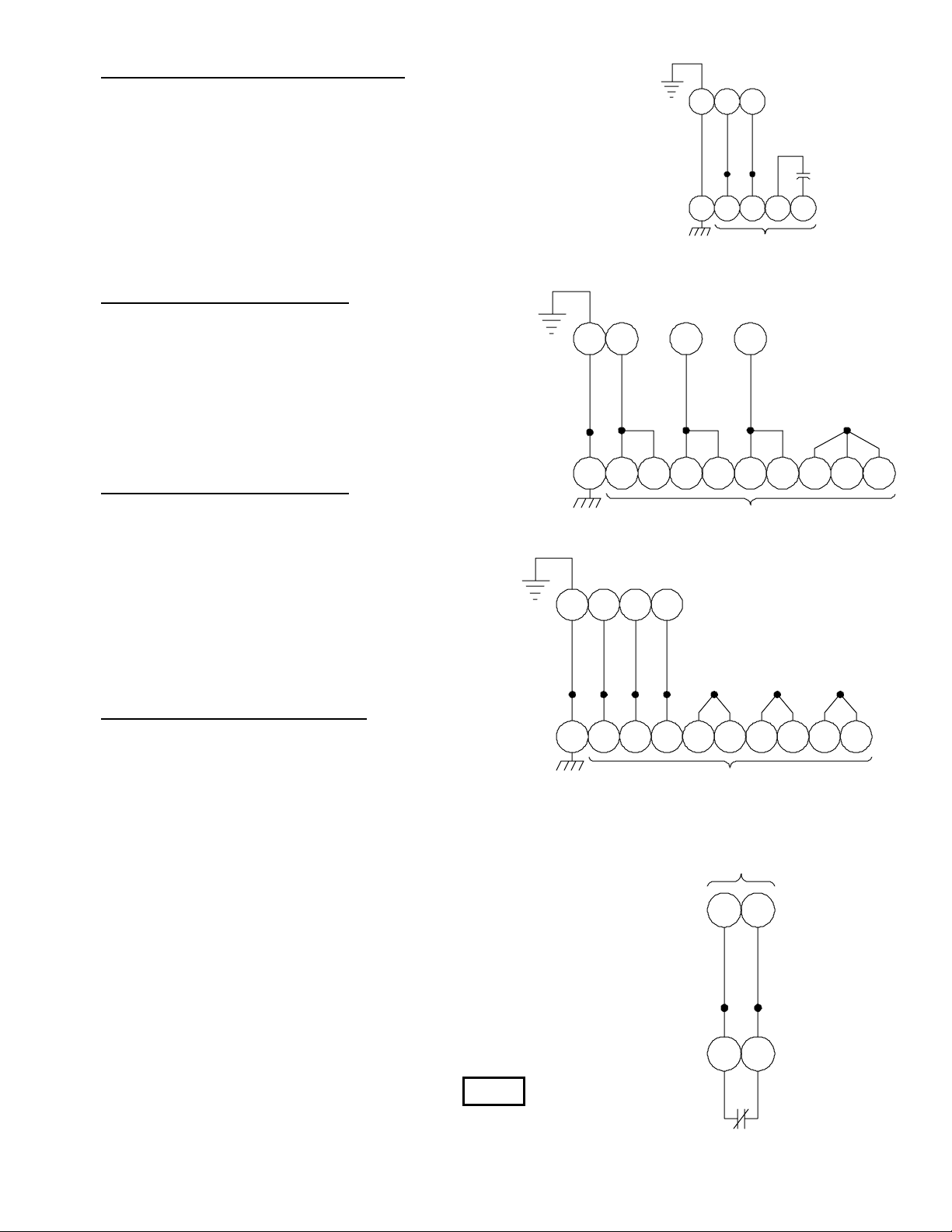

C-4) Electrical Connections:
C-4.1) Power Cable:
The cord assembly mounted to the pump must not be modified
in any way except for shortening to a specific application. Any
splice between the pump and the control panel must be made
in accordance with all applicable electric codes. It is
recommended that a junction box, if used, be mounted outside
the sump or be of at least Nema 4 (EEMAC-4) construction if
located within the wet well. Do not use the power cable to lift
pump. NOTE: THE WHITE WIRE IS NOT A NEUTRAL OR
GROUND LEAD, BUT A POWER CARRYING CONDUCTOR.
C-4.2) Control Cable:
The cord assembly mounted to the pump must not be modified
in any way except for shortening to a specific application. Any
splice between the pump and the control panel must be made
in accordance with all applicable electric codes. It is
recommended that a junction box, if used, be mounted outside
the sump or be of at least Nema 4 (EEMAC-4) construction if
located within the wet well. Do not use the control cable to
lift pump. NOTE: THE WHITE WIRE IS NOT A NEUTRAL OR
GROUND LEAD, BUT A POWER CARRYING CONDUCTOR.
C-4.3) Overload Protection :
C-4.3-1) Three Phase (Optional)- The normally closed (N/C)
thermal sensor is embedded in the motor windings and will
detect excessive heat in the event an overload condition
occurs. The thermal sensor will trip when the windings become
too hot and will automatically reset itself when the pump motor
cools to a safe temperature. It is recommended that the thermal
sensor be connected in series to an alarm device to alert the
operator of an overload condition, and/or the motor starter coil
to stop the pump. In the event of an overload, the source of this
condition should be determined and rectified immediately.
DO NOT LET THE PUMP CYCLE OR RUN IF AN OVERLOAD
CONDITION OCCURS !
C-4.3-2) Single Phase - The type of in-winding overload
protector used is referred to as an inherent overheating
protector and operates on the combined effect of temperature
and current. This means that the overload protector will trip out
and shut the pump off if the windings become too hot, or the
load current passing through them becomes too high. It will
then automatically reset and start the pump up after the motor
cools to a safe temperature. In the event of an overload, the
source of this condition should be determined and rectified
immediately.
DO NOT LET THE PUMP CYCLE OR RUN IF AN OVERLOAD
CONDITION OCCURS !
If current through the temperature sensor exceeds the values
listed, an intermediate control circuit relay must be used to
reduce the current or the sensor will not work properly.
TEMPERATURE SENSOR ELECTRICAL RATINGS
VOLTS CONTINUOUS
AMPERES
INRUSH
AMPERES
110-120 3.00 30.0
220-240 1.50 15.0
440-480 0.75 7.5
C-4.4) Wire Size:
Consult a qualified electrician for proper wire size if additional
power cable length is required. See table for electrical
information.
6
Manual Index

SECTION: D START-UP OPERATION
D-1) Check Voltage and Phase:
Before operating pump, compare the voltage and phase information
stamped on the pump identification plate to the available power.
D-2) Check Pump Rotation:
Before putting pump into service for the first time, the motor rotation
must be checked. Improper motor rotation can result in poor pump
performance and can damage the motor and/or pump. To check the
rotation, suspend the pump freely, momentarily apply power and
observe the "kickback". "Kickback" should always be in a
counter-clockwise direction as viewed from the top of the pump motor
housing.
D-2.1) Incorrect Rotation for Three-Phase Pumps:
In the event that the rotation is incorrect for a three-phase installation,
interchange any two power cable leads at the control box. DO NOT
change leads in the cable housing in the motor. Recheck the
"kickback" rotation again by momentarily applying power.
D-2.2) Incorrect Rotation for Single-Phase Pumps:
In the unlikely event that the rotation is incorrect for a single phase
pump, contact a Barnes Pumps Service Center.
D-3) Start-Up Report:
Included at the end of this manual are two start-up report sheets, these
sheets are to be completed as applicable. Return one copy to Barnes
Pumps, Inc. and store the second in the control panel or with the pump
manual if no control panel is used. It is important to record this data
at initial start-up since it will be useful to refer to should servicing the
pump be required in the future.
D-3.1) Identification Plate:
Record the numbers from the pump identification plate on both
START-UP REPORTS provided at the end of the manual for future
reference.
D-3.2) Insulation Test:
Before the pump is put into service, an insulation (megger) test should
be performed on the motor. The resistance values (ohms) as well as
the voltage (volts) and current (amps) should be recorded on the
start-up report.
D-3.3) Pump-Down Test:
After the pump has been properly wired and lowered into the basin,
sump or lift station, it is advisable to check the system by filling with
liquid and allowing the pump to operate through its pumping cycle.
The time needed to empty the system, or pump-down time along with
the volume of water, should be recorded on the start-up report.
Winding Resistance ±5%
Standard Units:
Optional - Temperature sensor cable for 3 phase models is 14/2 SOW-A, 0.530 O.D., CSA Listed
CSA Listed Units:
Optional - CSA Listed Power Cable for 3 Phase Models is 14/4 SOW-A, 0.600 O.D.
MODEL
NO.
HP VOLT PH RPM
(NOM)
NEMA
START
CODE
FULL
LOAD
AMPS
LOCKED
ROTOR
AMPS
CORD
SIZE
CORD
TYPE
CORD
O.D.
EMERSON
WINDING
RESISTANCE
MAIN--START
G.E.
WINDING
RESISTANCE
MAIN--START
4SE914L 0.9 115 1 1750 A 11.6 18.4 14/3 SJTOW-A 0.390 1.18 --14.25 1.34 -- 16.88
4SE924L 0.9 230 1 1750 A 5.8 10.5 14/3 SJTOW-A 0.390 4.67 -- 10.72 4.15 -- 11.84
4SE994L 0.9 200-230 3 1750 A/B 3.9/3.4 6.8/7.8 14/4 SO 0.600 13.87 -- 14.06 --
4SE944L 0.9 460 3 1750 B 1.7 3.9 14/4 SO 0.600 55.48 -- 56.24 --
4SE954L 0.9 575 3 1750 B 1.3 3.1 14/4 SO 0.600 86.68 -- 89.51 --
4SE1424L 1.4 230 1 1750 A 7.0 13.3 14/3 SJTOW-A 0.390 4.04 -- 6.49
4SE1494L 1.4 200-230 3 1750 A/B 5.2/4.5 10.4/12.0 14/4 SO 0.600 8.18 -- 8.43 --
4SE1444L 1.4 460 3 1750 B 2.3 6.0 14/4 SO 0.600 32.72 -- 33.72 --
4SE1454L 1.4 575 3 1750 B 1.8 4.8 14/4 SO 0.600 51.12 -- 52.95 --
4SE1924L 1.9 230 1 1750 A 11.0 17.5 14/3 SJTOW-A 0.390 2.24 -- 9.24 2.32 -- 9.22
4SE1994L 1.9 200-230 3 1750 A/B 6.9/6.0 13.9/16.0 14/4 SO 0.600 6.00 -- 6.10 --
4SE1944L 1.9 460 3 1750 B 3.0 8.0 14/4 SO 0.600 24.00 -- 24.40 --
4SE1954L 1.9 575 3 1750 B 2.4 6.4 14/4 SO 0.600 37.56 -- 38.57 --
7
Manual Index

SECTION E: PREVENTATIVE MAINTENANCE
As the motor is oil filled, no lubrication or other maintenance is
required, and generally Barnes Pumps will give very reliable
service and can be expected to operate for years on normal
sewage pumping without failing. However as with any
mechanical piece of equipment a preventive maintenance
program is recommended and suggested to include the
following checks:
1) Inspect motor chamber for oil level and contamination
and repair as required per section F-1.
2) Inspect impeller and body for excessive build-up or
clogging and repair as required per section F-2.
3) Inspect motor, bearings and shaft seal for wear or
leakage, replace as required per section F-3.
SECTION F: SERVICE AND REPAIR
NOTE: All item numbers in ( ) refer to Figures 8 & 9.
WARNING !
ELECTRICAL POWER TO THE PUMP MOTORS MUST
BE DISCONNECTED AND LOCKED OUT TO PREVENT
ANY DANGEROUS ELECTRICAL HAZARDS OR
PERSONNEL DANGER BEFORE ANY SERVICE WORK
IS DONE TO THE PUMP.
CAUTION !
OPERATING PUMP BUILDS UP HEAT AND
PRESSURE; ALLOW TIME FOR PUMP TO COOL TO
ROOM TEMPERATURE BEFORE HANDLING OR
SERVICING.

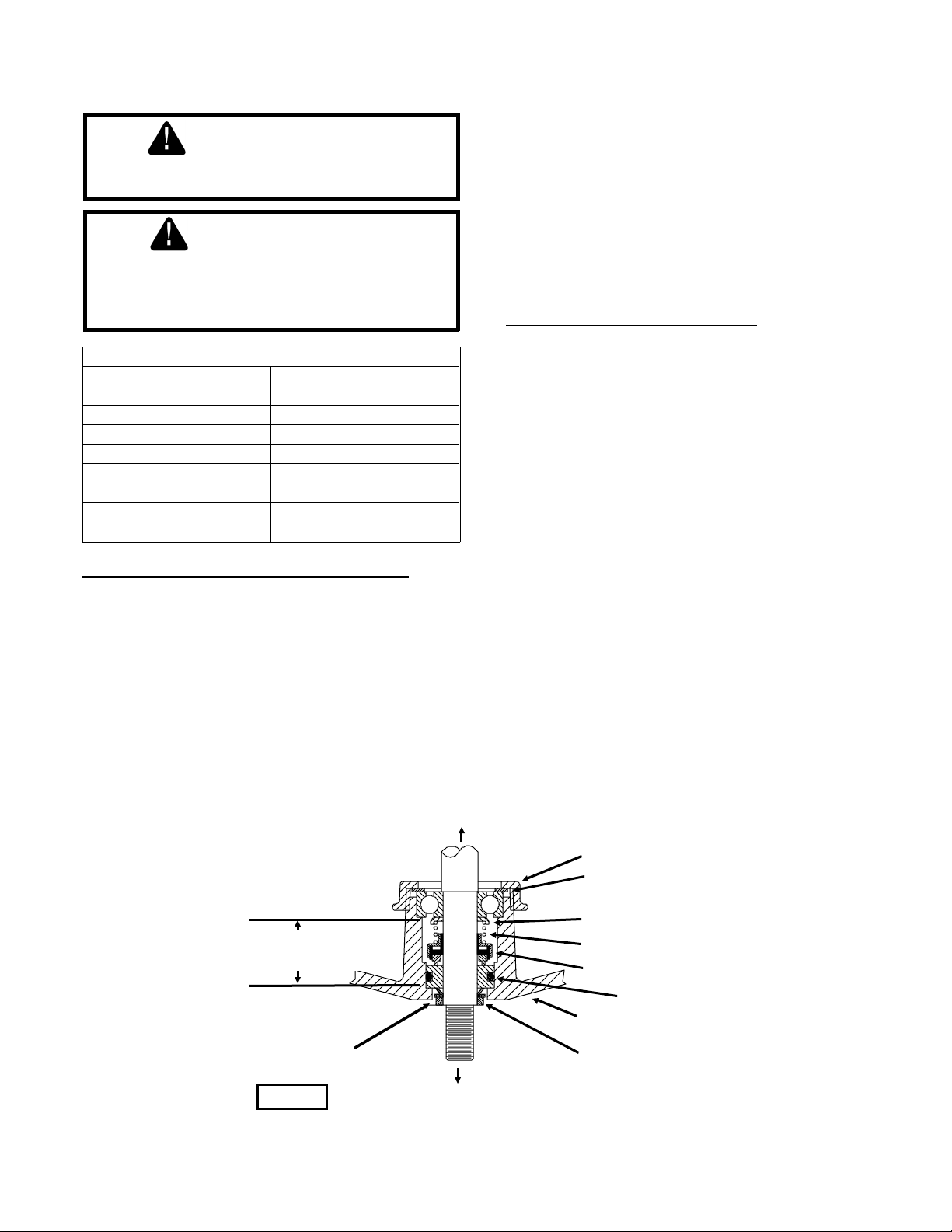

F-1) Lubrication:
Anytime the pump is removed from operation the cooling oil in
the motor housing (3), must be checked visually for oil level
and contamination.
F-1.1) Checking Oil:
Motor Housing- To check oil, set unit upright. Remove Pipe
Plug (2) or (36) from motor housing (3) With a flashlight,
visually inspect the oil in the motor housing (3) to make sure it
is clean, clear and that oil level is above all internal
componentry.
F-1.2) Testing Oil:
1. Place pump on it’s side, remove Pipe Plug (2) or (36) from
motor housing (3) and drain oil into a clean, dry container.
2. Check oil for contamination using an oil tester with a range
to 30 Kilovolts breakdown.
3. If oil is found to be clean and uncontaminated (measure
above 15 KV. breakdown), refill the motor housing as
per section F-1.3.
4. If oil is found to be dirty or contaminated (or measures
below 15 KV. breakdown), the the pump must be carefully
inspected for leaks at the shaft seal (9), Gland nut (28b)
and (39b if equipped), O-ring (24), Gasket (13), pipe plugs
(2) or (36) before refilling with oil. To locate the leak,
perform a pressure test as per section F-1.4. After leak is
repaired, refill with new oil as per section F-1.3.
F-1.3) Replacing Oil:
Motor Housing- Drain all oil from motor housing and dispose
of properly. Refill with (see parts list for amount) new cooling
oil as per Table 1. An air space must remain in the top of the
motor housing to compensate for oil expansion (see Fig. 8).
Set unit upright and fill only until the motor, as viewed through
the pipe plug opening, is just covered and no more. Apply pipe
sealant to pipe plug (2) or (36) and install in motor housing (3).
WARNING !
DO NOT OVERFILL OIL
OVERFILLING OF MOTOR HOUSING WITH OIL CAN
CREATE EXCESSIVE AND DANGEROUS HYDRAULIC
PRESSURE WHICH CAN DESTROY THE PUMP AND
CREATE A HAZARD. OVERFILLING OIL VOIDS
WARRANTY.
F-1.4) Pressure Test:
Motor Housing- Before checking the pump for leaks around
the shaft seal, square rings, and cord inlet, the oil level should
be full as described in section F-1.3. Remove pipe plug (2) or
(36) from motor housing (3). Apply pipe sealant to pressure
gauge assembly and tighten into pipe plug hole (see Fig. 2).
Pressurize motor housing to 10 P.S.I. Use a soap solution
around the sealed areas and inspect joints for "air bubbles". If,
after five minutes, the pressure is still holding constant, and no
"bubbles" are observed, slowly bleed the pressure and remove
the gauge assembly. Replace the pipe plug using a sealant. If
the pressure does not hold, then the leak must be located.
10 PSI AIR ⇒ Remove Pipe Plug
PRESSURE GAUGE
ASSEMBLY
(See Parts List)
Fig. 2
8
Manual Index

CAUTION !
ALWAYS WEAR EYE PROTECTION WHEN WORKING
ON PUMPS.
CAUTION !
PRESSURE BUILDS UP EXTREMELY FAST,
INCREASE PRESSURE BY "TAPPING" AIR NOZZLE.
TOO MUCH PRESSURE WILL DAMAGE SEAL. DO NOT
EXCEED 10 P.S.I. IN MOTOR HOUSING.
TABLE 1 - COOLING OIL - Dielectric
SUPPLIER GRADE
BP Enerpar SE100
Conoco Pale Paraffin 22
Mobile D.T.E. Oil Light
G & G Oil Circulating 22
Imperial Oil Voltesso-35
Shell Canada Transformer-10
Texaco Diala-Oil-AX
Woco Premium 100
F-2) Impeller, Volute and Exclusion Seal Service:
F-2.1) Disassembly and Inspection:
To clean out volute (10), disconnect power, remove cap
screws (11) and lockwashers (12), vertically lift motor and seal
assembly from body (10). Clean out body if necessary. Clean
and examine impeller (16) for pitting or wear, replace if
required. Inspect Gasket (13) and replace if cut or damaged.
If impeller (16) requires replacing, place a flat screwdriver in
the slot of the end of the shaft to hold the shaft stationary while
unscrewing the impeller (16). Once impeller (16) is removed,
remove spacer (25) and exclusion seal (19) if damaged or cut.
F-2.2) Reassembly:
Position exclusion seal (19) on shaft until it seats against the
stationary portion of seal (9). Place spacer (25) on shaft until
it seats against exclusion seal (19). To install impeller (16),
clean the threads with loctite cleaner and screw impeller (16)
onto the shaft hand tight. Rotate impeller to check for binding.
Position gasket (13) on volute flange and position impeller and
motor housing assembly on volute (10). Apply thread locking
compound to cap screw (11) and position lockwasher (12) on
cap screw (11) and screw into volute (10). Torque to 8 ft. lbs.
Check for free rotation of motor and impeller.
F-3) Motor, Bearing and Seal Service
F-3.1) Disassembly and Inspection:
To examine or replace the motor (5), bearing (8) and shaft seal
(9), disassemble volute and impeller as outlined in paragraph
F-2.1. Drain oil from motor as outlined in paragraph F-1.3.
Position unit upright, using blocks to avoid resting unit on shaft.
Remove gland nut (28b), friction rings (28c) and grommet
(28d) from motor housing (3). If pump is equipped with
temperature sensor, also remove gland nut (39b), friction rings
(39c) and grommet (39d), from motor housing (3) (see Figure
6). Remove socket head cap screws (23) and lift motor housing
(3) from lower end bell (22). Slide motor housing (3) up cable(s)
(28), and (39) if pump is equipped with temperature sensor,
until wire connectors and ground screw is exposed. Remove
cable lead wires from motor lead wires and temperature sensor
wires ( if equipped) from control cable, by disconnecting wire
connectors (4) and ground screw (27) from motor (5). The
wiring connections should be noted to insure correct
connections when reassembling.
MOTOR END
(INBOARD END)
PUMP END
(OUTBOARD END)
SEAL ASSEMBLY
(9)
CONDUIT BUSHING (6)
WASHER (7)
RETAINING RING (9d)
SPRING (9C)
ROTATING MEMBER (9b)
STATIONARY (9a)
EXCLUSION SEAL (19)
Fig. 3
SPACER (25)
LOWER END BELL (22)
9
Manual Index

Motor- Remove the motor bolts and lift motor stator from motor
rotor and lower end bell (22). Unscrew conduit bushing (6) from
lower end bell (22) and lift motor rotor, shaft, bearing (8),
rotating portion of seal (9), washer (7) and conduit bushing (6)
from lower end bell (22).
Inspect windings for shorts and check resistance values.
Check rotor for wear, if rotor or the stator windings are
defective, the complete motor must be replaced.
To test the temperature sensor (if equipped), check the
continuity between the black and white wires. If found to be
defective contact a motor service station or Barnes Pumps’
Service Department. Check motor capacitor (32) on single
phase units and replace if defective.
CAUTION !
HANDLE SEAL PARTS WITH EXTREME CARE. DO NOT
SCRATCH OR MAR LAPPED SURFACES.
Seal- Remove rotating member (9a), spring (9c) and retaining
ring (9d) from shaft. (see Figure 3) Examine all seal parts and
especially contact faces. Inspect seal for signs of wear such as
uneven wear pattern on stationary members, chips and
scratches on either seal face. DO NOT interchange seal
components, replace the entire shaft seal (9). If replacing seal,
remove stationary (9a) from lower end bell (22) by prying out
with flat screwdriver.
Bearing- Examine bearing (8) and replace if required. If
replacement is required, remove bearing (8) from motor shaft
using a wheel puller. Washer (7) and conduit bushing (6) can
now be removed from motor shaft.
IMPORTANT !
ALL PARTS MUST BE CLEAN BEFORE REASSEMBLY.
F-3.2) Reassembly:
Bearing- When replacing bearing, be careful not to damage
the rotor or shaft threads. Clean the shaft thoroughly. Slide
conduit bushing (6) and washer (7) over motor shaft. Apply
adhesive compound to the shaft and press bearing (8) on the
motor shaft, position squarely onto shaft applying force to the
inner race of the bearing only, until bearing seats against
shoulder of the shaft.
Seal- Clean and oil seal cavity in lower end bell (22). Press
stationary member (9a) firmly into lower end bell (22), using a
seal pusher (see parts list - seal tool kit), nothing but the seal
pusher is to come in contact with seal face (see Figure 4). Make
sure the stationary member is in straight.
IMPORTANT !
DO NOT HAMMER ON THE SEAL PUSHER- IT WILL
DAMAGE THE SEAL FACE.
Slide retaining ring (9d) over shaft and let rest on bearing (8).
Place spring (9c) over shaft and let rest on retaining ring (9d).
Lightly oil ( DO NOT use grease) shaft, bullet and inner surface
of bellows on rotating member (9b), (see Figure 5), with lapped
surface of rotating member (9b) facing outward, slide over
bullet and onto shaft using seal pusher, making sure spring (9c)
is seated in retaining ring (9d) and spring (9c) is lined up on
rotating member (9b) and not cocked or resting on bellows tail.
IMPORTANT !
IT IS EXTREMELY IMPORTANT TO KEEP SEAL FACES
CLEAN DURING ASSEMBLY. DIRT PARTICLES
LODGED BETWEEN THESE FACES WILL CAUSE THE
SEAL TO LEAK.
Motor- Slide motor rotor with conduit bushing (6), washer (7),
bearing (8) and seal parts (9b, c, d) into lower end bell (22) until
bearing (8) seats in lower end bell (22). Center washer (7) on
bearing (8) and tighten conduit bushing (6) on lower end bell
(22).
Lower motor stator over rotor until seated in lower end bell (22),
while aligning holes for motor bolts. Insert motor bolts and
torque to 17 inch pounds. If pump is a single phase unit place
bracket (31) on one of the motor bolts. Insert capacitor (32) in
bracket (31), attach motor leads with flag terminals to capacitor
and place terminal boot (33) over terminals.
LOWER END BELL (22)
SEAL PUSHER
STATIONARY MEMBER (9A),
POLISHED FACE OUT.
Fig. 4
Motor & Lower End Bell Assy.
Stationary (9a) Bullet
Rotating Member (9b) Seal Pusher
Fig. 5
10
Manual Index

Set motor housing (3) next to motor (5) and lower end bell
(22) assembly. Make wire connections per paragraph
F-3.3. Set square ring (24) in groove on lower end bell (22)
and lower motor housing (3) down onto lower end bell (22)
while aligning holes. Place socket head cap screws (23)
through lower end bell (22) into motor housing (3) and
torque to 60 inch pounds. Assemble impeller and volute
per paragraph F-2.2.
F-3.3) Cable Assembly:
Power Cable- Make wire connections as outlined in
paragraph F-3.4. Refill with cooling oil (if it has been
drained) as outlined in paragraph F-1.3. Insert one friction
ring (28c), grommet (28d), another friction ring (28c) into
motor housing (3). Apply pipe sealant to gland nut (28b)
and screw into motor housing (3). Torque gland nut (28b)
to 15 ft. lbs. to prevent water leakage (see Figure 6).
Control Cable (optional)- Insert one friction ring (39c),
grommet (39d) and another friction ring (39c) into motor
housing (3). Apply pipe sealant to gland nut (39b) and
screw into motor housing (3). Torque gland nut (39b) to 15
ft. lbs. to prevent water leakage (see Figure 6).
F-3.4) Wiring Connections:
Check power cable (28) and control cable (39) (if used),
for cracks or damage and replace if required (see Figure
6). Place parts (28b, c & d) on power cable (28a), and parts
(39b, c & d) on control cable
(39a if equipped). Bring cord sets (28) and (39 if equipped)
through openings in top of motor housing (3) and
reconnect motor leads to power cable (28) and
temperature sensor leads to control cable (39 if equipped)
using connectors (4), and in addition use (34) and (35) for
three phase units and temperature sensor leads, as
shown in Figure 7. Attach ground wire to motor with screw
(27).
Fig. 6
POWER CABLE (28a)
GLAND NUT (28b)
FRICTION RING (28c)
GROMMET (28d)
FRICTION RING (28c)
CONTROL CABLE (39a)
GLAND NUT (39b)
FRICTION RING (39c) GROMMET (39d)
FRICTION RING (39c)
11
Manual Index

SINGLE PHASE,115/ 230 VOLT AC (PSC)
Power Cable (28a) Motor Lead Number
Green (Ground) Green
Black 1
White 2
Flag Terminal Capacitor
Flag Terminal Capacitor
THREE PHASE, 200/230 VOLT AC
Power Cable (28a) Motor Lead Number
Green (Ground) Green
Black 1 & 7
Red 2 & 8
White 3 & 9
4, 5 & 6 Together
THREE PHASE, 460/575 VOLT AC
Power Cable (28a) Motor Lead Number
Green (Ground) Green
Black 1
Red 2
White 3
4 & 7 Together
5 & 8 Together
6 & 9 Together
TEMPERATURE SENSOR (Optional)
Control Cable (39a) Lead Number
Black P1 (Temperature Sensor)
White P2 (Temperature Sensor)
Fig. 7
GL1 L2 L3
G T1 T7T2T8T3 T9 T4 T5 T6
MOTOR LEADS
POWER
Large Cable
G
R
E
E
N
B
L
A
C
K
R
E
D
W
H
I
T
E
MOTOR LEADS
GL1L2
GT1T2
G
R
E
E
N
B
L
A
C
K
W
H
I
T
E
POWER
Large Cable
Temperature
Sensor Leads
CONTROL
Small Cable
S1 S2
P1 P2
B
L
A
C
K
W
H
I
T
E
THERMOSTAT
POWER
Large Cable
MOTOR LEADS
GL1L2
L3
GT1 T2 T3 T4 T7 T5 T8 T6 T9
G
R
E
E
N
B
L
A
C
K
R
E
D
W
H
I
T
E
12
Manual Index

TROUBLESHOOTING
CAUTION ! Always disconnect the pump from the electrical power source before handling.
If the system fails to operate properly, carefully read instructions and perform maintenance recommendations.
If operating problems persist, the following chart may be of assistance in identifying and correcting them:
MATCH "CAUSE" NUMBER WITH CORRELATING "CORRECTION" NUMBER.
NOTE: Not all problems and correction will apply to each pump model.
PROBLEM CAUSE CORRECTION
Pump will not run. 1. Poor electrical connection, blown fuse,
tripped breaker or other interruption of
power; improper power supply.
2. Motor or switch inoperative (to isolate
cause, go to manual operation of pump).
2a. Float movement restricted.
2b. Switch will not activate pump or is
defective.
2c. Defective motor.
3. Insufficient liquid level.
1. Check all electrical connections for
security. Have electrician measure current
in motor leads, if current is within ±20% of
locked rotor Amps, impeller is probably
locked. If current is 0, overload may be
tripped. Remove power, allow pump to
cool, then recheck current.
2a. Reposition pump or clean basin as
required to provide adequate clearance for
float.
2b. Disconnect level control. Set
ohmmeter for a low range, such as 100
ohms full scale and connect to level control
leads. Actuate level control manually and
check to see that ohmmeter shows zero
ohms for closed switch and full scale for
open switch. (Float Switch).
2c. Check winding insulation (Megger
Test) and winding resistance. If check is
out side of range, dry and recheck. If still
defective, replace per service instructions.
3. Make sure liquid level is at least equal to
suggested turn-on point.
4. Recheck all sizing calculations to
determine proper pump size.
5. Check discharge line for restrictions,
including ice if line passes through or into
cold areas.
6. Remove and examine check valve for
proper installation and freedom of
operation.
7. Open valve.
8. Check impeller for freedom of operation,
security and condition. Clean impeller
cavity and inlet of any obstruction.
9. Loosen union slightly to allow trapped air
to escape.Verify that turn-off level of switch
is set so that impeller cavity is always
flooded. Clean vent hole.
10. Check rotation. If power supply is three
phase, reverse any two of three power
supply leads to ensure proper impeller
rotation.
11. Repair fixtures as required to eliminate
leakage.
12. Check pump temperature limits & fluid
temperature.
13. Replace portion of discharge pipe with
flexible connector.
14. Turn to automatic position.
15. Check for leaks around basin inlet and
outlets.
Pump will not turn off. 2a. Float movement restricted.
2b. Switch will not activate pump or is
defective.
4. Excessive inflow or pump not properly
sized for application.
9. Pump may be airlocked.
14. Switch is in "HAND" position.
Pump hums but doesn’t run. 1. Incorrect voltage.
8. Impeller jammed or loose on shaft, worn
or damaged, impeller cavity or inlet
plugged.
Pump delivers insufficient capacity. 1. Incorrect voltage.
4. Excessive inflow or pump not properly
sized for application.
5. Discharge restricted.
6. Check valve stuck closed or installed
backwards.
7. Shut-off valve closed.
8. Impeller jammed or loose on shaft, worn
or damaged, impeller cavity or inlet
plugged.
9. Pump may be airlocked.
10. Pump running backwards.
Pump cycles too frequently or runs
periodically when fixtures are not in use.
6. Check valve stuck closed or installed
backwards.
11. Fixtures are leaking.
15. Ground water entering basin.
Pump shuts off and turns on independent
of switch. (trips thermal overload
protector). CAUTION! Pump may start
unexpectedly. Disconnect power supply.
NOTE: Some pumps DO NOT have
thermal overload protection on the motor.
Check pump specifications to determine.
1. Incorrect voltage.
4. Excessive inflow or pump not properly
sized for application.
8. Impeller jammed, loose on shaft, worn
or damaged, impeller cavity or inlet
plugged.
12. Excessive water temperature
(internal protection only).
Pump operates noisily or vibrates
excessively.
2c. Worn bearings, motor shaft bent.
8. Debris in impeller cavity or broken
impeller.
10. Pump running backwards.
13. Piping attachments to building
structure too rigid or too loose.
13
Manual Index

SECTION: G REPLACEMENT PARTS
G-1 ORDERING REPLACEMENT PARTS:
When ordering replacement parts, ALWAYS furnish the
following information:
1. Pump serial number and date code. (Paragraph G-4)
2. Pump model number. (Paragraph G-3)
3. Pump part number. (Paragraph G-2)
4. Part description.
5. Item part number.
6. Quantity required.
7. Shipping instructions.
8. Billing Instructions.
G-2 PART NUMBER:
The part number consists of a six (6) digit number, which
appears in the catalog. A one or two letter suffix may follow this
number to designate the design configuration. This number is
used for ordering and obtaining information.
G-3 MODEL NUMBER:
This designation consists of numbers and letters which
represent the discharge size, series, horsepower, motor phase
and voltage, speed and pump design. This number is used for
ordering and obtaining information.
G-4 SERIAL NUMBER:
The serial number block will consist of a six digit number, which
is specific to each pump and may be preceded by a alpha
character, which indicates the plant location. This number will
also be suffixed with a four digit number, which indicates the
date the unit was built (Date Code).
EXAMPLE: A012345 0490.
Reference the six digit portion (Serial Number) of this number
when referring to the product.
1
2
3
Typical Name Plate.
14
Manual Index

Fig. 8
15
Manual Index

Fig. 9
16
Manual Index

PARTS KITS
Seal Repair Kit.............P/N - 085204
Overhaul Kit.................P/N - 085207
Seal Tool Kit.................P/N - 085442
Pressure Gauge Kit.....P/N - 085343
PARTS LIST
ITEM QTY DESCRIPTION PART NO.
1 1 Handle 027271
21 Pipe Plug .75" NPT Galv. 003204
3 1 Motor Housing (Standard) 051538
1 Motor Housing (Optonal -Temperature Sensor) 051538HA
4 3 Terminal Connector 1 Phase 079318
3 Terminal Connector 3 Phase 079318
5 1 Motor 4SE914L 030369
4SE924L 030370
4SE944L, 994L 071352
4SE954L 092861
4SE1424L 029796
4SE1444L, 1494L 071353
4SE1454L 092862
4SE1924L 029792
4SE1944L, 1994L 071354
4SE1954L 092863
61 Conduit Bushing 035601
71 Washer 1.28 x 1.75 x .062 Steel 084263
81 Bearing 017414
91  Seal Carbon/Ceramic/Buna-N (STD) 023701
Tungsten/Tungsten/Buna-N 023701SB
Silicon/Silicon/Buna-N 023701SD
Carbon/Ceramic/Viton 023701SF
Tungsten/Tungsten/Viton 023701SH
Silicon/Silicon/Viton 023701SK
Silicon/Tungsten/Buna-N 023701SM
Carbon/Ni-Resist/Buna-N 023701SN
Carbon/Ni-Resist/Neoprene 023701SP
10 1 Volute 066742
11 4  Cap Screw, Hex Hd 5/16-18 x 1.25" Lg. Stainless 1-131-1
12 4  Lockwasher 5/16 Stainless 026322
13 1  Gasket 027344
14 3 Nipple 005808
15 3 Cap 003479
16 1 Impeller, Cast Iron 6.00" Dia (STD. 1.9HP) 100570
5.88" Dia 100570TA
5.75" Dia 100570TB
5.62" Dia 100570TC
5.50" Dia (STD. 1.4HP) 100570TD
5.38" Dia 100570TE
5.25" Dia (STD. 0.9HP) 100570TF
5.12" Dia 100570TG
5.00" Dia 100570TH
4.88" Dia 100570TJ
4.75" Dia 100570TK
4.62" Dia 100570TL
4.50" Dia 100570TM
4.38" Dia 100570TN
4.25" Dia 100570TP
4.12" Dia 100570TQ
4.00" Dia 100570TR
3.87" Dia. 100570TS
3.75" Dia. 100570TT
() 9,11,12,13,17,19,23,24,25,28D.
() 2,7,9,11,12,13,17,19,23,24,25,28D,34,35,38.
17
Manual Index

17 A/R Adhesive, #RC609, Loctite 030237
18 A/R Adhesive, #PST567, Loctite 071869
19 1  Exclusion Seal 056789
22 1 Lower End Bell 026205
23 2  Cap Screw, SkHd. 1/4-20 x .625" Lg. Stainless 11-29-1
24 1  Tetra Seal 027269
25 1  Spacer 059648
26 4-3/4 Qts Oil 029034
27 1 Ground Screw 6-32 x .375" Lg 038156
28 1 Cord Set Assembly See Table 2
28a 1 * Cord Set (Not Sold Separately)
28b 1 * Gland Nut 1 Phase 051762
3 Phase 051448
28c 2 * Friction Ring 1 Phase 021531
3 Phase 051449
28d 1 * Grommet 1 Phase 051764
* Gromment 3 Phase 051451
31 1 Bracket 1 Phase 039858
32 1 Capacitor, 1 Phase 370V, 20MFD 070963
34 3 Terminal Connector 3 Phase 071363
2 Terminal Connector (Temp Sensor) 071363
35 1 Wire Nut 200-230 3Phase 019212
3Wire Nut 460/575 3 phase 019212
36 1 Pipe Plug 003217
37 1 Temperature Sensor (Optional) 051621
38 2 Terminal Connector (Optional) Temp. Sensor 079318
39 1 Cord Set Assembly (Optional) Temp. Sensor See Table 2
39a 1 ‡ Cord Set (Not Sold Separately)
39b 1 ‡ Gland Nut 051448
39c 2 ‡ Friction Ring 051449
39d 1 ‡ Grommet 051451
40 1 Warning Lable 088350
TABLE 2 - POWER CABLE SETS
MODELS/
LENGTH
ITEM # 28
1 PHASE - 115V
CSA LISTED
ITEM # 28
1 PHASE - 230V
CSA LISTED
ITEM # 28
3 PHASE
Non CSA Units
ITEM # 28
(OPTIONAL)
CSA LISTED
3 PHASE
ITEM # 39
(OPTIONAL)
TEMP. SENSOR
CSA - 3 PHASE
15 FT (STD) 091563 093291 051545 094882 071769
25 FT 091563XB 093291XB 051545XB 094882XB 071769XB
30 FT 091563XC 093291XC 051545XC 094882XC 071769XC
40 FT 091563XE 093291XE 051545XE 094882XE 071769XE
50 FT 091563XF 093291XF 051545XF 094882XF 071769XF
75 FT 091563XJ 093291XJ 051545XJ 094882XJ 071769XJ
100 FT 091563XL 093291XL 051545XL 094882XL 071769XL
125 FT 091563XP 093291XP 051545XP 094882XP 071769XP
150 FT 091563XS 093291XS 051545XS 094882XS 071769XS
175 FT 091563XV 093291XV 051545XV 094882XV 071769XV
200 FT 091563XY 093291XY 051545XY 094882XY 071769XY
* Included with item number 28.
‡ Included with item number 39.
18
Manual Index

IMPORTANT !
WARRANTY REGISTRATION
Your product is covered by the enclosed Warranty.
Complete the Warranty Registration Form and returned to
Crane Pumps & Systems, Inc. Warranty Service Group
IMPORTANT! If you have a claim under the provision of the warranty,
contact your local Crane Pumps & Systems, Inc. Distributor.
RETURNED GOODS
RETURN OF MERCHANDISE REQUIRES A "RETURNED GOODS AUTHORIZATION".
CONTACT YOUR LOCAL CRANE PUMPS & SYSTEMS, INC. DISTRIBUTOR.
Products Returned Must Be Cleaned, Sanitized,
Or Decontaminated As Necessary Prior To Shipment,
To Insure That Employees Will Not Be Exposed To Health
Hazards In Handling Said Material. All Applicable Laws
And Regulations Shall Apply.
19
Manual Index

Limited Warranty
We warrant to our immediate customer and to the ultimate consumer that products of our manufacture will be free of defects
in material and workmanship under normal use and service for the following time periods, when installed and maintained in
accordance with our instructions.
Pump Products: One (1) year from date of installation or (24) twenty-four months from date of shipment, whichever occurs
first. Cleaning Products: Twelve (12) months from date of installation or eighteen (18) months from date of shipment, whichever
occurs first. As used herein, "the ultimate consumer" is defined as the purchaser who first uses the product after its initial
installation or, in the case of product designed for non permanent installation, the first owner who used the product. It is the
purchaser’s or any sub-vendee’s obligation to make known to the ultimate consumer the terms and conditions of this warranty.
This warranty gives you specific legal rights, and there may also be other rights which vary from state to state. In the event
the product is covered by the Federal Consumer Product Warranties Law (1) the duration of any implied warranties associated
with the product by virtue of said law is limited to the same duration as stated herein, (2) this warranty is a LIMITED
WARRANTY, and (3) no claims of any nature whatsoever shall be made against us, until the ultimate consumer, his successor,
or assigns, notifies us in writing of the defect, and delivers the product and/or defective part(s) freight prepaid to our factory
or nearest authorized service station. Some states do not allow limitations on how long an implied warranty lasts, so the above
limitation may not apply. THE SOLE AND EXCLUSIVE REMEDY FOR BREACH OF ANY AND ALL WARRANTIES WITH
RESPECT TO ANY PRODUCT SHALL BE TO REPLACE OR REPAIR AT OUR ELECTION, F.O.B. POINT OF
MANUFACTURE OR AUTHORIZED REPAIR STATION, SUCH PRODUCTS AND/OR PARTS AS PROVEN DEFECTIVE.
THERE SHALL BE NO FURTHER LIABILITY, WHETHER BASED ON WARRANTY, NEGLIGENCE OR OTHERWISE.
Unless expressly stated otherwise, guarantees in the nature of performance specifications furnished in addition to the foregoing
material and workmanship warranties on a product manufactured by us, if any, are subject to laboratory tests corrected for
field performance. Any additional guarantees, in the nature of performance specifications must be in writing and such writing
must be signed by our authorized representative. Due to inaccuracies in field testing if a conflict arises between the results of
field testing conducted by or for user, and laboratory tests corrected for field performance, the latter shall control. Components
or accessories supplied by us but manufactured by others are warranted only to the extent of and by the terms and conditions
of the original manufacturer’s warranty. RECOMMENDATIONS FOR SPECIAL APPLICATIONS OR THOSE RESULTING
FROM SYSTEMS ANALYSES AND EVALUATIONS WE CONDUCT WILL BE BASED ON OUR BEST AVAILABLE
EXPERIENCE AND PUBLISHED INDUSTRY INFORMATION. SUCH RECOMMENDATIONS DO NOT CONSTITUTE A
WARRANTY OF SATISFACTORY PERFORMANCE AND NO SUCH WARRANTY IS GIVEN.
This warranty shall not apply when damage is caused by (a) improper installation, (b) improper voltage (c) lightning (d) sand
or other abrasive material (e) scale or corrosion build-up due to excessive chemical content. Any modification of the original
equipment will also void the warranty. We will not be responsible for loss, damage or labor cost due to interruption of service
caused by defective parts. Neither will we accept charges incurred by others without our prior written approval.
This warranty is void if our inspection reveals the product was used in a manner inconsistent with normal industry practice
and\or our specific recommendations. The purchaser is responsible for communication of all necessary information regarding
the application and use of the product. UNDER NO CIRCUMSTANCES WILL WE BE RESPONSIBLE FOR ANY OTHER
DIRECT OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO LOST PROFITS, LOST INCOME, LABOR
CHARGES, DELAYS IN PRODUCTION, IDLE PRODUCTION, WHICH DAMAGES ARE CAUSED BY ANY DEFECTS IN
MATERIAL AND\OR WORKMANSHIP AND\OR DAMAGE OR DELAYS IN SHIPMENT. THIS WARRANTY IS EXPRESSLY
IN LIEU OF ANY OTHER EXPRESS OR IMPLIED WARRANTY, INCLUDING ANY WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE.
No rights extended under this warranty shall be assigned to any other person, whether by operation of law or otherwise, without
our prior written approval.
BARNES
®
420 Third Street/P.O. Box 603 83 West Drive, Brampton
Piqua, Ohio 45356-0603 Ontario, Canada L6T 2J6
Phone: [phone] Phone: [phone]
Fax: [phone] Fax: [phone]
www.cranepumps.com
PUMPS & SYSTEMS
A Crane Co. Company
Manual Index
