Creative Playthings Playtime PSRAL User manual

MODEL PSRAL
ASSEMBLY MANUAL
If you have problems or questions about your Creative Playthings play set,
DO NOT CALL THE RETAILER.
Contact Creative Playthings Customer Service at 1-800-598-4997 or
[email protected]
Please read the owner’s manual before the
assembly of your Play Set. it provides additional
information on the care and use of your Play Set.
You must carefully read the entire instruction man-
ual before proceeding with the assembly or use
of your new Play Set.
Creative Playthings takes great care to design its
products with your child’s safety in mind. How-
ever, only with careful supervision and proper
safety instructions, can you be assured of safe
play time on any product designed for children.
Save these instructions for reference in case you
need to contact customer service.
By
This product is intended for single
family home/residential use only and
not intended for use in any public
setting. Placement in any public
setting constitutes a misuse of this
product.
All hardware on this set is specially coated
for corrosion resistance.
If non-Creative Playthings hardware is used,
it must be galvanized or stainless steel.
™

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 2
PLAY SET SAFETY
Observing the following statements & warnings reduces the likelihood of serious or fatal injury:
• Children should use equipment only in its intended manner.
• Children should not wear loose or stringed clothing while using playground equipment.
• Children should not play on equipment in wet weather conditions due to potentially slippery surfaces.
• Children should NOT walk too closely in front of, behind, or between moving swings and trapezes.
• Children should NOT swing empty swing seats.
• Children should NOT jump off swings and/or trapeze while they are in motion.
• Children should NOT twist swing chains because this will reduce the strength of the chains.
• Children should sit in the center of the swings with their full weight on the seats.
• Children should NOT be on the top surface of the swing beam.
• Children should NOT use the equipment in a manner other than intended.
• Children should NOT get off the equipment while it is in motion.
• On-site adult supervision is required at all times for children of all ages.
• Until assembly is complete, DO NOT let your children use the Play Set.
• Never fasten anything not approved by Creative Playthings to your Play Set. Accessories or items not ap-
proved by Creative Playthings include; Dog runs, clothes lines, electrical devices, or bird feeders etc.
• Suspended ropes, chains, and cables must be secured at both ends.
• Suspended ropes, chains, and cables must not be capable of looping back on themselves.
• Do not allow more than 120 lbs. on Single occupancy swing accessories such as the Sling Swing and Trapeze.
• Do NOT allow more than 175 lbs. on multiple use swing accessories such as the Back-to-Back Glider.
• Do NOT allow more children on the Play Set than can simultaneously use all the swing stations at one time.
• Children MUST NEVER wear bicycle helmets while playing on the play-set.
Assembly Safety:
• Adult assembly required
• Face slide away from the sun.
• Keep the work area clean and clear of obstructions.
• Children should stay out of the work area until the safe play area is cleared of obstacles, the Play Set has been
completely assembled, all hardware has been tightened and checked, and all tools have been picked up.
• Keep children off the Play Set until it has been completely assembled.
• Parts of the assembly process may require help from another competent adult.
• Do not stand on the platform until the Play Set has been completely assembled, use a step ladder if you can
not reach high enough.
• Follow the manufacturers' safety recommendations for the tools and equipment you use.
• Avoid assembling your Play Set in poor weather conditions.
• Wear proper clothing and safety equipment (safety glasses, boots, and gloves) while assembling your Play Set.
FOR SAFETY SAKE, PLEASE TAKE TIME TO READ ALL INSTRUCTIONS COMPLETELY AND
CAUTION YOUR CHILDREN APPROPRIATELY.

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 3
SAFE PLAY AREA
SELECTING THE CORRECT LOCATION FOR YOUR PLAY PRODUCT IS IMPORTANT FOR
YOUR CHILDREN’S SAFETY AND THE PRODUCT’S LONGEVITY.
Play Set Dimensions:
• The MODEL PSRAL Play Set has ground dimensions of 13'-0" x 11'-7".
• The MODEL PSRAL Play Set requires a level ground surface of 25'-0" x 28'-3" for a Safe Play Area.
• Additional accessories may increase the size of the Safe Play Area.
• The maximum fall height for your MODEL PSRAL is 87" as measured from the top of the swing beam.
Safe Play Area:
• The Safe Play Area refers to a zone extending 6' (2 meters) beyond the Play Set on all sides, including the slide
and the space above the Play Set. Because children may deliberately jump from a moving swing, the Safe Play
Area must be extended to 14' (4.27 meters) in front of and behind a swinging Accessory.
• The ground surface must be level. Installing your Play Set on sloping ground can cause it to lean or “rack”.
This leaning puts additional stress on all connections and joints and in time will cause those connections to
loosen and fail.
• The Safe Play Area must be free of all structures, landscaping, trees and branches, rocks, wires, and other
obstacles to safe play. Children can be seriously injured running, or swinging into these obstacles.
• Remove all tripping hazards from the Safe Play Area. Tripping hazards include; roots, stumps, rocks, landscap-
ing, sprinkler heads, railroad ties, plumbing and electrical connections.
• Do not install your Play Set over concrete, gravel, asphalt, packed earth, or any other hard surface. The follow-
ing is a list of recommended ground covers from the Consumer Product Safety Commission.
RECOMMENDED GROUND COVER
Suggested Material Uncompressed Depth
Double Shredded Bark Mulch 9"
Uniform Wood Chips 12"
Fine Gravel 12"
Fine Sand 12"
• Any edging used to contain the ground cover must be beyond the Safe Play Area. (i.e. Landscape Timbers)
A FALL ONTO A HARD SURFACE COULD RESULT IN SERIOUS
INJURY.
Safe play area using
recommended ground cover.
Whichever is greater
Landscape Timbers 6' from
play structure.
6'
(2 M)
6'
(2 M)
6'
(2 M)
6'
(2 M)
14'
(4.27 M)
14'
(4.27 M)

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 4
HARDWARE BAG CONTENTS
50534-717 Raleigh Hardware
12 12002-203 Flat Washer 8MM
92 12002-205 Flat Washer 1/4"
80 12017-205 Lock Washer 1/4"
72 17001-104 Weld Nut 1/4"
2 17003-409 Hex Bolt 1/4 x 1"
18 17003-609 Hex Bolt 1/4 x 1-1/2"
16 17003-809 Hex Bolt 1/4 x 2"
12 17003-1009 Hex Bolt 1/4 x 2-1/2"
4 17003-1209 Hex Bolt 1/4 x 3"
8 17003-1409 Hex Bolt 1/4 x 3-1/2"
12 17003-1609 Hex Bolt 1/4 x 4"
3 17119-409 Truss Head Bolt 1/4 x 1"

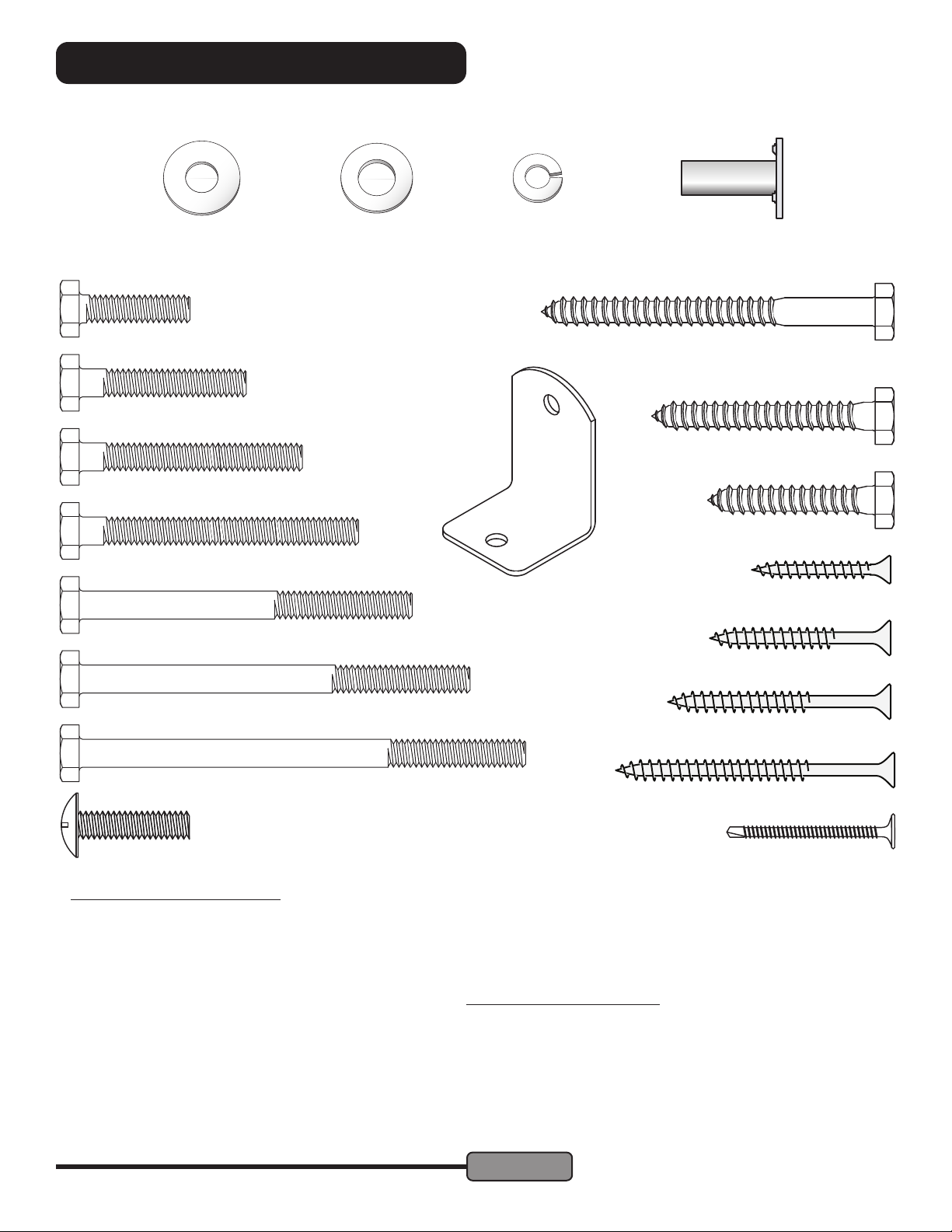

ASSEMBLY HARDWARE:
More hardware is included than is required for assembly.
1/4 x 1" Hex Bolt
1/4 x 1" Truss Head Bolt
1/4 x 1-1/2" Hex Bolt
1/4 x 3" Lag Screw
1/4 x 2" Lag Screw
1/4 x 1-1/2" Lag Screw
#8 x 1-1/4" Screw
#10 x 1-5/8" Screw
#10 x 2" Screw
#10 x 2-1/2" Screw
#10 x 1-1/2" Self-Drill Screw
1/4 x 2-1/2" Hex Bolt
1/4 x 3-1/2" Hex Bolt
1/4 x 2" Hex Bolt
1/4 x 3" Hex Bolt
1/4 x 4" Hex Bolt
1/4" Flat Washer 8mm Flat
Washer
Illustrations are representative of hardware.
Variation in appearance may occur.
1/4" Lock
Washer
Access. Bracket
(Not to Scale)
1/4" Weld
Nut
8 17125-502 Self-Drilling Screw #10 x 1-1/2"
6 17036-601 Lag Screw 1/4 x 1-1/2"
24 17036-801 Lag Screw 1/4 x 2"
2 17036-1201 Lag Screw 1/4 x 3"
50534-740 Raleigh Screws
26 17025-104 Screw #8 x 1-1/4"
102 17020-115 Screw #10 x 1-5/8"
36 17022-107 Screw #10 x 2"
10 17020-113 Screw #10 x 2-1/2"

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 5
PRE ASSEMBLY INFORMATION
CREATIVE PLAYTHINGS PLAY SETS USE A FEW STANDARD CONNECTIONS.
BECOMING FAMILIAR WITH THESE CONNECTIONS WILL SIMPLIFY ASSEMBLY AND
ENSURE A SAFER PLAY PRODUCT FOR YOUR CHILDREN.
Hex Bolt & Weld Nut Assembly Procedure:
Assembly Layout:
Align the holes in the parts to be fastened. Start
preliminary tightening of bolt into weld nut by
hand. Tighten each bolt with a wrench until the
lock washer is fully compressed between the
head of the bolt and the at washer.
Correct Assembly:
Bolt has been screwed securely into weld nut
and the connection is tight. Check connec-
tions periodically for tightness during the life
of the Play Set . Do not over tighten.
Incorrect Assembly:
If during assembly or maintenance the bolt pro-
trudes 1/8" past the weld nut, use additional at
washers, call customer service or replace the
bolt at a local hardware store. You may be over-
tightening or using the wrong size bolt.
Failure to replace this bolt with a shorter one
could result in serious injury.
Typical Installation - Lag Screws:
• Pilot drill with the appropriate
diameter drill bit and then use
a socket to tighten.
• DO NOT over tighten
Typical Installation - Wood Screws:
• Use an electric drill or screw gun to drive screws.
• Drill 1/8" pilot holes where required.
• We recommend that you lubricate the
threads of the screws with beeswax or
soap to ease installation and minimize
breaking screws.
• It is very important to make cer-
tain that the tops of all screws are
ush with the surface of the wood
and there are no protruding sharp
edges.
Lag Screw
Flat Washer
Hex Bolt
Lock Washer
Flat Washer
Weld Nut

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 6

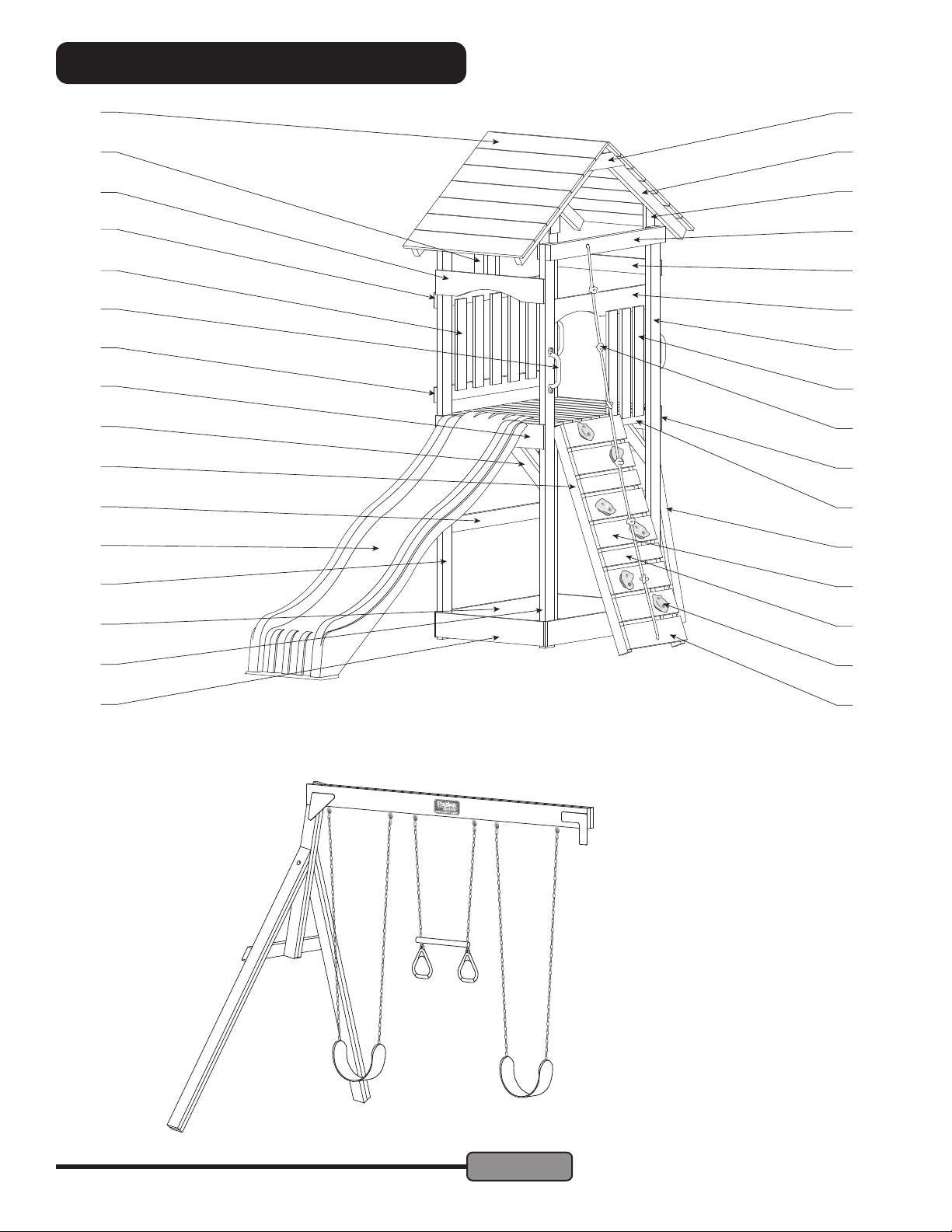

PLAY SET VIEW
A
V
C
E
F
X
P
Z
Q
O
K
B
L
D
AK
Y
AA
AB
AC
AH M
AF
AP
AD
AI
AG
AJ
AN
AO
N
I
J
60081-102 Playtime Swing Beam
8515-202 8 Ft. Wave Slide, Green
AA934-204 2 Swings, 1 Trapeze
Items Packaged Separately:

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 7
COMPONENT VIEW
V 1 33702-102 Ladder Rail Left 2 x 3 x 47-1/2"
W* 1 33703-102 Ladder Rail Right 2 x 3 x 47-1/2"
X 2 33719-102 Swing Mount 2 x 3 x 15-5/8"
Y 5 33741-102 Short Wall Slat 1 x 4 x 19-1/2"
Z 2 33742-102 Ceiling Joist 1 x 4 x 14-5/8"
AA 14 33795-402 Roof Board 1 x 6 x 31-1/2"
AB 4 33796-102 Rafter 2 x 3 x 37"
AC 3 33816-102 Wall Slat 1 x 4 x 25"
AD 5 33910-102 Rock Board 5/4 x 6 x 20-1/2"
AE 1 33971-102 Long Ladder Slat 1 x 4 x 18-3/4"
AF* 1 33974-102 Safety Rail 5/4 x 4 x 41-1/2"
AG 1 35682-102 Lower Wall Supp 5/4 x 4 x 41-1/2"
AH 2 35683-102 Rock Upright 2 x 3 x 50-3/4"
AI 1 35684-102 Rope Board 5/4 x 6 x 20-1/2"
AJ 2 35685-102 Spacer Board 5/4 x 4 x 20-1/2"
AL* 5 36515-102 Ground Stake
AK 1 50428-400 Climbing Rocks (6)
AM*4 14203-400 18" Rung, Green
AN 1 18008-138 Climbing Rope, 138"
AO 3 15034-100 Hand Grips
1 50469-100 Small CP Name Plate Pack
1 50534-235 Raleigh Accessories
AP 1 8515-202 8 Ft. Wave Slide, Green
A 4 32561-102 Angle Brace 2 x 3 x 17-1/4"
B 1 33701-102 Front Arch 5/4 x 6 x 28-1/2"
C 1 33709-102 Platform Side Right 2 x 3 x 41-1/2"
D 2 33712-102 Sandbox End 5/4 x 6 x 28-1/2"
E 2 33713-102 Sandbox Side 5/4 x 6 x 41-1/2"
F 1 33716-102 Side Arch 5/4 x 6 x 41-1/2"
G* 1 33792-102 Platform Side Left 2 x 3 x 41-1/2"
H* 1 35668-102 Post Back Left 2 x 4 x 86-5/8"
I 1 35669-102 Post Back Right 2 x 4 x 86-5/8"
J 1 35670-102 Post Front Left 2 x 4 x 86-5/8"
K 1 35671-102 Post Front Right 2 x 4 x 86-5/8"
L 1 35672-102 Platform Front 5/4 x 6 x 28-1/2"
M 1 35673-102 Platform Back 5/4 x 6 x 28-1/2"
N 1 35674-102 End Support 5/4 x 4 x 28-1/2"
O 1 35675-102 Top Rope Support 2 x 4 x 41-1/2"
P 2 35676-102 Upper Wall Support 5/4 x 4 x 41-1/2"
Q 4 35677-102 Roof Upright 5/4 x 4 x 9-1/4"
R* 2 35678-102 End Deck Board 5/4 x 4 x 25-5/8"
S* 6 35679-102 Narr Deck Board 5/4 x 4 x 28-1/2"
T* 4 35680-102 Short Deck Bd 5/4 x 4 x 27-1/8"
U* 1 35681-102 Stringer 5/4 x 4 x 39-1/2"
1 50534-717 Raleigh Hardware Bag
1 50534-740 Raleigh Screw Bag
1 50534-135 Instruction Pack, Raleigh
Take inventory of all parts, making sure nothing is missing or defec-
tive. If you nd that parts are missing or defective call the Creative
Playthings Customer Service Department at 1-800-598-4997.
60085-252 BOX 2
* Not marked on Play Set View page.
60085-151 BOX 1

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 8
MAINTENANCE INSTRUCTIONS
YOUR CREATIVE PLAYTHINGS Play Set IS STAINED AT OUR FACTORY.
STAINING IS NOT NEEDED AT THE TIME OF INITIAL ASSEMBLY.
Re-staining Information:
• Pigmented, exterior, water repellent stains are recommended and will provide an excellent barrier against moisture
without hiding the natural wood grain or leaving a lm that may later crack or peel.
• We recommend that you apply stain according to the instructions and precautions recommended by the stain manufacturer.
• It should take two or more quarts to cover your set.
• Contact your local dealer or call Creative Playthings for our staining products.
• All rungs are pre-nished at the factory and do not require any nishing at the time of initial assembly.
• Do not paint, or varnish rungs or steps.
• Avoid using nishes that create slippery surfaces.
Maintenance:
• Wooden playground equipment will last for years with proper maintenance. Maintenance of the Play Set nish will vary
depending on weather and climate.
• As a safety precaution, check all hardware, such as nuts and bolts, for tightness twice a month during use and at the
beginning of each play season. Tighten as required and specied in these instructions. Do not over-tighten.
• Check structure twice monthly during usage for any evidence of deterioration. If upon inspection, hardware has sharp edges,
rusted or structural pieces have signs of premature failure; replace them through Creative Playthings Customer Service.
• Oil all metallic moving parts monthly during the usage season.
• The swings, trapeze, tent, rope ladders, and any other removable plastic accessories should be removed and taken
indoors when outside temperatures drop below 32° F (0° C).
• Wood will expand and contract as it adjusts to temperature changes and varying moisture conditions. Checks or cracks
are a natural characteristic of all wood and will not affect the strength or durability of the wooden components.
• To maintain the nish of your set, a light sanding and an application of an exterior stain will repair scratches and prevent
wood from aging prematurely.
• Finishes applied to ladder rungs must not create a slippery surface. Never varnish.
• The wood parts of your Play Set should never be disposed of by burning.
• Dispose of all parts so as not to create a hazard.
• "Check all coverings for bolts and sharp edges and replace when required."
• "Check swing seats, chains, ropes, and other means of of attachments for evidence of deterioration". Replace through
Creative Playthings Customer Service.
• Twice a month during play season rake and check depth of loose ll protective surfacing materials to prevent compac-
tion and to maintain appropriate depth. Replace as necessary.
Tools & Materials Suggested for Finishing & Assembly:
• Claw Hammer
• Carpenter’s Level
• Box Wrench or Sockets (7/16" & 1/2")
• Electric Drill
• 1/8", 3/16" & 5/16" Drill Bits
• Screwdriver or driver drill (Medium Phillips)
• Locking Pliers
• 10 ft. Tape Measure
• Framing Square
• 6 ft. Step Ladder

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 9
ASSEMBLY INSTRUCTIONS
J
K
B
L
D
The parts required to start assembly are in box 1;
subsequent parts are in box 2.
Hex Bolt Assembly:
Throughout this guide a Hex Bolt As-
sembly consists of one Hex Bolt, one
Lock Washer, one Flat Washer and
one Weld Nut.
STEP 1 — Front of Tower:
Fasten one Sandbox End (D) to the front of the Front Left
Post (J) and Front Right Post (K) as shown. Use 1/4 x 4"
Hex Bolt Assemblies in the top holes and 1/4" x 2" Lag
Screws with 1/4" Flat Washers in the bottom holes.
Repeat the process with the Platform Front (L) and Front
Arch (B). Align the central hole on the Platform Front clos-
er to the Front Right Post (K).
STEP 2 — Back of Tower:
Lay out the Right Back Post (I) and Left Back Post (H) next to the Front of Tower
Fasten one Sandbox End (D) to the front of the Back Left Post (H) and Front Right Post (I) as shown. Use 1/4 x 4" Hex Bolt
Assemblies in the top holes and 1/4" x 2" Lag Screws with 1/4" Flat Washers in the bottom holes.
Repeat the process with the Platform Back (M) and End
Support (N). Align the central hole on the Platform Back
closer to the Back Right Post (I). The holes close to the
edge should be closest to the bottom of the tower.
I
J
H
K
N
M
D
1/4 x 4" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
Note the orientation
of these holes.
Note the orientation
of these holes.
1/4 x 4" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 10
ASSEMBLY INSTRUCTIONS
Back of
tower
Back of
tower
Front of
tower
Front of
tower

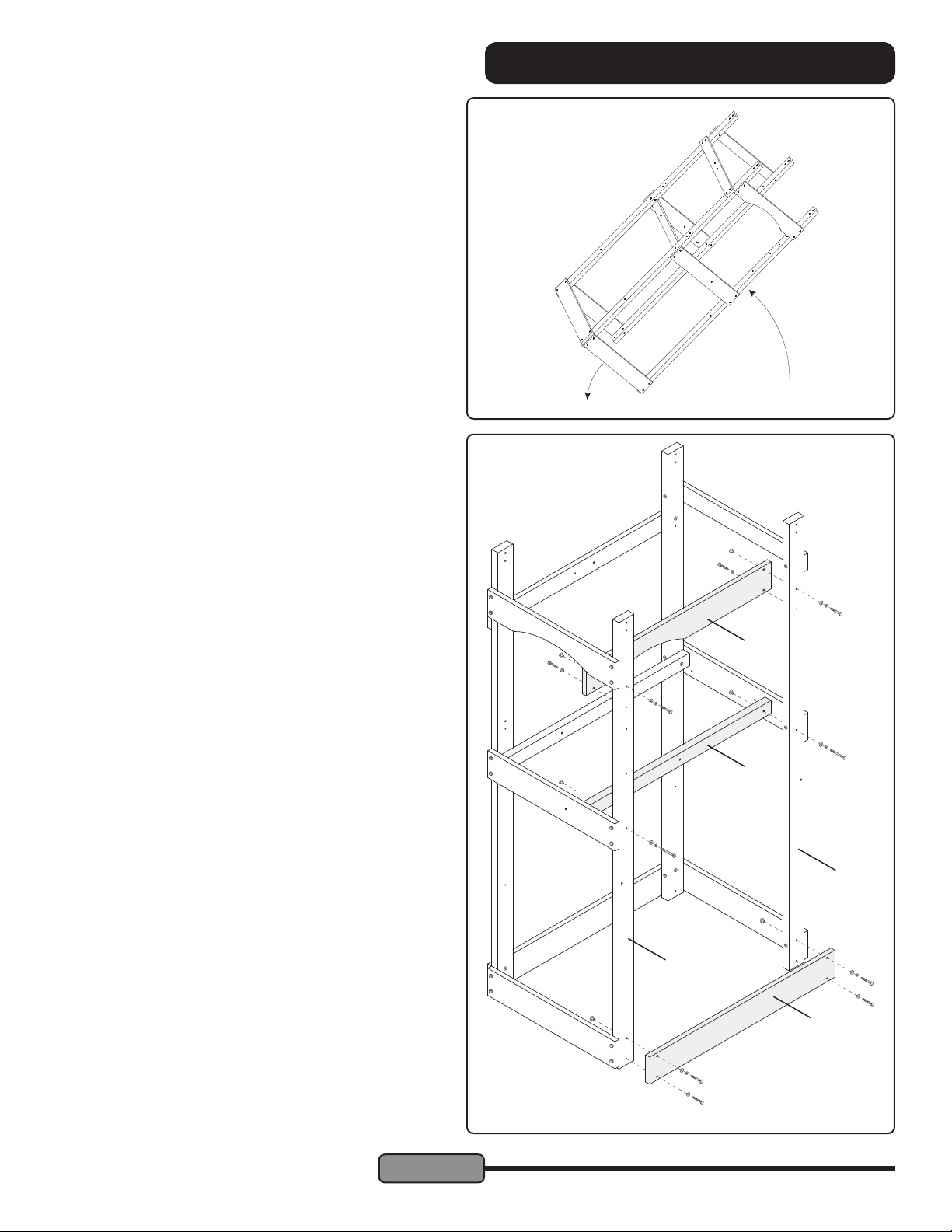

STEP 3 — Left Sandbox Side:
Arrange the back tower assembly and front tower assembly next to each other on edge as shown below.
Fasten one Sandbox Side (E) to the Front Left (J) and Back Left (H) Posts as shown at below. Use 1/4 x 2" Hex Bolt Assemblies
in the top holes and 1/4" x 2" Lag Screws with 1/4" Flat Washers in the bottom holes.
H
J
E
G
P
1/4 x 2" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
1/4 x 2" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
1/4 x 2-1/2" Hex
Bolts Assemblies
STEP 4 — Platform Side Left, One Wall Support:
Fasten the Platform Side Left (G) to the Back Left Post
and Front Left Post in the orientation shown using
1/4 x 2-1/2" Hex Bolt Assemblies. Note the
hole positions along the board.
Fasten one Upper Wall Sup-
port (P) to the Front Left (J)
and Back Left (H) Posts as
shown at right. Use 1/4 x 2"
Hex Bolt Assemblies in the top
holes and 1/4" x 2" Lag Screws
with 1/4" Flat Washers in the
bottom holes.

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 11
ASSEMBLY INSTRUCTIONS
Back of
tower
Front of
tower
1/4 x 2" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
1/4 x 2" Hex Bolts in
top holes, 1/4 x 2" Lag
Screws in bottom holes.
1/4 x 2-1/2"
Hex Bolts
STEP 5 — Raise the Tower:
Lift the top of the tower and walk it up until it stands vertical
on the base.
STEP 6 — Right Side of Tower:
Fasten one Sandbox Side (E) to the Front Right (K) and
Back Right (I) Posts as shown at right. Use 1/4 x 2" Hex Bolt
Assemblies in the top holes and 1/4" x 2" Lag Screws with
1/4" Flat Washers in the bottom holes.
Fasten the Platform Side Right (C) to the Back Right Post
and Front Right Post in the orientation shown using 1/4 x
2-1/2" Hex Bolt Assemblies. Note the hole positions along
the board.
Fasten the Side Arch (F) to the Front Right and Back Right
Posts as shown at right. Use 1/4 x 2" Hex Bolt Assemblies
in the top holes and 1/4" x 2" Lag Screws with 1/4" Flat
Washers in the bottom holes.
E
I
K
F
C

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 12
ASSEMBLY INSTRUCTIONS

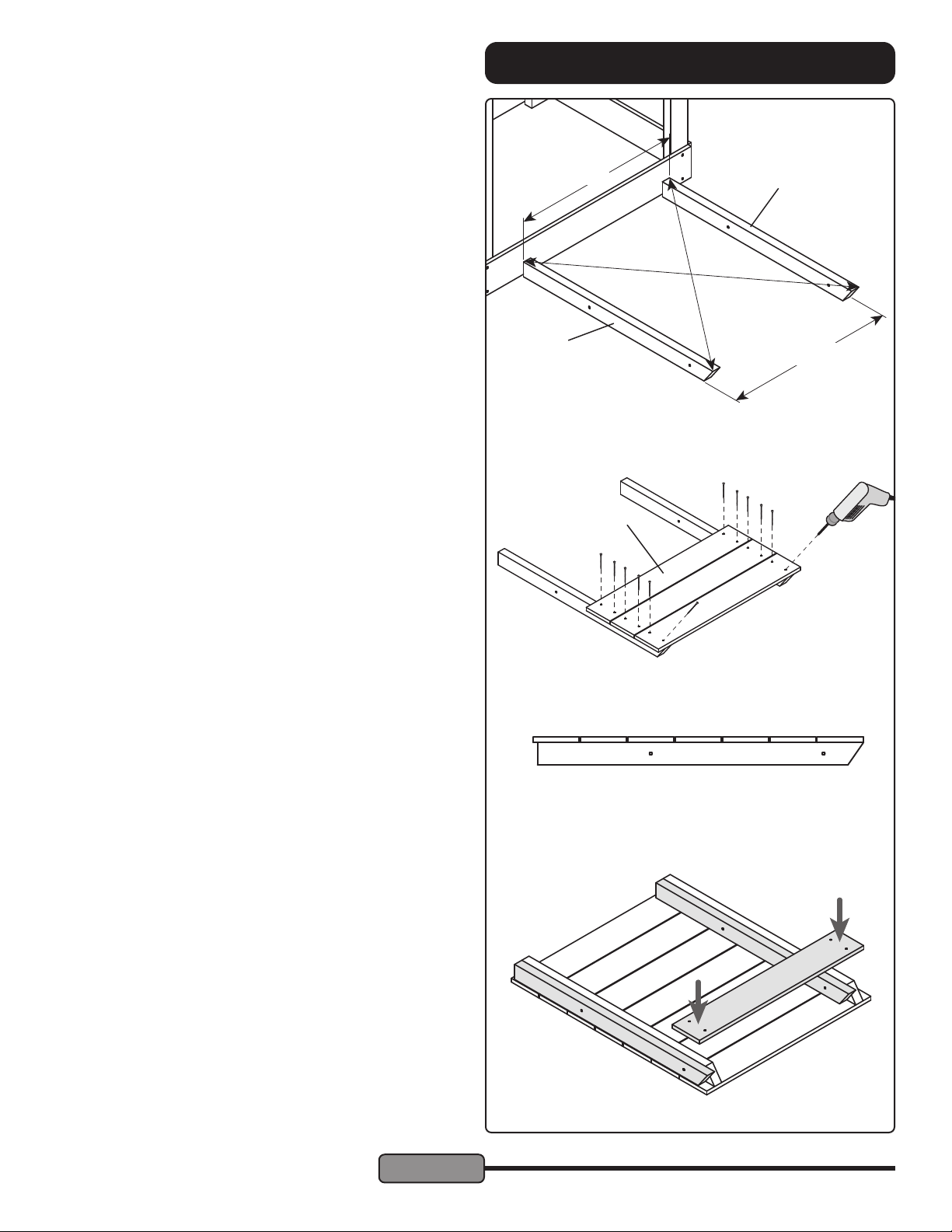

STEP 7 — Angle Braces:
Ensure the structure is in the place it will be used. Make
any needed ground adjustments before proceeding.
Use a level to determine that all horizontals are level and
posts are plumb.
Fasten two Angle Braces (A) to the Platform Left using two
1/4 x 2-1/2" Hex Bolt Assemblies as shown. Fasten the
bottom of the braces to the adjacent posts using 1/4 x 3" Lag
Screws with Flat Washers. Be sure to drill 3/16" diameter
pilot holes in the posts before using the Lag Screws.
Fasten an Angle Brace (A) to both the Platform Front and
Platform Back using one 1/4 x 2" Hex Bolt Assembly each
as shown. Fasten the bottom of the braces to the adjacent
posts using 1/4 x 2-1/2" Hex Bolt Assemblies.

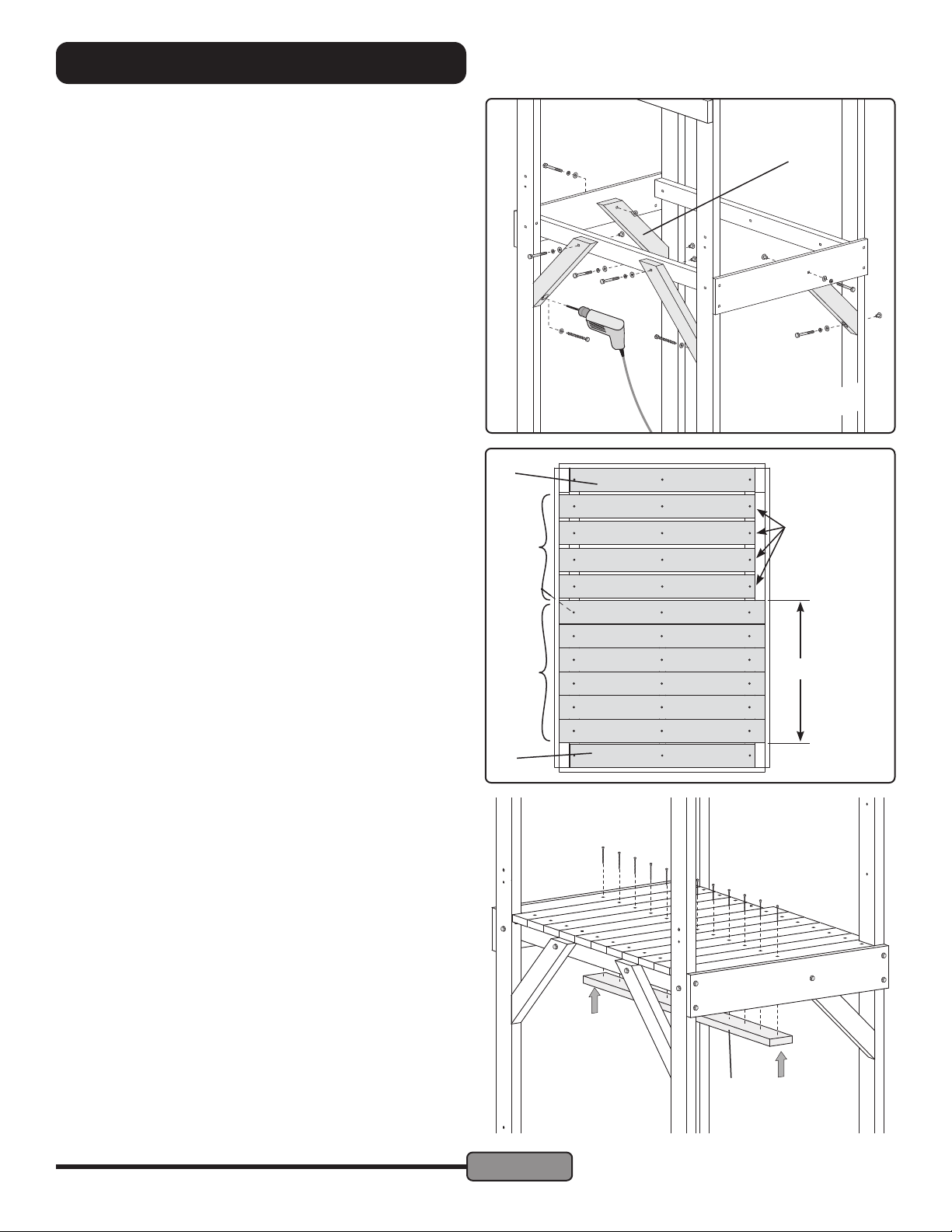

STEP 8 — Deck Boards:
Locate the two End Deck Boards (R), six Narrow Deck
Boards (S) and four Short Deck Boards (T). Lay them across
the platform supports in the arrangement shown at right.
Fasten the End Deck Boards (R) between the Posts using
two #10 x 1-5/8" Screws each. Be sure to drill 1/8" diameter
pilot holes to prevent splitting of the supports.
Align the Narrow Deck Boards (S) tight against each other to
limit the possibility of clothing being snagged when children
use the slide. Space the Short Deck Boards (T) evenly,
making sure not to overhang the Platform Right. Fasten all
using 1/8" pilot holes and #10 x 1-5/8" Screws.
A
R
R
U
S
T
#10 x 1-5/8"
Screws
#10 x 1-5/8"
Screws
Do not overhang
Platform Right
19-3/4" (ref.)
Front of
tower
STEP 9 — Stringer:
Hold the Stringer (U) at up under the center of the deck
boards. Secure the Stringer using #10 x 1-5/8" Screws
through the center hole of each deck board. Don't let the tips
of the screws protrude below the Stringer.
1/4 x 2-1/2"
Hex Bolts
1/4 x 2-1/2"
Hex Bolt
1/4 x 3" Lag
Screws
1/4 x 2"
Hex Bolt
1/4 x 2"
Hex Bolt

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 13
ASSEMBLY INSTRUCTIONS
3-1/2" Hex Bolt Assemblies
P
Q
Q
Q
O
3" Hex Bolt Assemblies

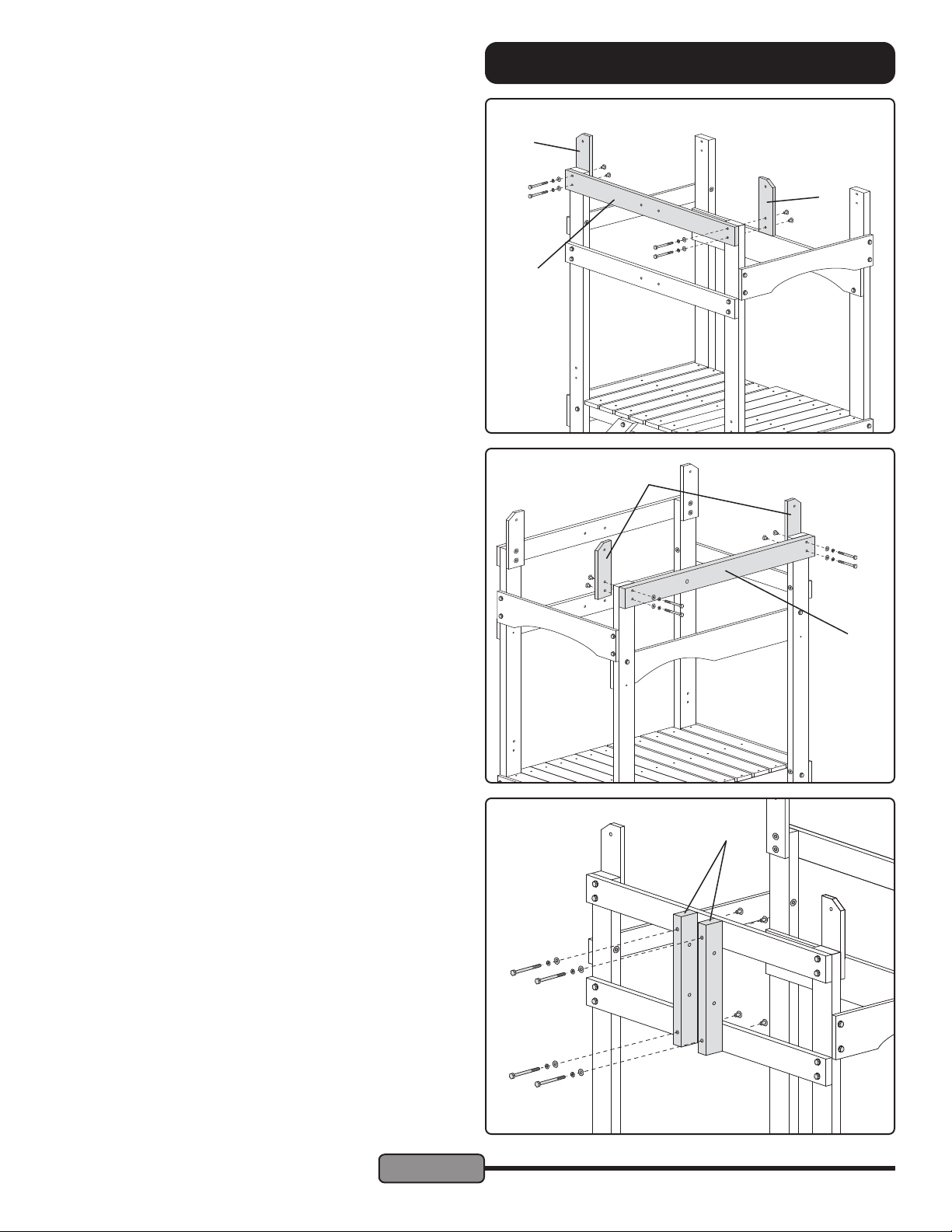

STEP 10 — Upper Wall Support & Roof Uprights:
Fasten the other Upper Wall Support (P) to the left Posts and
two Roof Uprights (Q) in the position shown. Use four 1/4 x
3" Hex Bolt Assemblies.
STEP 11 — Top Rope Support & Roof Uprights:
Fasten the Top Rope Support (O) to the right Posts and
two Roof Uprights (Q) in the position shown. Use four 1/4 x
3-1/2" Hex Bolt Assemblies.
STEP 12 — Swing Mounts:
Fasten the two Swing Mounts (X) to the Upper Wall Sup-
ports using two 1/4 x 3-1/2" Hex Bolt Assemblies each.
3-1/2" Hex Bolts
X

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 14
ASSEMBLY INSTRUCTIONS
AM
V
AE
W

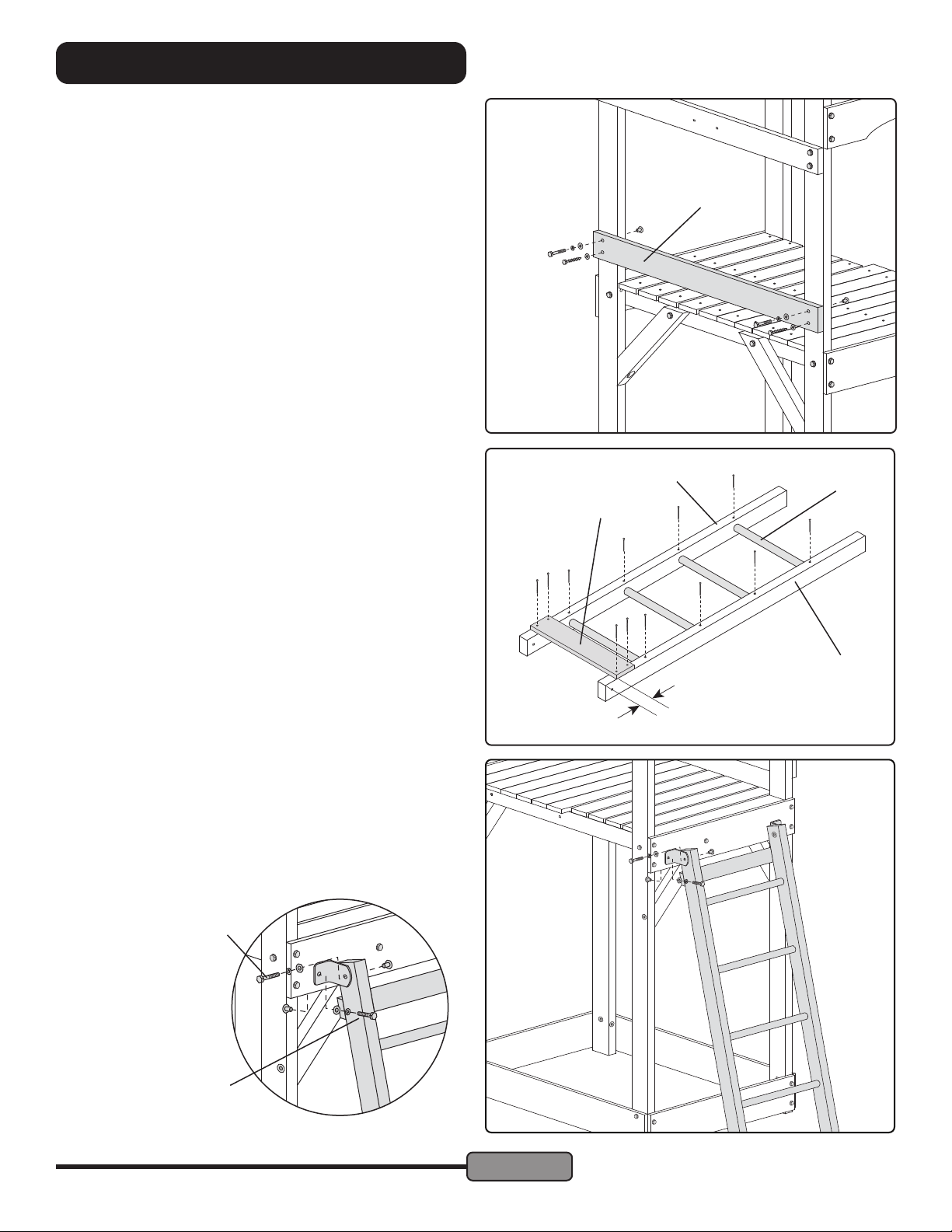

STEP 14 — Access Ladder Rungs & Slat:
Fit four 15" Rungs (AM) into the holes in the Left Ladder
Rail (V) and the Right Ladder Rail (W). Set the assembly at
on a solid surface. Make sure that the rungs are completely
inserted with the ends of the rungs snug against the bottom
of the holes.
Use #10 x 1-1/2" Self-Drilling Screws, through the holes
provided, to fasten the rungs in place. (The Self-Drilling
Screws have a drill-bit tip. Point the screw toward the center
of the rung diameter and press rmly. Do not sink the head of
the screw beyond ush with the surface of the wood.
Use four #10 x 1-5/8" Screws to fasten the Ladder Slat (AE)
to the Ladder Rails. The top edge of the Ladder Slat should
be about 2-1/4" below the top of the Ladder Rails as shown.
STEP 15 — Mount Access Ladder:
Fasten one Access Bracket to outside of each Ladder Rail
using 1/4 x 1-1/2" Hex Bolt Assemblies.
Lean the Access Ladder against the gym with the Access
Brackets at against the Platform Back as shown. Secure
the Brackets using 1/4 x 1" Hex Bolt Assemblies.
The top of
the ladder
1/4 x 1" Hex Bolt
1/4 x 1-1/2" Hex Bolt
2-1/4"
STEP 13 — Left Lower Wall Support:
Fasten the Lower Wall Support (AG) to the outside of the
left Posts in the position shown, using two 1/4 x 2" Hex Bolt
Assemblies in the top holes and two 1/4 x 2" Lag Screws in
the bottom holes.
2" Lag
Screws in
Bottom Holes
2" Hex Bolt
Assemblies in
top holes AG

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 15
ASSEMBLY INSTRUCTIONS
STEP 16 — Assemble Roof Panels:
Assembly of the Roof Panels will be easier on a work table
or other at surface.
Lay Out Roof Rafters:
Butt the square-cut end of two Rafters (AB) against a straight
at surface. Align the Rafters so they are parallel and the
ends aligned and square. The distance from outside to out-
side of the Rafters should be 28-1/2". Measure from corner
to corner both ways. When the two diagonal measurements
are the same, the rafters are square.
Fasten Roof Boards:
Start at the angled end of the Roof Rafters. Rest one Roof
Board (AA) on top of the Rafters ush to the angled end. Use
a 1/8" diameter drill to make pilot holes before fastening the
Roof Board to the Rafter using four #10 x 1-5/8" Screws. Drill
and screw the rst hole at an angle, as shown, to avoid the
angled cut of the rafter.
Continue with the next three Roof Boards, setting each
against the previous Roof Board and fastening them. Once
the position of the Rafters is stable, lay the rest of the Roof
Boards in place. The seventh Roof Board should overhang
the end of the Rafters by approximately 1/2". If the overhang
is less than 1/2", evenly space the Roof Boards to achieve
an overhang. If the overhang is greater, alternative holes
should be made in the nal Roof Board. Fasten the Roof
Boards using #10 x 1-5/8" Screws with 1/8" diameter pilot
holes.
Assemble Second Roof Panel:
Flip the rst Roof Panel to use it as a template to assemble
the remaining Roof Panel. Place the remaining Rafters tight
against the Rafters on the assembled panel. Align the ends.
Fasten Roof Boards to the Roof Rafters using 1/8" diameter
pilot holes and #10 x 1-5/8" Screws as with the rst Roof
Panel.
28-1/2"
28-1/2"
AB
AA
AB

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 16
ASSEMBLY INSTRUCTIONS
1/4 x 2-1/2" Hex
Bolt Assemblies
1/4 x 2" Hex Bolt
Assemblies
AH
Z
1/4 x 1-1/2" Hex
Bolt Assemblies
1/4 x 1-1/2" Hex
Bolt Assemblies

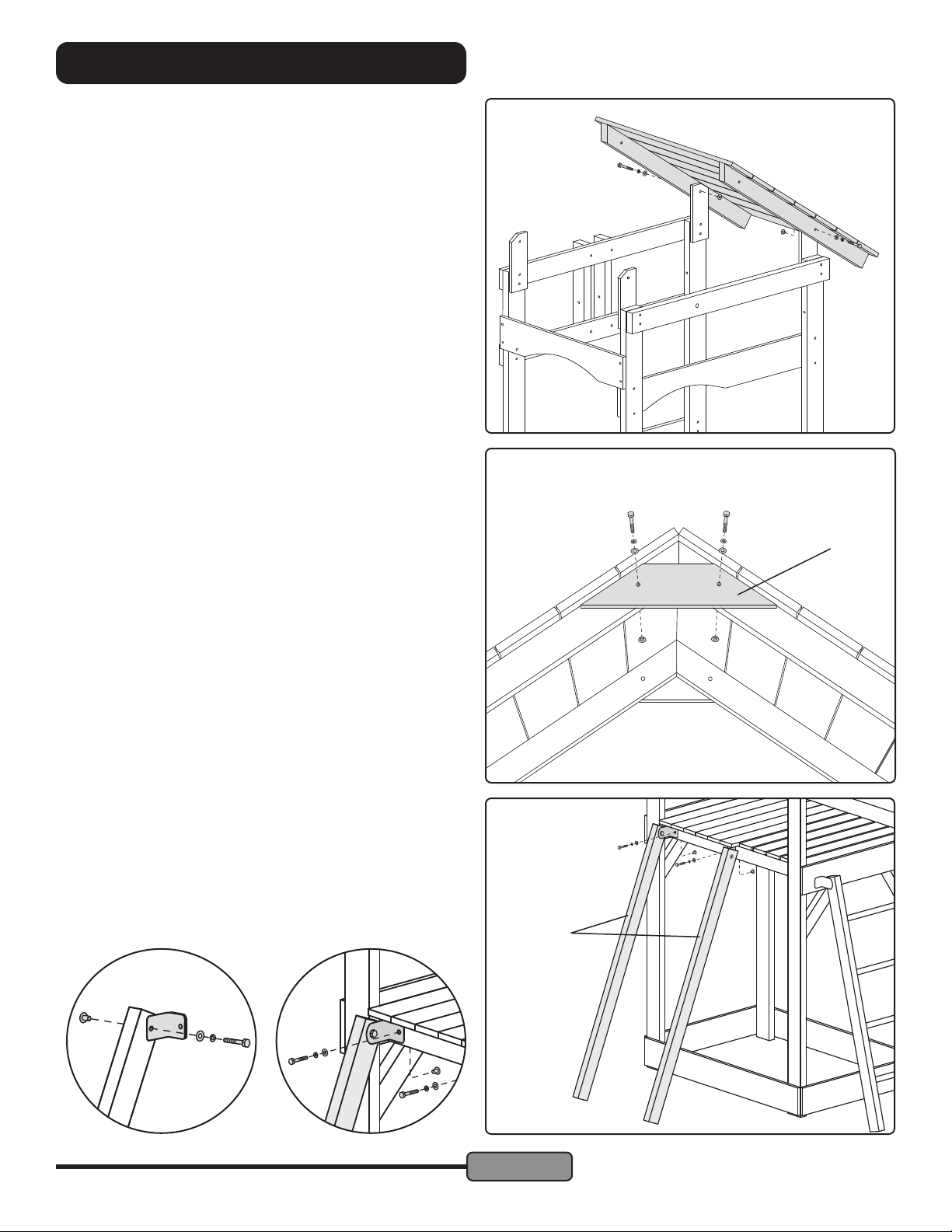

STEP 18 — Ceiling Joists:
Adjust the Roof Panels so that the angled ends are even
with each other. Fasten a Ceiling Joist (Z) to the outside of
the Rafters on each end of the roof. Use two 1/4 x 2" Hex
Bolt Assemblies.
STEP 17 — Roof Panels to Roof Uprights:
Fasten one Roof Panel assembly to the back Roof Uprights
using 1/4 x 2-1/2" Hex Bolt Assemblies.
Repeat with the other Roof Panel on the front Roof Uprights.
Rest the angled ends Roof Panels against each other.
STEP 19 — Rock Uprights:
Fasten one Access Bracket to the top of each Rock Upright
(AH) using one 1/4 x 1-1/2" Hex Bolt Assembly.
Fasten each Rock Upright Bracket to the Platform Right, as
shown, using one 1/4 x 1-1/2" Hex Bolt Assembly.

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 17
ASSEMBLY INSTRUCTIONS
1/4 x 1-1/2"
Hex Bolt
1/4" Lock
Washer
8mm Flat
Washer
AJ
AD
AI
AKa
#10 x 2" Screws
for all Boards.
Gaps approx. 7/8"
Which is the thick-
ness of the boards.
STEP 22 — Short Wall Slats:
Evenly space ve Short Wall Slats (Y) between the left corner
posts, against the inside of the Left Wall Support and Lower Wall
Support as shown at right. The gap between the Slats will be
approximately 3-1/8".
Use a level to ensure that each Slat is plumb. Fasten each using
four #8 x 1-1/4" Screws.
3-1/8"
#8 x 1-1/4"
Screws
Parts omitted
for clarity
Y

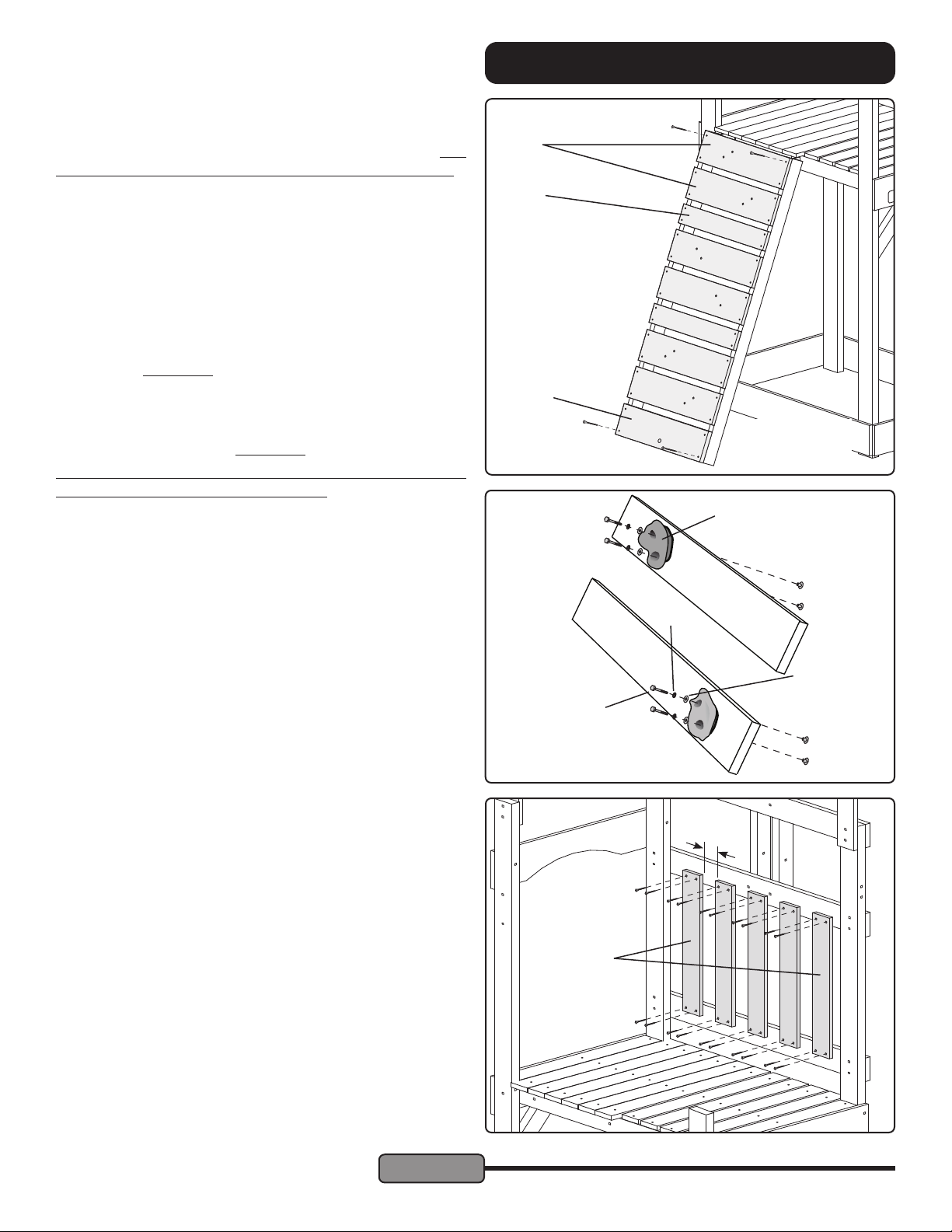

STEP 20 — Rock, Rope & Spacer Boards:
Fasten one Rock Board (AD) to the top of the Rock Uprights
using two #10 x 2" Screws, in the top corner holes only. Drill
1/8" diameter pilot holes for the screws to prevent splitting.
Fasten the Rope Board (AI) to the bottom of the Rock Up-
rights using two #10 x 2" Screws, in the bottom corner holes
only. Drill 1/8" diameter pilot holes for the screws to prevent
splitting.
Measure the diagonal distance from the top left corner of the
Rock Board to the bottom right corner of the Rope Board.
Measure the opposite diagonal. Adjust the position of the
Rock Uprights until the diagonal measurements are equal.
Secure the Rock Board and Rope Board using #10 x 2"
Screws with pilot holes.
Evenly space the remaining ve Rock Boards (AD) and two
Spacer Boards (AJ) between the top Rock Board and Rope
Board in the pattern shown at right. Secure each board us-
ing #10 x 2" Screws with pilot holes.
The gaps will be approximately 7/8". Use a rock or spac-
er board thickness to gauge the gap.
STEP 21 — Climbing Rocks:
Fasten one Climbing Rock AK) to each Rock Board using
two 1/4 x 1-1/2" Hex Bolts, 1/4 Lock Washers, 8mm Flat
Washers and 1/4" Weld Nuts.

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 18
ASSEMBLY INSTRUCTIONS

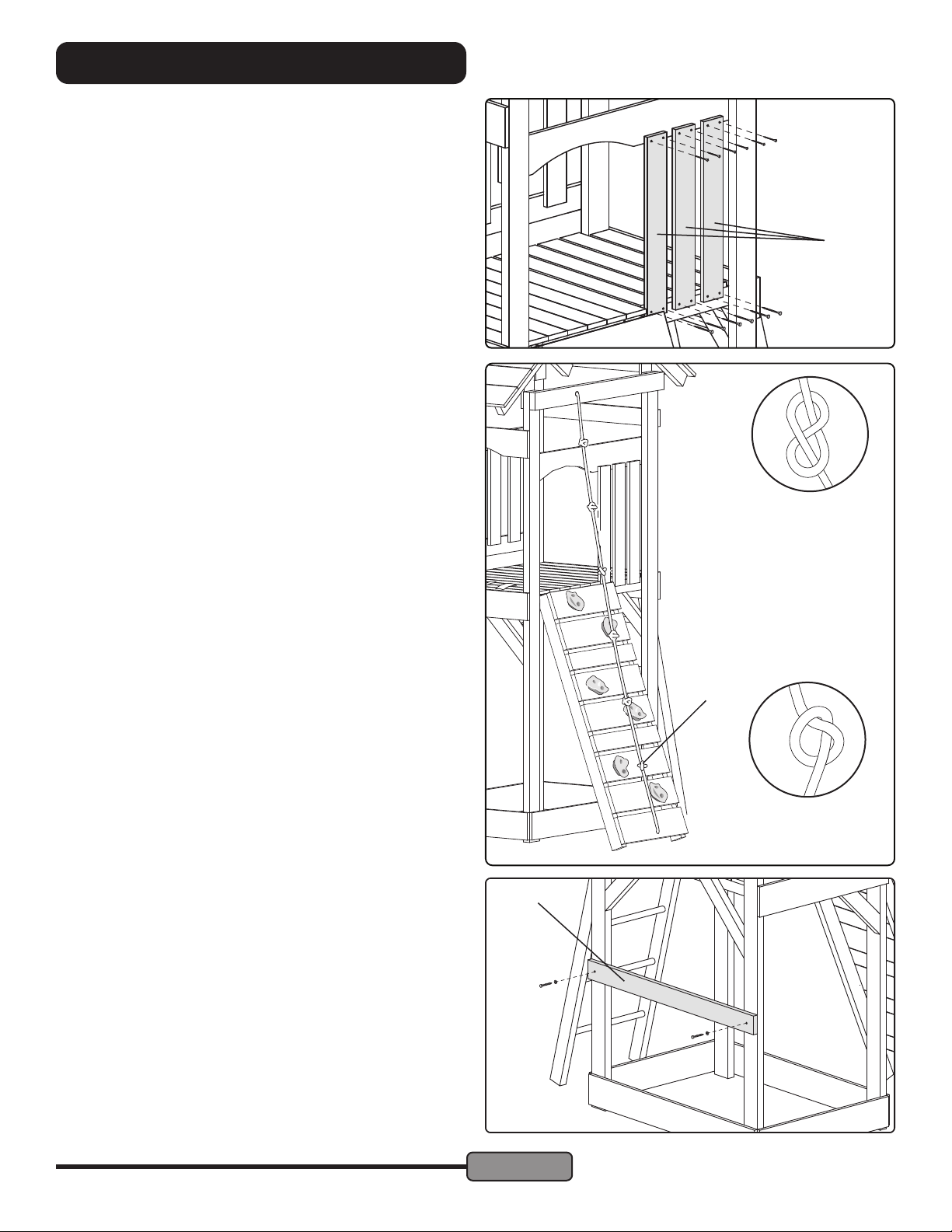

STEP 24 — Climbing Rope:
Push one end of the Climbing Rope (AN) through the hole in
the Top Rope Support. Tie a gure-eight knot at the end of
the rope, inside the gym. Leave at least 3" of rope extending
beyond the knot inside the gym.
From the outside of the gym, tie an overhand knot approxi-
mately every 9" along the length of the rope. Make sure each
knot is tight.
Push the loose end of the rope through the hole in the Rope
Board. Pull the rope taut and tie a gure-eight knot to secure
it.
Set the Rock Uprights into the playground surface to
ensure that the bottom rope connection is as close to
the ground as possible.
IMPORTANT: Check the rope often. At no time should
the bottom end of the rope be untied or the rope loose
enough to form a loop. This presents extreme danger to
children.
AF
AN
Figure Eight
Knot
If the rope is too
long, tie extra
knots along the
length of the
rope. If too short,
remove knots.
Overhand
Knot
STEP 25 — Safety Rail:
Fasten the Safety Rail (AF) to the left posts using one 1/4
x 2" Lag Screw and Flat Washer in each end. Use the pre-
piloted holes provided.
1/4 x 2" Lag Screws
STEP 23 — Wall Slats:
Fasten three Wall Slats (AC) in place as shown.
Use #8 x 1-1/4" Screws for the upper holes.
Use #10 x 1-5/8" Screws in the lower holes.
Evenly space the Slats between the Narrow Deck Board and
Back Right Post.
The gap between the Slats will be approximately 1-1/2". Use a
level to ensure the Slats are Plumb.
AC
#10 x 1-5/8" Screws
in the bottom holes.
#8 x 1-1/4" Screws
in the top holes.

MODEL PSRAL
19864-300 Rev A (07-20)
© Copyright 2014, Creative Playthings Page 19
ASSEMBLY INSTRUCTIONS
AO
AO

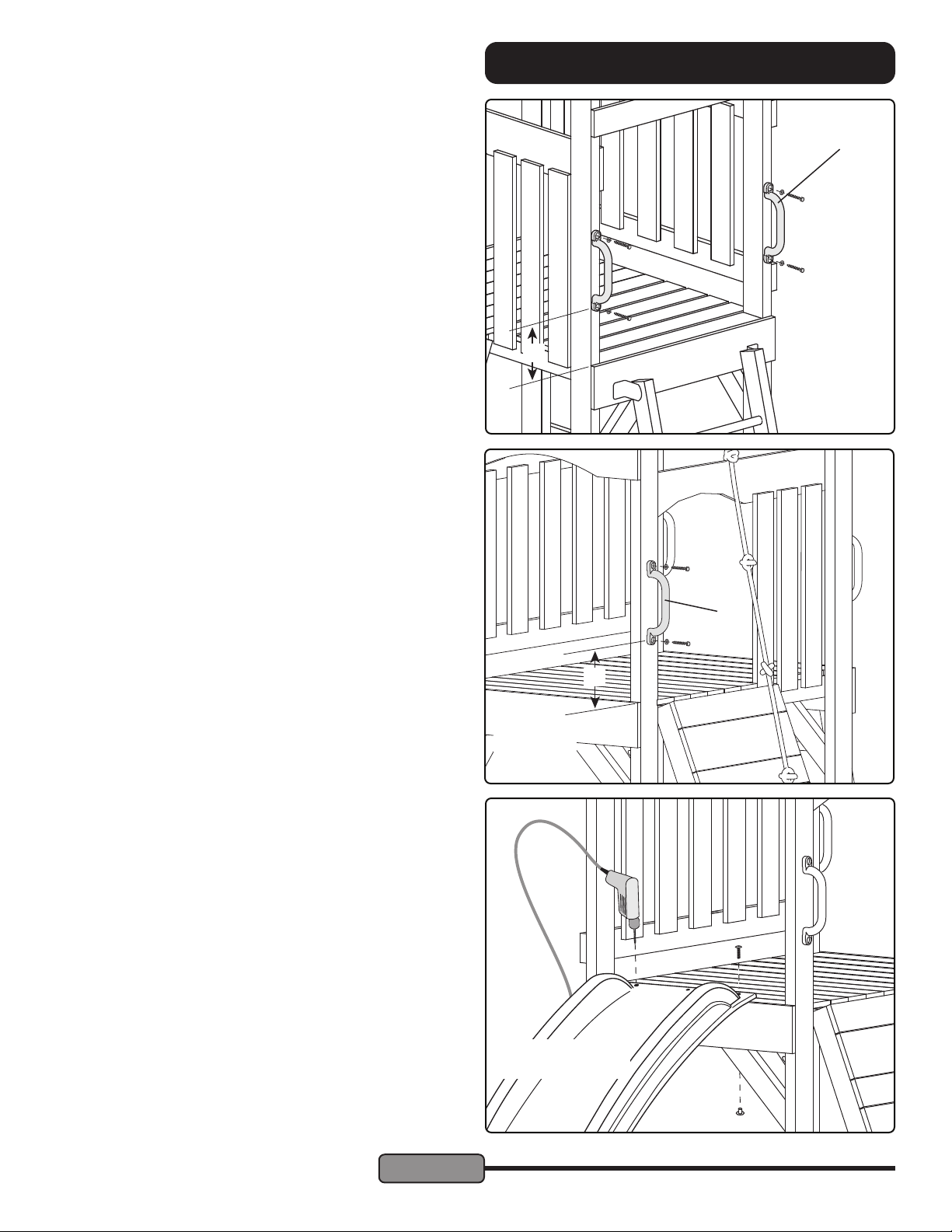

STEP 27 — Rock Hand Grip:
Hold one Hand Grip (AO) against the right face of the front
right Post next to the Rock Climber. The lower hole should
be 8" above the top of the platform.
Fasten with 1/4 x 1-1/2" Lag Screws and Flat Washers, us-
ing the pre-drilled holes provided.
STEP 26 — Back Hand Grips:
Hold one Hand Grip (AO) against the back face of the back
right Post above the Access Ladder. The lower hole should
be about 8" above the top of the platform.
Fasten with 1/4 x 1-1/2" Lag Screws and Flat Washers, us-
ing the pre-drilled holes provided.
Repeat with another Hand Grip against the back of the back
left Post.
1/4" x 1-1/2" Lag
Screws
8"
8"
1/4" x 1-1/2"
Lag Screws
STEP 28 — Slide:
Center the Slide (AP) in the opening in the tower front as
shown. Make sure the Slide extends out perpendicular from
the play set.
Using the holes in the slide for guides, drill 5/16" diameter
holes through the Platform Boards and secure the Slide us-
ing 1/4" x 1" Truss Head Bolts from the top and 1/4" Weld
Nuts from below.
Note: Depending on the Slide, you may nd the holes you
drill encounter a framing member. If so, stop drilling after
piercing the Deck Board. Loosen the Deck Board and insert
the Weld Nuts from the underside. If desired, a 1" spade drill
bit can be used to clear a space for the base of the Weld Nut
in the Framing Member. Re-attach the Platform Board and
continue securing the Slide.
1/4" x 1" Truss Head
Bolts with weld nuts.

© Copyright 2014, Creative Playthings
MODEL PSRAL
19864-300 Rev A (07-20) Page 20
ASSEMBLY INSTRUCTIONS

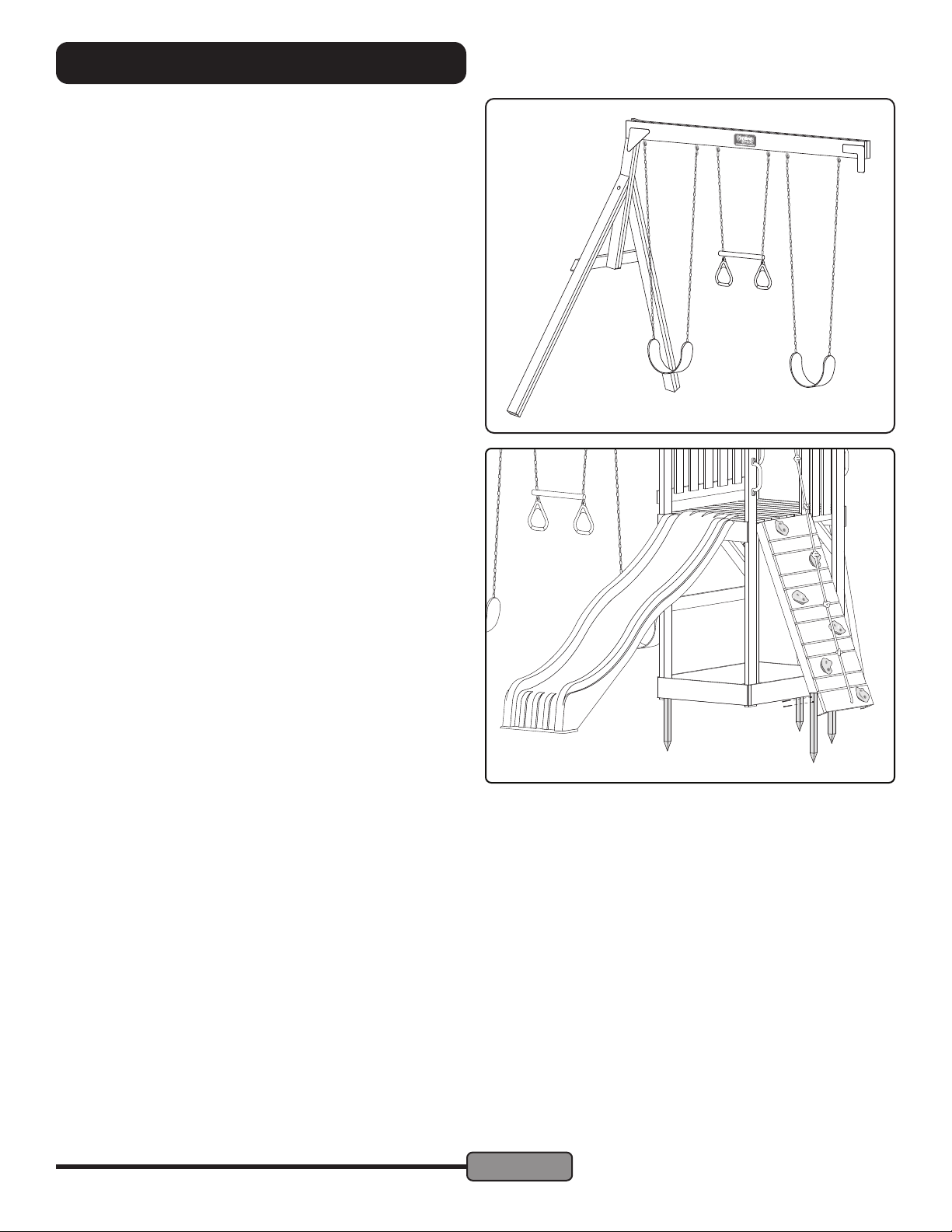

STEP 29 — Swing Beam & Swings:
Install the Swing Beam as instructed by the assembly guide
included with the Beam.
Hang the Swings and Ring Trapeze in the positions shown
at right.
U.S. safety standards require a minimum clearance of 8"
from the bottom of each Swing Accessory to the ground.
U.K. (& E.U.) safety standards require a minimum clearance
of 350mm (13-3/4") between the bottom of each Swing Ac-
cessory and the ground.
The height of each Swing Accessory is adjusted by using a
different link in the chain. Be sure to hang the Swings Ac-
cessories with ground clearance greater than or equal to the
safety standard for your region.
STEP 30 — Ground Stakes:
Hammer two Ground Stakes (L) next to the Front Left Post
and Back Right Post as shown. The top of the Ground Stake
should be minimum of 1/8" below the top of the Sandbox
Sides. Secure each stake to the adjacent Post using two #10
x 2-1/2" Screws through the pre-drilled holes.
Hammer Ground Stakes next to the Access Ladder and Rock
Upright. Secure each stake with two #10 x 2-1/2" Screws
through the pre-drilled holes. Secure the Beam Legs in the
same manner.
Note: Do NOT use concrete to set Ground Stakes. Pound a
metal spike or rod into the ground to start a hole in hard or
rocky ground.
Inspect your work; make sure all fasteners are secured prop-
erly and the area is clear of hazards before allowing children
on the Swing Set.
Save all instruction sheets and receipts in case it becomes necessary to contact
Creative Playthings for warranty service and/or part replacement. The warranty
can be found in your Owner’s Manual.
