Creda C90RCDFTBL User manual

MODEL/S
C90RCDFTBL
C90RCDFTCRM
C90RCDFTA
C90RCDFTS
C90RCDFCBL
INSTRUCTION
MANUAL
90CM DUAL FUEL
3 CAVITY RANGE
COOKER
V 1.0

INSTRUCTION
MANUAL
2
You’ll soon be enjoying your new CredaRange Cooker!
It all begins here, with your instructions. Don’t worry, there’s nothing too
technical coming up. Just simple, step-by-step guidance to get you up and
running quickly. Sound good? Then let’s get started.
Help and Guidance
We’re here to help you get the most from your Range Cooker.
Should you require any guidance, a simple solution can often be found online at:
www.creda.co.uk
If you still require further assistance, call one of our experts on 01759 487836.
If you require any technical guidance or find that your product is not operating as intended, a simple solution can often
be found in the Troubleshooting section of these instructions, or online at www.creda.co.uk If you still require further
assistance, call one of our experts on 01759 487836.

INSTRUCTION
MANUAL
3
Contents
PAGE
4
7
8
10
13
16
21
23
25
27
32
—
Safety Information
Getting to Know Your Appliance
Overview
Installation Advice
Electrical and Gas Connections
Using Your Appliance
General Oven and Cooking Tips
Oven Doors Installation and Care
Using the Hob
Care and Maintenance
Product Support

INSTRUCTION
MANUAL
4
SAFETY INFORMATION
Important: Please read these instructions fully before installing or operating
INSTALLATION WARNINGS
IMPORTANT: Prior to Installation ensure that the local supply conditions (electricity voltage and frequency) are
compatible with the requirements of your Range cooker.
IMPORTANT: Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use
the appliance and contact Creda Product Support on 01759 487836. Packaging materials should be collected
together and disposed of immediately as they may be harmful to children.
IMPORTANT: Keep the electrical cable (not supplied) of your built-in oven away from the hot areas of your appliance,
do not let the cable touch the appliance. Keep the cable away from sharp edges and heated surfaces.
IMPORTANT: Ensure that the electric supply cable is not trapped or damaged during installation.
IMPORTANT: In the event that the cable connecting your freestanding cooker becomes damaged, it must be
replaced by a suitably qualified person. This cable must not be replaced by an unauthorised person.
IMPORTANT: Protect your freestanding cooker against atmospheric effects. Do not expose your cooker to effects
such as sun, rain, snow etc.
IMPORTANT: The materials surrounding the appliance (cabinets) must be able to withstand a minimum temperature
of 100°C.
IMPORTANT: When using your oven for the first time your cooker may give off an unusual odour from the heating
elements and insulation materials. This is normal for cooking appliances. To eliminate this odour run the oven at 250
degrees for 40-60 mins with the oven empty.
WARNING: Before obtaining access to terminals, all supply circuits must be disconnected.
DURING USAGE
IMPORTANT: This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.

INSTRUCTION
MANUAL
5
WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching
heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
WARNING: NEVER try to extinguish a cooking fire with water. Instead switch off the appliance and cover flame e.g
with a lid or a fire blanket.
CAUTION: Do not allow children in the kitchen when cooking or after, as the parts may still be hot. Many parts of the
cooker will become hot and present a considerable hazard to children.
CAUTION: When the cooker is hot never touch the oven glass by hand or with tools.
CAUTION: Before starting to use your appliance, ensure curtains, paper or flammable items are kept away from your
appliance. Do not keep flammable materials inside of or around your cooker.
CAUTION: Take care when closing the oven door that there is nothing obstructing it from closing as this may break
the glass door.
IMPORTANT: When using the grill, the oven door must be kept closed.
IMPORTANT: Make sure the oven control knobs are all in the off position when not in use.
IMPORTANT: If you do not intend to use your built- in oven for a long period of time turn off the electric supply to the
oven.
GENERAL SAFETY WARNINGS
IMPORTANT: This appliance has been designed for non-professional, domestic use only. Do not use this oven for
commercial use or any other application e.g. room heating.
WARNING: Danger of fire: do not store flammable items on or near the cooking surfaces or inside the oven.
IMPORTANT: Do not try to lift or move this appliance by pulling on the door handle.
WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric
shock.
IMPORTANT: Your appliance is produced in accordance with all applicable local and international standards and
regulations.
IMPORTANT: Maintenance and repair work must only be performed by authorised service technicians. Installation
and repair work that is carried out by unauthorised technicians is dangerous and could invalidate your guarantee.
IMPORTANT: When the door of the oven is open, do not hang or lean anything on it. You may unbalance your
appliance or damage the door or door hinges.
IMPORTANT: Do not hang towels, dishcloths or clothes from the built-in oven or its handles.

INSTRUCTION
MANUAL
6
CLEANING AND MAINTENANCE
IMPORTANT: Always turn the appliance off before operations such as cleaning or maintenance. You can do this by
switching the built-in oven off using cooker isolation switch.
IMPORTANT: Do not remove the control knobs to clean the control panel.
WARNING: Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the glass.
TO MAINTAIN THE EFFICIENCY AND SAFETY OF YOUR APPLIANCE, WE RECOMMEND YOU
ALWAYS USE OUR AUTHORISED SERVICE AGENTS AND ORIGINAL SPARE PARTS.
FOR ASSISTANCE CALL CREDA PRODUCT SUPPORT 01759 487836

INSTRUCTION
MANUAL
7
Getting to Know Your Appliance
You’ll be up and running in no time!
Ready? Let’s begin...
Please read these instructions carefully. They contain important information which will help you get the best from
your freestanding cooker and ensure safe and correct installation and operation.
If you require any further assistance, our technical experts are happy to help. For full details, refer to the product
support section at the end of these instructions.

INSTRUCTION
MANUAL
8
OVERVIEW
Flame failure device (FFD) - is a part of the gas burner system that ensures that the fuel supply to the gas hob is cut
off automatically and immediately if for any reason the flame goes out or becomes unstable.
Wok Burner - Offers a double ring flame system which delivers high temperatures that are idea for hot / fast
cooking.
1. Gas hob
2. 6 button Programmer
3. Grill oven temperature
4. Bottom Left oven temperature
5. Grill Door
6. Handle
7. Right hand oven temperature
8. Grill pan
9. Wire rack
10. Lamp
11. Wire rack
12. Oven pan
FFD

INSTRUCTION
MANUAL
9
Accessories
* Not all accessories are included with your purchase

INSTRUCTION
MANUAL
10
Installing your Freestanding Cooker
Bringing it all together
Installation requirements
THIS COOKER MUST BE INSTALLED BY A QUALIFIED INSTALLER IN ACCORDANCE WITH LOCAL
REGULATIONS
IMPORTANT: CONTACT AN AUTHORISED SERVICE AGENT FOR INSTALLATION OF YOUR OVEN!
First Use
IMPORTANT: When using your oven for the first time your cooker may give off an unusual odour from the heating
elements and insulation materials. This is normal for new cookers. To eliminate this odour run the oven at 250
degrees for 40-60 mins with the oven empty.
Unpacking
Carefully unpack and examine the appliance for any damage. If you think there is a defect, do not use the appliance
and contact Product Support on 01759 487836.
Positioning
1. Make sure that there are no combustible or flammable materials, suchas curtains, in the vicinity of the installation.
2. Furniture and cabinets surrounding the cooker must be of material resistant to temperatures greater than 50°C.
3. Surrounding furniture, cabinets and extractor fans should be positioned in accordance with the diagram shown in the
figure
4. There must be at least 2cm of free space between the back wall and the rear of the appliance to allow for ventilation
and air circulation.
5. If fitted, the extractor fan must be at least 65cm above the hotplates. If no fan is fitted the minimum distance between
the hotplates and any cabinet or other structure must be 75cm.

INSTRUCTION
MANUAL
11
Right Place for Installation and Important warnings
Appliance feet should not stay on soft surfaces such as carpets. The kitchen floor shall be durable to carry the unit
weight and any other kitchenware that may be used on the oven.
The appliance is suitable for use on both side walls, without any support, or without being installed in a cabinet. If a
hood or aspirator will be installed above the cooker, follow the instructions of the manufacturer for height of
mounting. (min. 650 mm).
WARNING: The kitchen furniture near the appliance must be heat resistant.
WARNING: Do not install the appliance beside refrigerators or coolers. Heat radiated by the appliance increases the
energy consumption of cooling devices.
WARNING: Do not use the door and/or handle to carry or move the appliance.

INSTRUCTION
MANUAL
12
Levelling Feet
The height and level of the appliance can be adjusted by rotating the feet located underneath the appliance at each
corner. Rotate the feet todecrease or increase the height.
Safety Chain
The appliance must be secured against overbalancing by using the supplied two safety chains on your oven.
Fastenhook (1)by using a proper peg to thekitchen wall (5) andconnectsafety chain
(3) to the hook via the locking mechanism (2).
1
2
1. Safety chain (supplied and mounted to oven)
2. Stability hook
3. Firmly fix chain to cooker rear
4. Rear of cooker
5. Kitchen wall

INSTRUCTION
MANUAL
13

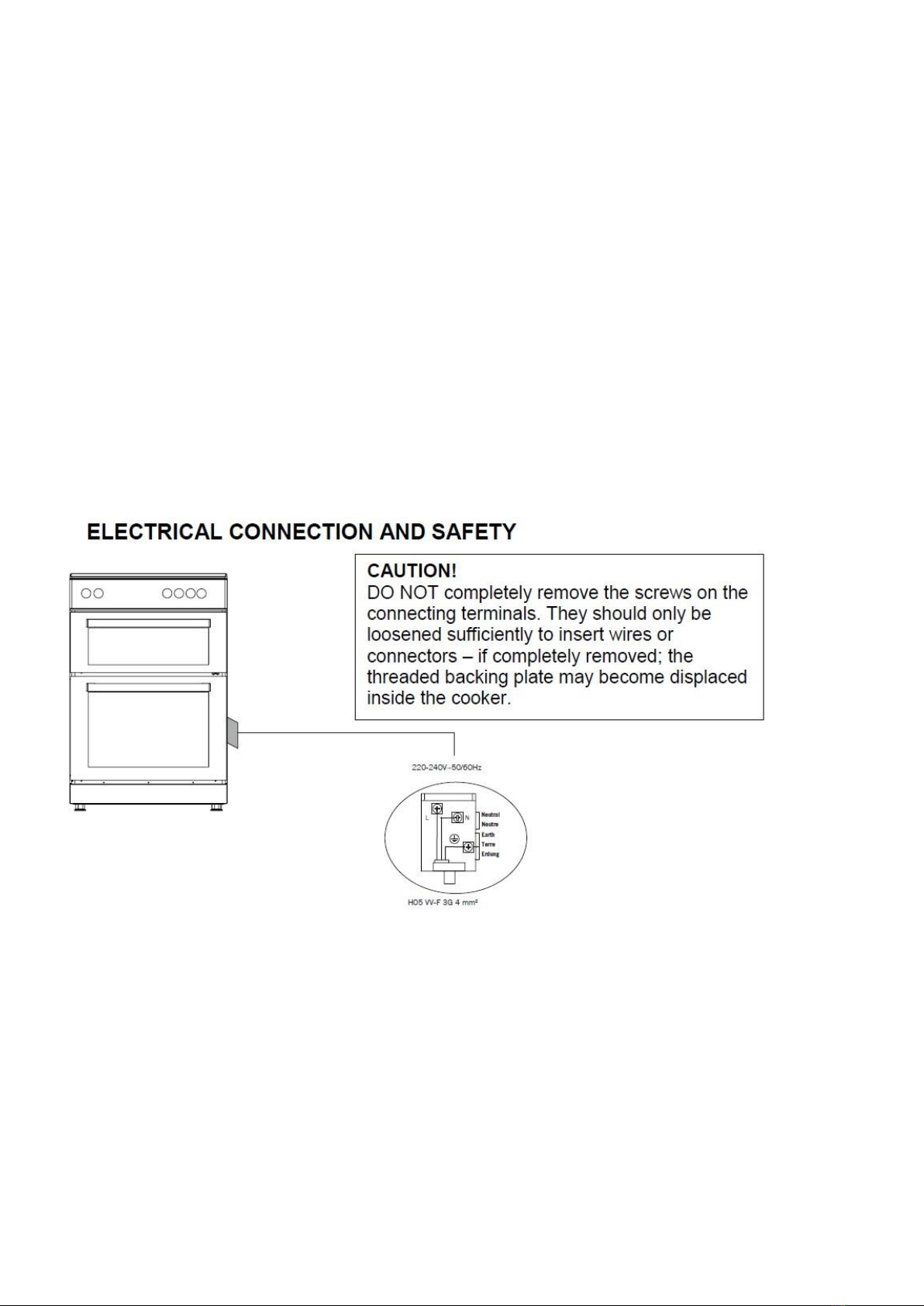

Electrical Connection
IMPORTANT: Electrical connections must be carried out by a suitably qualified person and in accordance with all
relevant local building and installation regulations.
Fitting on a Power Supply Cable
Connecting appropriate power supply ` terminal board/ connector block:
⚫Using a screwdriver, prize open tabs of the Terminal board cover.
⚫Remove the wire clamp screw.
⚫
Fasten the wires beneath the corresponding screw heads, using brass ‘bridge’ for single phase supply.
⚫Fasten cable clamp and close the cover of the terminal board.
⚫The ac power supply should be 220-240 V, 50/60 Hz. For electric cookers, the minimum 45A fuse, or at least 45A a
distribution circuit breaker.
Connecting the supply cable to the mains
Install an approved circuit breaker with a minimum contact opening of 3 mm, between the appliance and the mains
fuse box.The circuit breaker should be sized according to the load and should comply with current regulations (the
earth wire should not be interrupted by the circuit breaker).
The supply cable should be positioned so that it does not reach a temperature of more than 50℃with respect to
the room temperature, anywhere along its length Before switching fuse ON in meter-box check:
⚫Earth continuity. The electrical safety of this appliance can only be guaranteed if the cooker is correctly installed and
earthed, in compliance with regulations on electrical installations.
⚫The electrical capacity of the system and sockets will support the maximum power of the appliance, as indicated on
the data plate.

INSTRUCTION
MANUAL
14
Gas Connection
IMPORTANT: All gas installations must be carried out by a suitably qualified technician.
For information on choosing a gas safe installer, contact the Gas Safe Register.
www.gassaferegister.co.uk
WARNING: Before starting any work related with gas installation, turn off gas supply. Risk of explosion.
1.Before your appliance is connected to the gas supply, ensure that the gas category and pressure specifications
shown in the data plate corresponds with your gas supply. If necessary, call authorized service for adjusting to gas
category.
2. This appliance shall be installed in accordance with the regulations in force and only used in a well ventilated
space. Read the instructions before installing or using this appliance. In the interest of safety this appliance must be
installed and / or serviced by a competent person as stated in the gas safety regulations current editions.
3.The appliance must not be installed in a room without a window or other controllable opening. If is installed in a
room without a door which opens directly to the outside, a permanent opening is required. The air circulation should
be 2 m³/h per kW of burners.
4.The gas connection should be performed from the right or left. For this reason, change the hose nozzle, plug and
the seals.
5. Please use flexible hose for gas connection.
6. If you make a connection with a flexible metal hose, locate a seal between the main gas pipes.
7.The inner diameter of the flexible hose, which the butane hose nozzle is connected, should be 6 mm for the
house-type gas tubes. The inner diameter of the flexible hose, which the natural hose nozzle is connected, should be
15 mm. The hose should tightly be fitted to the hose nozzle by squeezing with a clamp. The hose should be replaced
before its last expiry date.
8.CAUTION: Make the oven connection to the gas inlet valve, the hose length must be short and be sure that there
is no leakage. The flexible hose used should not be longer than 125 cm for safety.
9.Re-inspect the gas connection.
10. When placing your oven to its location, ensure that it is at the counter level. Bring it to the counter level by
adjusting the feet if necessary.
WARNING: Do not make gas hose and electrical cable of your oven go through the heated areas, especially through
the rear side of the oven. Do not move gas connected oven. Since the forcing shall loosen the hose, gas leakage
may occur.
WARNING: The gas hose must not be clamped, bent are trapped or come into contact with hat parts of the product.
There is the risk of explosion due to damaged gas hose.
Reduce flame gas cock adjustment
1. Please use driver with special head for removed and install nozzle as (figure 3).
2. Please remove nozzle (figure 4) from burner with special nozzle driver and install new nozzle. (figure 5)

INSTRUCTION
MANUAL
15
Ventilation of room
The air needed for burning is received from room air and the gases emitted are given directly in room. For safe
operation of your product, good room ventilation is a precondition. If no window or room to be utilized for room
ventilation is available, additional ventilation should be installed. However, room has a door opening outside, it is no
needed to vent holes.
Reduced gas flow rate setting for hob taps
1. Ignite the burner that is to be adjustment and turn the knob to the reduced position.
2. Remove the knob from the gas tap.
3. Use an appropriately sized screwdriver to adjust the flow rate adjustment screw. For LPG (butane-pro pane) turn
the screw clockwise. For the naturel gas, you should turn the screw counter- clockwise once.“The normal length
of a straight flame in the reduced position should be 6-7 mm.“
4. If the flame is higher then the desired position, turn the screw clockwise. If it is smaller turn anti-colockwise.
5. For the last control, bring the burner both to higt-flame and reduced positions and check whether the flame is on
or off.
Depending on the type of gas tap used in your appliance the adjustment screw position may vary.
To adjust your oven acc. to the gas type, make the adjustment for reduced flame carefully by turning with a small
screwdriver as shown below on the screw in the middle of the gas cocks as well as nozzle changes. (figure 6 and
7)

INSTRUCTION
MANUAL
16
Using Your Appliance
Control panel
1. Temperature Controls top left Grill
–Set temperature for the grill
2. Temperature control for left main oven cavity
–Sets function & temperature for cooking in left oven
3. Three button programmer timer
–Programs cooker and controls cooking times
4. Front left hob burner
–Adjusts temperature of the hotplate
5. Back Left hob burner
–Adjusts temperature of hotplate
6. Middle Hob burner
–Adjust temperature of hotplate
7. Back right hob burner
–Adjusts temperature of hotplate
8. Front right hob burner
–Adjusts temperature of hotplate
9. Temperature control right hand side oven
–Sets function & temperature for cooking in right oven.
1
2
3
4
5
6
7
8
9

INSTRUCTION
MANUAL
17
Oven Functions
Grill
Fan Oven
Grill: The top central heating elements comes on. The extremely high and direct temperature of the grill makes it
possible to brown the surface of meats and roasts while locking the juices in to keep them tender. The grill is also
highly recommended for dishes that require a high temperature on the surface: beef steaks, veal, rib steak, fillets,
hamburgers etc.
Fan Oven: When set to Fan mode, the element and the fan operate providing a consistent heat distributed uniformly
throughout the oven. This mode is ideal for baking and cooking foods on multiple shelves at the same temperature.
Oven light -The oven light will operate on all oven functions.
Oven Light: The oven light will operate on all oven functions
Using your Appliance for the First Time
The first time you use your appliance, we recommend that you set the temperature setting to the highest mark. Set
the function switch control knob to a cooking mode and leave the oven on for about 40-60 minutes with nothing in it
and the oven door shut. Then, open the oven door and allow the oven to cool Any odour that may be detected during
this initial use is due to the evaporation of substances used to protect the oven during storage.

SCREEN SYMBOLS
Oven status indication
• On: Cooking or ready for cooking.
• Off: No cooking.
Minute minder status indication
• On: Minute minder alarm active.
• Flashing: Minute minder adjustment mode, adjustment possible by
or buttons or current minute minder alarm completed.
• Off: Minute minder is not active.
Child lock indication
• On: Child Lock is active.
• Off: Child Lock is inactive.
Automatic cooking status indication
• On: Full or semi auto-cooking active.
• Flashing: Auto cooking completed or power on condition.
• Off: No auto cooking active.
Minus button Plus button
Time of day
adjustment button
1H10-20-340-001 / GB Rev 001
It is an electronic timing module enabling your food you have put in the oven to be
ready for service at any time you like. The only thing you need to do is to programme the
cooking time of the food and also the time when you would like your food to be ready.
It is also possible to use a minute-programmed alarm clock independent from the oven.
The case where the time clock is behind or ahead is not a malfunction. The oven time
clock may be put back or ahead according to mains frequency as it runs directly with
mains voltage. This is not a malfunction.
POWER ON
At power on, oven is inactive, time of day and ªSYMBOLSªAREªmASHINGª4HEªINDICATEDª
time of day is not correct and has to be adjusted. Press to activate the oven and
proceed adjusting the time of day as below.
TIME OF DAY ADJUSTMENT
Time of Day adjustment is only possible when no cooking program is in progress.
Press and simultaneously for 3 seconds to enter the adjustment mode and then
THEªDOTªSYMBOLªINªBETWEENªHOURSªANDªMINUTESªDIGITSªWILLªSTARTªTOªmASH5SINGªEITHERª and
adjust the desired duration. The maximum adjustable duration is 23h 59 minutes.
Adjustment mode will be abandoned within 6 seconds after the last button press or can
be terminated immediately by pressing the button.
Note: 4IMEªOFªDAYªADJUSTMENTªISªALSOªACTIVATEDªINªlRSTªªSECONDSªAFTERªPOWERªON
SETTING THE MINUTE MINDER
With this function, you can adjust a duration in minutes. After the adjusted time has
been elapsed, an alarm sound will be produced.
Press button once to enter the minute minder adjustment mode, symbol will
STARTªmASHINGªONªTHEªSCREEN 5SINGªEITHERª or , adjust the desired duration. The
maximum adjustable duration is 10 hour. Adjustment mode will be abandoned within
6 seconds after the last button press or can be terminated immediately by pressing
the button.
CANCELLING THE ALARM BUZZER SOUND
Once the adjusted minute minder duration is elapsed, the buzzer alarm will start to
SOUNDªACCOMPANIEDªBYªTHEªmASHINGª symbol on the screen. Any button press will
stop the alarm sound and this indication. If no button is pressed, the alarm sound will
ENDªAUTOMATICALLYªAFTERªªMINUTESªBUTªTHEªmASHINGªSYMBOLªWILLªGOªON
2
18
INSTRUCTION
MANUAL

It is an electronic timing module enabling your food you have put in the oven to be
ready for service at any time you like. The only thing you need to do is to programme the
cooking time of the food and also the time when you would like your food to be ready.
It is also possible to use a minute-programmed alarm clock independent from the oven.
The case where the time clock is behind or ahead is not a malfunction. The oven time
clock may be put back or ahead according to mains frequency as it runs directly with
mains voltage. This is not a malfunction.
POWER ON
At power on, oven is inactive, time of day and ªSYMBOLSªAREªmASHINGª4HEªINDICATEDª
time of day is not correct and has to be adjusted. Press to activate the oven and
proceed adjusting the time of day as below.
TIME OF DAY ADJUSTMENT
Time of Day adjustment is only possible when no cooking program is in progress.
Press and simultaneously for 3 seconds to enter the adjustment mode and then
THEªDOTªSYMBOLªINªBETWEENªHOURSªANDªMINUTESªDIGITSªWILLªSTARTªTOªmASH5SINGªEITHERª and
adjust the desired duration. The maximum adjustable duration is 23h 59 minutes.
Adjustment mode will be abandoned within 6 seconds after the last button press or can
be terminated immediately by pressing the button.
Note: 4IMEªOFªDAYªADJUSTMENTªISªALSOªACTIVATEDªINªlRSTªªSECONDSªAFTERªPOWERªON
SETTING THE MINUTE MINDER
With this function, you can adjust a duration in minutes. After the adjusted time has
been elapsed, an alarm sound will be produced.
Press button once to enter the minute minder adjustment mode, symbol will
STARTªmASHINGªONªTHEªSCREEN 5SINGªEITHERª or , adjust the desired duration. The
maximum adjustable duration is 10 hour. Adjustment mode will be abandoned within
6 seconds after the last button press or can be terminated immediately by pressing
the button.
CANCELLING THE ALARM BUZZER SOUND
Once the adjusted minute minder duration is elapsed, the buzzer alarm will start to
SOUNDªACCOMPANIEDªBYªTHEªmASHINGª symbol on the screen. Any button press will
stop the alarm sound and this indication. If no button is pressed, the alarm sound will
ENDªAUTOMATICALLYªAFTERªªMINUTESªBUTªTHEªmASHINGªSYMBOLªWILLªGOªON
2
SEMI AUTOMATIC COOKING
4HISªCOOKINGªPROGRAMªISªINTENTEDªTOªSTARTªCOOKINGªIMMEDIATELYªFORªAªSPECIlEDªDURATIONª
After the oven is set to the desired function and temperature via the oven knobs:
1. Press the button twice, ªSYMBOLªWILLªmASHªONªTHEªSCREENª and duration
of cooking will show on the screen one after another.
2.ª5SINGª or buttons, adjust the desired cooking duration.
3. After 6 seconds of the last button press or by pressing twice, the adjustment
is completed. will be steady on the screen and the display shows the current time
of day.
FULL AUTOMATIC COOKING
This cooking program is intented to perform a delayed cooking by programming the
time of day, when the food should be ready. In other words, the oven will start cooking
not immediately but will automatically calculate the time to start cooking.
1. Perform step 1 and 2 of the semi auto cooking as above (cooking duration
adjustment).
2. Press button once again, ªSYMBOLªWILLªmASHªONªTHEªSCREENªANDªDURATIONªOFª
cooking will show on the screen one after another.
3. 5SINGª or buttons, adjust the desired end of cooking time. symbol will
disappear but ªSYMBOLª WILLªBEªSTILLª mASHINGªONªTHEªSCREENª4HISªINDICATESªTHATªANª
automatic cooking is programmed but cooking has not started yet.
4. After 6 seconds of the last button press or by pressing , the adjustment will be
completed, the display shows the current time of day.
%.$ª/&ª!54/ª#//+é.'ª
7HENªTHEªCOOKINGªISªlNISHEDªAUTOMATICALLYªTHEª ªICONªSTARTSªTOªmASHª!LARMªMAYªBEª
turned off by pressing any key. To disable the key lock, press the key for 2 seconds.
Oven is taken to the manual mode by pressing the key. Audible alarm shall sound
FORªªMINUTESªIFªYOUªDOªNOTªPRESSªANYªKEY
3
SEMI AUTOMATIC COOKING
4HISªCOOKINGªPROGRAMªISªINTENTEDªTOªSTARTªCOOKINGªIMMEDIATELYªFORªAªSPECIlEDªDURATIONª
After the oven is set to the desired function and temperature via the oven knobs:
1. Press the button twice, ªSYMBOLªWILLªmASHªONªTHEªSCREENª and duration
of cooking will show on the screen one after another.
2.ª5SINGª or buttons, adjust the desired cooking duration.
3. After 6 seconds of the last button press or by pressing twice, the adjustment
is completed. will be steady on the screen and the display shows the current time
of day.
FULL AUTOMATIC COOKING
This cooking program is intented to perform a delayed cooking by programming the
time of day, when the food should be ready. In other words, the oven will start cooking
not immediately but will automatically calculate the time to start cooking.
1. Perform step 1 and 2 of the semi auto cooking as above (cooking duration
adjustment).
2. Press button once again, ªSYMBOLªWILLªmASHªONªTHEªSCREENªANDªDURATIONªOFª
cooking will show on the screen one after another.
3. 5SINGª or buttons, adjust the desired end of cooking time. symbol will
disappear but ªSYMBOLª WILLªBEªSTILLª mASHINGªONªTHEªSCREENª4HISªINDICATESªTHATªANª
automatic cooking is programmed but cooking has not started yet.
4. After 6 seconds of the last button press or by pressing , the adjustment will be
completed, the display shows the current time of day.
%.$ª/&ª!54/ª#//+é.'ª
7HENªTHEªCOOKINGªISªlNISHEDªAUTOMATICALLYªTHEª ªICONªSTARTSªTOªmASHª!LARMªMAYªBEª
turned off by pressing any key. To disable the key lock, press the key for 2 seconds.
Oven is taken to the manual mode by pressing the key. Audible alarm shall sound
FORªªMINUTESªIFªYOUªDOªNOTªPRESSªANYªKEY
3
19
INSTRUCTION
MANUAL

SEMI AUTOMATIC COOKING
4HISªCOOKINGªPROGRAMªISªINTENTEDªTOªSTARTªCOOKINGªIMMEDIATELYªFORªAªSPECIlEDªDURATIONª
After the oven is set to the desired function and temperature via the oven knobs:
1. Press the button twice, ªSYMBOLªWILLªmASHªONªTHEªSCREENª and duration
of cooking will show on the screen one after another.
2.ª5SINGª or buttons, adjust the desired cooking duration.
3. After 6 seconds of the last button press or by pressing twice, the adjustment
is completed. will be steady on the screen and the display shows the current time
of day.
FULL AUTOMATIC COOKING
This cooking program is intented to perform a delayed cooking by programming the
time of day, when the food should be ready. In other words, the oven will start cooking
not immediately but will automatically calculate the time to start cooking.
1. Perform step 1 and 2 of the semi auto cooking as above (cooking duration
adjustment).
2. Press button once again, ªSYMBOLªWILLªmASHªONªTHEªSCREENªANDªDURATIONªOFª
cooking will show on the screen one after another.
3. 5SINGª or buttons, adjust the desired end of cooking time. symbol will
disappear but ªSYMBOLª WILLªBEªSTILLª mASHINGªONªTHEªSCREENª4HISªINDICATESªTHATªANª
automatic cooking is programmed but cooking has not started yet.
4. After 6 seconds of the last button press or by pressing , the adjustment will be
completed, the display shows the current time of day.
%.$ª/&ª!54/ª#//+é.'ª
7HENªTHEªCOOKINGªISªlNISHEDªAUTOMATICALLYªTHEª ªICONªSTARTSªTOªmASHª!LARMªMAYªBEª
turned off by pressing any key. To disable the key lock, press the key for 2 seconds.
Oven is taken to the manual mode by pressing the key. Audible alarm shall sound
FORªªMINUTESªIFªYOUªDOªNOTªPRESSªANYªKEY
3
POWER INTERRUPTS
Product is not affected by short power failures (up to 50 seconds approximately), and
the timer and the clock shall resume working at this period.
Your oven shall be deactivated on other failures than short term power failures (that
ISªMOREªTHANªªSECONDSªDUEªTOªSAFETYªREASONSª4HISªISªINDICATEDªWITHªTHEªmASHINGªOFª
the clock and the on the screen. The clock shall be displayed as 12:00 and it should
be set again. (See power on)
Note: 4HEªmASHINGª symbol indicates that the oven is inactive and you have to enter
the manual mode.
CHILD LOCK
4HISª FUNCTIONª ISª INTENTEDª TOª PREVENTª ANYª UNAUTHORIZEDª MODIlCATIONª OFª THEª TIMERª
settings. This function will be active, within 30 seconds after the last button press.
will appear. To deactive it, press the button for 3 seconds. will disappear.
PROGRAMMABLE OPTIONS
Alarm tone:
Pressing and holding the button for 3 seconds will result in the currenly valid
buzzer tone being produced. By pressing and buttons, you may scroll through
3 available buzzer tones. The last heard buzzer tone will be automatically recorded
as the selected tone. After 6 seconds of the last button press or by pressing , the
adjustment is completed.
Brightness setting:
Pressing and holding the button for 3 seconds will result in the currenly valid
brightness setting being showed. By pressing and buttons, you may scroll through
8 available brightness setting. The last seen brightness setting will be automatically
recorded as the selected setting. After 6 seconds of the last button press or by pressing
, the adjustment is completed.
Note: Default settings are highest.
Note: Programmable options are nonvolatile and will be resident after any power
failure.
4
20
INSTRUCTION
MANUAL
